you use the last MIOS Studio version?
yeah its my bootloader burn, loaded the 452 back into the core and MIOS flashes onto it in secs!
It works? Don’t understand what it happened… you flashed your 4685 with a 452 bootloader ?
i swapped the 4685 back over to the 452 chip to test that my MIDI was correct and the core was functional and to test that MIOS would send hex over OK so I knew it wasn’t any of my ports, wiring and all that! it worked fine with the 452 but not the 4685, so I was saying that it must be my bootloader burn that is the problem on the 4685
im back onto the JDM programmer as the USB programmer I have doesn’t support 4685 (why was I not surpised, every hurdle in construction I have hit)
got a PC with serial port so its all good to start the quest to burn onto the 4685, gonna have to be with PICpgm too not Winpic800 as 4685 is not supported..i’m on it
DO WANT!!!
DO WANT!!!
??? You want some?
yes.. ofc, this looks like the next MIDIBOX i want to try to build.. Previous synth applications using TIA were on the 2600 itself, meaning ‘interesting’ but not real use for making music.. This frees it..
You’re right! Like the SID box it’s à standalone and full synth.
See dokuwiki for midi implemention chart.
I was very frustrated with synthcart, no sync, large tempo step, no midi… That´s the reason why I made It
I visit your site and watched your vidéo mix, i like It!
Yes, Synthcart (etc.) is a nice toy, and a really great project, but You end up sampling the sounds and cutting them up to make them useful.. Gone is all the lovely buzz and fortitude of using the TIA itself
The steps in pitching and the limited few tempos are understandable, but they don’t help. Also the sound palate is so limited you really get tired of it fast. I did make a MIDI - Joystick interface for Synthcart using a highly Liquid board, but it was alot of effort for not really any better results then just sampling some 2600 games in play.
MidiboxTIA is a great project, another computer bleep chip gets the full-midibox-jacket..

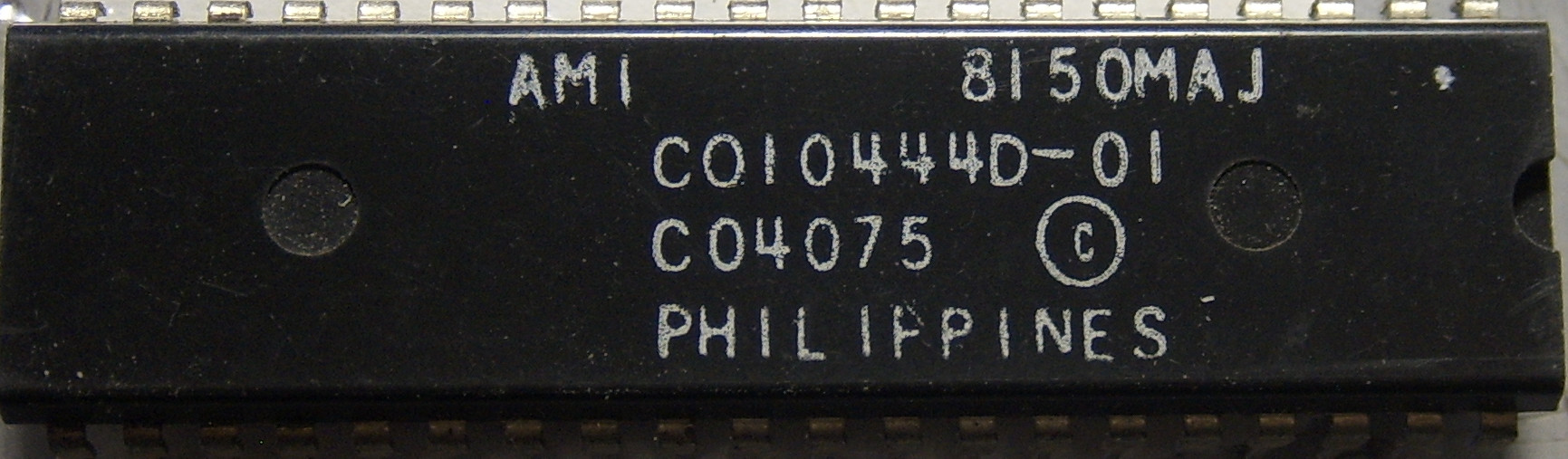

I even have a PAL 2600 ready waiting to donate it’s TIA I found a TIA in my spares box that is of excellent vintage - check this out:
Also: TU for watching the video.. You can tell i like to torture my machines
Hi everybody
i will print some boards and backplane (cartridge version) for some friends and myself.
- Mat x1
- Djo x1
- Me x3
The cartridge version:
<___base_url___>/gallery/album/196-/?do=embed
Who should be interrested?
I can solder and burn the pic for you, cause it’s an smd package.
To you to find your atari 2600, a game cartridge, connectors and others common components
Already in the list:
- Mrspring
- Yogi
- Scrubber Fox
Sorry guys when we talk about i forget the backplane which is about 15€
Tell me! And will calculate the effective total cost, but board + pic + backplane + shipping will be less than 50 €
hey! are these boards still being printed yo! let me know
wanna get this ting finished up!
Hi all,
I am still trying to get my head around this midibox stuff and wondered how you implement the LED meter? Is it an LTC module connected to the core? Also how many LEDs are supported?
Atari is on the way
I just need the info on this before I order the parts. Thanks in advance for your help.
hi Thumper,
Led bargraph is not real one, i mean this is not a sampling and integration of the audio signal, there’s two volume registers in the TIA drived by the PIC, i just use this value, one bar by register with 4 thresholds which lit the leds.
This Volume (AUDV0 and AUDV1) registers are 4 bits, so 16 level.
for each register so:
first led on when 0x01 =< AUDVx <0x07
first, second led on when 0x07 =< AUDVx <0x0b
first, second, third led on when 0x0b=< AUDVx <0x0e
all led on when 0x0e=< AUDVx
inc file attached
led handler is called on AUDVx change.
Simply that’s all
[tia_led_meter.inc](< base_url >/applications/core/interface/file/attachment.php?id=12048)
I can fab for you PCB+PIC and Backplane? <50Euros
<___base_url___>/gallery/image/2003-img-2139-2/?do=embed
Who is interested to build his own Synth in cartridge version?
Already in list:- Mat x1
-
Djo x1
-
Mrspring
-
Yogi
-
Scrubber Fox
-
Thumper
-
Me x3
Looking forward to one!
Yogi
http://www.bbc.com/news/entertainment-arts-27187582
A lot ofbox for our synth LOL
http://www.bbc.com/news/entertainment-arts-27187582
A lot ofbox for our synth LOL
LOL
HaHa dumped there out of shame. That’s classic!
I am interested in buying two in-cartridge units please. Add me to the list.
Has this project gone dormant? Still think this is the ‘missing link’ in chip-synth history, along with the STERN and WILLIAMS 80’s sound boards..
