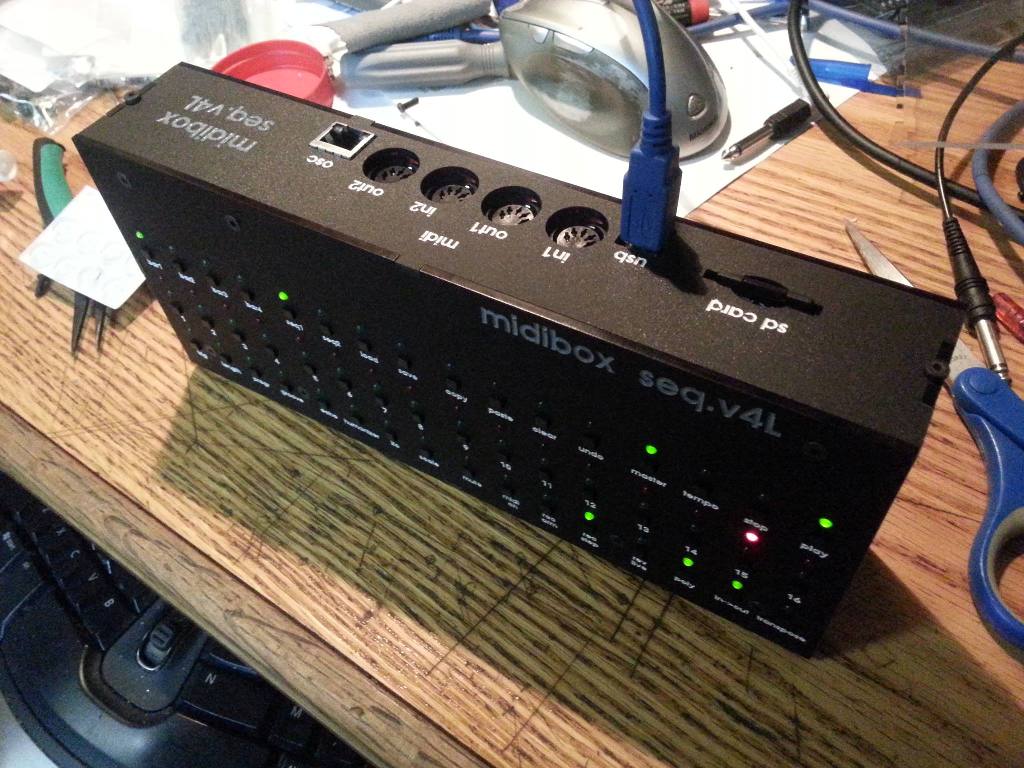

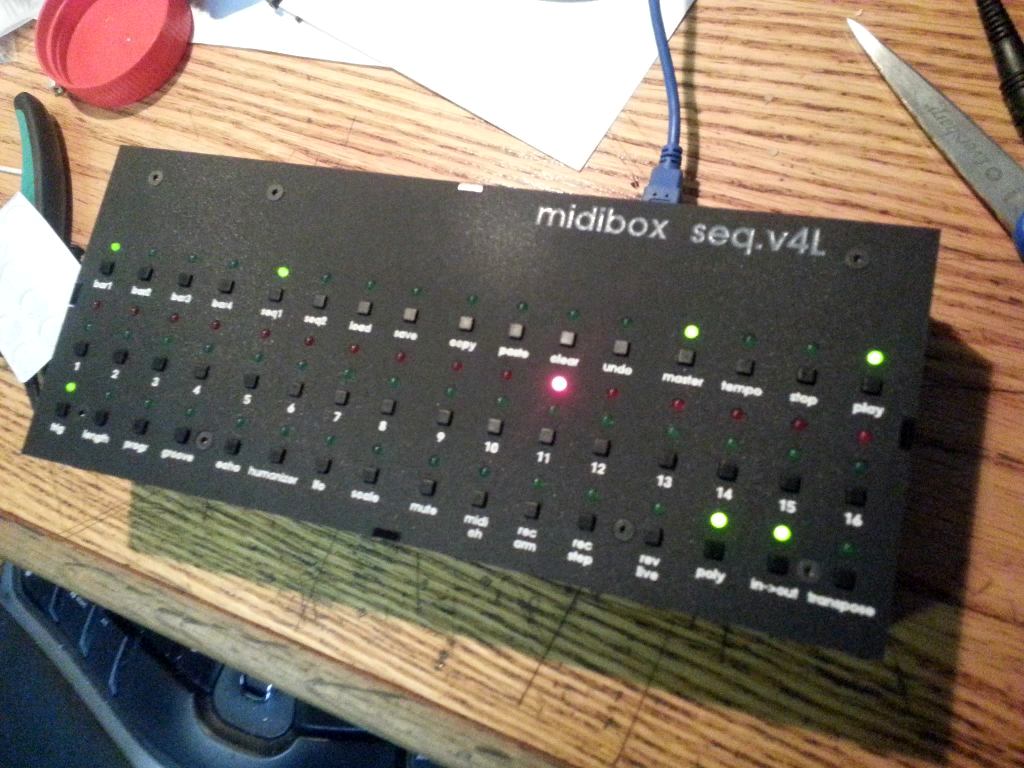

This has been on my todo list for a while but could never get a spark going to get it done until I discovered square button caps (lame, I know, but it worked). The results:
Got the case pretty much right the first time (SD card holes need to be moved back a bit) and I’ll post the part numbers, case file, and other relevant bits shortly.
Looking good - is that the minimum size of case that is possible?
yes, that was kind of my goal in this exercise, It’s just a hair bigger than the core depth wise and height wise the connections are pretty much sitting on the top of the midi connectors
Looks nice Altitude. I like the tight design.
Edit:
Just saw the new pics in the gallery. That v4L on the side looks awesome
This v4L looks dressed to kill! Nice work Altitude!
Looks nice Altitude. I like the tight design.
Edit:
Just saw the new pics in the gallery. That v4L on the side looks awesome
when i first put those on it was pretty clear that there needed to be something to fill the cutout. Solution: anti static bags, transparent when looking directly at them, silver when at an angle
when i first put those on it was pretty clear that there needed to be something to fill the cutout. Solution: anti static bags, transparent when looking directly at them, silver when at an angle
Ah ok, i thought you maybe made it with 2 pieces of acrylic behind eachother. But this is much cheaper and looks great.
Did you use the 1SBLK caps?
I used the Omron parts: http://www.digikey.com/product-detail/en/B3F-1052/SW405-ND/44068
with these caps: http://www.digikey.com/product-detail/en/B32-1010/SW451-ND/10805
Do those switches fit on the pcb nicely? The ones on the bom from reichelt just fit so so. I think the footprint is a bit off on those.
late to the show, but:
congrats, looks awesome :drool:
Many greets,
Peter
Do those switches fit on the pcb nicely? The ones on the bom from reichelt just fit so so. I think the footprint is a bit off on those.
The foot prints are definitely wrong on that board for the standard 6mm tacts. They technically fit but the vertical spacing of the pads is off so the legs get bent out at angles (you probably already discovered that), it was a pain in the ass to get them all to fit consistently enough to get everything to fit the front panel. Thankfully, the caps could be put on after the front panel is installed so that help quite a bit. I have a bunch of various 6mm tacts left over from other projects and all had the same fit as the Omron parts
Yeah, same thing here. I am basically waiting to solder them until i have a frontpanel so that i can line them up properly. But like you i have been waiting for that spark. I did generate a box a while back (can’t remember which website). But after some troubles with converting the box pdf to svg i kinda parked the project :whistle:
honestly, i dont think a front panel will help since you really have to force them in and a panel wont really help. it shouldn’t be an issue with the standard tacts, eyeballing it will be fine for those
case file posted..
Thanks for sharing Altitude!
Just ordered the altered case design from formulor. Fingers crossed i did not make any mistakes :whistle:
Got the stuff from Formulor. Looks pretty good.
<___base_url___>/gallery/image/2210-mb-seq-lite-top/?do=embed
<___base_url___>/gallery/image/2211-mb-seq-lite-side/?do=embed
Now to finish this project :whistle:
looking good
looking good
Could not have done it without you man! Thanx again.
Very nice!
Could you guys please document this case built in the Wiki?
I guess that the .svg files would also be interesting for other users!
Best Regards, Thorsten.
