USB powered Multi MIDI Thru PCB

Miscellaneous
, , ,
1

In case you are looking for an inexpensive and an easy-to-build MIDI THRU solution, Andy has built a new PCB for this job! :slight_smile:

It is good for low-latency MIDI distribution, supports normal and TRS MIDI connectors and offers a visual MIDI traffic indication using a superflux LED. Also, it is multi-chainable to 8x MIDI DIN and 6x TRS MIDI or even more outputs. Using these boards, you can extend your SEQ MIDI OUTs to drive a lot of MIDI synthesizers with minimal latency! :-).

The USB port is intended for easy portable jamming setups, or you can alternatively power it via a pinheader.

We’ve also included a build photo tutorial.
https://www.midiphy.com/en/shop-details/0/35/

Enjoy and many greets!
Peter

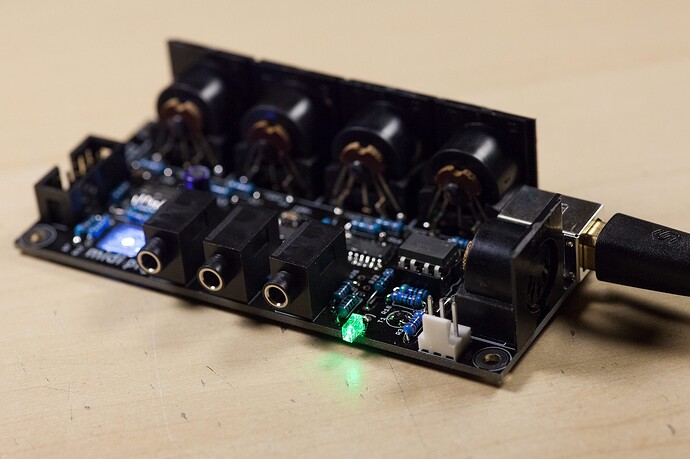

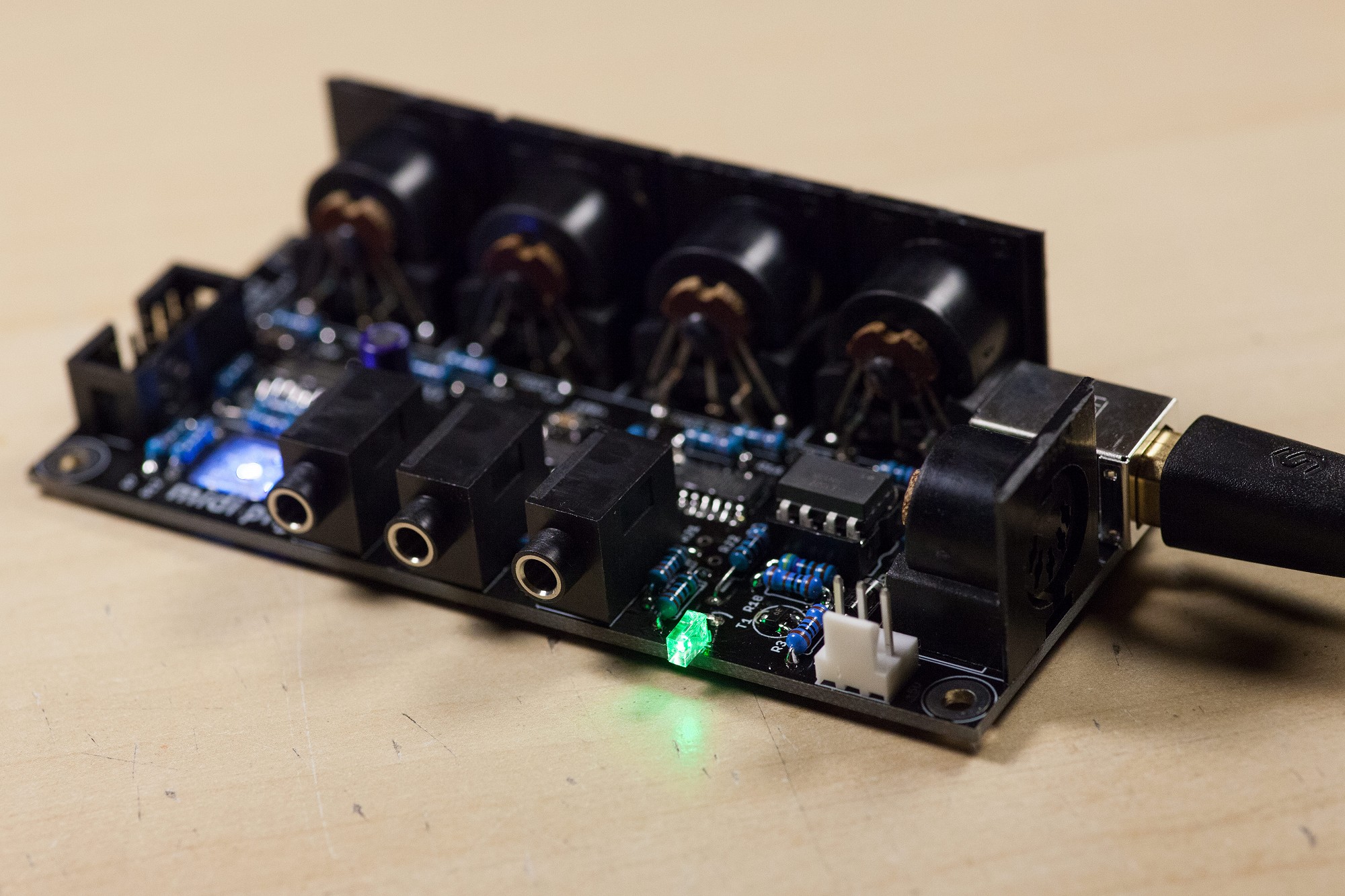

0eb3b61ee64ee90925dde22d75b05104.jpg2000×1333 536 KB

2

Great!

Why does your link first send me to Facebook? And Facebook then asks me if I really want to leave?

3

Thanks for reporting this! The link should be fixed now, sorry!

Many greets!
Peter

4

True - thanks for fixing that!

5

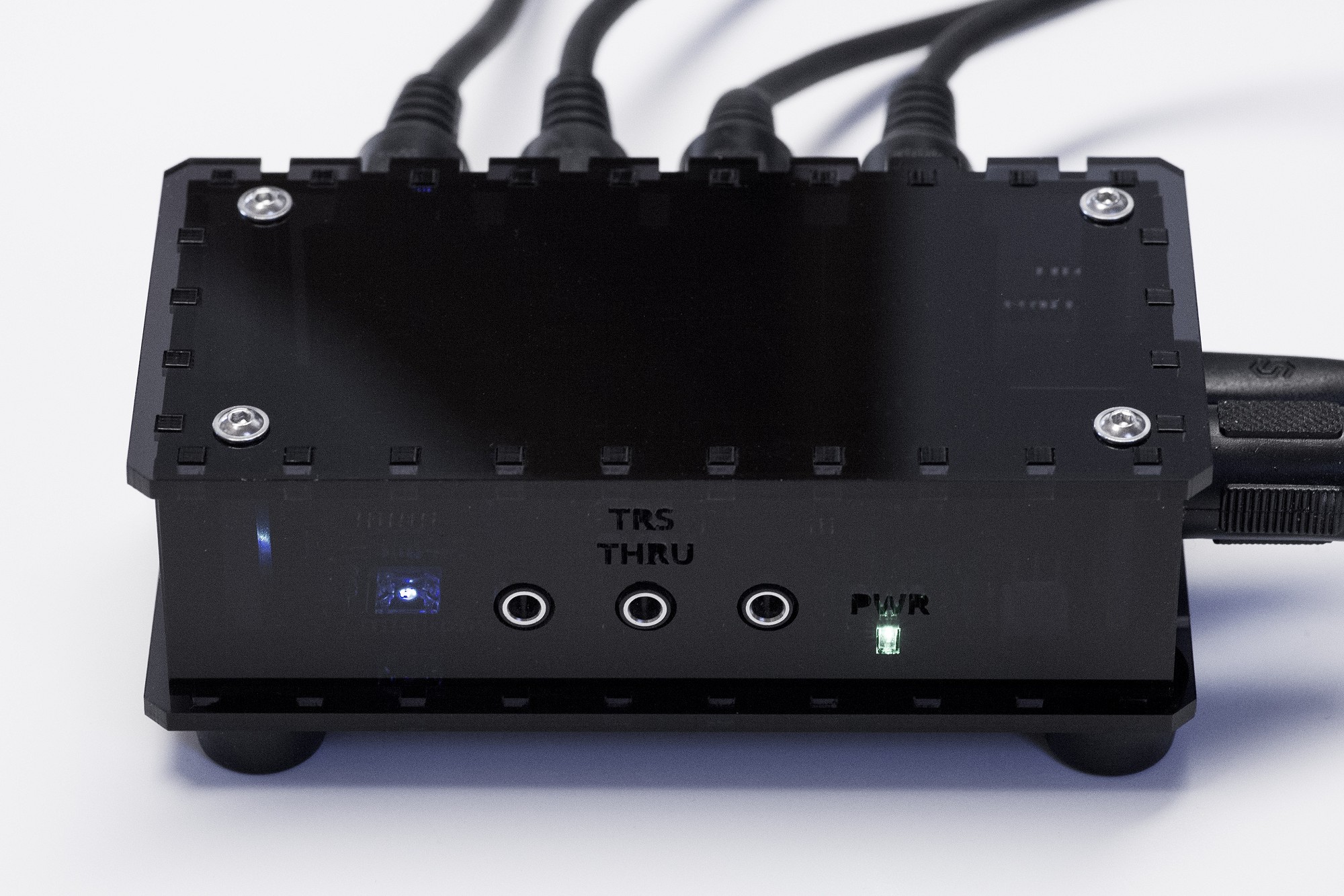

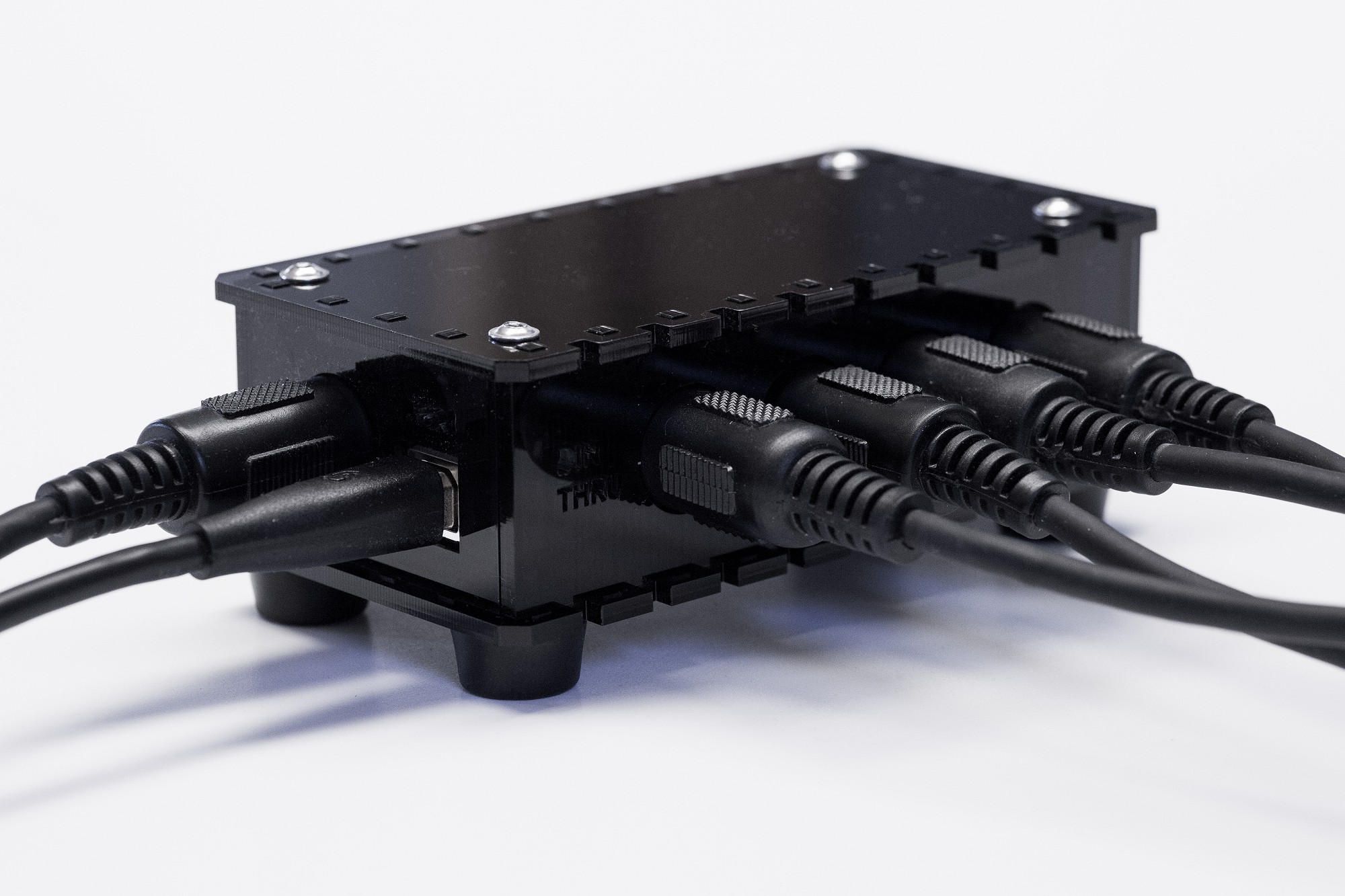

As a follow-up, acrylic cases for the MIDI THRU PCB are now finally available:

https://www.midiphy.com/en/shop-details/0/64

Have a nice weekend and many greets!
Peter

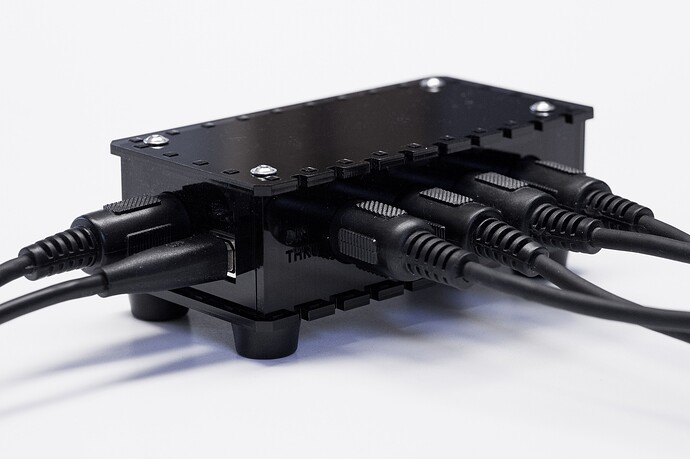

2ba474d741236b9d3ba729f864a2a8d7.jpg2000×1333 378 KB
