MINI-DIN

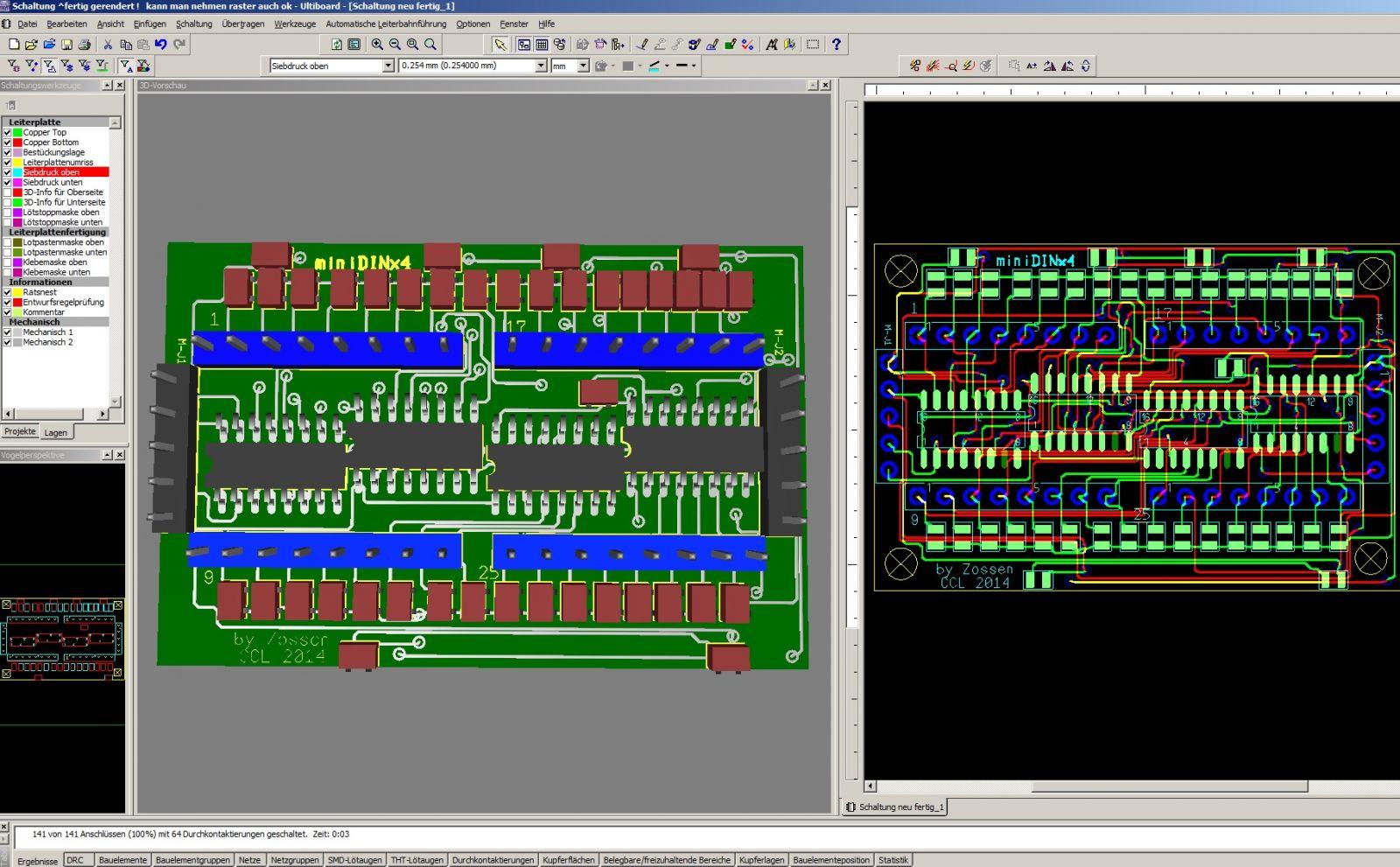

DINx4 in smd
33x50mm ( it fits behing 1 HE )
and six modules are on a 10x10 cm PCB ( 192 DIN-Pins )
The IC’s and the Resistors will be soldered by the PCB-Company

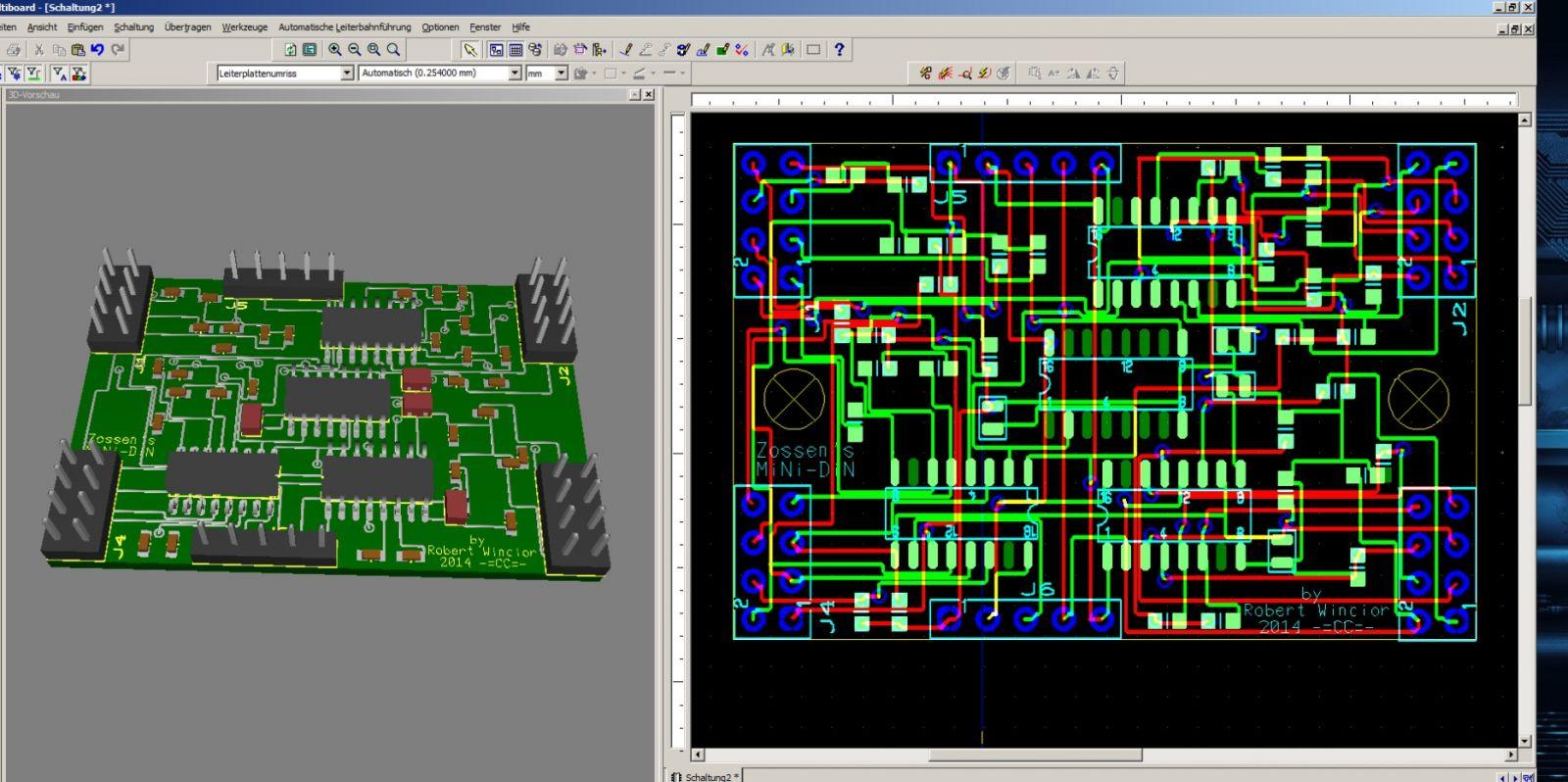

miniDIN
working DIN4

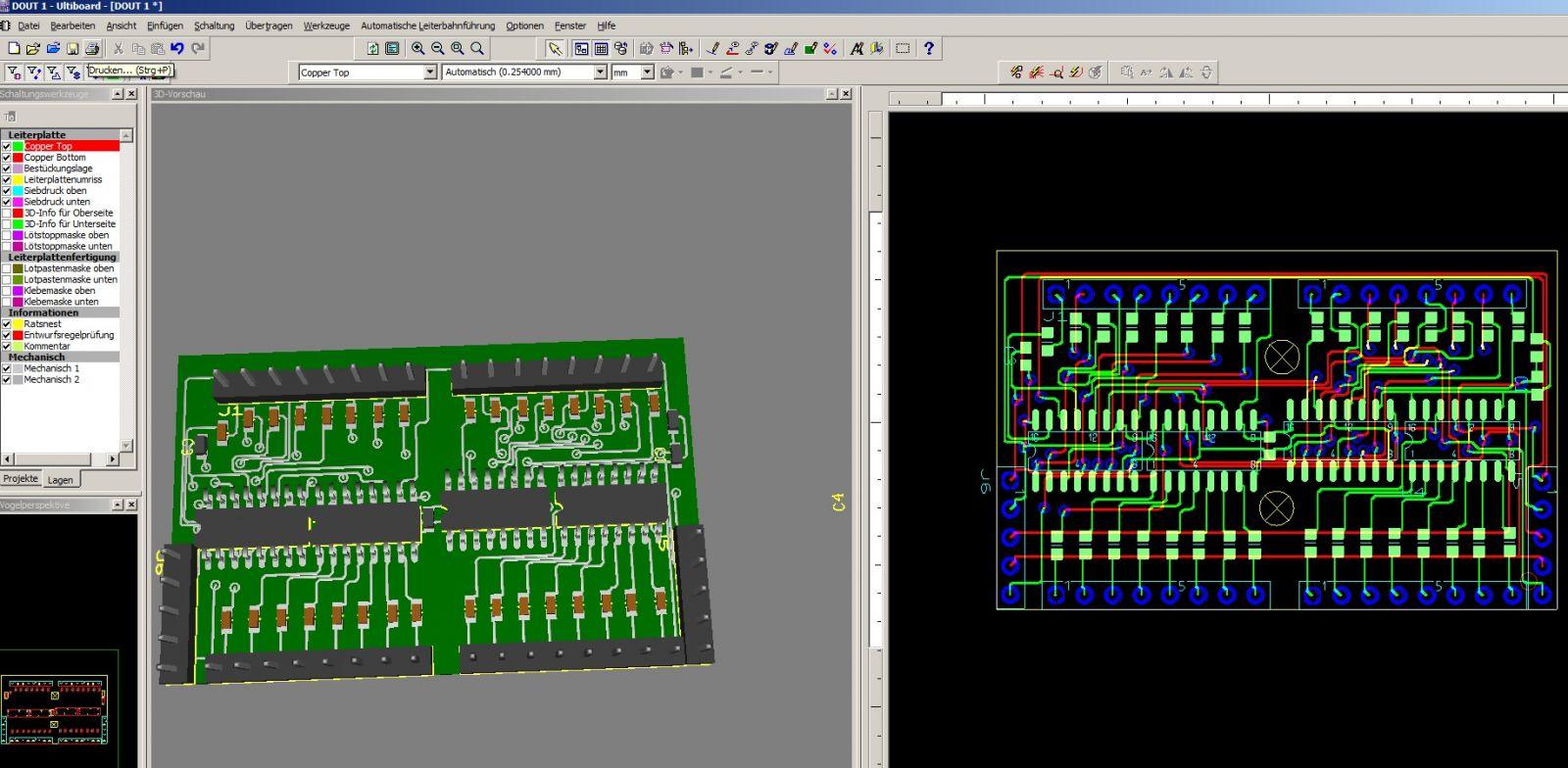

schaltung mini-doutx4
schaltung mini-doutx4
