V01.0 is up and Running >>> [160117_TM4BLM_V01.0.zip](< base_url >/applications/core/interface/file/attachment.php?id=12524)
old versions:
BLM-Scalar-Communication: BLM-UI @ skelleton level… no Midiprocessing @ all but some basic Matrix-Userinterface Code (for programmers only…stripped down a bit…)>>> 160110_blm_scalar_communication.zip
first a view vocables:
TM short for TriggerMatrix? >
BLM16x16x short for ButtonLedMatrix? >
Usage? >
The Trigger Matrix is the Midi-Center in my Live-Music-Equipment, it interconnect follwing Device-groups:
I will remote my Triggermatrix-Project via the BLM16x16x, they are comunicating together via Midi:

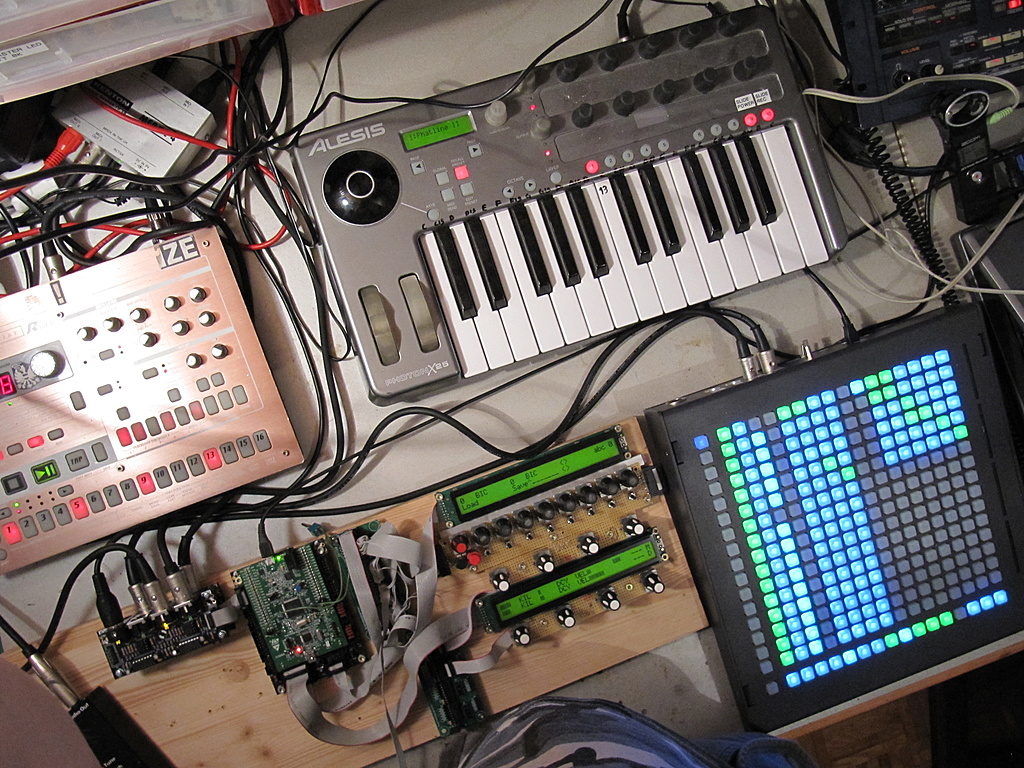

Programming-Equipment:

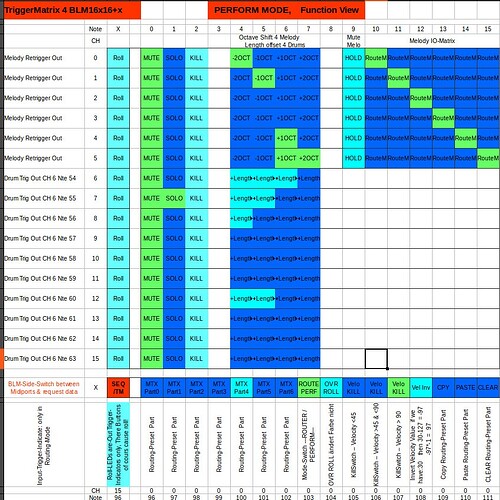

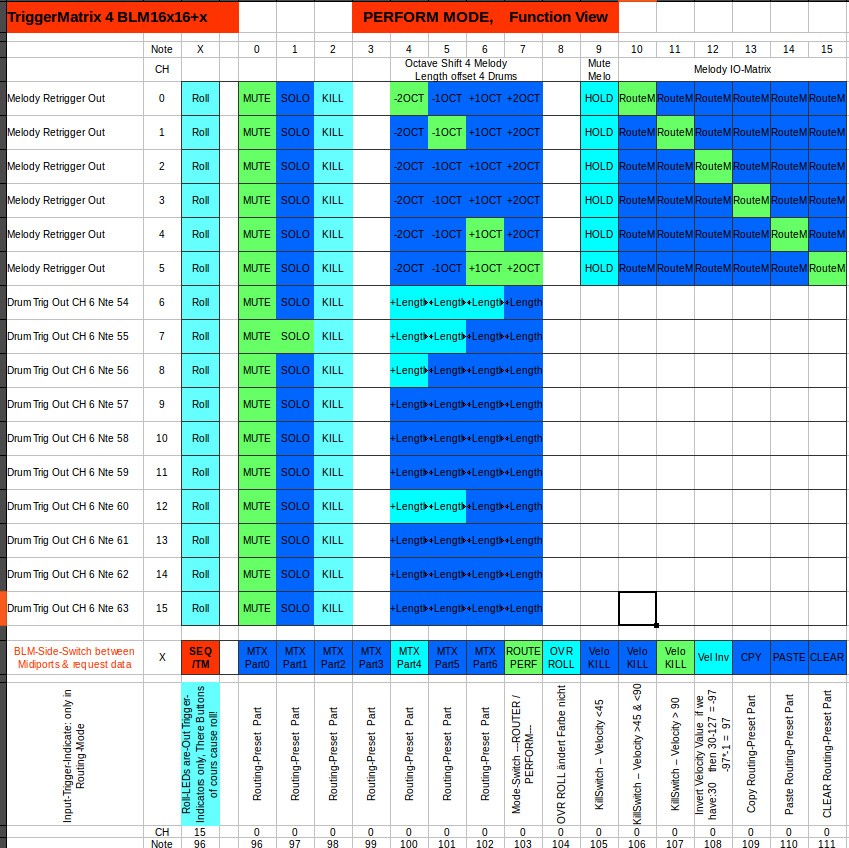

BLM Layout 4 the Perform-Mode, the 2nd Mode is the EDIT-Mode, where i can change the Trigger-Routing (not displayed here)
Melody Retrigger, take the incoming Melody Notes from the Keyboard and trigger it with the Incoming DrumTriggers
Drum-Trigs are simple Trigger-Routes
The 4 Pots on the BLM are not used (since i removed them)
2x 2x40LCD + 17 Encoders + 2 Buttons are the UI 4 the TM, the rest is controlled via BLM
thx to TK and his BLM-Driver… it works simple and fast as hell now… also code is reduced much…factor 50 or more…
work in process

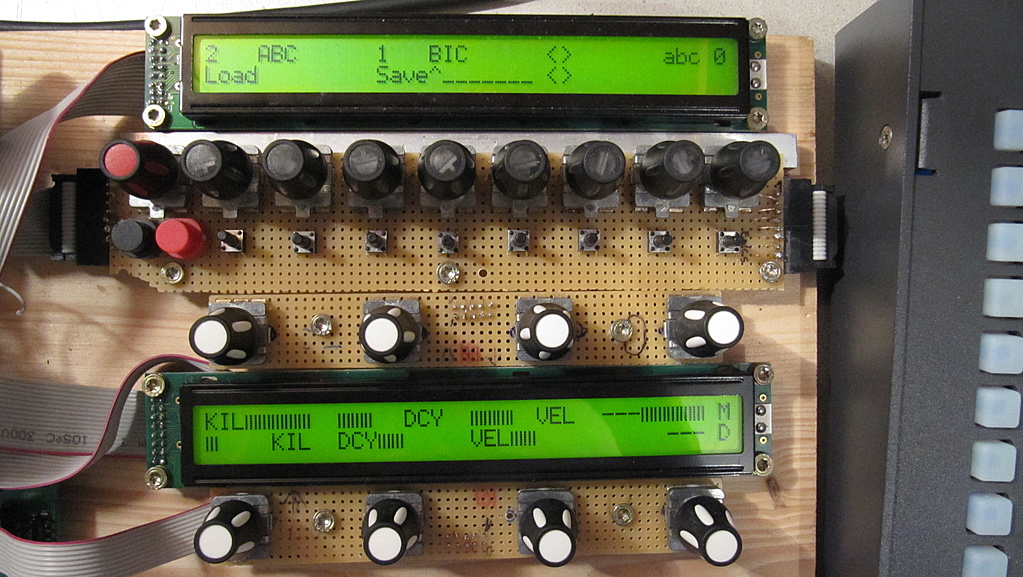

UI-Updates on the TriggerMatrix-Side:
from a bulk-order i have more then enough 2x40? LCDs…good point to make something with it

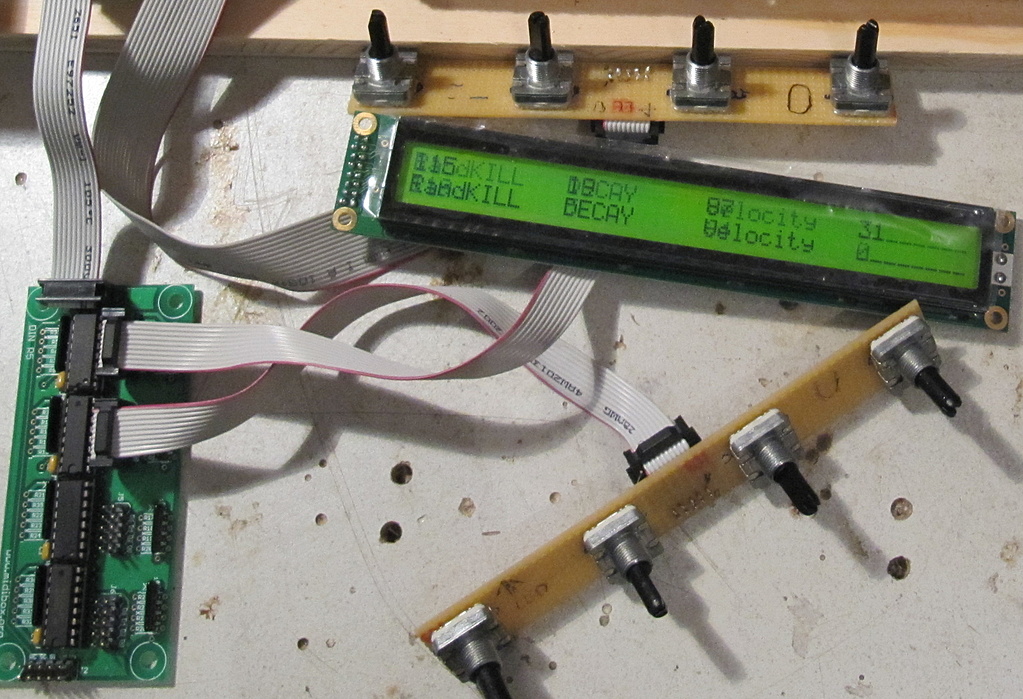

use this crimp-able Connectors:
1st Display (up), Deep edit things - like give the track a name, or change the ProgramChange-Bank, or load tracks, or LiveSets (in Future)
2nd Display (down), Fast Access -Performance, like Random-Kill, Decay-Time, Velocity Offset - there are 2x4 Encoder because, i split the whole output-Matrix in 2 Parts:
Line0: Melody Retrigger-Parts (Bass, Lead, Space Synths, Samplers)
Line1: Mono Retrigger-Parts (for Drums, Filters usw)
i want to perform them separately, with much space for my fingers…a 2x4 LED-Bar-Encoder Board would be nice instead!
since i had a MB-SEQ-CS-PCB many years now - unused, without any case or frontpanel…
i decidet to hold it and use it
i programm now a TriggerMatrix version for a more generic UI… so other people can “reUse” it, i skip my prototype UI.
BLM16x16+x ( )
MB-SEQ-CS ( )
MB-LRE8x2CS ( )
To adapt my code i had to find out the pin-out of the new UI… here is the result:
| TriggerMatrix @ Generic |
| | | | | | | MB-SEQ CS |
| SEQ | | | | MENU – ENCODERS |
| 62 | | 54 | | ENC | 0 | | 1 | | 2 | | 3 | | 4 | | 5 | | 6 | | 7 | | 8 | | 9 | | 10 | | 11 | | 12 | | 13 | | 14 | | 15 | |
| 59 | 50 | SR | 1 | | 1 | | 1 | | 1 | | 3 | | 3 | | 3 | | 3 | | 4 | | 4 | | 4 | | 4 | | 5 | | 5 | | 5 | | 5 | |
| SWING | | PIN | 6 | | 4 | | 2 | | 0 | | 6 | | 4 | | 2 | | 0 | | 6 | | 4 | | 2 | | 0 | | 6 | | 4 | | 2 | | 0 | |
| 63 | | 55 | | |
| 58 | 49 | ENC | 16 | JOG | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| ROUTE | FullVel | SR | 6 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| 46 | | 38 | | PIN | 2 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| 57 | 34 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| CC | SetVel | | | BLM+x |
| 47 | | 39 | | | | 32 | 33 | 40 | 41 | 48 | 49 | 56 | 57 | 24 | 25 | 16 | 17 | 8 | 9 | 0 | 1 |
| 56 | 33 | | | 39 | 38 | 37 | 36 | 47 | 46 | 45 | 44 | 55 | 54 | 53 | 52 | 63 | 62 | 61 | 60 | 31 | 30 | 29 | 28 | 23 | 22 | 21 | 20 | 15 | 14 | 13 | 12 | 7 | 6 | 5 | 4 |
| | | | | | | Intro | Vel-Inv | QntRec | Swing | Copy | Paste | Clear | | | <Move | Move> | STORE | LOAD | Qnt16 | Qnt32 | Qnt64 |
| Kill Hi | Set Hi | | | 35 | | 42 | | 43 | | 50 | | 51 | | 58 | | 59 | | | | | | 26 | | 27 | | 18 | | 19 | | 10 | | 11 | | 2 | |
| 14 | | 30 | | | | 35 | | 43 | | 42 | | 51 | | PAGE | | | | | | | | | | | | | | | | | | |
| 10 | 26 | | | | | | | Copy | Paste | Clear | | BEAT | | | STOP | PLAY | REC | < | > | < > |
| Kill Mid | Set Mid | | | 37 | | 44 | | 45 | | 52 | | 53 | | 60 | | 61 | | | 1 | | 28 | | 29 | | 20 | | 21 | | 12 | | 13 | | 4 | |
| 15 | | 31 | | | | 0? | | 41 | | 40 | | 48 | | FOCUS | | | | | | | | | 18 | | 19 | | 11 | | 3 | | 2 | |
| 9 | 25 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| Kill Lo | Set Lo | | | MB-LRE8x2 CS 2.5 in seriell to MB-SEQ CS Wilba | | | | | | | | | | | | | | | |
| 6 | | 22 | | | | ENC | Kill_M | Dcy_M | Vel_M | | | Delay | Swn16 | Swn32 | | | | BTN | | | | | | | | | |
| 8 | 24 | | | SR | 7 | | 7 | | 8 | | 8 | | 9 | | 9 | | 10 | | 10 | | | | | LED | | | | | | | | | |
| | | | | | | PIN | 0 | | 4 | | 0 | | 4 | | 0 | | 4 | | 0 | | 4 | | | | | | | | | | | | | | | |
| | | | | | | ENC | Kill_D | Dcy_D | Vel_D | Kill_T | FullVel | Vel_Lo | Vel_Mi | Vel_Hi | | | | | | | | | | | | | | |
| | | | | | | SR | 7 | | 7 | | 8 | | 8 | | 9 | | 9 | | 10 | | 10 | | | | | | | | | | | | | | | |
| | | | | | | PIN | 2 | | 6 | | 2 | | 6 | | 2 | | 6 | | 2 | | 6 | | | | | | | | | | | | | | | |

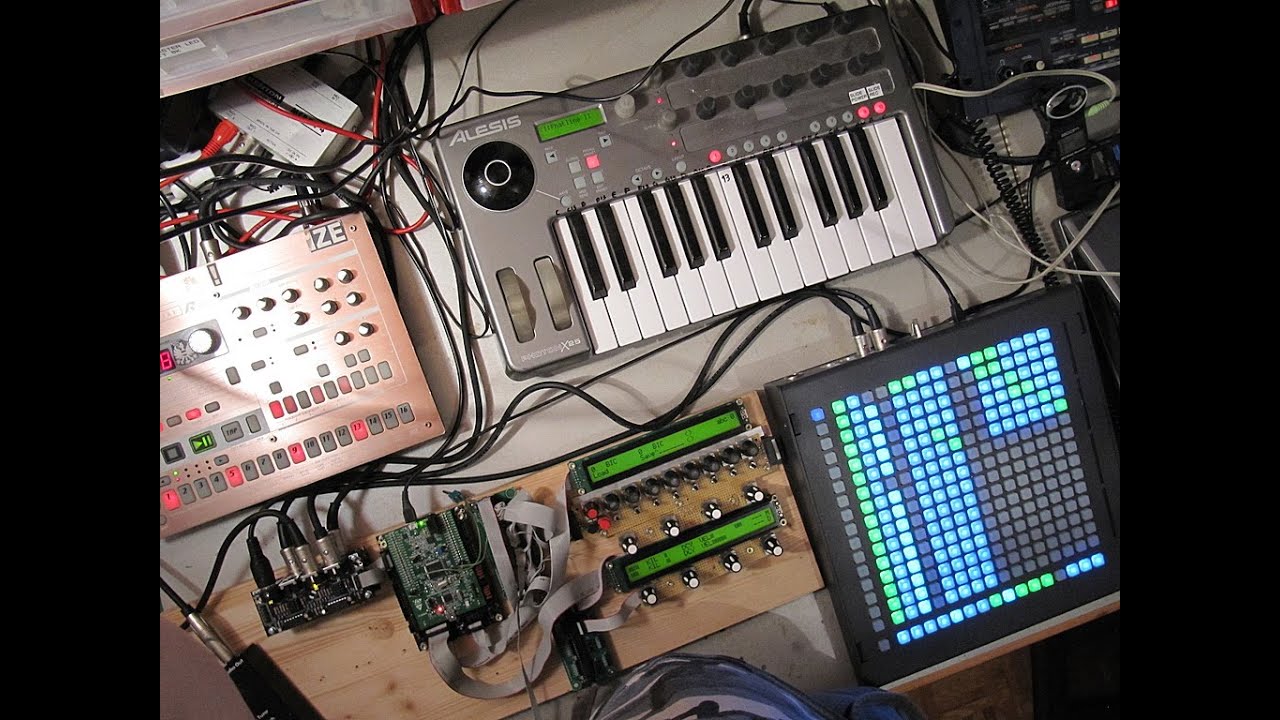

programming setup:

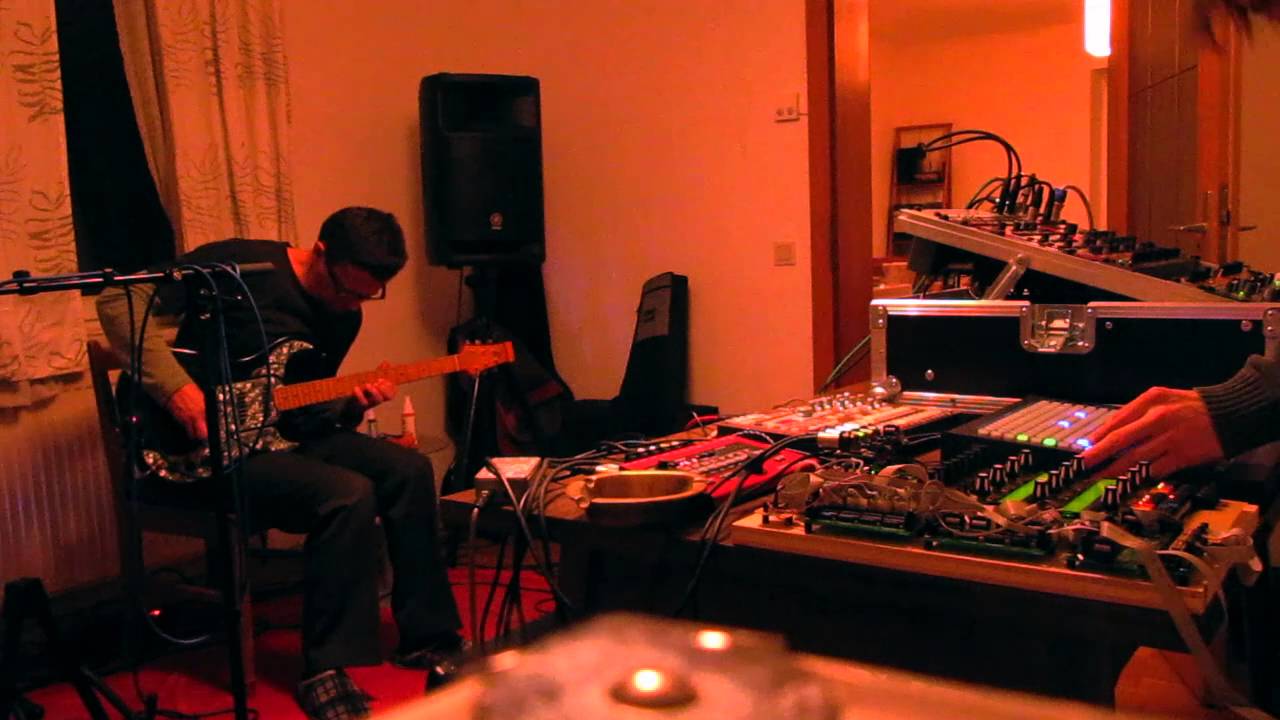

a jam session with the old UI:
Triggermatrix as DrumSequencer, Trigger-Router, Melody-Retrigger > Soundengine: Nord3(efx), NordDrum2, KorgER2
2x Boss RC300 as Loopstation for Melody Loops (Subouts are routed to my filterdistortionADR-Drumtriggered-device…)
LiveGituar on a Gutiarsynth RC20 (that makes them etnical sounds, no not the drums they are typical NordDrum2 yesss)
Looks like a really nice setup! Also good work on the BLM reimagination.
