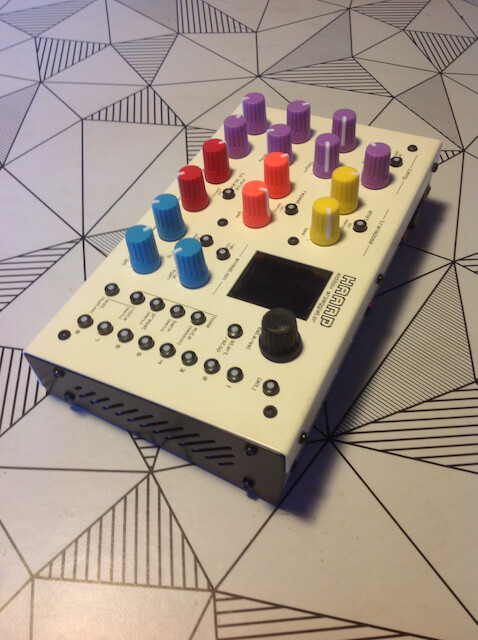

Hardware Advanced Arpeggiator

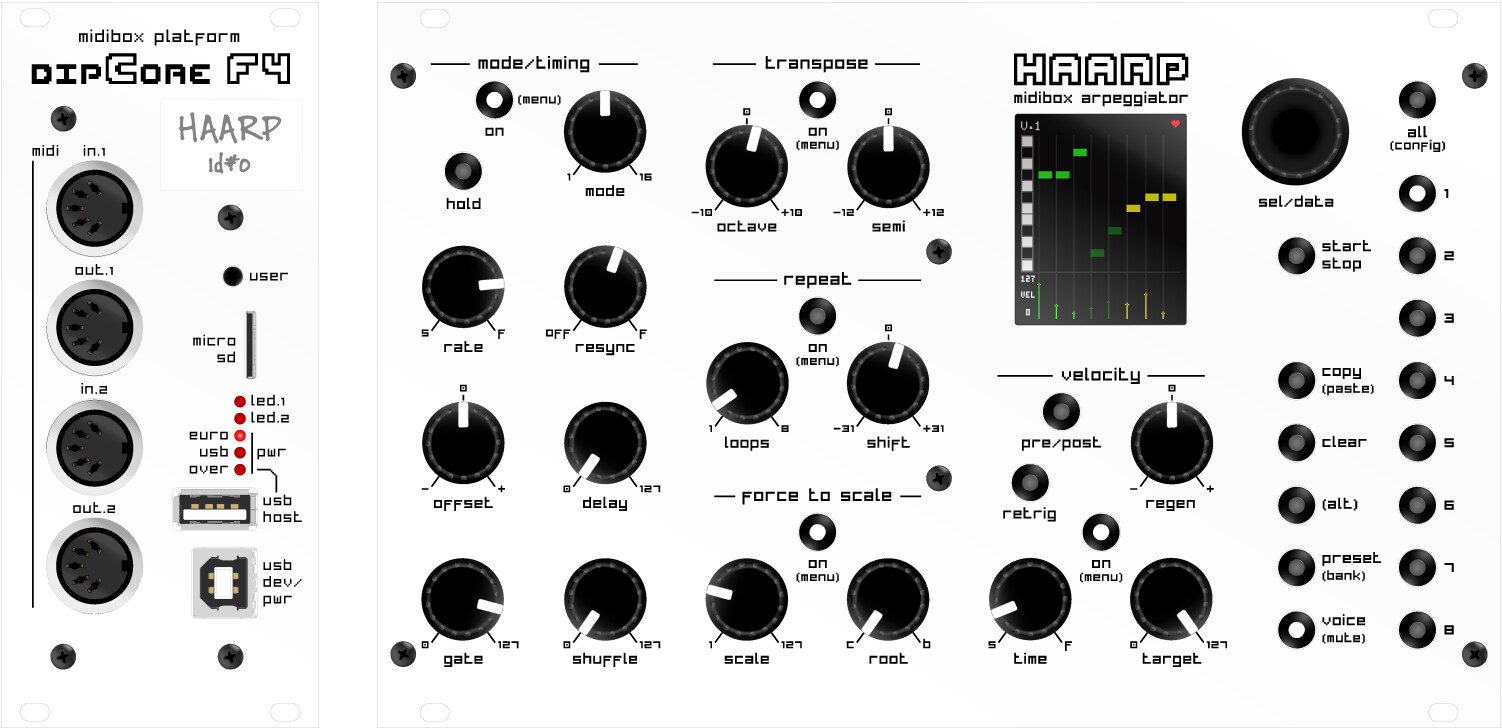

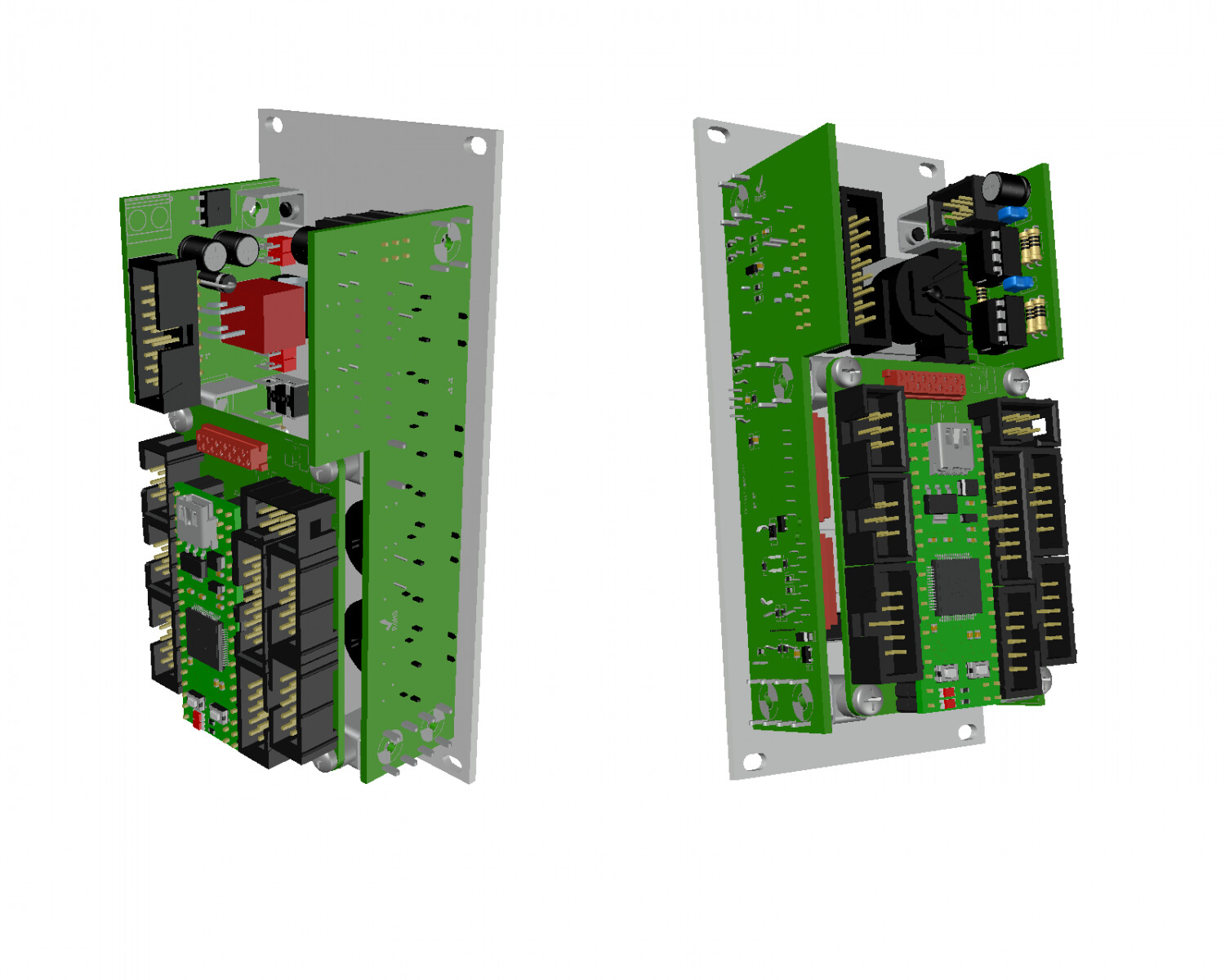

The HAARP CS in eurorack version with the Core Module.
/topic/21141-the-haarp-an-hardware-advanced-arpeggiator/?do=embed&embedComment=184453&embedDo=findComment#comment-184453">

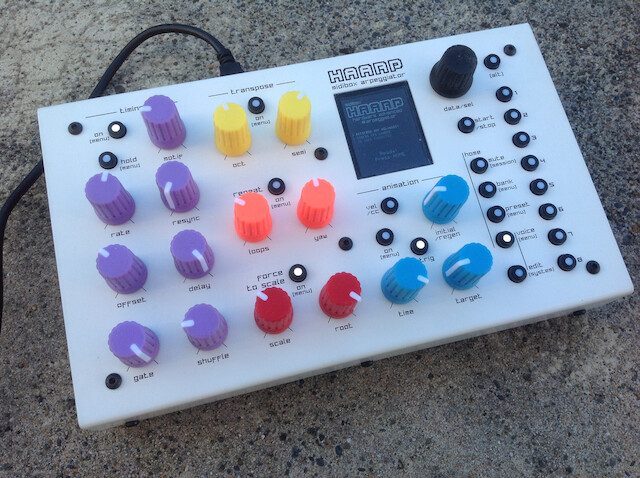

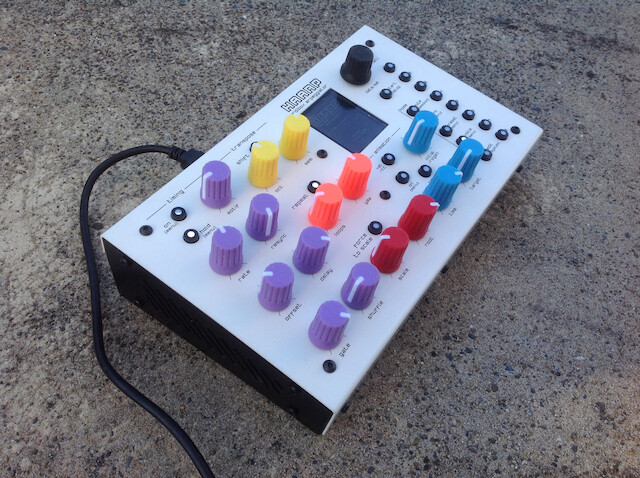

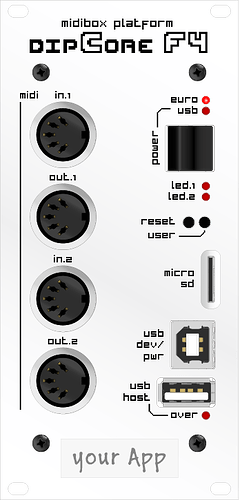

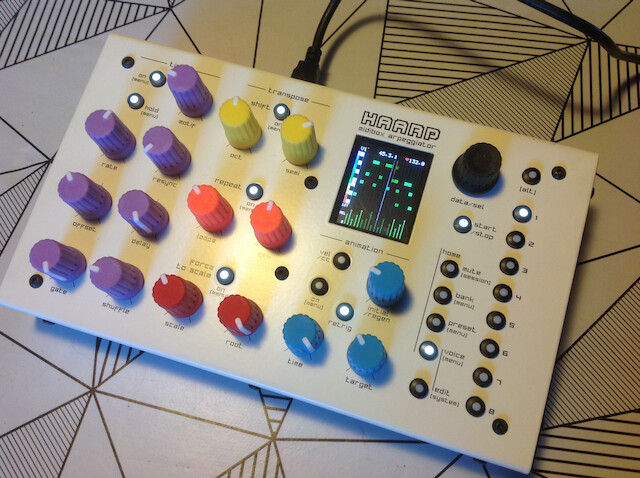

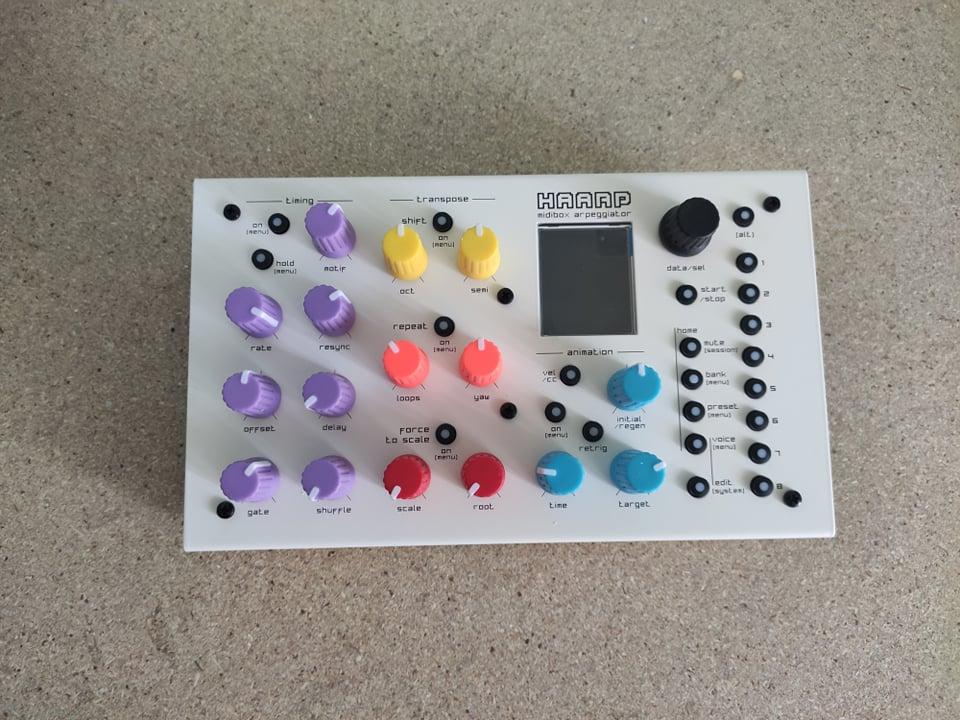

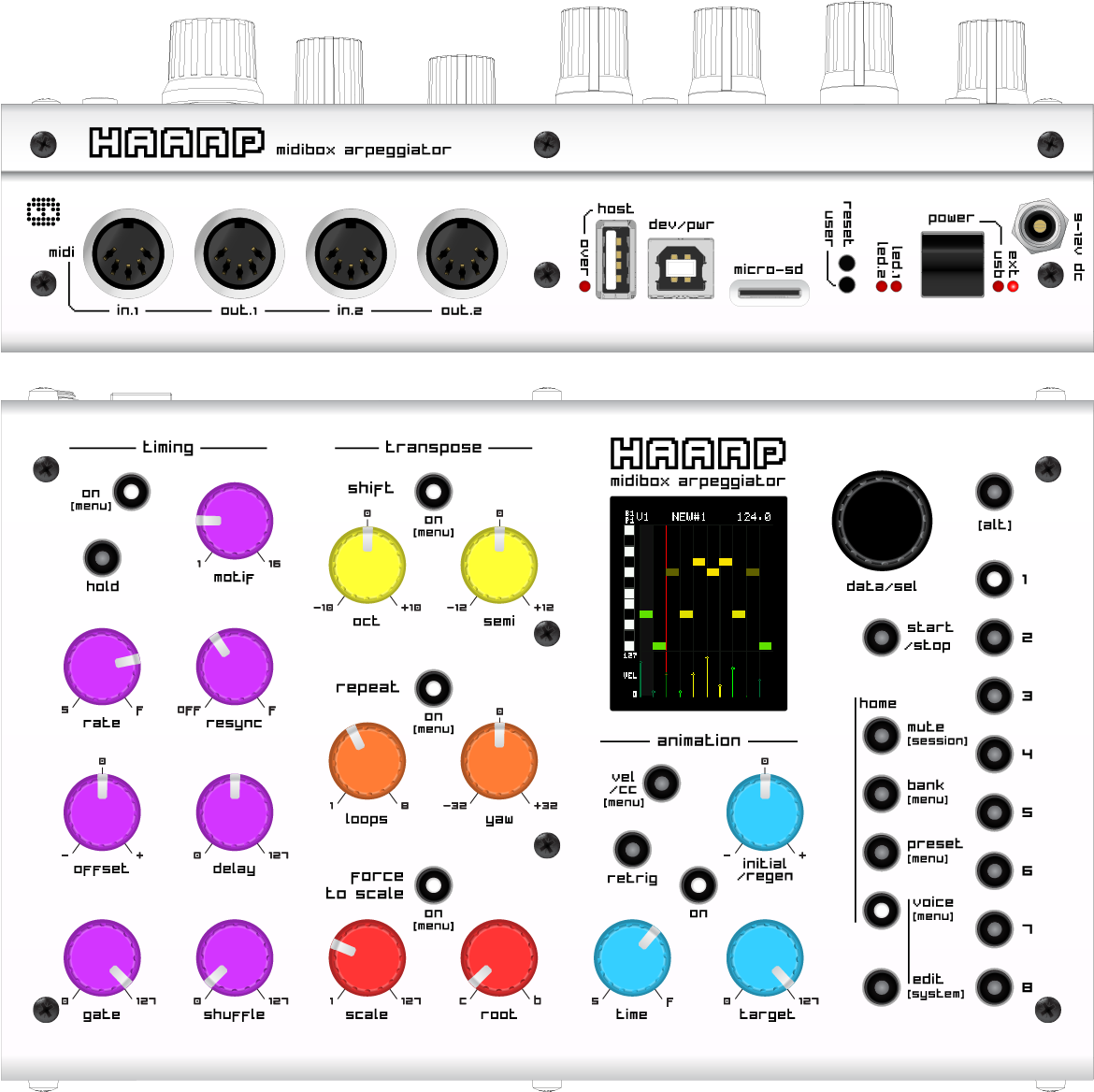

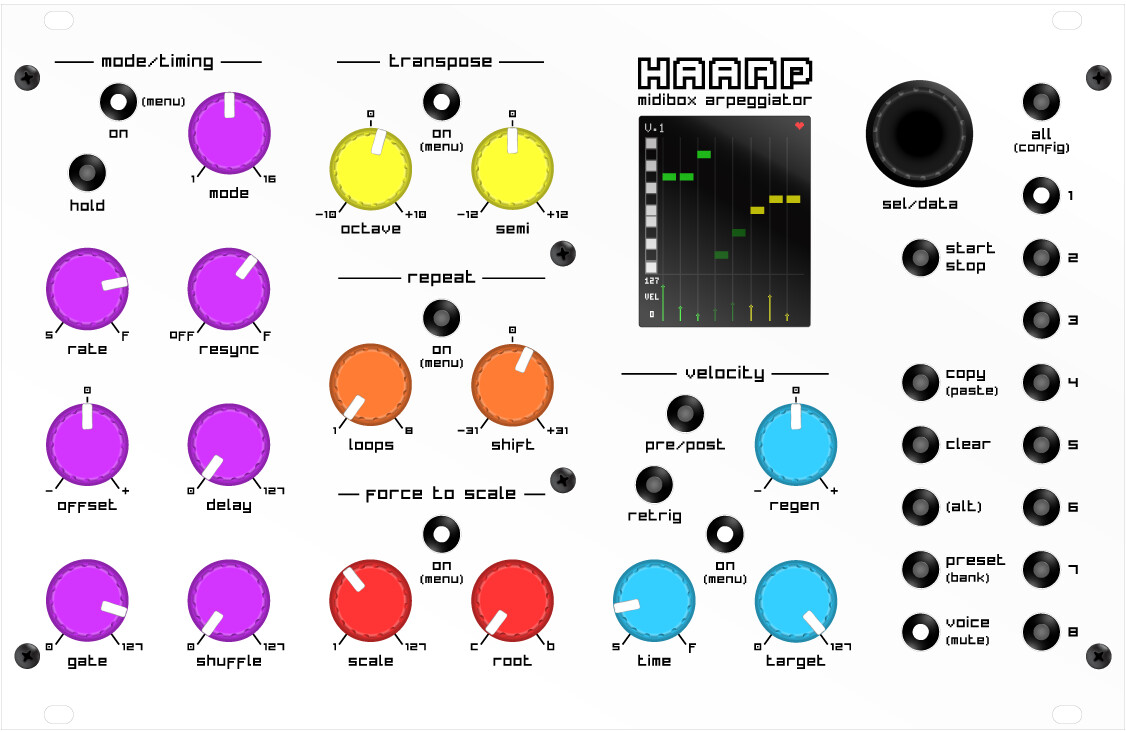

The HAARP, The Front Panel Layout
/topic/21141-the-haarp-an-hardware-advanced-arpeggiator/?do=embed&embedComment=184453&embedDo=findComment#comment-184453">

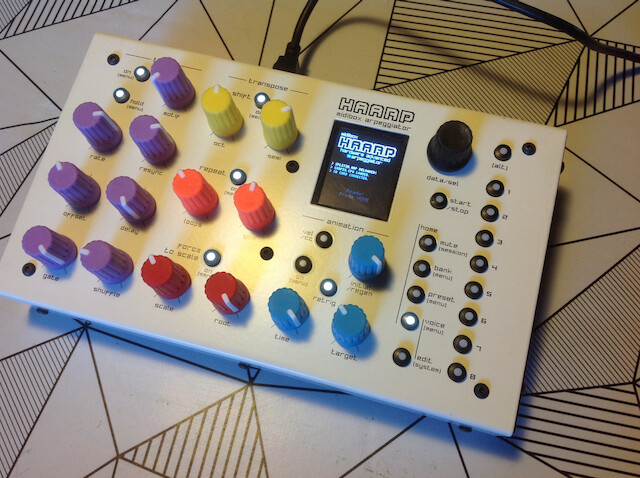

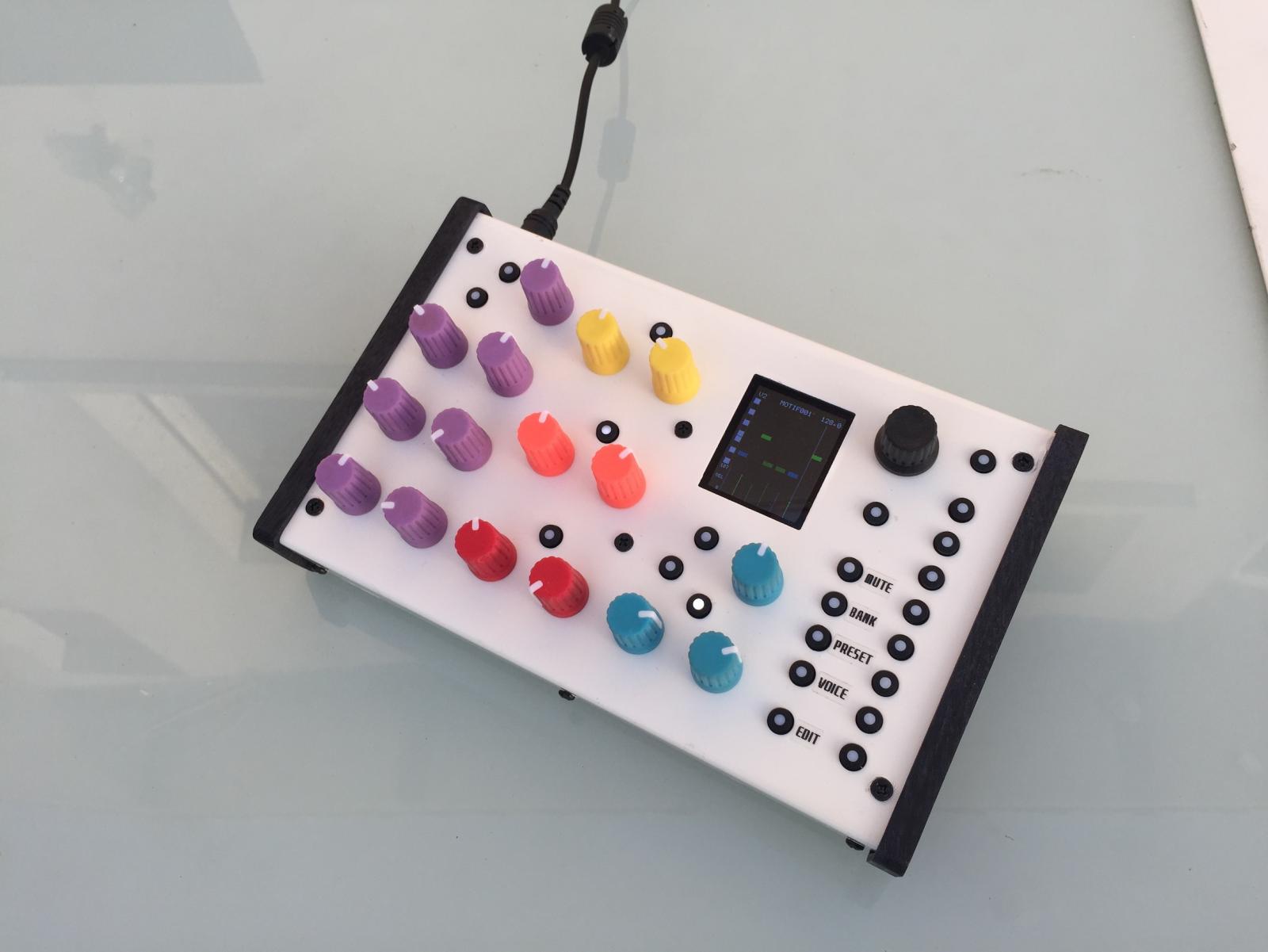

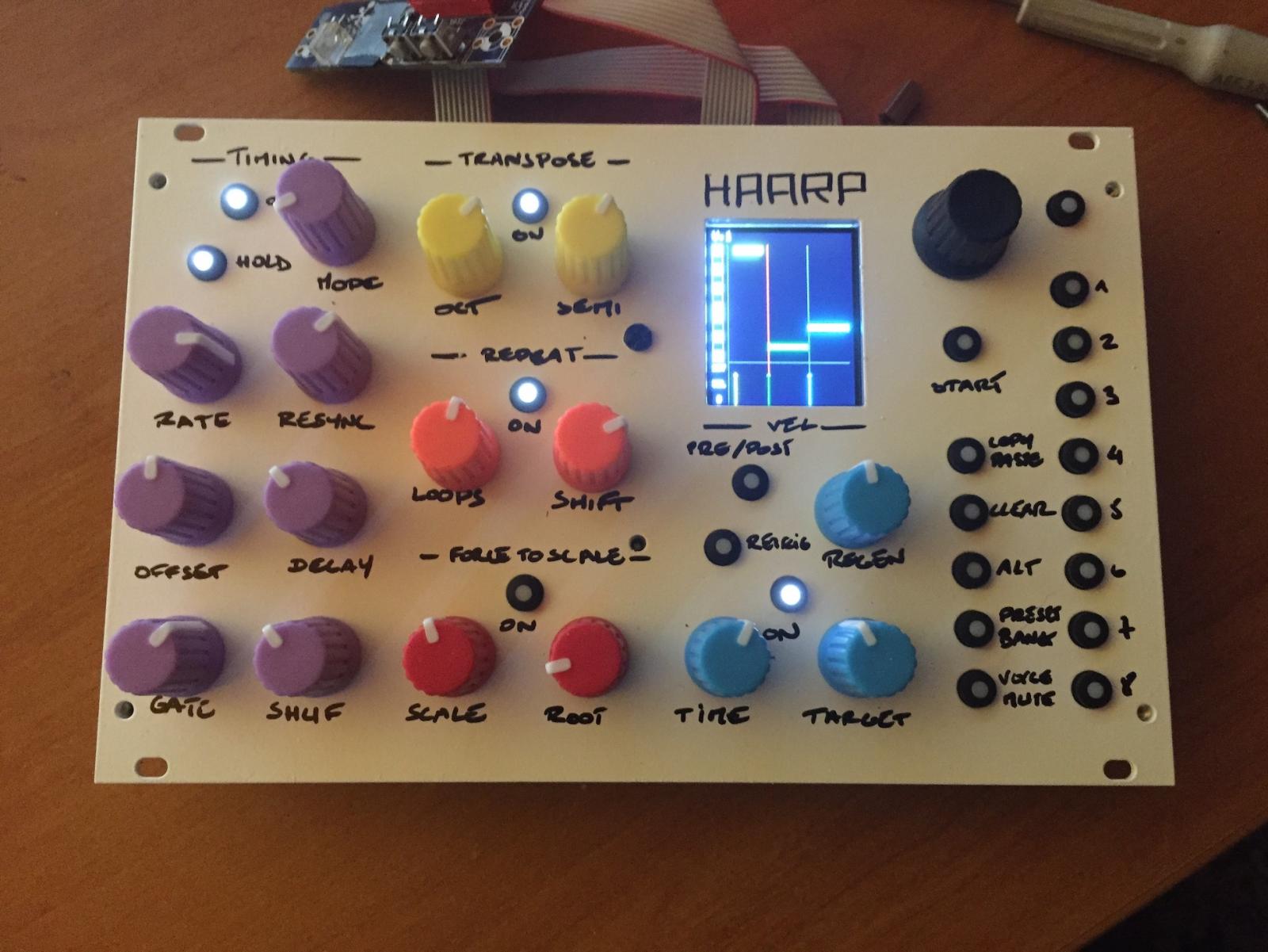

The HAARP Prototype #001
/topic/21141-the-haarp-an-hardware-advanced-arpeggiator/?do=embed&embedComment=184453&embedDo=findComment#comment-184453">
CAN Transceiver added.

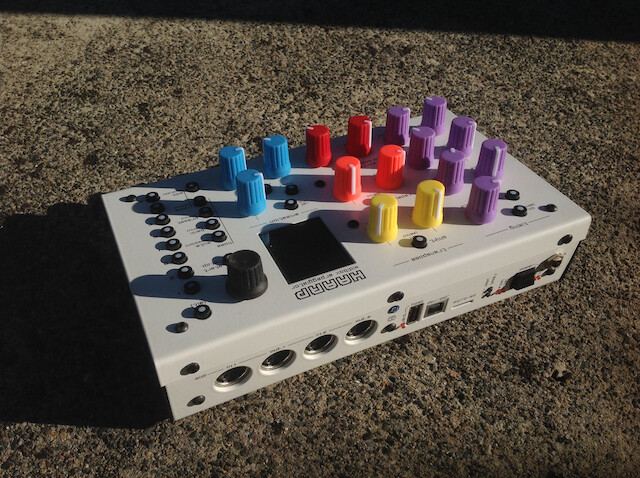

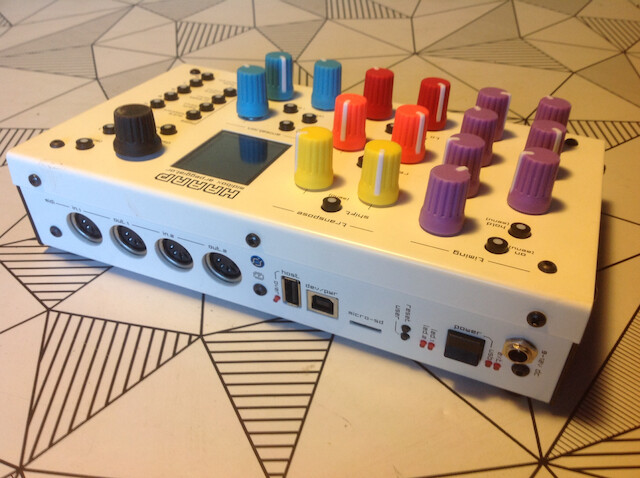

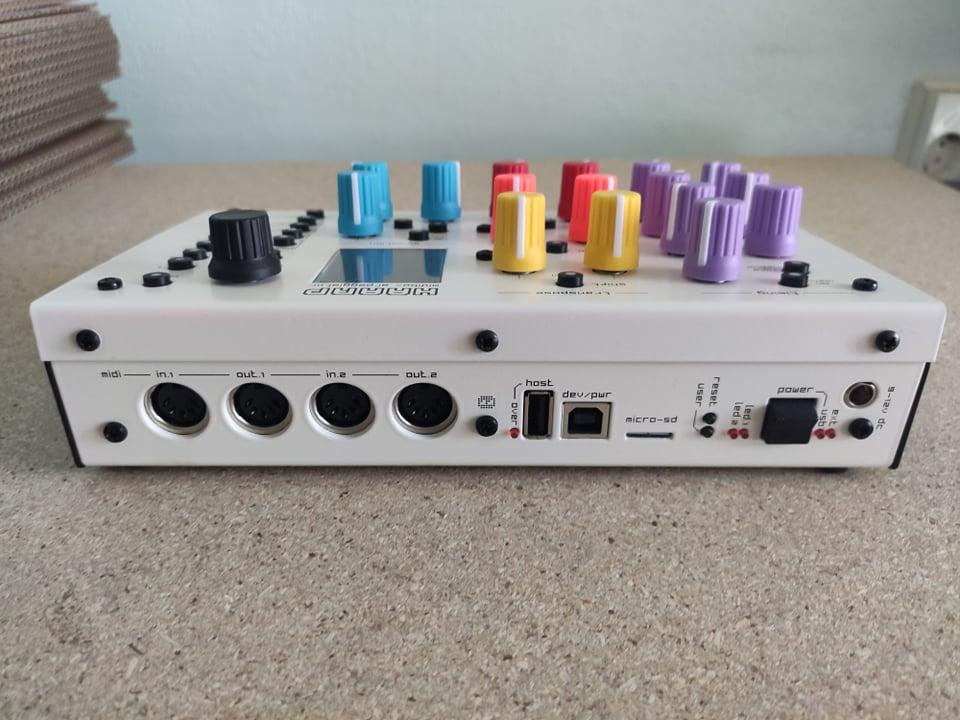

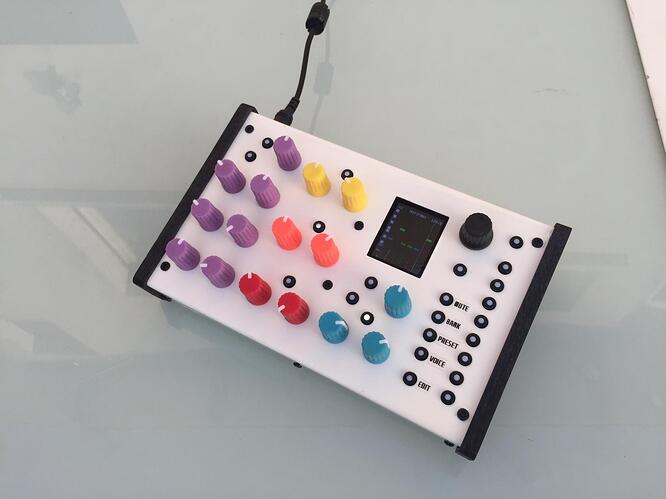

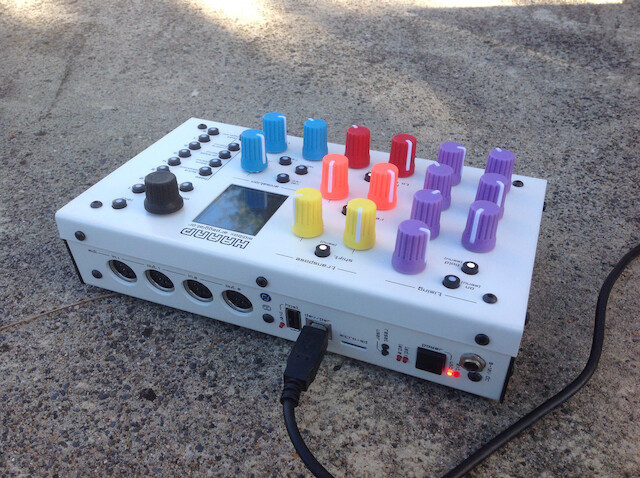

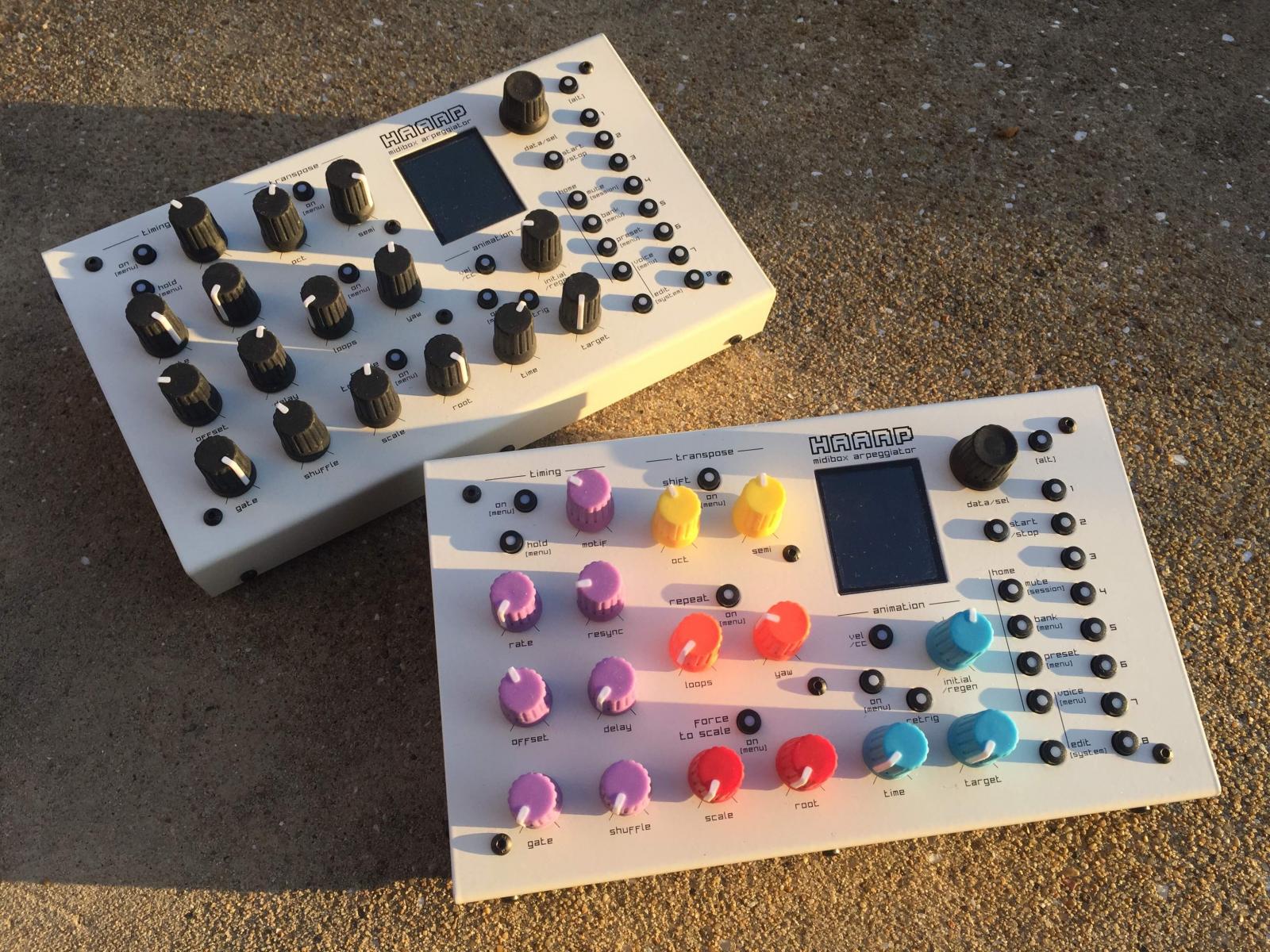

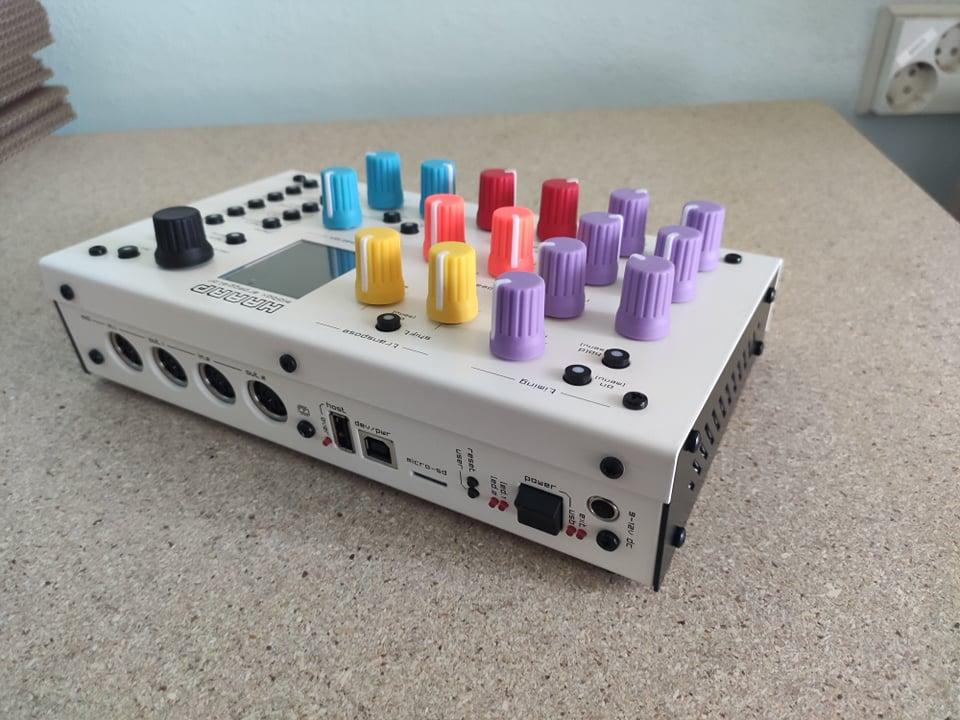

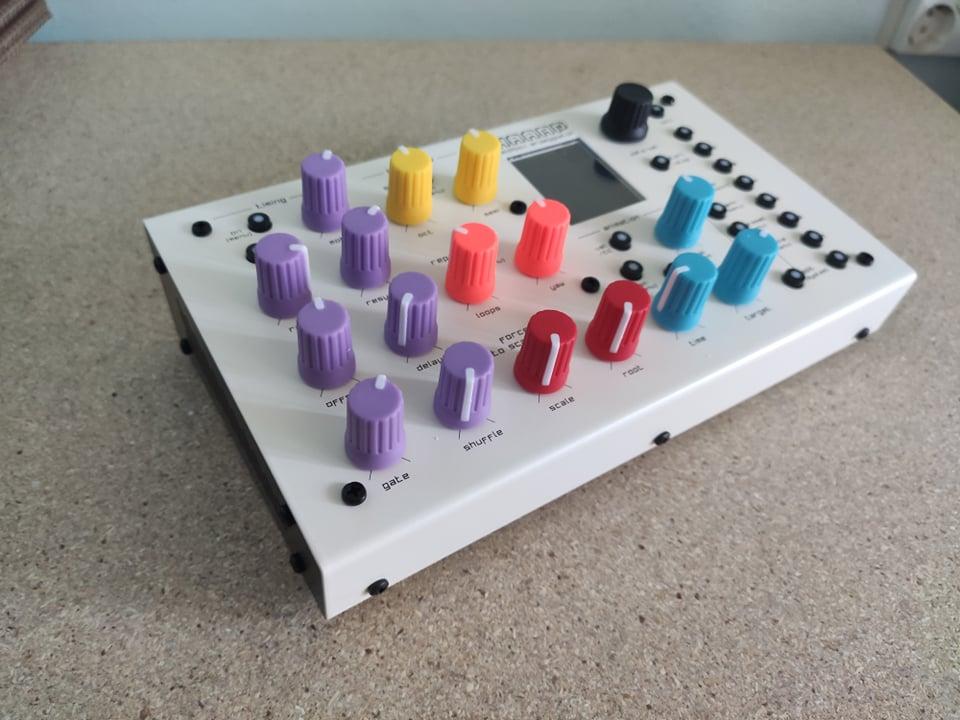

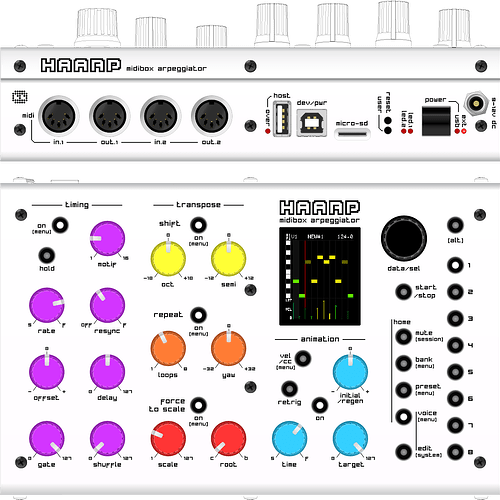

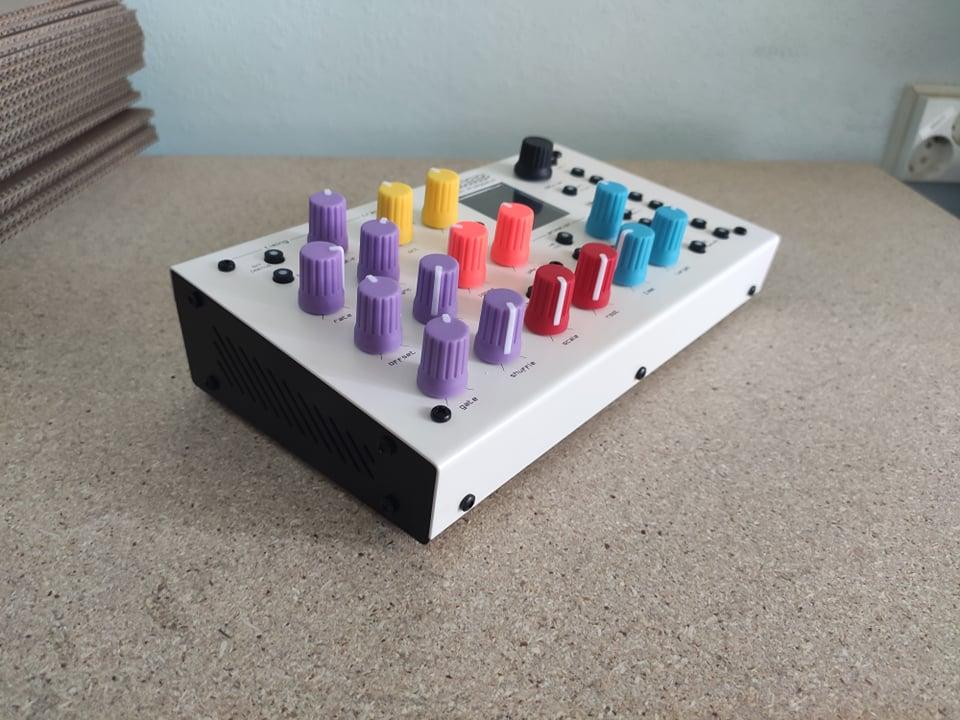

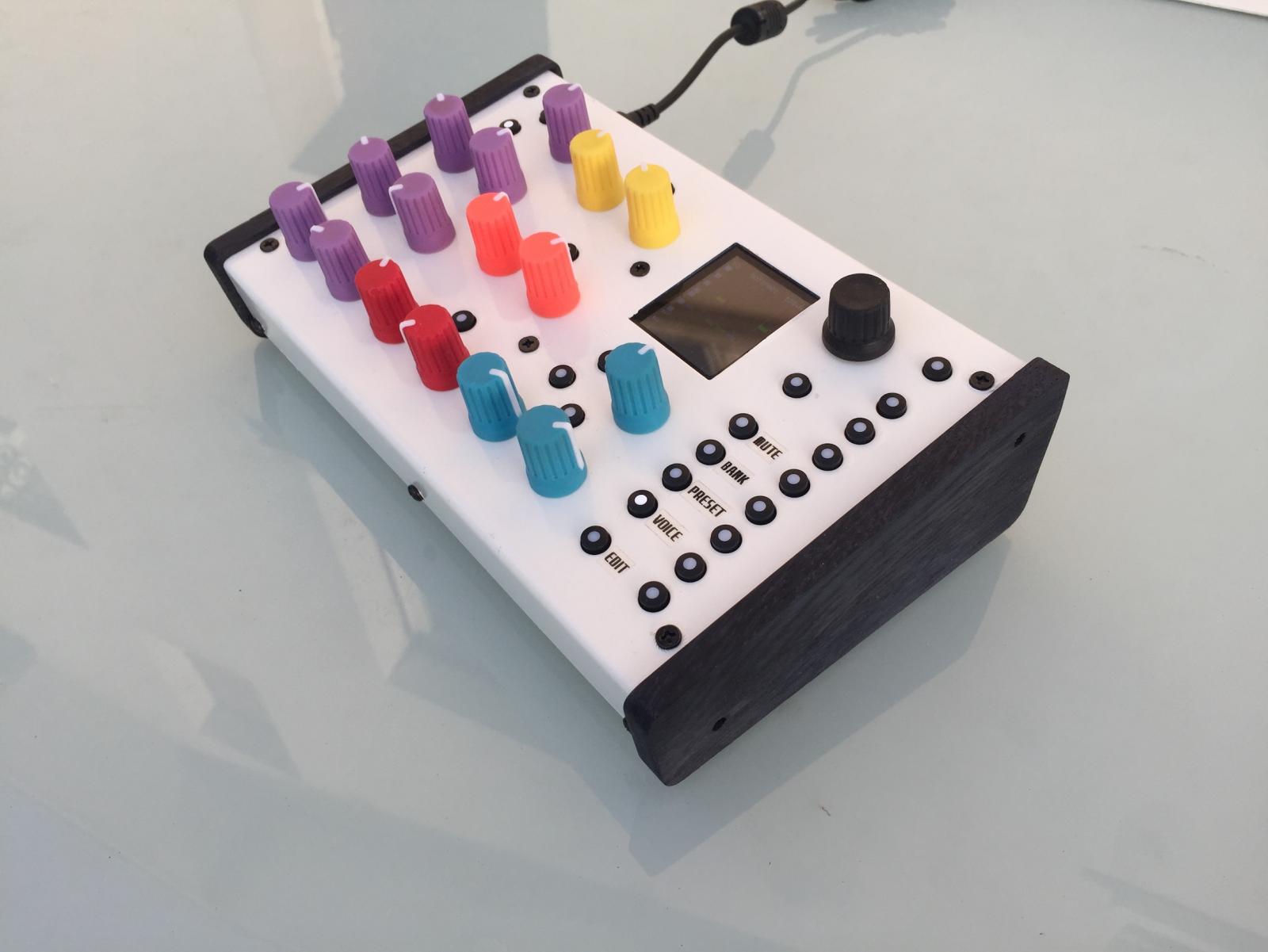

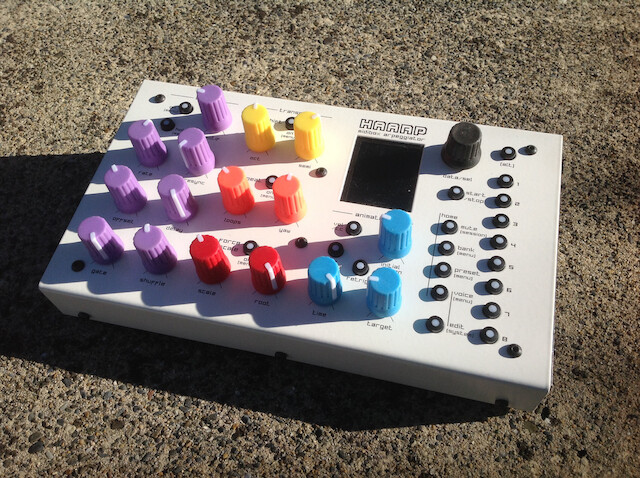

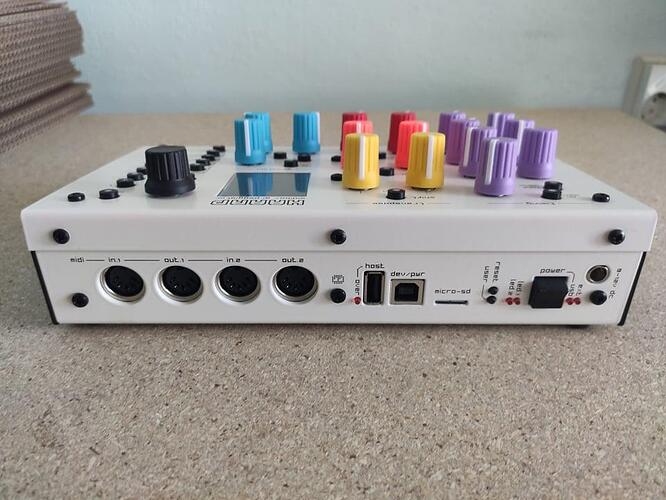

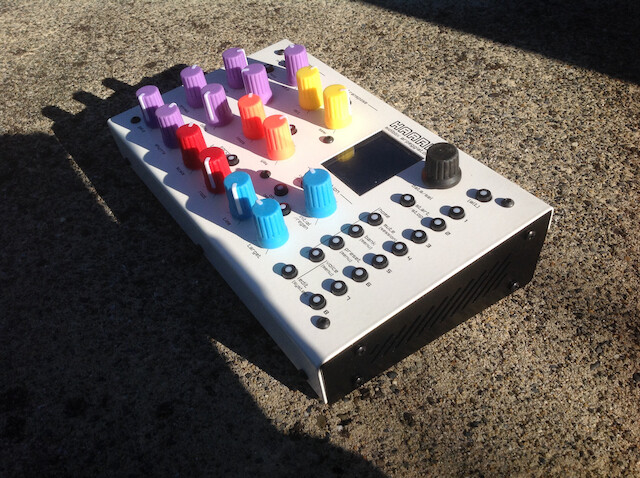

HAARP desktop version

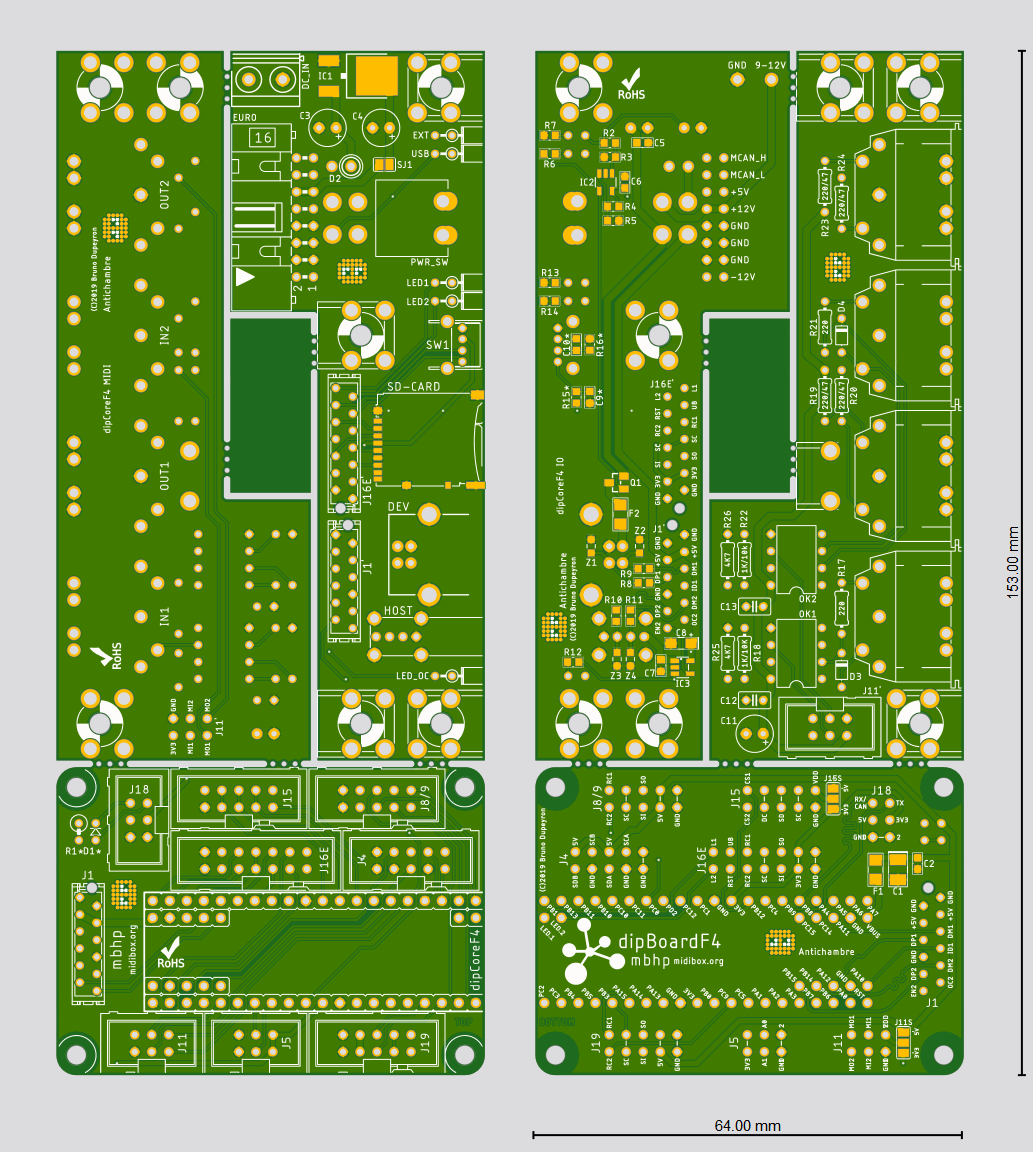

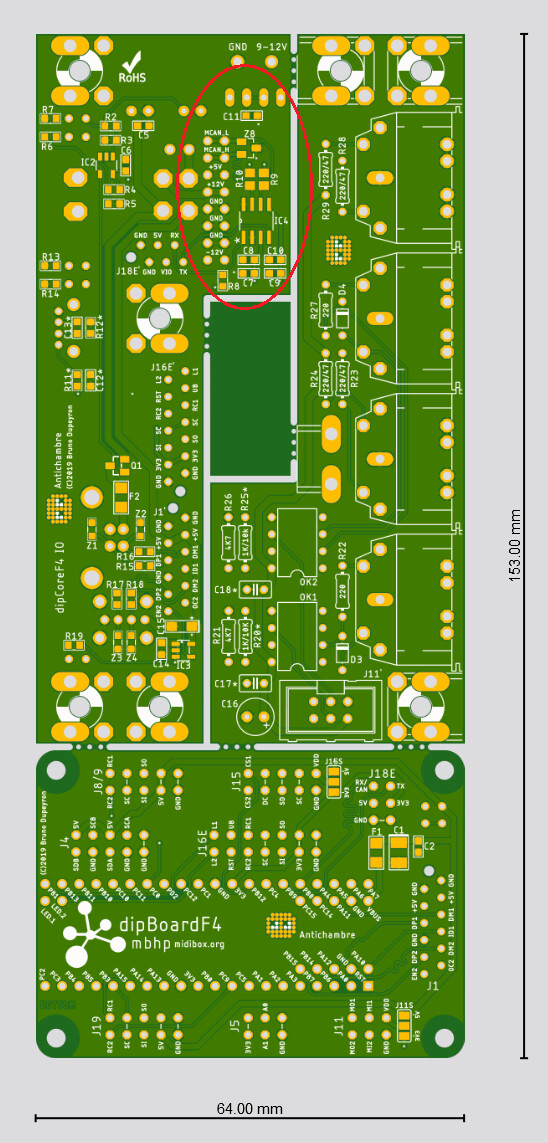

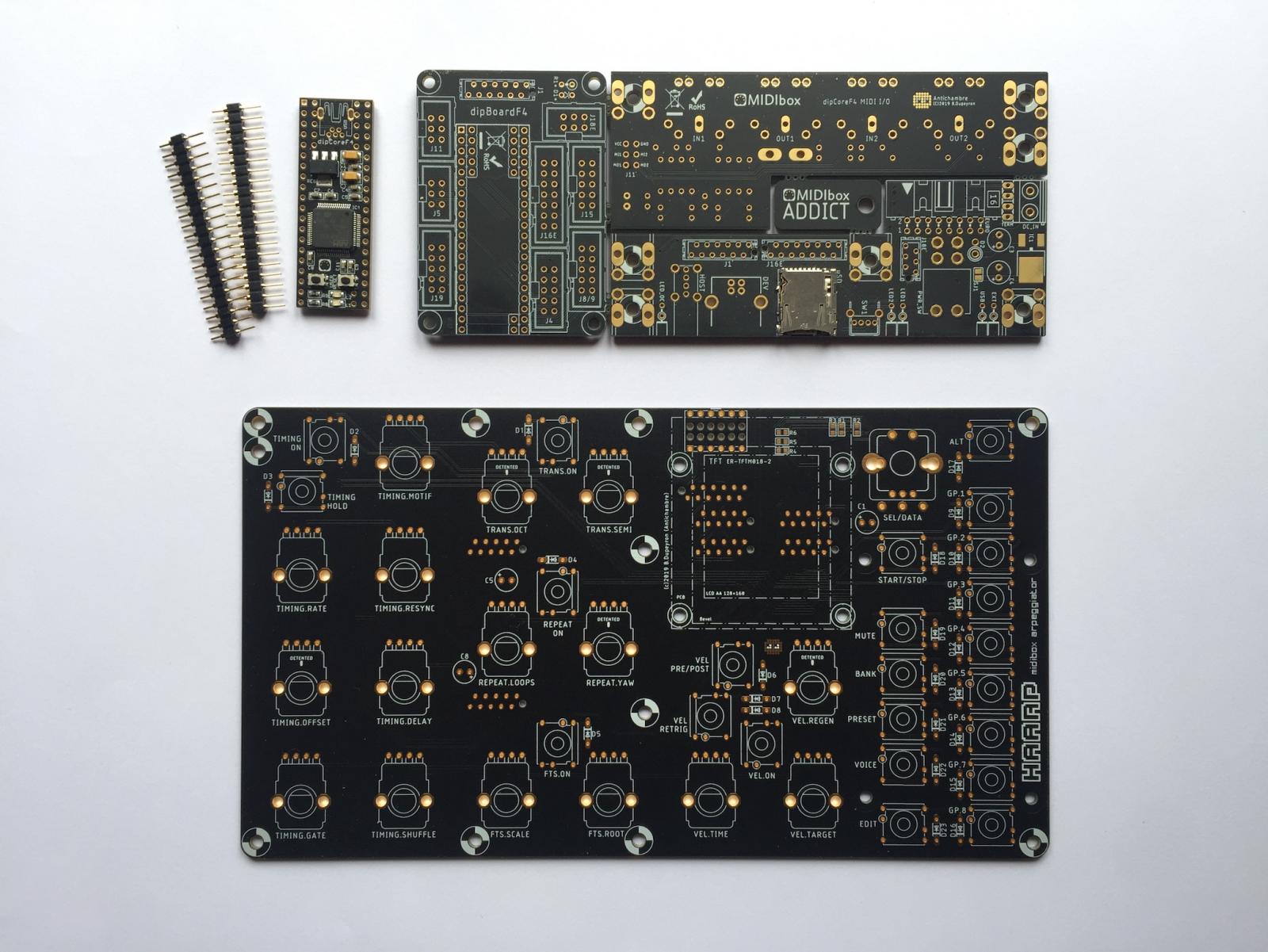

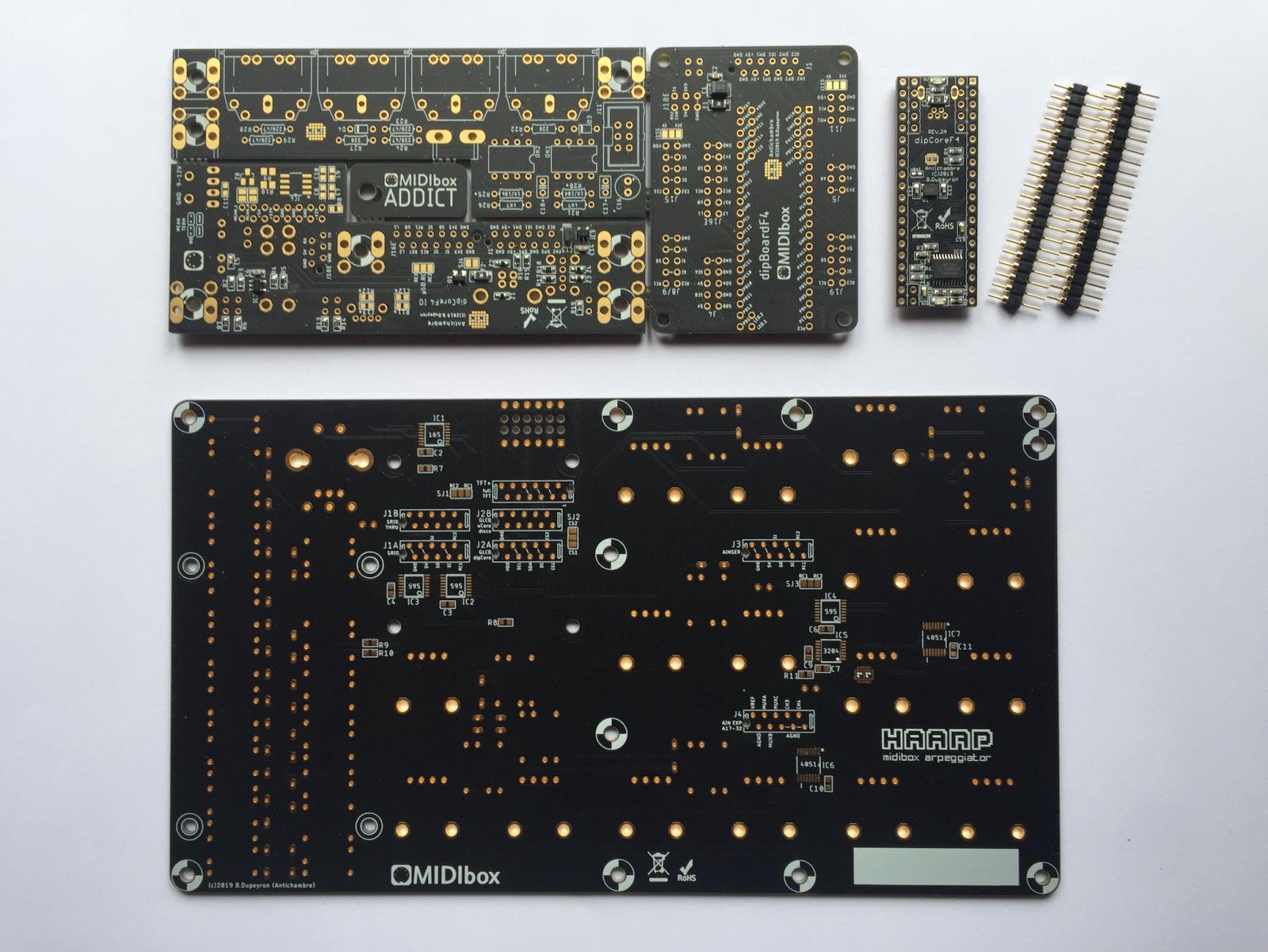

All HAARP PCBs
All HAARP PCBs

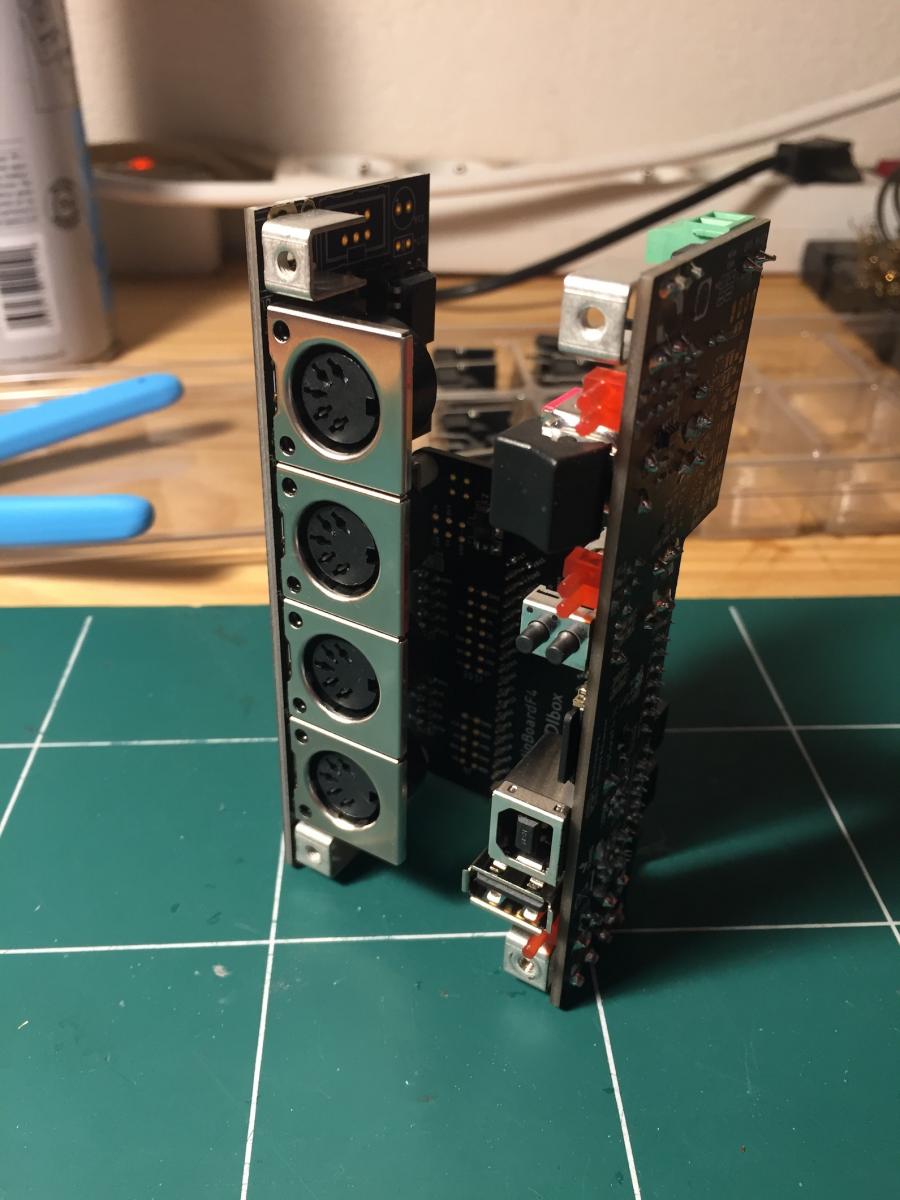

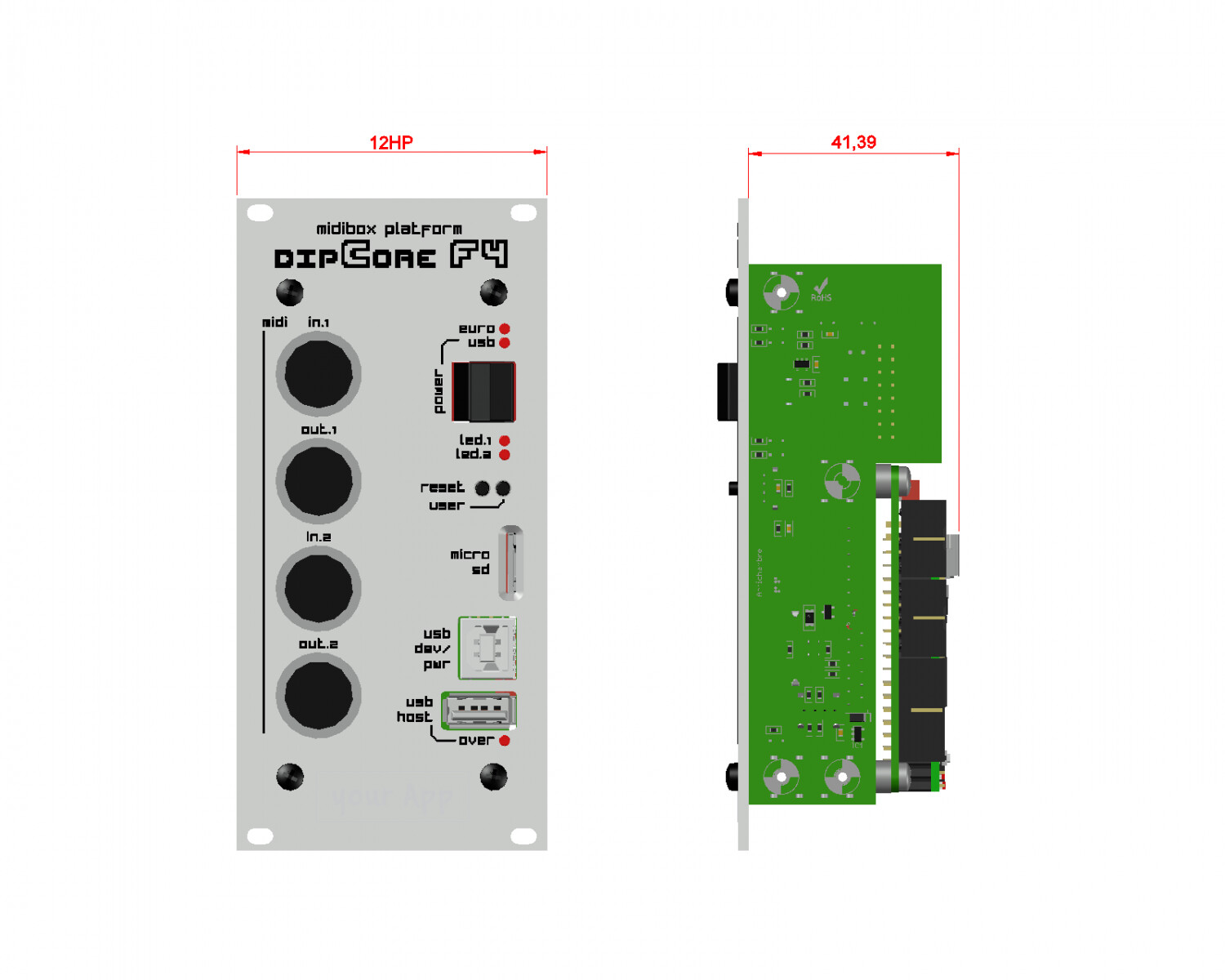

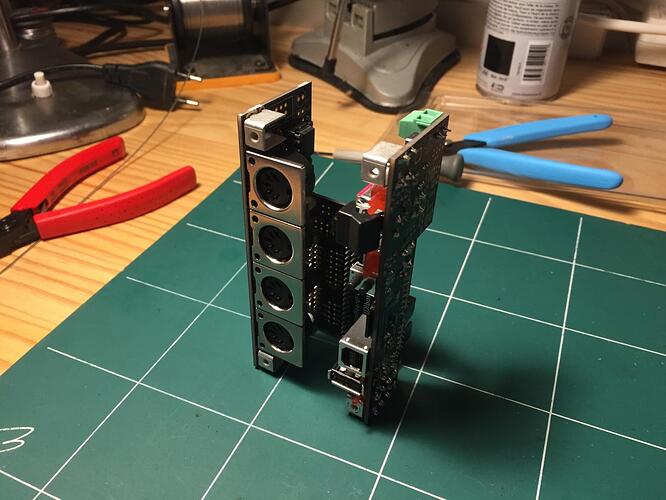

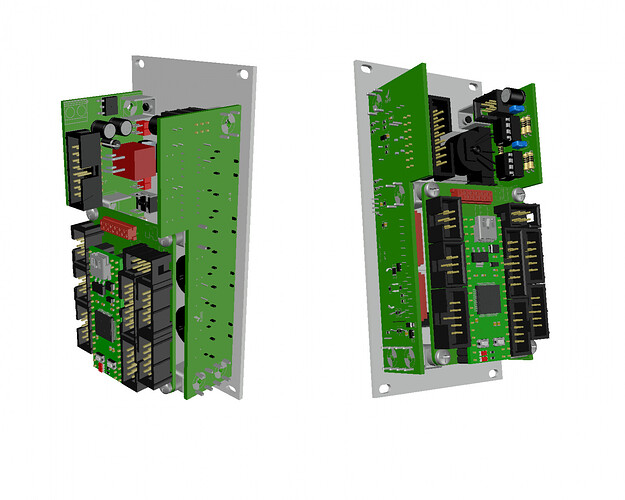

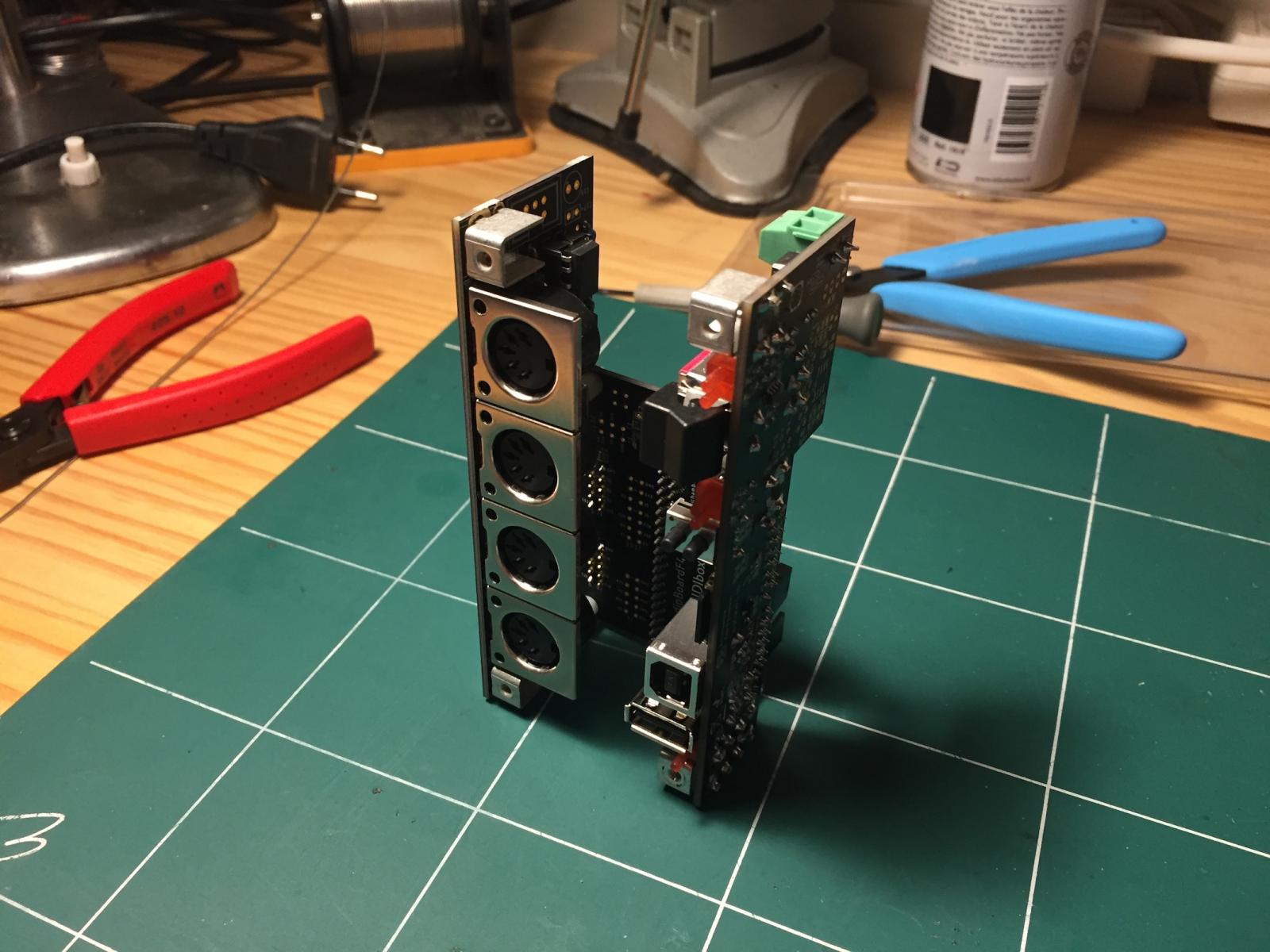

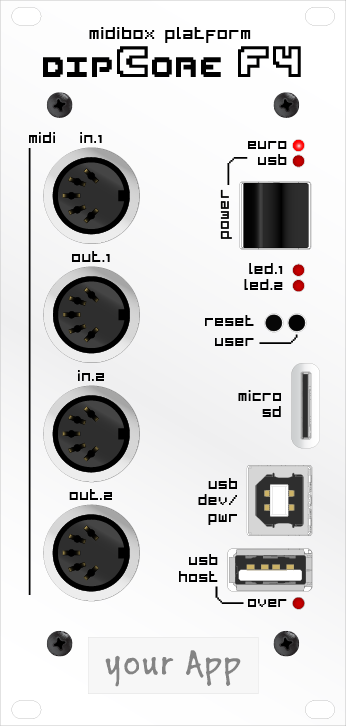

dipCoreF4 Euro Assembly Test
dipCoreF4 Euro Assembly Test
The phoenix screw terminal is not necessary for euro version.
A common Euro power connector is placed instead, I'm waiting for it.
dipCoreF4 Euro Assembly Test
[Image not found: IMG_1493.JPG]
The phoenix screw terminal is not necessary for euro version.
A common Euro power connector is placed instead, I'm waiting for it.

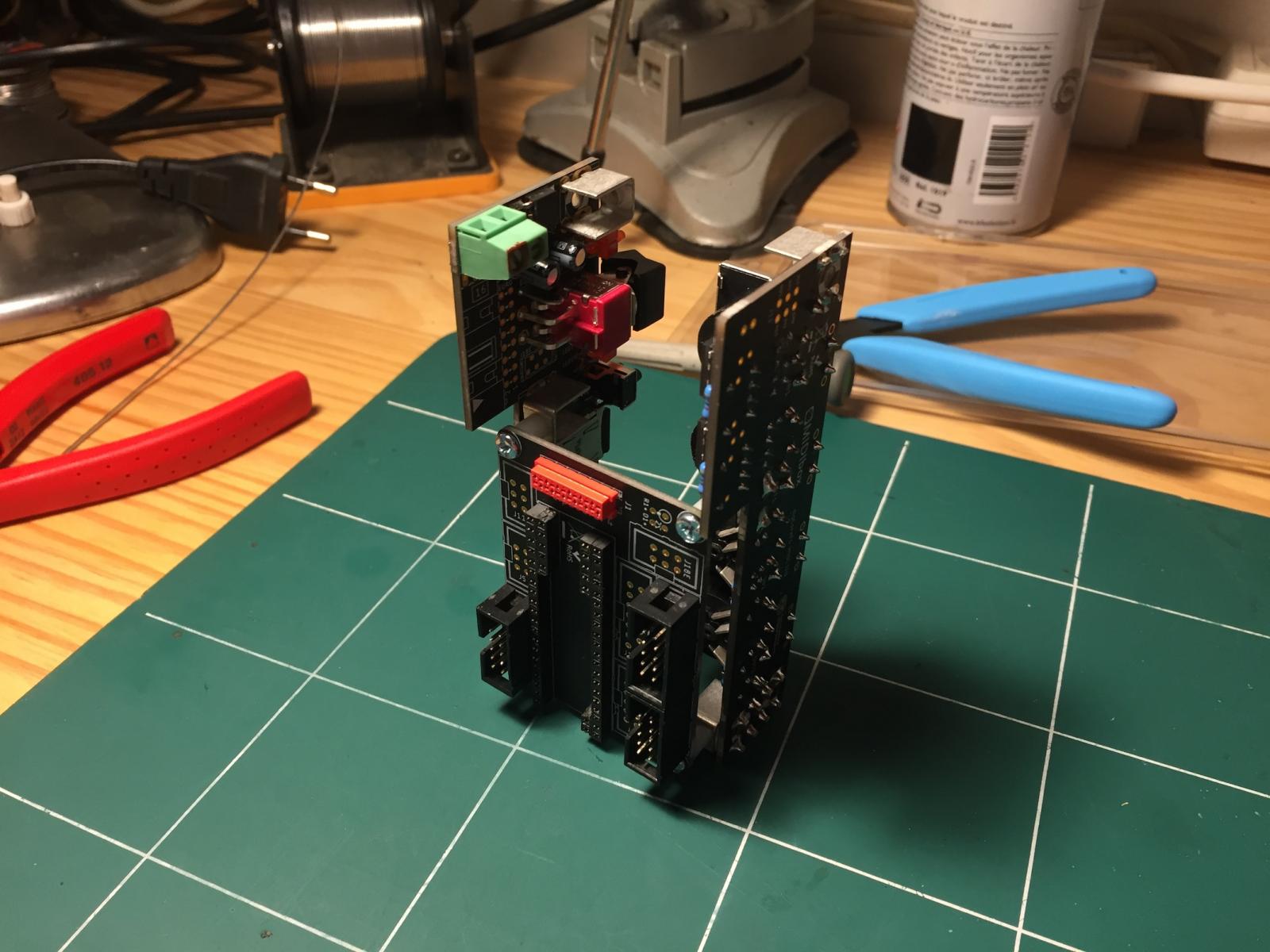

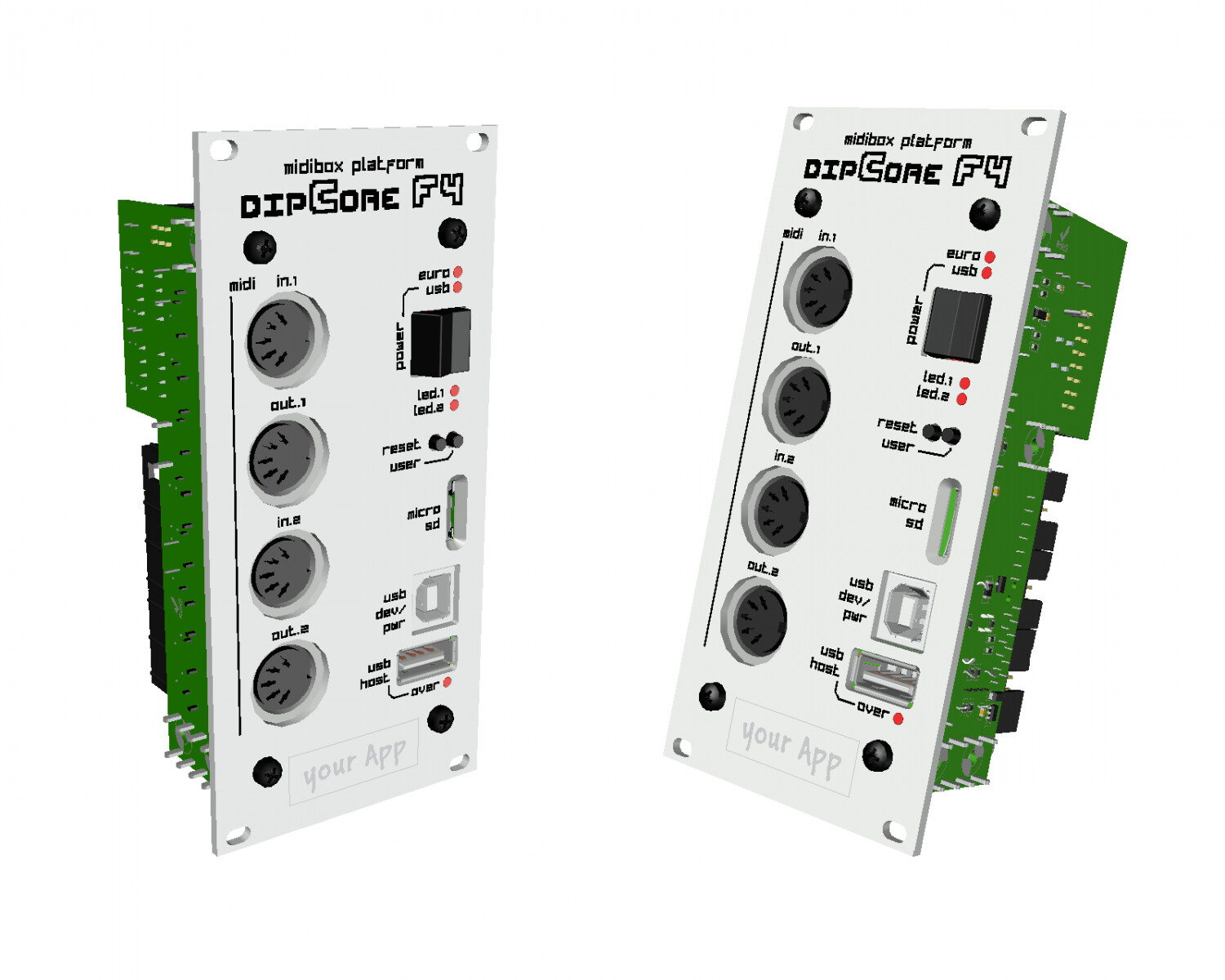

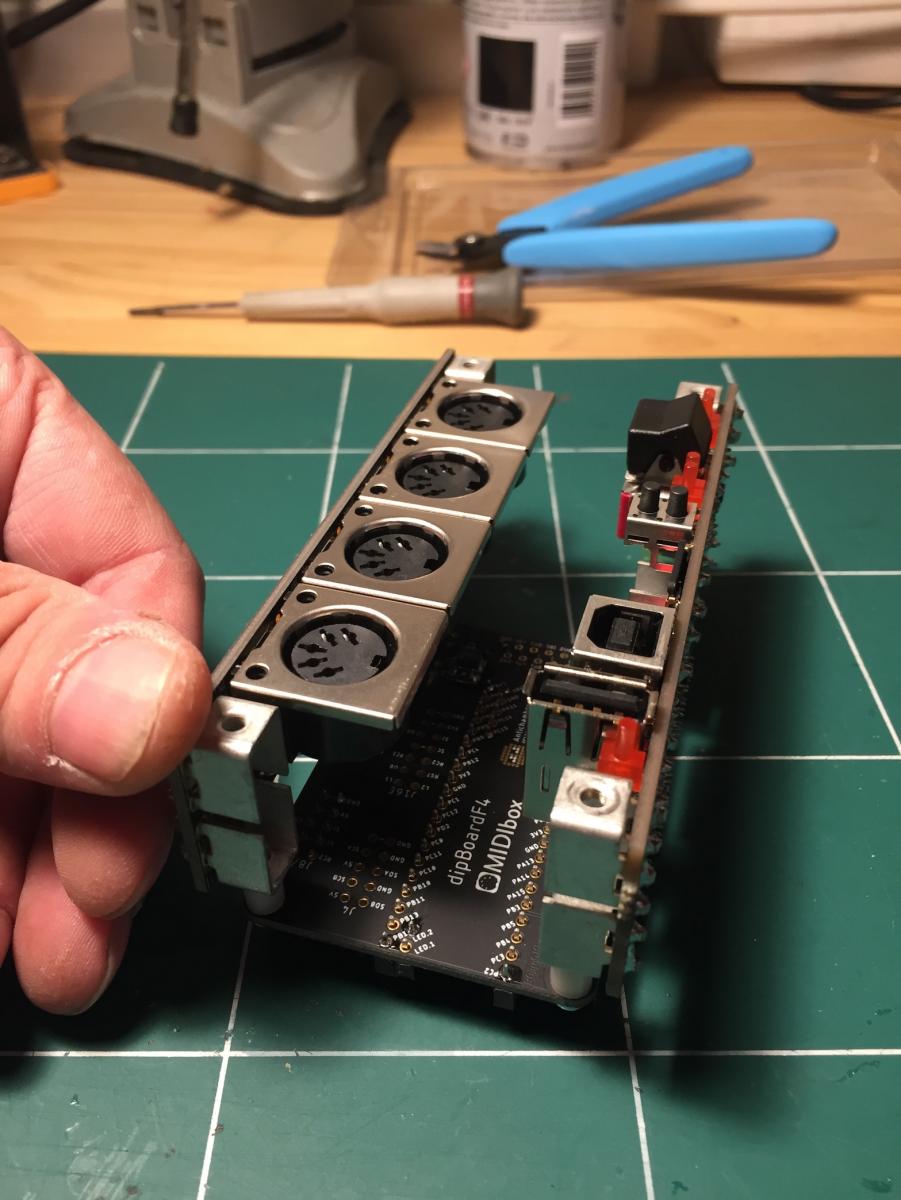

dipCoreF4 Euro version assembly test
dipCoreF4 Euro version assembly test

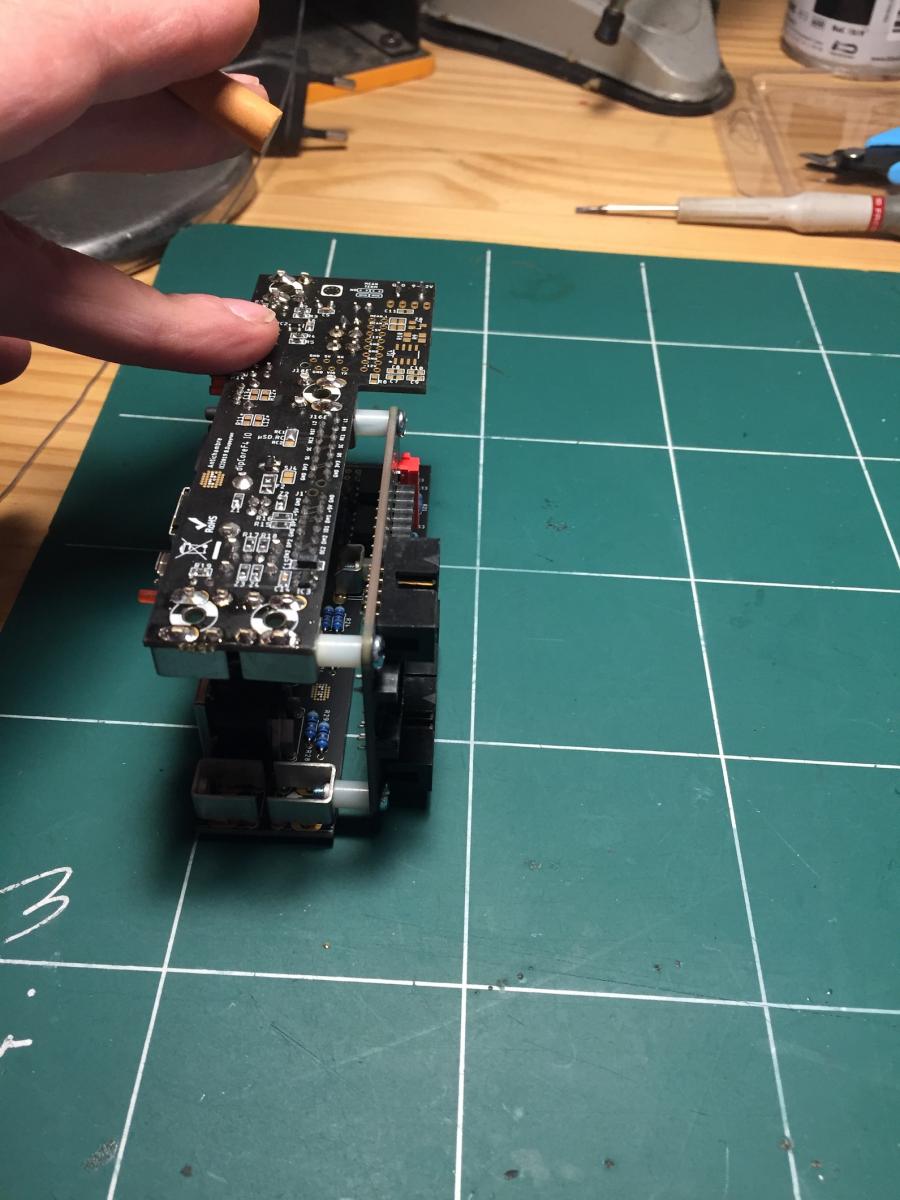

The white spacers are 6mm but can be reduced to 2 or 3mm…
The global depth with connectors is less than 50mm!

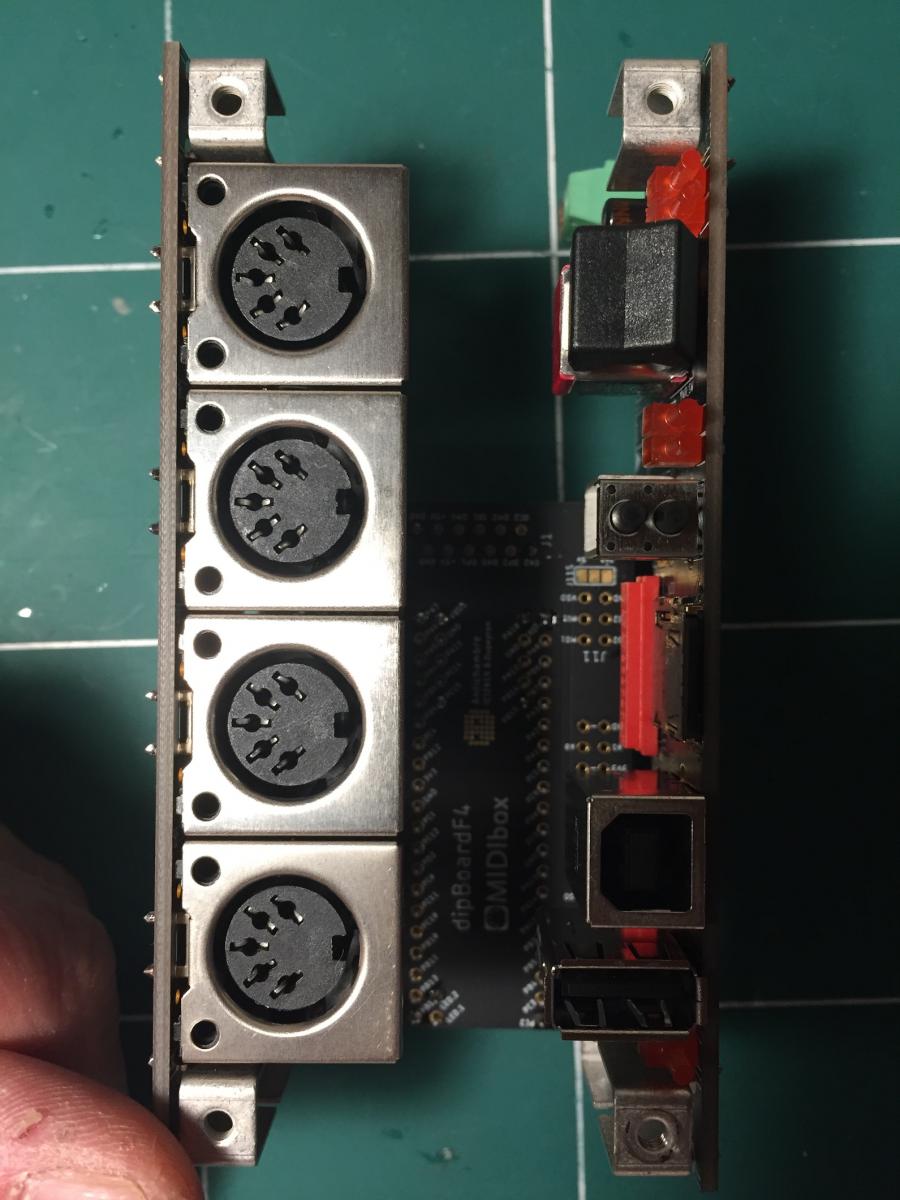

dipCoreF4 Euro version assembly test.
dipCoreF4 Euro Assembly Test

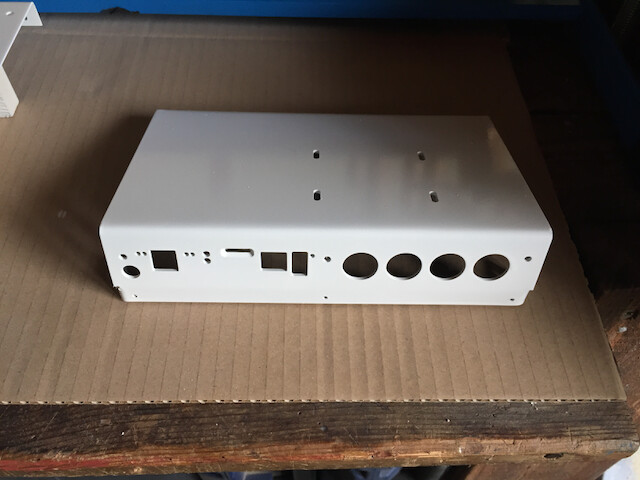

The HAARP Desktop Case Prototyping

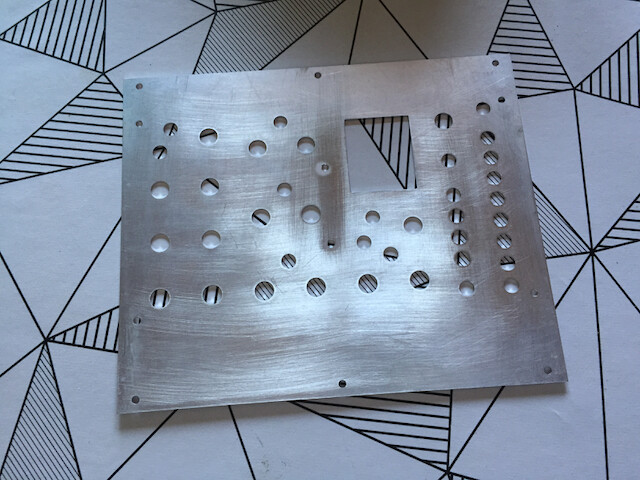

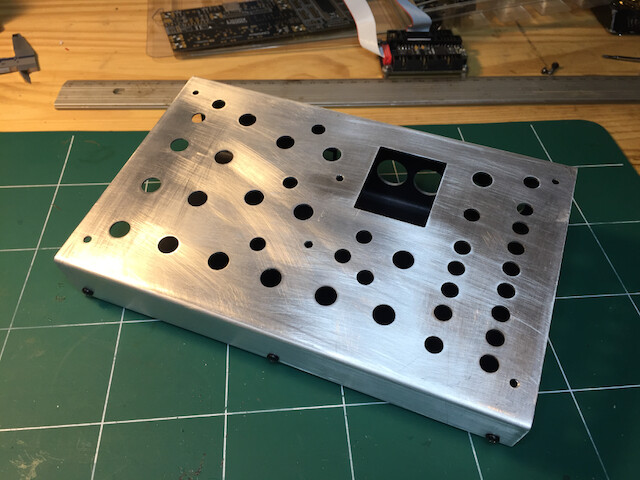

Milled Top Part 1mm thick

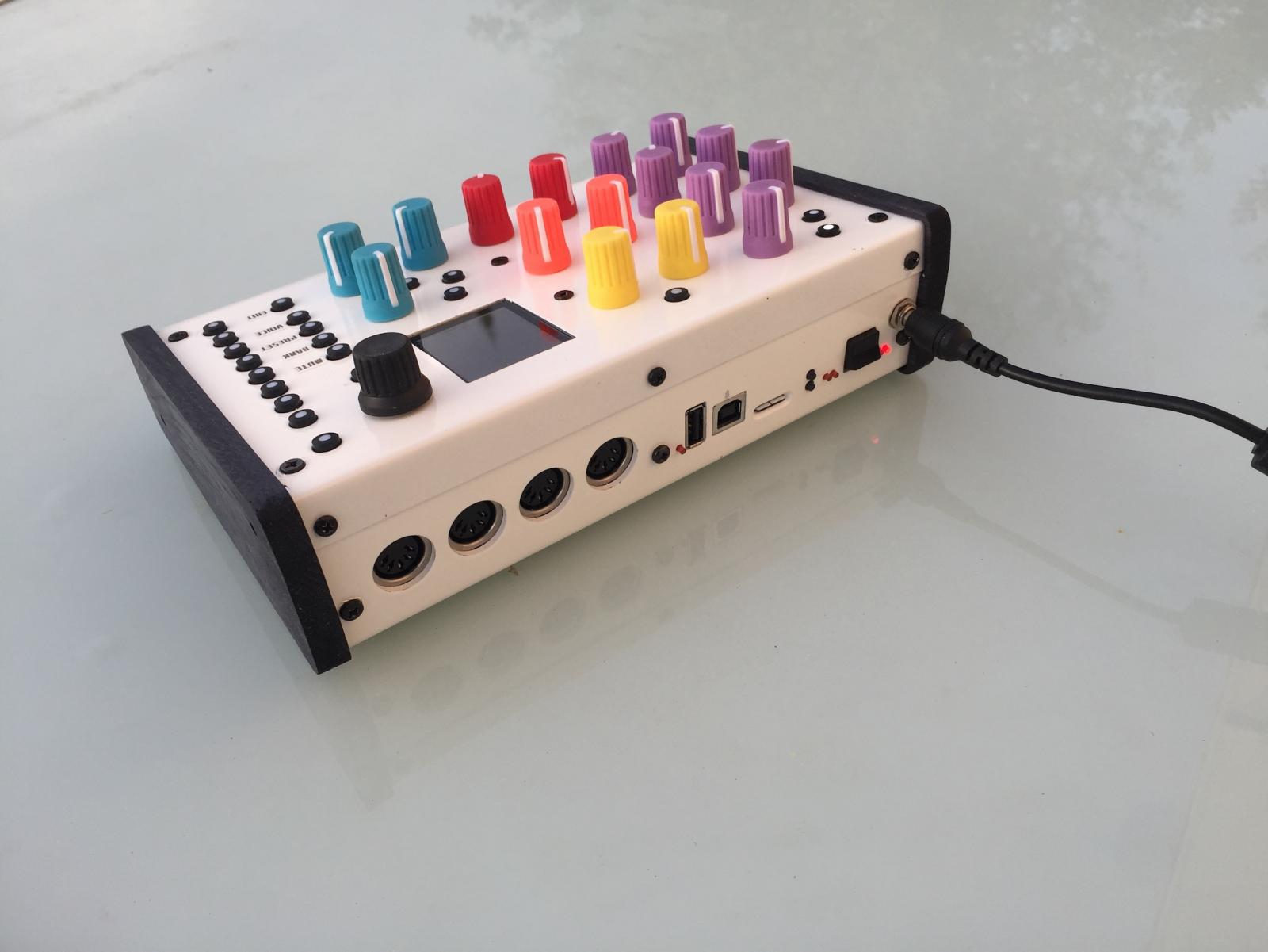

The HAARP Desktop case prototyping.

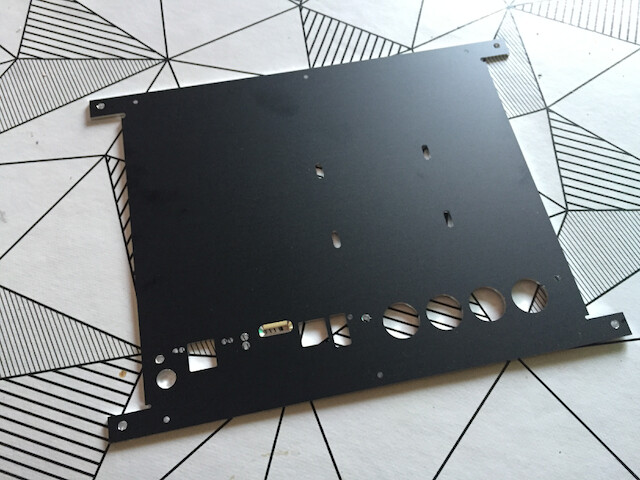

Milled bottom part 2mm thick.
The HAARP Desktop case prototyping.

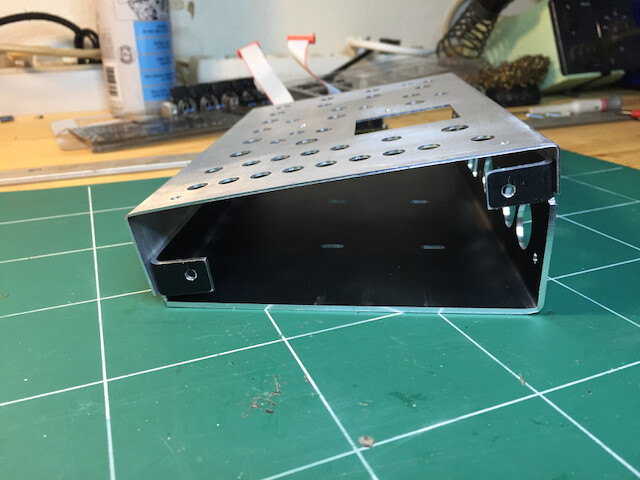

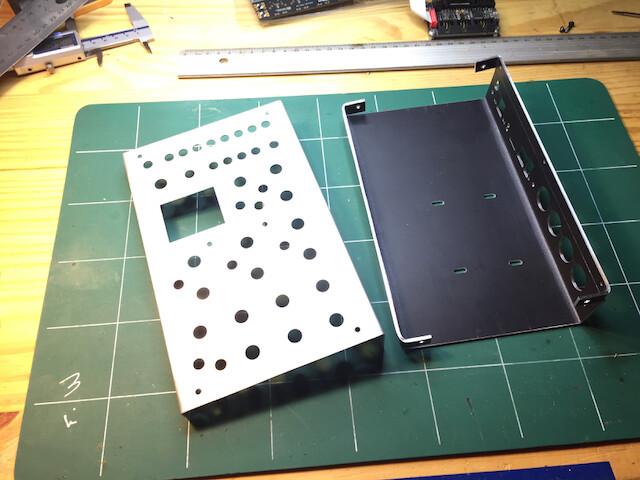

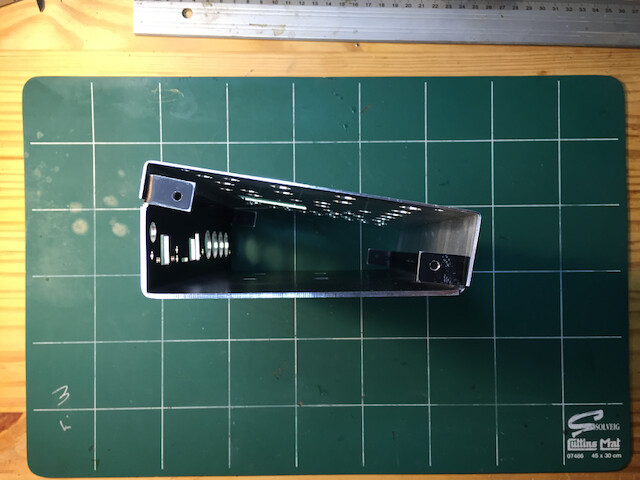

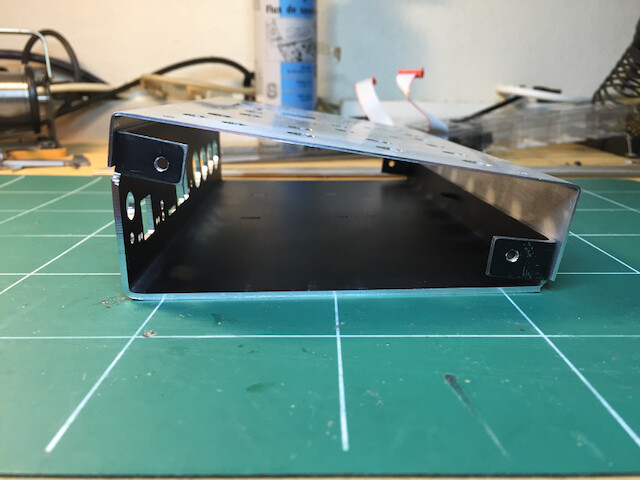

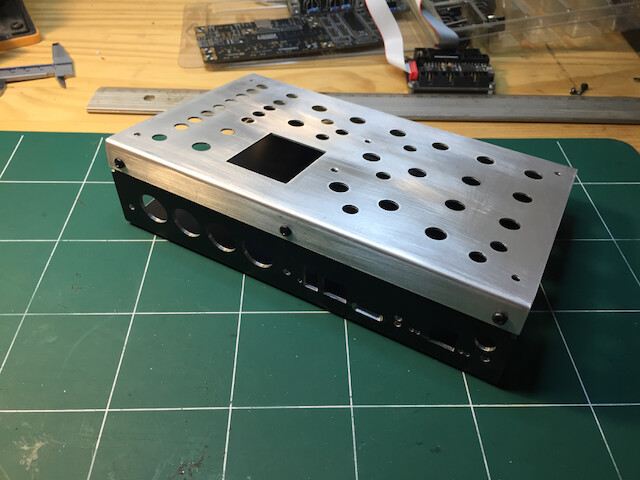

After bending.

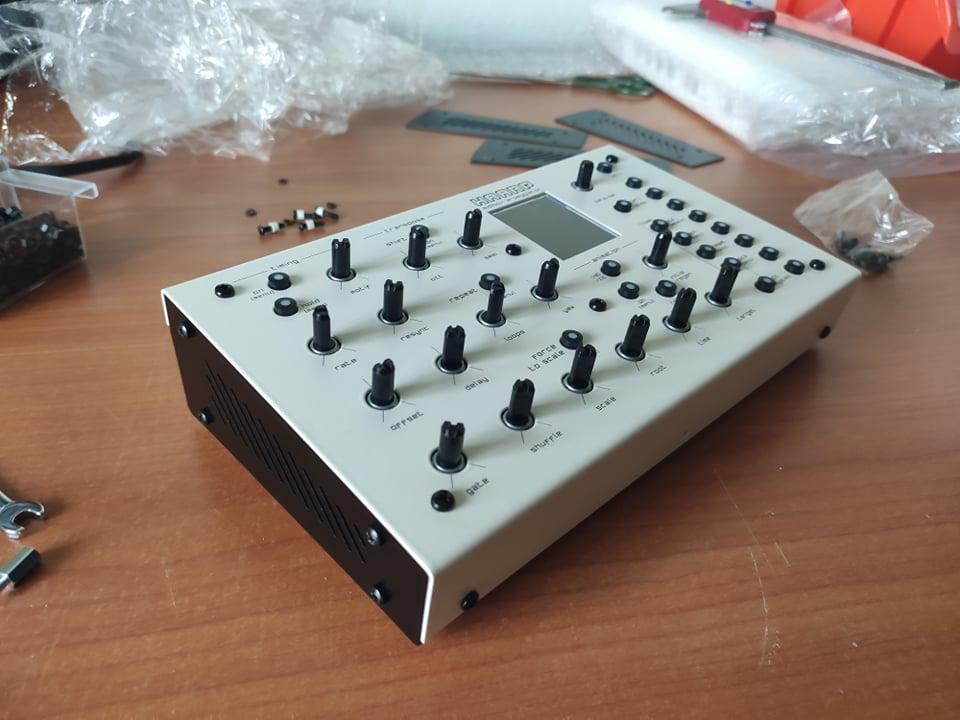

The HAARP Desktop case prototyping.

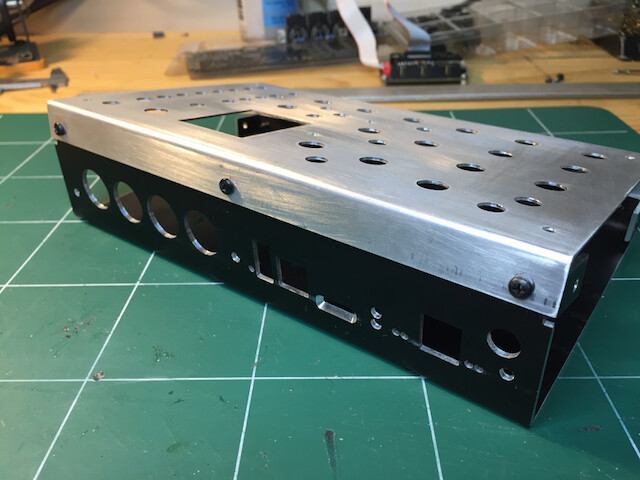

Assembly check.
The HAARP Desktop case prototyping.
Assembly check.
The HAARP Desktop case prototyping
Assembly check.
The HAARP Desktop case prototyping
Assembly check.
The HAARP Desktop case prototyping
Assembly check.
The HAARP Desktop case prototyping
Assembly check.
The HAARP Desktop case prototyping

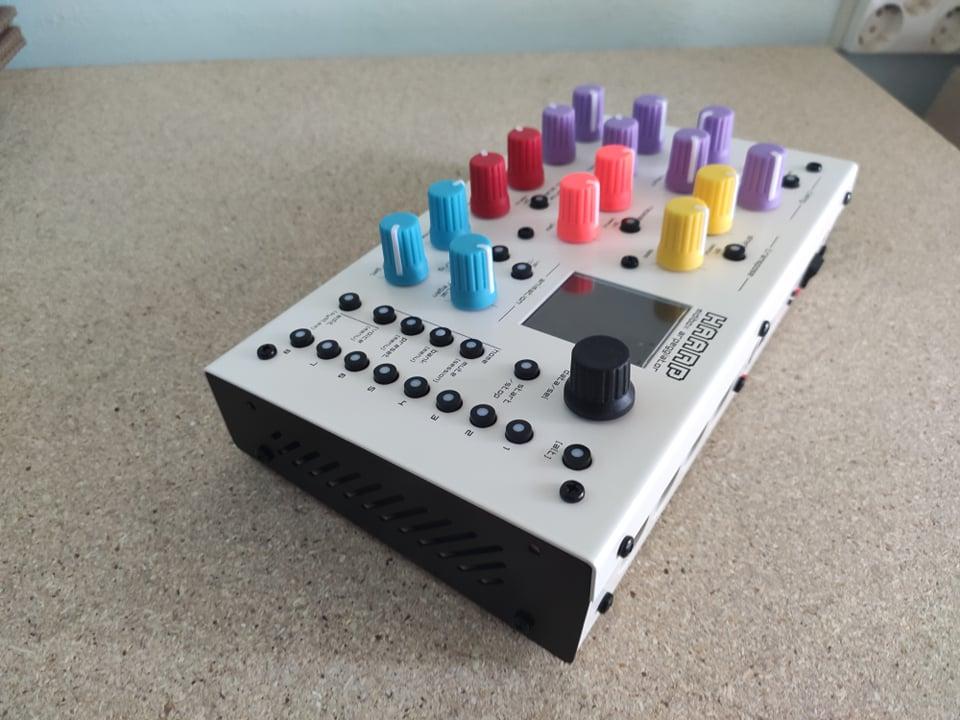

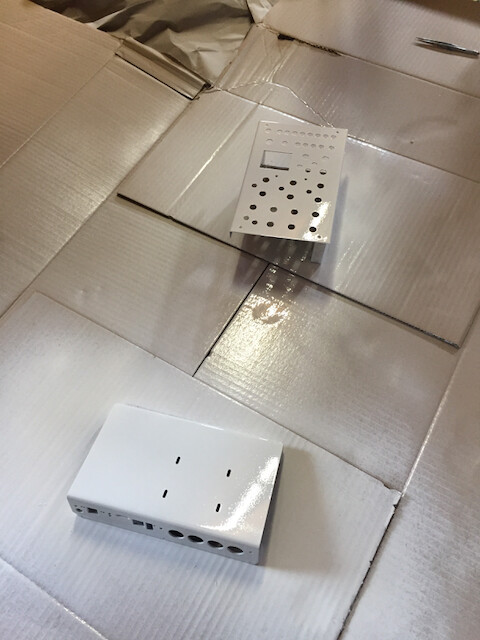

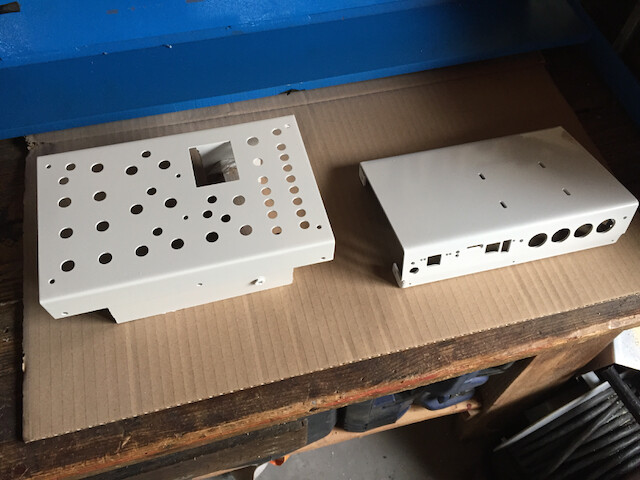

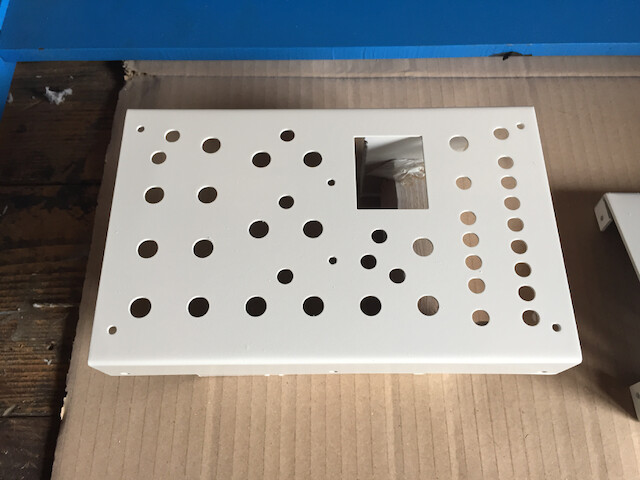

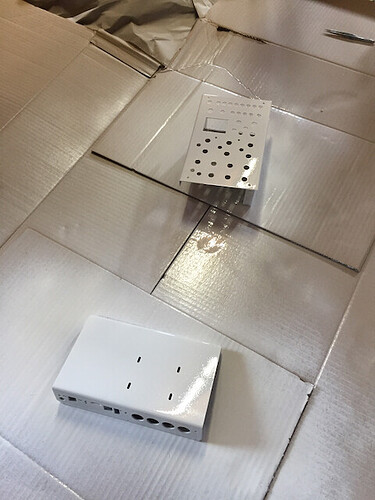

White paint!
The HAARP Desktop case prototyping
White paint…
The HAARP Desktop case prototyping
paint…
The HAARP Desktop case prototyping
it’s the kind of moment that I don’t like, when you have to be patient so as not to destroy a working day.
Let it dry!..
