Switch Operation Question

[mongrol]

Hi,

I’m looking at push button switches for another project but I’m confused by the switch operation explanations. I’m looking for a toggle button, not momentary but I’m seeing definitions like “On off”, On (On), On(off) On. On (On) On.

Can someone tell me what this means? I’m guessing a toggle is On Off, but I see tons of On (Ons) which doesn’t make much sense.

[Zam]

Hi mongrol

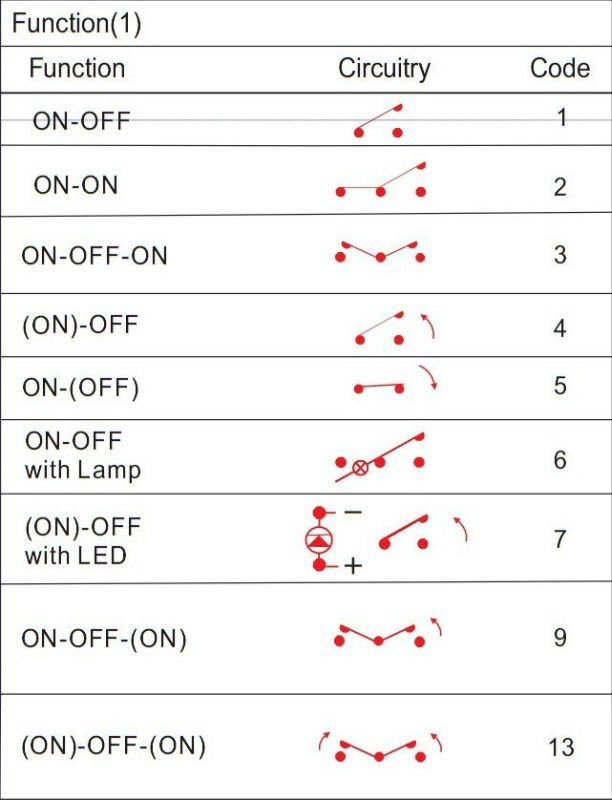

(on) mean momentary on

with on-(on) spdt, you have one position with on condition and one position with momentary (on), which come back to the first on position if you release the button

Best

Zam

[mongrol]

Great. Thanks for that.
