Simulate LED duty cycle of BLM_Scalar

findbuddha · January 10, 2011, 10:45am

Is it possible to simulate the LED duty cycle of BLM_Scalar with a Core32 + DOUT module? I want to check the brightness of the LEDs I’ve got before ordering more.

Thanks

T.K · January 10, 2011, 8:25pm

Since not only the DOUT, but also a transistor driver is involved, you have to build up a (small) part of the circuit.

Best Regards, Thorsten.

findbuddha · February 3, 2011, 11:09pm

Thanks TK.

I’ve got my BLM_Scalar PCBs now, just wondering - is it OK to use different value resistors for the LED sections? Ie. 220ohm for green, 470ohm for red.

findbuddha · February 8, 2011, 10:18pm

Bump! :flowers:

T.K · February 9, 2011, 9:06pm

Yes, thats ok

Best Regards, Thorsten.

findbuddha · February 9, 2011, 9:26pm

Thanks TK.

Should have action soon!

findbuddha · February 13, 2011, 11:45am

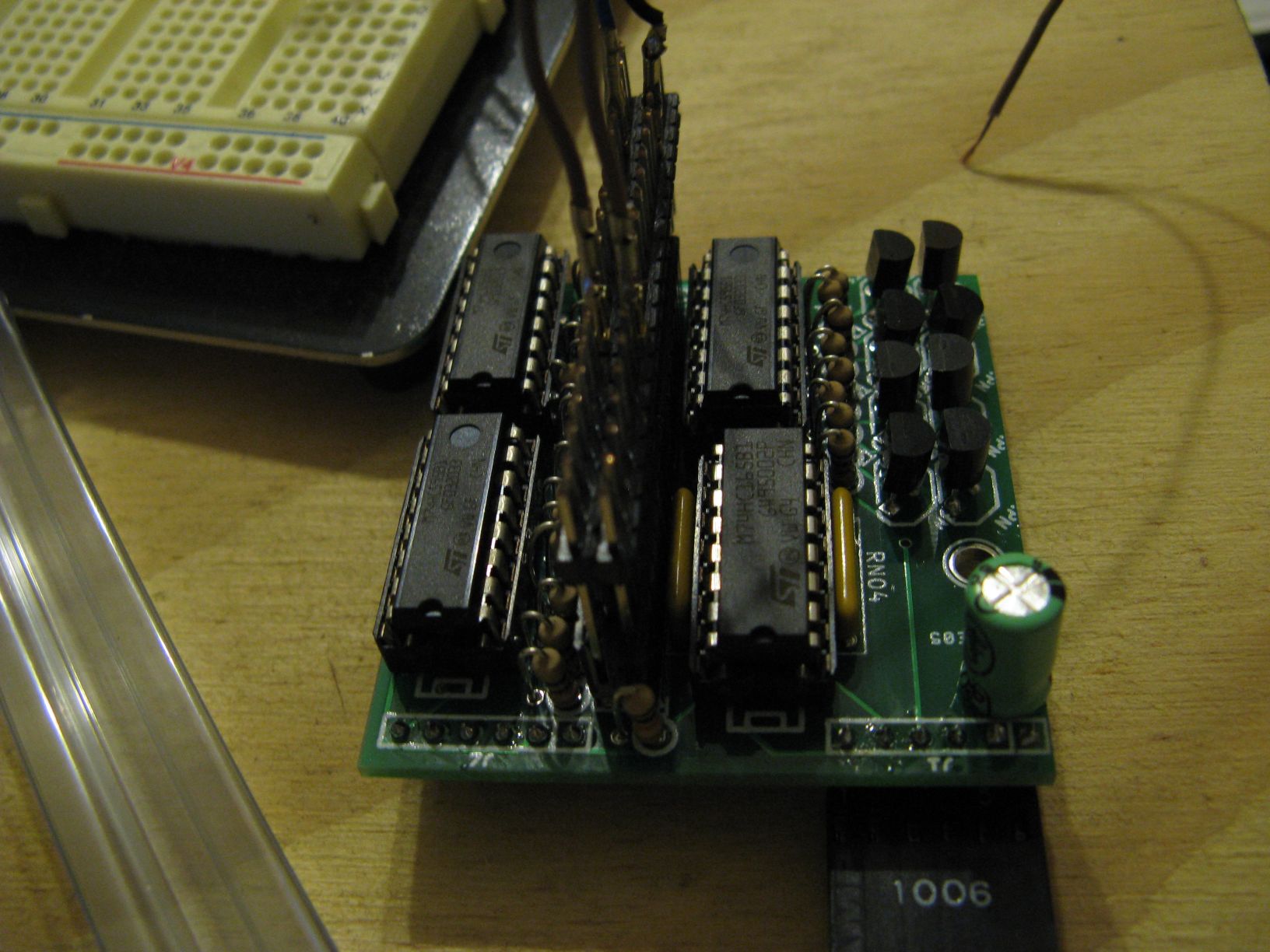

Success!

Tested with a breadboarded LED and the colours cycle as expected.
