Hello everyone,

After SammichSID boards, many people asked me about SammichFM compatible synth and here it is.

image1280×720 215 KB

image1280×720 199 KB

Due to license I can sell only 10 board kits.

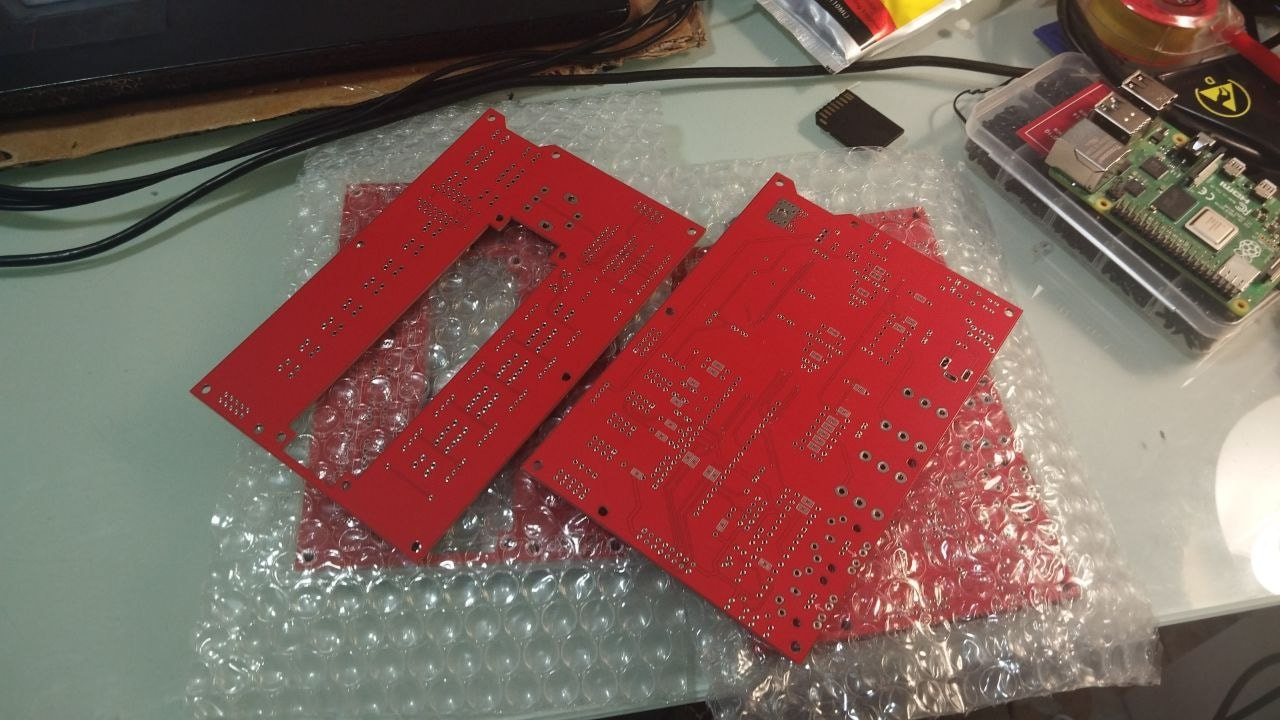

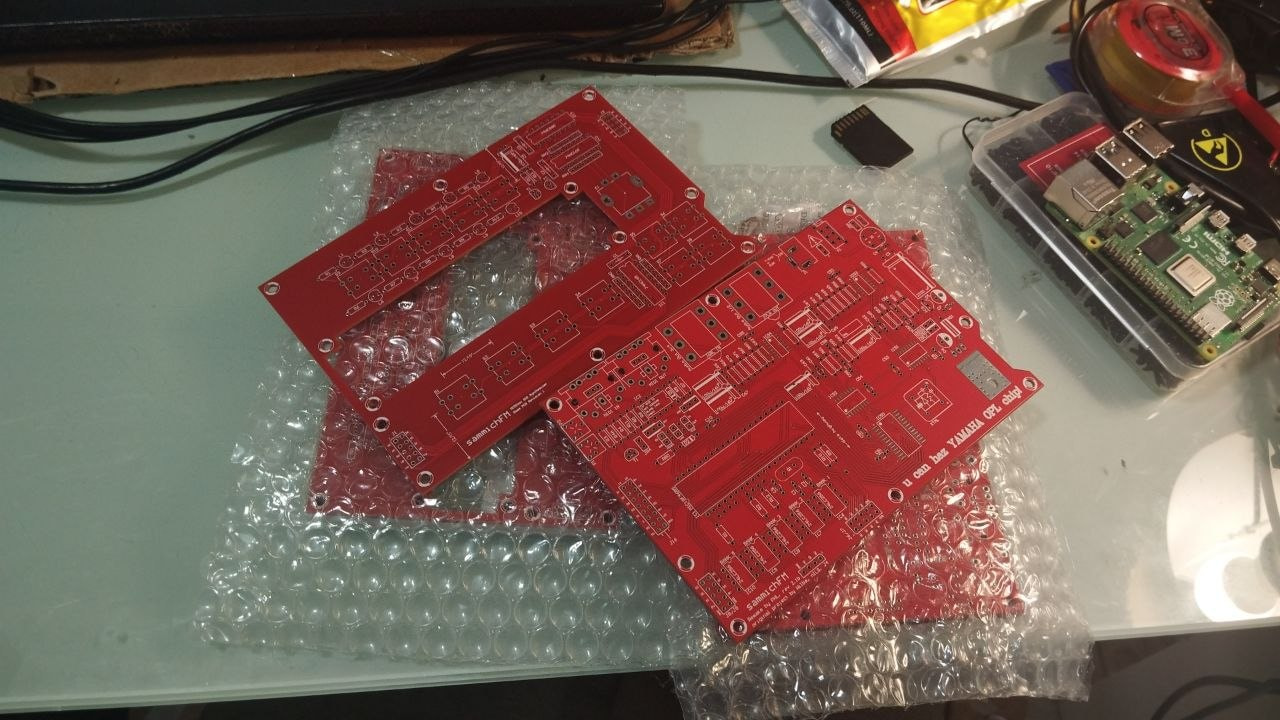

The board is fully tested, some builds photos are below. I can help with assembly a bit and I have some random parts.

PCB kit: 15 EUR + shipping (likely, the same in EU, 30 EUR in total)
Also there are enclosures in red and black for SammichSID, for 15 EUR as well. (can order other colors)

I also plan to release all files to be open source soon. Just need to prepare all the data.

Photos below:

image720×1280 238 KB

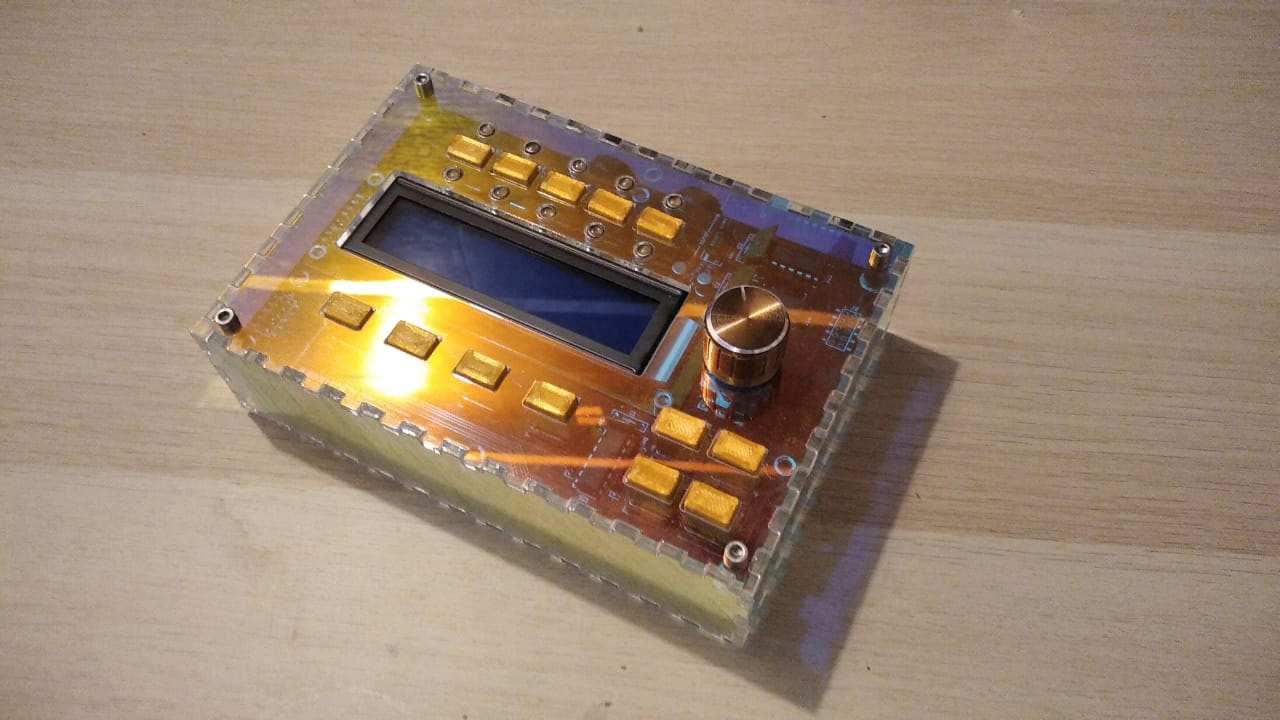

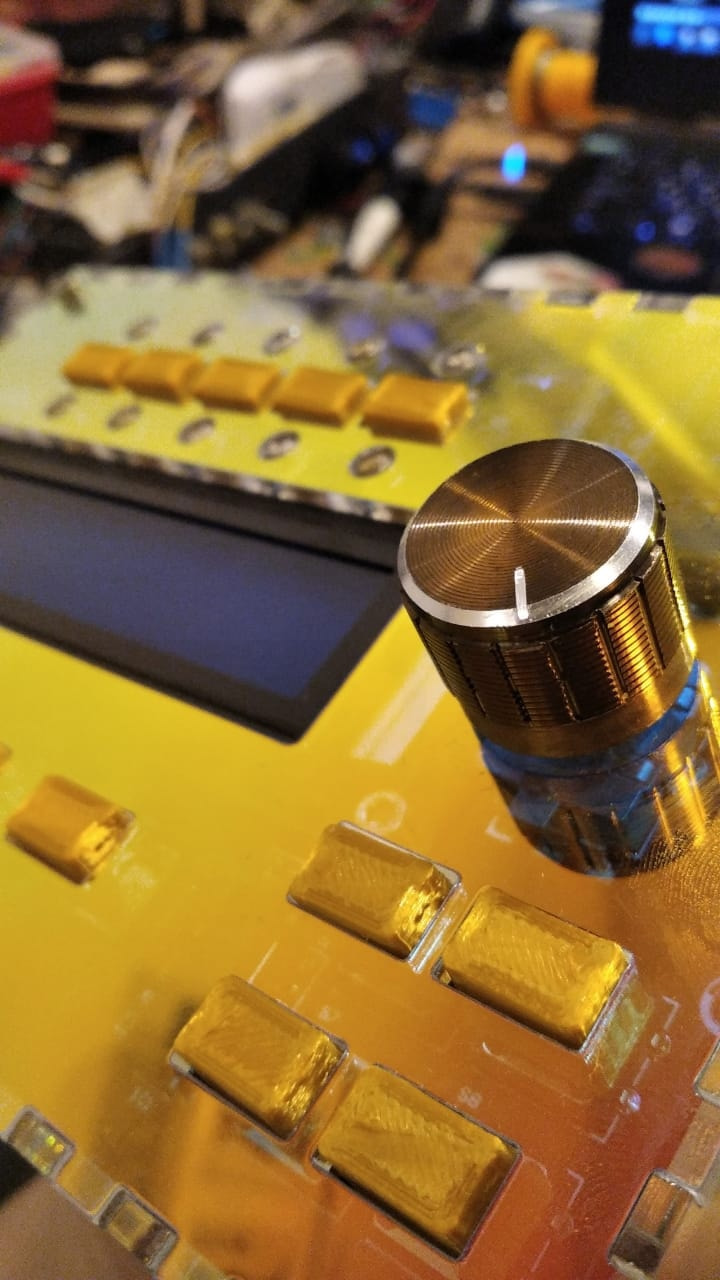

The synth below is made from Plexiglas Radiant panels with usage of LEDs with enclosure containing gold, with capacitors with palladium, and silk-plated PLA buttons

Also all sockets inside are also gold-plated, used from old hardware from 80s :grinning_face:

So it was a crazy setup :grinning_face:

image720×1280 152 KB

image1280×720 132 KB

I’ll record a video with my tunes soon and publish it on YouTube.

2

Looks nice, what OPL chip is used? I remember i have some NOS OPL somewhere in my 30 year old electronic hoarded parts but don’t know which one. If i have a compatibel one i might buy a set.

3

Hi

OPL3, YMF262 is used. I sourced mine a long time ago from Aliexpress, they worked flawlessly.

Made a small video I previously recorded from SammichFM, featuring my music :grinning_face:

Sets are available, including some parts for assembly(e.g. resistors)

4

Nice Vid, classy 80s vibe, I’m interessted in the FM board! Is it just the board, or are enclosures available also? (Or do the sammichSid ones work?). If it’s still there, hit me up, I’m in EU.

5

Hi! Enclosures are available - in black and red colors. I will send a PM today.

6

Hi! I am interested for 2 kits of FM PCB boards+enclosures (I am in EU, France). Best
