I will soon be ordering some custom parts and I thought it might be a good opportunity to get some special switches at the same time.

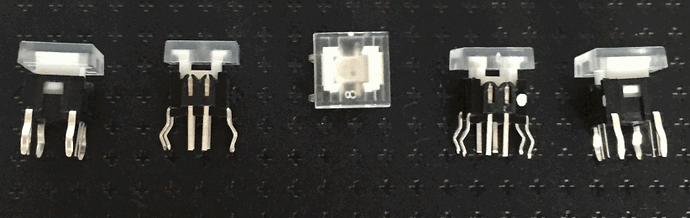

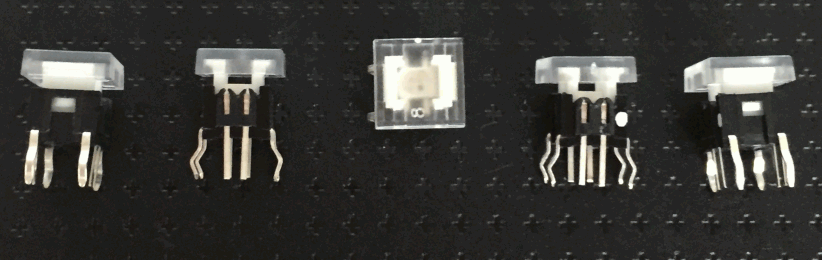

This is an RGB tact switch with a common anode. The key specs are:
Brightness (RGB) 320, 300, 110 mcd, so similar to the LEDs used in the BLM.
Viewing angle: 120 degrees.
Lead spacing: 4.5*6.5mm
Cap dimensions: 7.8*7.8mm
Pricing is not fixed yet but could be around 2-2.50 USD per piece.
Please indicate any quantities that you would like. It’s not a commitment to buy, it just gives me some idea during the order process.
What other known switch does the tactile feedback compare to? In the end, that would be a much more important selection criterion for me than fancy light .
The last lot of samples cost me $150 to ship… so I have not yet tested the action.
This one has an operating force of 180±50gf and a switch travel of 0.2±0.1mm. So very much like the standard SEQ switches.
lifetimecycle? (how many hundret thousends or millions/ or self cleaning…)
lifetimecycle? (how many hundret thousends or millions/ or self cleaning…)
Lifetime is given as 500k cycles to retain contact resistance (<100mOhm increase) and operating force (+/-30%).
Not enough interest to run sorry, perhaps later.
ok. Keep us posted when you are thinking about doing it again. :)
