oled 1306 128x64 eagle/kicad library?

Parts Questions
1

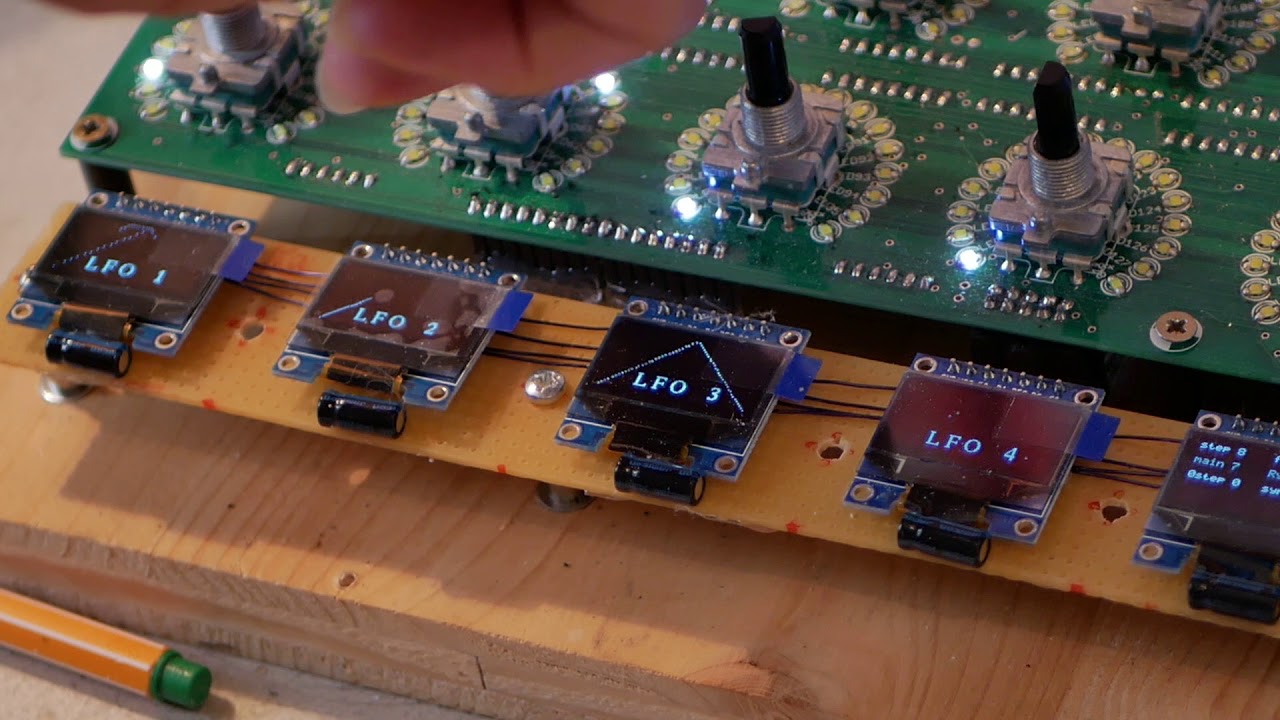

i have this standard 7-pin OLED 1306 Displays:



and i want them to include it into a kicad project (i can translate eagle to kicad)



does anyobody have footprint and shematic file?

i found in internet, some files but all of it are OLED-Foil-Connector to a PCB where all the Foil-Wires resulting into this 7-Pin Breakout - that i dont need. i have already a Display and the PCB where it sits on it - and from there i get a 7-Pin Connection to my Project PCB.

short i need a Library for the complete Display shown in the Video above.



anyone? thx.

2

If nothing shows up: it’s easy enough to create the footprint yourself in KiCAD, you’ll be surprised!

3

From Adafruit I think it matches, but check.

https://learn.adafruit.com/monochrome-oled-breakouts/downloads

Best
Bruno

4

This might help

[oled.lbr](< base_url >/applications/core/interface/file/attachment.php?id=14177)

5

21 hours ago, FantomXR said:

This might help

[oled.lbr](< base_url >/applications/core/interface/file/attachment.php?id=14177)

thx - looks good - i converted it to kicad library: oled-kicad.zip

6

Hello, I also started a project which involves this type of display, could you please send the library files again? The old link isn’t working anymore

On 9/27/2018 at 11:47 PM, Phatline said:

thx - looks good - i converted it to kicad library: [oled-kicad.zip](< base_url >/applications/core/interface/file/attachment.php?id=14179)



7

? on my side the link is working!
