Hi ,

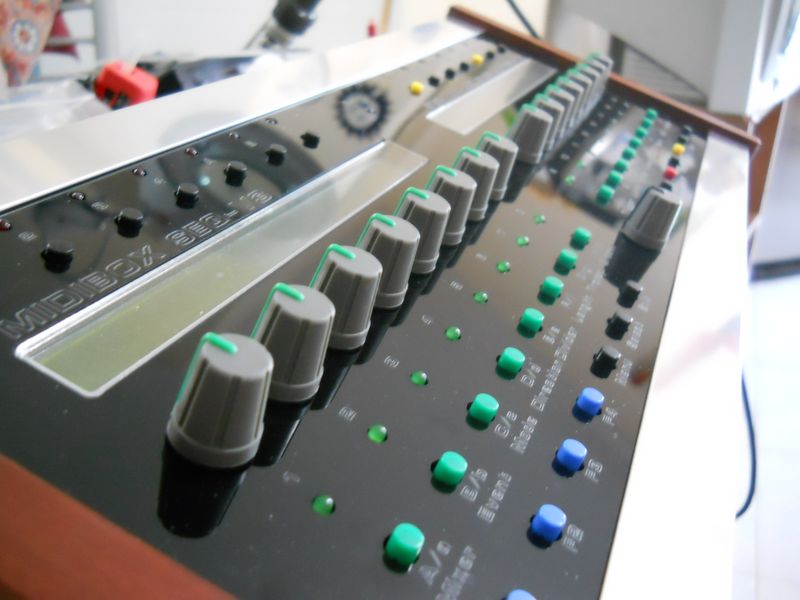

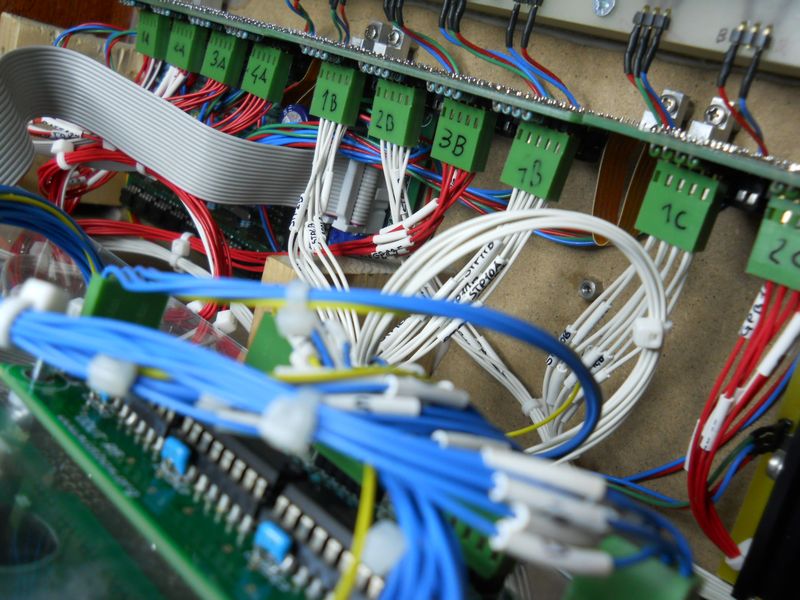

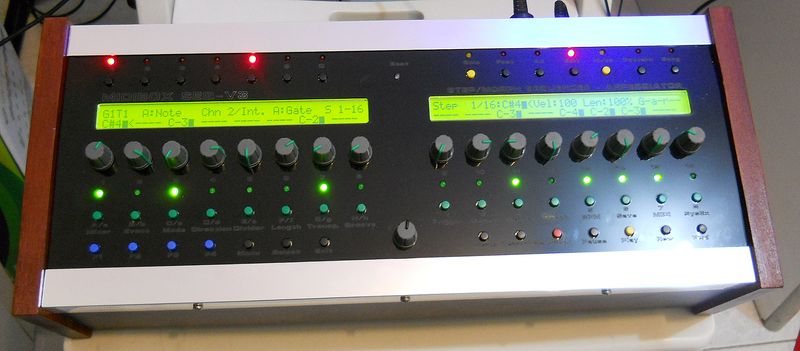

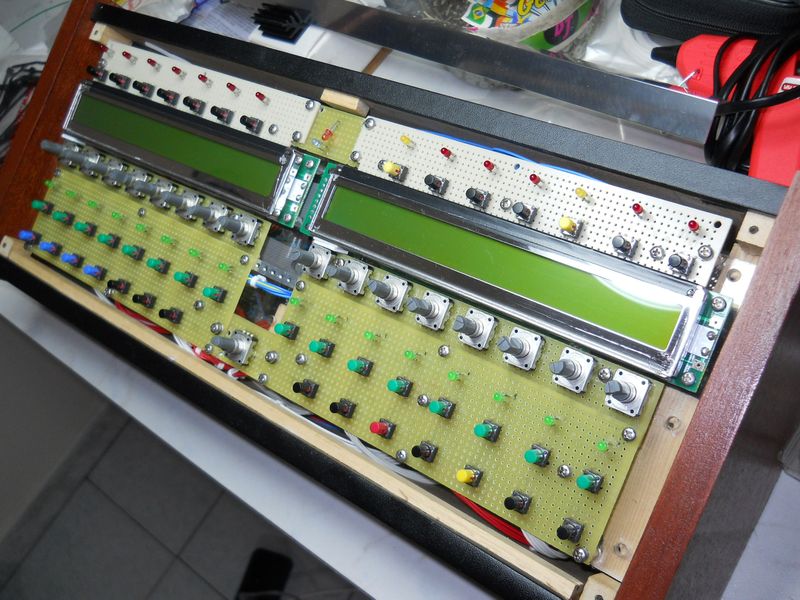

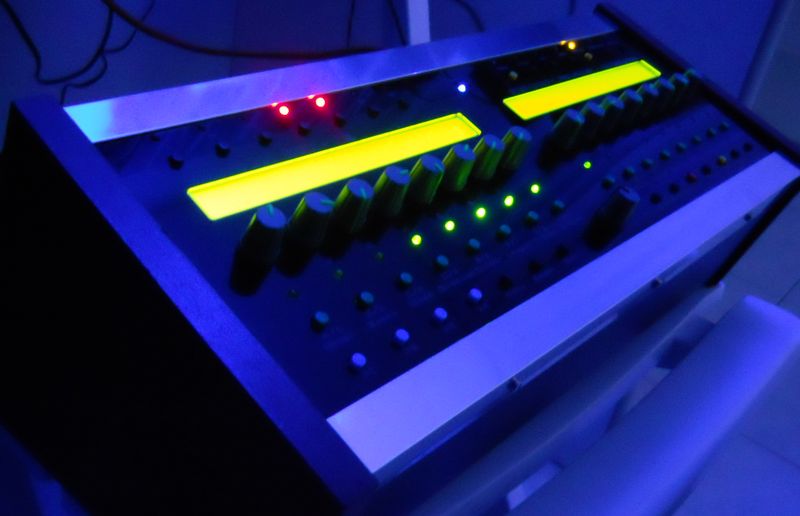

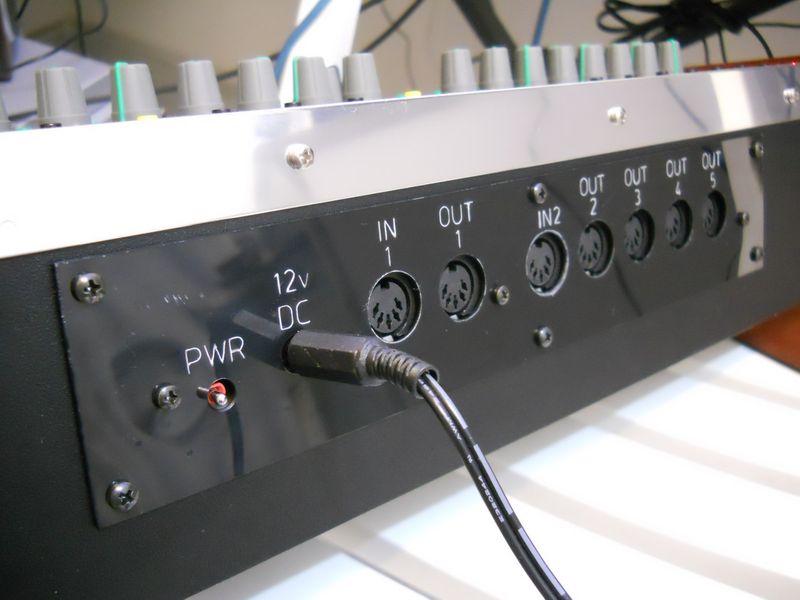

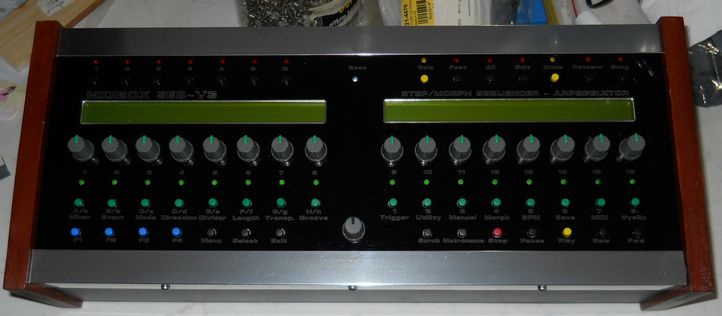

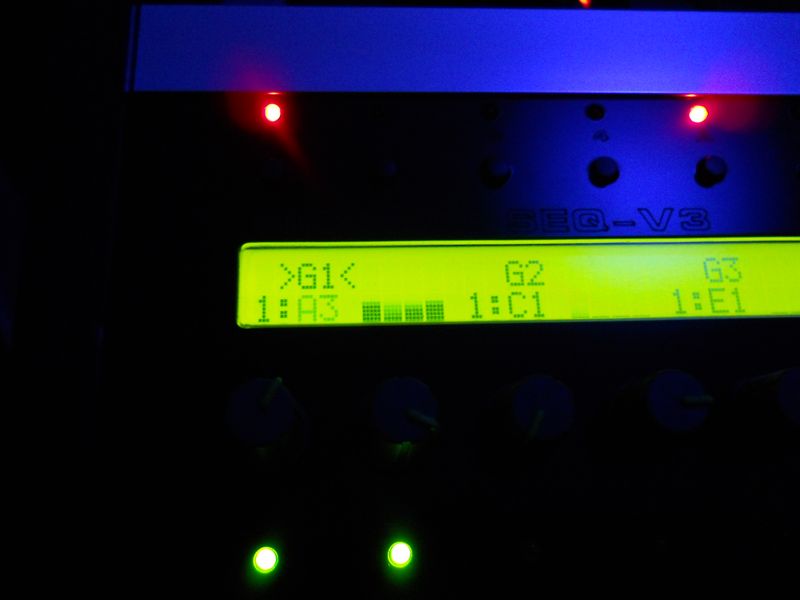

just completed my midibox SEQ_V3.

I know that V4 is more actual but I strongly wanted build it and

I am sure it will give me hours of fun.

P.S.

If I am wrong posting here feel free to move the post

post-5216-030667600 1295468635_thumb.jpg
post-5216-030667600 1295468635_thumb.jpg800×516 38 KB

post-5216-088479000 1295468658_thumb.jpg
post-5216-088479000 1295468658_thumb.jpg800×600 53.1 KB

post-5216-054198200 1295468668_thumb.jpg
post-5216-054198200 1295468668_thumb.jpg800×600 95.3 KB

post-5216-065418400 1295468679_thumb.jpg
post-5216-065418400 1295468679_thumb.jpg800×600 46.2 KB

post-5216-030691400 1295468691_thumb.jpg
post-5216-030691400 1295468691_thumb.jpg800×600 24.7 KB

post-5216-052701100 1295468700_thumb.jpg
post-5216-052701100 1295468700_thumb.jpg722×316 31 KB

post-5216-046160700 1295469001_thumb.jpg
post-5216-046160700 1295469001_thumb.jpg800×351 42.5 KB

post-5216-072413900 1295469055_thumb.jpg
post-5216-072413900 1295469055_thumb.jpg800×600 103 KB

2

very well done and clean - i have most respect for veroboard cs builders (struggling for myself :-))

3

!beauty! :slight_smile: goodjob, well done…

4

beautiful.

out of time? it won’t be the last V3

i’ll be glad if mine’s going to be half that beautiful.

are the buttons the e-switch type with the round caps that are a bit lower level than the rectangular ones?

5

Thanks Rosh and Phunk,

Rosh,

The switch are E-switches with a round cap I bought on RS( code 378-6511 but you can find on other sites too )

The round cap you can choice from different color ( the page on RS have the list )

and can have rectangular shape too.

I used these switches because I had a lot and was a pity waste them

Regards

Antix

6

very well done and clean - i have most respect for veroboard cs builders (struggling for myself :-))

Thank You Hawkeye,

I think that veroboard is very fine for a good positioning for switches and encoders.

Regards
