Building an MB808 clone the long, hard way.
Link to old thread.
/topic/18156-mb808-from-the-begining-sources-of-info/?do=embed&embedComment=165788&embedDo=findComment#comment-165788">

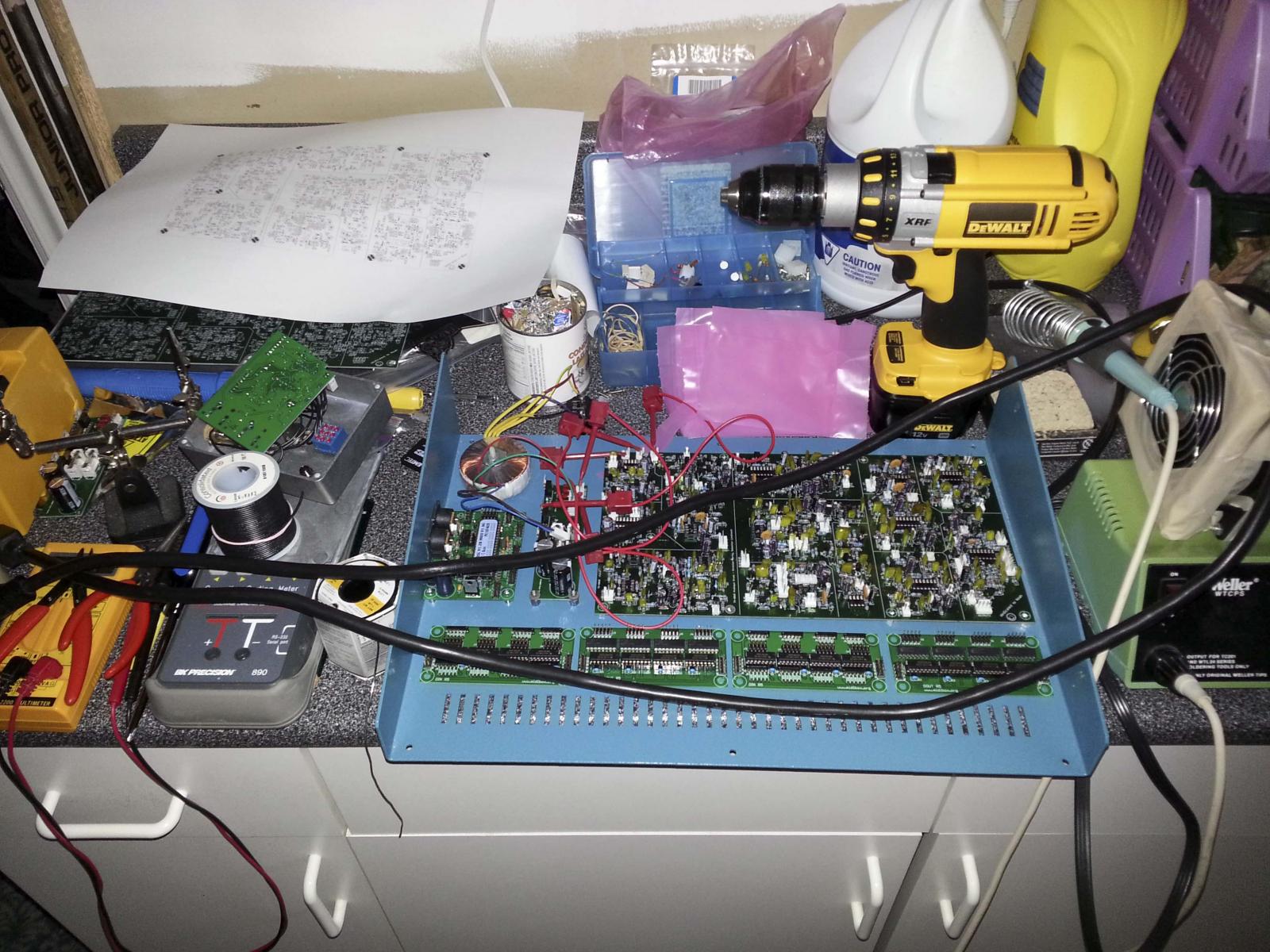

Here’s the work bench with Christian Hartig’s TR-8060 being built and fitted into the case.
A close up of the TR-8060 and the core8.

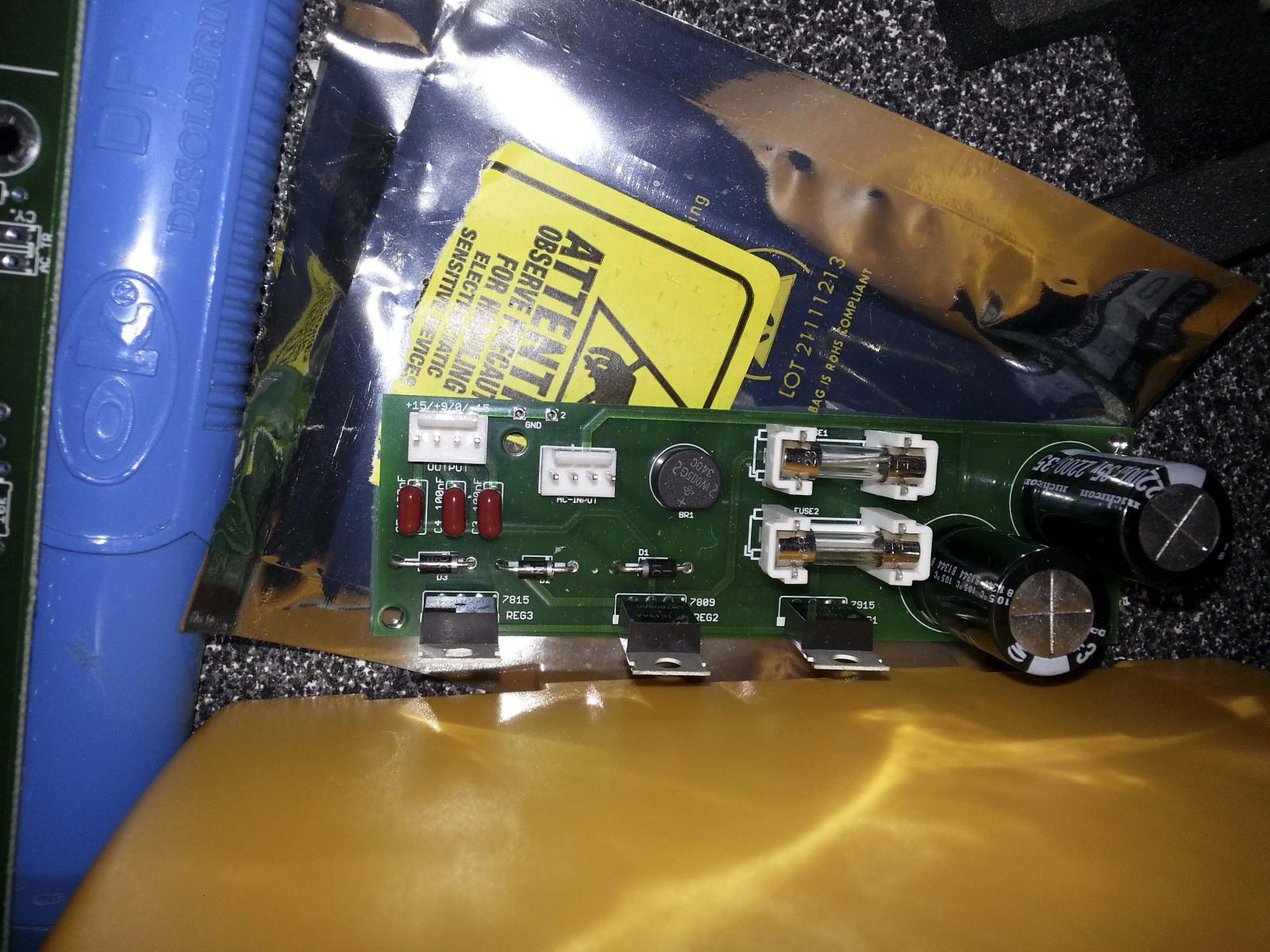

The power supply, likely faulty.

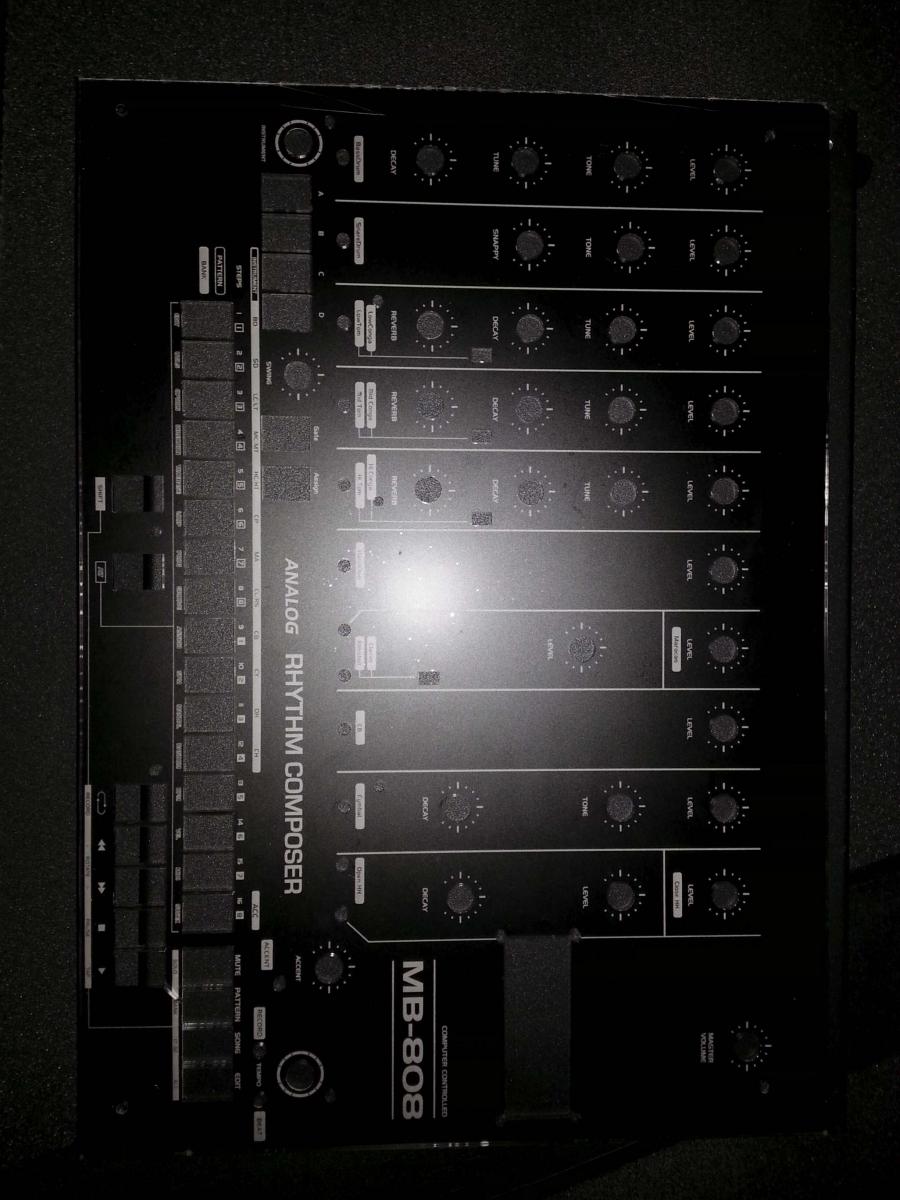

A view of the front panel.

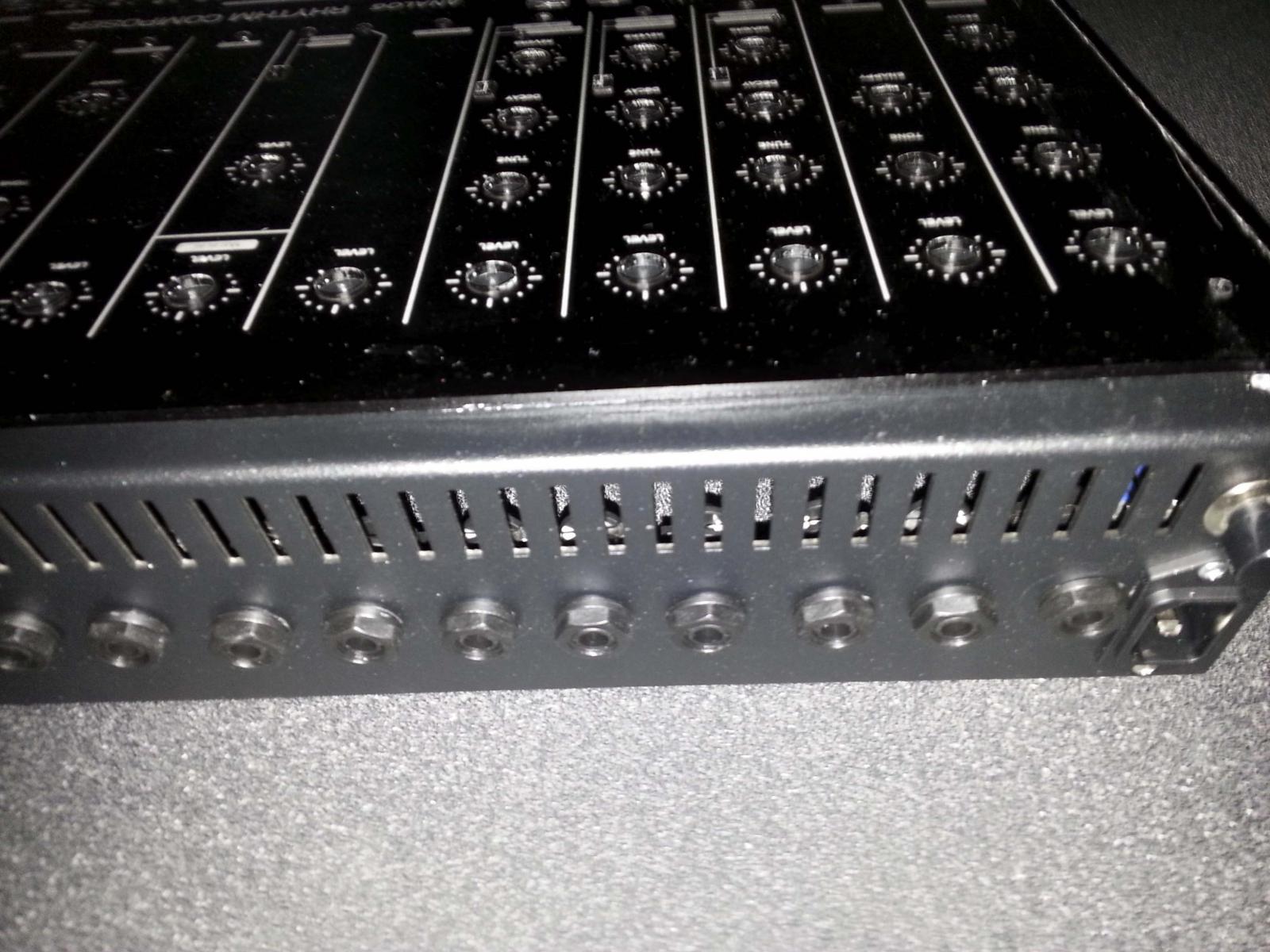

Panel attached to the drilled out and machined case, plus the rear jacks.
