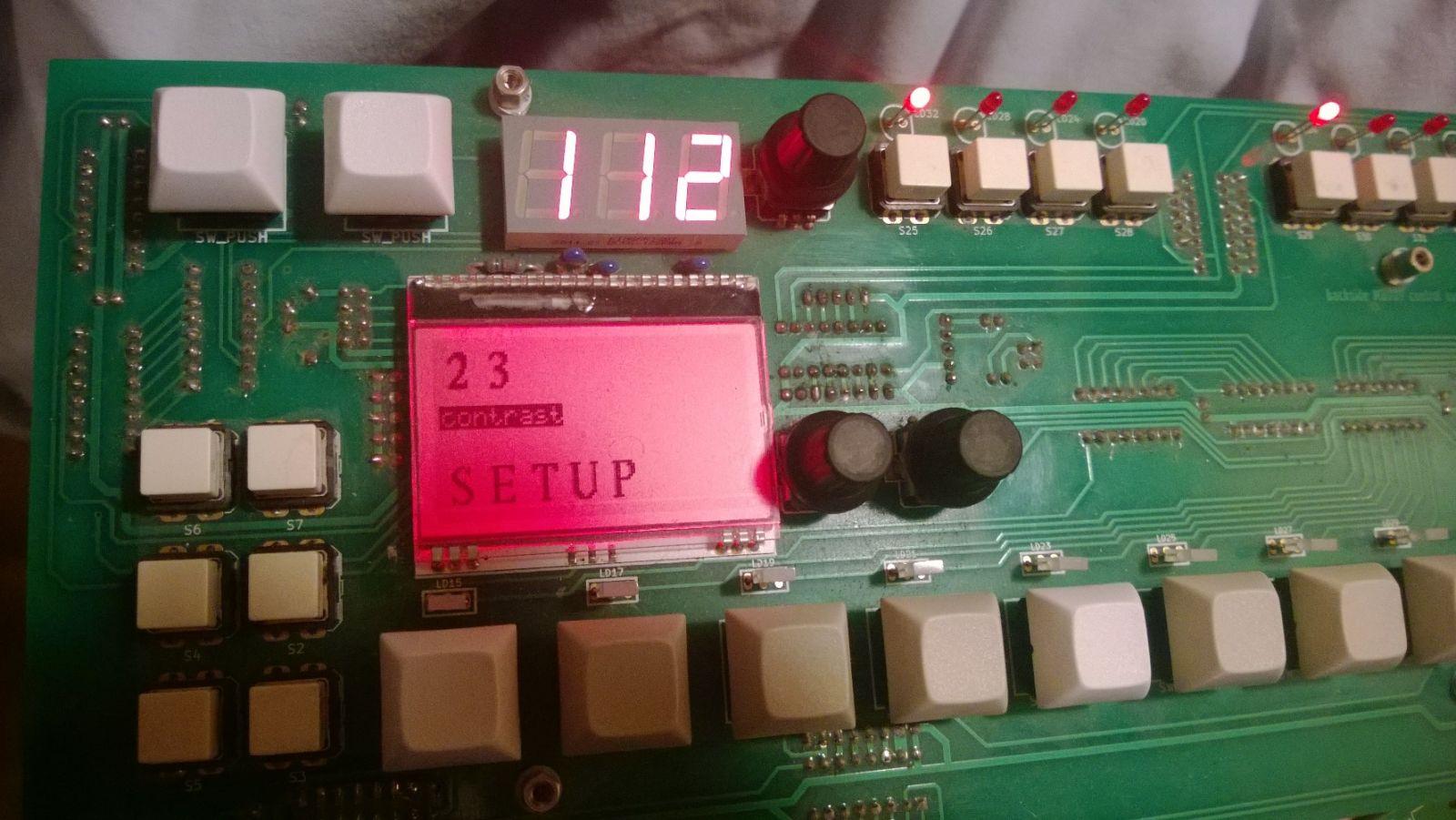

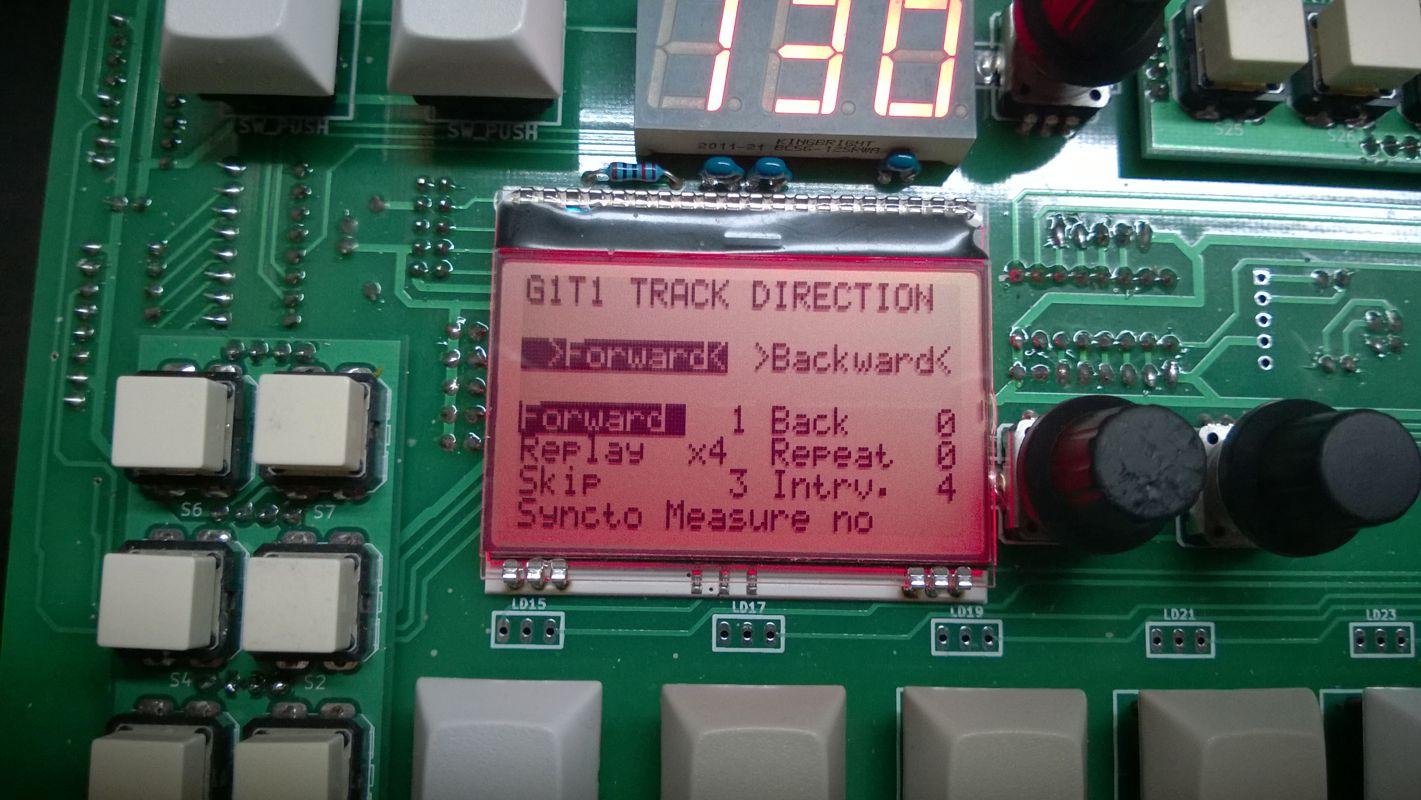

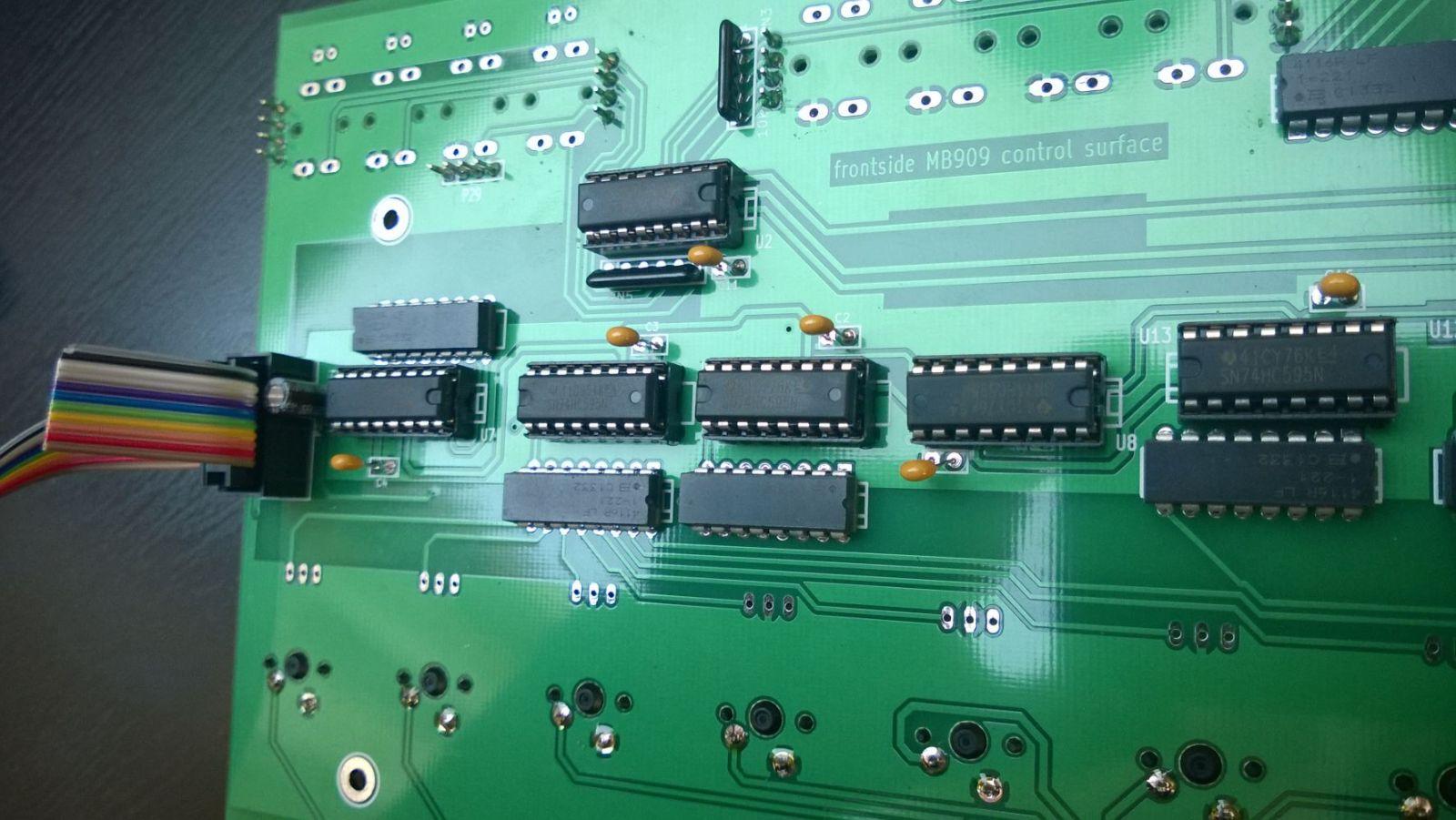

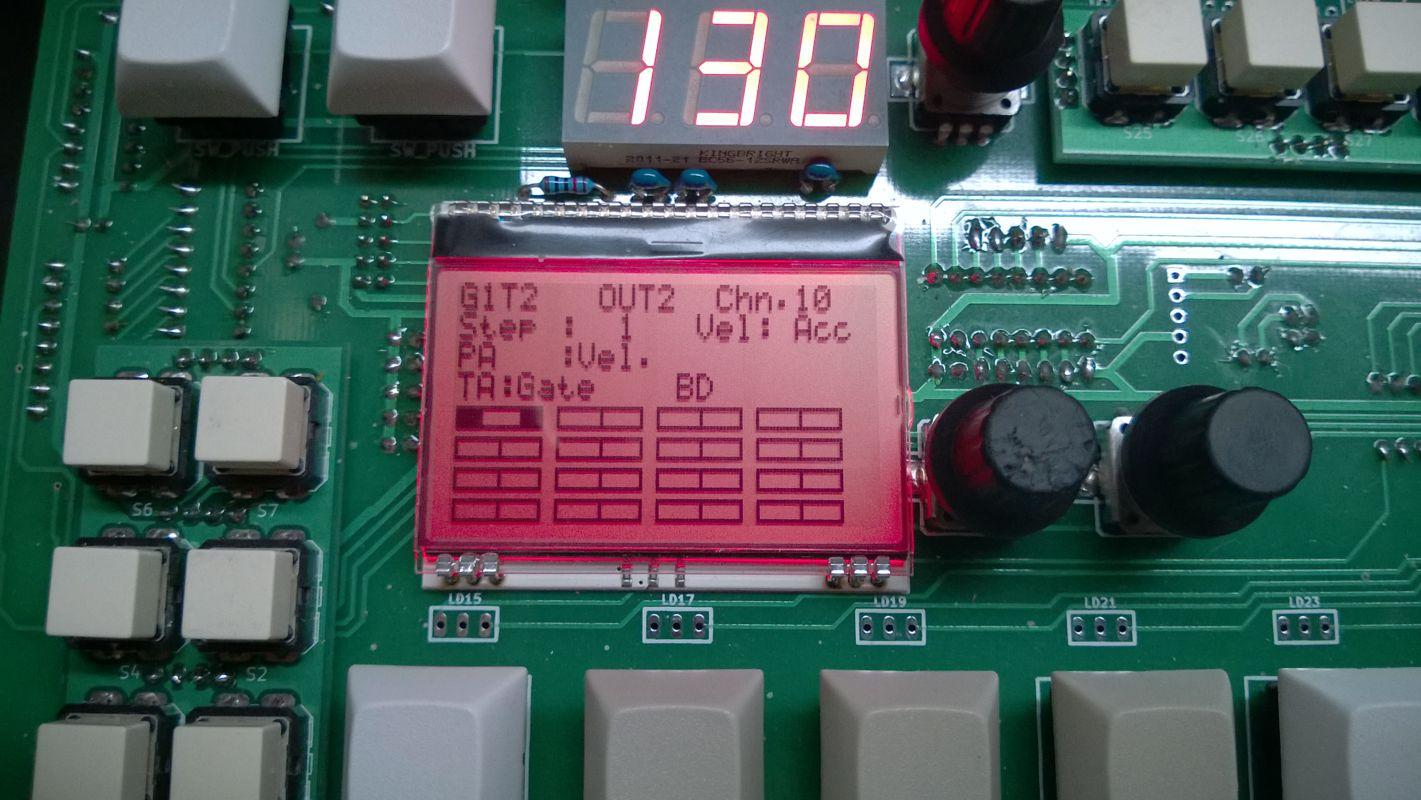

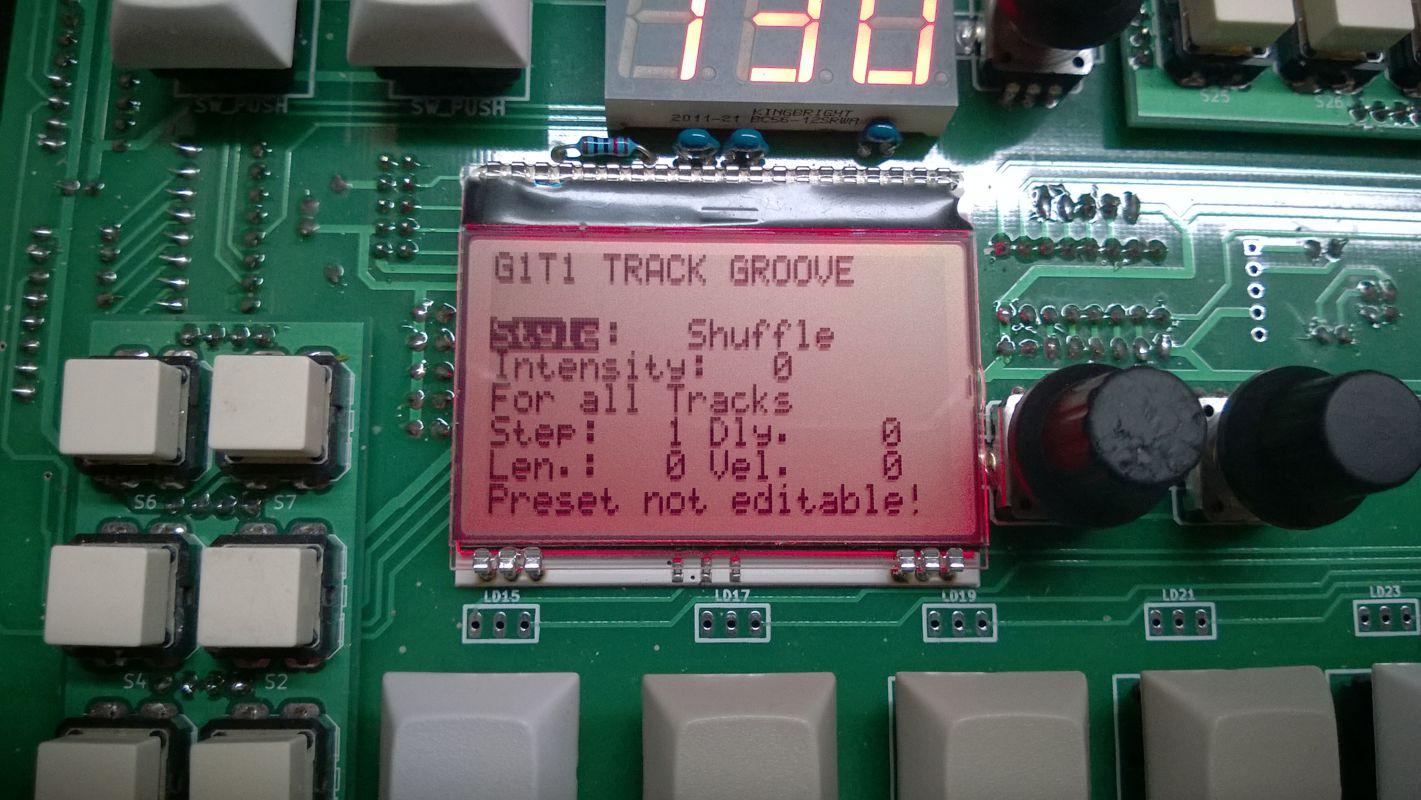

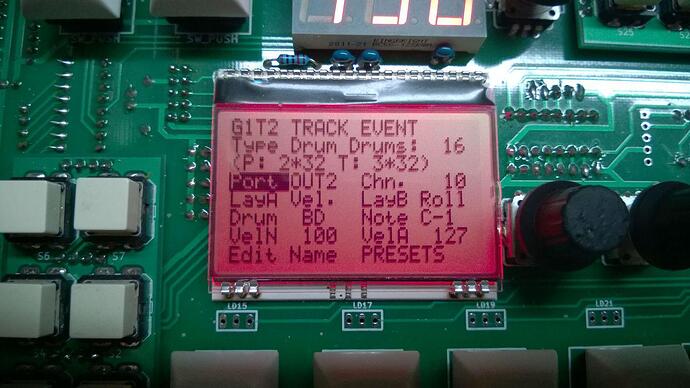

a few pictures of my MB909 control surface for the LPC core. This is the control surface initially intended to control my 9090.

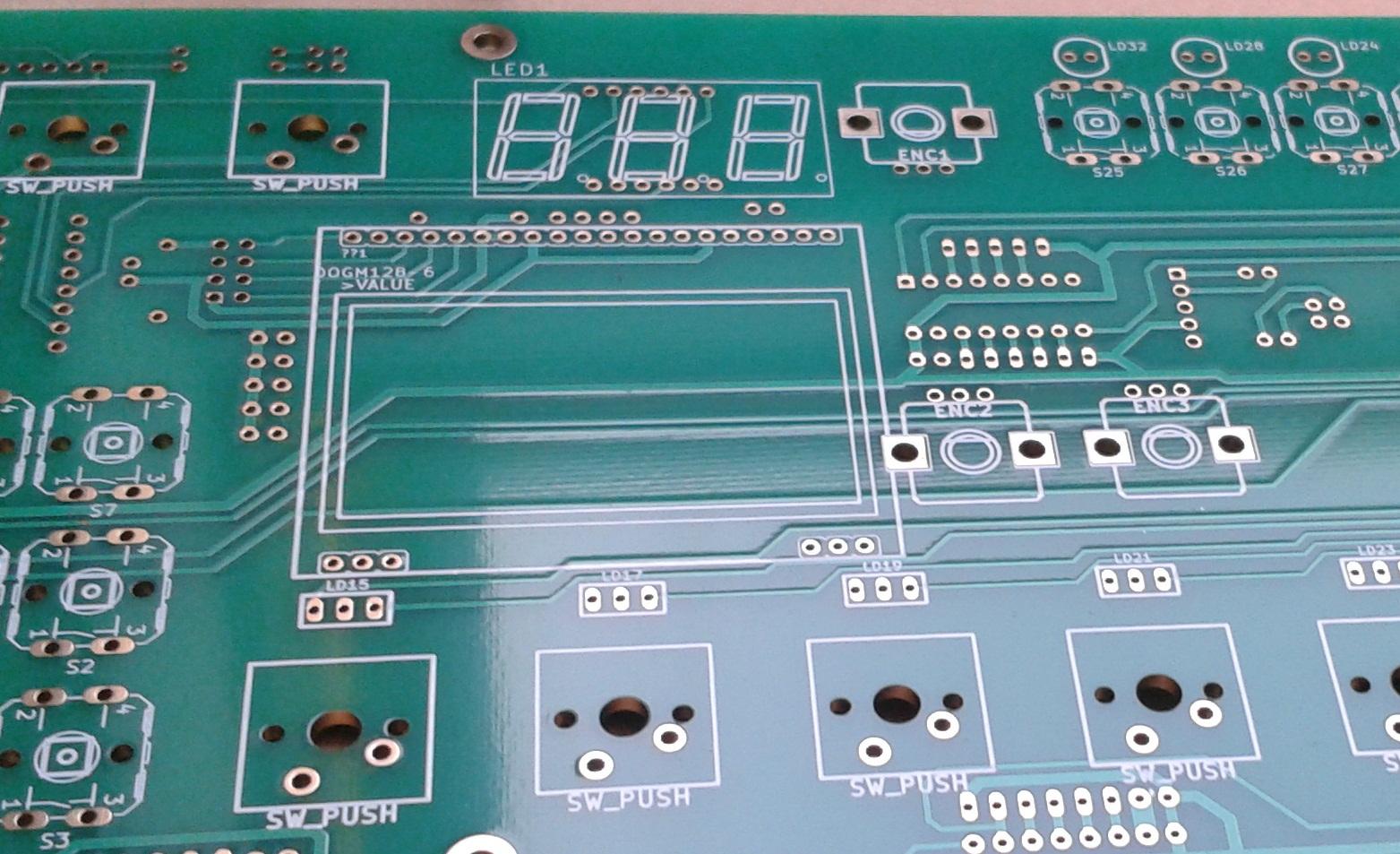

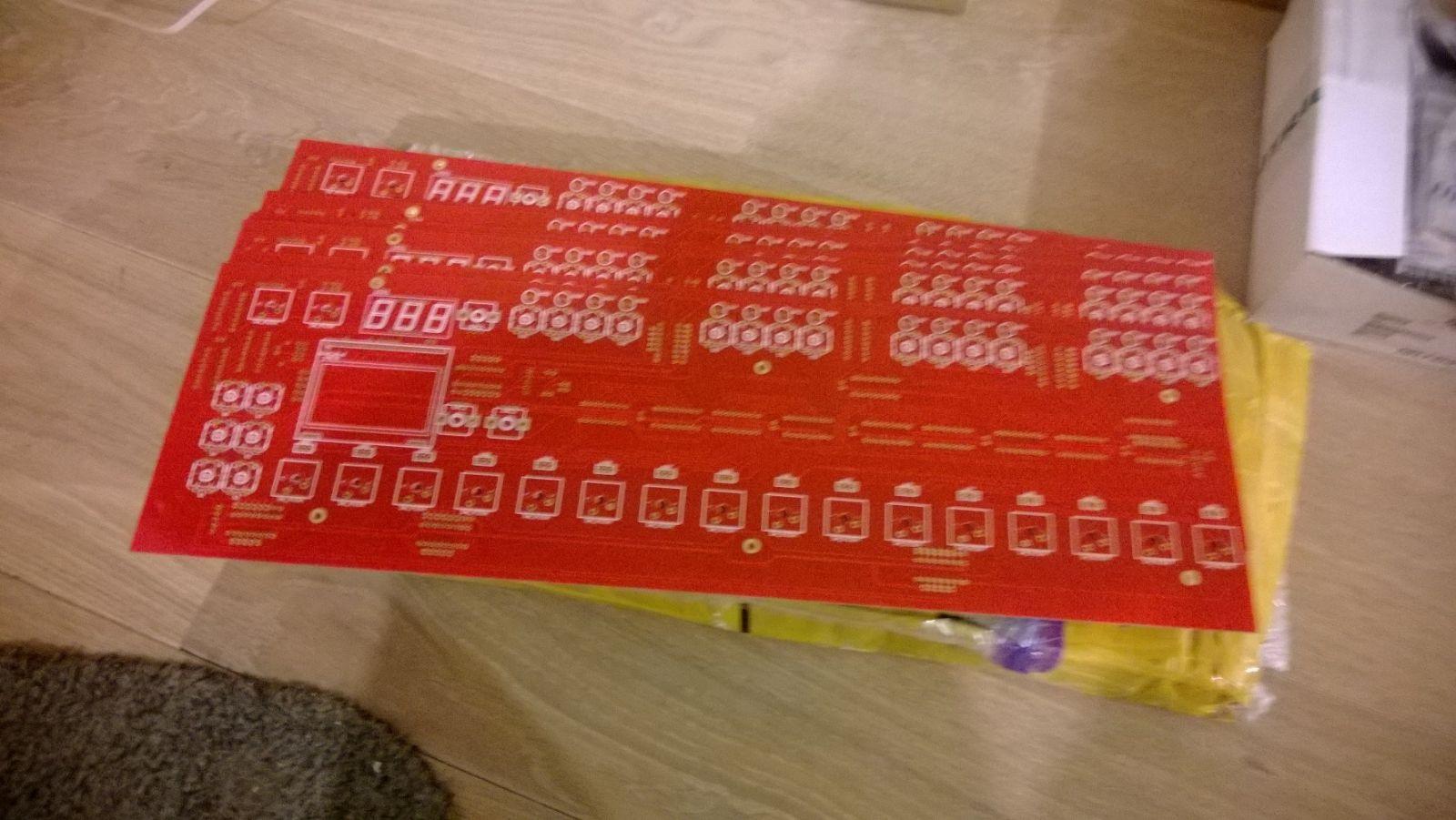

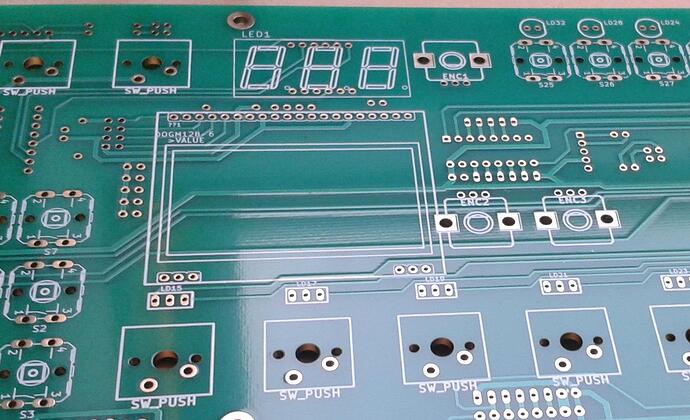

yes the first MB909 PCB finally came in!!!

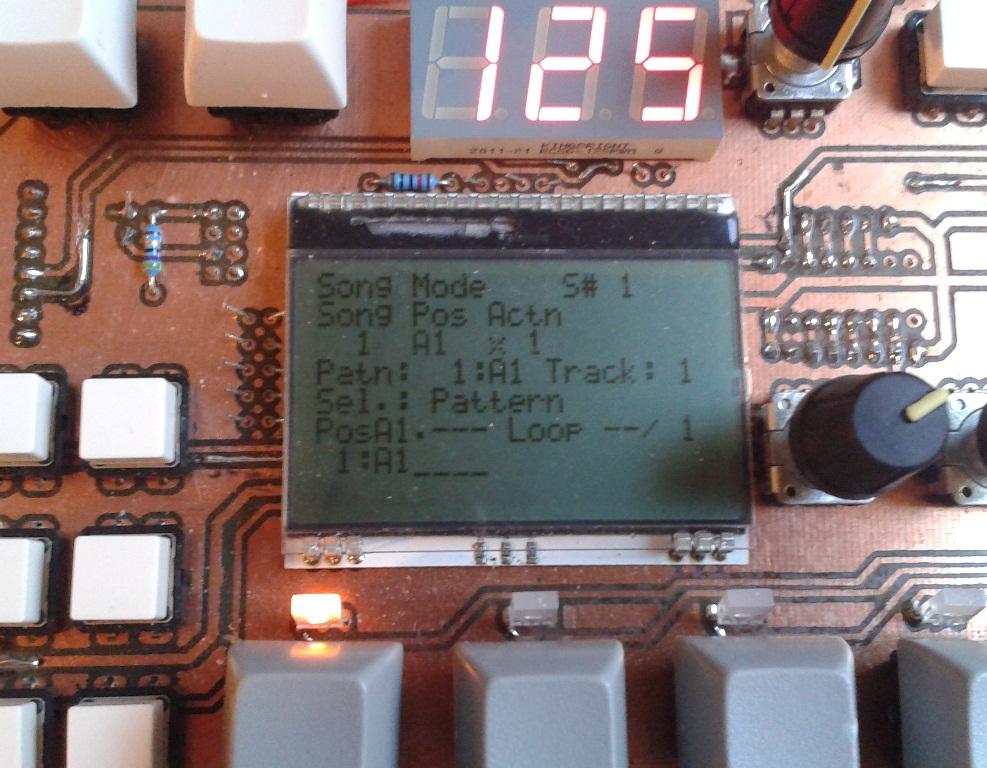

I have adjusted the song mode:
If multimachine is selected then the sequencer will play 4 tracks of one pattern at the same time (unless you have muted one or more tracks.
If multimachine is not selected the sequencer will only play one track of one pattern. you can select the track with the track buttons or with the encoders.
cheers
Jef

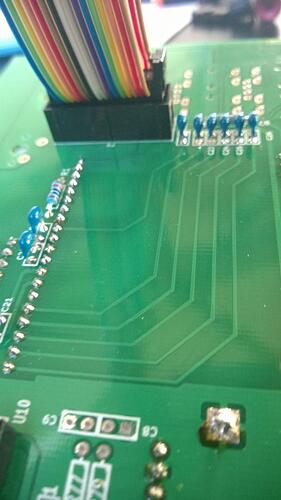

LCD connection to the MidiBox core

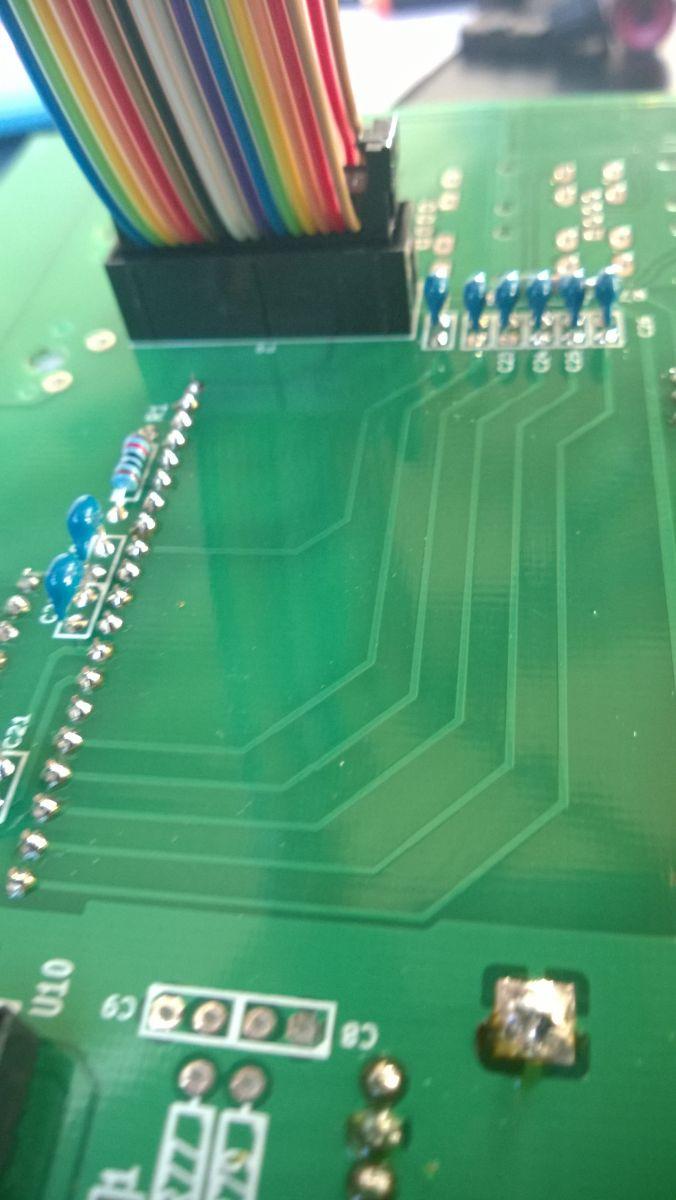

IN/OUT connection to the MidiBox core

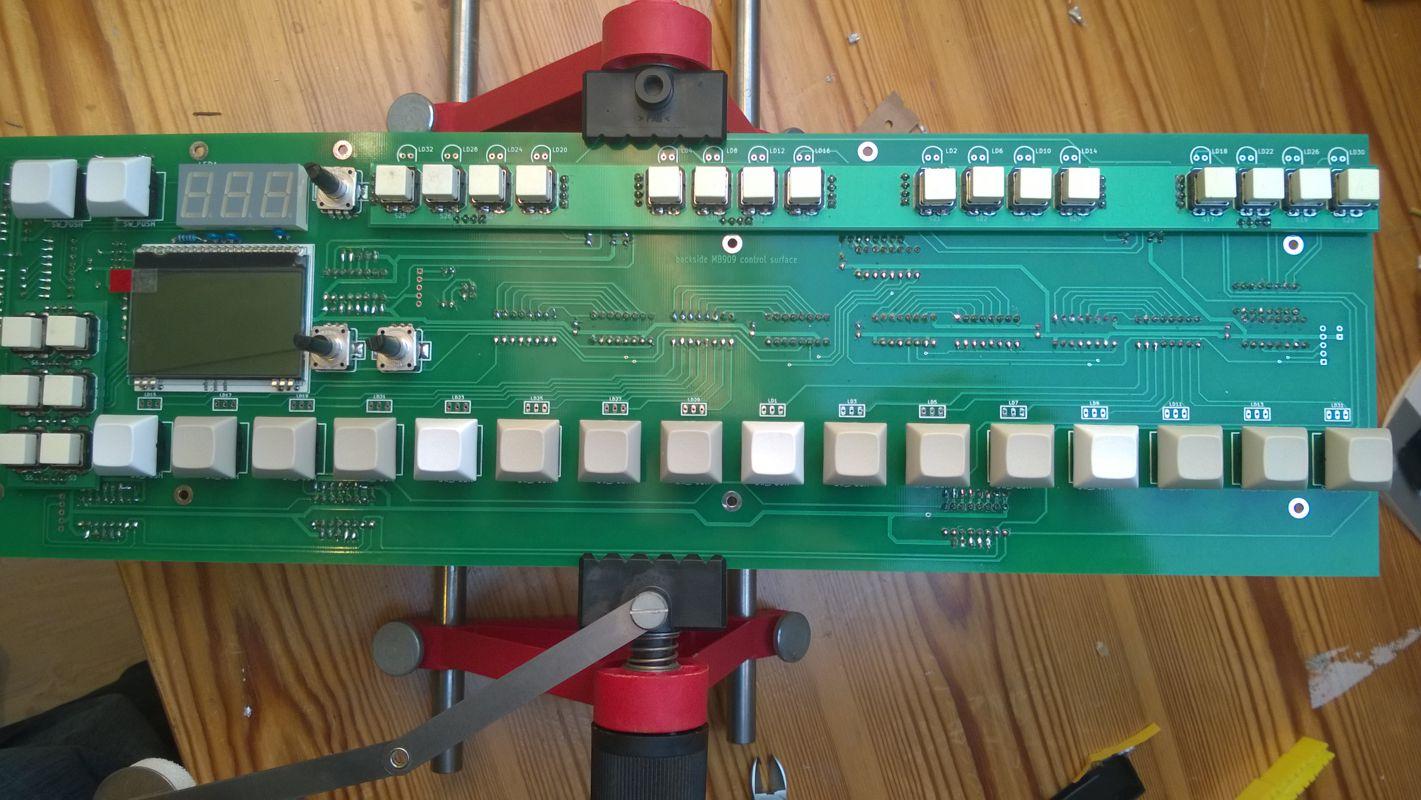

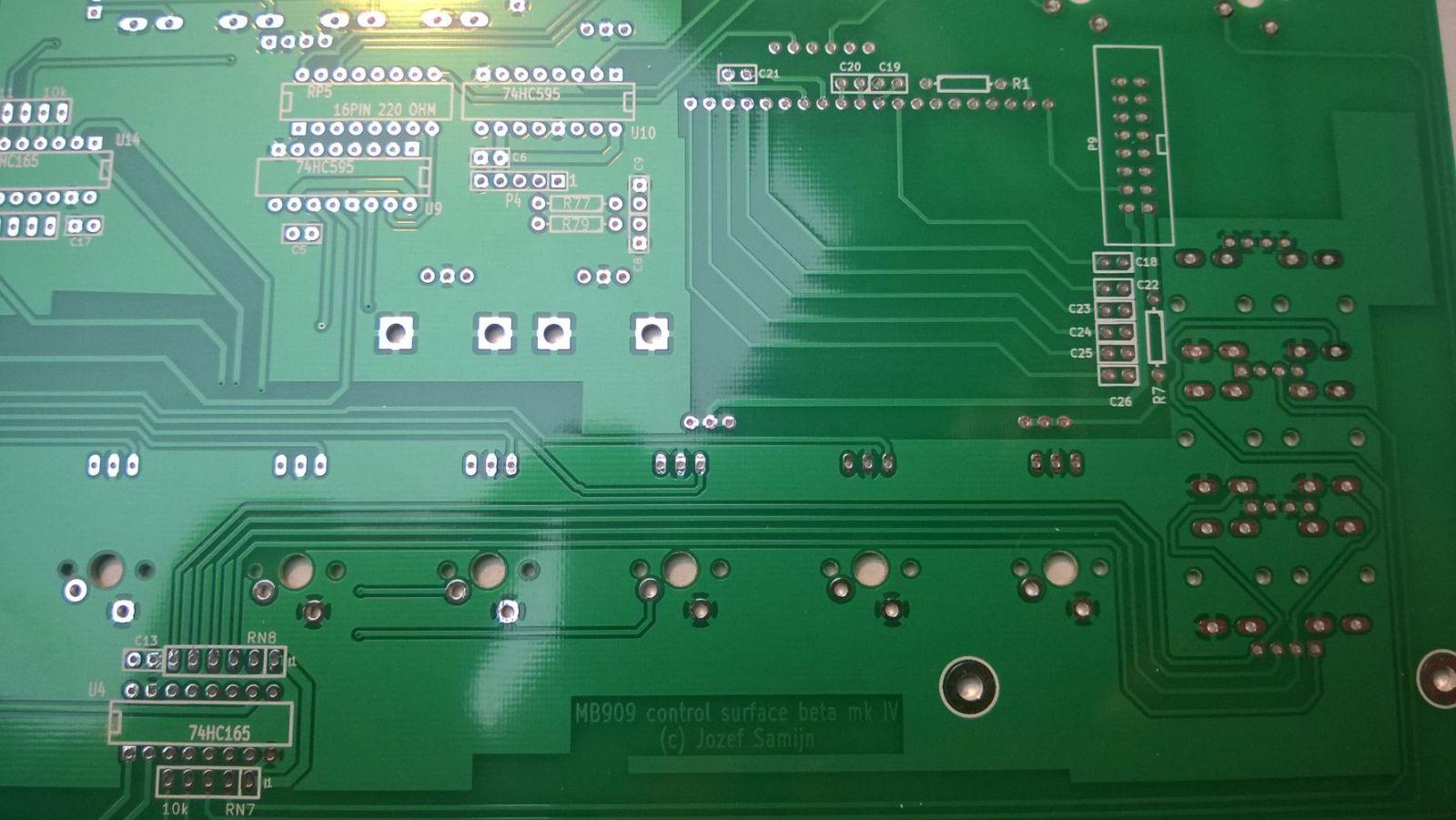

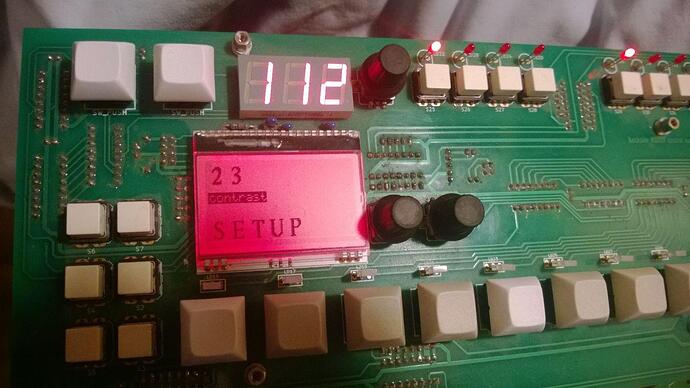

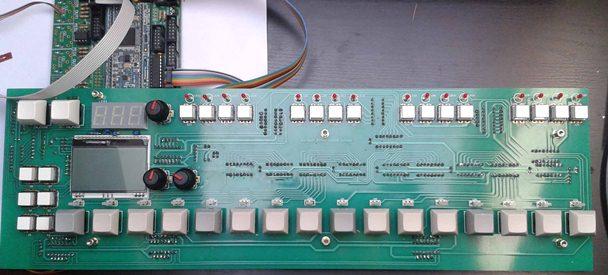

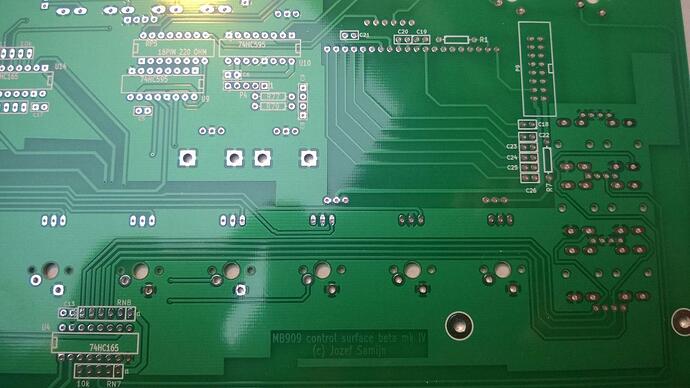

MB909 beta version IV

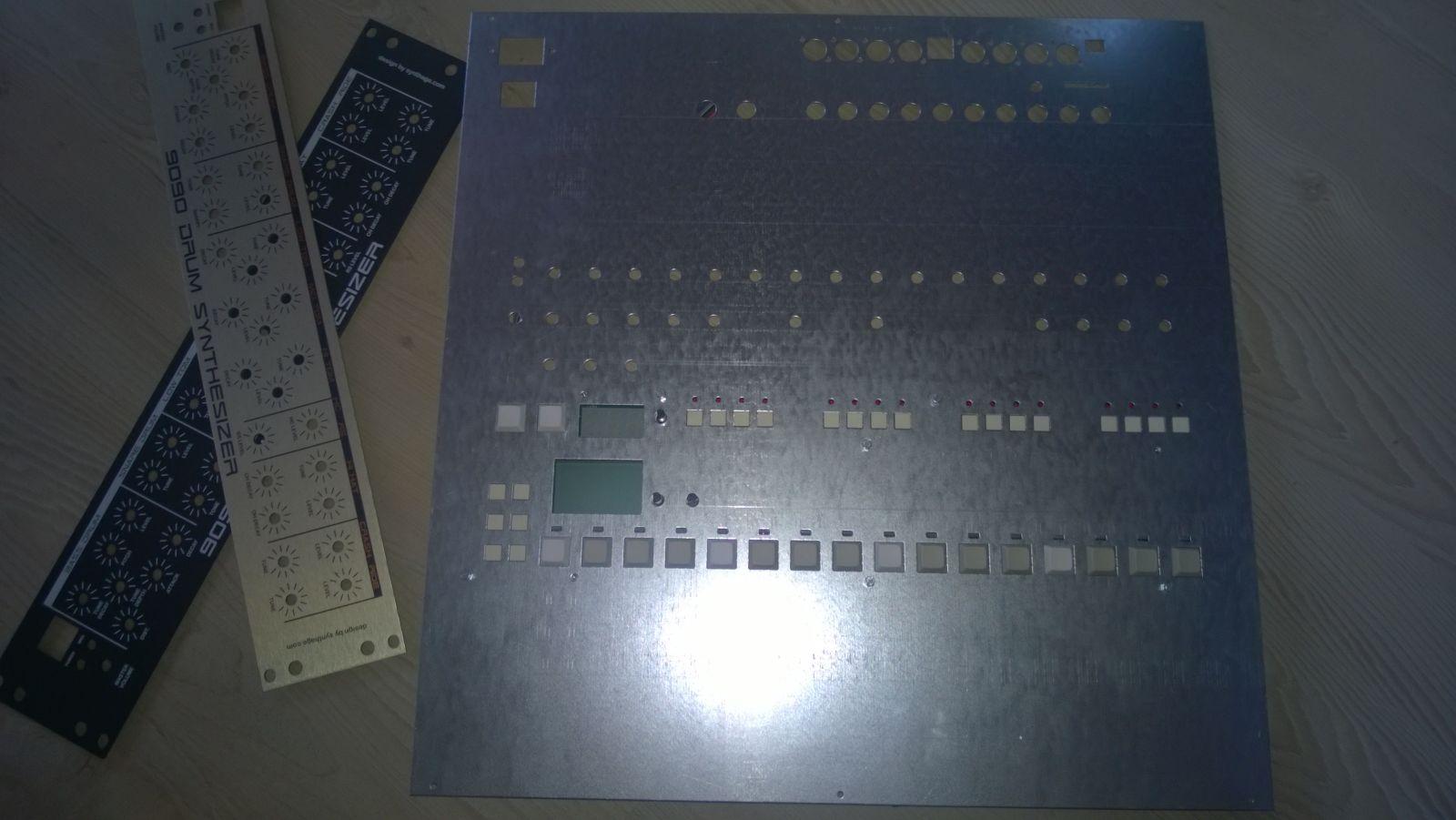

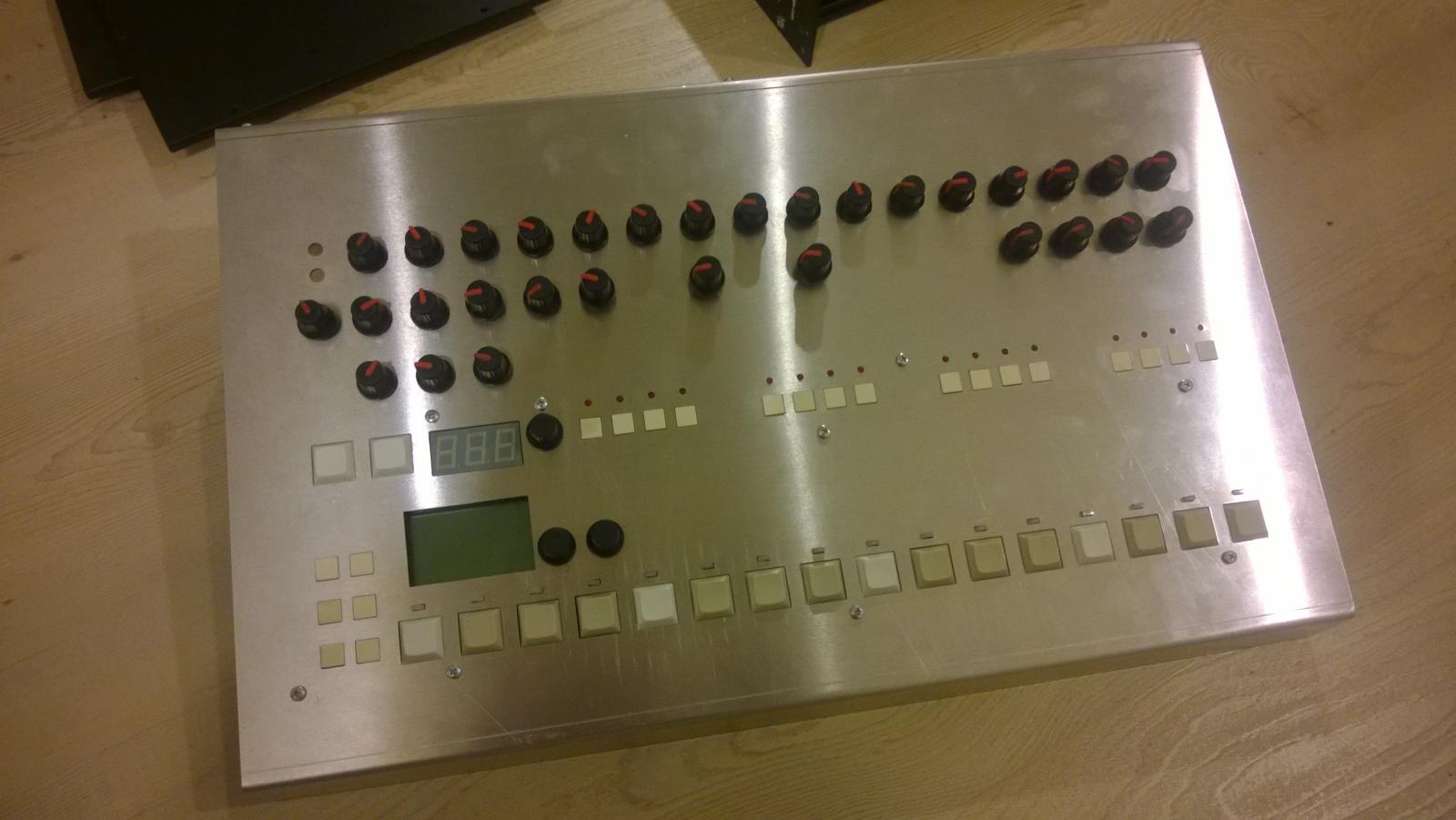

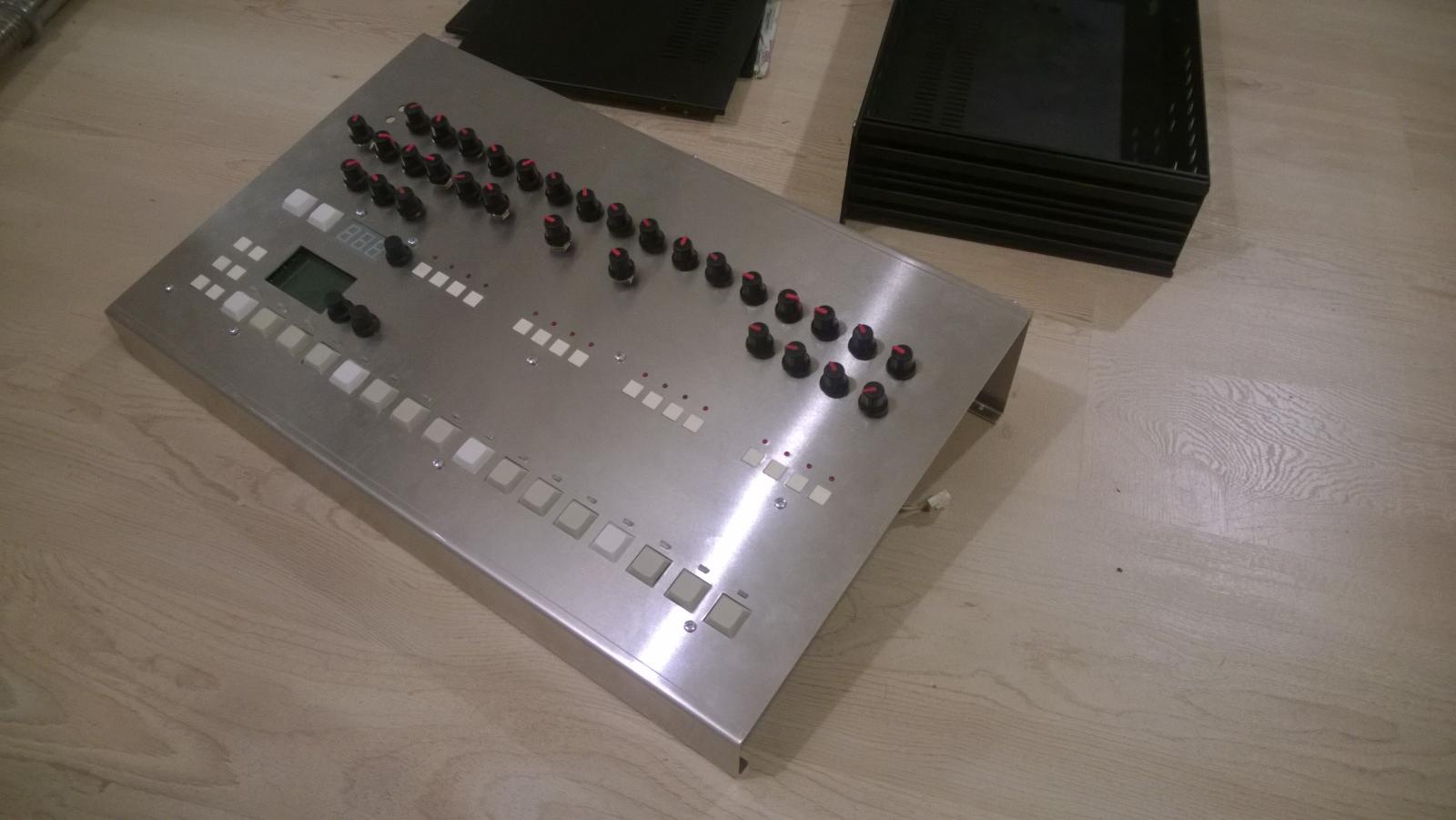

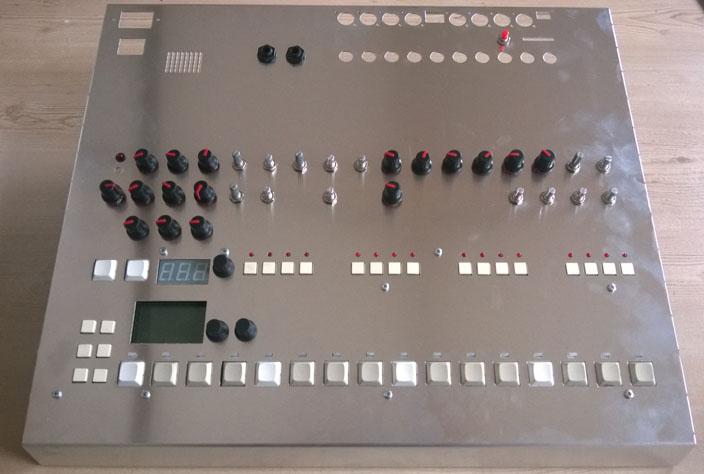

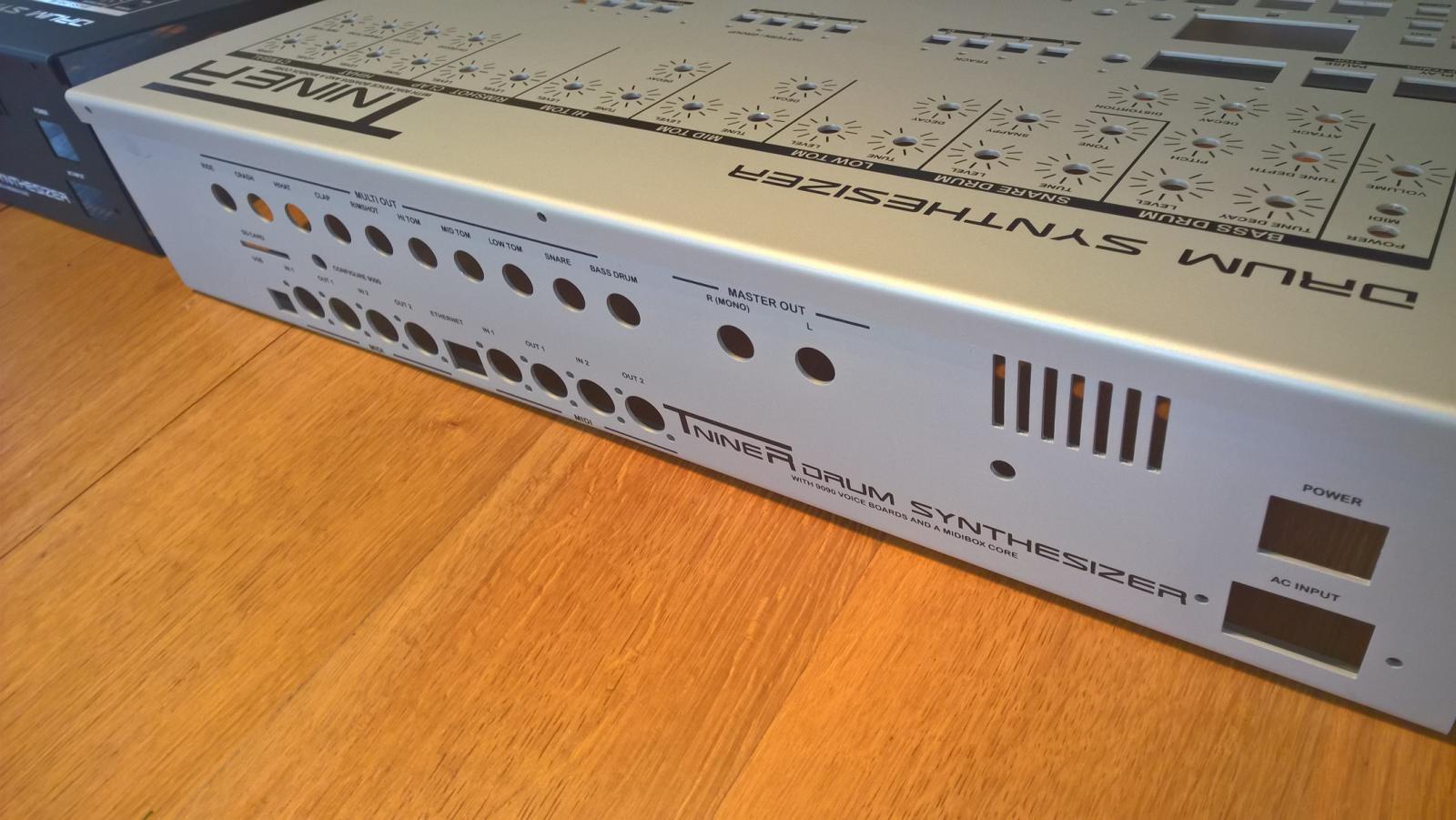

new prototype case
