Album by strophlex
Gallery category: uncategorized
Pictures of my expansion box for the MB6582. Contents are PSU, 4xAOUT_NG, 4xSSM2044 and 2xSSM2164.

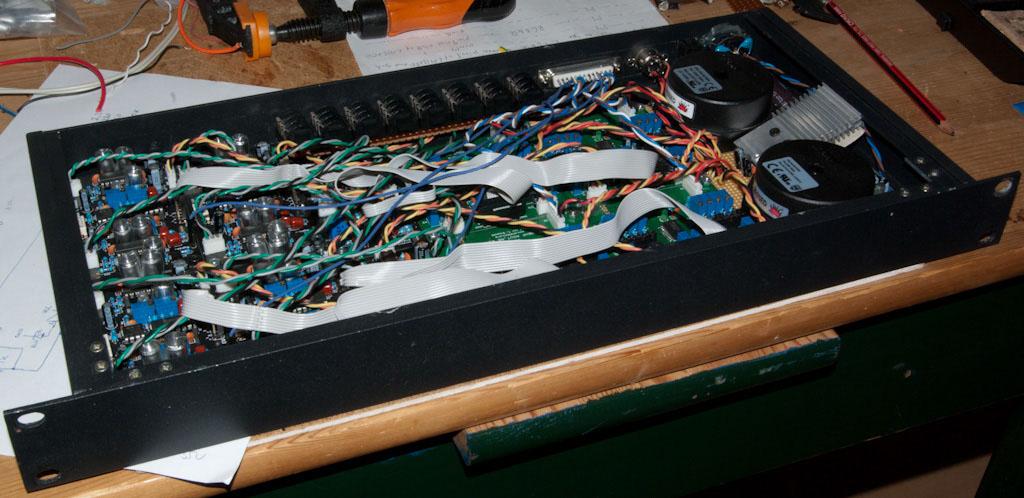

The interior
PSU, 4xAOUT_NG, 4xSSM2044 and 2xSSM2164 in a 1U rack unit

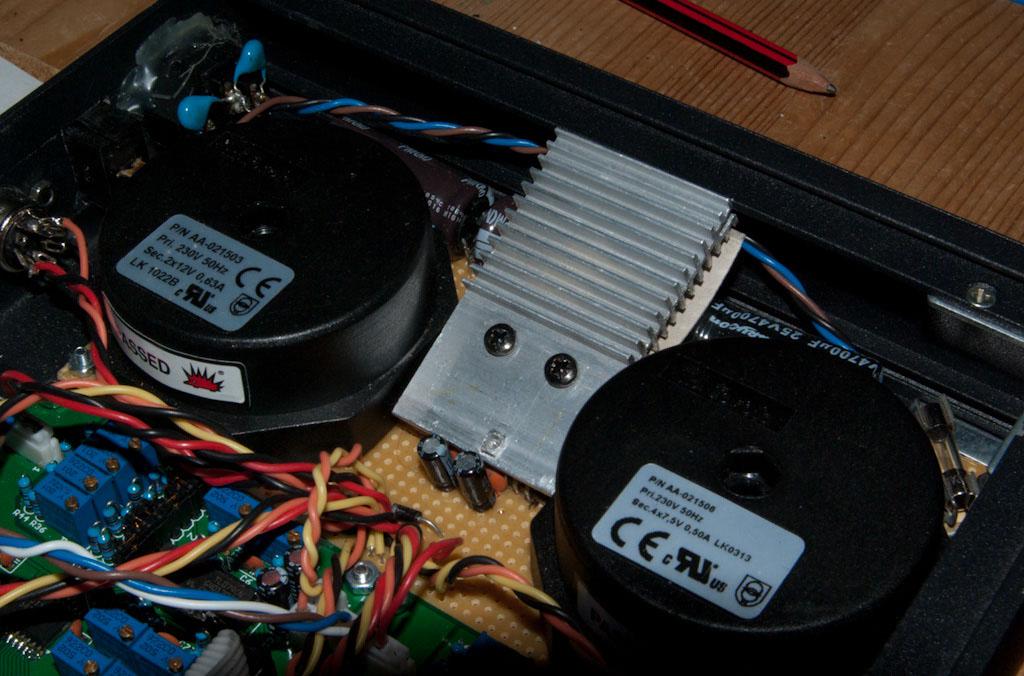

PSU section
- and - 12 V part built according to this description
[bipolar_12v_psu [MIDIbox]
The heatsink visible if for the 5V section. It is too small and gets really hot. When the case is mounted, the heatsink touches the case and so, heat is convected to the case rather effectively.

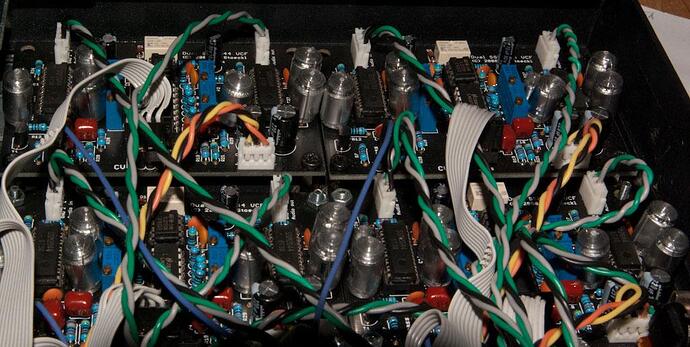

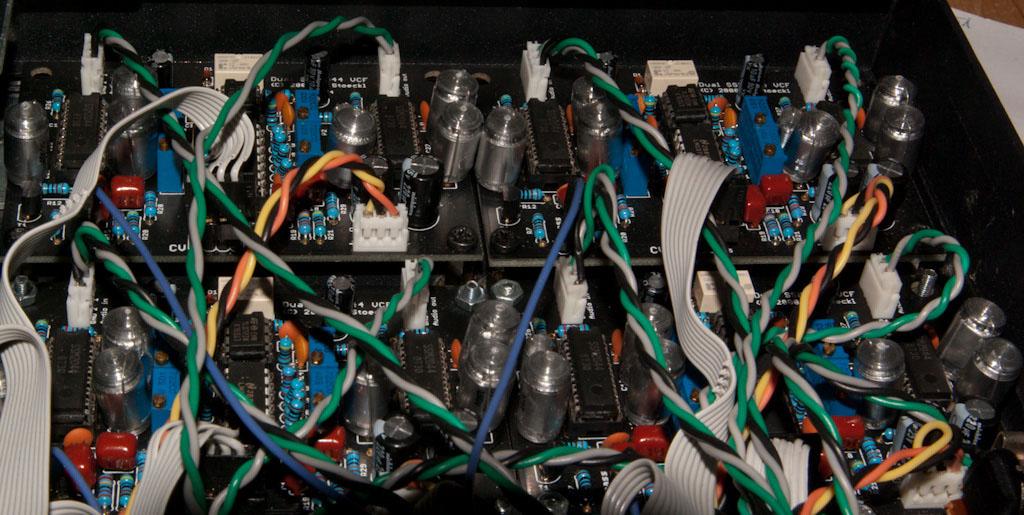

VFC section
4xSSM2044 boards by Seppoman

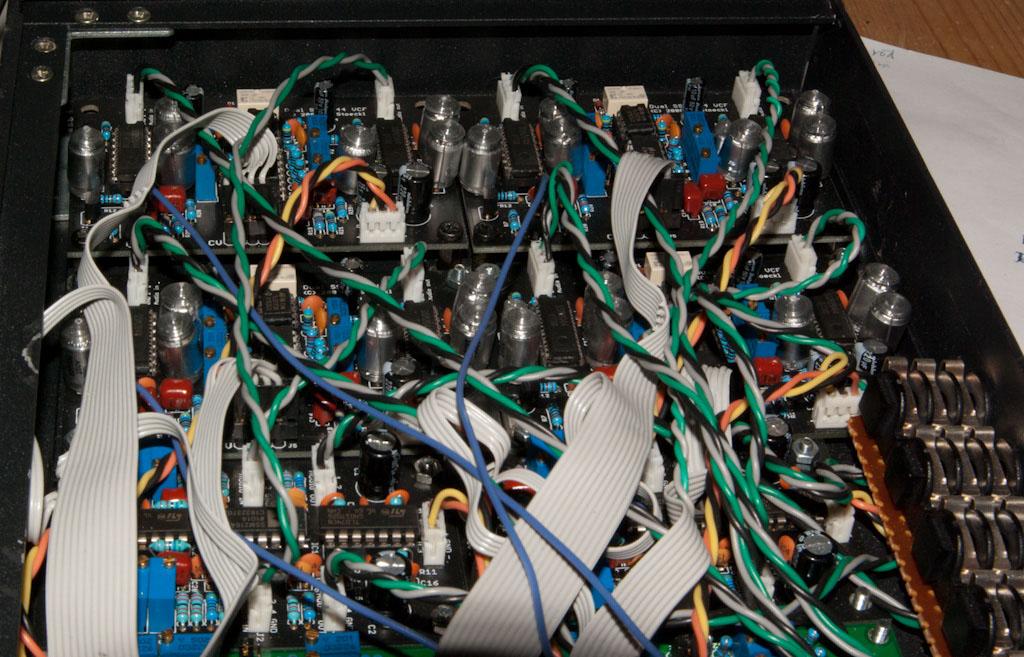

VCF section plus VCA section
4xSSM2044 boards and 2xSSM2164 boards by Seppoman

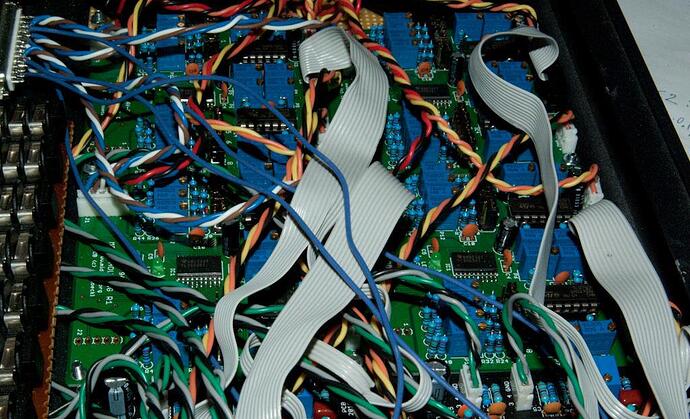

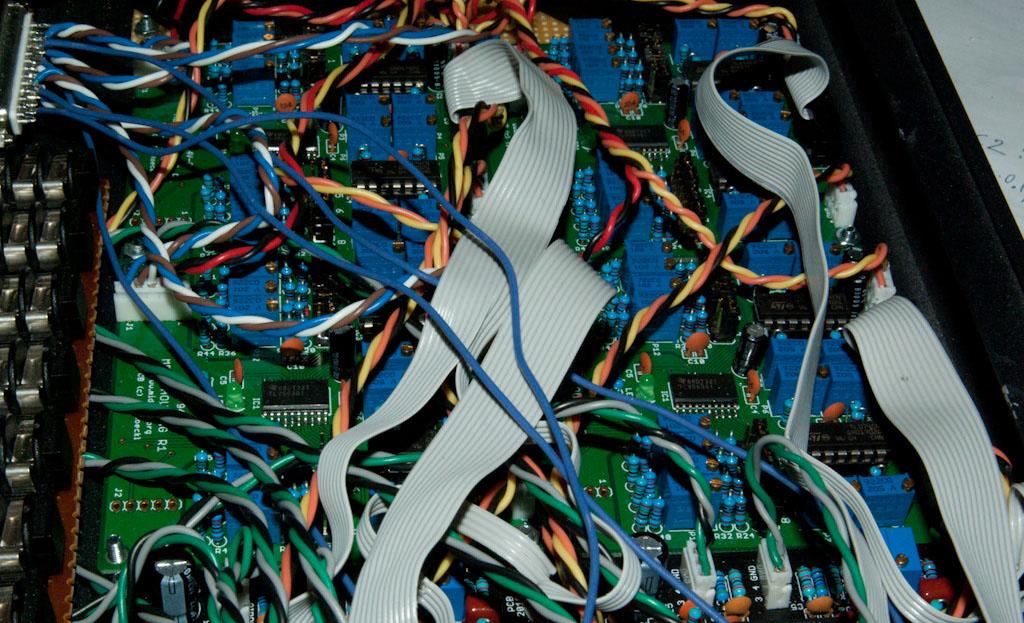

DAC section
4xAOUT_NG by Seppoman

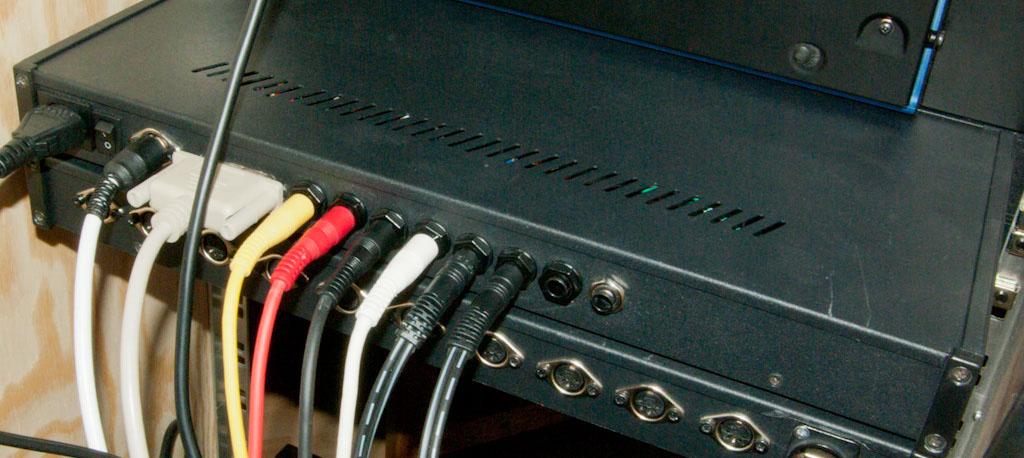

Rear side
Rear side, from left to right:
Grounded power connector for 230V
Power switch
Power connector for MB6582 with +12V, +5V and ground
Digital control signals from MB6582 expansion port.
Stereo audio input 1-4
Stereo audio output 1-4
