MB6582 added to the family

MIDIbox Gallery
1

Album by urtzurd
Gallery category: finished-midiboxes

Finally got my MB6582 completed and working. Custom power supply and yellow OLED display.

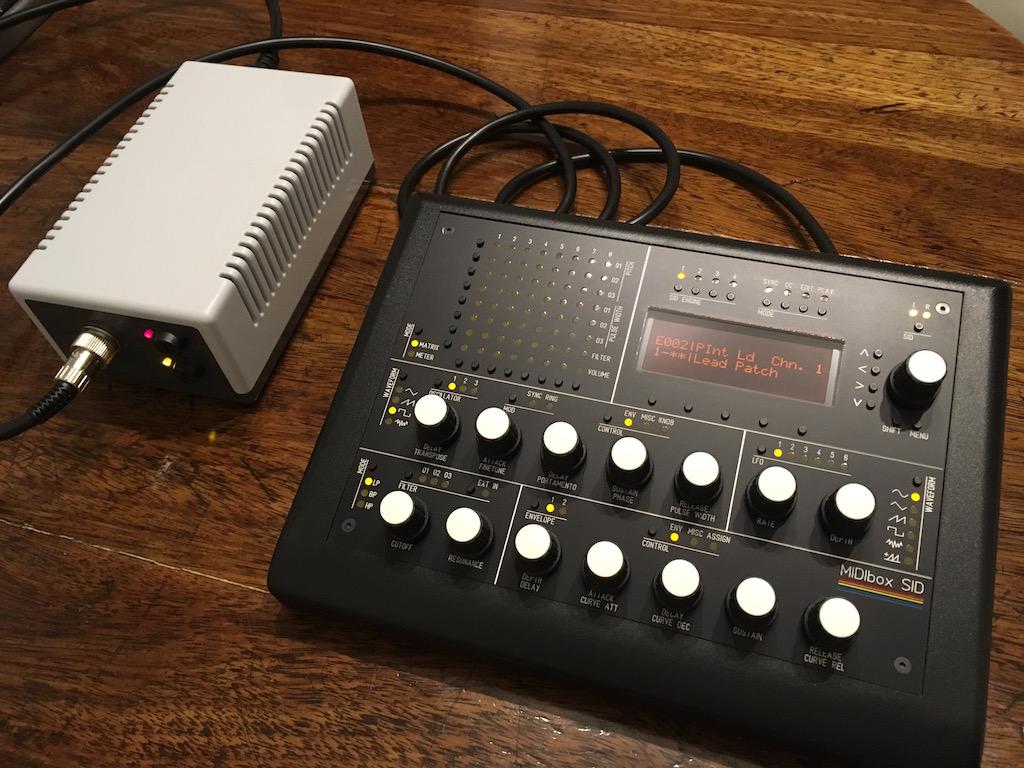

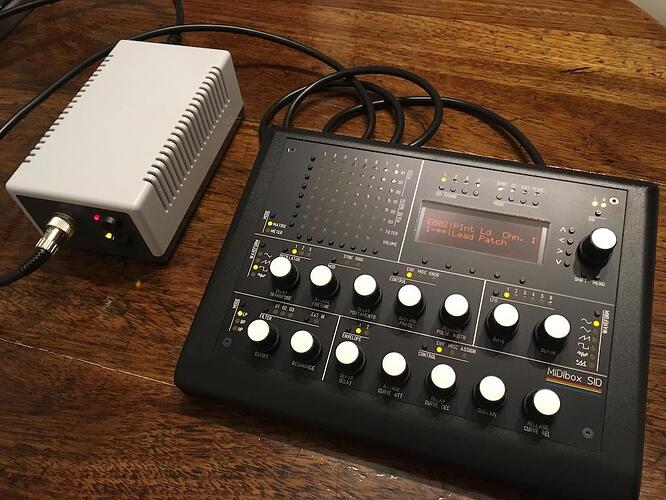

Custom power supply and MB6582 with orange LCD display

Custom power supply and MB6582 with orange LCD display
Custom power supply and MB6582 with orange LCD display1024×768 119 KB

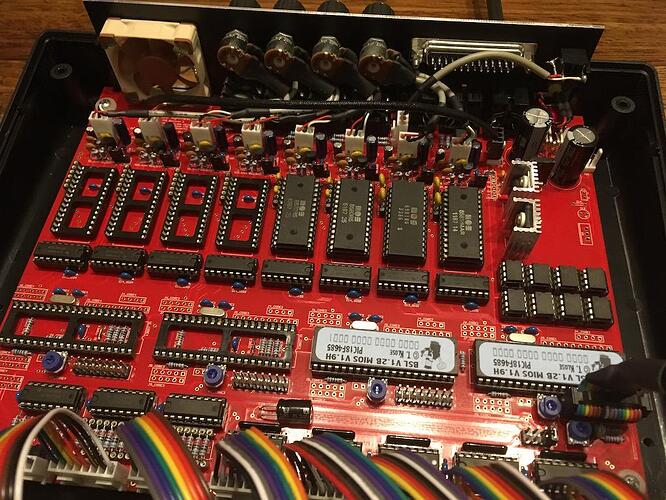

Main PCB with 2x6581 and 2x8580

Main PCB with 2x6581 and 2x8580
Main PCB with 2x6581 and 2x85801024×768 169 KB

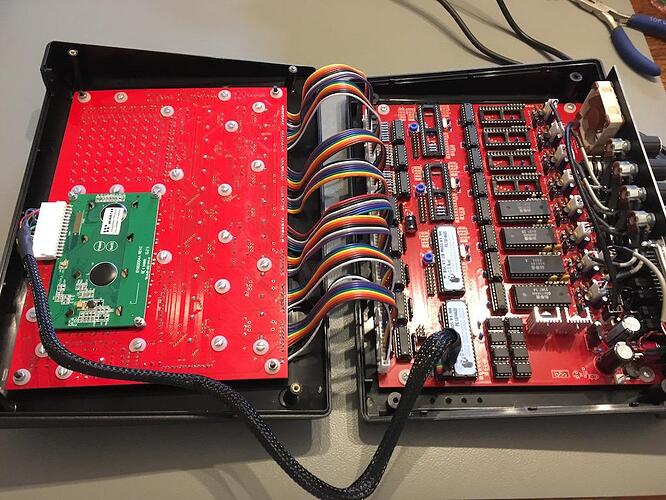

All connectors with molex headers, nice but too tight

All connectors with molex headers, nice but too tight
All connectors with molex headers, nice but too tight1024×768 157 KB

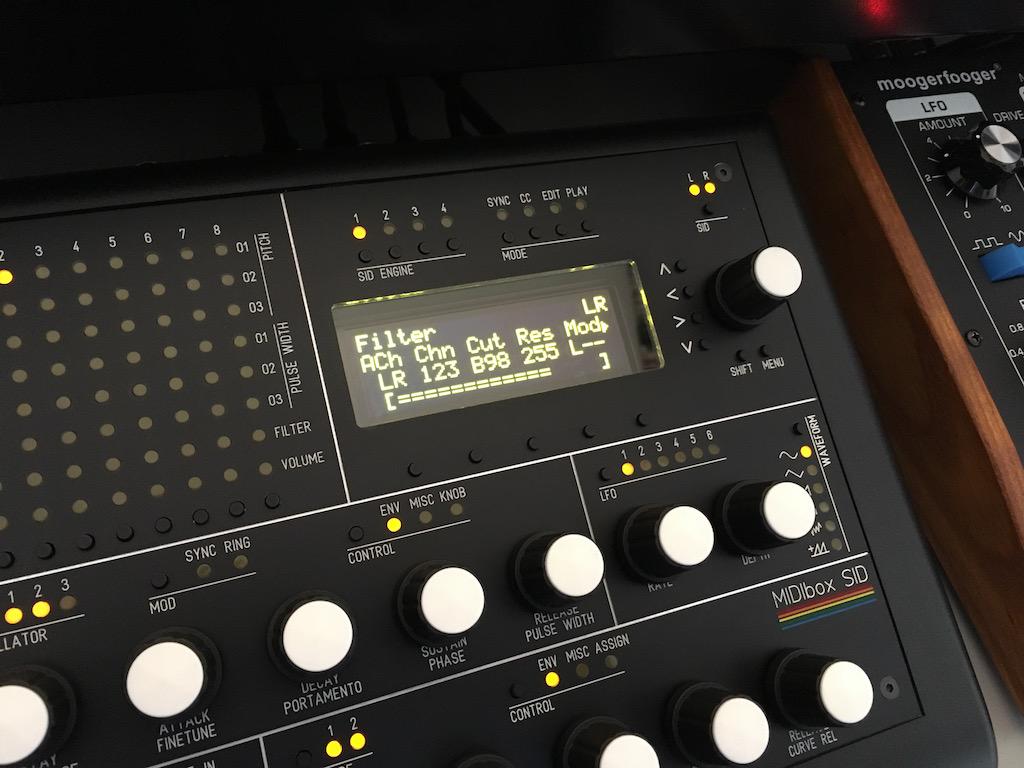

Yellow OLED display working in 8 bits mode!

Yellow OLED display working in 8 bits mode!
Yellow OLED display working in 8 bits mode!1024×768 82.4 KB

Welcome to the family!

Welcome to the family!
Welcome to the family!1024×768 111 KB

2

Re: All connectors with molex headers, nice but too tight

This is some of the cleanest looking MB-6582 guts I’ve ever seen. Bravo.
