Some pictures of my FM Synth

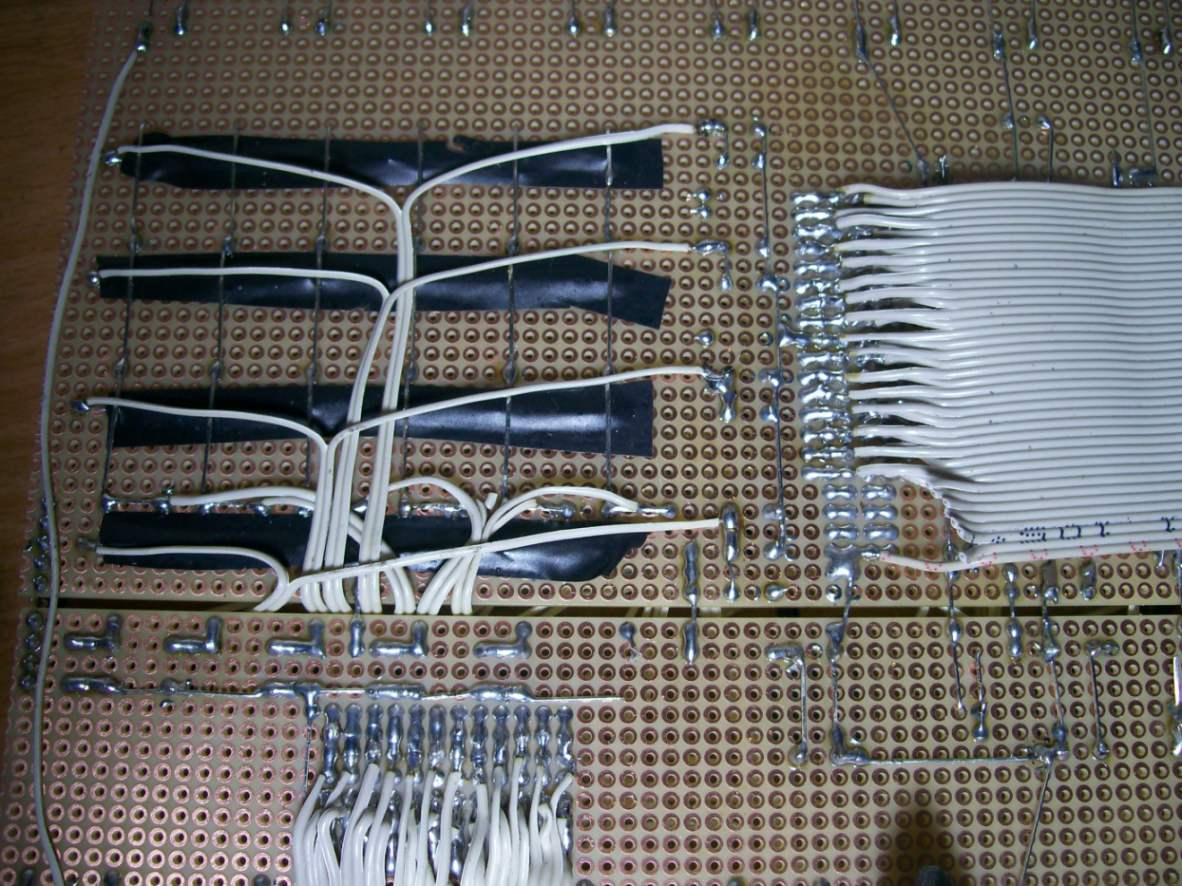

Control Board bottom 1
Perfoboards everywhere…

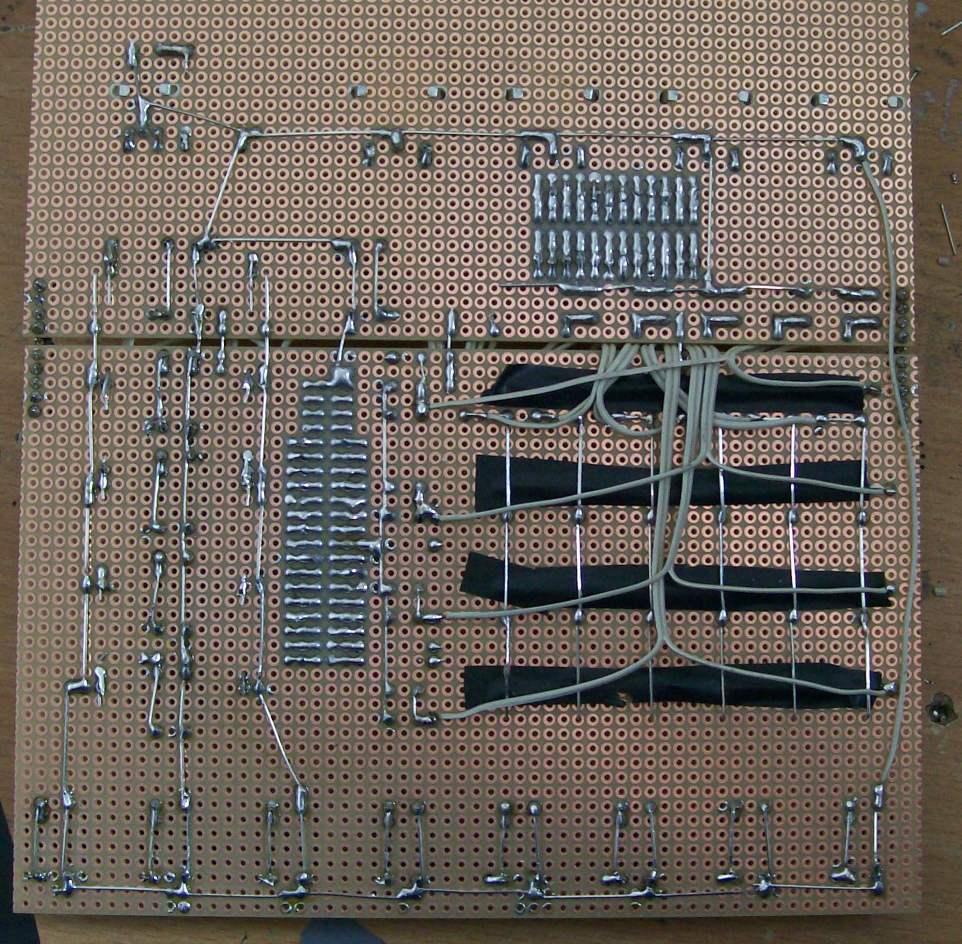

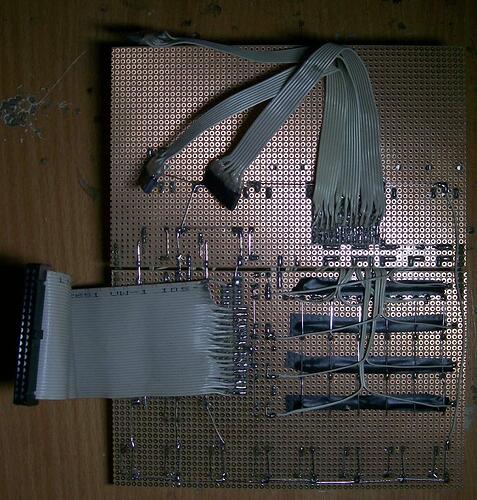

Control Board bottom 2

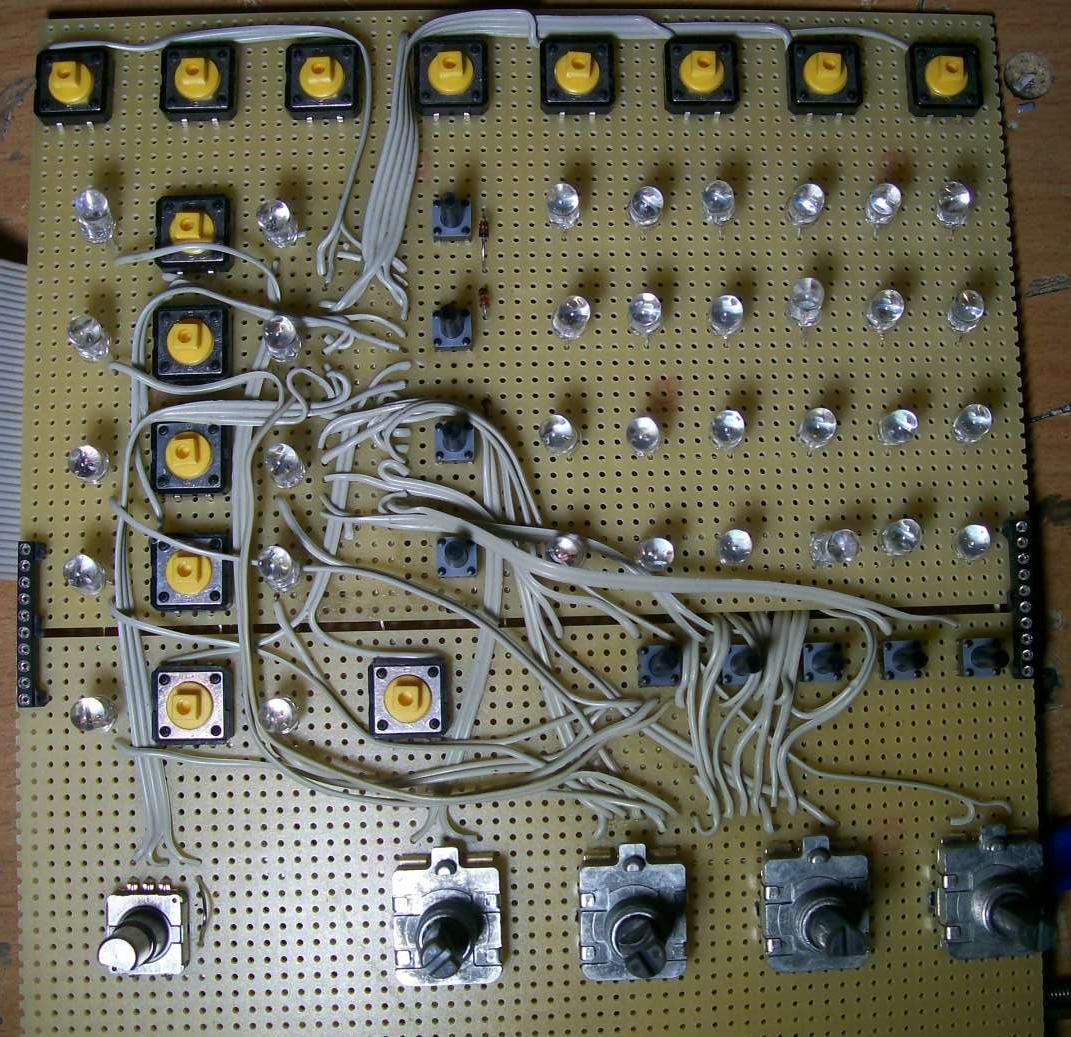

Control Board Top
Noticed the missing matrix column button?

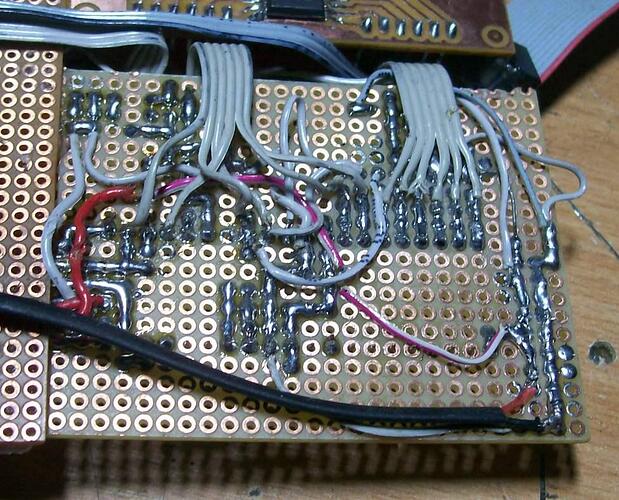

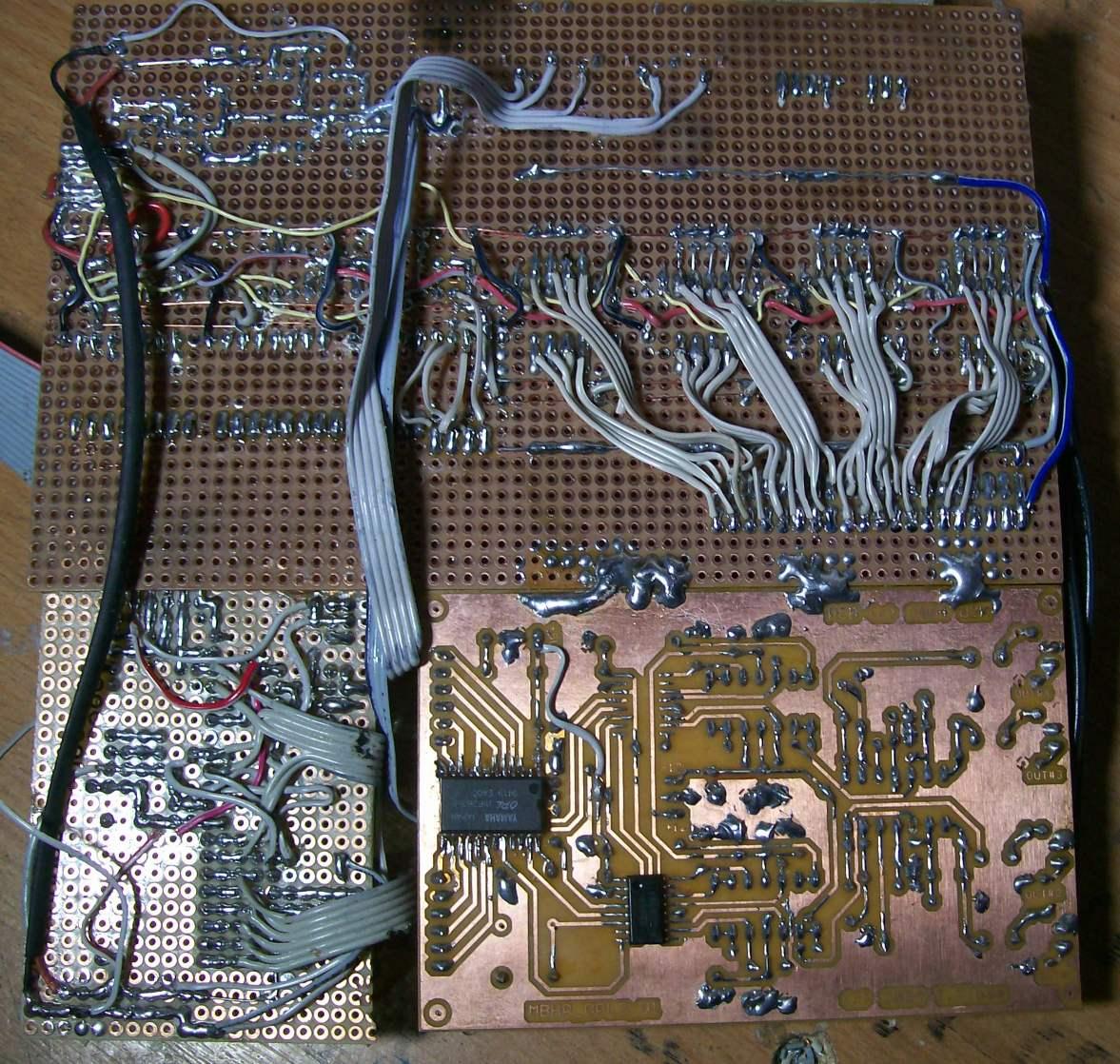

Core Board bottom
Core OPL Din Dout Board bottom
I like perfoboards

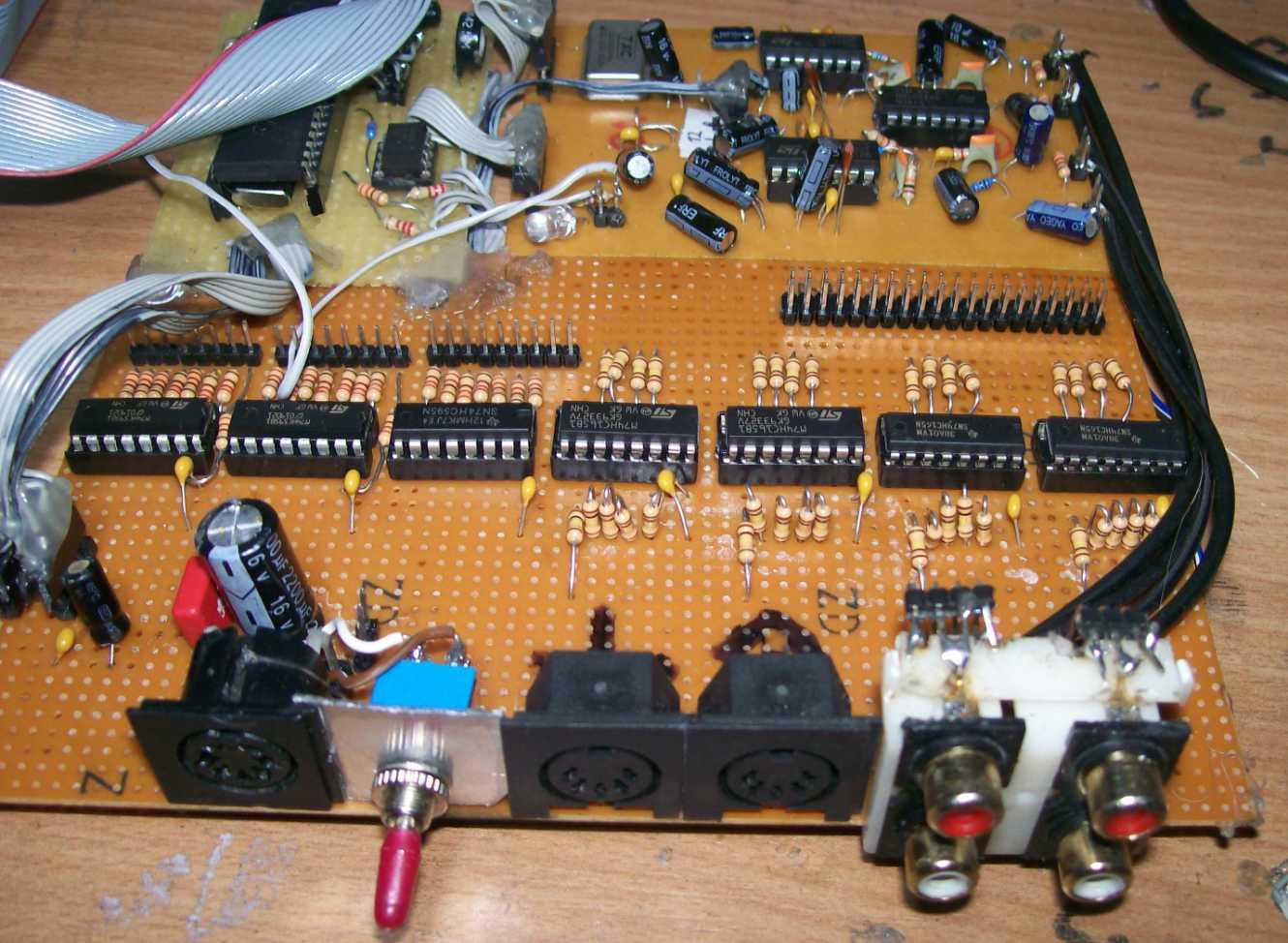

Core OPL Din Dout Board
It does not look very professional, but it works
Din Dout bottom
Interconnections

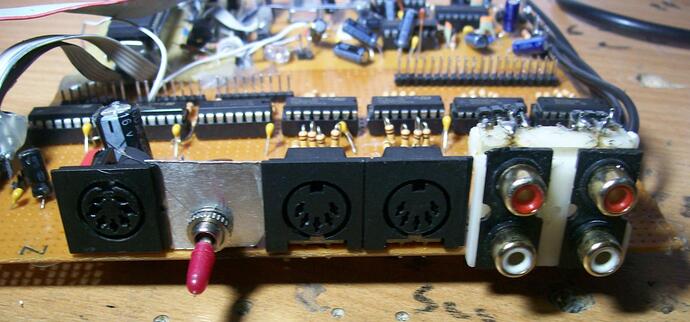

Ports

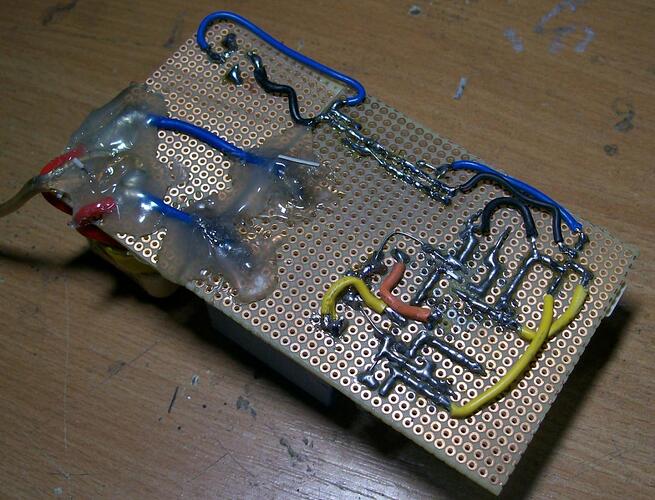

PSU bottom
I covered “High Voltage” solderings with hot clue

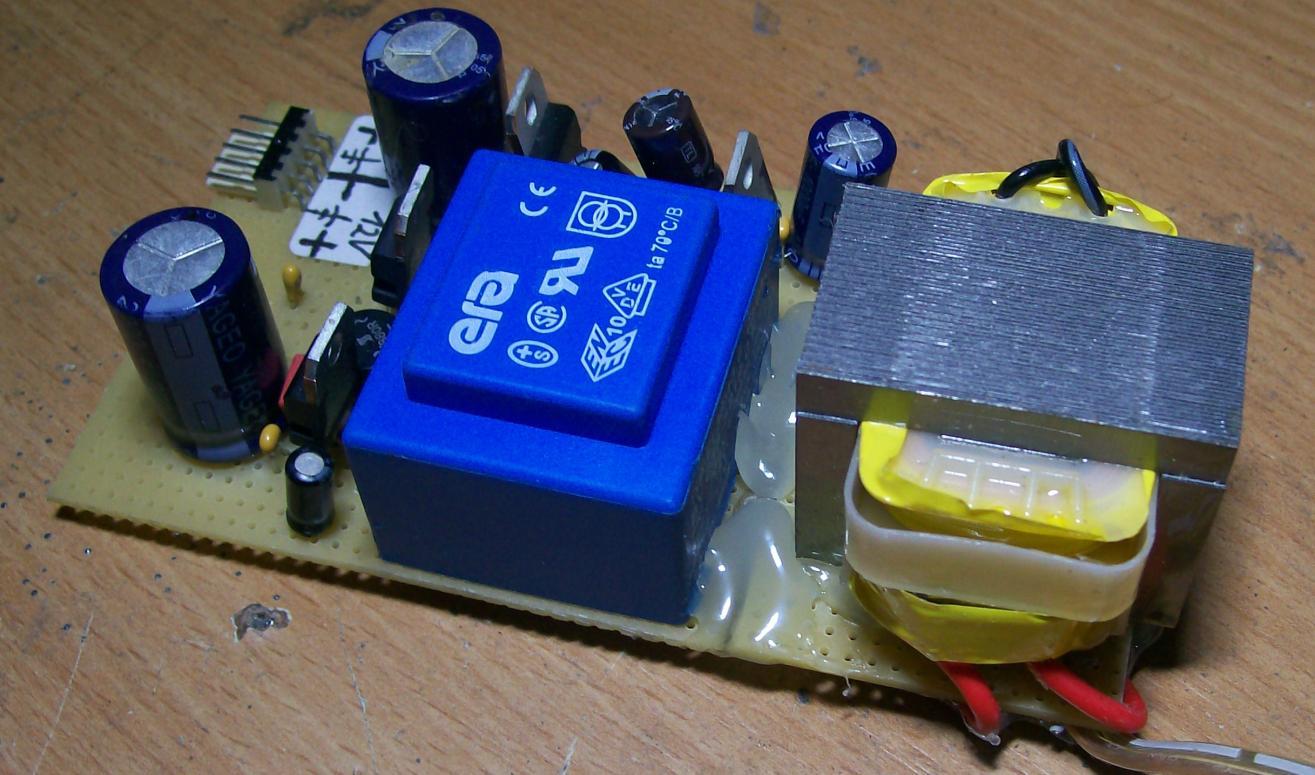

PSU side
The PSU is consists of
a 2x15V dual transformer for the +/-12V lines
and a 12V transformer for the +5V line.

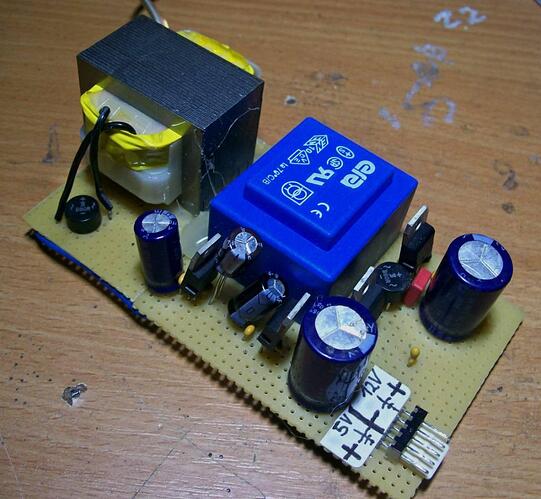

PSU Top
The PSU is consists of
a 2x15V dual transformer for the +/-12V lines
and a 12V transformer for the +5V line.

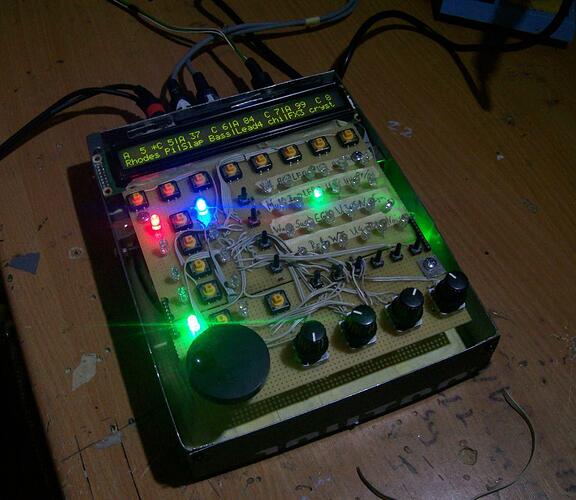

naked FM Synth
My finished FM Synth.
Only a frontpanel need to be done.
