Hi,

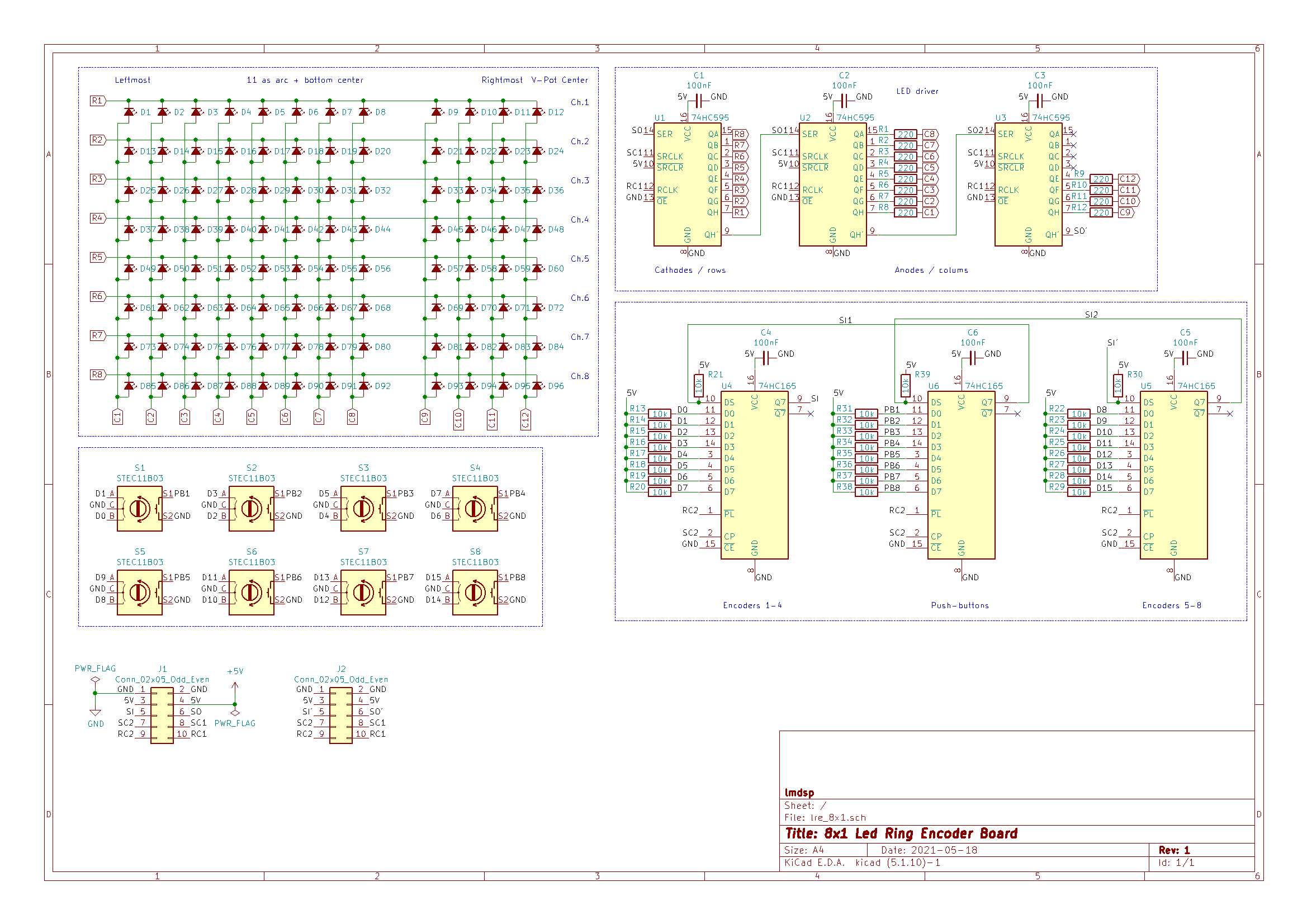

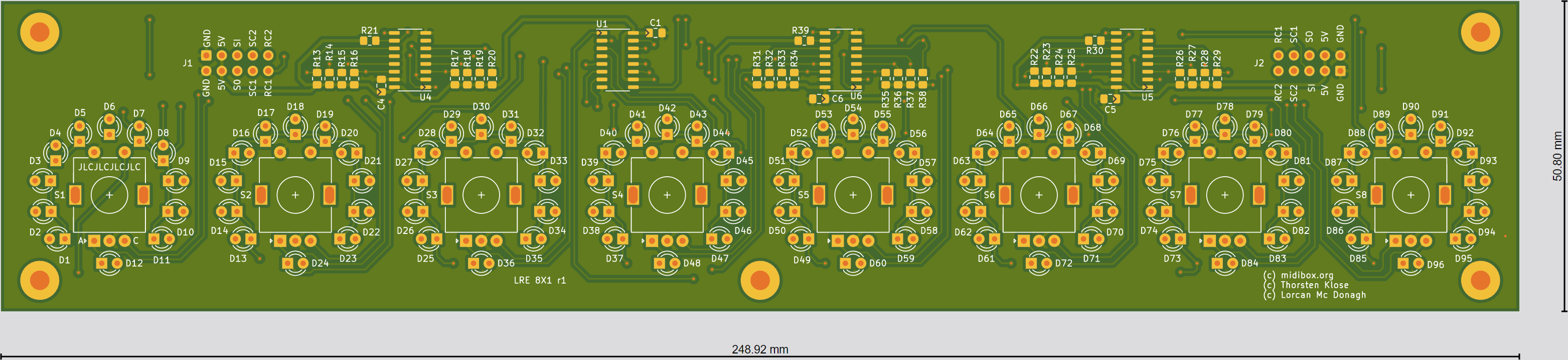

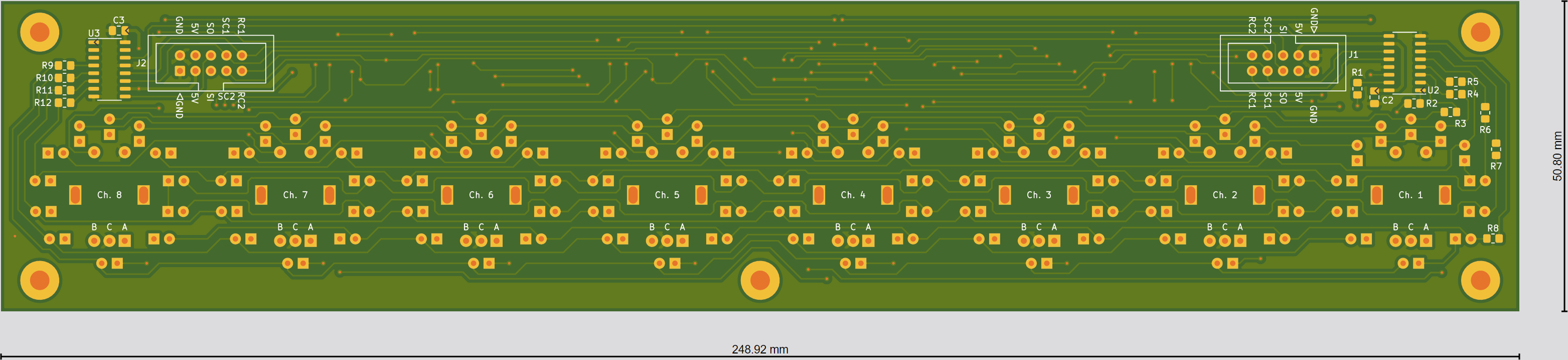

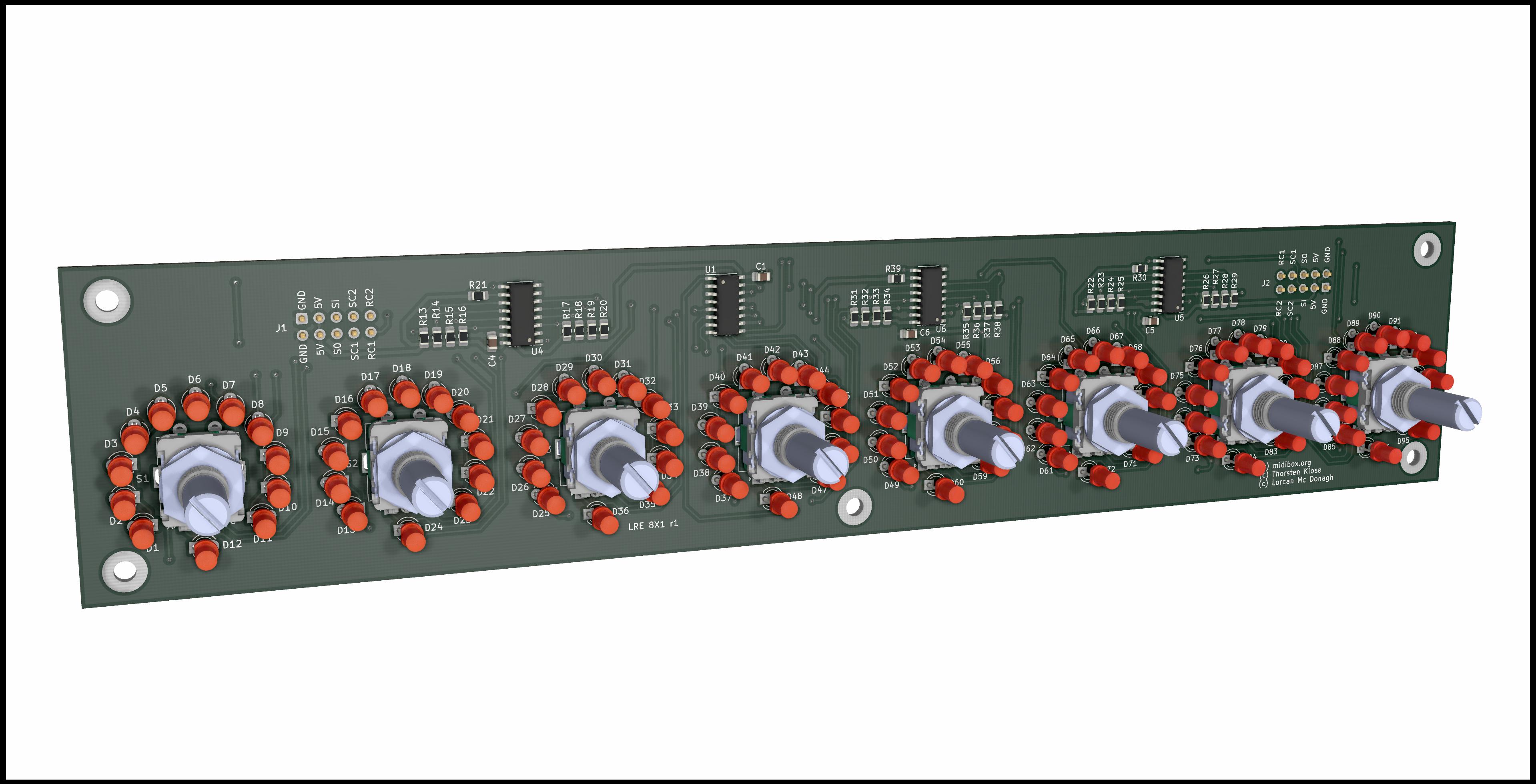

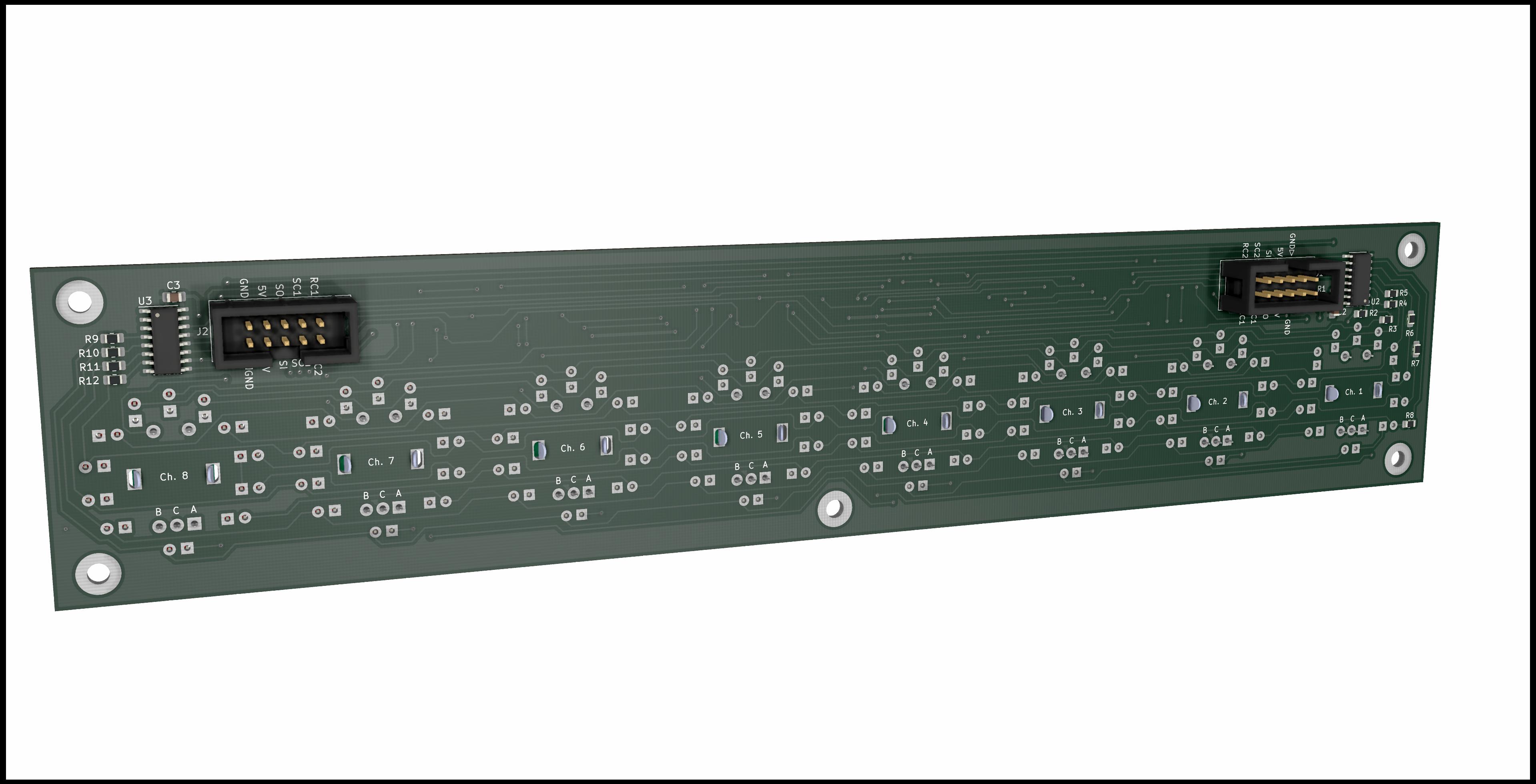

continuing on my MCU clone design, here is a board I designed to hold 8 encoders, LED rings and integrated DIN / DOUT modules.
To keep it compact I used SMD parts (1.2" spacing between encoders), but that shouldn’t generally be a problem for someone with a little bit of experience to hand solder (SO16 / 0805).
Please tell me if you spot any mistakes or potential problems !
