LoopA - Gallery Album

Hawkeye · April 15, 2020, 10:48pm

Album by Hawkeye
Gallery category: members-gallery

Pictures of the LoopA v2

LoopA Front

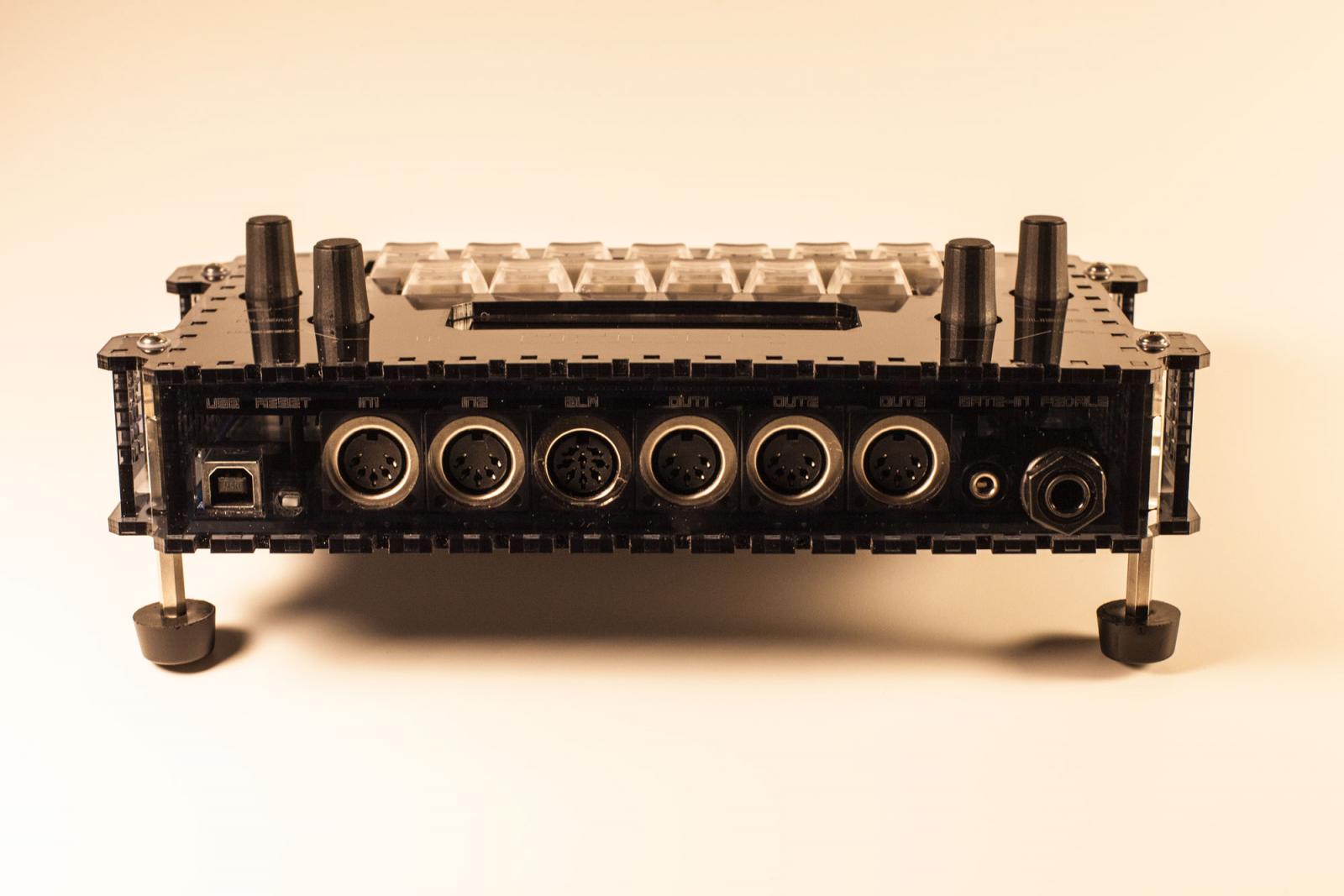

LoopA Ports

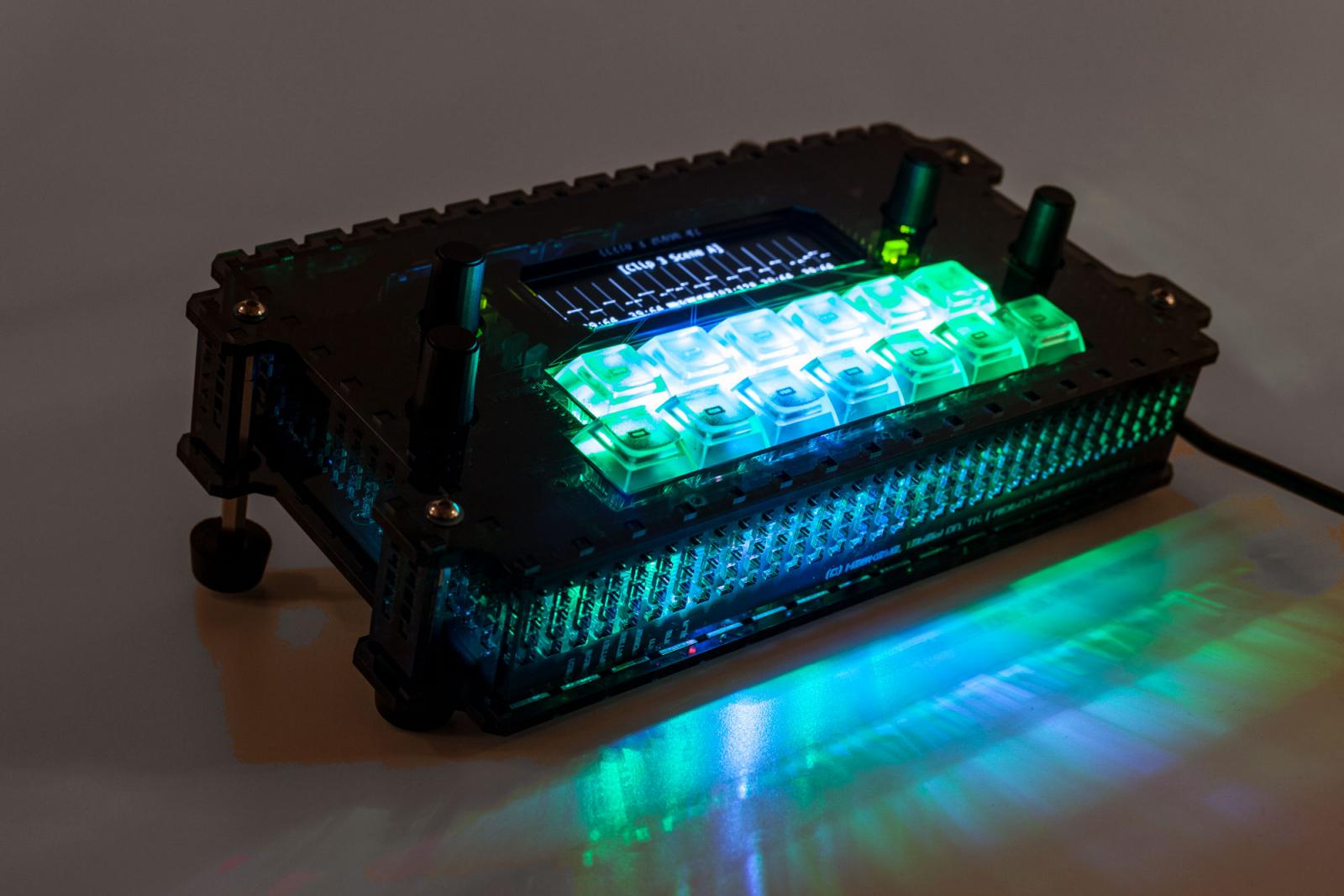

LoopA in Action

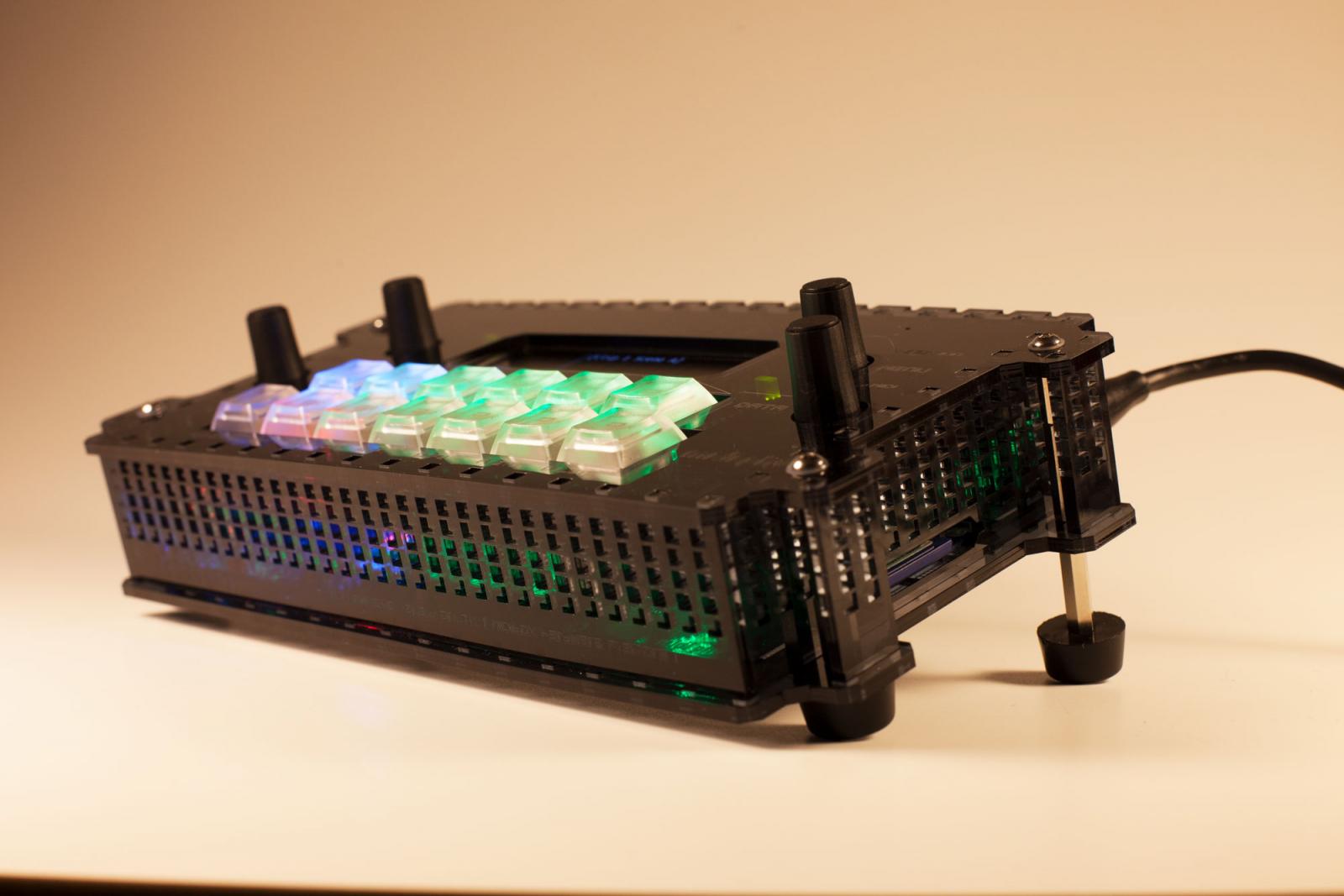

LoopA Side

LoopA SD Card slot, case feet and optional “tilted” case orientation.

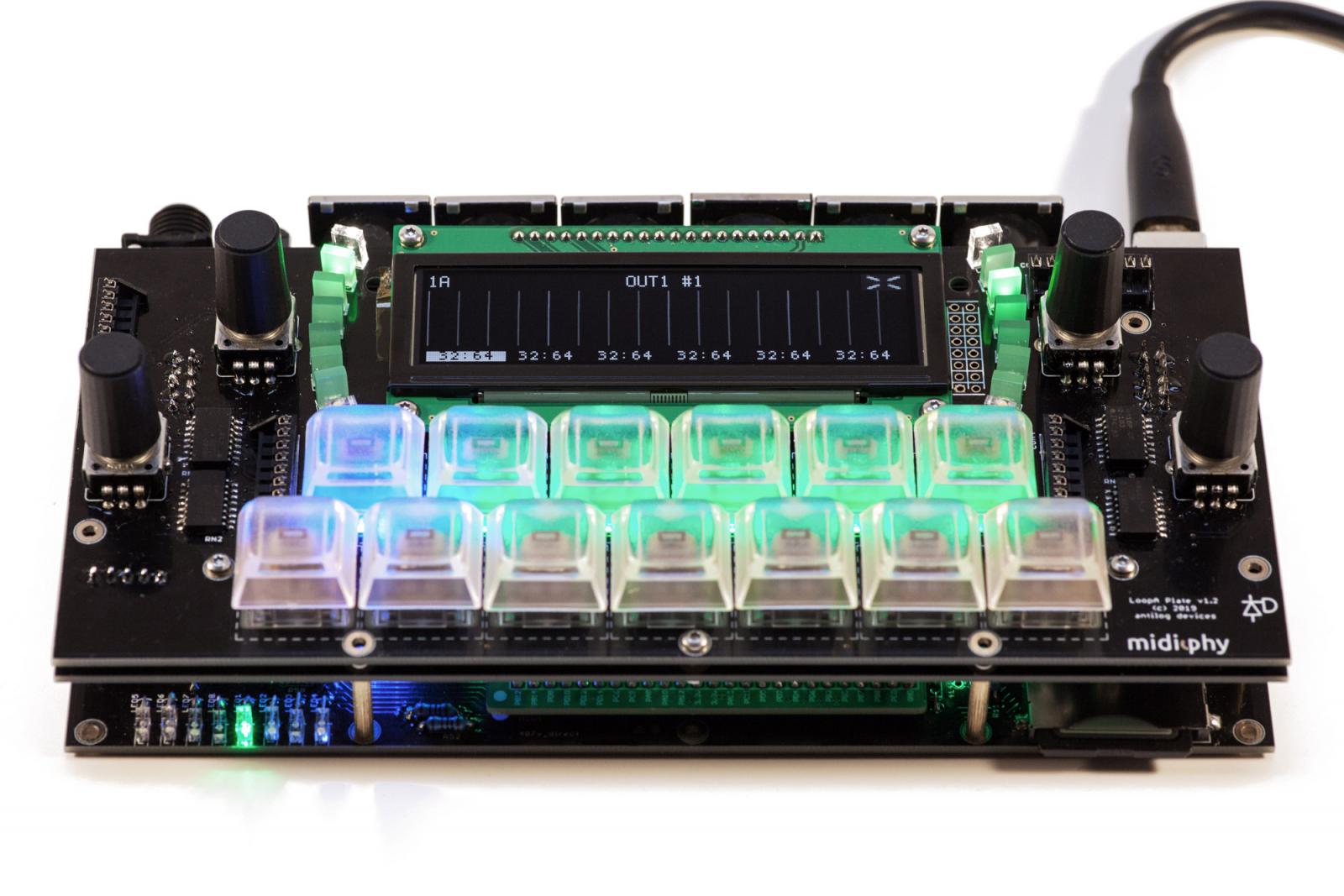

Caseless LoopA available now!

Finally, after 4+ years of development!

[https://www.midiphy.com/en/shop-details/139/69/caseless-loopa-essential-kit](https://www.midiphy.com/en/shop-details/139/69/caseless-loopa-essential-kit)



Hope you enjoy!

Best regards,

Peter

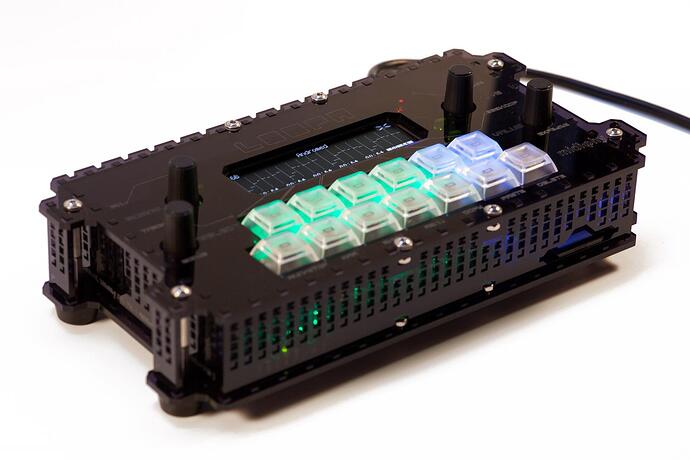

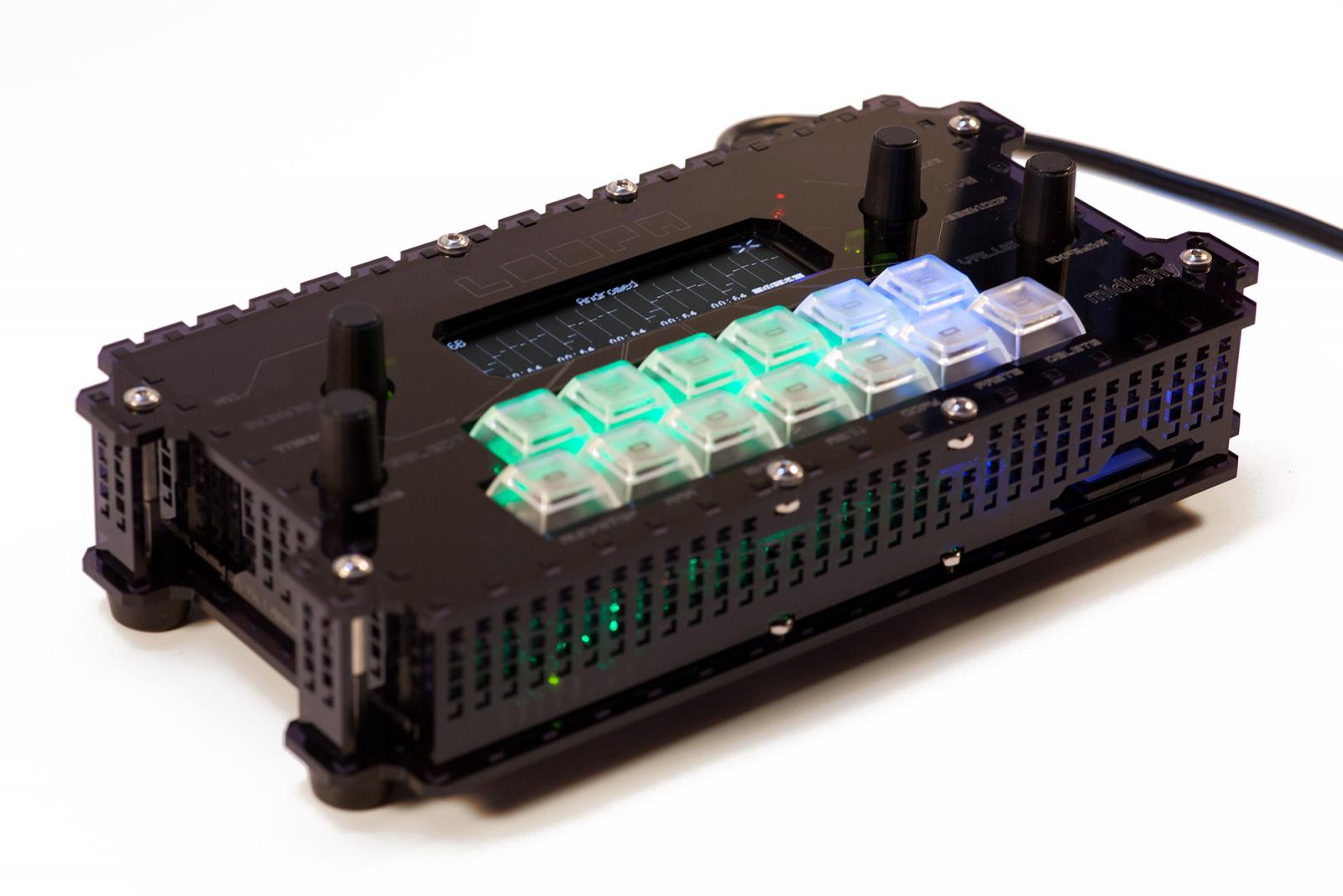

Acrylic LoopA available now!

Finally, after 4+ years of development!

[https://www.midiphy.com/en/shop-details/139/65/loopa-acrylic-case-essential-kit](https://www.midiphy.com/en/shop-details/139/65/loopa-acrylic-case-essential-kit)



Hope you enjoy!

Best regards,

Peter

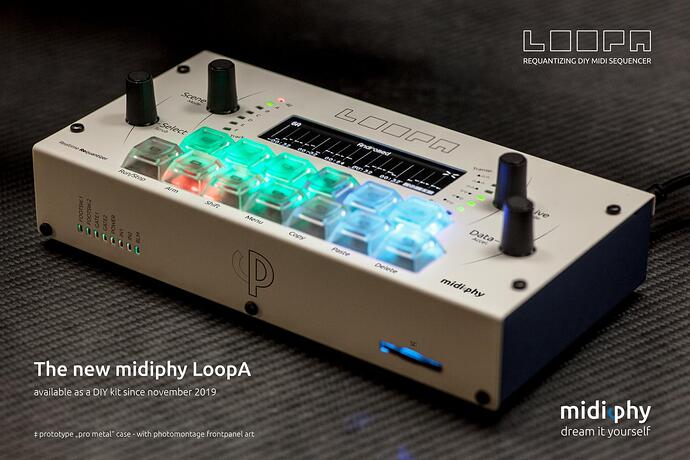

LoopA Pro Metal Case

Revealing the brand new design plans for the new midiphy LoopA pro metal case, hope you enjoy!

The final production version from Hallik Engineering might look slightly different, as this is just a photo simulation. Note, that you can easily install the available "caseless LoopA kit" into this case, when it is available, so you could already build and operate your LoopA now, and put it in the metal case in early 2020!



Have happy holidays & enjoy creating!

Peter

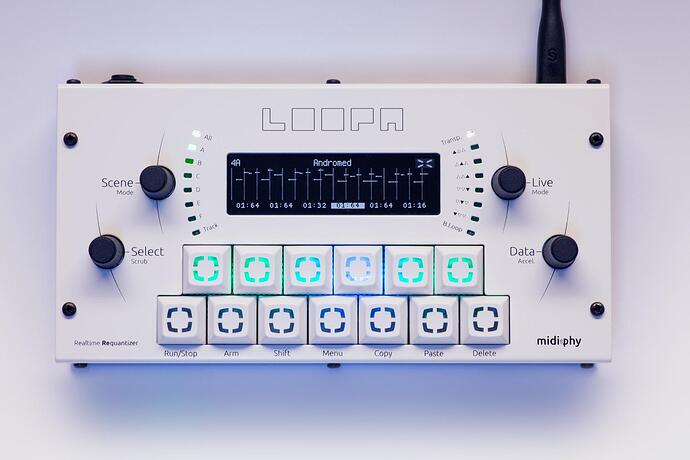

Metal LoopA is available now

The metal case LoopA kit is available now!

Many thanks to Adrian Hallik for creating that fantastic case!



Also this reveals our new 2020 all-custom midiphy keycap facelift! :)



Hope you enjoy! :)



[https://www.midiphy.com/en/shop-details/0/71](https://www.midiphy.com/en/shop-details/0/71)

LoopA front view

a new LoopA firmware with many enhancements is now available! Enjoy!

[https://www.midiphy.com/en/loopa-v2/](https://www.midiphy.com/en/loopa-v2/)



Many greets,

Peter

Phatline · May 7, 2018, 9:20pm

Re: LoopA Ports

like the whole things, the foots! a blm port! even a Reset-Switch (bootloader?) and pedals (for record? while playing piano?)

Phatline · May 7, 2018, 9:20pm

Re: LoopA Side

great work!

Hawkeye · May 7, 2018, 9:52pm

Re: LoopA Ports

Thanks!

Yes, pedals (not yet supported in the current software) should be quite easily mappable to different functions like "arm" or "run/stop".

The tilted orientation of the unit is of course optional, you can just remove the spacer and it sits flat on the table! But the rubber feet (Reichelt GF 2) will really hold it in place on various synths or if the stage is shaking :)



Many greets! Peter

matcom3 · May 8, 2018, 12:57pm

Re: LoopA Side

Fantástic job

Antichambre · May 8, 2018, 3:57pm

Re: LoopA Ports

No space to put the screw inside? Or this is a choice?

	18 hours ago, Hawkeye said:




		But the rubber feet (Reichelt GF 2) will really hold it in place on various synths





I Like this.


Because screws are outside, are the small vertical plastic pieces enough? are you not afraid about gap in the middle of front and bottom acrylic panels(plastic bend)?

Bruno

Hawkeye · May 8, 2018, 4:25pm

Re: LoopA Side

Thanks, guys!

Hawkeye · May 8, 2018, 4:46pm

Re: LoopA Ports

Hi Bruno,

Thanks!



It was a design choice - we have multiple m2 inner "sandwich" screws which could have been used, but then there would have been holes in the precious frontpanel :). In general, it is stable enough, only minimal "bulge" at the middle. The inner PCB sandwich is fixed to the bottom acrylic plate with 7 m2 screws, so it stays in place firmly, no wobble when pushing in "tight" midi cables for example - the vertical walls next to the screws are necessary to avoid "overtightening" and bulge of the middle part, correct - but in general, as the unit is very small (only about 20cm horizontally from screw hole to screwhole) methinks it is sufficiently stable, as long as the inner sandwich is constructed to specs (max 32mm inner height).



Many greets,

Peter

Smithy · May 9, 2018, 9:17pm

Re: LoopA in Action

fap fap fap

jojjelito · May 15, 2018, 8:13am

Re: LoopA in Action

Le pr0n!

jojjelito · May 15, 2018, 8:14am

Re: LoopA Side

Looking great! /emoticons/cheers.gif" title=“:cheers:”>

Hawkeye · May 17, 2018, 9:07am

Re: LoopA in Action

	On 5/15/2018 at 10:13 AM, jojjelito said:




		Le pr0n!





/profile/5793-jojjelito/" id="ips_uid_3072_22" style="">@jojjelito Thanks, J! :)



You now only need a Moroder-Mustache, have it play back some italian synthpop loops on one of your analogs and it should perfectly fit the cliché! :-D

jojjelito · May 18, 2018, 10:57am

Re: LoopA in Action

/profile/7895-hawkeye/">@Hawkeye Haha, that - and a moaning Donna Summer!

I'm soo looking forward to the release of this, it will be a great tabletop composition assistant /emoticons/grin.gif" title=":grin:"> Plus, the bling factor is huge so that's a plus.

Alasdair_Moon · May 22, 2018, 8:07pm

Re: LoopA in Action

Niiiiiice
