different types of LCD Panels and discription how to change backlight-polarity on there PCBs

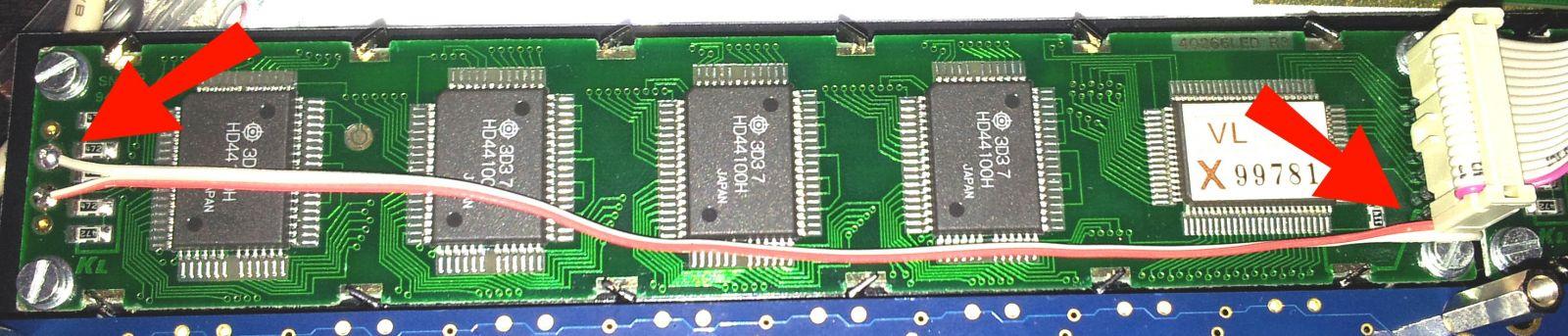

LCD1 wire small
here you can see wiring of abacklight to PIN1 and PIN2 of LCD pinheader

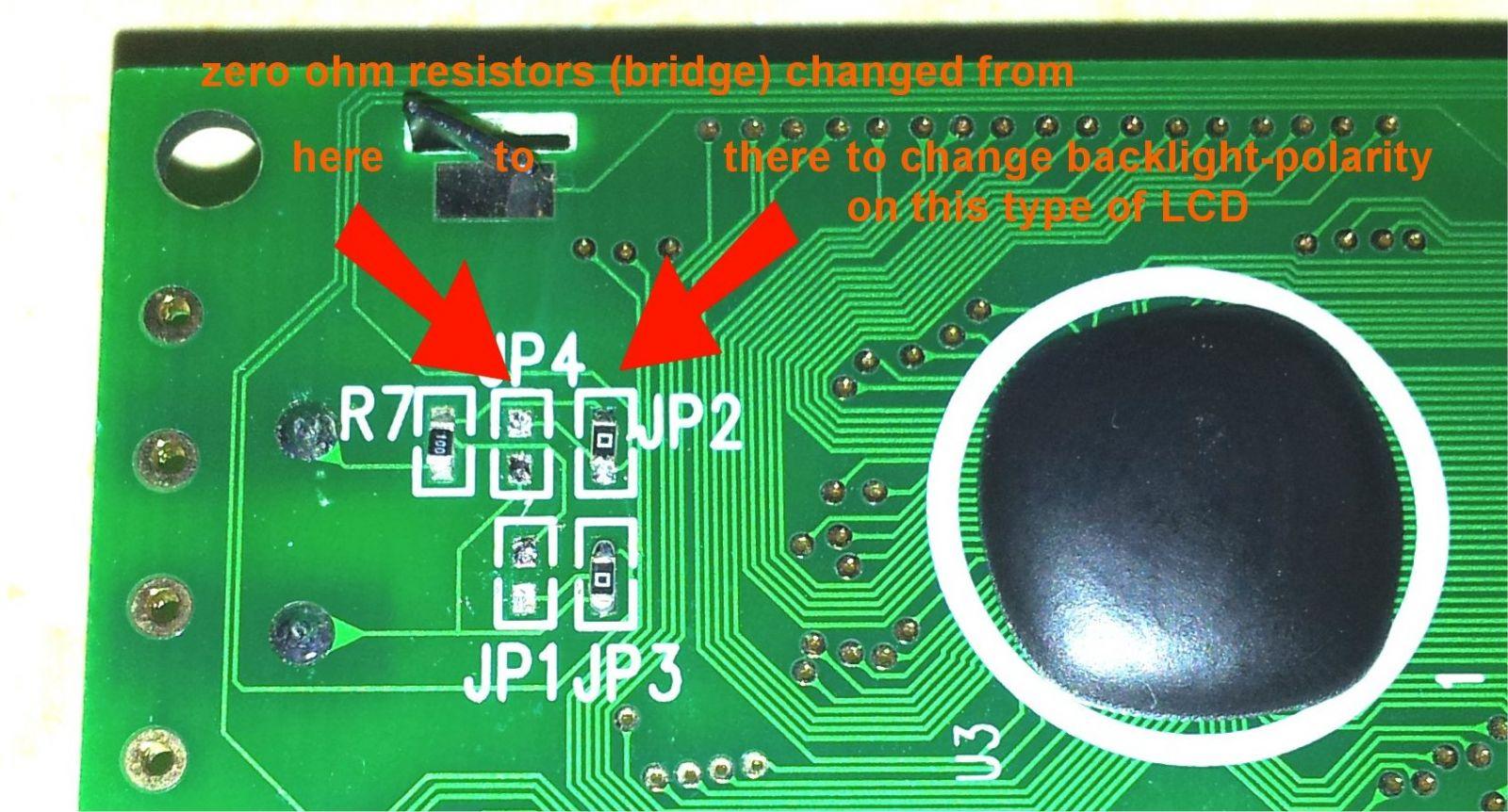

LCD2 Big small
here you can see in detail of this LCD type how to change backlight-polarity

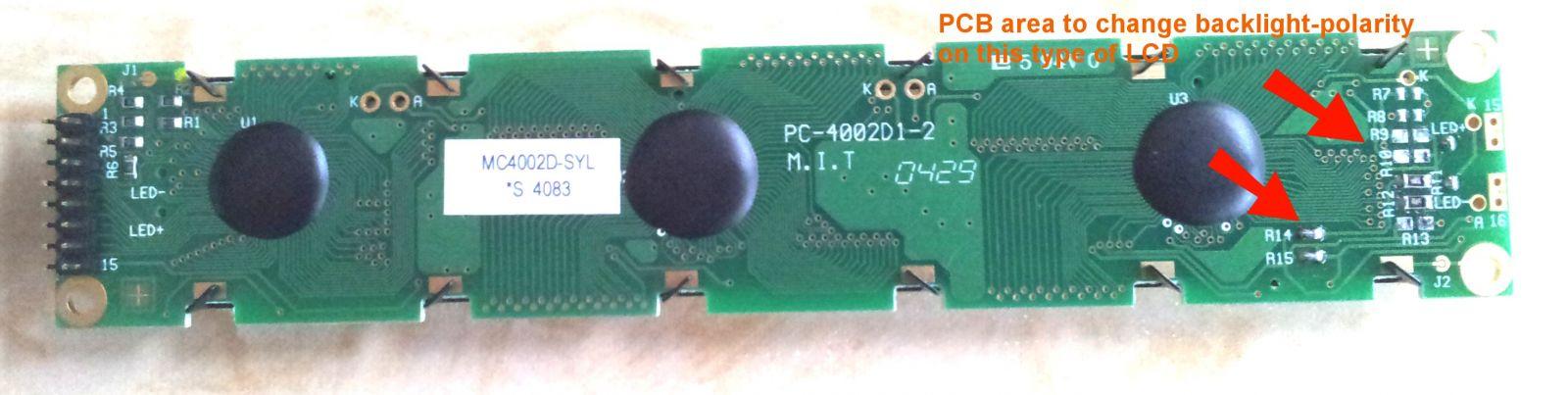

LCD2 small
here you can see how to change backlight-polarity of this type of LCD

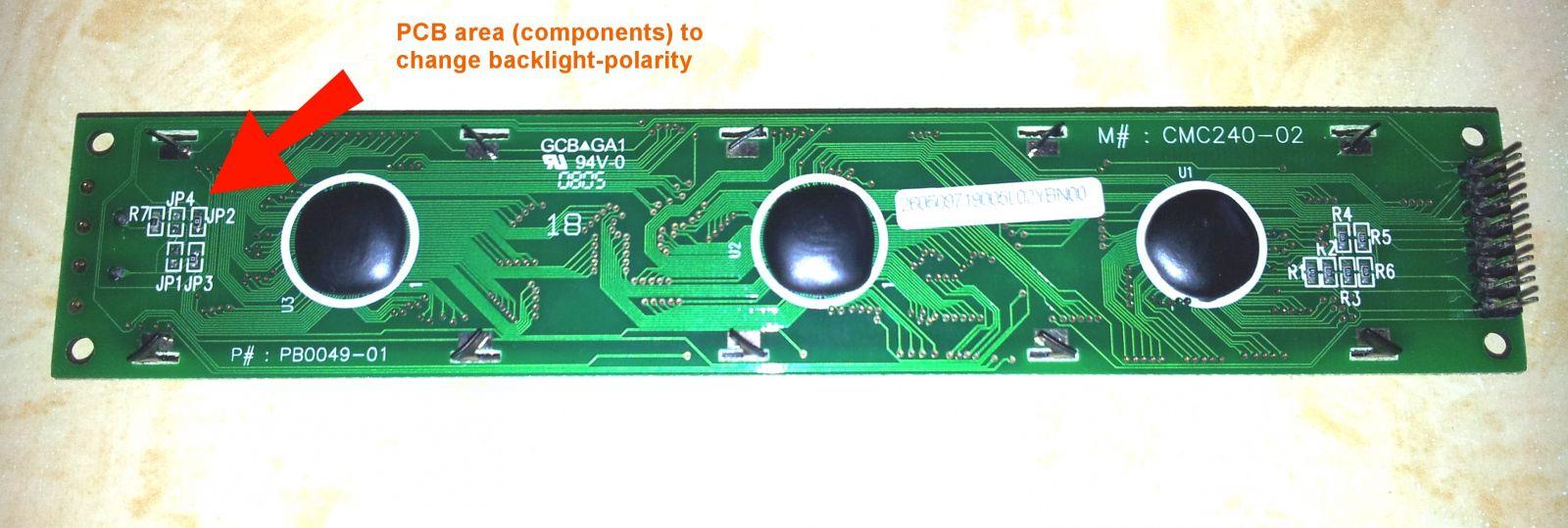

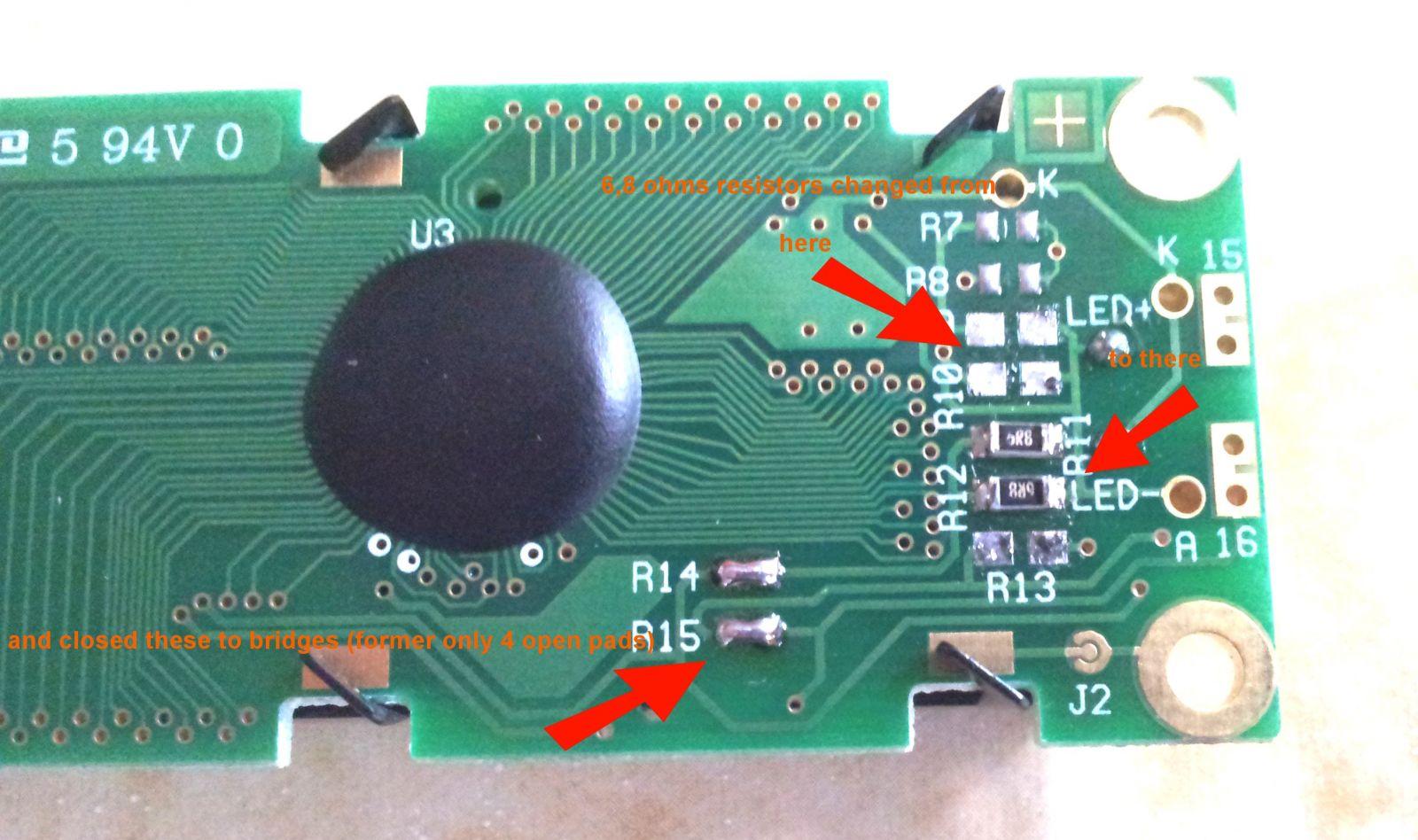

LCD3 Big small
here you can see in detail of my second type of LCD-Panel how to change backlight-polarity

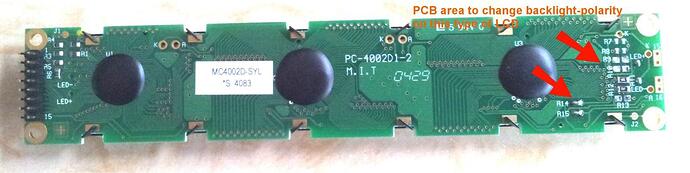

LCD3 small
here you can see how to change backlight-polarity of my second type of LCD
