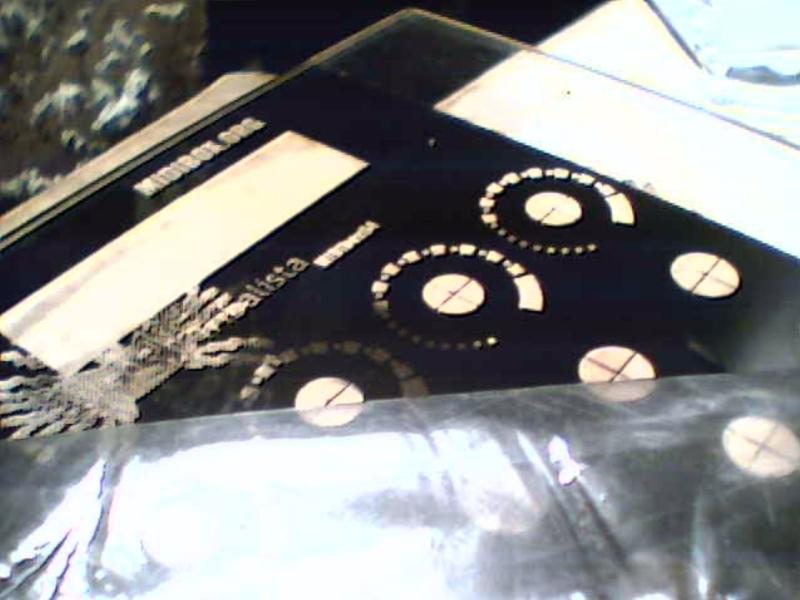

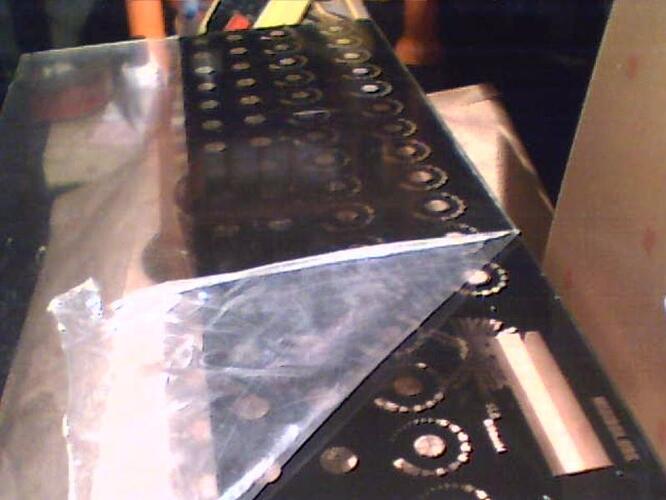

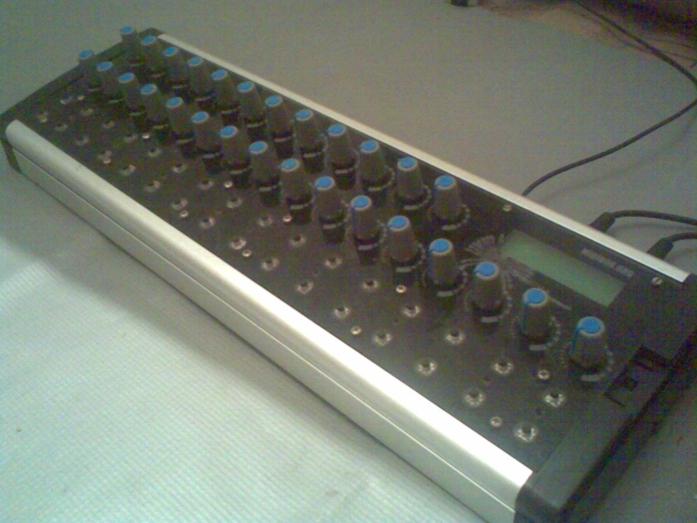

MB64 Tribalista Acryl piece + Silk front panel art (taking pics before drilling so I can see it was clean of accidental scratches)


pnl002.jpg800×600 49 KB

finally a decent window for the LCD

Mb64

Mb64
Mb64697×523 40.3 KB

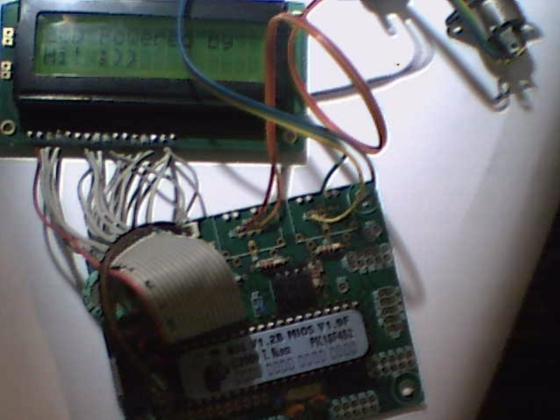

Almost there :sweat:

2

Re: 001.jpg

DIN on the way

3

Re: 002.jpg

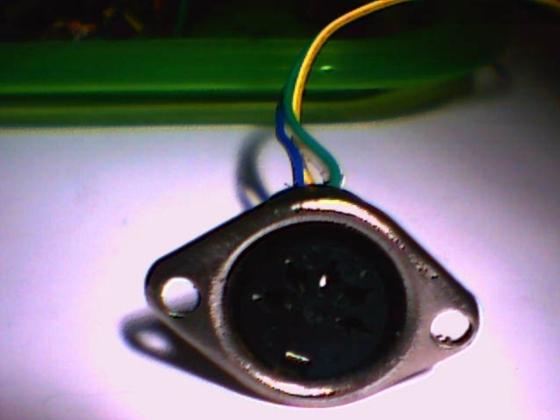

MIDI Jack wired with the Brazilian flag’s colors. World Cup Mood :slight_smile:

4

Re: 003.jpg

DIN on the way

5

Re: 004.jpg

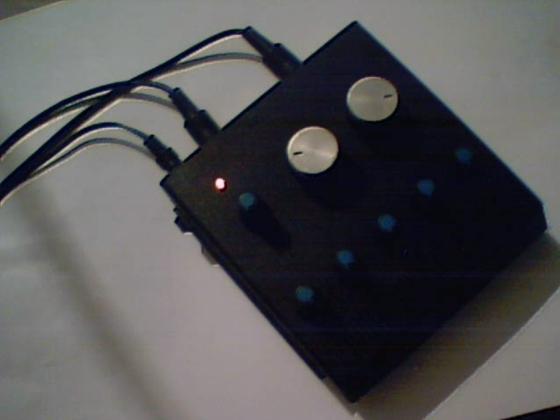

New Case for another MB64

6

Re: 005.jpg

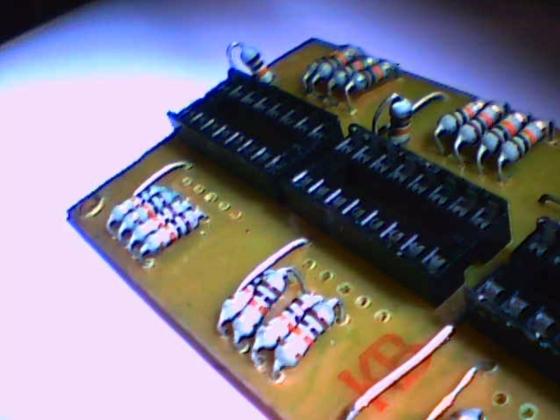

Now I haz my logo on the boards too. (not sure about perfection on resistor placement :slight_smile:

7

Re: 006.jpg

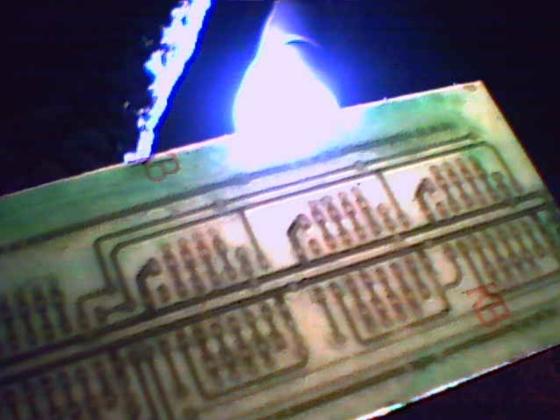

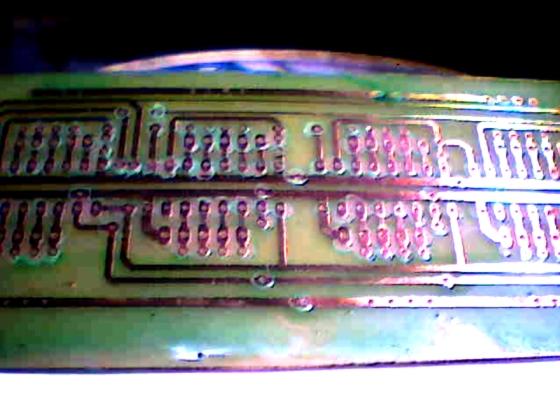

boards will fit :slight_smile:

8

Re: 007.jpg

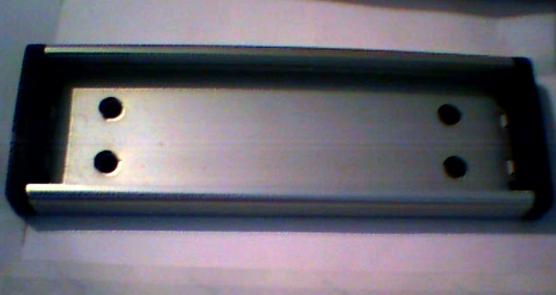

Case for my new MB64

9

Re: m006.jpg

MIDIbox64 Unmuxed

10

Re: 005.jpg

Now I haz my logo on the boards too. (not sure about perfection on resistor placement :slight_smile:

Just stick em in an pull the other end with some pliers…

11

Re: pnl003.jpg

excellent !

where did you get this silkscreen done ? how do you do blind holes on the inner side ?

12

Re: pnl003.jpg

Thanks, but the pic was taken by an China-xing-Ling camera. I wished to take a pic from it with a best cam, but If I go to buy one now, my build queue will wait more!

It was made in a local silk shop of my city. It was very cheap because I asked them to not make a “definitive” screen. So they can re-use the screen again (cleaning the emulsion I guess)

The total cost was about ~ $30 USD (photolithography + revelation on the screen + aplication) + $10 for the piece of acryl :ahappy:

The holes I think you mentioned are from the silk art (?)

13

Re: pnl003.jpg

the “holes” are 3mm holes to fix the braces/spacers (threaded holes like on the back of Wilba sequencer panel) : how do you fix the veroboard or PCB on it ??

14

Re: pnl003.jpg

well, pots I will attach directly to the panel then wiring them with ribbon cable in a starlike fashion.(28 pots / 4 cables)

sure I will use 2 PCBs (the whole panel has 40 cm, the pcbs will be homemade and I just found virgin PCBs at 20 Cm ) only for the 16X2 button matrix, because the buttons are tactil ones. Will append that pcbs with screws tha could be 2 mm or 3mm.

Hope in soon show all the thing finished

15

Re: Mb64

Hi Knoball.

Very nice. :thumbsup:

And the box?

I like too , were do you get it?

Is it a commercial enclosure?

regards

16

Re: Mb64

Heya Antix! Thanks.

Yes, the enclosure is a comercial one. It is used kinda in intercom projects .

http://produto.mercadolivre.com.br/MLB-163945052-unidade-externa-porteiro-eletrnico-msp02-hdl-_JM

I bought it so cheap. C.a. 12$ USD :slight_smile:
