jitter (potentiometers)

folly · May 3, 2015, 12:08pm

hi!

STM32F4 DISCOVERY with it and solved the problem of jitter (potentiometers)?

best regards.

T.K · May 3, 2015, 2:55pm

Hi,

at which resolution are you using the analog inputs?

(just copy&paste the configuration part of your .NGC file into this thread)

Best Regards, Thorsten.

folly · May 3, 2015, 4:36pm

I still use lpc1769. I bought STM32F4 and wanted to know if the problem of jiter and resolved. I would not build the PCB and then again have problems with jitter. if you tell me that and ok, I build the pcb.

T.K · May 3, 2015, 5:34pm

The MBHP_CORE_STM32F4 has more robust analog inputs, 7bit resolution is possible without jittering values.

Best Regards, Thorsten.

folly · May 3, 2015, 6:09pm

I’m already eroding the pcb.

thank you !

FantomXR · May 3, 2015, 6:35pm

Hi TK,

do I get it right that it’s not necessary to add an AINSER - module if the resolution of 7bit is enough for the user? So I guess it’s the same with expression-pedals or footswitches, right?

Would be great ;)

folly · May 3, 2015, 6:41pm

I need to 4 potentiometers for volume track.

folly · May 4, 2015, 3:20pm

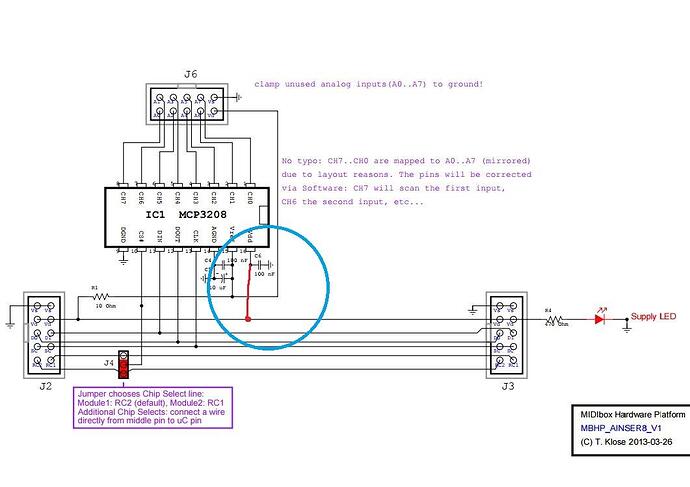

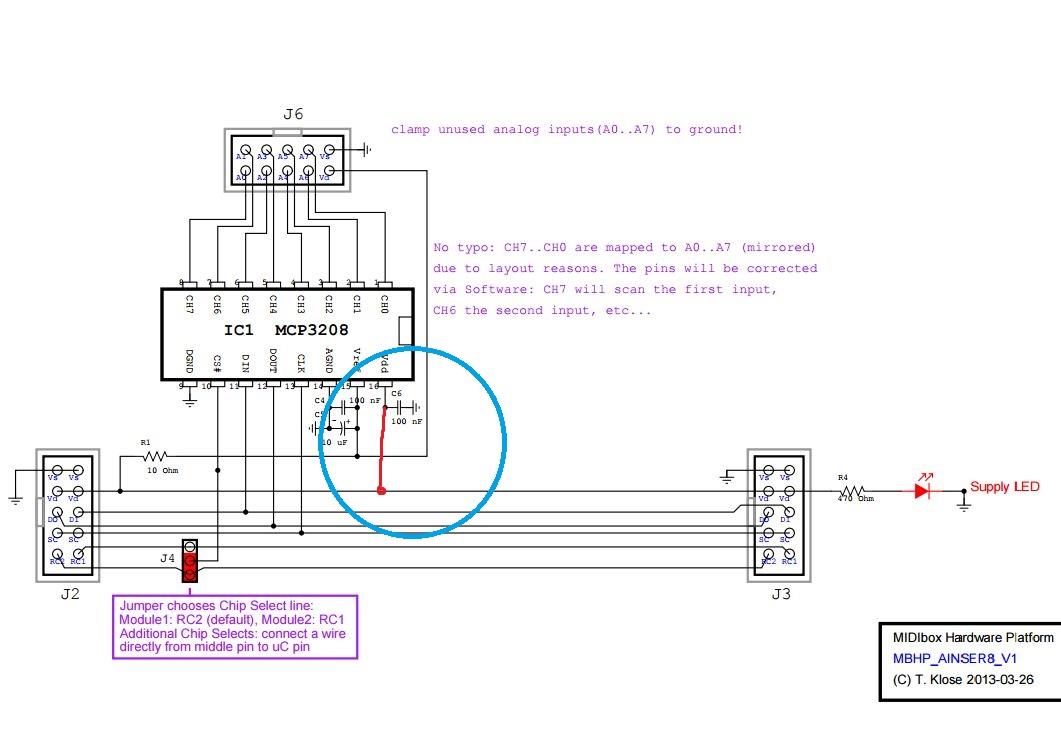

hi! I found eror while drawing the pcb.

folly · May 4, 2015, 10:33pm

hi all!

I built MBP CORE STM32F4. everything works except Aiser 64 and 8. We are sure that, S1 of J19 connects to pin PB4 of MBHP_CORE_STM32F4?

thank.
