Jack socket normalising - Stereo - Mono ?

Futureman · January 24, 2009, 8:45pm

Ok, so I think it might be too early in the morning for my brain to work this one out…

On the back of my synth, I’m gonna have two outputs (For the mixed sid’s) of Left & Right..

But I want it, so when the right is not connected, the left & right get mixed (Slammed) together and appear on the Left output.

I’ll search around… but right now I’m drawing a blank.

Regards

Mike

Futureman · January 24, 2009, 9:10pm

Embarrassed… :-[

Worked it out.. I just needed to draw it out.

Regards

Mike

nILS · January 25, 2009, 12:09am

…and for everyone else who might run into the same problem you wanted to say some words about your solution here, right?

Futureman · January 25, 2009, 2:35am

Of course, just I’m at the work computer… No MS paint on this PC..

I’ll draw it up when I get homes.. lol.

Futureman · January 25, 2009, 2:51am

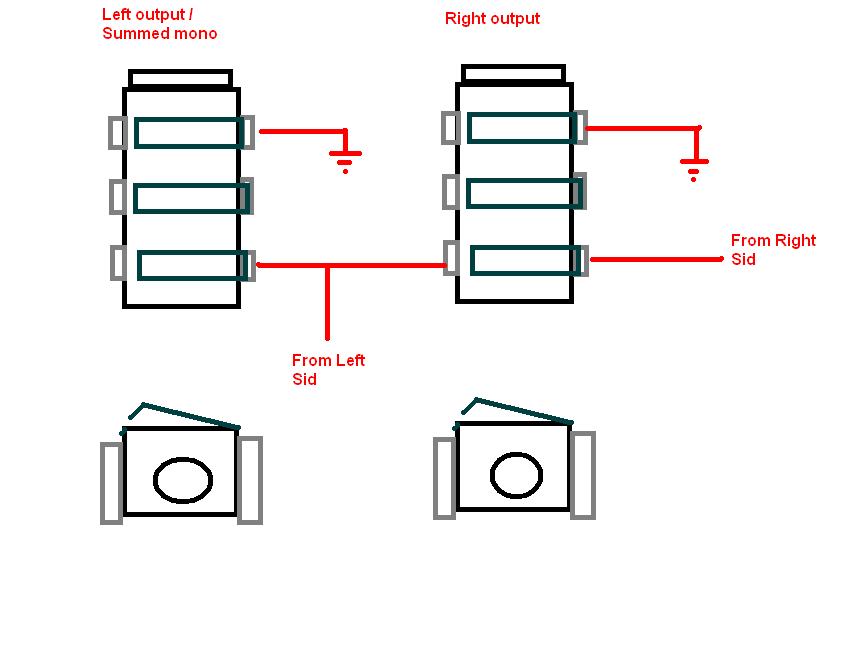

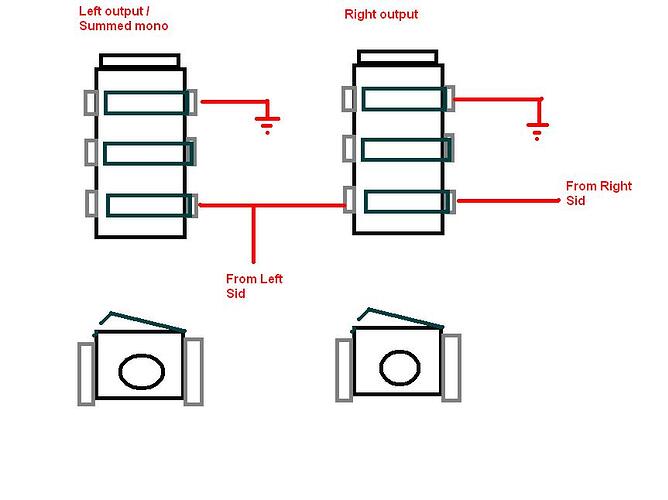

I drew this up on our laptop.. this is my plan anyway.. I can’t remember which side the switch is on my switching jack sockets.. but this’ll do for now..

Regards

Mike

sineSurfer · January 25, 2009, 5:54am

Hi Futureman, you’ll need to add a resistor(or two?) to make it a passive mixer -two input channels, one output - , check wilba’s mb6582 build instructions for tips/guide (J70 header).
