inside CASIO - FZ10M 3u 16bit sampler/additive/subtractive synth

[Artesia]

obtained from a hackney second hand shop for peanuts..

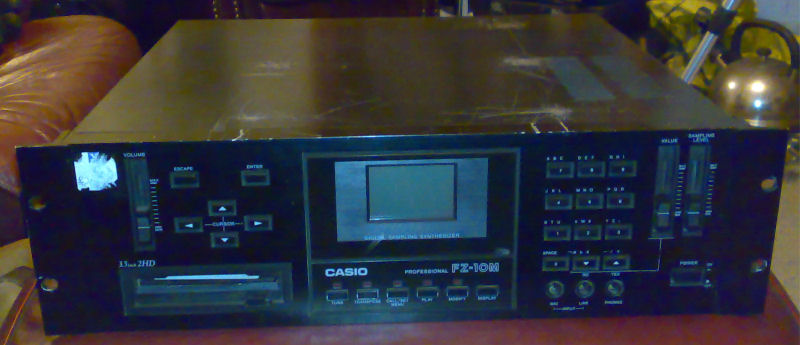

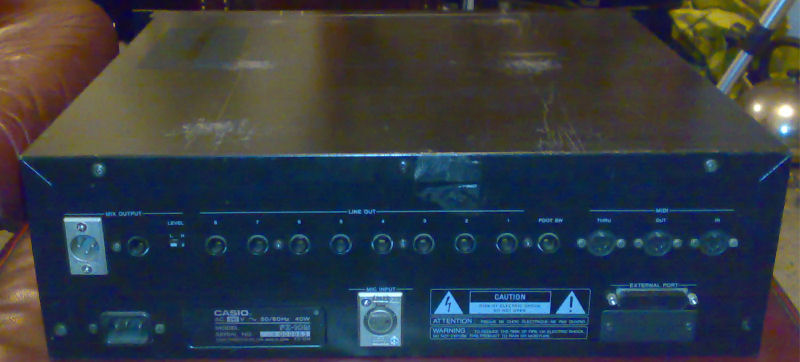

fz10m.

16 bit 2mb sampler/(48 harmonic) additive/subtractive synthsizer from 1987 !

increadibly powerful bit of hardware for the mid 80’s, with what would be impressive speed for the time, a processor clocked at 32mhz, given that the c64 ran at 1mhz & a top of the line 386 ran at 12mhz (at the time)

its still fun to play with & can make some interesting gritty noises; however the highy nested menu, user interface leaves quite abit to be desired, despite having ample buttons & a reasonable screen, the programming of the UI lets this generosity of specs down.

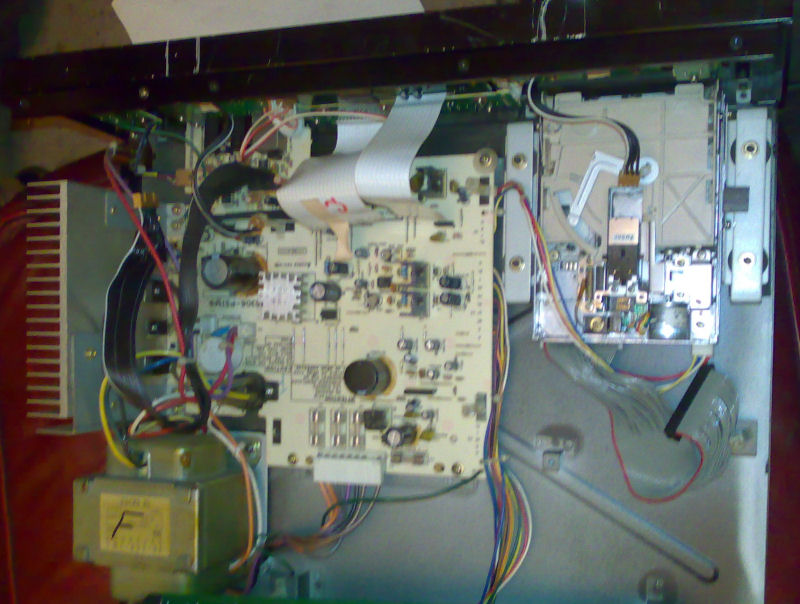

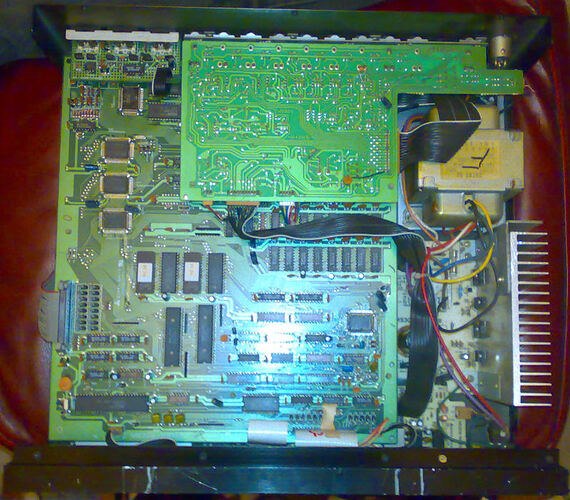

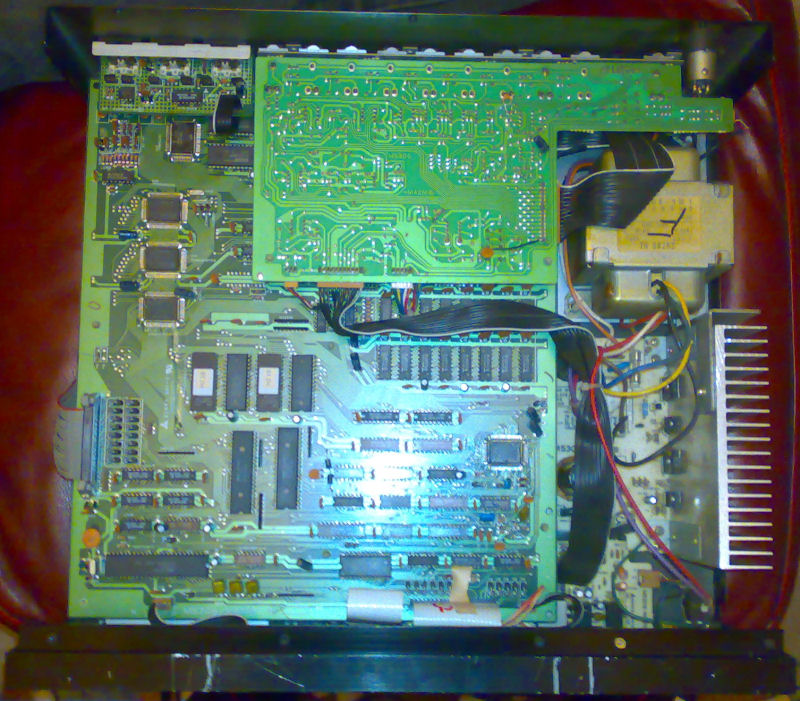

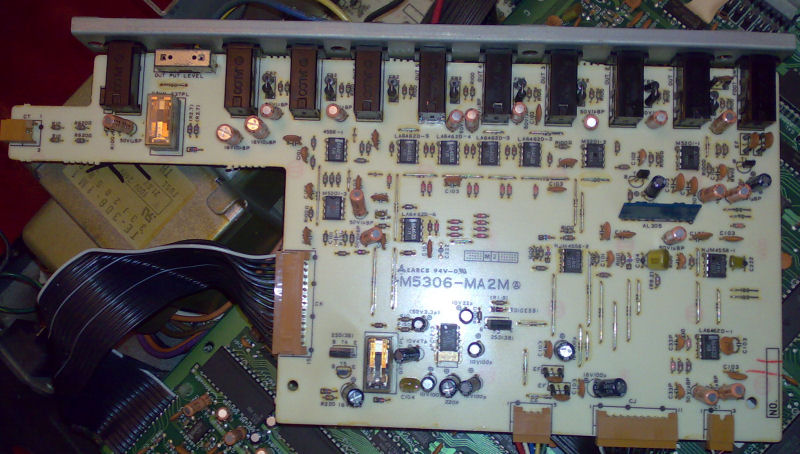

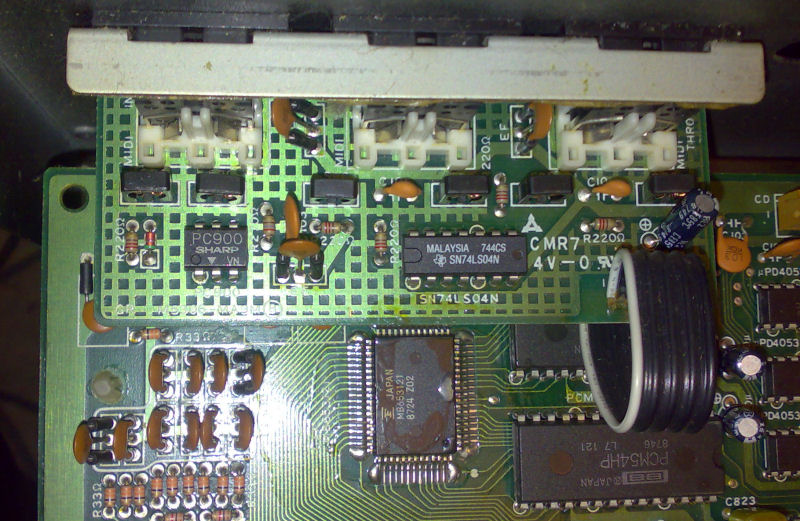

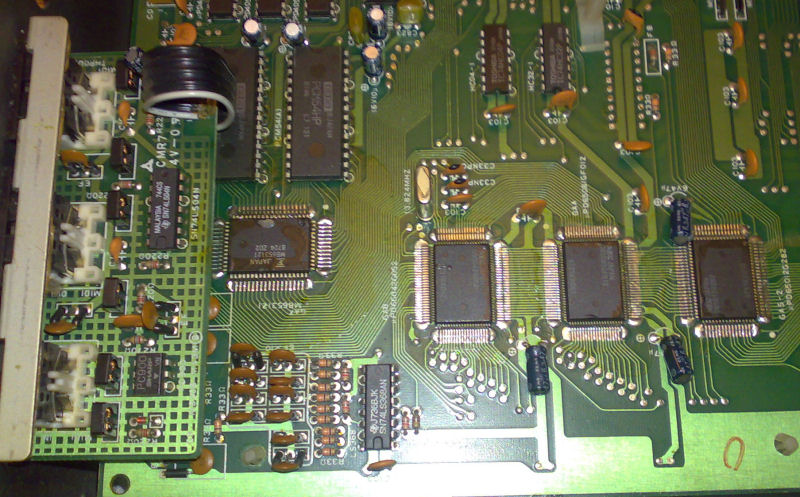

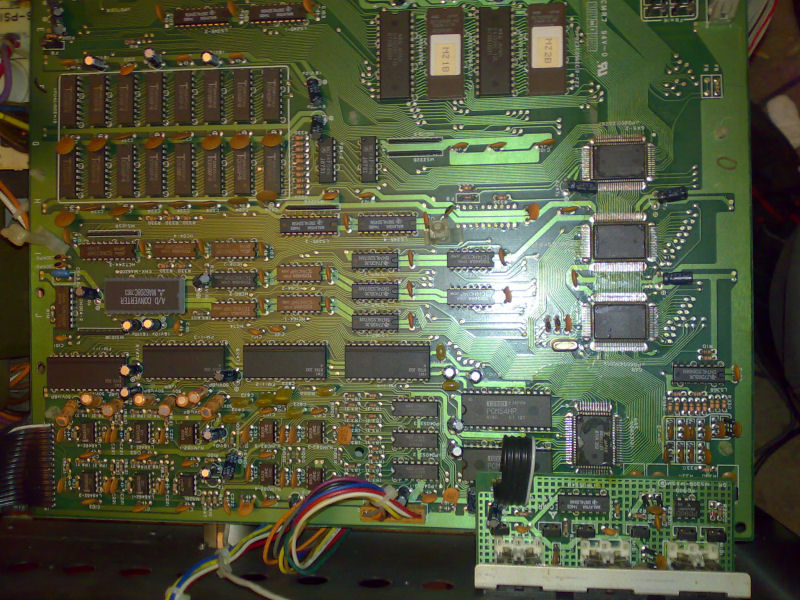

Chips:

(a perplexing mix of opamps, odds n sods store to clear ?)

(1x) motorola - mam6208c

a/d

(2x) burr brown - pcm54p

http://focus.ti.com/lit/ds/symlink/pcm54.pdf

dac

(4x) asic - fm1 8728 z00

(5x) jrc - 082d

20v/us

5mhz

(4x) a6462d

http://kr.ic-on-line.cn/IOL/viewpdf/LA6462_485151.htm

sanyo - la6462

6mhz

4 v/us

(1x) motorola - 5201

(1x) mb653121

(1x) (gab) pd65042g052

(1x) (gaa) pd65081gf012

(1x) (gas-2) pd65012g282

(16x) tc51100p-10

1 megabit DRAM chips.

(1x) d70216gf-8

CPU / Microprocessor

Frequency (MHz)  ? 8

Package 80-pin plastic miniflat

Architecture / Microarchitecture:

Manufacturing process CMOS technology

Data width 16 bit

Floating Point Unit external uPD72191

Physical memory (MB) 1

Low power features Standby mode

On-chip peripherals:

    * Clock generator

    * bus interface unit

    * bus arbitration unit

    * programmable wait state generator

    * DRAM refresh control unit

    * 3 independent 16-bit timers/counters

    * asynchronous serial I/O unit

    * 8-input interrupt control

    * 4-channel DMA control unit

V core (V)  ? 5

(1x) d65012c046

(2x) d71055c

http://doc.chipfind.ru/pdf/nec/d71055c.pdf

Parallel Interface Unit

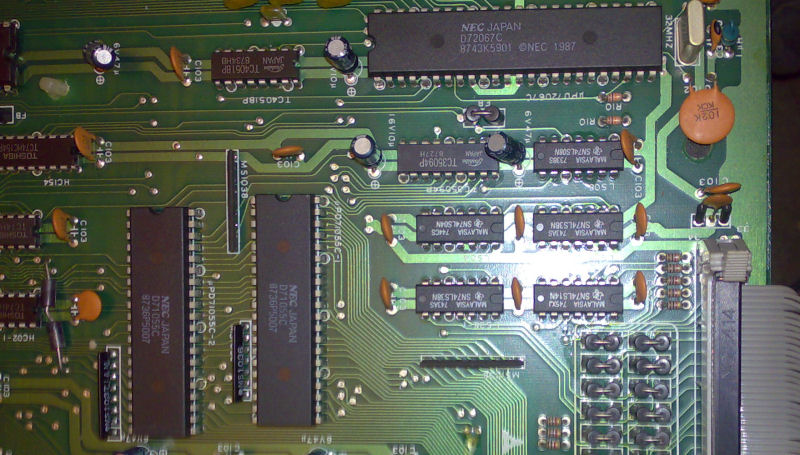

(1x) nec - d72067c (32mhz)

(custom asic ? ..weird given i just found a known cpu above

outboard:

(7x) a6462d

http://kr.ic-on-line.cn/IOL/viewpdf/LA6462_485151.htm

(xx) sanyo - la6462

6mhz

4 v/us

(2x) jrc - 4558dd

3mhz

1 v/us

(yuck !)

(2x) motorola - 5201

(1x) nec - c1213c
