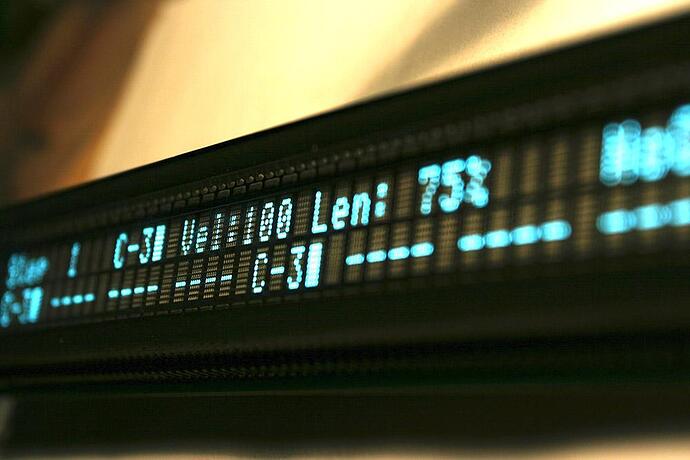

Futaba M402SD10FJ in 4-bit parallel transfer mode
MBSeq V4 - Building the step button/encoder control surface

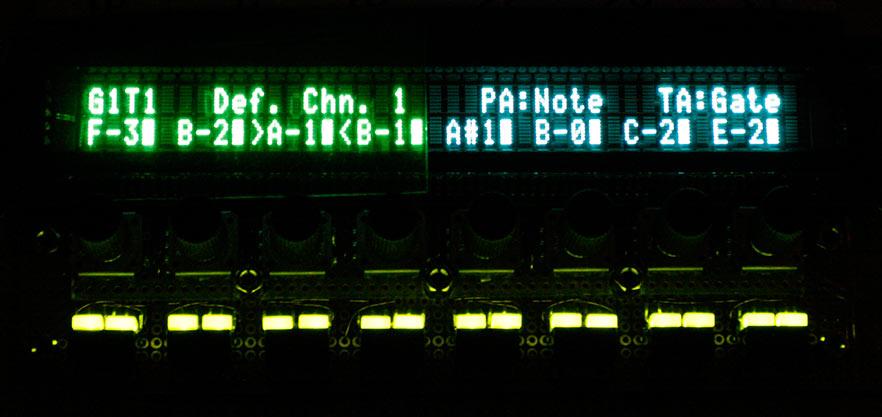

VFD hue color filtering
… using a cheap yellow color foil. These color foils are used to change the light color of presentation “spotlights” usually.
The foil is not yet applied firmly to the glass vfd surface, which is why you see a “ghost image” of the font.

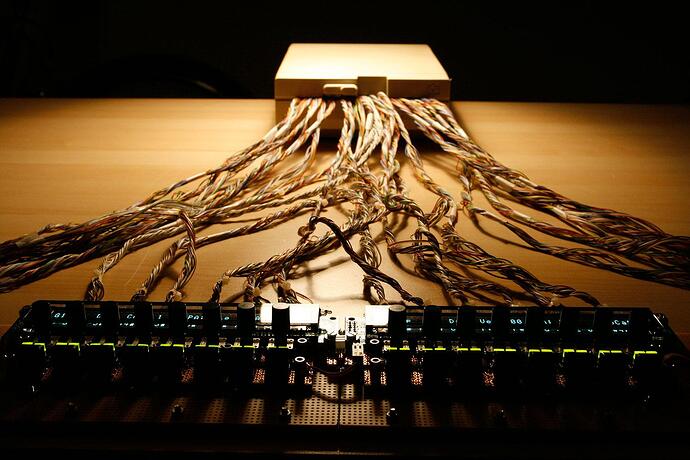

Cables!!
3xDINx4 + 3xDOUTx4 + 2xVFD Cables

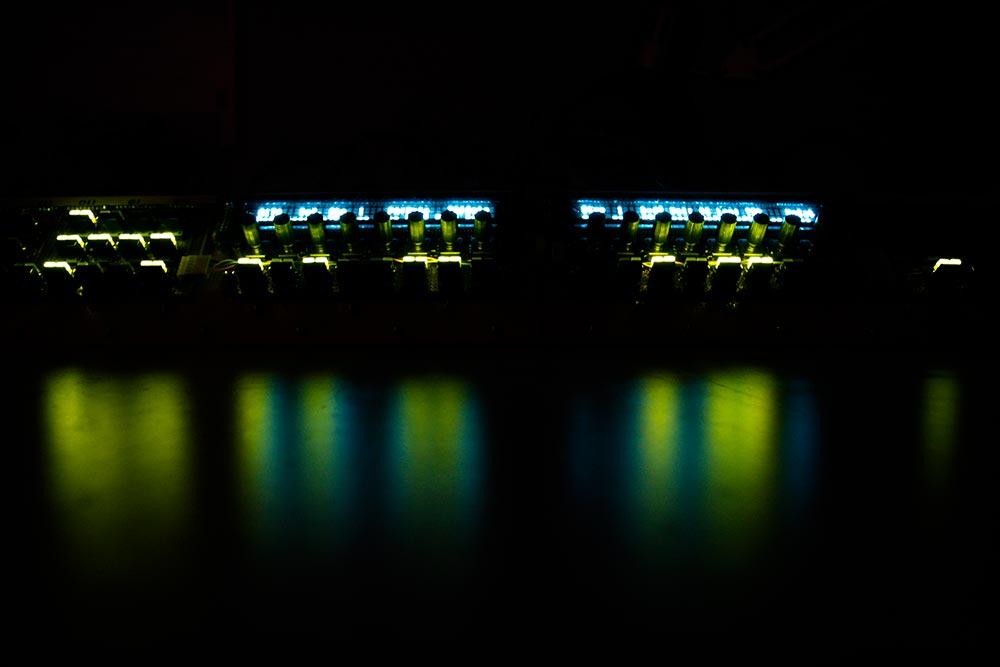

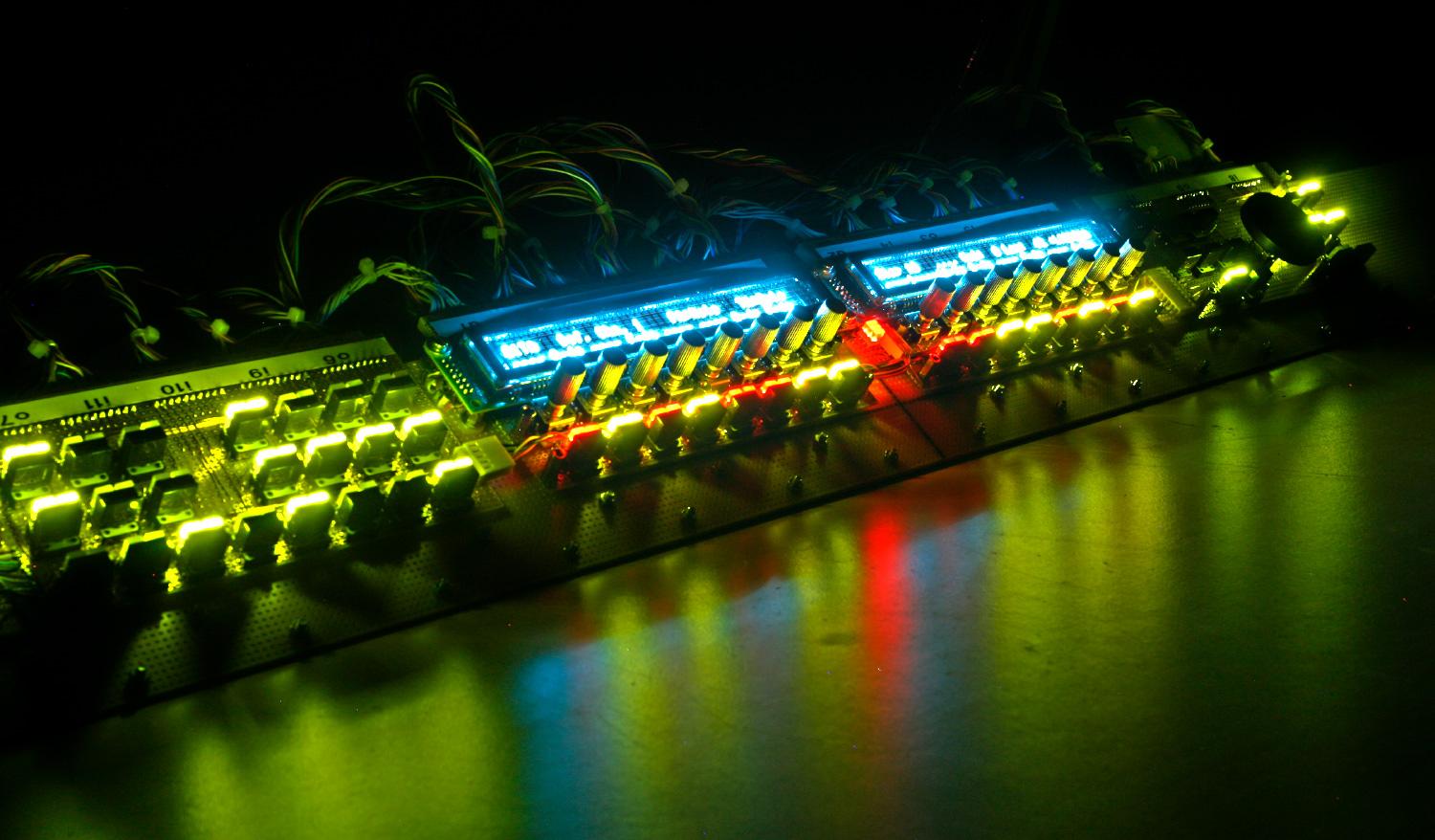

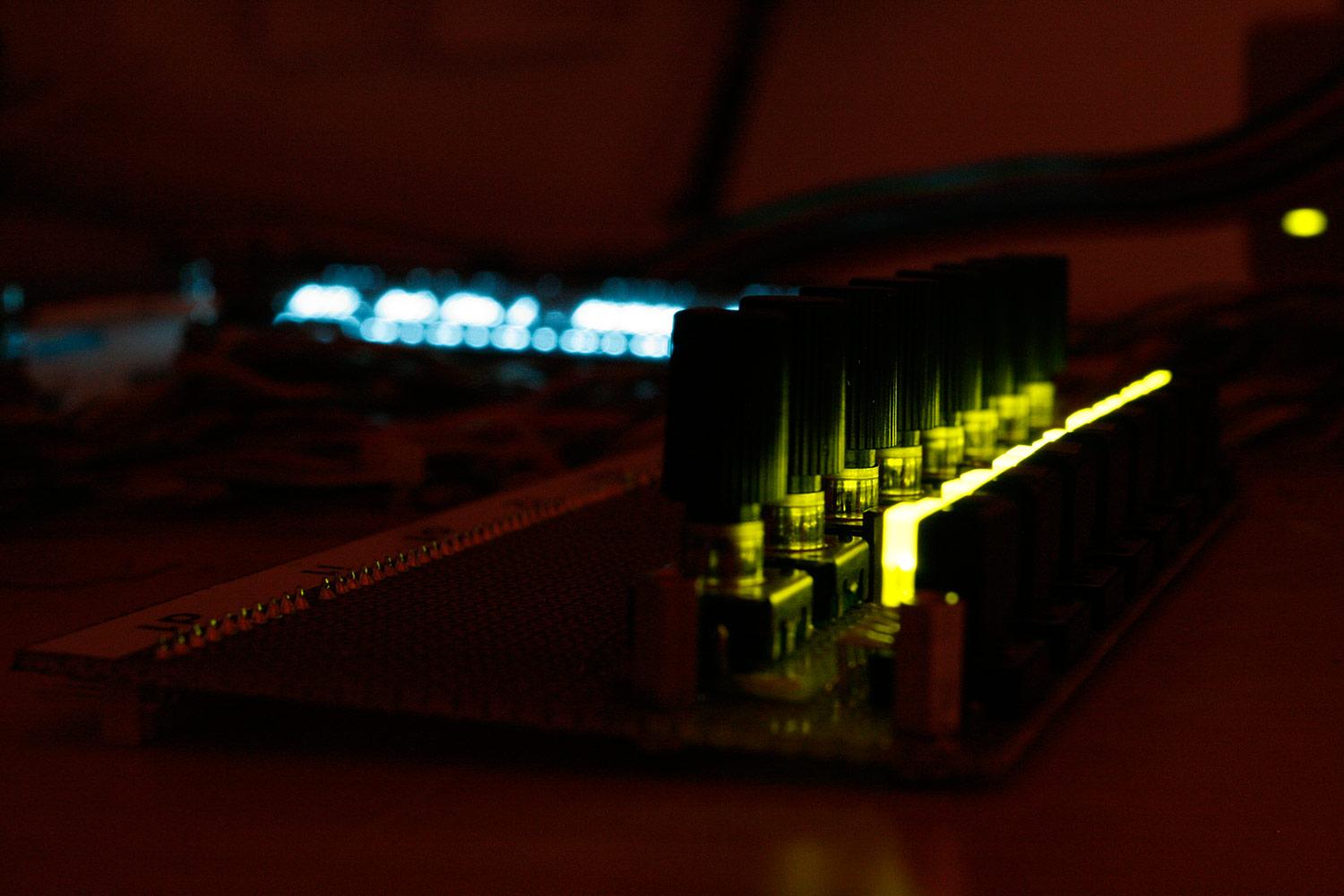

MBSEQ V4 at Night
An atmospheric shot dedicated to Antix, my friend

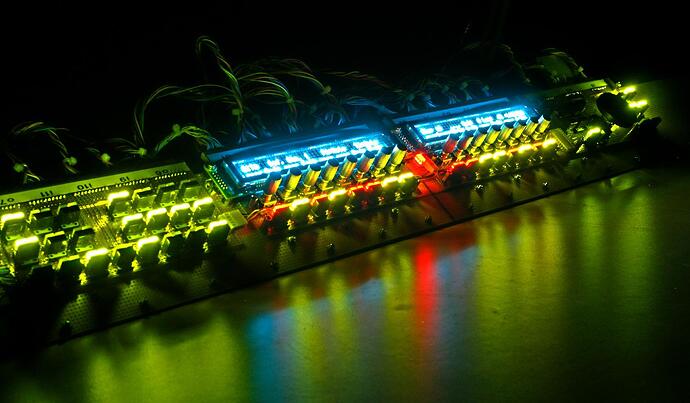

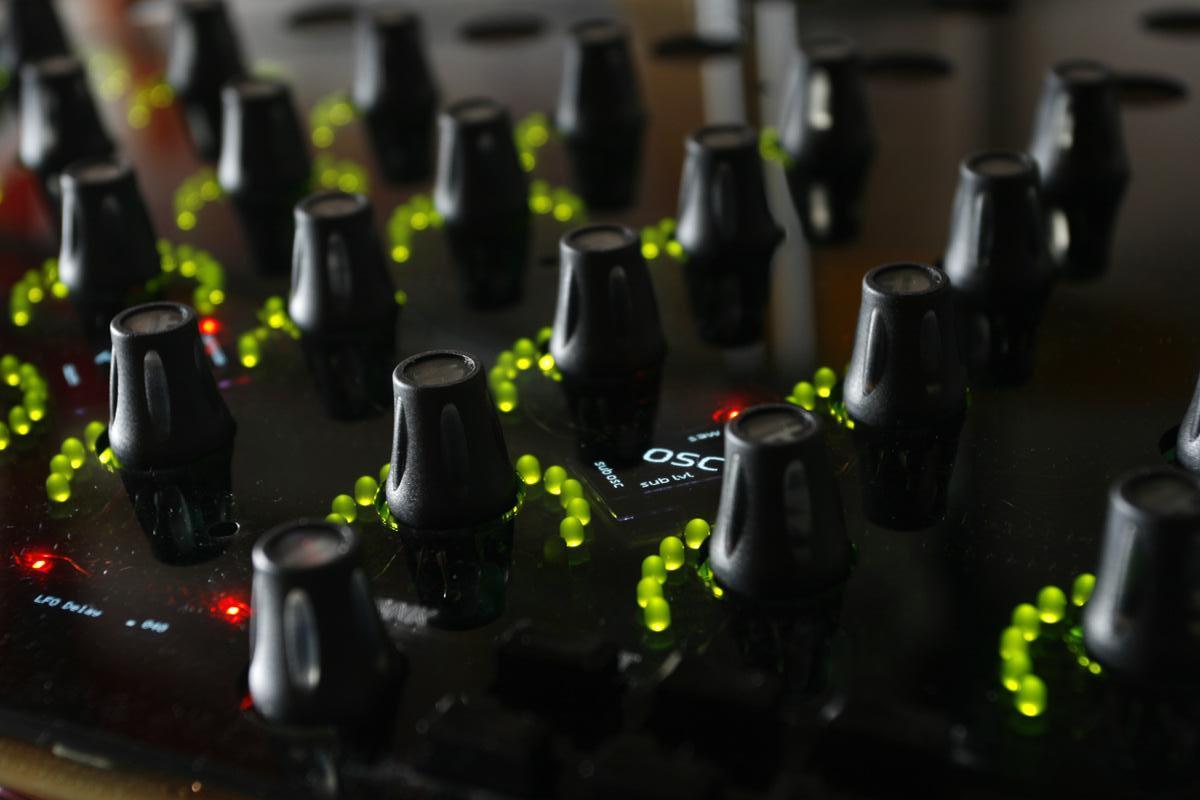

MBSEQ V4 HDR
Ok, sorry to bore you… I promise, this is the last night shot, at least for this month

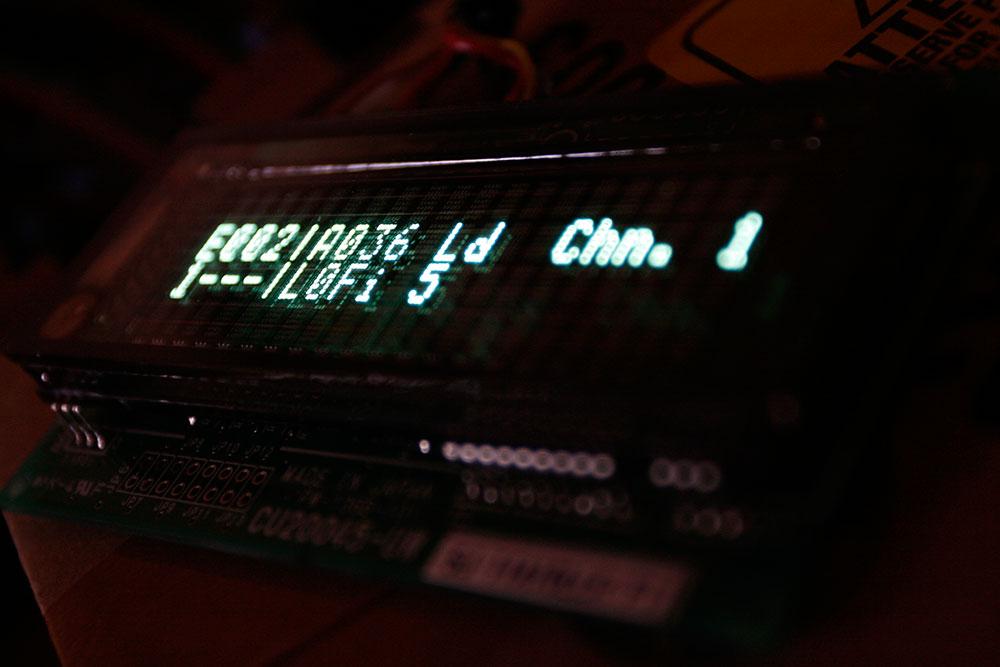

Noritake VFD to be implanted in the MB6582
display for a synthesizer worthy of a time lord

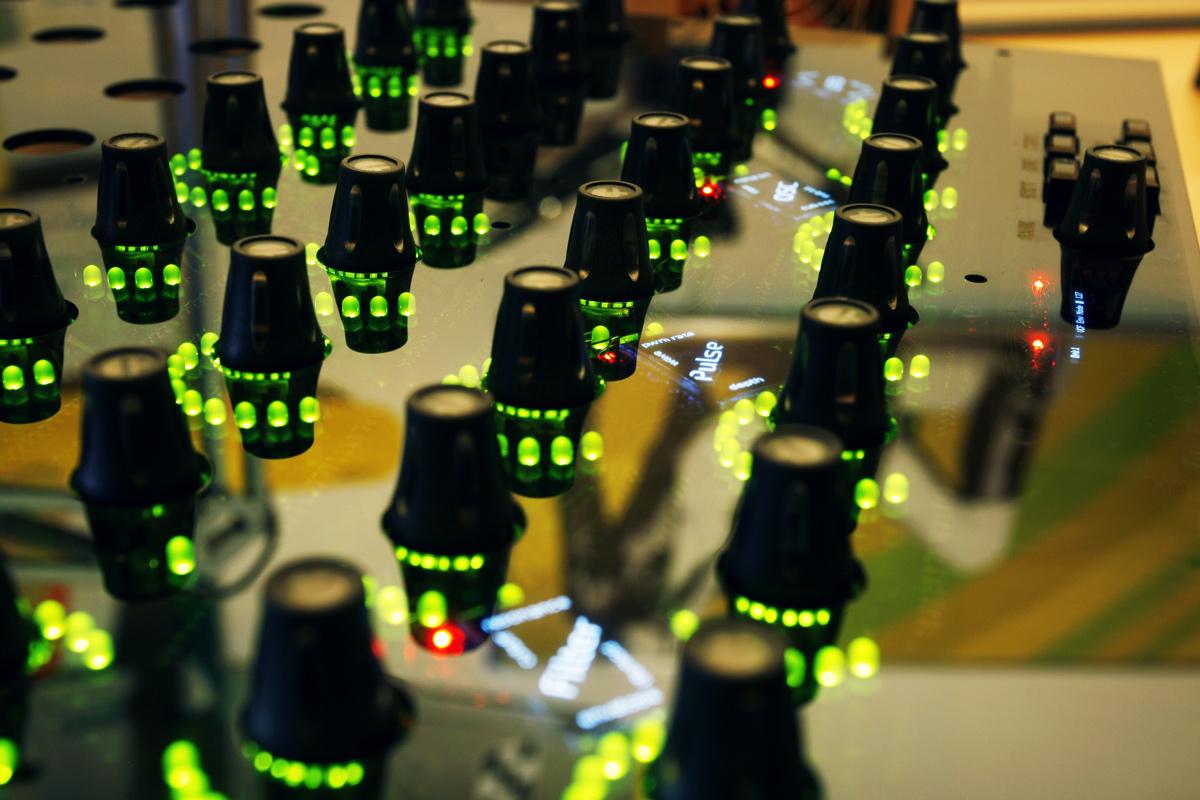

Backlighting transparent knobs for the MB6582
Those SMD LEDs are frickin´ small… should not have had soo much coffee
Welcome to Lava City!
ah those lead free solder fumes dont make happy no more :rolleyes:
(backlight smd leds for transparent mb6582 waldorf knobs - last “night shot” of them, i promise :-))

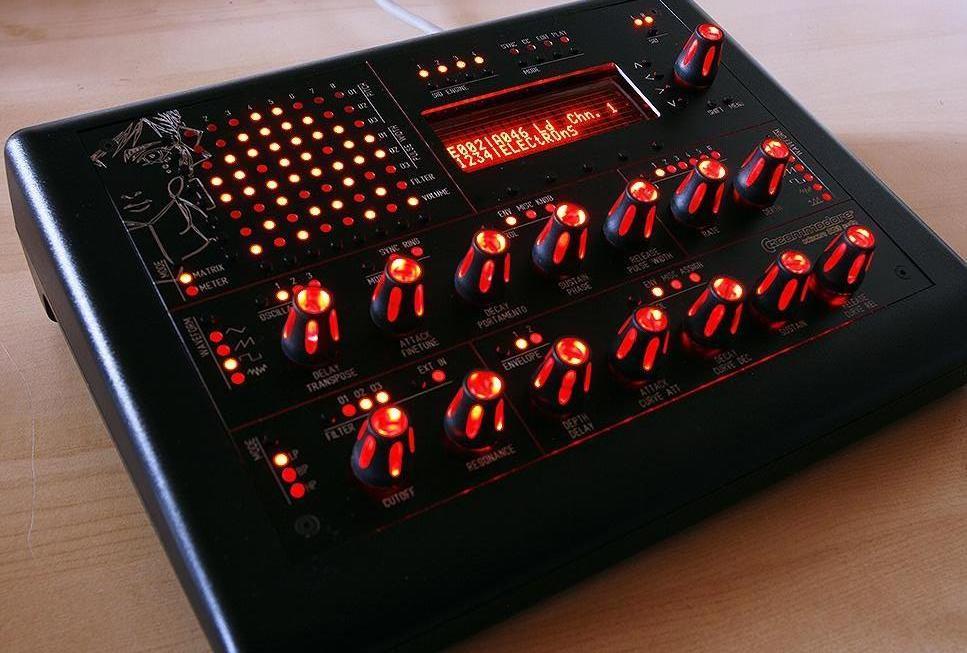

VFDified MB-6582
Using a color foil for VFD hue-shifting.
Including a space invaders alien.
Hope you like it.
Outstanding work TK. & Wilba - Thanks once again!

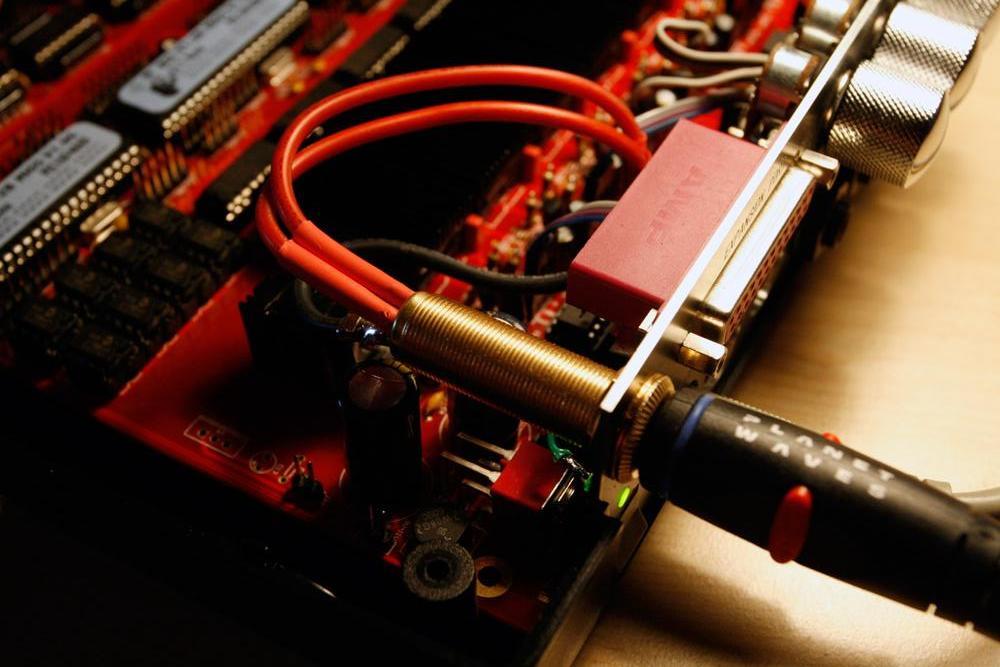

6.3mm Stereo Socket for MB6582 Passive Mixer Output
It fits perfectly… If you don´t have 8 mixer channels left, then this is the next best alternative to connect the MB6582 to your studio…
The case closes without problems and there are no contacts to the CS PCB or the display.
(-> See photo tutorial for more infos)

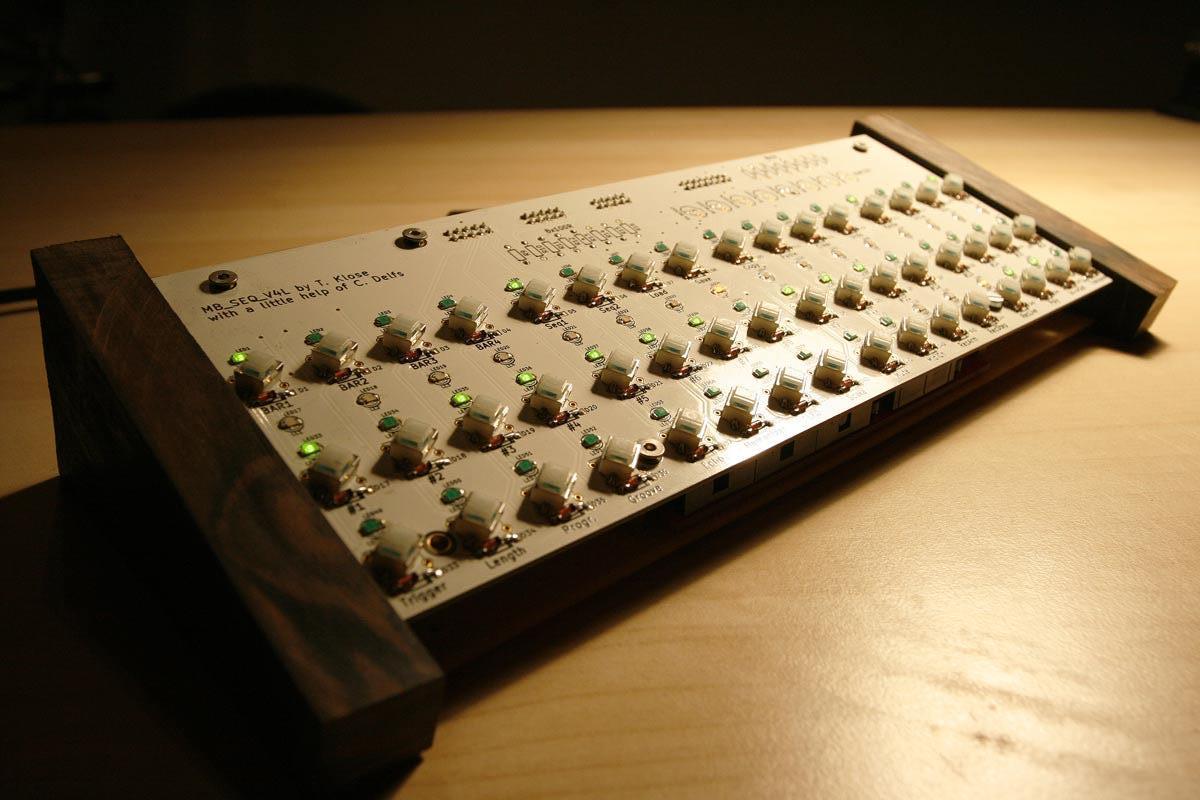

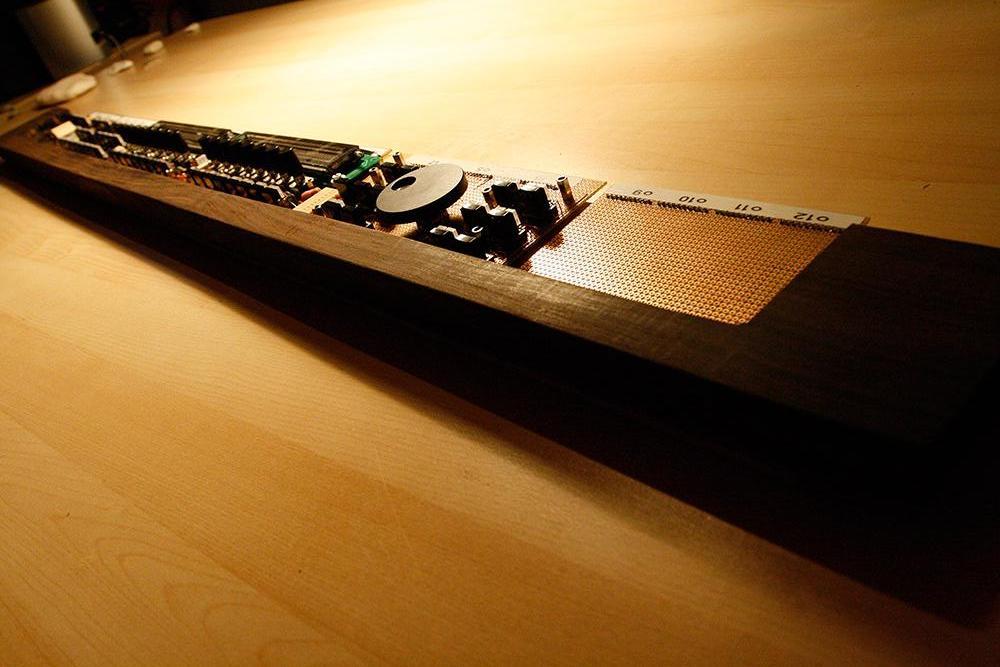

Ebony Frame for the SEQ V4 user interface
…for the worlds-first ebony MBSEQ v4
Ebony is very hard stuff, took some hours of woodwork

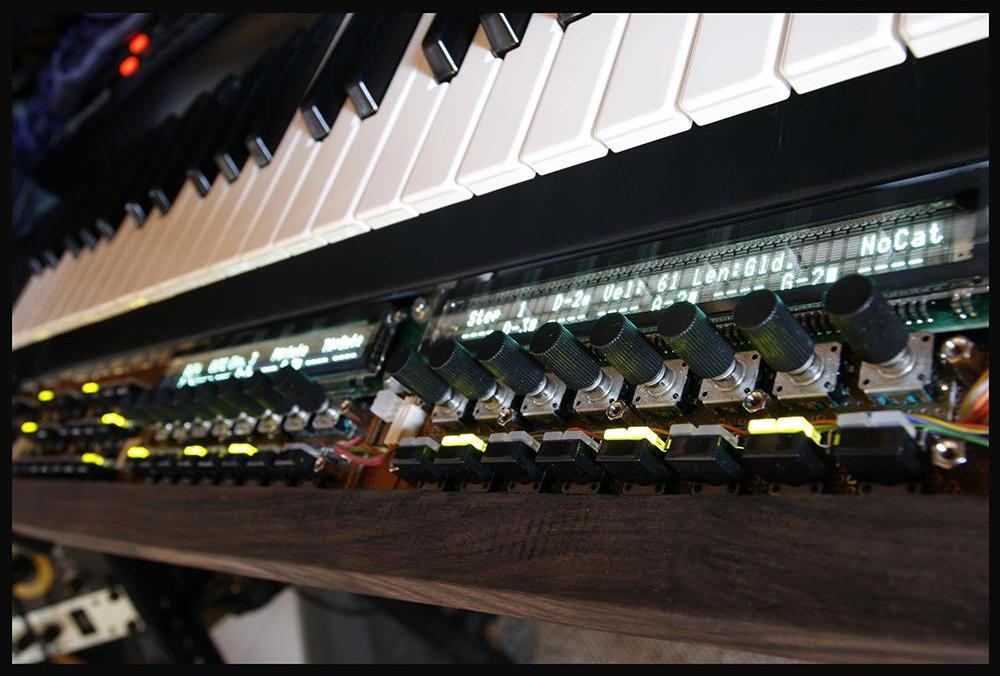

Ebony MBSEQ V4 installed below keyboard
Yes, the frontpanel is still missing
I can totally recommend this kind of wooden frame for your builds, because it adds lots of stability.
Greets,
Peter

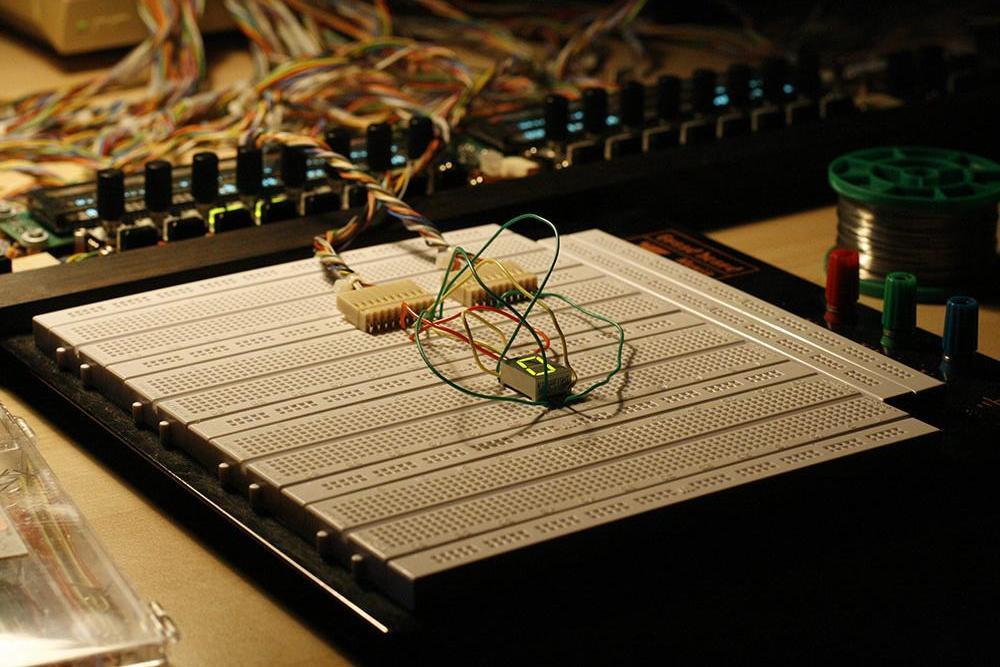

SEQ BPM LED digit on a breadboard
it works

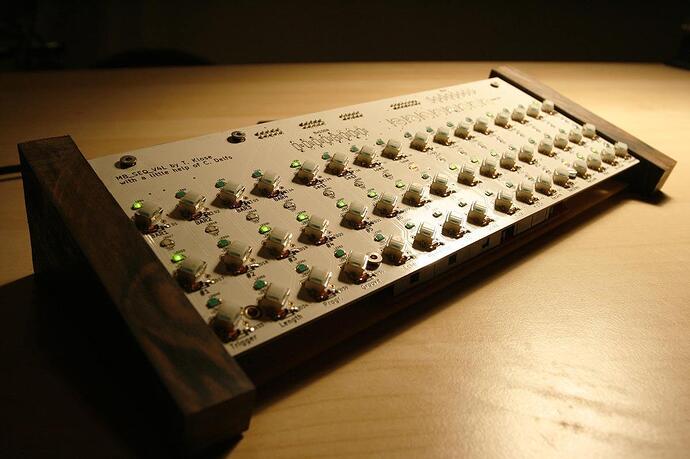

ebony +smd seq lite
just had some smd leds and pieces of ebony wood leftover

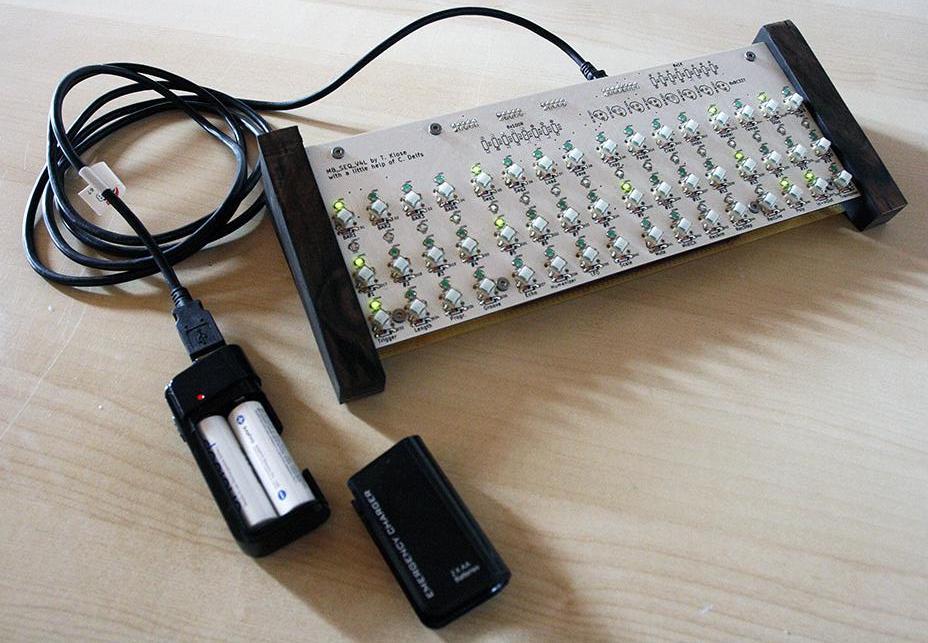

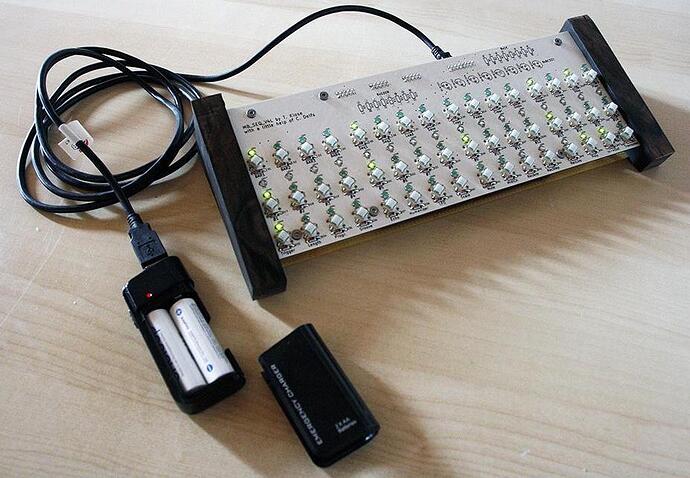

´lite on batteries
2xAA batteries and an el-cheapo emergency charger from china :sorcerer:

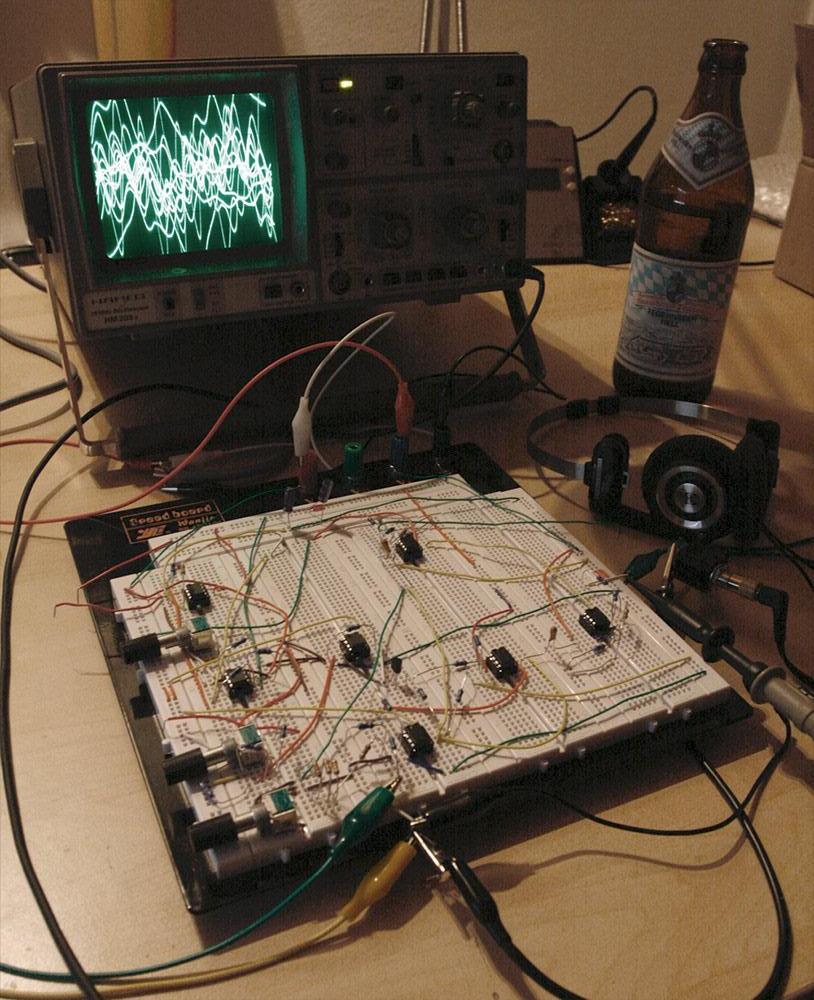

Polivoks Party on Midsummer Night
Breadboarded the “Bareille” Polivox clone and just did a test! Works nicely and does some very civilized filtering, when the resonance turned down, becomes a screaming beast when resonance turned up… Still to test: frequency modulation of the filter, have to connect a lfo voltage source and see what happens /public/style_emoticons/default/smile.gif) class=“bbc_emoticon” alt=“:)”>
Will build a stereo variant on veroboard primarly to be used with the MB6582 later, the rawness and the extreme resonance should suit the SID sound /public/style_emoticons/default/smile.gif) class=“bbc_emoticon” alt=“:)”>
Highly recommended because of very good performance for material cost - less than 20€ in parts, just 7 opamps, about 25 resistors, two 1uF tantals and three pots, +15V/0/-15V or +12V/0/-12V PSU (e.g. from MBFM) required.
Have fun!
Peter

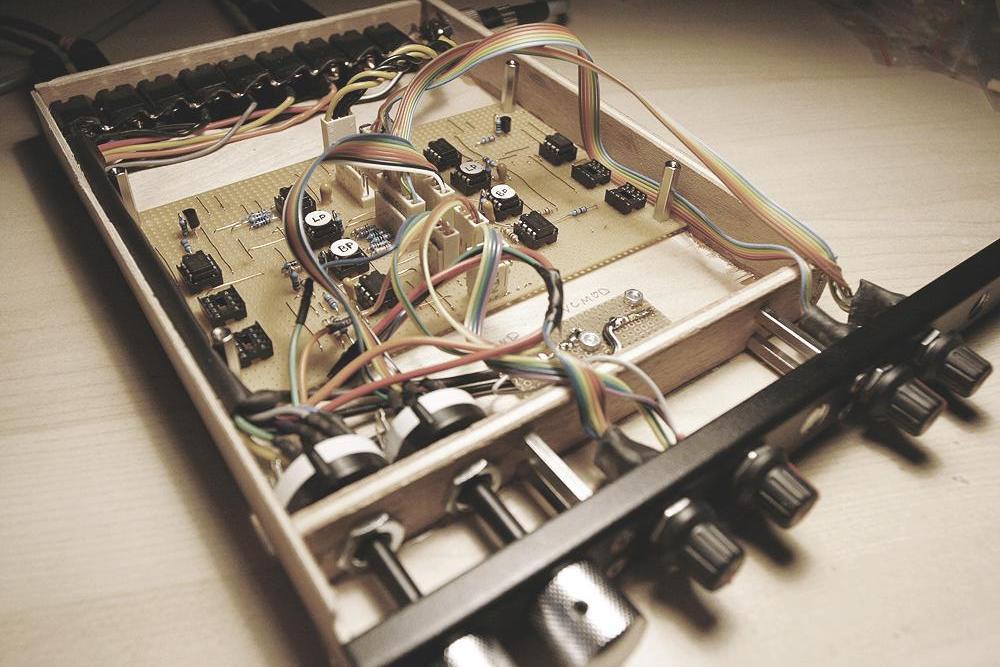

Stereo Polivoks VCF (nearly complete
If you are looking for a low-fi audio filter (VCF), look no more… The Polivoks (google bareille polivoks for a free schem) filter is awesome! It screams (with high resonance), it is gritty, it extends the bass (in lowpass mode), and it can be overdriven nicely by applying quite hot input and attenuating the audio signal after the filter. The photo shows a stereo Polivoks build on a veroboard, it was routed by hand, that is why both sides are not visually identical… also due to small differences in the resistors and pots, they sound a very slight bit different, which only adds to the character :-). The external VCF inputs are not wired up yet (empty TL072 slots)… i am also missing a MIDIbox CV, or an AoutNG on the SEQ, which would be fantastic for filter automation.In conjunction with (relatively) low-fi sound sources, in this case, when using it on rather old-school SID patches is great, in stereo it is twice the fun (most analog filterboxes are mono). Hope to demo it soon! The slot is a 1/2 U (height unit) el-cheapo steel rack panel from ebay (ca 3€), drilled with a press drill, attached to a cheap selfbuilt wooden enclosure. Total material cost for the depicted filter was way less than 50€, as no special parts are used… Many, many thanks once again for the tip, J! The polivoks definitely came to stay!
Highly recommended rainy-day(s) project for every MIDIboxer! Many greets! Peter

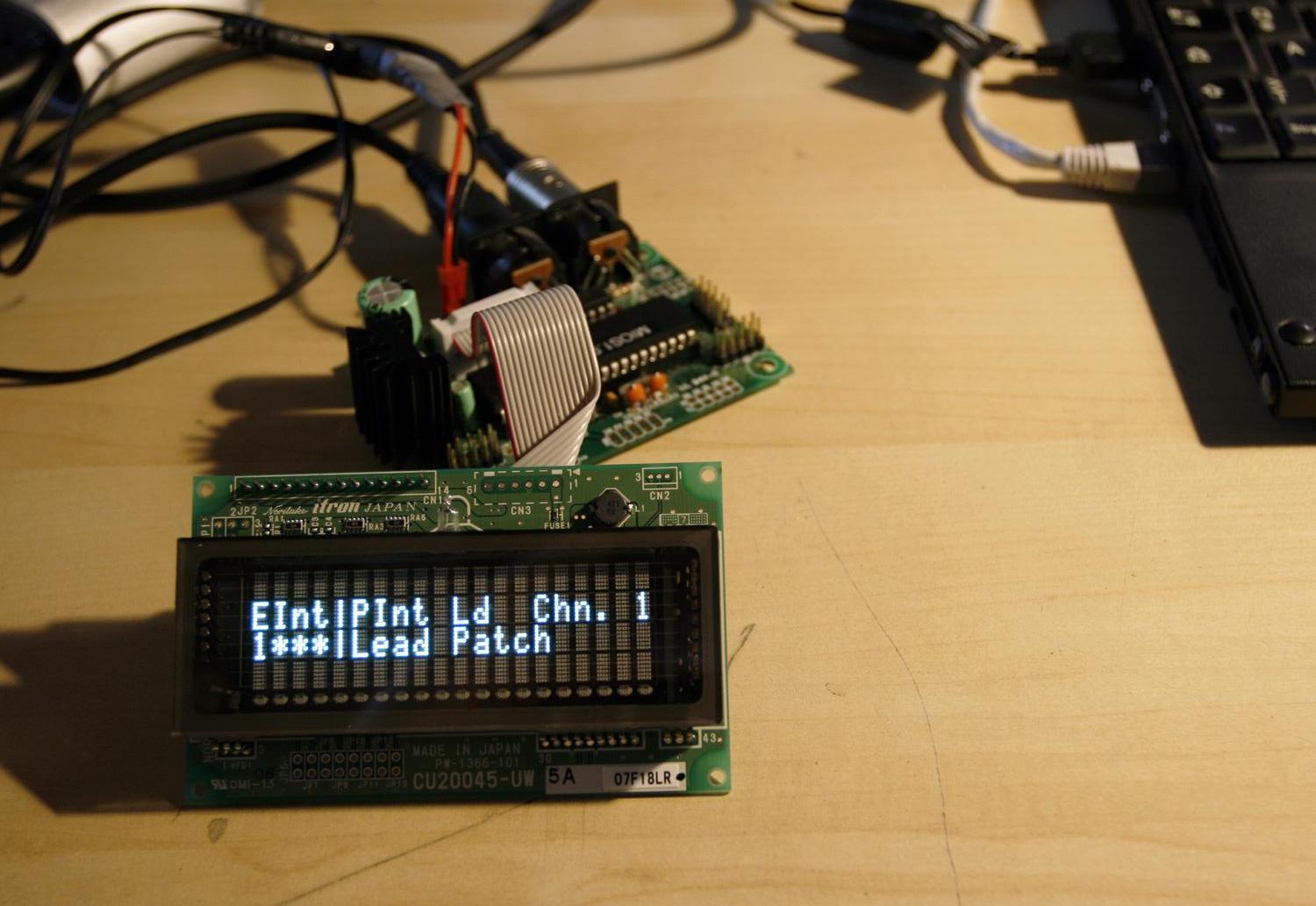

Noritake CU 20045-UW VFD for Core8
This one is for Altitude!
Thanks for sending the hardware, man!
It is a beautiful VFD and currently quite cheap in the U.S.
Many greets,
Peter

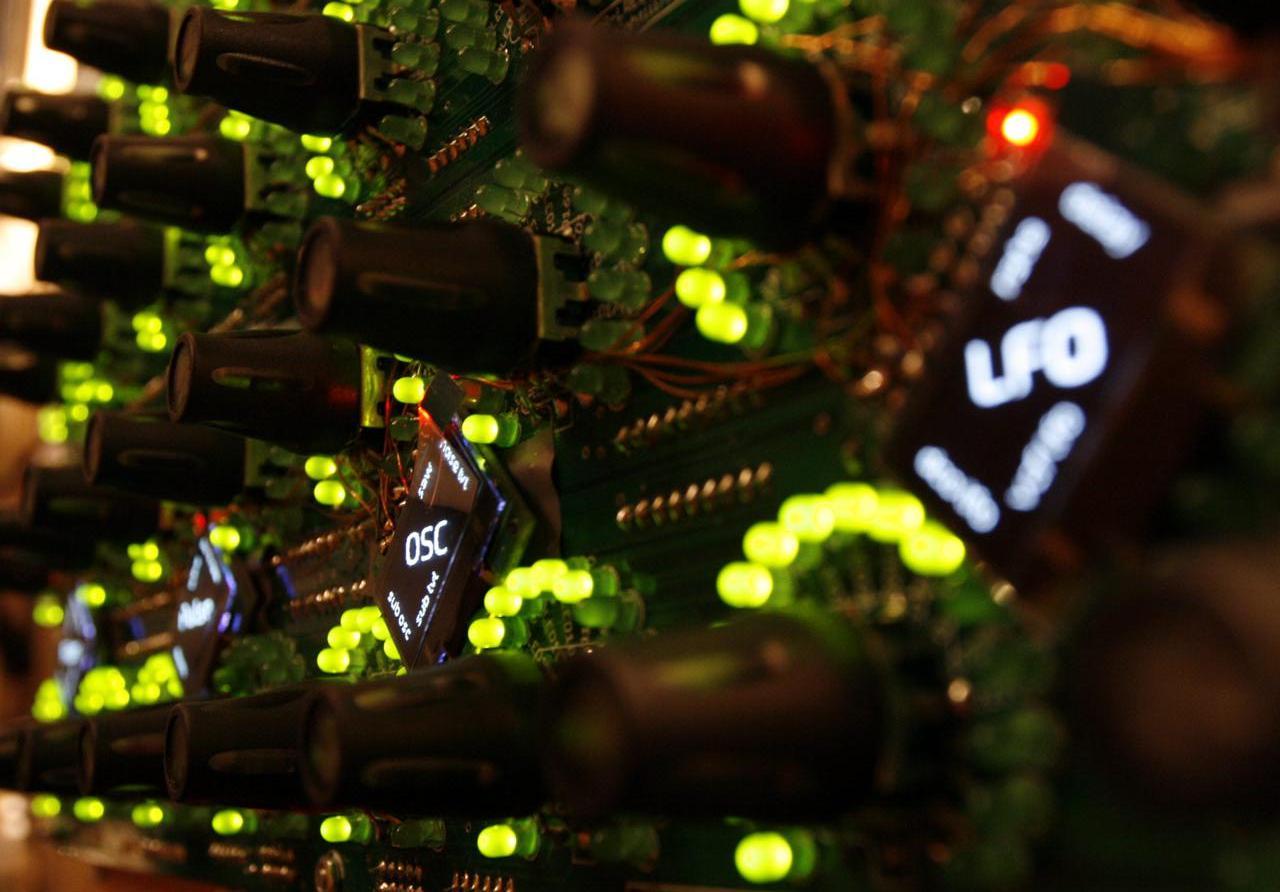

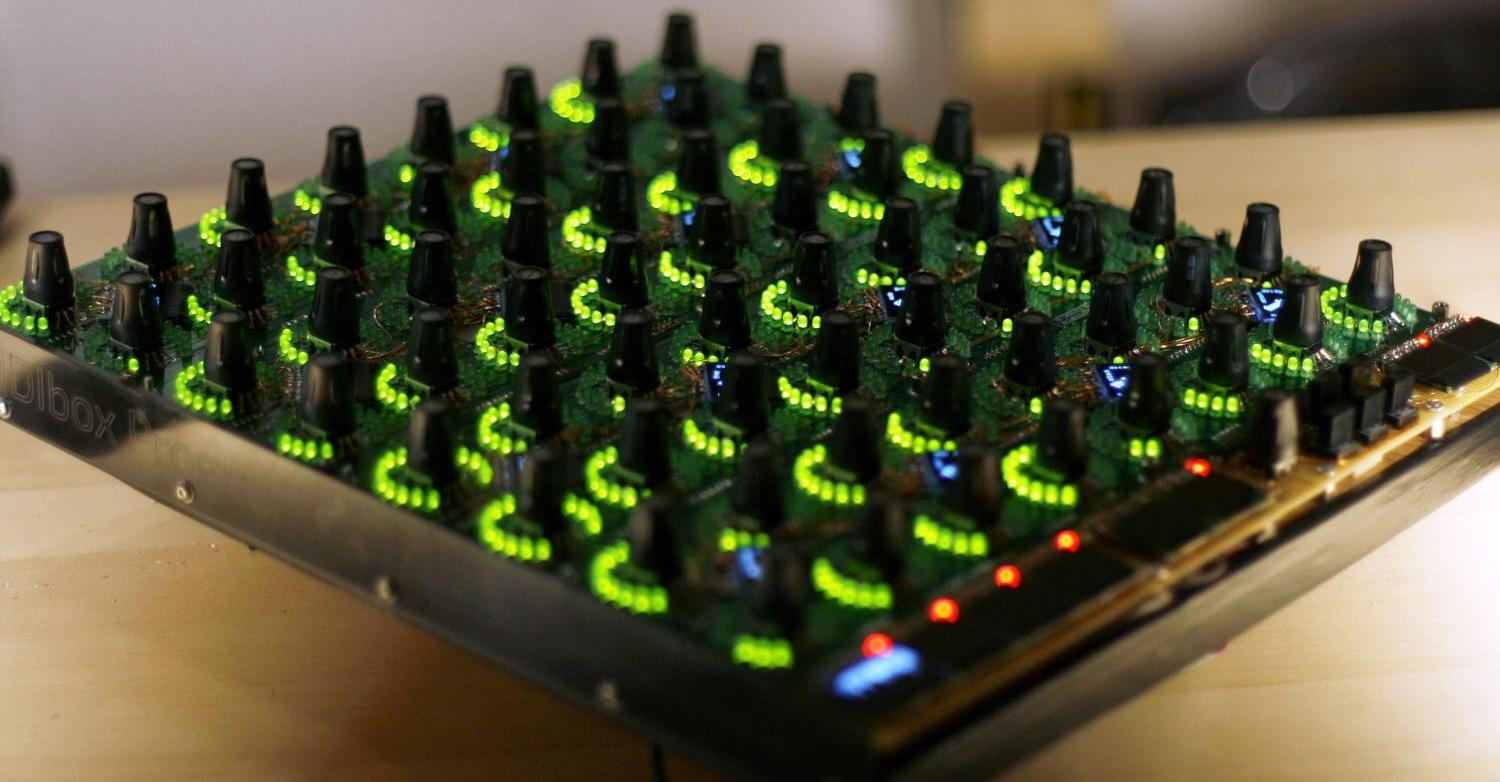

MBProgramma V0.1
…make some noise!
MBProgramma label displays!
MBProgramma Side View
(panel not properly attached yet, just a teaser! :-))
programmaPanel
MBProgramma transparent / 50% smoked acrylics panel - not properly attached yet, just a teaser!
programmaPanel2
MBProgramma smoked acrylics panel, part 2 (not properly attached yet, just a teaser! :-))

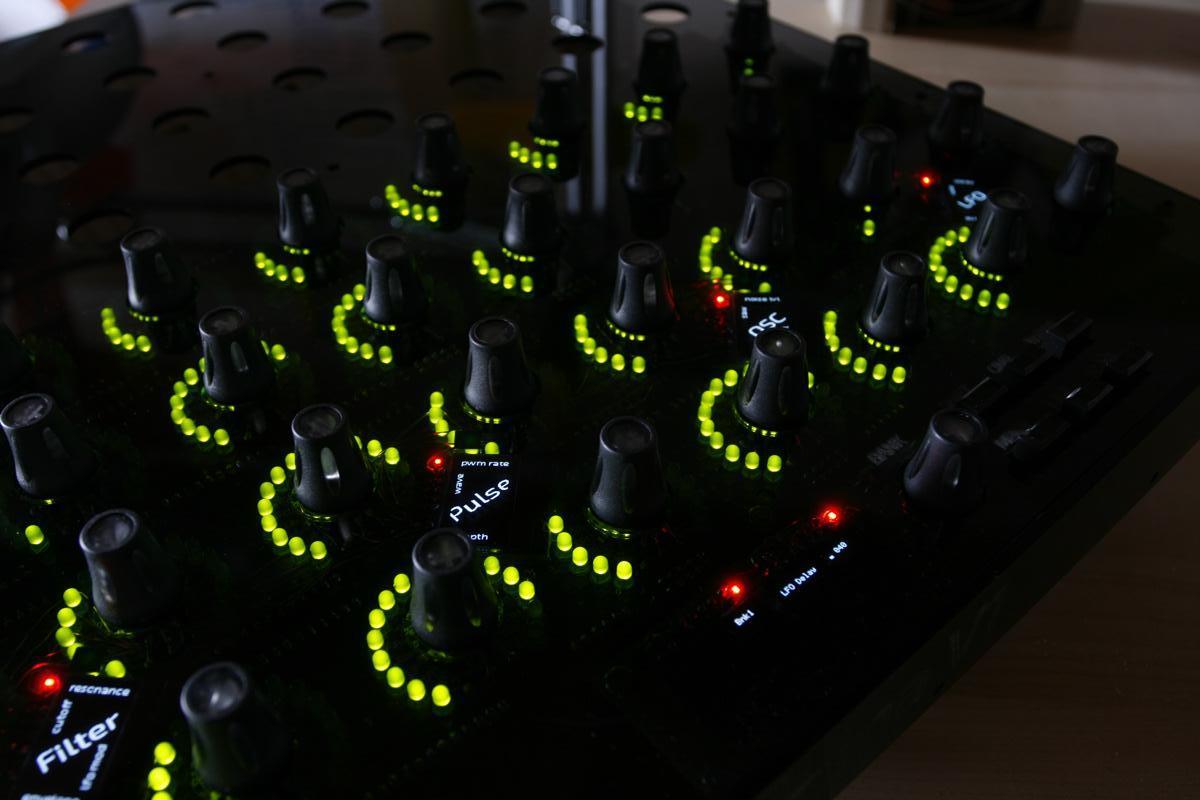

MBProgramma Reflections

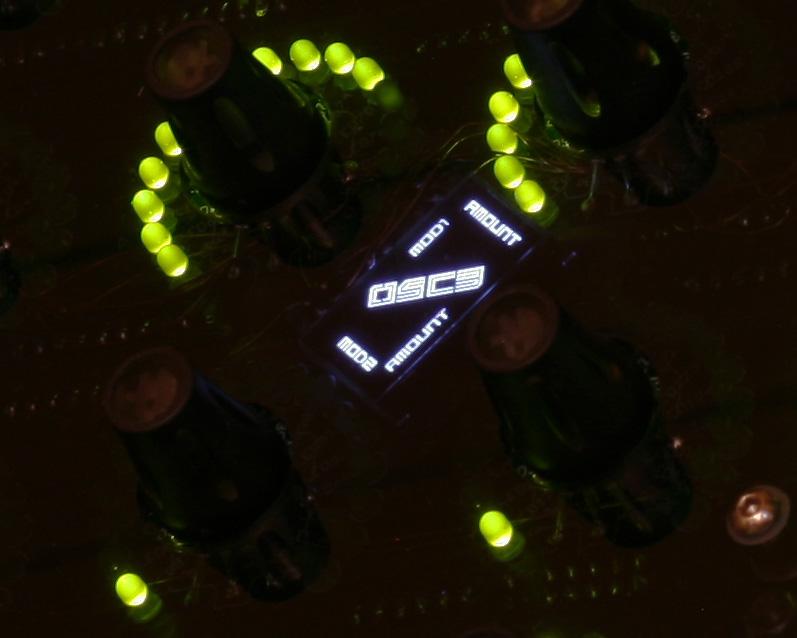

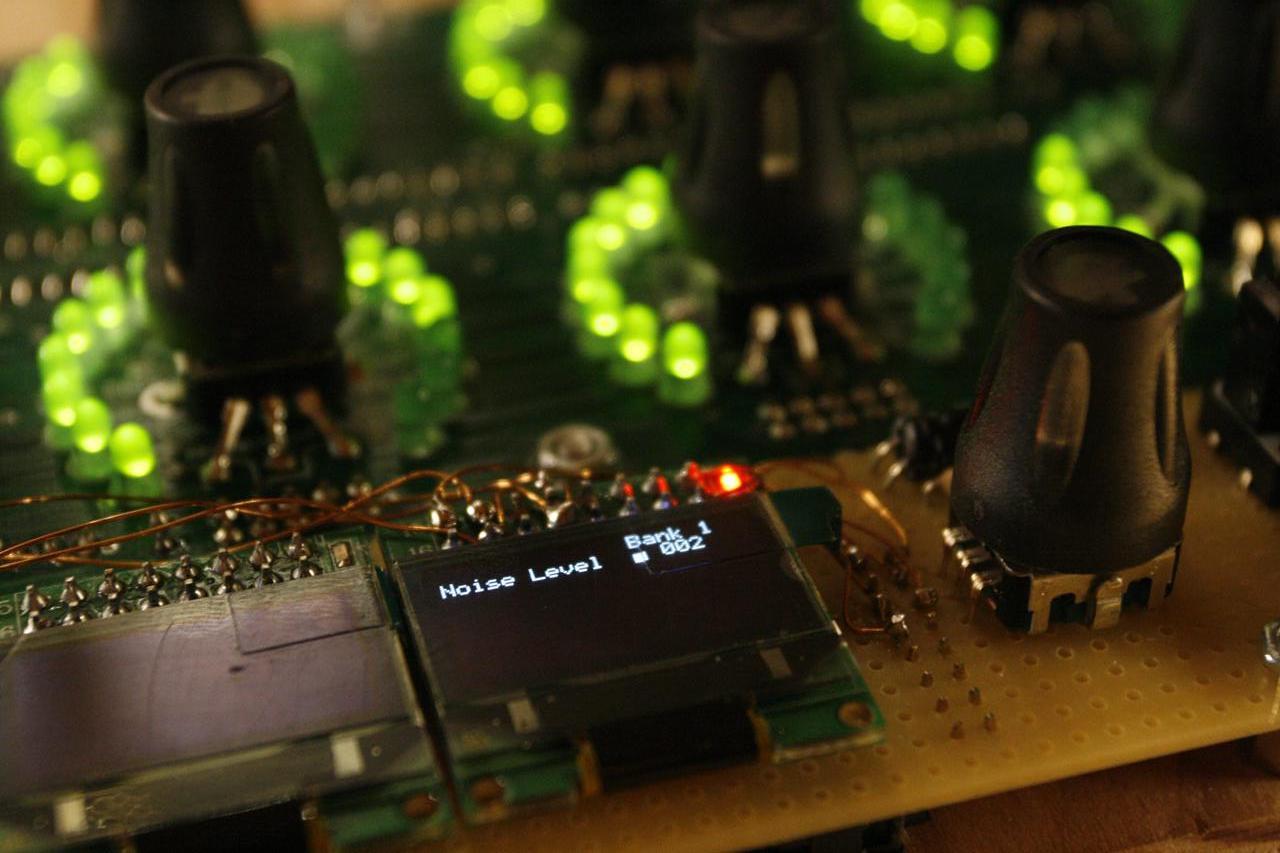

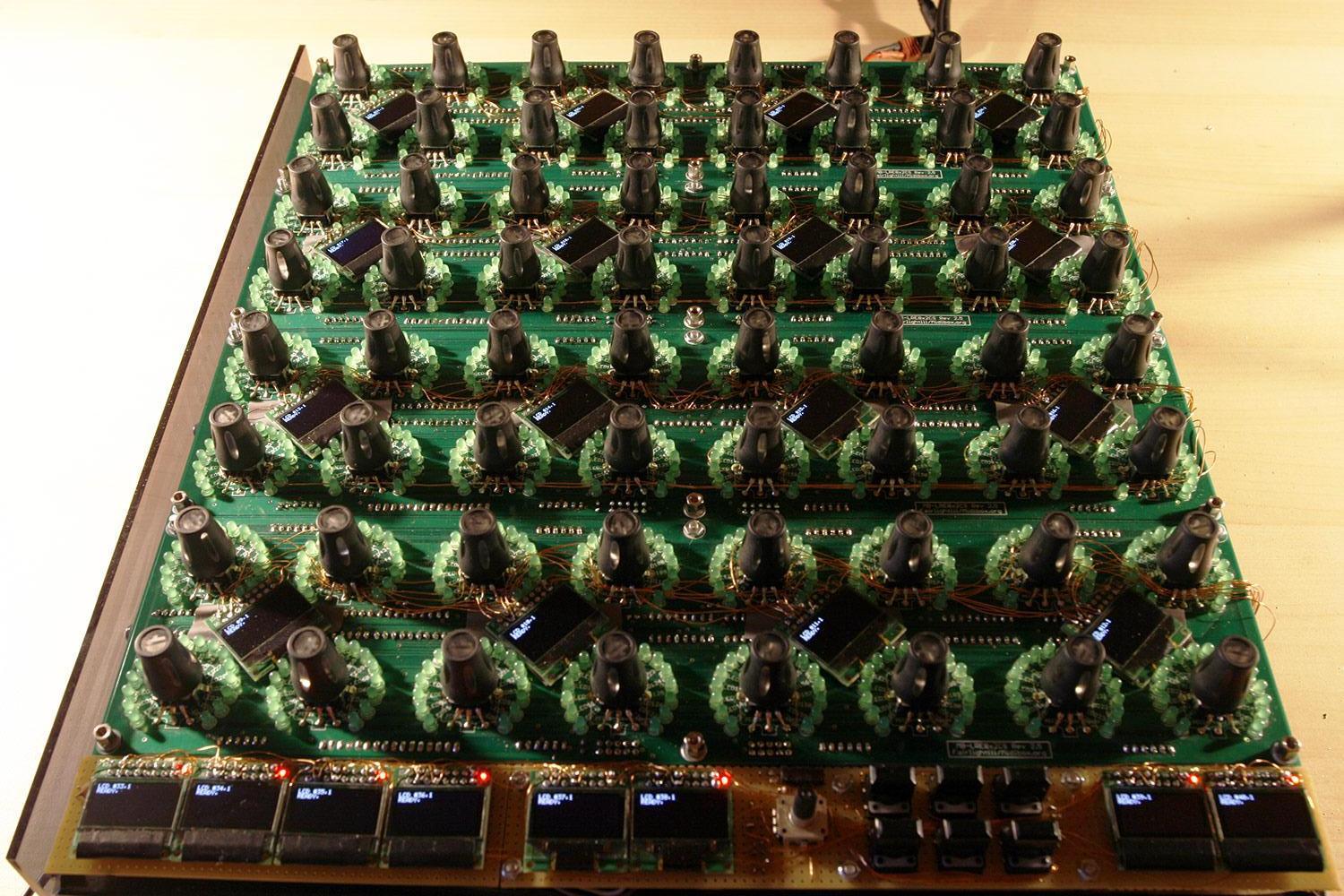

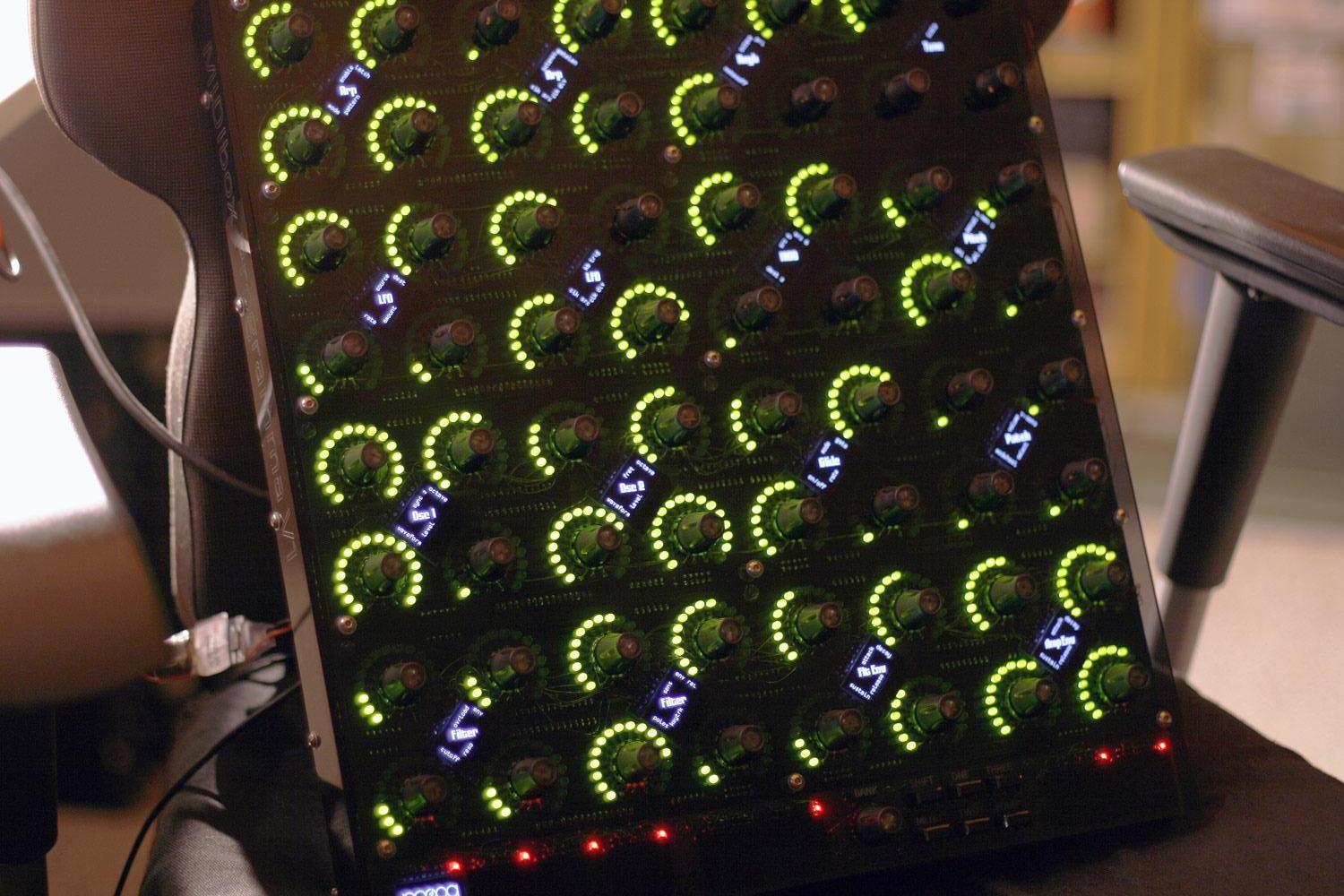

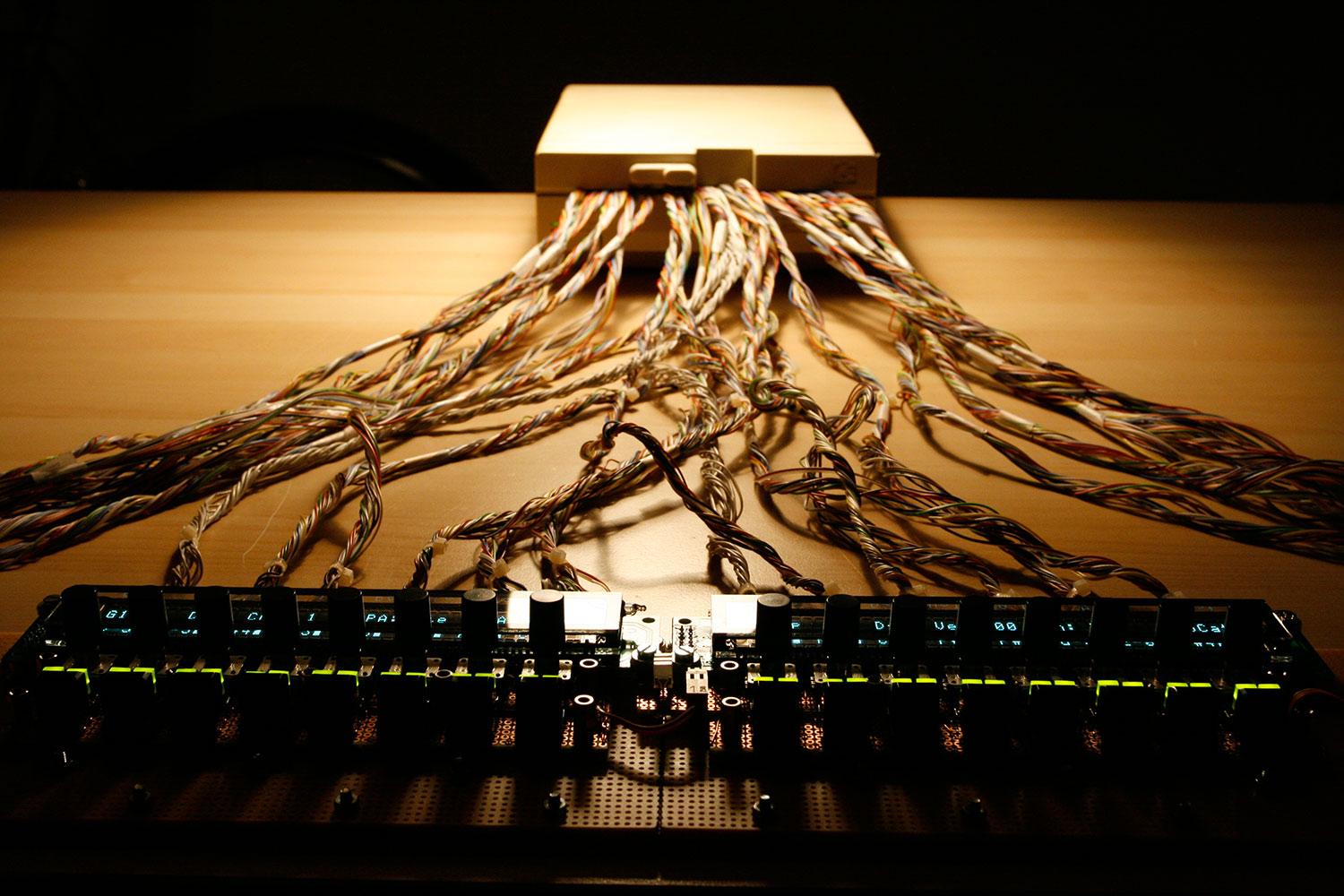

MBProgramma: 24 OLEDs working (1)
MBProgramma: 24 OLEDs working (2)
MBProgramma: 24 OLEDs working (3)
MBProgramma Label Display Detail

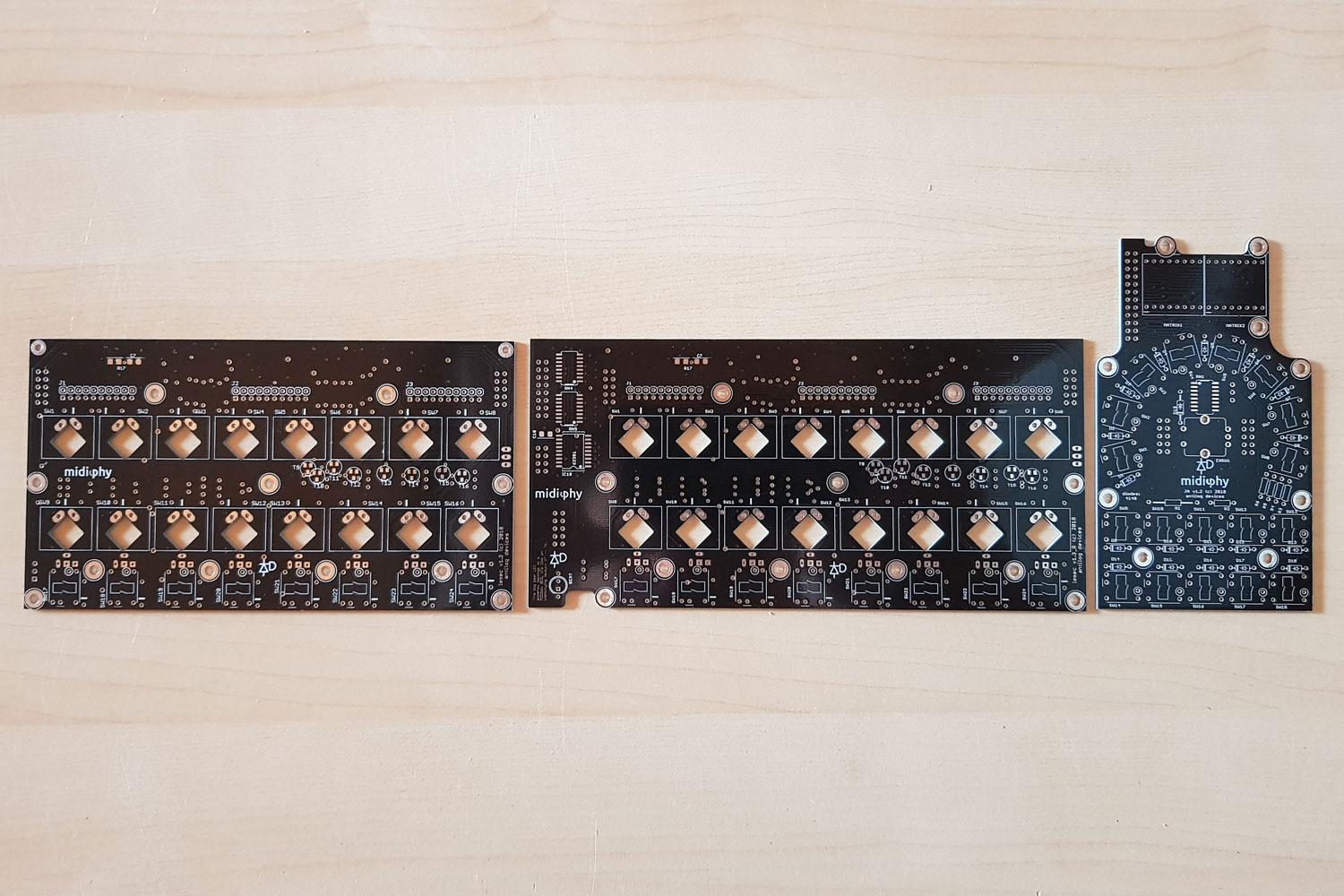

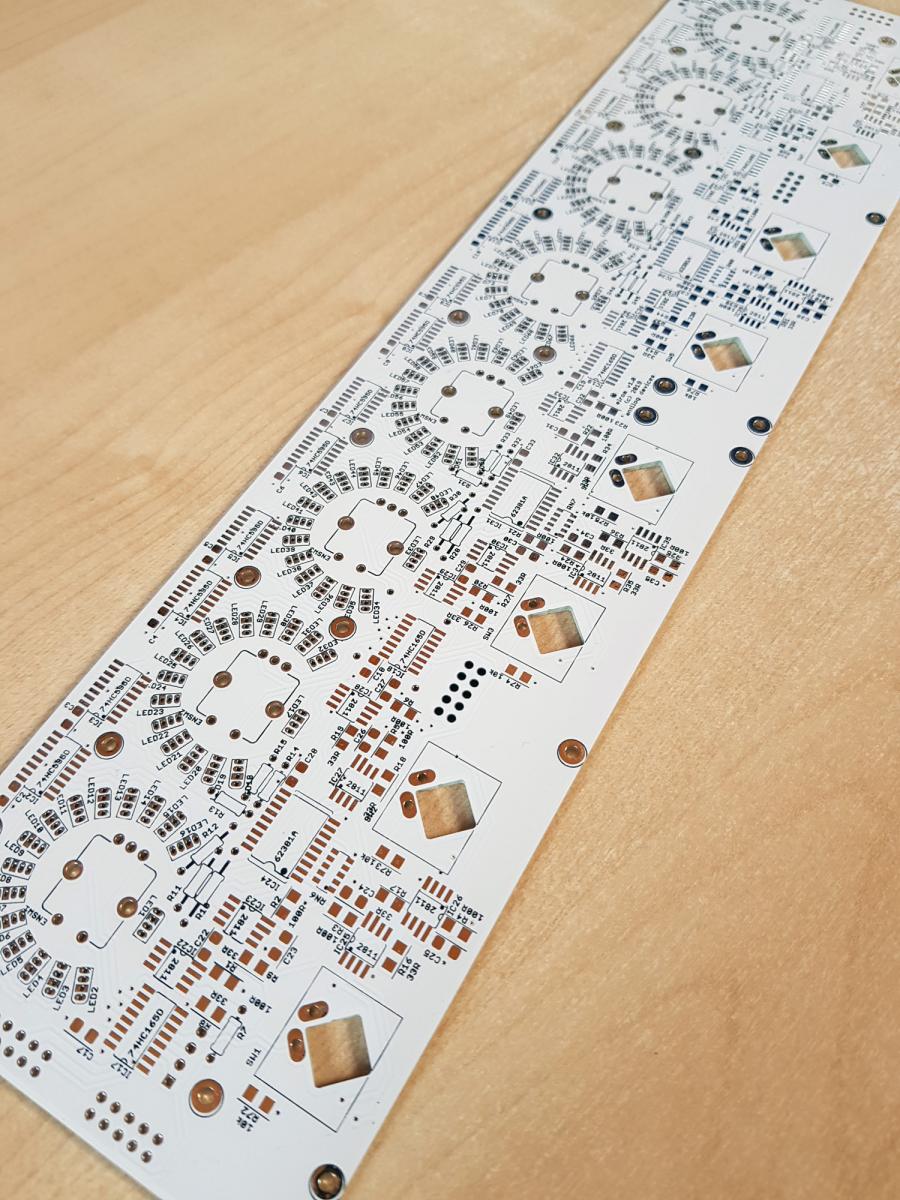

New v4+ UI PCBs
… just arrived yesterday, off to validation soon, so that they can be made publicly available!
Many greets,
Peter
Montage! SEQ v4+ with key labels plus TPD mini matrices…
This is just a montage, of how we hope it should look. The final looks may differ a bit.
Note: the beat LED (above the midiphy logo) will be in the final unit. It is included on the new right-hand LeMEC PCB, just not in the montage.
The TPD matrices are cute 20x20mm mini LED matrices in white! And they could be used for more than "just" displaying a TPD. :)
Enjoy!
Many greets, Peter

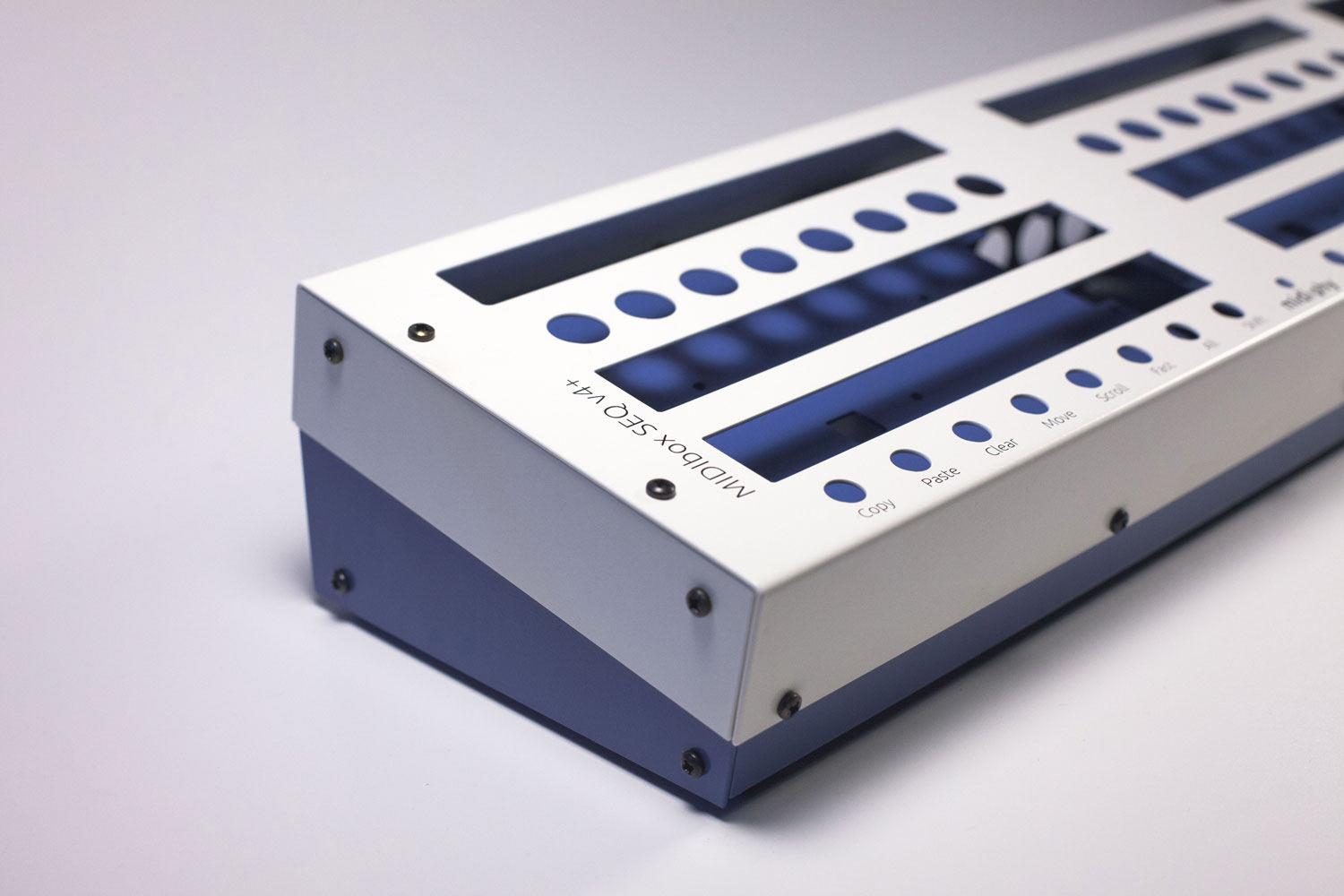

Assembly test of unpainted SEQ v4+ case , left handed jogwheel
Directly from AdrianH’s workshop - thanks a lot for the photo!

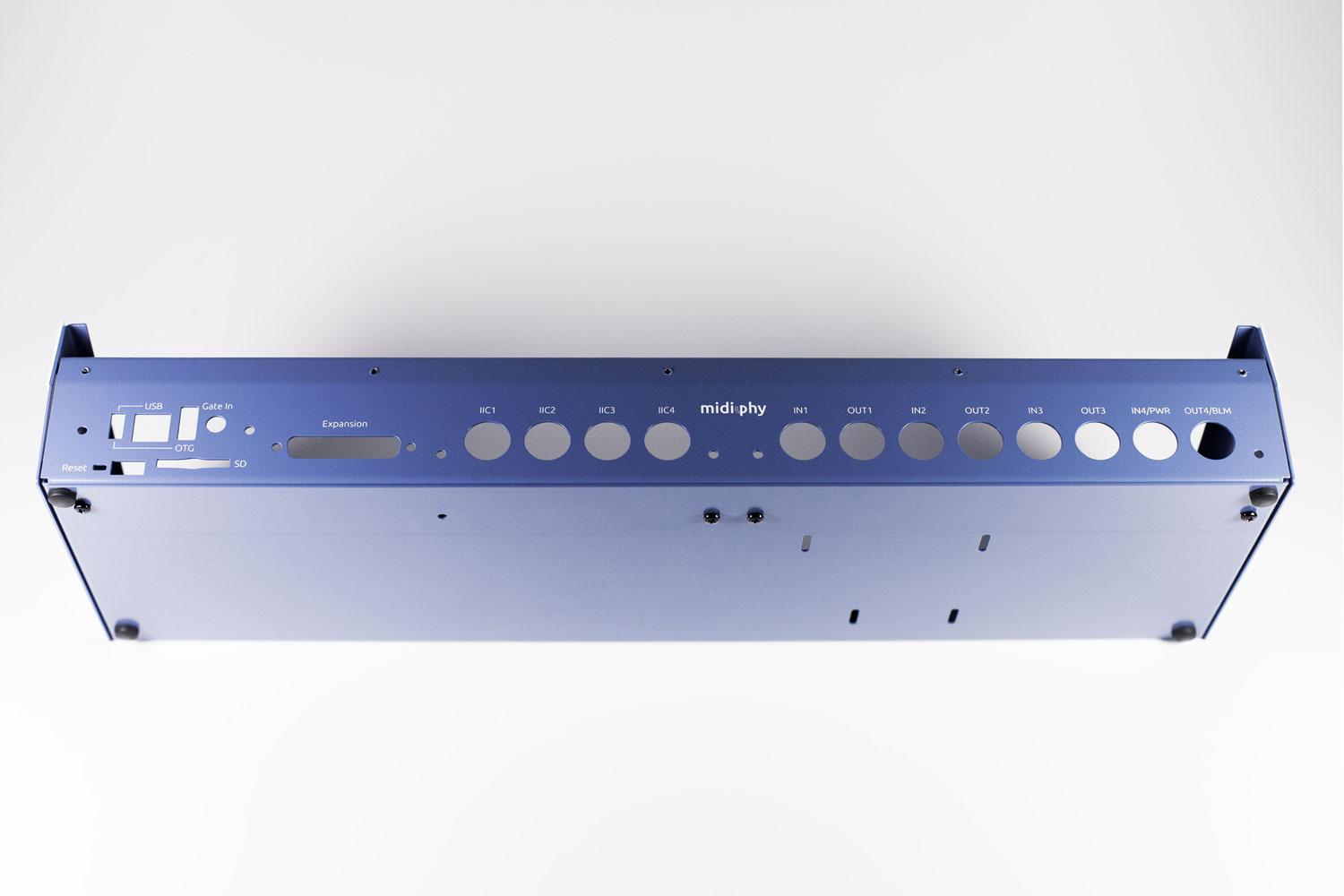

Unified midiphy SEQ v4+ case backside
including labels and an installed blinding plate, that covers the lower case options, that are available for optional rackmount mode.
Fantastic work again by Hallik Engineering!
Enjoy! :)
Many greets,
Peter
midiphy SEQ v4+ RH Jog + Activity Matrix case…
… now with labels, in the final shade of blue!
Many greets and enjoy! Peter

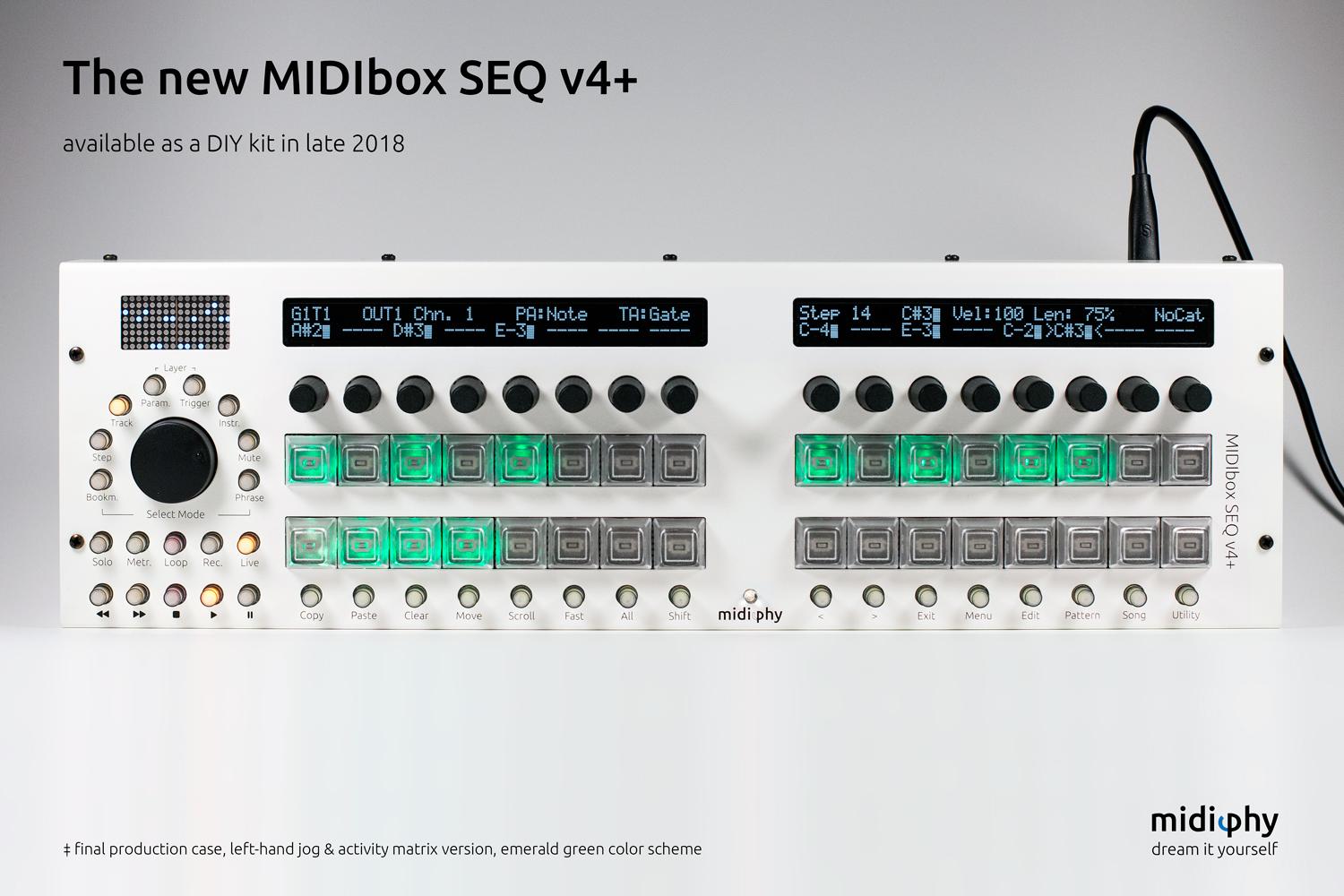

And the final SEQ v4+ case!
This one uses a left-hand jog and activity matrix configuration, with green/red (“emerald green”) color scheme!
Enjoy and many greets!
Peter
Elrom Teaser
Andy’s newest - just a proof of concept at the moment - but with such a board, we hope to be able to realize a standardized MBNG user interface (aka ProgrammA) at some point in time.

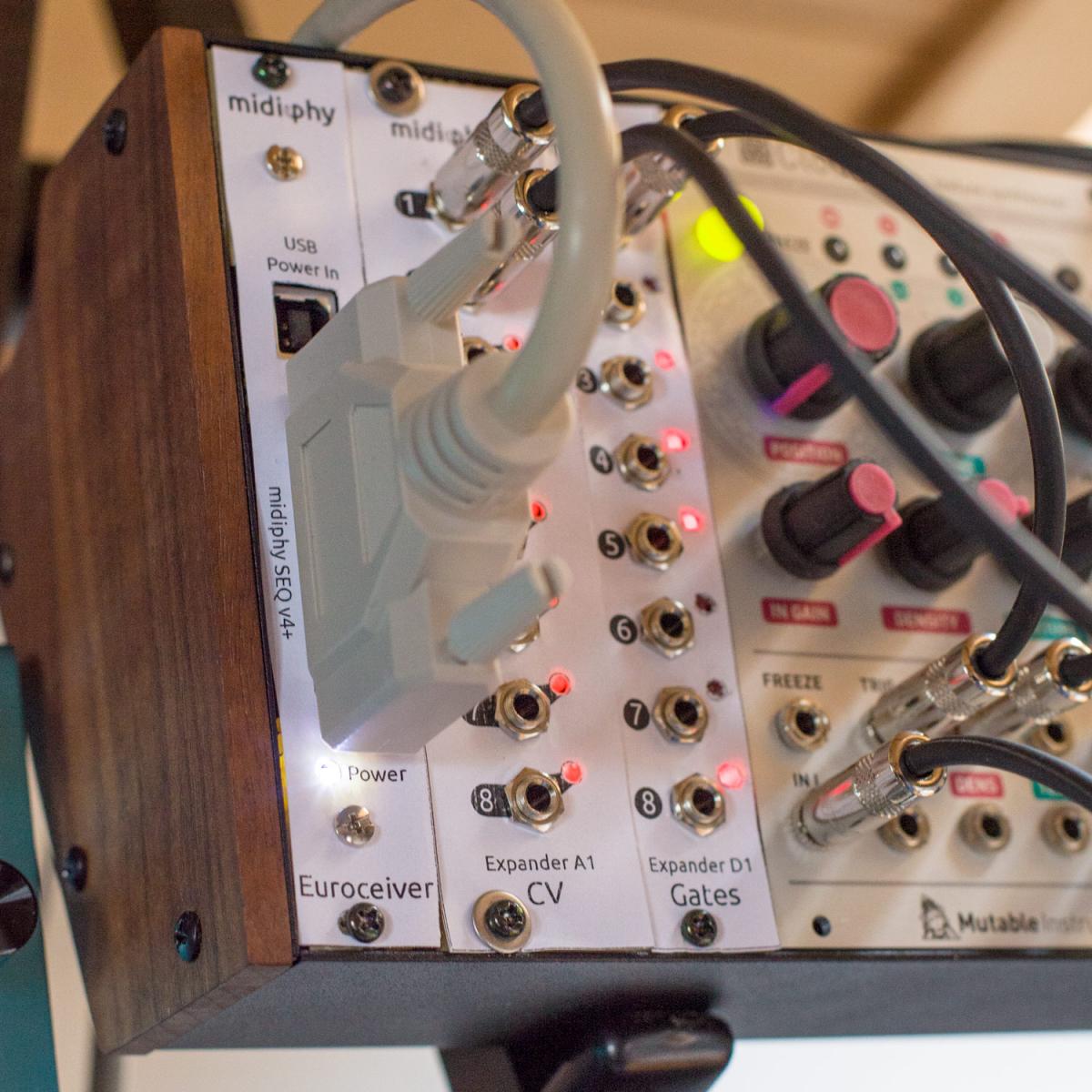

New eurorack modules from midiphy - preview
…still with handmade paper/epoxy frontpanels for fit-testing

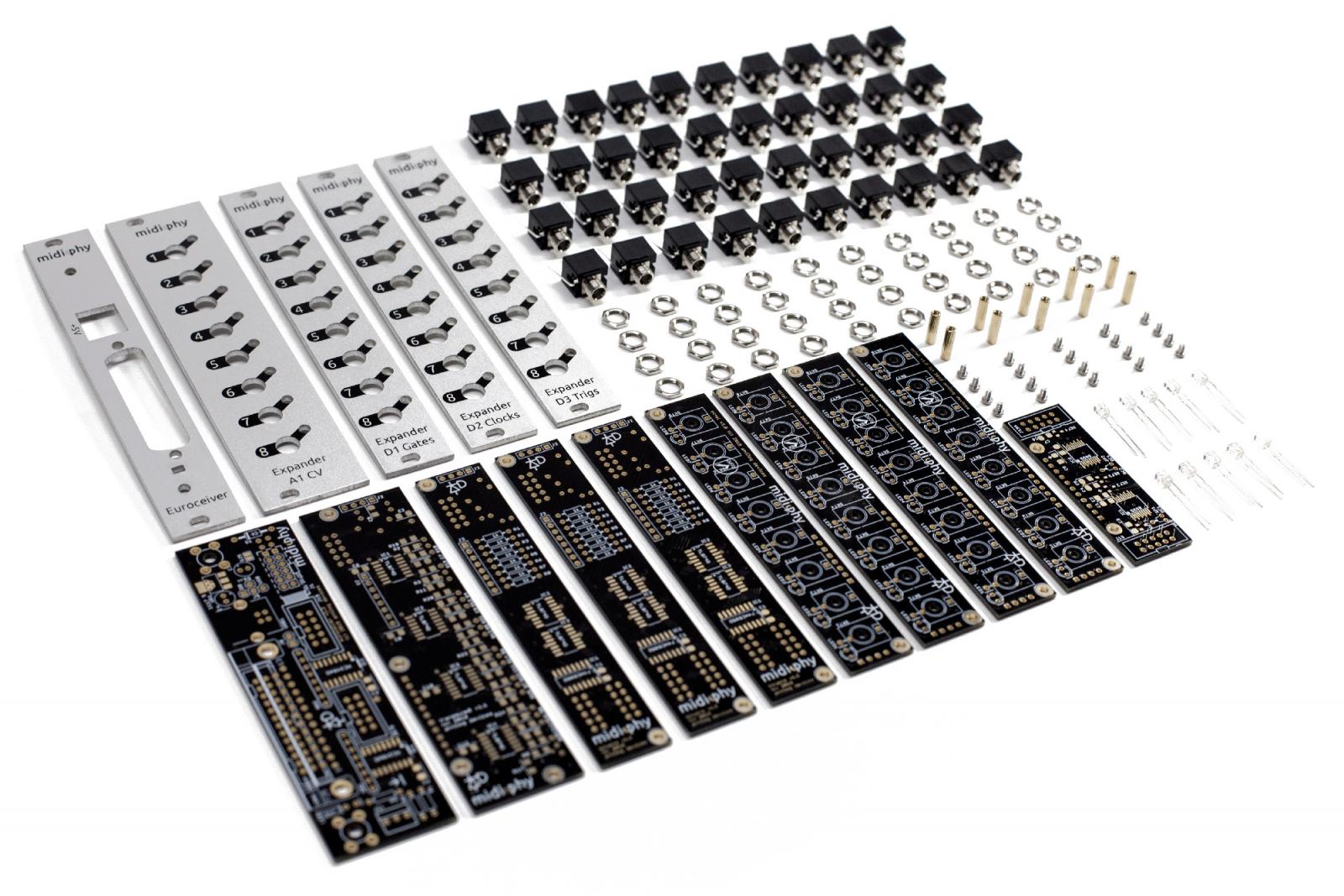

New eurorack modules in the house!
Finally…!
[https://www.midiphy.com/en/shop-details/137/50](https://www.midiphy.com/en/shop-details/137/50)
Red MatriX/BLM Teaser
It’s on the way and working nicely - we currently estimate shipping of the first batch should be possible in January 2021.
Best regards and have a happy wintertime!
Peter

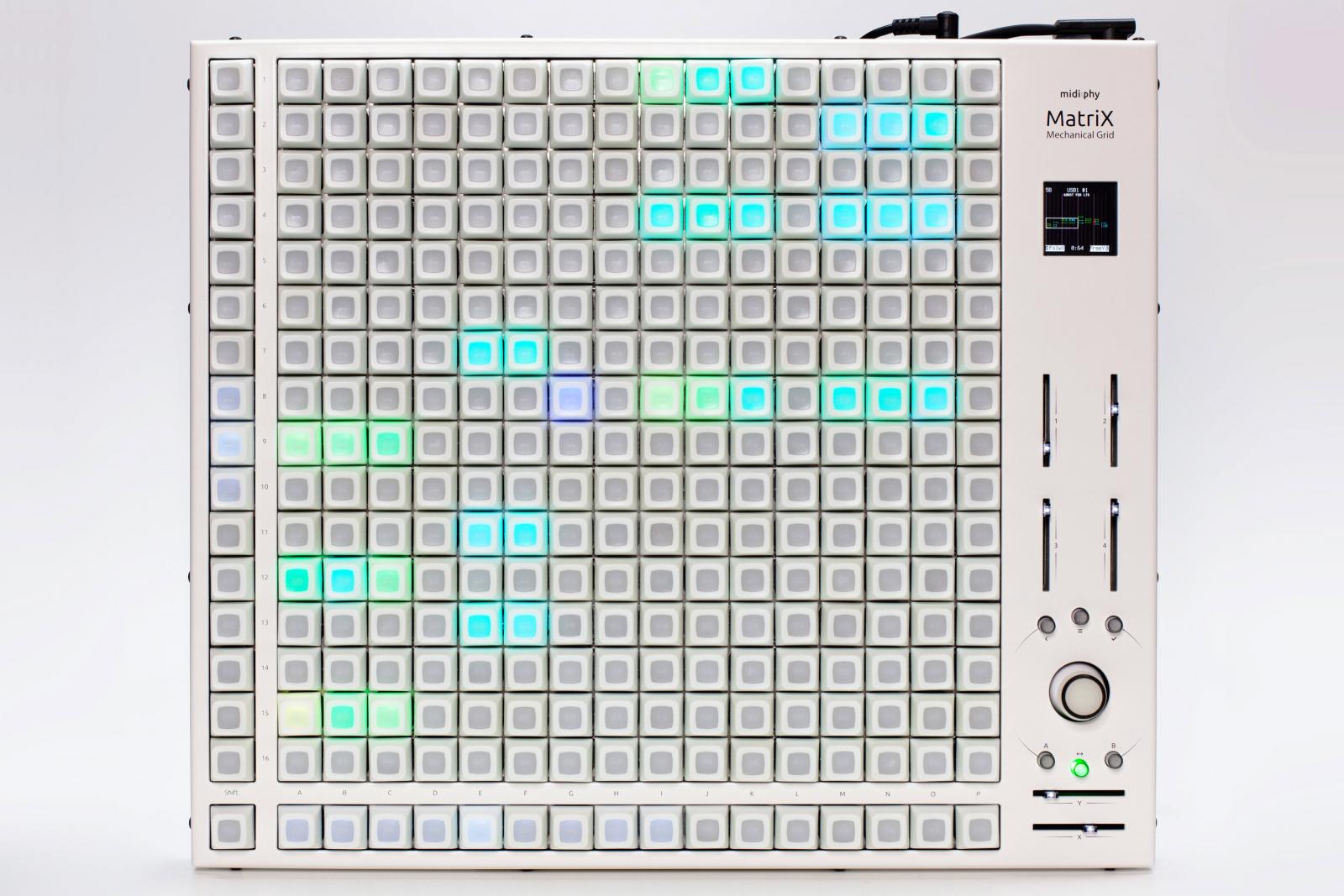

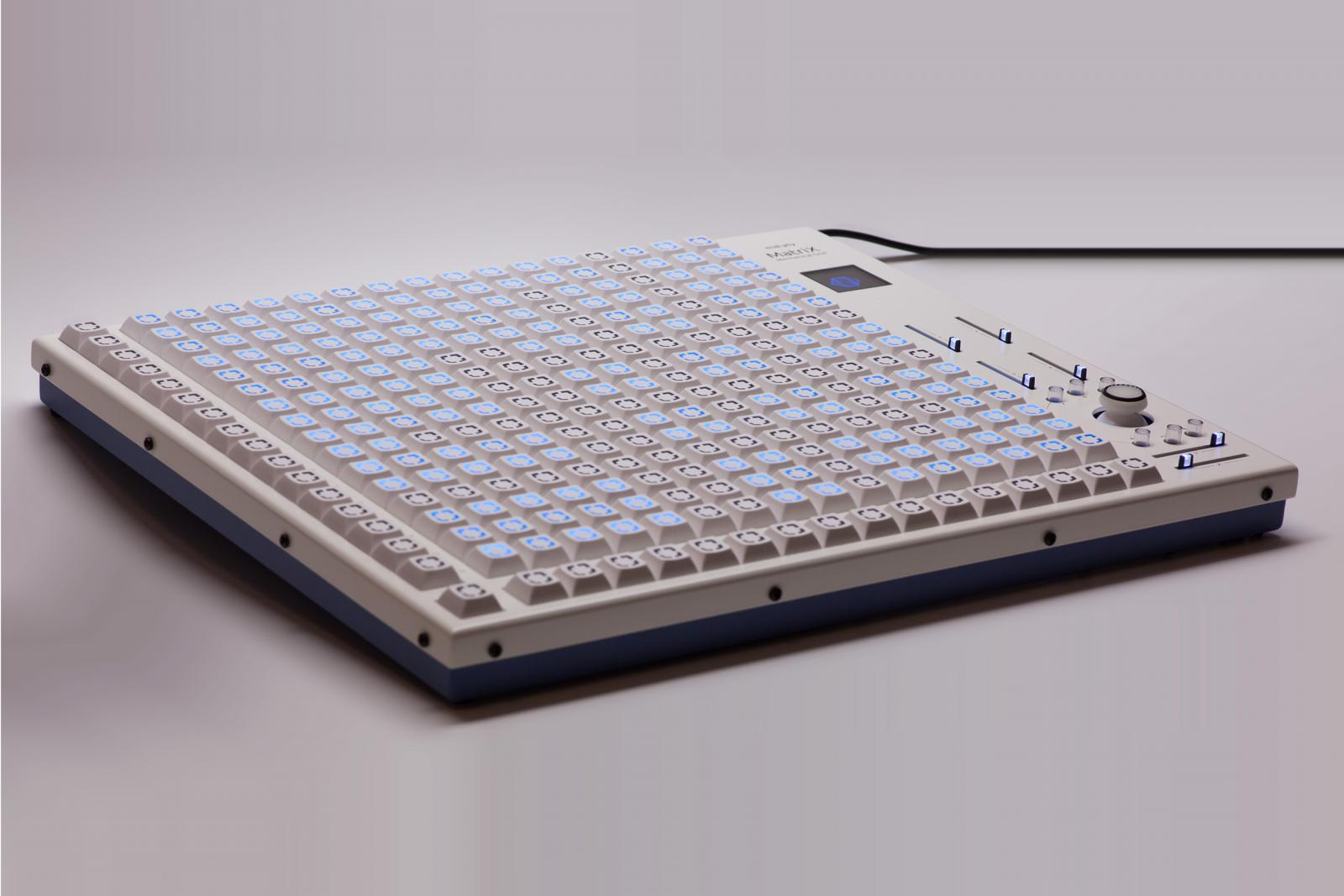

midiphy MatriX
And here’s the final MatriX production case and looks - hope you like it! All kudos fly out to /profile/21362-adrianh/?do=hovercard" data-mentionid=“21362” href=“/profile/21362-adrianh/” rel=“”>@AdrianH and /profile/5453-latigid-on/?do=hovercard" data-mentionid=“5453” href=“/profile/5453-latigid-on/” rel=“”>@latigid on - thanks for the great case and the great hardware!
Many greets,
Peter

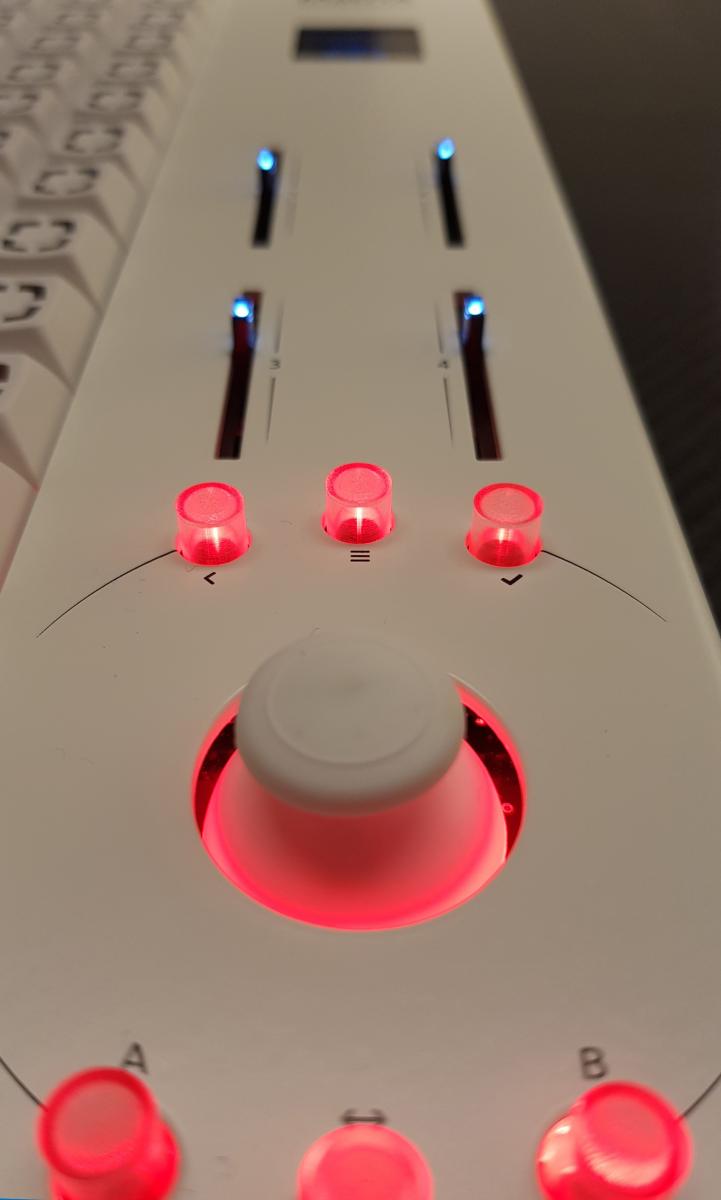

latigid on’s new MatriX
Well done, it’s looking great!
I’m still working on the software side (dual device support and LoopA support), but we’re definitely getting closer to the release date!
Many greets,
Peter
midiphy MatriX
Hola,
it sure has been a while - but finally the new midiphy MatriX has been launched - with full BLM 16x16+X support, so all MIDIbox SEQ v4 can be attached.
More info:
[https://www.midiphy.com/en/matrix/](https://www.midiphy.com/en/matrix/)
Best regards,
Peter
