[FS] MIDIbox Standard Control Surface PCBs

[ilmenator]

http://discourse.midibox.org/t/topic/16127



I have tried to accommodate footprints for a number of different switches: I succeeded with the Marquardt 6425 series, the ITT Schadow D6 series available at Reichelt, and the E-Switch 612-TL1100 series. That makes the board a pretty universally usable PCB, I believe. Also, it will align perfectly with a 20x2 character LCD, which should sit just above this PCB in the front panel.

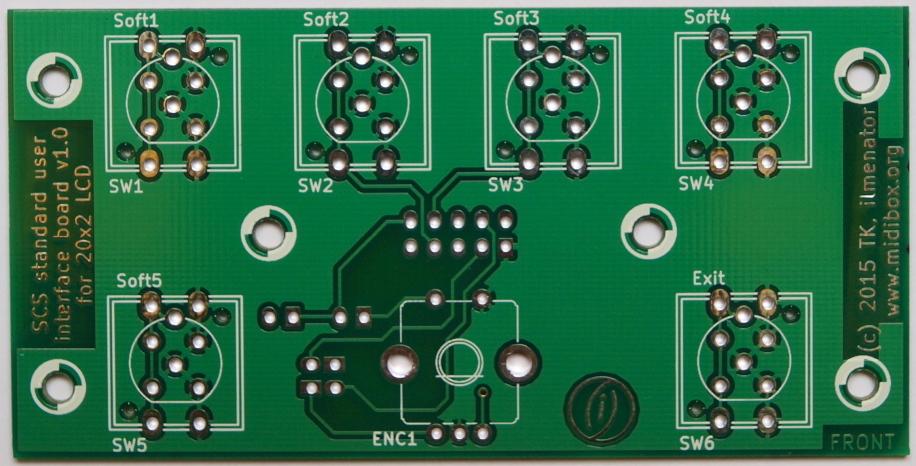

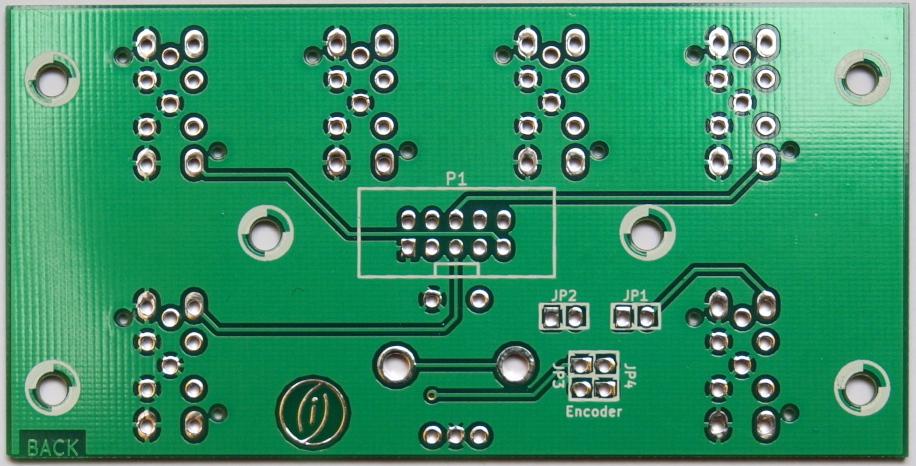

The bare PCB is about 98x49mm in size:

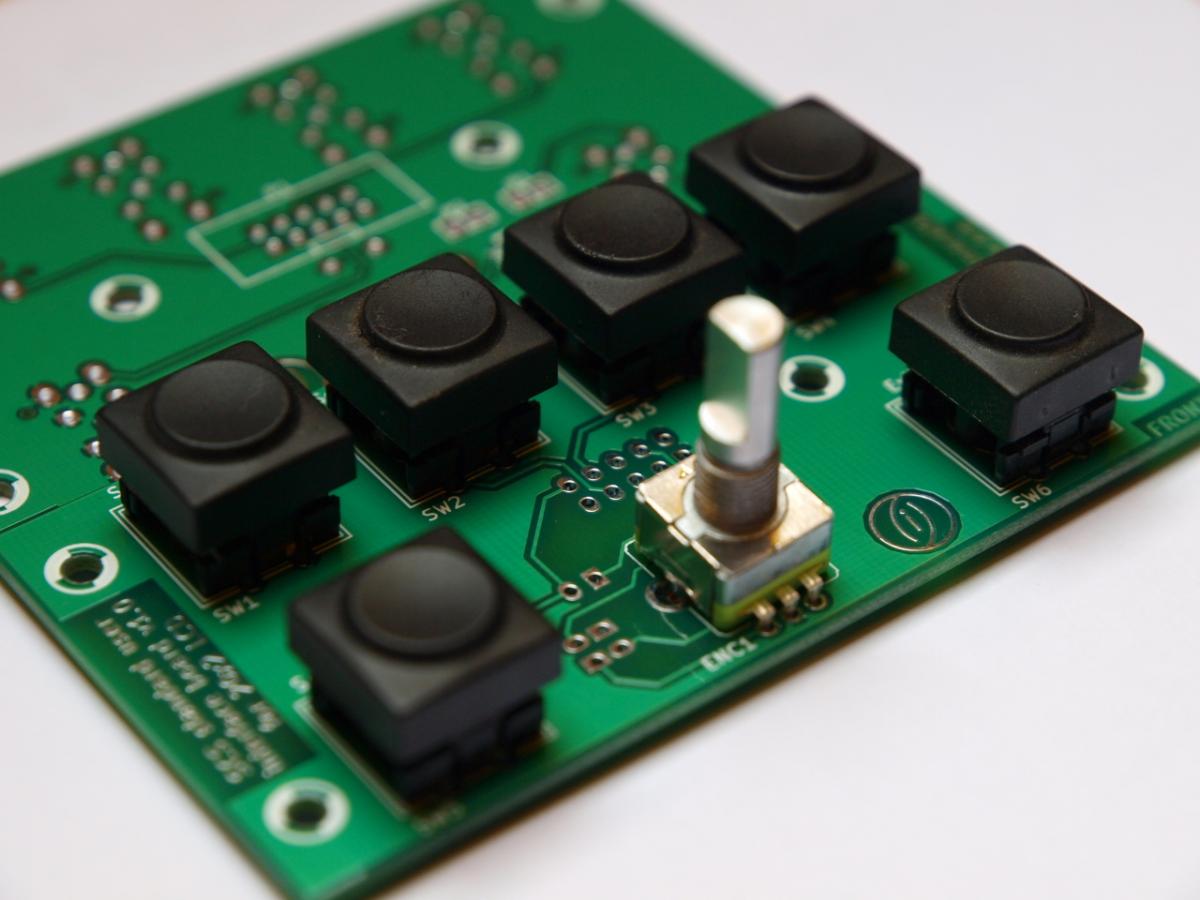

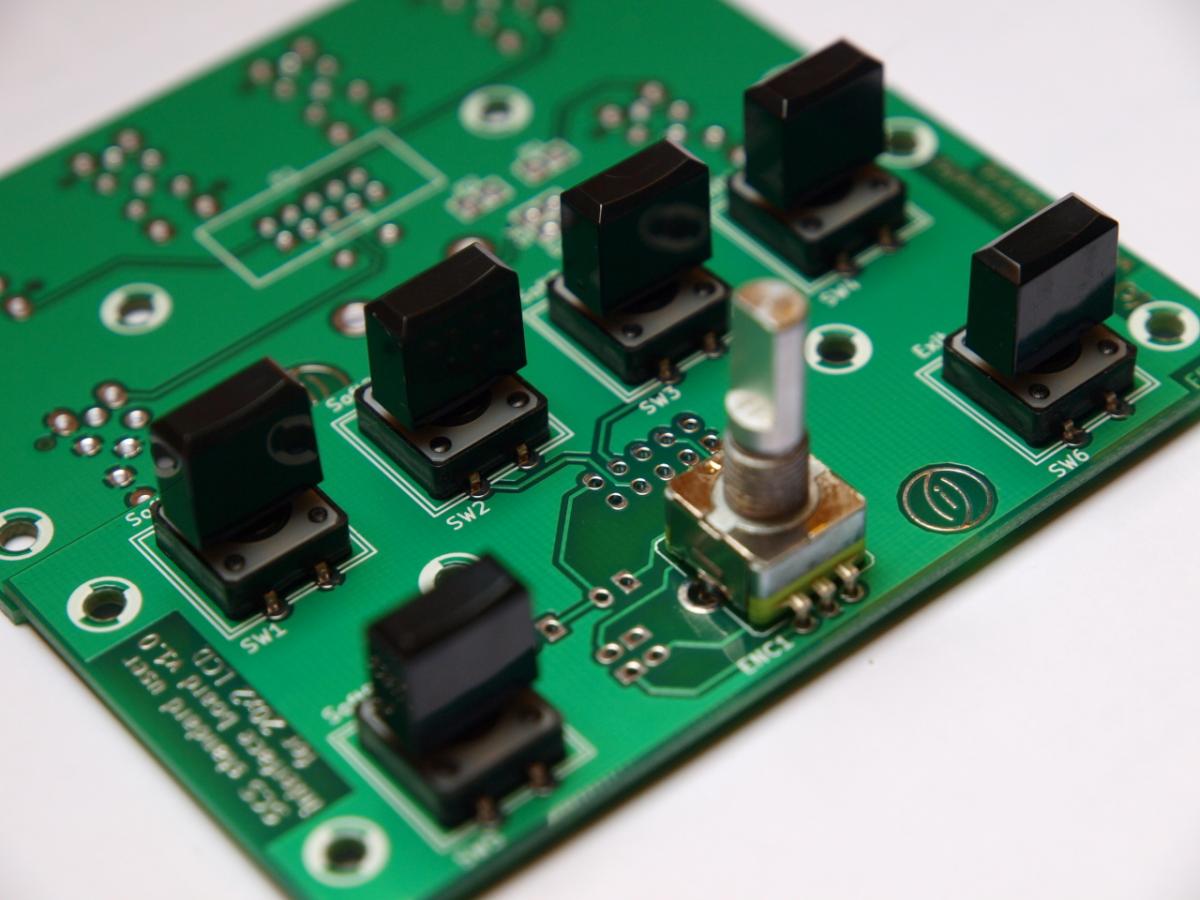

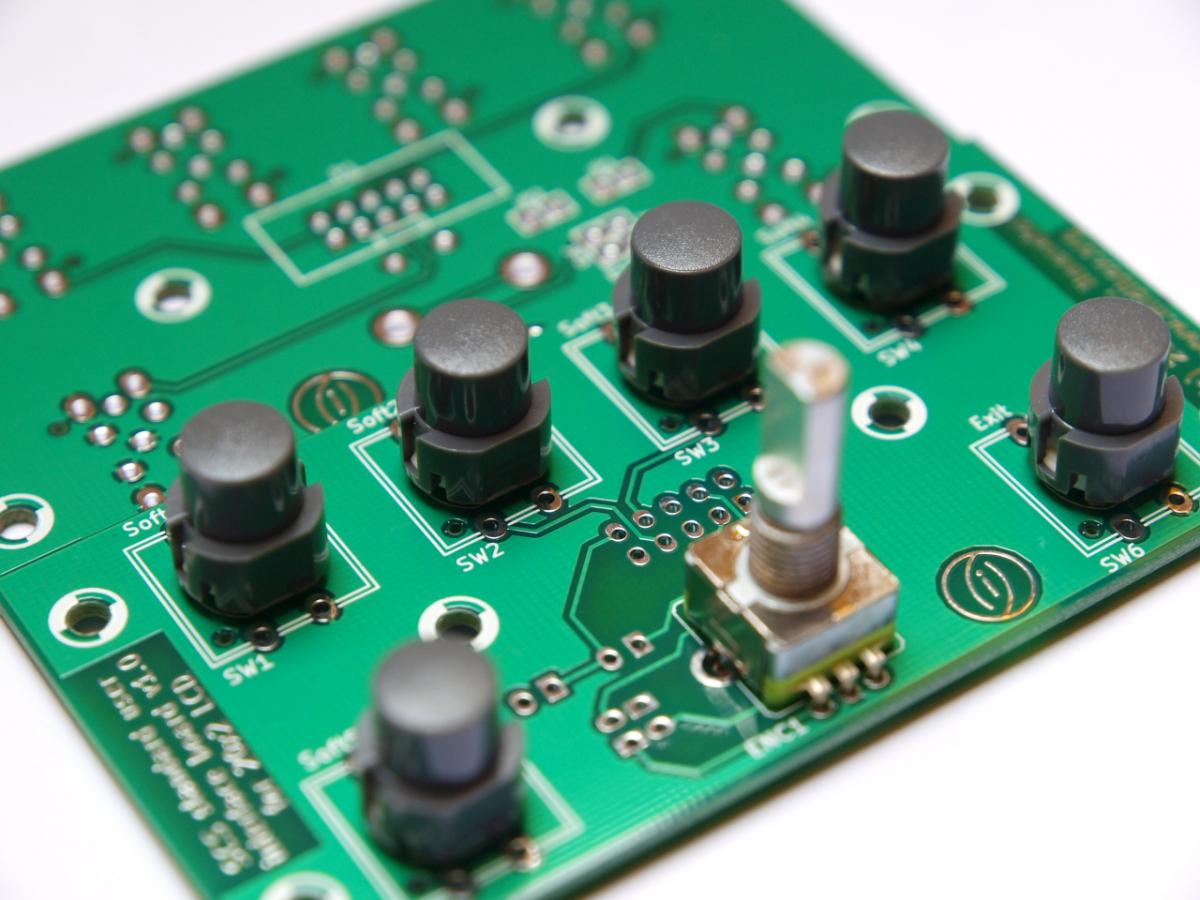

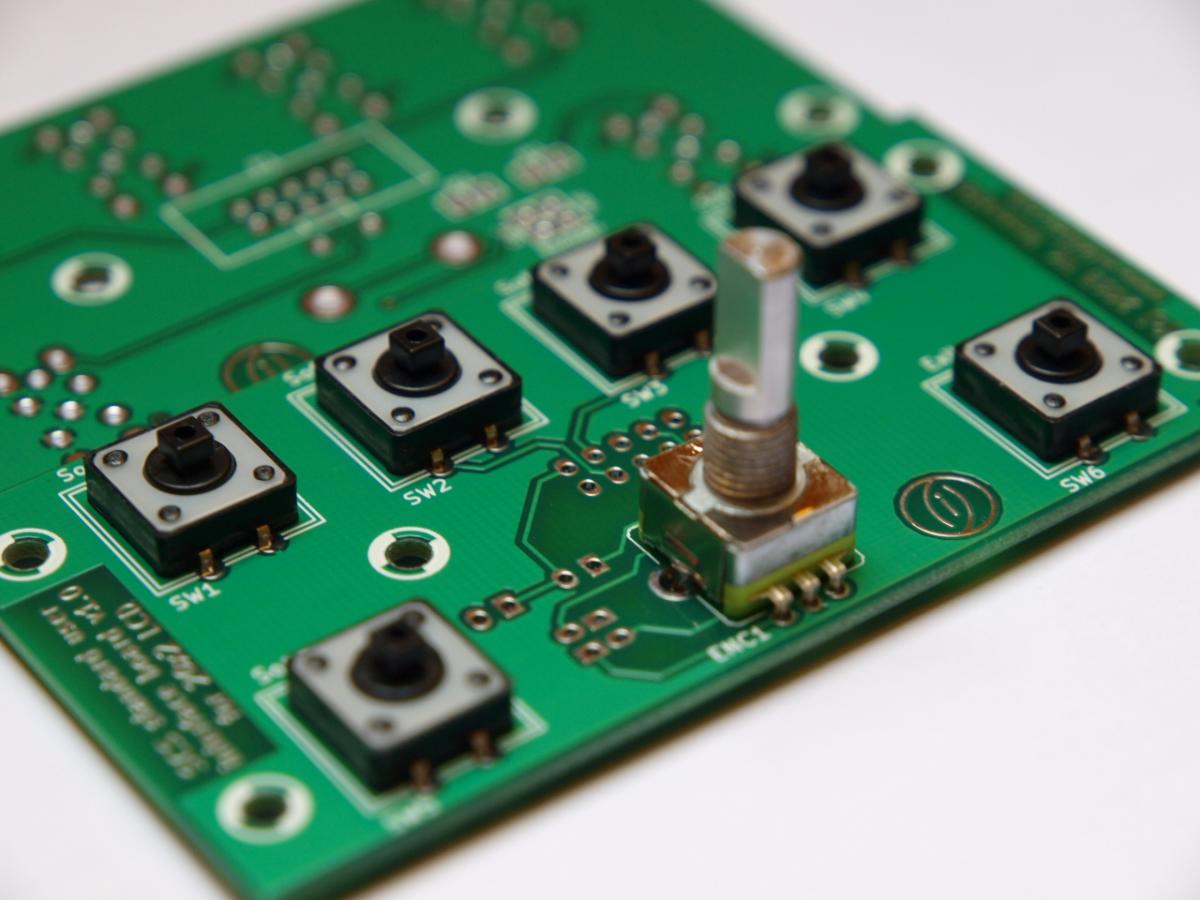

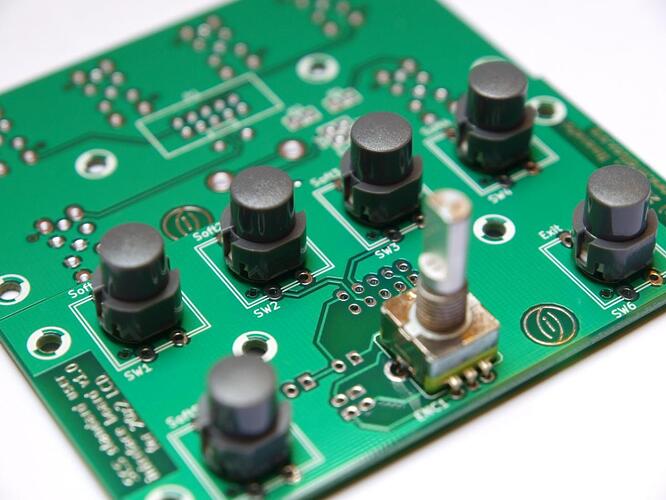

Here are the different switches in place:



A full documentation can be found in the Wiki. PM me if you need one of these boards for your project.



Best, ilmenator





[electrodancer]

ooh nice …great work !!

[T.K]

Thank you for creating this PCB (and for sending me a prototype)!



I added links to the Wiki page in the MIDIO128 and MIDIbox NG user manual.



Best Regards, Thorsten.

[Zossen]

Hi

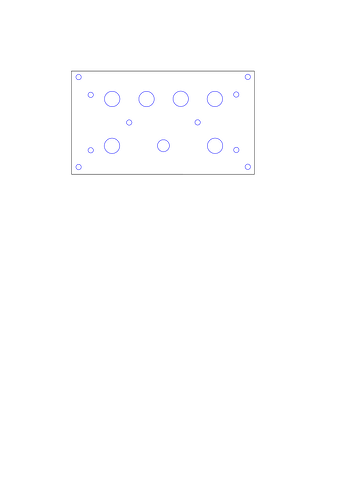

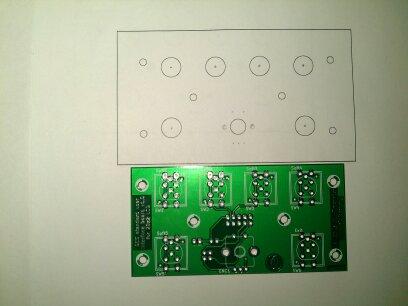

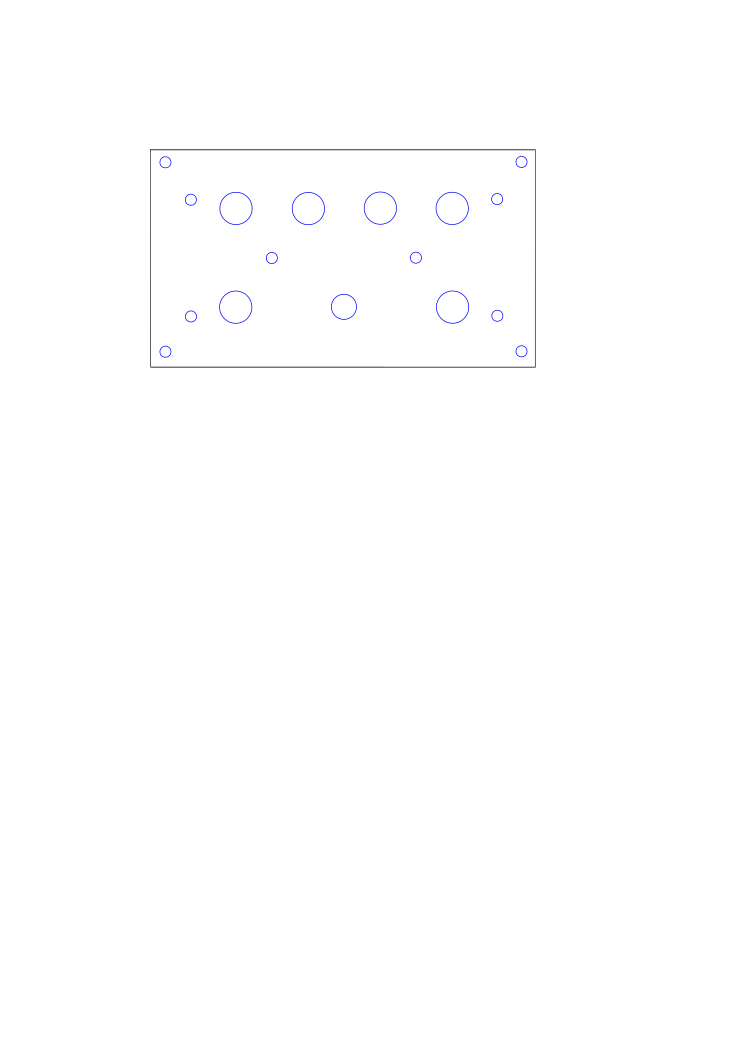

i have made a .SVG-File as a Template for a Acryl-Frontpanel

with the ITT Schadow D6 series.           (available at Reichelt)
