Front Panel Designer Templates for SEQ boards

MIDIbox SEQ
1

I figured they would be useful for someone

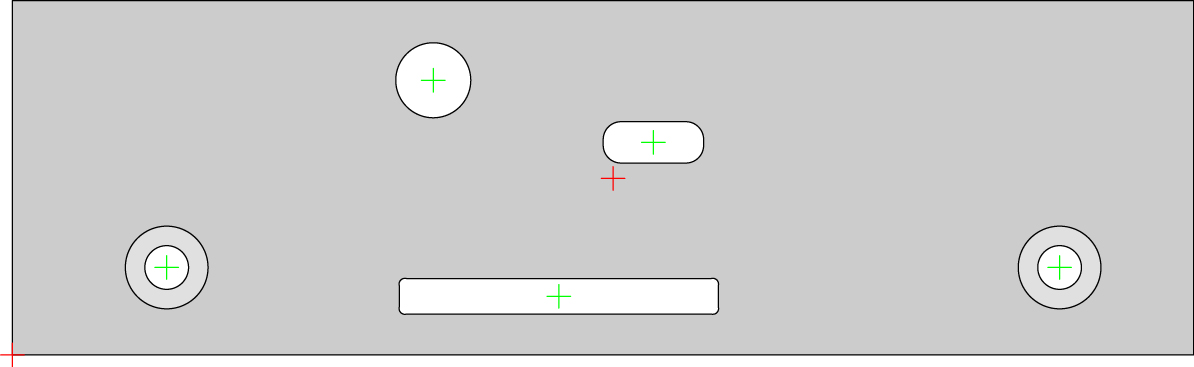

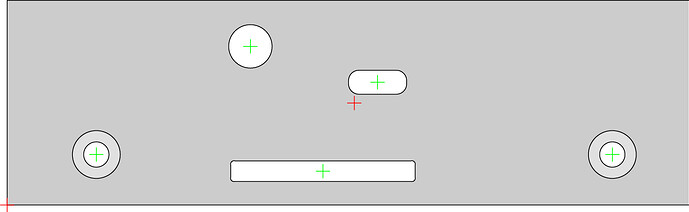

STMF4 Core cutout.  This requires a 2mm washer to go between the threaded terminal (mouser PN 534-7700) and the panel since the discovery board and core board do not sit in the same plane.  This also recesses the SD card somewhat but seeing that it does not get removed often, I opted for a small slot for aesthetics instead of a bigger opening to make it easier to get out

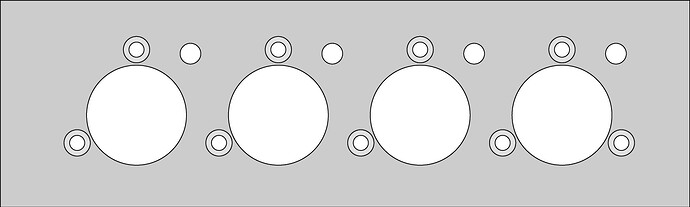

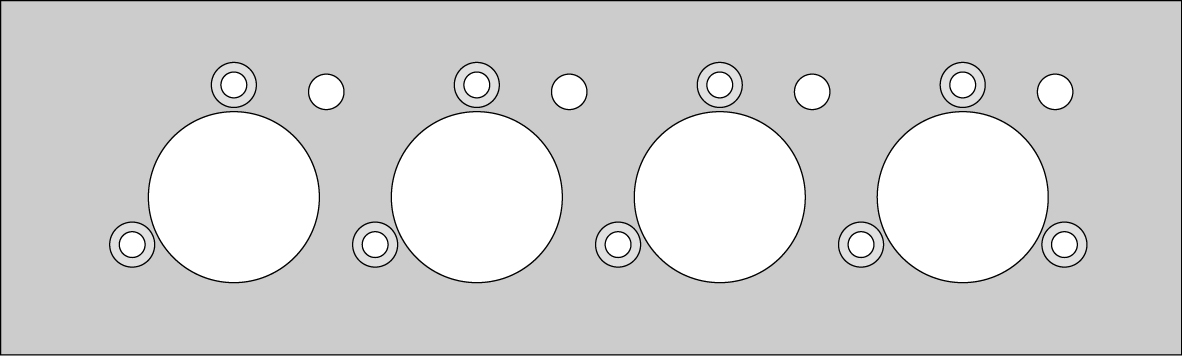

For the midi cutouts, you want to use  SDS-50J midi connectors (http://www.cui.com/product/resource/sds-xxj.pdf) which have holes in them for M2.5 or 2-56 screws.  The holes to the right are for activity LEDs







[stmf4CoreCutouts.fpd](< base_url >/applications/core/interface/file/attachment.php?id=12228)





[4xIIC.fpd](< base_url >/applications/core/interface/file/attachment.php?id=12603)

[midiIO.fpd](< base_url >/applications/core/interface/file/attachment.php?id=12604)

stmf4CoreCutouts.jpg1194×367 30.5 KB

midiIO.jpg1182×356 54.2 KB

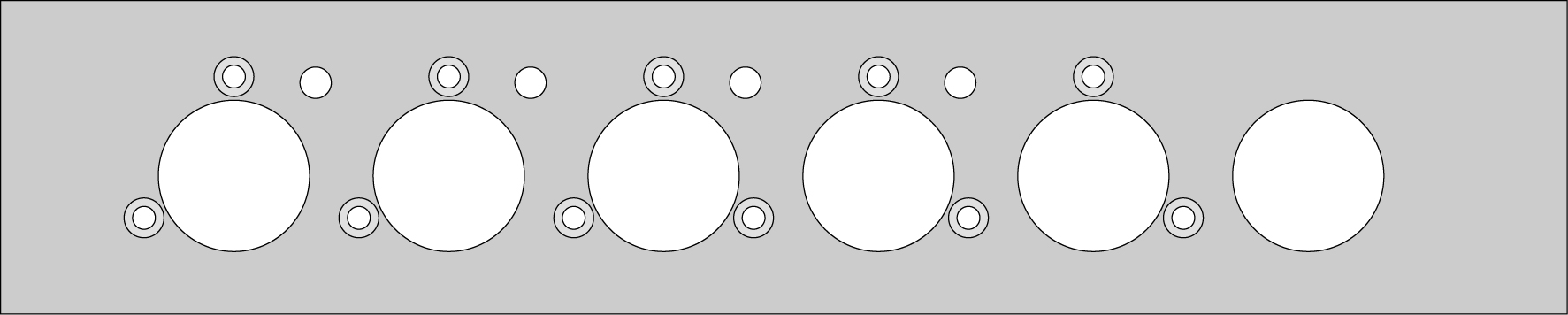

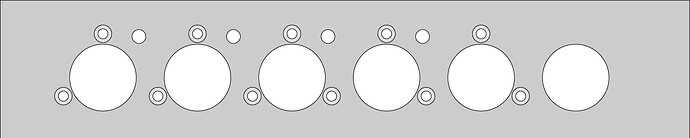

4xIIC.jpg1773×356 72.6 KB

2

Thank you!





3

Anyway to convert .fpd to .eps files?



thanks.

4

export it as SVG, open in Illustrator, save as EPS

5

Thank you.



i was hoping to avoid installing the software, I have so much installed already and I’m not going to use it otherwise but oh well, no big deal.

6

Here they are in SVG.



PanelsInSVG.zip

7

I went a head and installed the FPD software and did it myself, but thanks. I’m sure someone else will find them useful.
