faders, swell pedal and pistons

MIDIfication
,
1

Hello,



I connected my brand new ainser module to the “mainboard” Midibox 128 v3 and did some testing: the jitter is 20.



I suppose I have to inform the Midibox about the connect Ainser module by editing the default.mio.



ainser;Pin;USB1;USB2;USB3;USB4;IN1;IN2;IN3;IN4;RES1;RES2;RES3;RES4;OSC1;OSC2;OSC3;OSC4;Evnt0;Evnt1
AINSER;0;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x10
AINSER;1;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x11
AINSER;2;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x12
AINSER;3;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x13
AINSER;4;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x14
AINSER;5;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x15
AINSER;6;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x16
AINSER;7;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x17
AINSER;8;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x18
AINSER;9;1;0;0;0;1;0;0;0;0;0;0;0;1;0;0;0;0xB0;0x19



Is that right? And how?



The ainser64 faders are on channel 1 by default: can I change this?

The volume goes in the opposite way: low volume is high and vice versa. Shall I “re-soldier” the 5V and 0V of the faders or is there a software solution?

Is there a way to define e.g. 1200 = minimum volume and 3500 = maximum volume?



Maybe I missed a documentation, but I cannot find it…



Can I plug the pistons in the Diomatrix module? I know how to change the channel, but should I edit some more things in de default.mio or should I edit the pc software (eg pc organ / jorgan etc.)



nice regards,

Robert

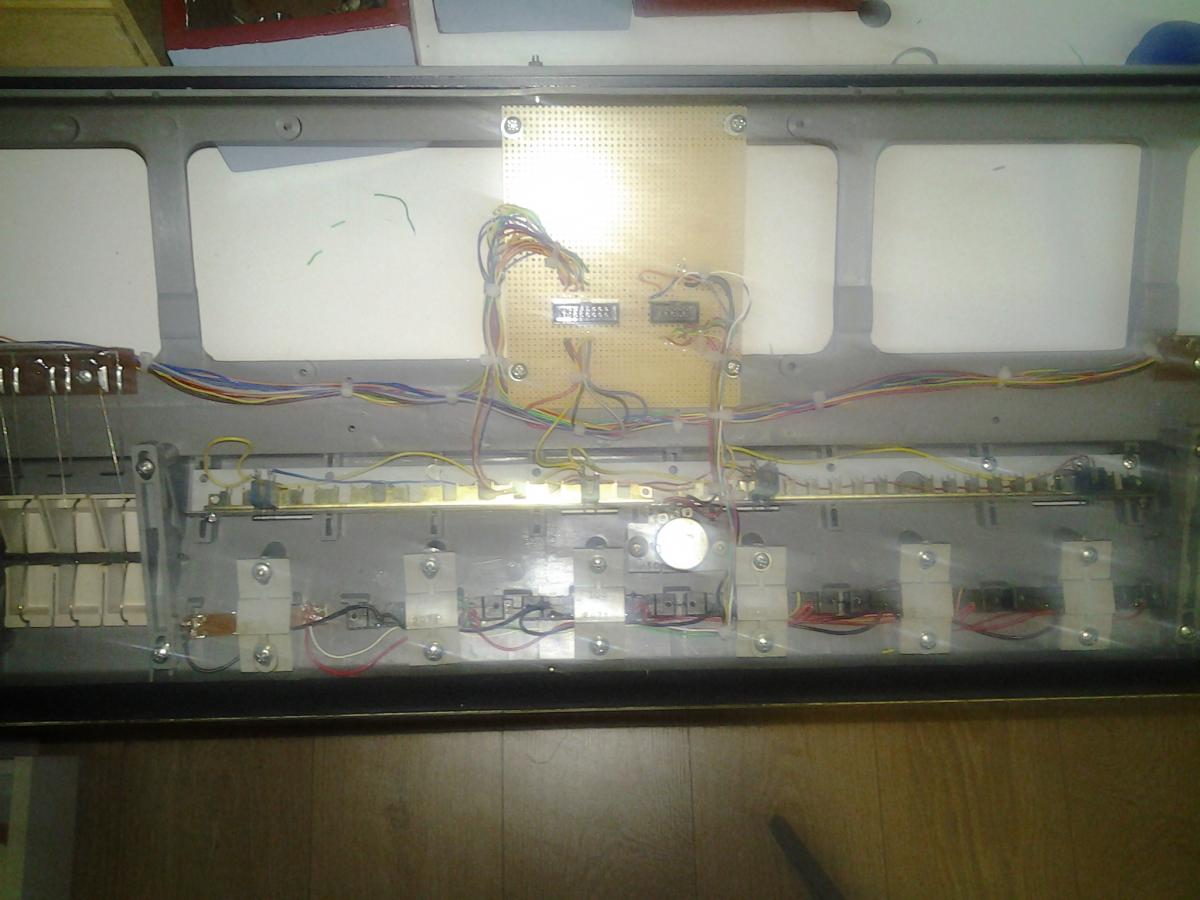

post-20582-0-24299000-1391768809.jpg1200×900 91.7 KB
post-20582-0-33978000-1391768803.jpg1200×900 94.9 KB







2

Hi Robert,





The ainser64 faders are on channel 1 by default: can I change this?



yes: currently you are using 0xB0 for each input, which means: send CC over MIDI channel #1

In order to send over MIDI Channel #2, just change this to 0xB1





The volume goes in the opposite way: low volume is high and vice versa. Shall I “re-soldier” the 5V and 0V of the faders or is there a software solution?



Please re-solder, it’s more consistent





Is there a way to define e.g. 1200 = minimum volume and 3500 = maximum volume?



Scaling analog values isn’t provided by the MIDIO128 applications.

If this is required, go for MIDIbox NG!

(and btw.: MIDIbox NG allows you to swap min/max without re-soldering the pots)





Maybe I missed a documentation, but I cannot find it…



MIDIO128 is a primitive application for beginners: you get what you read in the documentation. :wink:

MIDIbox NG is much more flexible, but also requires that you read more documentation…



Best Regards, Thorsten.

3

hello Thorsten,



yes: currently you are using 0xB0 for each input, which means: send CC over MIDI channel #1

In order to send over MIDI Channel #2, just change this to 0xB1



okay, got it.



Please re-solder, it’s more consistent



I have done that. I was in doubt whether to wait for the new faders (the old faders are worn), but I re-soldered some and some others I placed some upside down (left / right turns that way). It works!



Scaling analog values isn’t provided by the MIDIO128 applications.

If this is required, go for MIDIbox NG!

(and btw.: MIDIbox NG allows you to swap min/max without re-soldering the pots)

MIDIO128 is a primitive application for beginners: you get what you read in the documentation. :wink:

MIDIbox NG is much more flexible, but also requires that you read more documentation…



I guess I am getting addicted to playing with midi-hardware stuff… I will try out the Midibox NG soon. First I am going to find out how Rosegarden, fluid-synthesizer work (some midi basics…) with the current config of the organ.



Robert
