hi,i 've thought this summer, a control surface A ,a little more different on my first mb project ;a sid stereo not totally finish(thanks Reboot,wilba ,stryd,Tk,Smash and super NILS and other gentle guys here)..it’s only to have the possiblities of control all the knobs without move my hands(i am a old guitarist with a pain in the right shoulder…think about that for your old days ;-)), which are putting on the wood desk panel ..a few pictures of my right hand who control the encoder, the shift,up and down and menu buttons…the other buttons are controlled with the left hand.hope to give some "ergonomie "idea

edit here the fpd file.with M3 under the panel …reajust them with your board,and your hands :wink:

[P190908_00.57[01].JPG](< base_url >/applications/core/interface/file/attachment.php?id=4505)

[mbsidv2_my stereo 14 8.rar](< base_url >/applications/core/interface/file/attachment.php?id=4508)

2

here my first project mb sid stereo,wood panel…sounds goooood!!!thanks all

[P190908_00.54[02].JPG](< base_url >/applications/core/interface/file/attachment.php?id=4506)

3

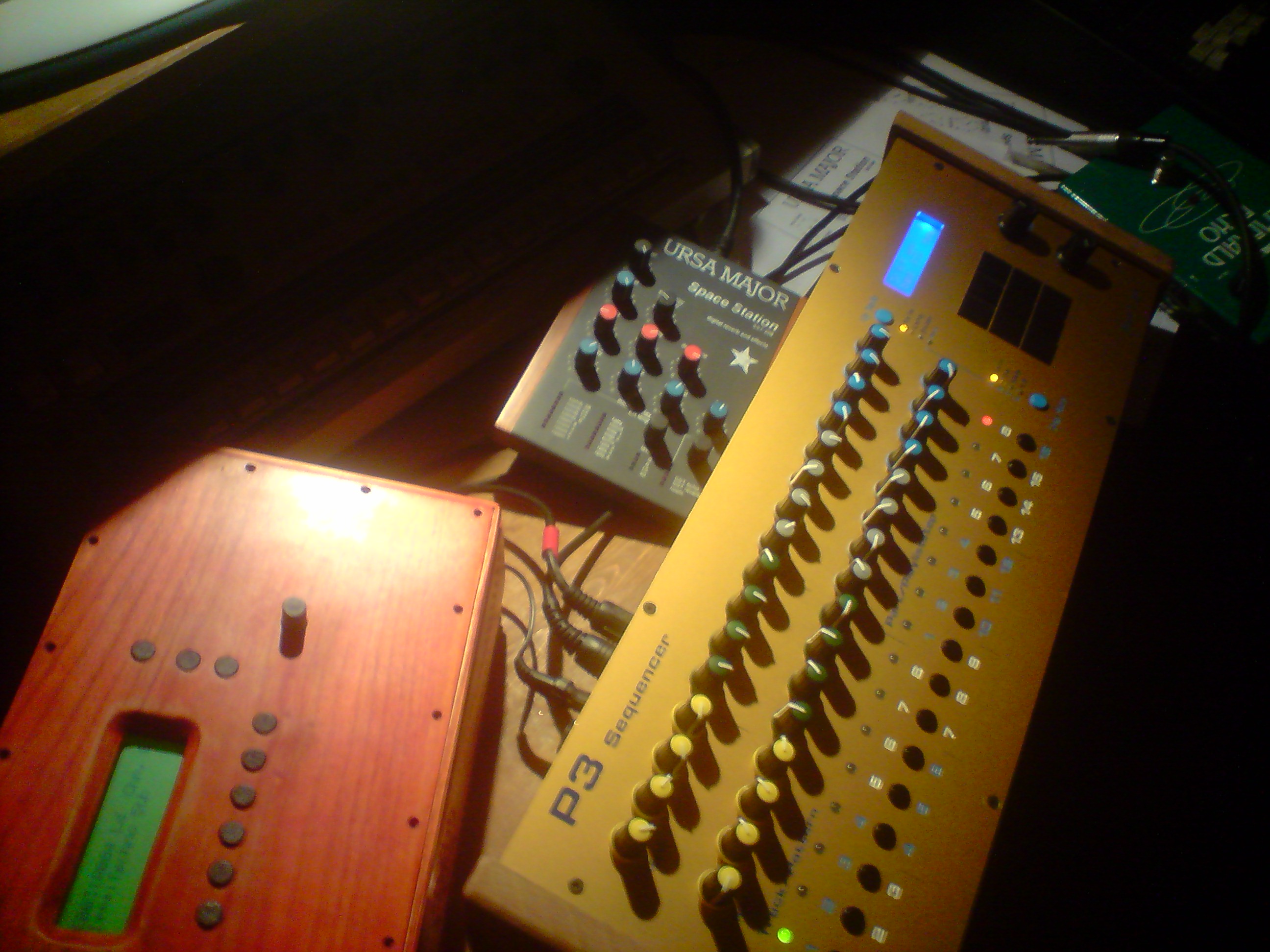

wood and electronic …i love it…plastic iznogood!!! my sid stereo,p3 .and the space station ..sst 206 ursa major

P19090801.05.JPG2592×1944 697 KB

4

and my old 70’s proformant ms 2000  wood case !!everything (thinks )are always work very fine,on it.

P19090801.11.JPG2592×1944 713 KB
