Din And Dout Extended vesrion

Parts Questions
1

Does this works as the pictur shows:

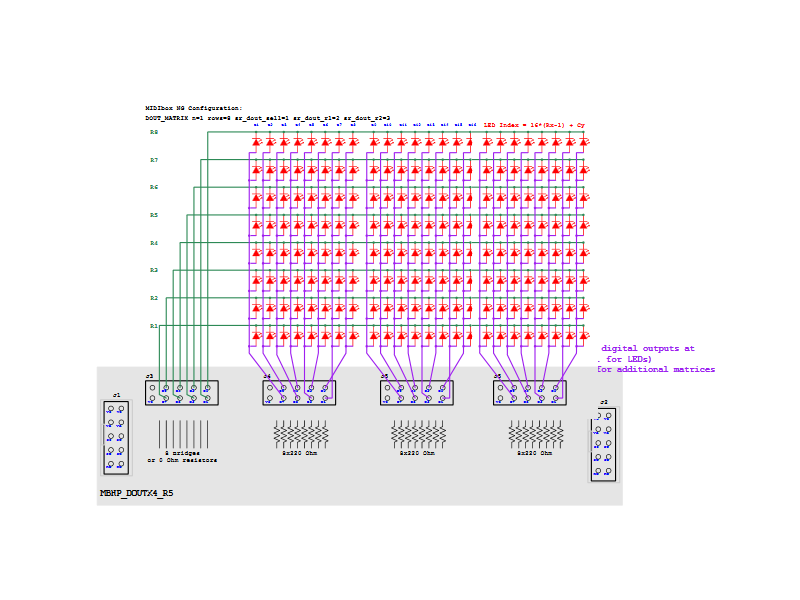

doutext.png.feae5771453afcf95110b0013319a5a7.png800×600 43.1 KB

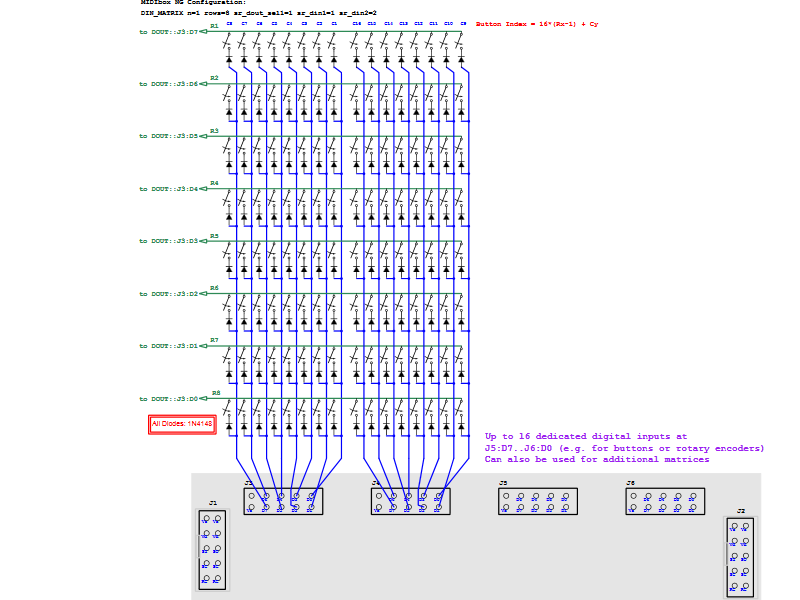

din.png.29d22603e990f4fbd358ee5ef14d64bf.png800×600 52.8 KB

dinext.png.bace6ce29148395d77a67130f1a8139d.png800×600 52.2 KB

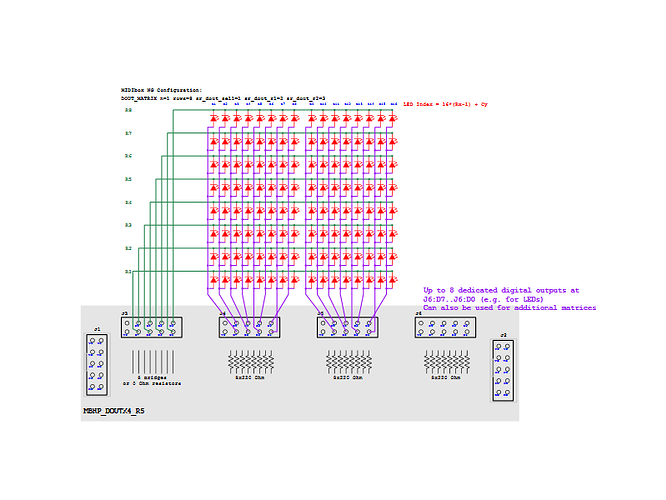

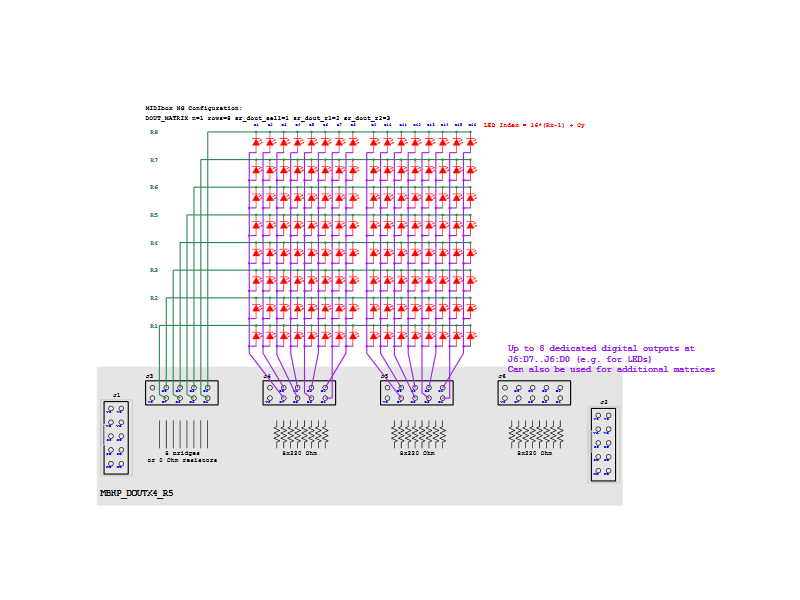

dout.png.09810da972782422d8f7a951cfc3e7d6.png800×600 42.9 KB

Just copy/paste not redraw..

2

You can chain DIN/DOUT no problem.

3

Thanx

4

Hello,



I thinking about LED ring Matrix… If my first ledring at 100 so all 11 LED bright, how can I set the second LED ring to 20 % with two LEDs!

With first Ring all catode on, so I switch de second anode all LED bright???
