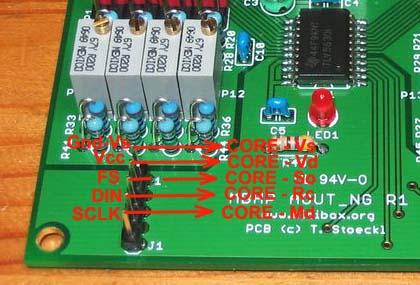

Which port does this connect to on the core? (J19)… If so the naming convention does not match as indicated in the pic…
Look at the example on the wiki: http://www.ucapps.de/midibox_sid/mbsid_aout_interconnections.pdf
The correct names are there, just use J19 in case of the LPC17.
Found it and my led on the AOUT is working… Getting nesr the end.. Yeeha…
Posted 16 February 2013 - 13:35
Quote
1 - GND (Vs)
2 - +5v (Vd)
3 - CS
4 - SI
5 - SC
Just to be clear, the connections to J19 are:
J1:1 -> J19:Vs
J1:2 -> J19:Vd
J1:3 -> J19:RC1
J1:4 -> J19:SO
J1:5 -> J19:SC
In addition, the AOUT_NG interface has to be selected in the CV Configuration menu (by default, the AOUT module is configured)
Best Regards, Thorsten.
