the next generation off Triggermatrix,
with insights to shematic, the board-files i will not set free… the Pictures from the Boards are for debugging reasons only.

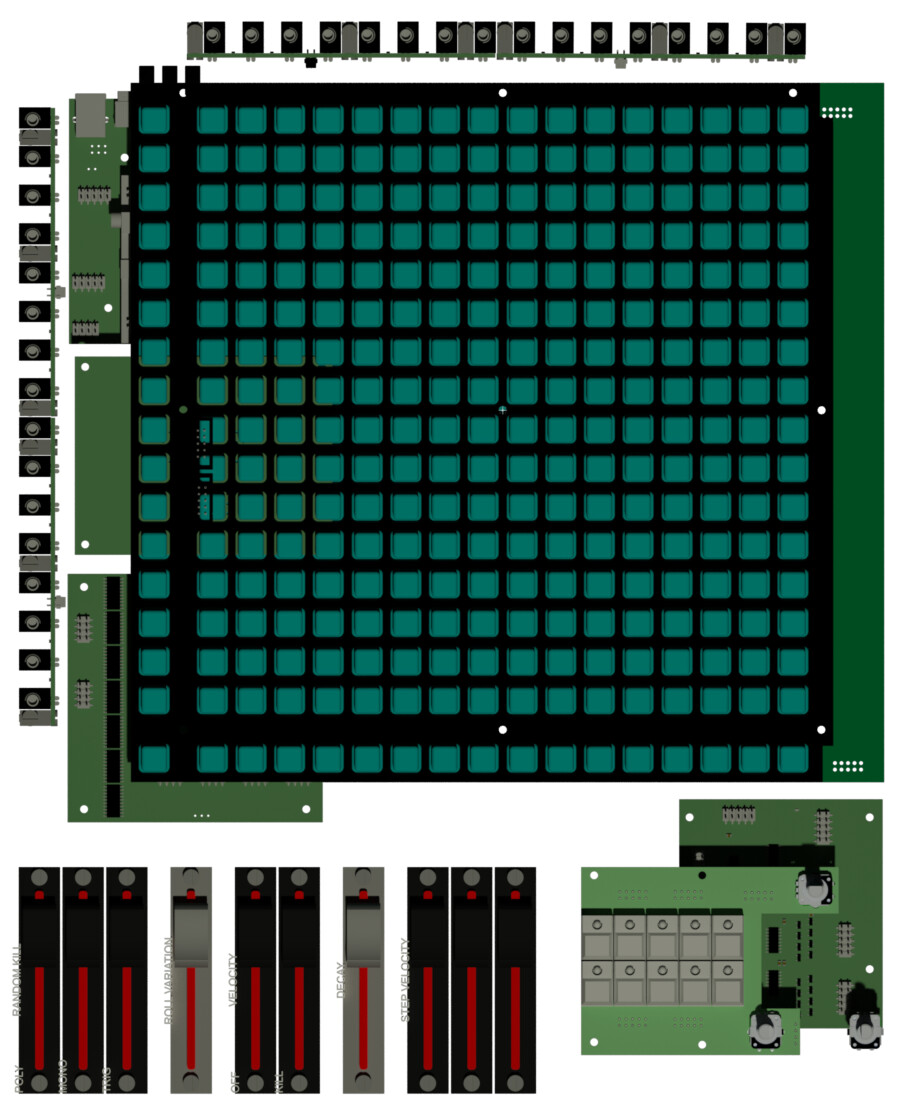

where possible, i made pick and place ready boards - to reduce soldering time… at this point the big BLM16x16 board is not pick and place ready.
WIKI:
Triggermatrix 5
Display-Driver-SMD
BLM16x16-V2
Core 4 Discovery
Core 4 Disc - Midi Expansion
TM5-codeblock
TM5 Din Dout Gates
TM5 Gate - Breakoutboards
TM5 Gate - In

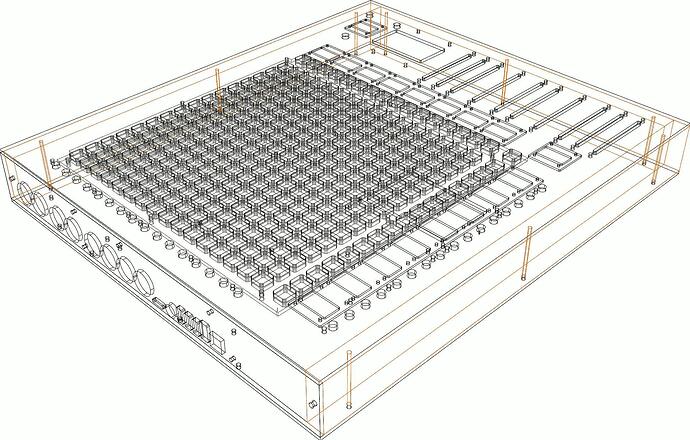

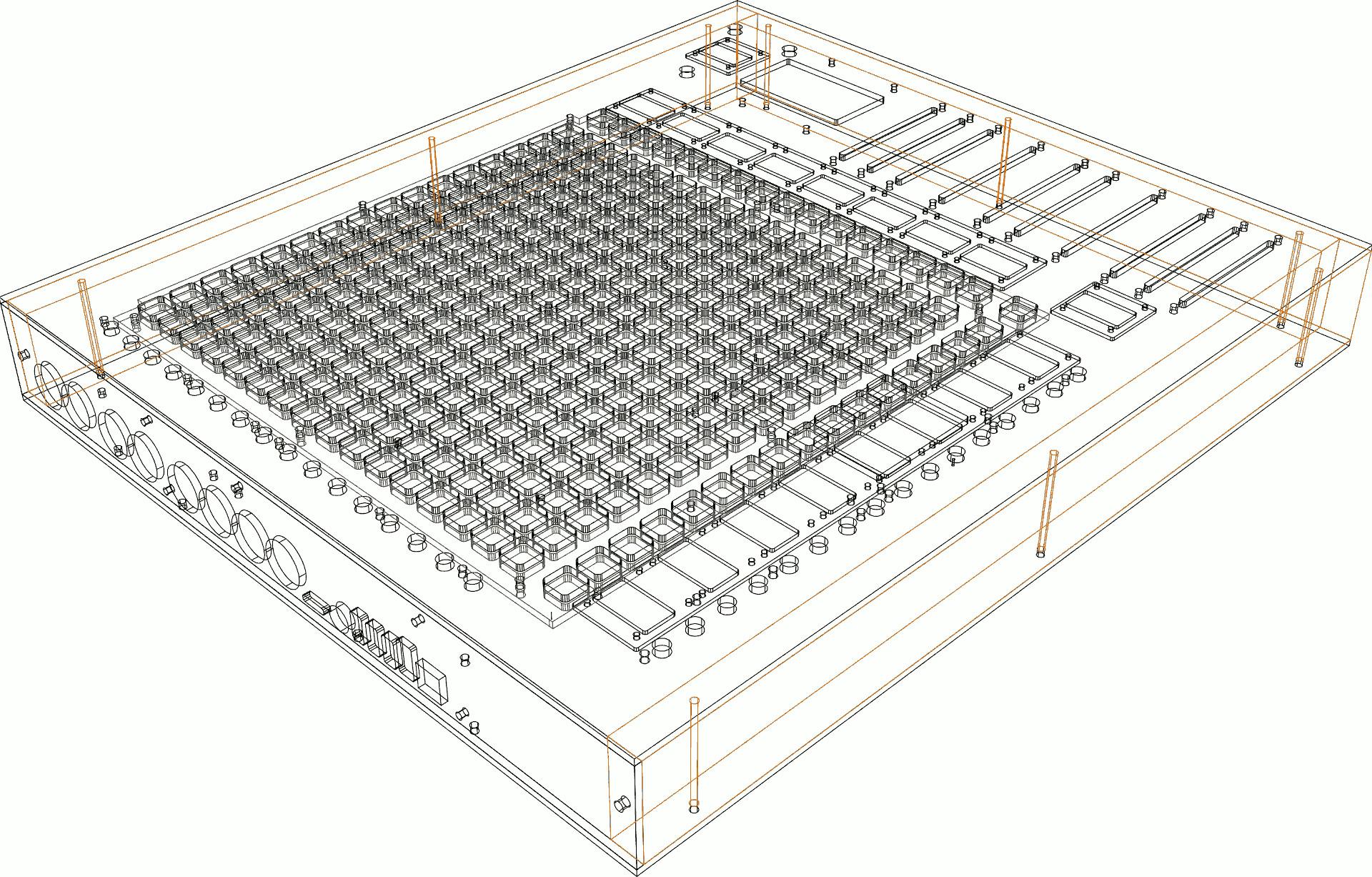

TM5-Housing

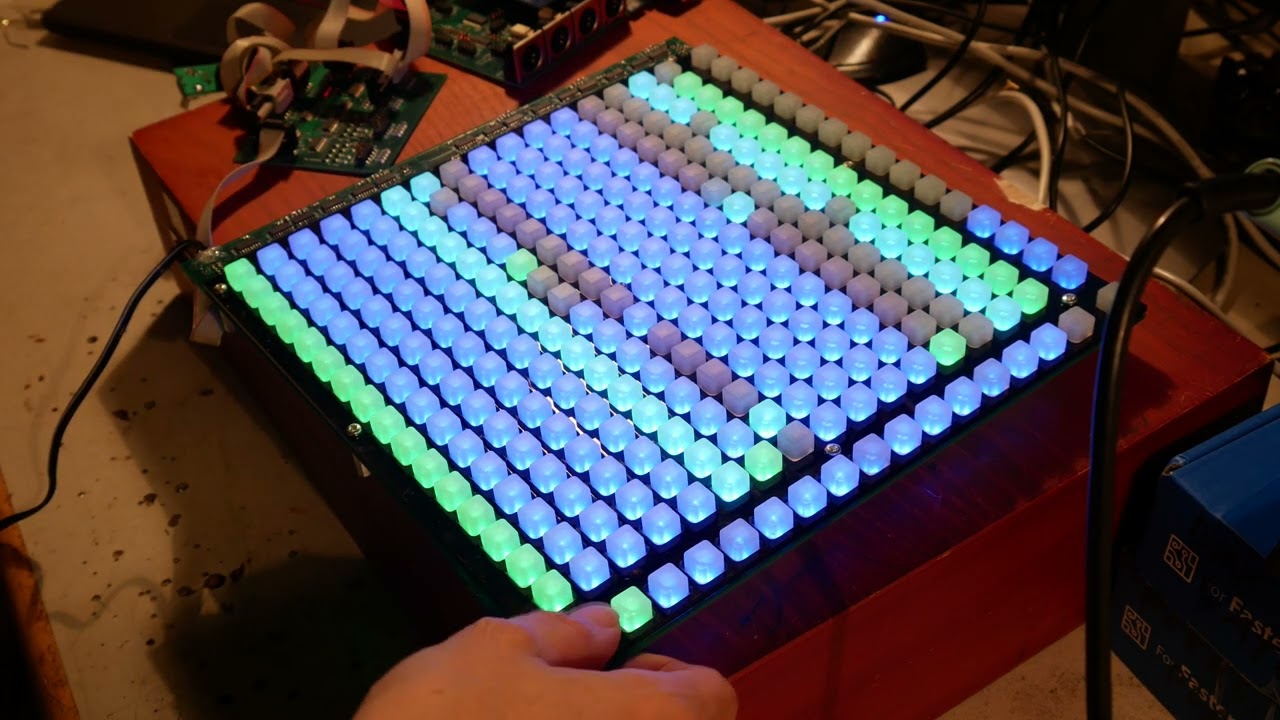

well, the prototype off the BLM is working…
i havent tested the GAte-in-OUT-PCBs ----but the Rest is working…
now its time to spend some money on Panel-Fabrication…
Epic MIDIbox – well done!
