TK: BLM16x16 + X

MIDIbox Gallery
1

Album by TK.
Gallery category: members-gallery

Follow the progress of the BLM16x16 (+X ;-)) project

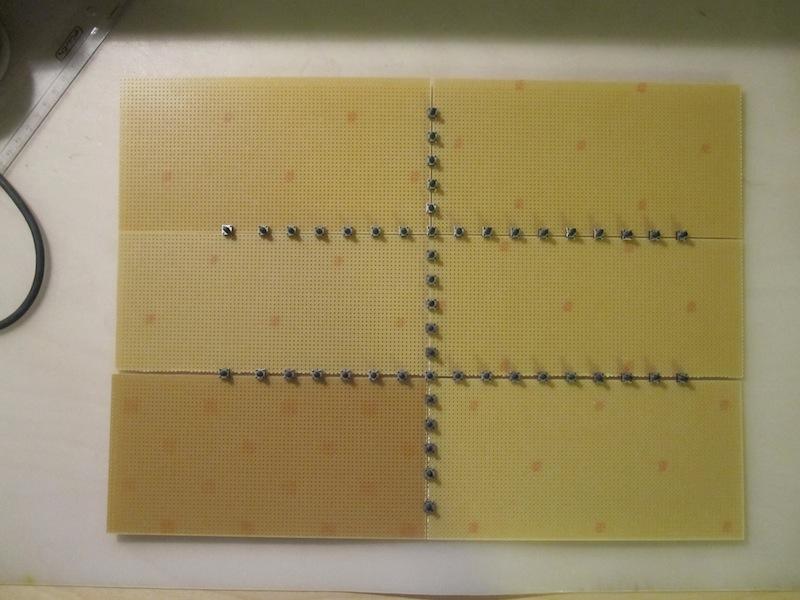

An idea to join multiple veroboards

An idea to join multiple veroboards
An idea to join multiple veroboards800×600 53.5 KB

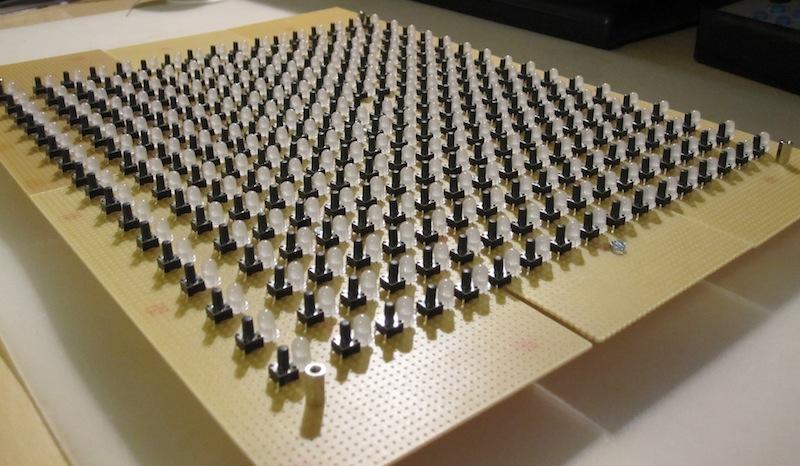

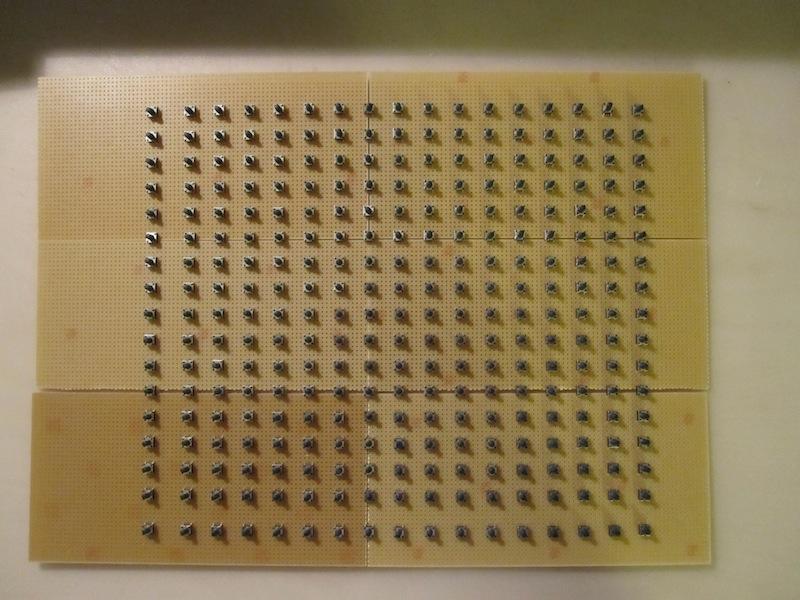

All buttons mounted

All buttons mounted
All buttons mounted800×600 75 KB

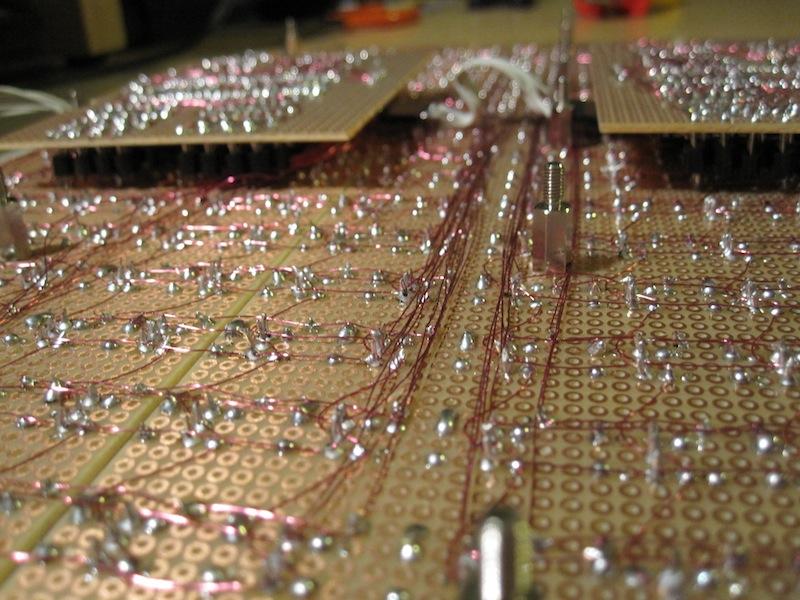

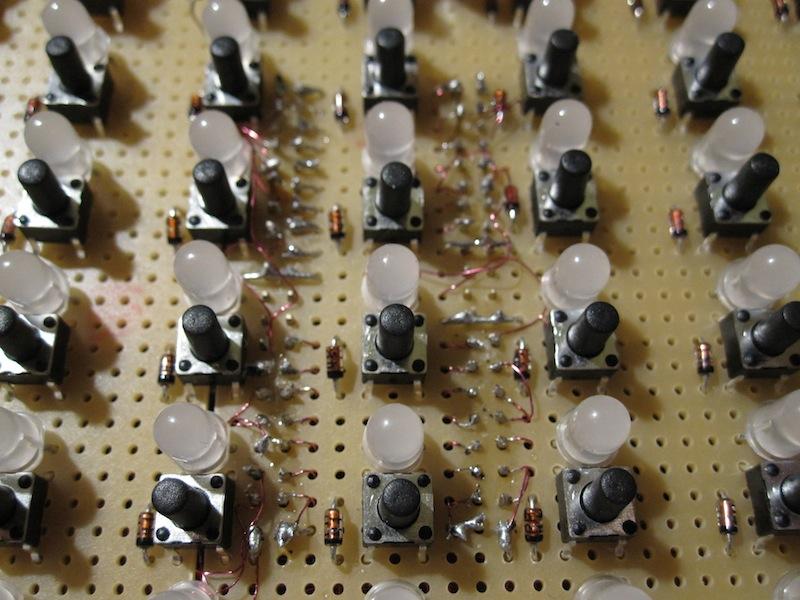

After 2023 solder joints

After 2023 solder joints
After 2023 solder joints800×466 71.4 KB

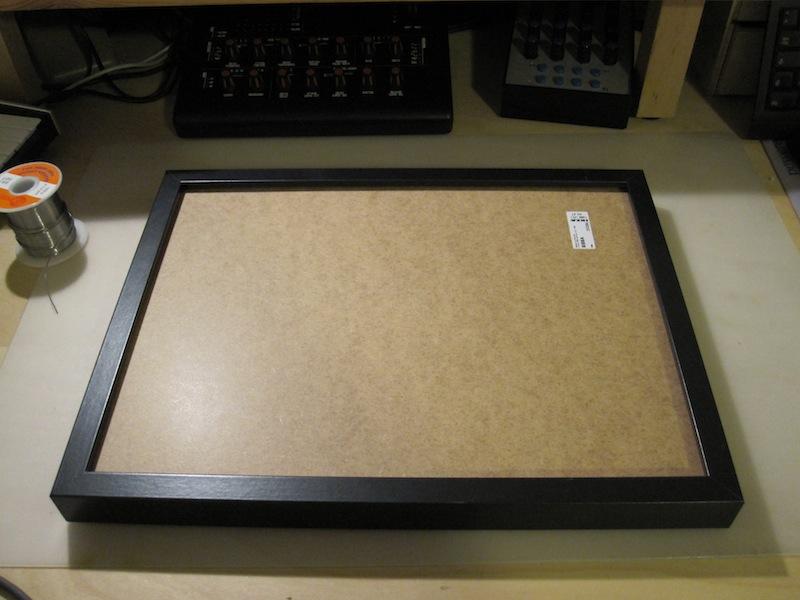

A nice flat case for the BLM (+X)

A nice flat case for the BLM (+X)
A nice flat case for the BLM (+X)800×600 44.1 KB

Ikea Ribba 30x40 cm for 10 EUR

Guaranteed worldwide available :wink:

Interfacing a SRIO board sandwich-like

Interfacing a SRIO board sandwich-like
Interfacing a SRIO board sandwich-like800×600 34.6 KB

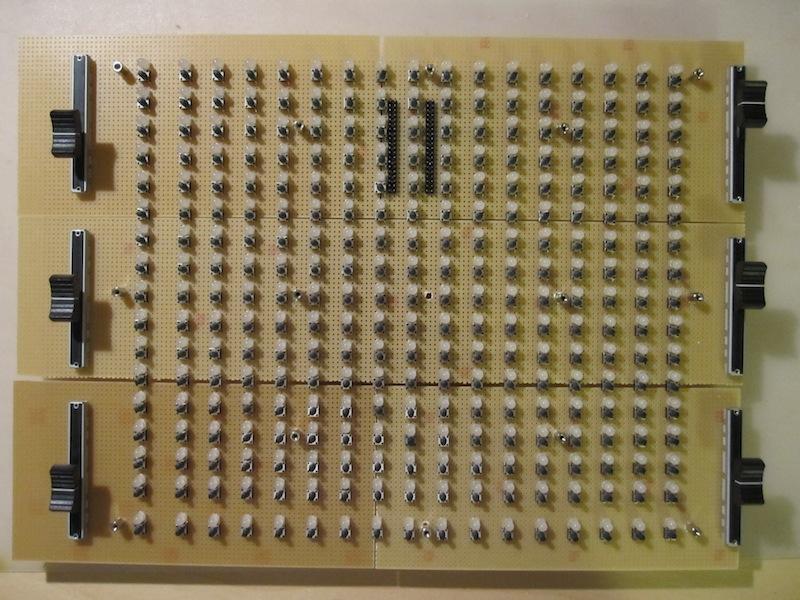

Why not adding faders at both sides

Why not adding faders at both sides
Why not adding faders at both sides800×600 90.7 KB

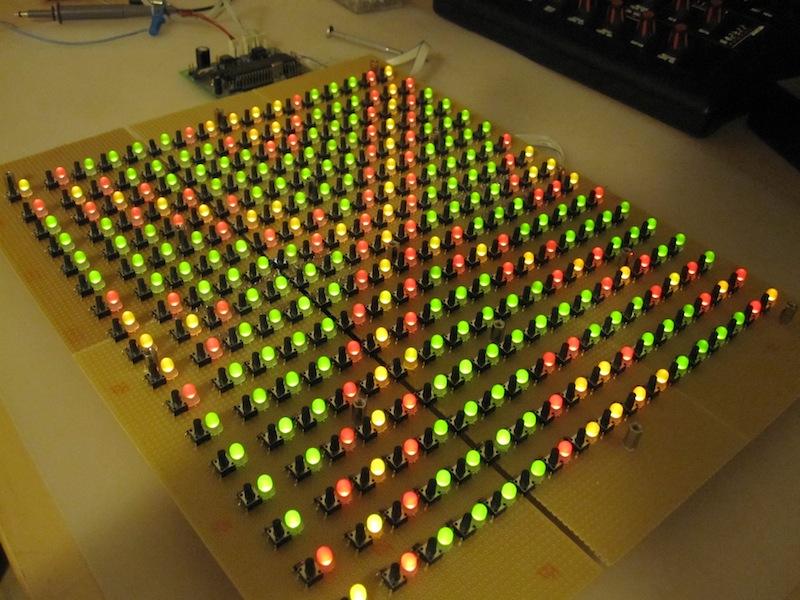

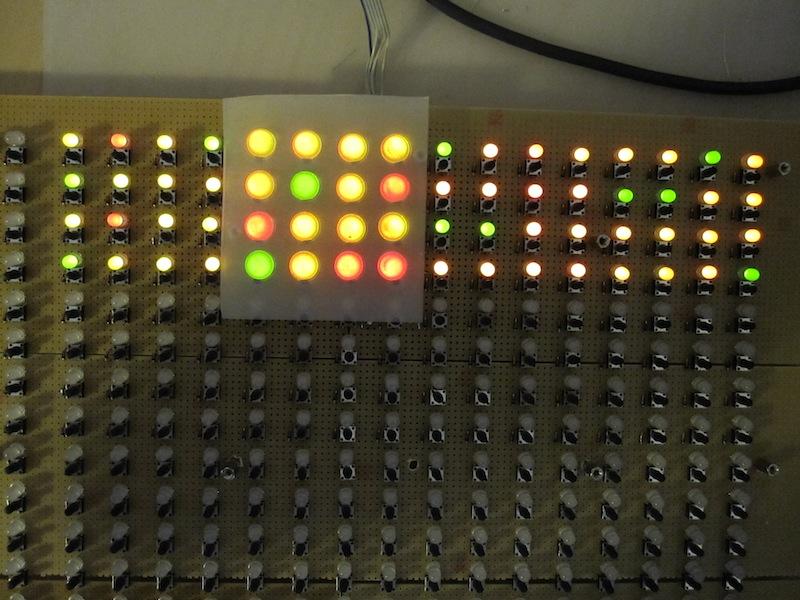

Lightfest and “button cap” test for the first quarter

Lightfest and "button cap" test for the first quarter
Lightfest and "button cap" test for the first quarter800×600 77.5 KB

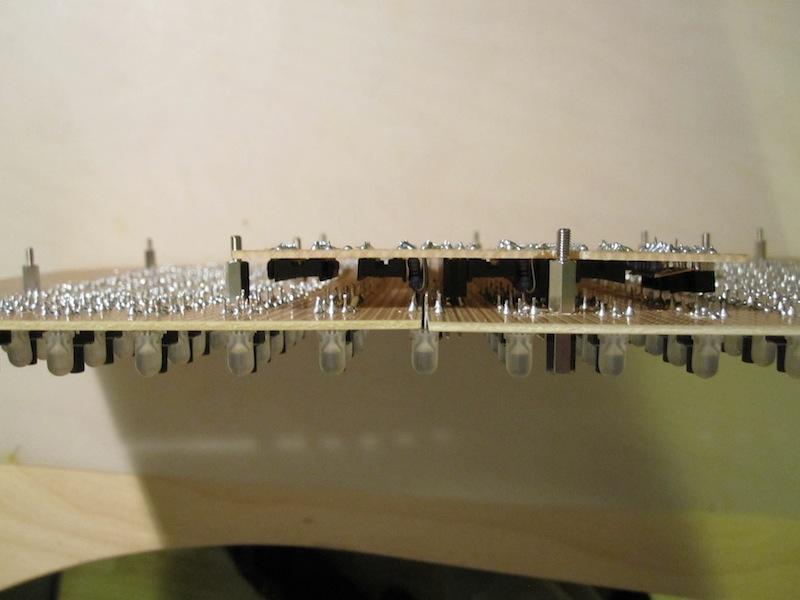

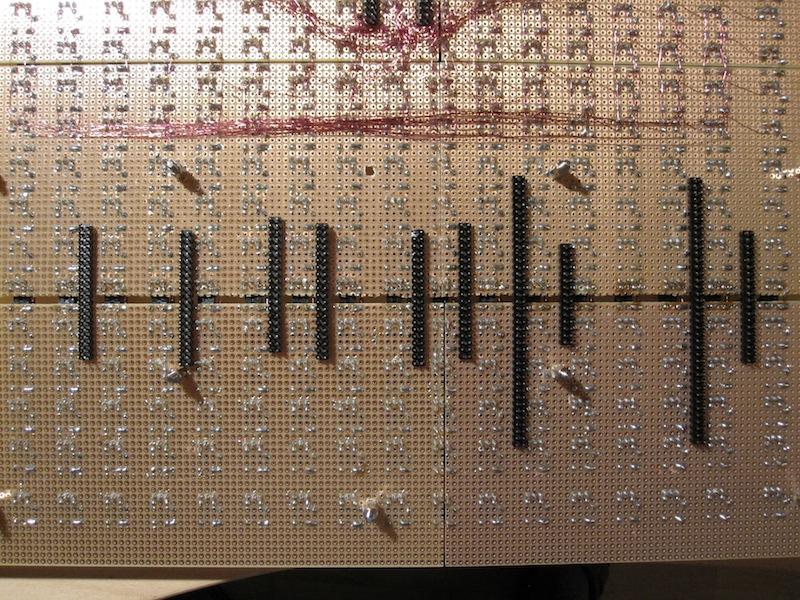

Usage of 2-row SIL headers to ensure the correct distance between boards

Usage of 2-row SIL headers to ensure the correct distance between boards
Usage of 2-row SIL headers to ensure the correct distance between boards800×600 153 KB

Later we will use such 2-row SIL headers to mount the SRIO boards

Later we will use such 2-row SIL headers to mount the SRIO boards
Later we will use such 2-row SIL headers to mount the SRIO boards800×600 81.3 KB

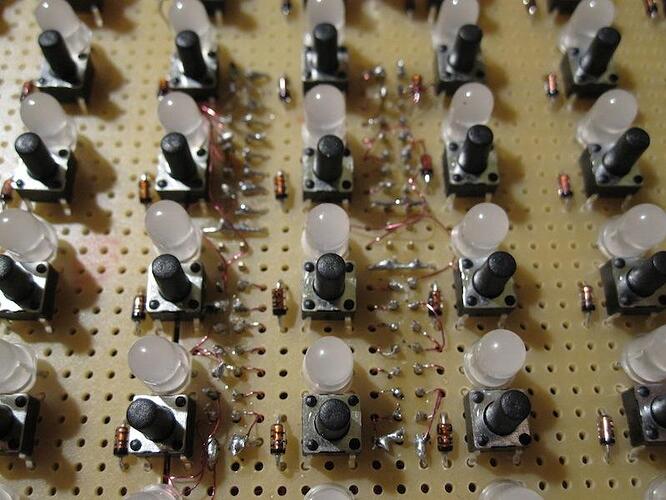

…and to connect the matrix wires

...and to connect the matrix wires
...and to connect the matrix wires800×600 73 KB

Please note: soldering such filigree wires is time consuming and requires some dexterity.

It will work perfectly with double layer PCBs, but if you really consider to build the BLM on a prototype board like me, it’s probably easier to add sockets at the bottom of the PCB (thats my conclusion after all the work)

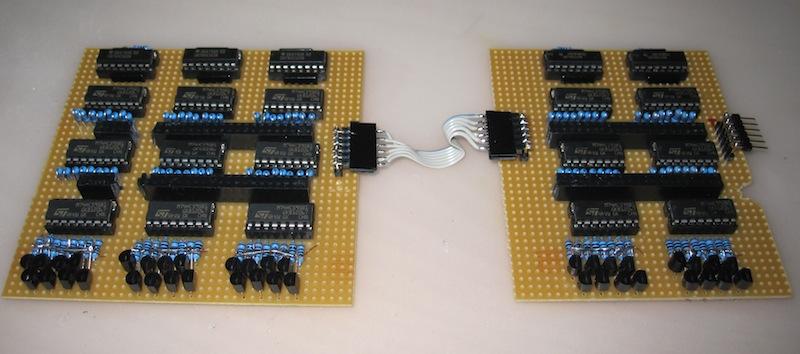

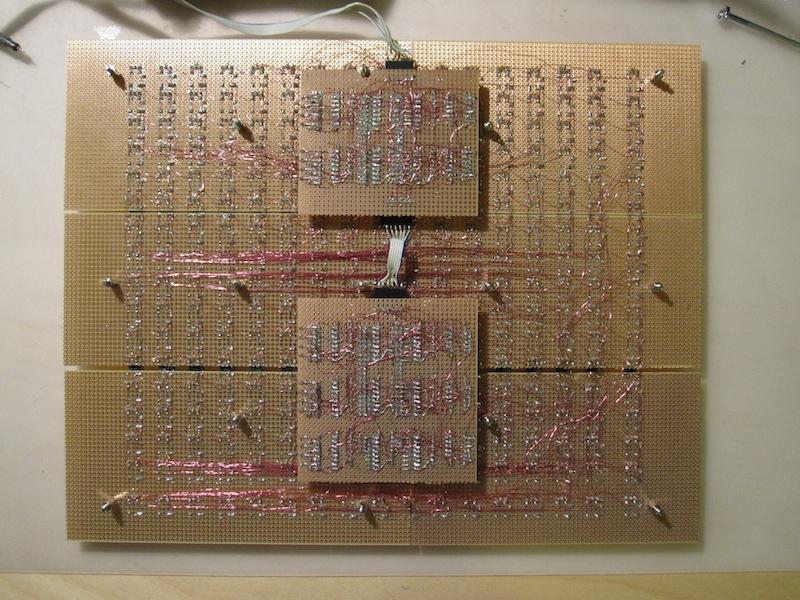

Picture of the SRIO boards (15 DOUT SRs, 5 DIN SRs)

Picture of the SRIO boards (15 DOUT SRs, 5 DIN SRs)
Picture of the SRIO boards (15 DOUT SRs, 5 DIN SRs)800×354 43.7 KB

SRIO boards mounted on the bottom

SRIO boards mounted on the bottom
SRIO boards mounted on the bottom800×600 106 KB

“Multi Layer” :wink:

"Multi Layer" ;-)
"Multi Layer" ;-)800×600 87.8 KB

0.6 Ampere

0.6 Ampere
0.6 Ampere800×600 74.4 KB

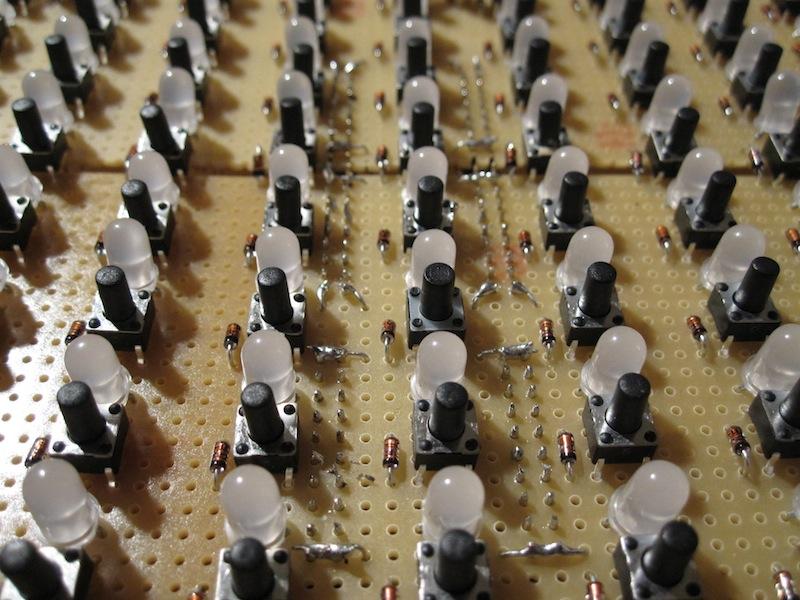

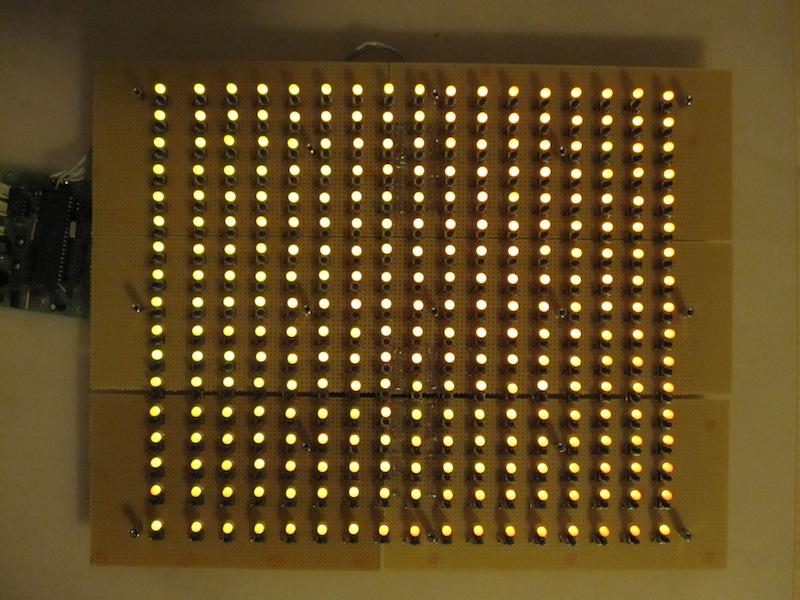

My first pattern :wink:

My first pattern ;-)
My first pattern ;-)800×600 84 KB
