Howdy,
Have started to make midimon.
This is the second thread I have started. The other is for another time when I learn more about this stuff. Some newbie questions I asked were why is J5 different from the schematic (ans: J5A is first half and J5B is the second half. You can use which ever J5 you like - they all go back to the respective same points on the PIC). Also I asked which Vs and Vd I should use on the new J5A and J5B because there were multiples (ans: Use any as there is only one Vs (ground) and Vd (+5 volts)).
I have started a wiki to try and document what I have done to date. This may only help total newbies. It is here: http://www.midibox.org/dokuwiki/doku.php?id=martinsomerville and is far from complete - feel free to add to it. Also as you will see, I am still lacking basic knowledge on midibox and electronics.

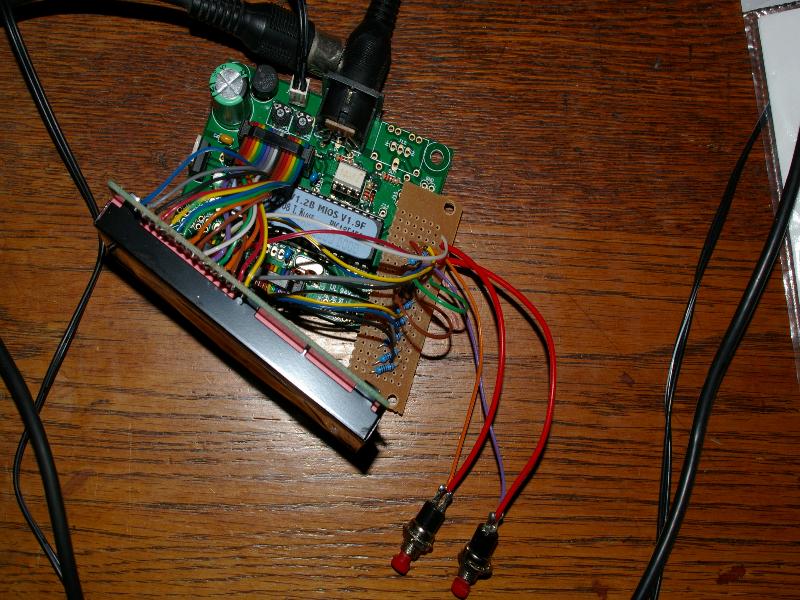

I bought a couple of R4D PIC18F452 core kits with bootloader (V1.2B) and mios (1.9F) already installed (ID 000…) from smash.

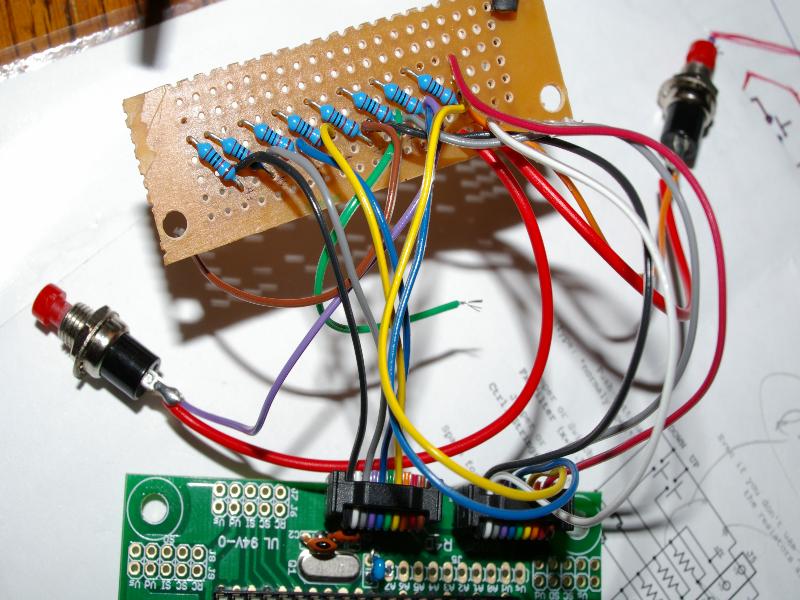

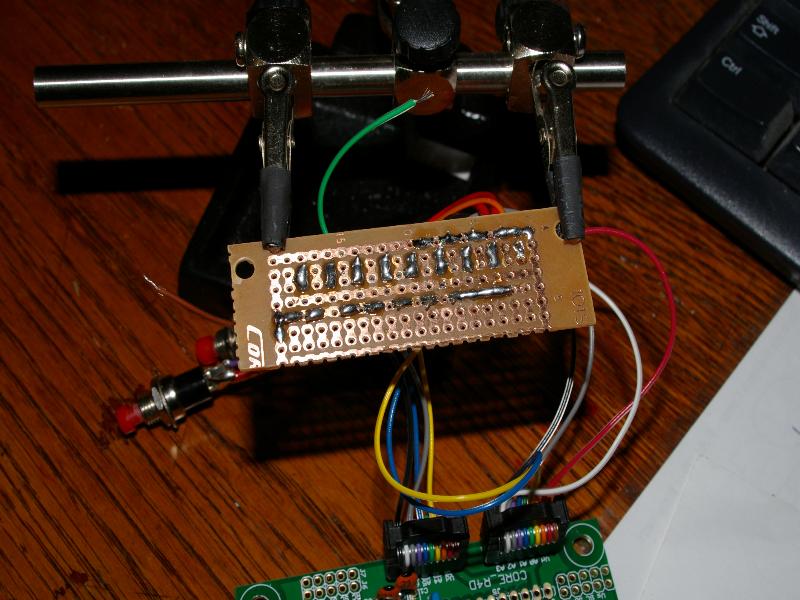

The first core I uploaded the application setup.hex file. It seemed to work fine but the buttons didn’t work (refer to picture below on bread board).
I built a second kit to see if it happened again and it did - worked fine (when playing the midi keyboard on mios studio the lcd responded with the midi data) but no buttons.
I followed the http://www.ucapps.de/howto_debug_midi.html page and tested my 2nd core. A couple of components I don’t think I did that well (maybe a second or two seconds longer than 3. Ha 4 or 5 seconds) - the chrystal and the diode. possibly others but I did a better job than my 1st attempt.
{text added 081210}
From stryds post below (« Reply #2 on: 2008-12-07 at 14:13 ») it looks like I should not have done these tests because my application uploaded fine. These tests from the link above should only be done if having trouble specifically with the midi.
{text added 081210 end}
I just did all the tests to see what they were. I am not sure I needed to do them all.
Results: (sorry for format. Cut and pasted from excel)
mios studio midi monitor in
on startup 00000000018062 ms | Sysex message: F0 00 00 7E 40 00 01 F7
test prog 1 - kit from smash
test core1 - kit from smash
test core2 - have MBHP_CORE 3 so not a problem
test core4 - testing Vdd. 5V everywhere (well 4.9 to 5). Couldn’t find J12. Back of midi out measures 5V at 2 locations. . It’s the 2nd and 4th pins that show 5V (looking from top of board with cables out to the right).
test core5 all (4.9 to 5). No J3 and no resistor between pin 12 of IC as shown in http://www.ucapps.de/howtodebug/mbhp_core_extract_measuring_gnd.gif . Aside: noted that there is no resistance between the two legs of C1 and C8 that are closest together. Maybe this is how it should be.
test core6 - midi - done with smash
test core7 - matches smash direction on board
test core8 - red red brown gold at midi out and in
test core9 - yep all connected
test core10 - no random data. There is a resistance of about 1275 ohms across pin 25 ( Tx) and 26 (Rx)
test core 11 - not sid
TEST OUT 1
{delete added 081210}
<del> (Viewing from the top with midi cable exiting to right, I count the pins 1 to 5) I don’t get a flicker with the led {edited 081210 from lead} (tried all combos I think as well as 2 and 4 / 4 and 2). The only time I get light is if I connect the anode leg to pin 2 or 4 and connect the cathode (short) leg to 3. In this case it just glows consistent.One thing that strikes as odd is the orientation of the J12 in the schematic. If I am looking at my board from above (midi ports facing to the right) and I check the resistance between the 2nd fin from the top of the midi out I would expect this to join M0 of J11 and have a resistance of 220 ohms. But it’s the 2nd fin from the bottom that is connected to J11 MO. ?? The delete thingies didn’t seem to work, maybe only wiki syntax.
</del>
{delete added 081210 end}
{text added 081210}
Have since figured out. By ‘rear’ on the midi diagrams, it indicates a view opposite to the flat side where the midi cable connects to. So the view seen when the midi plug’s flat female side (side midi cable connects) is flat on the table. When the plug is rotated back to having the faces vertical, when viewed from the outside (opposite to the ‘rear’ side view) the 5 pins form an arc that is an unsmiley face (or a monobrow), ie an arc drawn from 9 o’clock to 12 oclock to 3’oclock. This is clear to me now but I was confused for a while. Smash TV’s midi plug are upside down (well they have to be to connect to PCB). Conventions in oz are 3rd angle which is to say a right side view would flip the side/view of the “imaginery box” up at the top right edge of the box. The image matched what I had on the smash board and what I knew as conventions for diagrams so was confused (which is what I am sure I have done for everyone else with this explanation - ha. Will fix up later). Anyway to cut short when being shown a view it seems that it is opened up from an “imaginery hinge” from the bottom of the “imaginery box”. And in the case for Smash midi plugs, this will mean that it is the reverse to what you expect because it is upside down (ie smiley face from the outside) compared to diagram. Also found the numbering system on the back of the plug. Looking at from the rear (opposite to flat female face side) the numbering is .. need to check when I get home.
{text added 081210 end}
test out 2 - looks like it is grounded in core_v3
test pc1 - ports look good to me
test pc2 - attach code for uploading the midimon hex file. If I understand what a byte is, there seems to be one more byte at the monitor in than the monitor out. Also is it strange that the out is bigger.
Midi monitor in (from mios studio):
00000007162265 ms | Sysex message: F0 00 00 7E 40 00 0F 7A F7
00000007162671 ms | Sysex message: F0 00 00 7E 40 00 0F 60 F7
00000007163062 ms | Sysex message: F0 00 00 7E 40 00 0F 40 F7
00000007163468 ms | Sysex message: F0 00 00 7E 40 00 0F 18 F7
00000007163875 ms | Sysex message: F0 00 00 7E 40 00 0F 2F F7
00000007164281 ms | Sysex message: F0 00 00 7E 40 00 0F 59 F7
00000007164671 ms | Sysex message: F0 00 00 7E 40 00 0F 63 F7
00000007165078 ms | Sysex message: F0 00 00 7E 40 00 0F 55 F7
00000007165484 ms | Sysex message: F0 00 00 7E 40 00 0F 4F F7
00000007165875 ms | Sysex message: F0 00 00 7E 40 00 0F 00 F7
00000007166296 ms | Sysex message: F0 00 00 7E 40 00 0F 2C F7
00000007166703 ms | Sysex message: F0 00 00 7E 40 00 0F 15 F7
00000007167093 ms | Sysex message: F0 00 00 7E 40 00 0F 1F F7
00000007167515 ms | Sysex message: F0 00 00 7E 40 00 0F 7F F7
00000007167921 ms | Sysex message: F0 00 00 7E 40 00 0F 68 F7
00000007168328 ms | Sysex message: F0 00 00 7E 40 00 0F 16 F7
00000007168734 ms | Sysex message: F0 00 00 7E 40 00 0F 2A F7
00000007169140 ms | Sysex message: F0 00 00 7E 40 00 0F 4D F7
00000007169531 ms | Sysex message: F0 00 00 7E 40 00 0F 50 F7
00000007169953 ms | Sysex message: F0 00 00 7E 40 00 0F 2B F7
00000007170343 ms | Sysex message: F0 00 00 7E 40 00 0F 26 F7
00000007170843 ms | Sysex message: F0 00 00 7E 40 00 0F 22 F7
00000007171234 ms | Sysex message: F0 00 00 7E 40 00 0F 48 F7
00000007171625 ms | Sysex message: F0 00 00 7E 40 00 0F 43 F7
00000007172031 ms | Sysex message: F0 00 00 7E 40 00 0F 56 F7
00000007172421 ms | Sysex message: F0 00 00 7E 40 00 0F 53 F7
00000007172812 ms | Sysex message: F0 00 00 7E 40 00 0F 58 F7
00000007173218 ms | Sysex message: F0 00 00 7E 40 00 0F 22 F7
00000007173609 ms | Sysex message: F0 00 00 7E 40 00 0F 57 F7
00000007175921 ms | Sysex message: F0 00 00 7E 40 00 01 F7
Midi monitor out code (from mios studio):
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0C 00 00 20 43 7B 63 1F 05 4B 5E 19 78 2D 7D 71 4F 42 7B 6F 0C 7C 17 6E 78 67 61 42 77 46 3E 0D 7F 3C 33 70 71 7B 63 1F 06 77 5E 19 78 37 5D 71 4F 43 49 6F 0C 7C 19 0E 78 67 61 47 77 46 3E 0C 27 3C 33 70 63 3B 63 1F 04 03 5E 19 78 20 3D 71 4F 42 05 6F 0C 7C 10 3E 78 67 61 51 77 46 3E 0C 7F 3C 33 70 42 3B 63 1F 04 17 5E 19 78 21 5D 71 4F 40 24 00 00 00 02 20 00 00 00 12 00 00 00 01 10 00 00 00 09 00 00 00 00 48 00 00 00 04 40 00 00 00 24 00 00 00 1F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 78 7A F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0C 20 00 20 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 78 60 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0C 40 00 20 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 78 40 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0C 60 00 20 09 00 02 20 00 48 00 12 00 04 40 01 10 00 24 00 08 03 4F 0E 60 5B 60 01 07 20 1D 41 37 40 40 0E 09 3B 02 7F 05 17 58 1C 78 00 5D 41 6F 40 20 0E 01 5B 44 70 70 11 5C 00 07 2F 1D 41 37 40 13 6C 0D 3C 15 0E 60 77 60 53 76 06 5E 01 03 28 21 14 51 3B 02 6F 06 62 48 10 42 29 5D 41 7F 40 2F 6C 11 3C 00 00 76 7B 58 16 78 00 21 6D 77 30 2D 70 09 00 04 2E 60 6B 60 26 76 07 7E 01 10 00 33 6C 0D 3C 0A 3E 60 7F 60 0D 77 47 3E 01 10 02 05 6C 0B 3C 02 08 00 48 00 59 77 47 7E 05 1F 3C 3D 70 09 00 02 20 07 07 58 1E 78 2E 1D 41 77 40 06 50 30 7B 63 6F 04 23 5E 1C 78 02 6D 6F 40 2B 31 34 05 3B 03 5F 00 2D 21 7A 05 36 16 40 17 30 3B 70 42 3B 63 4F 00 48 00 12 00 16 7D 41 57 42 19 6F 0E 3C 02 20 00 48 00 07 07 30 2D 60 1B 3B 20 0E 49 05 40 35 00 3C 17 12 08 00 77 09 14 2B 70 0E 4B 05 40 33 47 20 60 07 05 65 42 21 10 02 00 50 07 42 70 0B 50 40 12 03 37 21 07 0E 41 53 40 0B 01 44 02 20 00 18 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0D 00 00 20 63 3B 02 6F 00 11 5D 72 6F 41 02 4D 45 10 02 0E 7F 42 62 20 07 7C 1D 65 76 06 3E 01 43 20 32 6A 09 00 03 05 00 0D 5C 12 00 31 5D 41 37 40 30 14 6C 29 00 10 70 0D 5C 12 00 3D 5D 41 4F 40 06 6E 01 54 03 01 40 64 24 03 60 06 1E 01 10 00 33 30 07 76 03 1B 10 43 30 19 5A 04 3B 01 4D 58 25 58 0C 6E 02 3D 40 66 74 14 6C 06 37 41 2E 60 33 3E 0B 36 02 20 00 66 20 00 07 05 1A 01 4C 48 02 0E 08 74 03 19 20 08 1C 0E 68 06 32 60 18 38 17 50 0C 66 00 40 70 23 20 19 4D 01 21 60 2E 40 33 1C 03 03 40 2D 00 66 3C 07 07 01 2D 6C 36 7C 08 6E 02 54 00 36 72 47 5E 1A 78 0D 3D 71 7F 40 01 6E 20 7C 01 00 70 19 5D 6B 35 01 45 6F 6E 5C 24 00 00 00 28 02 48 0C 16 40 37 50 0A 11 7E 60 06 6E 00 43 4D 0E 60 5B 60 20 77 11 3E 00 00 05 00 51 6C 49 5B 75 00 6F 31 5F 5F 1F 61 30 1B 38 04 0E 34 3B 02 6F 01 03 5C 41 78 00 00 14 02 47 32 26 6F 54 01 6D 46 7E 7C 7F 05 40 6D 60 00 39 51 6C 0B 3C 02 20 00 2F F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0D 20 00 20 01 42 79 0E 60 5B 61 08 06 11 01 42 10 30 22 0C 0F 42 79 0E 60 5B 61 01 06 33 61 49 10 32 0C 0C 66 03 14 40 65 00 19 0F 06 20 01 48 20 32 10 0C 70 03 16 10 66 08 19 30 06 2E 01 4F 78 31 7E 0C 5F 43 1B 70 67 3C 19 77 06 3E 61 4F 68 33 7C 0C 67 43 1F 10 67 7C 19 7F 06 3F 61 4F 78 33 7E 0C 00 3B 02 6F 00 00 02 11 1C 41 61 3C 47 30 2D 70 03 74 00 6D 00 17 20 04 68 04 5A 01 0E 40 35 50 15 74 02 1C 07 23 7E 24 76 05 5E 01 16 03 51 7F 3F 42 64 4E 60 5B 60 13 60 3A 1F 77 78 2C 49 6C 0B 3C 04 0D 00 47 01 68 7F 49 1D 41 37 40 27 40 74 3F 6F 70 59 13 58 16 78 05 5A 01 0E 03 51 7F 12 3B 02 6F 00 00 02 00 07 04 75 50 16 40 26 35 3F 02 64 4E 60 5B 60 13 60 3A 1F 77 78 2C 49 6C 0B 3C 00 4D 00 47 01 68 7F 49 1D 41 37 40 11 6F 0B 3C 00 54 72 3D 4C 66 10 08 04 02 01 00 0A 4E 37 5D 0C 52 01 00 40 20 10 01 28 15 23 0D 50 20 10 08 04 02 00 0D 06 43 11 48 04 02 01 00 40 20 04 54 0E 26 38 59 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0D 40 00 20 17 10 6D 06 73 1C 40 09 21 5A 0D 65 03 49 66 72 17 08 01 15 03 25 68 63 34 10 4D 66 21 00 10 4D 32 5D 0C 14 2B 59 68 20 10 00 00 11 0A 44 1E 0B 00 43 72 0E 60 5B 60 7C 07 25 1D 41 37 43 28 0E 7B 1B 46 50 77 5D 5C 00 00 44 27 10 38 2C 14 0D 79 54 1E 62 30 00 1D 77 11 02 20 0F 2A 42 39 6C 0B 3C 00 00 08 44 72 07 05 72 1D 41 37 40 0F 50 03 34 00 5D 00 3F 20 20 68 09 3A 02 4E 40 5B 50 09 30 1D 0F 79 7F 30 20 07 25 1D 41 37 40 27 40 74 3F 72 2E 60 5B 60 2A 68 04 58 0E 47 7E 25 6C 0B 3C 04 00 74 53 58 16 78 16 61 69 27 30 2D 70 09 70 1D 0F 7C 4B 58 16 78 17 21 69 27 30 2D 70 0C 34 02 3C 07 23 7E 01 07 64 5D 41 37 40 25 50 09 70 1D 0F 7C 4B 58 16 78 03 3A 01 1E 03 51 7F 49 3B 02 6F 00 23 20 12 60 3A 1F 79 47 30 2D 70 09 70 1D 0F 7C 63 58 16 78 04 40 01 0E 03 51 7F 4C 3B 02 6F 00 4B 01 68 7F 66 1D 41 37 40 27 40 74 3F 73 0E 78 5B 60 04 06 42 01 6F 19 13 6C 6E 1B 43 5E 42 00 63 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0D 60 00 20 7B 5B 40 30 74 73 5E 16 78 0B 25 52 68 01 46 23 19 00 0C 42 69 48 00 64 11 4C 40 06 29 34 64 00 33 0B 26 20 03 18 46 32 00 19 65 53 10 01 4E 23 19 00 0C 12 69 48 00 61 11 4C 40 06 11 34 64 00 31 4B 26 10 03 0C 46 31 00 19 05 53 08 01 48 23 18 40 0C 52 69 44 00 66 16 4C 20 06 31 0C 62 00 33 4B 26 10 03 1C 46 31 00 18 25 53 08 01 42 23 18 40 0C 22 69 44 00 43 2F 4C 00 04 19 0C 60 00 22 17 66 00 02 10 46 30 00 11 2B 73 00 01 0C 5F 18 00 08 62 19 40 00 47 2F 4C 00 04 39 0C 60 00 20 57 66 00 02 04 46 30 00 10 4B 73 00 01 06 5F 18 40 08 32 19 44 00 44 2F 4C 20 04 21 0C 62 00 22 57 66 10 02 19 3E 31 00 11 44 33 08 01 0E 5F 18 40 08 72 19 44 00 41 2F 4C 20 04 09 0C 62 00 21 17 66 10 02 0D 3E 32 00 10 64 33 10 01 08 5F 19 00 08 42 19 48 00 45 2F 4C 40 04 32 7C 64 00 23 08 66 20 02 1D 3E 32 00 11 64 33 10 01 02 5F 19 00 08 12 19 48 00 42 2F 4C 40 04 1A 7C 66 00 21 48 66 30 00 55 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0E 00 00 20 22 17 66 30 02 10 46 33 00 11 2B 73 18 01 0C 5F 19 40 08 62 19 4C 00 47 2F 4C 60 04 39 0C 66 00 20 57 66 30 02 04 46 33 00 10 4B 73 18 01 06 5F 1A 00 08 32 19 50 00 44 2F 4D 00 04 21 0C 68 00 22 57 66 40 02 19 3E 34 00 11 44 33 20 01 0E 5F 1A 00 08 72 19 50 00 41 2F 4D 00 04 09 0C 68 00 21 17 66 40 02 0D 3E 35 00 10 64 33 28 01 08 5F 1A 40 08 42 19 54 00 45 2F 4D 20 04 32 7C 6A 00 23 08 66 50 02 1D 3E 35 00 11 64 33 28 01 02 5F 1A 40 08 12 19 54 00 42 2F 4D 20 04 1A 7C 6C 00 21 48 66 60 02 11 3E 36 00 11 04 33 30 01 0A 5F 1B 00 08 65 79 58 00 46 11 4D 40 04 3A 7C 6C 00 23 48 66 60 02 05 3E 36 00 10 24 33 30 01 04 5F 1B 00 08 35 79 5C 00 43 11 4D 60 04 22 7C 6E 00 22 08 66 70 02 15 3E 37 00 11 4B 73 38 01 0C 23 1B 40 08 75 79 5C 00 47 11 4D 60 04 0A 7C 6E 00 20 48 66 70 02 09 3E 37 00 10 6B 73 40 01 06 23 1C 00 08 45 79 60 00 44 11 4E 00 04 2A 7C 70 00 23 17 67 00 00 4F F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0E 20 00 20 23 08 67 00 02 1D 3E 38 00 03 61 60 00 04 28 6F 09 00 01 70 70 00 02 15 37 44 40 00 00 04 28 51 6C 29 02 40 38 00 02 15 28 76 14 41 28 1C 00 01 0A 14 3B 0A 20 04 1C 03 37 06 01 66 07 30 2D 70 00 00 22 55 0E 62 48 01 07 00 6D 61 48 39 41 6C 0B 3C 02 20 00 00 02 31 35 4C 4D 33 1B 2C 68 6B 18 1A 62 20 00 0D 5C 00 00 7E 01 60 1B 00 6F 50 01 6F 46 06 59 41 23 7D 07 76 16 0F 68 38 06 0F 64 3B 02 6F 00 0B 20 08 68 02 5A 0F 10 38 06 62 01 34 06 02 59 07 20 30 35 47 7A 00 1E 00 6B 70 7C 75 60 3B 01 56 1F 58 48 00 66 03 33 3C 6A 51 01 42 60 60 6F 4F 1E 34 78 0D 26 1E 41 40 06 0B 19 5B 66 53 48 3C 16 35 37 4D 47 1F 00 2C 6A 13 1B 0E 21 70 59 59 5E 35 60 0C 5E 03 36 00 63 70 01 34 00 00 58 48 00 01 07 3F 61 31 10 00 06 50 7C 02 40 4E 00 0D 21 7A 05 03 7C 0F 26 5C 68 2B 0B 43 46 46 2F 4B 2E 34 35 4C 65 30 18 38 66 65 76 75 66 36 59 48 57 58 58 0C 25 3E 46 5C 68 6B 19 5A 66 26 58 00 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0E 40 00 20 18 5A 7C 3D 38 00 02 38 35 4E 2D 3D 00 38 74 6F 03 43 47 36 78 48 00 00 00 4E 05 21 10 00 00 01 1D 01 5B 0A 01 6C 0C 3A 28 4E 62 10 3F 07 20 0E 1D 1B 60 70 71 6D 5E 38 60 0E 3E 03 43 28 24 00 28 03 5E 66 71 68 1D 77 37 0E 38 0E 47 7F 6C 26 00 03 5E 72 10 24 01 75 28 04 40 00 00 04 04 03 02 41 40 70 40 28 16 0C 06 43 62 01 08 48 28 15 0B 05 63 11 50 6C 38 1E 0F 48 04 12 19 10 4A 26 14 0A 25 22 59 34 5C 2F 18 0C 46 33 21 54 6E 38 1C 4E 47 43 69 78 7E 41 21 10 68 44 32 1D 10 49 25 53 09 54 72 41 22 52 29 55 2A 65 3A 61 34 5B 2E 17 2B 76 03 05 44 64 32 59 4C 76 4B 29 56 6C 37 1B 6E 07 0B 4D 68 75 3B 1E 0F 17 53 6D 7A 7E 3F 60 10 28 1C 12 0B 07 44 22 31 28 64 36 1D 0F 48 64 52 39 24 5A 2F 18 4C 66 73 49 6C 7A 41 21 51 28 74 5A 35 1E 51 2A 55 6B 15 5A 7D 42 63 32 5A 2D 36 6B 3D 66 75 3B 5E 2F 57 7C 06 07 07 44 62 71 59 0C 4E 2B 17 4D 67 33 7A 0D 16 4F 29 55 6B 76 1B 1D 50 2C F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0E 60 00 20 6E 37 3B 6D 7F 07 45 63 72 39 5C 7E 47 27 57 6C 76 7B 5E 0F 0F 4B 67 75 7B 3D 7F 0F 57 6F 79 7D 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 70 00 04 42 6B 11 1A 64 36 59 11 56 20 35 44 40 00 1B 3B 70 0E 01 58 06 7D 00 00 02 03 28 3C 21 23 47 00 41 3F 1C 74 00 3B 71 01 56 20 28 7D 61 7D 45 43 6E 0E 04 43 79 0E 60 5B 60 08 68 02 3A 00 56 40 17 50 06 34 02 2D 00 57 20 18 68 06 7A 0F 00 38 0F 50 3F 43 40 5D 03 7C 1C 03 68 00 21 60 0E 40 02 0E 01 58 40 2D 01 00 56 12 68 08 0D 31 06 40 06 50 10 5B 64 56 7F 63 2E 03 28 08 4D 72 33 3F 69 57 01 54 04 36 79 1D 5F 70 6B 40 6A 02 23 3C 50 6F 01 34 00 00 58 48 00 01 07 3F 61 31 10 00 40 6B 10 23 7F 0D 39 01 56 03 1C 01 61 3C 47 30 2D 70 03 74 01 1D 00 2B 20 0B 68 03 1A 00 76 40 1F 50 08 34 06 3D 40 15 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0F 00 00 20 14 03 41 7D 01 20 1C 1A 68 09 61 60 5E 40 4E 0E 0B 34 05 2D 41 18 1C 06 68 09 41 61 0E 40 4A 0E 01 34 04 50 70 37 20 10 77 08 3E 0E 0B 3B 60 0E 73 45 40 35 00 3C 17 67 09 00 6A 0B 00 2C 00 0A 67 78 39 4D 38 43 5C 21 78 38 2D 60 78 3B 4E 16 01 4E 1E 00 5F 1C 24 03 28 3C 01 37 00 2B 01 61 12 70 04 1F 01 1B 00 22 78 09 78 02 1F 40 51 40 12 3C 17 1D 39 10 56 17 07 08 37 31 40 38 43 3D 0E 43 44 46 28 48 00 24 35 48 65 33 58 38 46 65 09 00 04 36 59 08 56 3B 07 08 4C 51 10 00 44 6B 10 4A 23 70 59 05 5E 12 00 01 6D 20 33 38 14 0E 03 17 00 3E 18 19 5C 07 15 3E 5A 71 10 01 20 2A 28 14 0C 56 70 77 58 1F 78 00 78 0E 77 7C 09 40 77 3F 60 5C 07 3B 7E 66 35 04 10 01 10 00 21 28 03 34 00 35 07 60 14 51 70 00 6A 0F 70 29 1D 60 7C 03 40 36 01 2F 20 03 57 00 7A 00 1E 01 23 70 29 1A 0A 22 50 08 1C 52 32 00 3A 05 13 3B 5E 0E 28 59 07 6D 02 45 21 71 05 04 17 03 57 01 26 28 07 42 6A 36 70 1F F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0F 20 00 20 00 3B 4A 4F 00 0F 01 6B 7F 54 2A 00 38 2F 11 6C 0B 3C 00 7D 00 1F 20 07 68 01 7A 00 3E 40 0F 50 03 74 00 7D 01 1B 20 09 68 05 1A 00 3E 40 05 50 00 74 00 0D 00 11 54 05 35 14 4D 2B 46 5D 24 04 0D 38 2A 1C 00 0F 60 00 77 15 1E 05 1A 43 56 50 02 1B 40 56 72 49 55 2C 6B 54 4A 0F 70 3C 1B 61 28 70 00 3F 00 03 5C 54 78 14 60 40 78 2F 57 4F 02 3C 00 10 7F 2F 1E 05 78 14 4D 29 66 5C 24 00 01 54 15 7E 60 77 60 24 70 00 00 12 0A 44 3E 0B 25 3B 03 6F 00 1A 1C 07 60 12 1E 00 36 01 0F 70 11 14 29 2E 60 7B 60 06 47 01 78 04 37 40 0D 40 22 7C 04 35 0A 2B 58 1E 78 01 51 60 3E 01 09 70 03 30 08 3F 01 11 22 4A 76 07 5E 00 3E 01 05 70 03 30 08 1F 00 42 18 10 4D 04 10 21 10 00 07 40 05 3C 00 35 05 33 58 1C 78 0C 7C 00 00 04 63 40 01 7C 06 22 4E 62 68 03 15 3D 1D 41 37 40 08 38 07 42 69 06 70 11 20 0F 05 51 6D 60 19 60 1E 0B 23 1B 40 35 00 3C 17 00 04 51 2D 64 42 40 15 61 08 03 49 06 70 7F F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0F 40 00 20 23 54 00 6E 08 40 1C 47 37 11 4A 00 17 04 20 0E 23 1B 42 00 72 11 5C 00 00 4C 65 10 78 2E 00 09 21 5B 46 42 49 67 3E 07 28 36 16 41 00 39 04 6E 03 30 08 1F 00 42 14 10 4E 04 10 20 56 00 07 70 09 00 00 0E 74 03 60 65 28 00 61 5F 1A 43 52 26 7A 14 1D 22 10 48 00 10 60 01 5E 02 3E 60 21 16 74 2C 02 08 31 03 30 10 4C 3A 16 01 04 20 20 50 03 06 5B 0A 20 42 00 12 00 00 01 60 1B 08 03 50 02 74 00 10 70 0D 44 01 68 02 3A 01 10 00 09 30 09 00 0C 62 57 70 1C 66 30 19 4D 61 04 00 24 00 02 2C 02 20 03 19 21 58 52 19 40 61 04 00 24 00 01 03 42 2E 78 6B 60 03 07 04 5D 71 57 41 4E 2A 33 54 0F 70 5E 62 68 10 40 04 40 01 05 48 77 58 08 28 02 20 00 42 20 66 28 14 0B 46 2B 38 06 0E 32 1B 4C 45 00 42 68 05 68 10 01 5F 1A 42 11 6C 0B 3C 00 4D 00 0D 5C 00 07 2B 5D 41 37 42 5F 6C 0F 7C 0C 50 37 7C 1D 58 50 19 2D 61 05 70 0B 50 08 2E 40 3D 03 10 0D 68 71 00 5A 06 21 3B 4B 57 33 14 02 5E 00 68 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 0F 60 00 20 33 6B 42 20 00 38 1C 10 5E 13 41 61 05 69 1C 0E 44 3B 02 6F 02 6C 1D 14 76 05 5E 02 68 3A 29 6C 0B 3C 0C 65 04 4B 58 16 78 17 21 69 27 30 2D 70 09 00 02 09 10 42 54 05 68 00 01 68 47 30 2D 70 31 7B 04 1F 00 42 58 05 68 00 01 68 47 30 2D 70 4C 3B 04 1F 00 48 00 00 07 00 6D 64 00 38 08 6E 0A 03 40 56 72 50 1D 28 77 45 5E 01 6F 30 3F 70 77 33 62 1F 07 3B 1E 12 78 3B 59 71 1F 40 22 50 05 78 02 1D 01 00 5A 7C 10 0F 0D 66 79 01 4A 76 32 5B 4E 43 71 00 40 20 10 08 04 07 20 3B 6C 6E 1F 43 5E 76 70 50 1D 1C 77 45 5E 01 05 18 2B 50 08 54 1E 00 5D 40 14 11 70 44 2A 00 78 2C 02 0F 48 3B 02 6F 03 70 1D 14 76 05 5E 01 12 41 79 59 10 03 52 4E 60 5B 60 13 28 24 5D 41 37 41 67 51 77 43 42 16 23 3B 22 11 28 03 61 3C 47 30 2D 70 0C 74 04 3D 01 57 20 4D 68 18 5A 07 16 42 05 50 49 74 1C 3D 07 4F 20 03 68 44 7A 12 1E 44 67 51 21 74 2A 3D 0A 18 60 7C 10 1A 2D 67 23 15 64 6E 30 5B 04 06 28 16 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 10 00 00 20 39 1C 4D 77 11 00 41 72 07 3D 4D 63 78 3B 6E 6E 0A 03 53 4E 78 5B 60 46 18 5F 04 04 6A 51 06 20 0A 03 5E 66 72 00 1D 77 37 02 01 69 67 30 2D 70 09 14 13 0E 60 5B 60 0A 07 29 1A 14 31 49 78 20 29 5B 6D 66 39 01 20 6F 39 48 00 03 20 3B 6C 6E 20 03 5E 76 70 34 1D 1C 76 05 5E 01 1A 42 31 6C 0B 3C 04 00 74 53 58 16 78 04 4A 09 47 30 2D 70 01 03 51 3D 0A 18 66 7C 10 14 6D 76 73 1C 40 53 32 5B 04 00 03 18 1D 76 37 10 01 6F 3B 38 1A 0E 4E 3B 02 6F 00 49 21 12 76 05 5E 00 20 39 71 51 23 0D 0F 42 03 55 5C 64 32 59 4D 16 73 15 48 20 10 08 04 02 01 00 41 0C 07 3D 4D 64 00 3B 6E 6E 0A 03 53 4E 78 5B 60 46 1A 5F 04 07 2B 39 48 65 33 1A 2D 66 2B 10 40 20 10 08 04 02 01 02 5C 0E 7B 1B 48 00 77 5D 5C 14 07 27 1D 71 37 41 0C 36 3E 08 0A 47 2B 39 4A 20 29 19 2E 17 2B 15 66 74 10 08 04 02 06 40 1D 76 37 10 01 6F 3B 38 28 0E 4E 3B 62 6F 02 4D 70 7C 00 08 07 45 1B 65 66 45 3C 08 0C 57 40 2A F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 10 20 00 20 38 1A 2E 26 2B 10 7C 20 00 3C 41 6F 33 39 00 0E 7B 5B 40 30 74 73 58 16 78 19 2A 05 00 60 07 60 08 43 53 4E 78 5B 60 01 07 01 4D 60 07 39 29 70 29 41 01 70 58 1D 5C 06 15 01 6A 0E 5A 43 60 0A 02 78 00 70 20 3C 16 07 37 01 55 0F 36 5C 12 0E 03 18 02 4D 00 21 54 07 28 3A 6A 09 47 30 2D 70 03 4A 01 70 58 1D 5C 08 15 02 05 20 31 3B 6B 57 10 03 52 4E 60 5B 60 08 15 04 01 60 43 13 73 57 09 00 0A 35 07 60 1E 0F 05 41 6D 60 40 38 0C 6E 03 54 1D 35 04 63 58 16 78 01 65 00 78 2C 0E 6E 03 0B 5E 7D 39 38 1D 14 77 45 5E 04 31 61 78 20 26 52 28 44 49 01 06 6C 37 58 6D 32 01 00 40 20 10 08 12 60 77 59 5C 41 07 3D 6D 61 20 3A 39 6F 0B 3C 08 63 4B 70 40 4D 24 51 09 12 02 51 52 63 35 48 04 02 01 00 40 20 10 2E 01 6F 33 39 02 0E 7B 5B 42 40 74 73 5E 16 78 11 48 17 61 01 1A 49 22 12 24 05 1B 51 42 72 3A 08 04 02 01 00 40 20 6D 03 5E 66 72 04 1D 77 37 05 01 69 67 3C 2D 70 23 10 4F 42 00 4D F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 10 40 00 20 26 52 28 44 49 01 06 6F 37 1D 0D 16 73 55 4A 20 10 08 1F 40 77 59 5C 41 07 3D 6D 61 20 3A 39 6F 0B 3C 08 64 1B 70 40 4D 24 51 09 12 02 4D 68 6F 38 08 04 02 01 00 40 20 10 07 41 6F 33 39 04 0E 7B 5B 42 40 74 73 5E 16 78 11 48 47 61 01 6A 6E 32 19 2C 66 4B 39 4A 64 10 08 04 02 01 00 40 20 20 03 5E 66 72 08 1D 77 37 05 01 69 67 3C 2D 70 23 11 2F 42 02 05 46 74 34 5D 4C 52 02 4D 4A 6E 39 59 24 02 01 00 40 62 07 3D 4D 64 10 3B 6E 6E 0A 03 53 4E 78 5B 60 46 23 1F 04 04 6A 25 08 49 10 14 4C 57 1B 15 68 20 10 08 04 02 01 02 08 0E 7B 1B 48 20 77 5D 5C 14 07 27 1D 71 37 40 25 6C 0D 7C 02 35 03 3B 20 08 06 5F 41 6F 33 39 08 0E 7B 5B 5E 35 07 58 4D 74 28 3D 64 20 40 3A 39 6F 0B 3C 09 05 04 3B 58 21 78 11 6A 08 77 30 43 70 23 14 11 6E 61 07 60 45 28 24 1D 42 0F 40 5C 0E 49 7B 04 1F 02 11 21 0E 76 08 3E 04 1A 42 21 6C 10 7C 05 60 74 4F 58 21 78 10 4A 08 77 30 43 70 20 54 12 0E 60 50 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 10 60 00 20 10 7C 00 30 71 6F 30 1C 76 07 3E 09 17 30 2D 70 05 36 08 20 70 27 30 50 07 01 7B 04 68 38 0B 50 74 2E 00 2D 04 3B 5E 16 78 08 01 69 27 3C 2D 70 26 55 08 33 51 00 00 2A 07 3D 4D 64 18 3B 6E 6E 02 43 53 4E 60 5B 60 48 28 06 1B 04 3A 40 2D 58 1D 03 42 7D 42 19 20 12 6C 11 2A 01 06 60 74 0E 08 76 08 45 00 33 30 43 28 02 5B 03 50 38 17 58 21 14 00 6D 42 05 20 04 6C 01 01 60 3E 43 51 38 6C 75 71 6E 78 5B 60 20 07 25 1D 71 37 40 14 6E 10 03 52 4E 60 5B 60 0A 17 3E 7A 71 10 00 21 34 1F 34 04 00 6F 51 20 06 06 6A 41 6F 33 39 06 0E 7B 5B 5E 35 07 58 4D 74 28 3D 64 20 28 3A 39 6F 0B 3C 00 10 00 00 00 00 00 00 40 00 00 00 00 00 01 40 00 00 00 00 00 03 00 40 00 00 00 00 06 02 00 00 00 00 00 0C 06 00 00 00 00 00 18 0C 02 00 00 00 00 30 18 08 00 00 00 00 60 30 18 00 00 00 01 40 60 30 08 00 00 03 01 40 60 20 00 00 06 03 01 40 60 10 00 0C 06 03 01 40 40 00 18 0C 06 03 01 40 00 30 18 2B F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 11 00 00 20 01 40 60 30 08 0C 06 03 01 40 60 20 33 39 7C 0E 7B 1B 49 00 77 5D 5D 2A 76 05 5E 00 32 40 40 0D 7A 14 12 4E 60 5B 61 7C 07 3D 4D 67 60 3B 6E 6E 55 3B 62 6F 00 42 68 12 00 0F 41 6F 33 39 08 0E 7B 5B 5C 6E 78 5B 60 00 00 00 00 00 00 00 00 00 00 04 02 01 00 40 20 10 00 00 02 41 20 50 28 14 0A 00 00 01 28 54 2A 15 0A 45 20 00 00 00 08 06 03 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 21 18 2D 66 59 01 1A 53 21 13 2D 76 22 5D 50 65 32 5B 08 27 13 15 42 74 34 08 04 04 1B 51 64 6C 17 08 04 03 1A 19 5E 6F 3A 10 6E 47 13 31 20 6F 39 1D 0A 46 4B 35 4A 44 30 5D 0C 12 02 35 26 42 2B 1B 6D 47 2B 35 4A 20 10 10 4C 16 63 05 5C 63 32 48 08 37 23 49 58 2E 10 08 07 15 03 05 5C 6F 39 18 2D 56 0A 15 70 70 39 0B 44 02 01 01 0C 78 11 4C 24 04 6A 4D 04 46 3C 08 66 22 02 35 26 42 21 5D 0E 26 61 38 40 31 1A 10 6E 47 13 30 5C 20 18 4D 28 37 20 26 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 11 20 00 20 39 1B 05 62 01 44 6C 43 3A 1C 4D 42 71 00 62 37 21 5D 0E 26 61 38 40 31 1C 10 6E 47 13 30 5C 20 18 4E 28 37 23 49 58 2E 10 0C 46 04 1B 51 64 6C 17 08 06 23 0A 0D 68 72 36 0B 44 03 11 49 06 74 39 1B 05 62 01 48 66 43 3A 1C 4D 42 71 00 64 34 21 5D 0E 26 61 38 40 32 1A 50 6E 47 13 30 5C 20 19 0D 48 37 23 49 58 2E 10 0C 46 74 1B 51 64 6C 17 08 06 23 42 0D 68 72 36 0B 44 03 11 65 06 74 39 1B 05 62 01 4C 60 43 3A 1C 4D 42 71 00 66 31 21 18 2D 66 59 01 18 53 21 13 2D 76 21 00 40 4C 29 50 48 27 13 15 42 74 26 14 68 24 1B 51 64 6C 17 08 06 33 2A 19 5E 6F 3A 0B 49 45 1A 09 20 6F 39 1D 0C 14 62 4D 04 44 30 5D 0C 12 02 31 26 42 2B 1B 6D 42 71 01 18 53 21 10 4C 16 61 38 40 4C 29 50 48 37 23 49 58 2E 10 0D 06 15 03 05 5C 2E 10 13 0A 34 12 15 70 70 39 0B 49 45 1A 09 0C 78 11 4C 24 04 62 4D 04 46 3C 08 66 22 02 31 26 42 21 5D 0E 26 61 38 40 34 1B 10 6E 47 13 30 5C 20 1A 0D 68 37 20 22 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 11 40 00 20 39 1B 05 62 01 50 70 43 3A 1C 4D 42 71 00 68 39 21 5D 0E 26 61 38 40 35 18 10 6E 47 13 30 5C 20 1A 4C 28 37 23 49 58 2E 10 0D 26 24 1B 51 64 6C 17 08 06 53 1A 0D 68 72 36 0B 44 03 29 51 06 74 39 1B 05 62 01 54 6A 43 3A 1C 4D 42 71 00 6A 36 21 5D 0E 26 61 38 40 35 1B 50 6E 47 13 30 5C 20 1A 4E 08 37 23 49 58 2E 10 0D 27 14 1B 51 64 6C 17 08 06 63 02 0D 68 72 36 0B 44 03 31 45 06 74 39 1B 05 62 01 58 64 43 3A 1C 4D 42 71 00 6C 33 29 5D 2E 37 23 05 52 6E 10 14 0D 77 13 50 5C 20 27 53 4A 37 2B 4D 68 65 37 1D 25 65 1B 3D 4C 74 28 19 2C 42 72 31 4A 67 30 5D 0D 75 1B 5D 10 6F 36 19 06 22 01 00 40 43 3A 1C 4D 42 71 00 6E 30 24 18 2E 26 6B 3D 5C 69 31 54 4C 56 63 15 42 73 32 48 08 17 23 51 42 63 35 48 04 04 1B 55 68 4F 33 19 44 02 02 0D 68 72 36 0B 44 03 39 55 06 74 39 1B 05 62 01 5C 6C 43 3A 1C 4D 42 71 00 6E 37 21 5D 0E 26 61 38 40 37 1C 10 6E 47 13 30 5C 20 1B 4E 28 37 20 48 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 11 60 00 20 39 1B 05 62 01 60 60 43 3A 1C 4D 42 71 00 70 31 21 5D 0E 26 61 38 40 38 19 10 6E 47 13 30 5C 20 1C 0C 68 37 23 49 58 2E 10 0E 06 44 1B 51 64 6C 17 08 07 03 2A 0D 68 72 36 0B 44 03 41 59 06 74 39 1B 05 62 01 60 6E 43 3A 1C 4D 42 71 00 70 38 21 5D 0E 26 61 38 40 38 1C 50 6E 47 13 30 5C 20 1C 4C 0A 26 2B 59 4A 72 31 08 04 05 23 49 4A 6D 37 5B 0D 72 02 0D 50 6F 39 1D 2E 32 01 01 06 65 36 19 2E 37 23 14 40 50 34 18 2E 36 2B 48 40 20 22 18 2E 46 09 01 12 6E 31 51 0C 17 23 04 40 44 32 58 69 65 12 41 1C 20 26 14 68 24 72 49 20 4E 10 13 2A 34 12 49 20 4E 10 13 0A 34 11 01 24 50 27 08 09 55 1A 08 40 43 3A 1C 4D 42 71 44 60 32 21 5D 0E 26 61 38 62 30 19 50 6E 47 13 30 5C 31 18 0D 08 37 23 49 58 2E 18 4C 06 54 1B 51 64 6C 17 0C 26 03 32 0D 68 72 36 0B 46 13 01 5D 06 74 39 1B 05 63 09 40 70 43 3A 1C 4D 42 71 44 60 39 21 5D 0E 26 61 38 62 31 18 10 6E 47 13 30 5C 31 18 4C 28 37 20 43 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 12 00 00 20 39 1B 05 63 09 44 64 43 3A 1C 4D 42 71 44 62 33 21 5D 0E 26 61 38 62 31 1A 10 6E 47 13 30 5C 31 18 4D 28 37 23 49 58 2E 18 4C 26 64 1B 51 64 6C 17 0C 26 13 3A 0D 68 72 36 0B 46 13 09 61 06 74 39 1B 05 63 09 44 72 53 37 5D 2D 66 22 3D 4C 66 29 19 2E 36 2B 51 02 6C 36 13 0D 76 1B 05 58 20 10 08 09 66 7B 51 4A 73 27 59 4C 64 7B 35 5C 69 10 13 6C 66 32 3D 5A 6E 34 48 09 76 71 01 1A 6F 37 1B 64 04 7B 38 40 50 37 5B 0F 12 02 3D 5C 20 0E 00 20 02 03 78 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1F 4F 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 7C 7E 00 1F 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0F 67 70 01 7C 00 3F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 56 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 12 20 00 20 00 00 0F 67 70 01 7C 00 3F 00 0F 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 7E 3F 00 0F 60 03 78 00 7E 00 1F 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 07 73 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3F 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 03 79 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1F 4F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 7C 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 00 00 00 00 00 00 00 00 00 00 00 00 00 0F 67 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 00 00 00 00 00 00 00 00 00 53 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 12 40 00 20 00 00 0F 67 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 00 00 00 00 00 00 00 00 7E 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 00 00 00 00 00 00 07 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 03 00 00 00 00 00 3F 1F 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 18 00 00 00 00 03 79 7C 00 3F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 40 00 00 00 00 1F 4F 60 03 78 00 7E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0C 00 00 00 00 01 7C 7E 00 1F 40 07 70 01 7C 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 0F 67 70 01 7C 00 3F 00 0F 60 03 78 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 06 00 00 00 58 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 12 60 00 20 00 00 0F 67 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 06 00 00 00 00 00 7E 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 30 00 00 00 00 07 73 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 00 00 00 00 00 00 00 00 00 00 00 03 00 00 00 00 00 3F 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 00 00 00 00 00 00 00 00 00 00 18 00 00 00 00 03 79 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 00 00 00 00 00 00 00 01 40 00 00 00 00 1F 4F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 00 00 00 00 00 0C 00 00 00 00 01 7C 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 00 00 00 60 00 00 00 00 0F 67 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 1F 40 07 70 01 7C 00 3F 00 0F 60 03 78 00 7E 00 06 00 00 00 22 F7
timestamp [unknown] | Sysex message: F0 00 00 7E 40 00 02 13 00 00 20 00 00 1F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 78 57 F7
test in 1 - ok
test in 2
{crossout added 081210}
<del> as above. View from top. Midi cable entering from the right. Going to name the pins from bottom to top, 1 to 5. Put the black lead from COM onto pin 4 and the red pin on 2 as I think this would match the negative and positve as it should. But I get a negative voltage of 0.71. Also it connects to the opposite optocoupler leg as I expect. I see the diagrams show “rear view” and I am guessing this explains it but I don’t what rear view means. It could mean either directions to me.
</del>
{text added 081210}
see above under TEST OUT 1 notes. Understand now.
{text added end 081210}
test in 3 - yep worked. Lit and then flickered as received sysex files. Had to change from smart mode as it didn’t work after the initial send as mentioned in test in 3 (pic won’t receive the data with LED connected)
test in 4 - didn’t do as led lit in the test in 3
test in 5 - “TEST IN5: If this doesn’t help you to detect the error, continue with the next step..”. This isn’t that clear to me. Should it read .. “if test 4 didn’t help continue with this step 5, otherwise move onto step 6” ??
test in 6 - should I be doing test 6 if test3 worked? Is it if 3 worked then go to 6? (this step). Test 6 worked
test in 7 - Open - about 5V. Closed - about 40mV.
..continued below
