Hi everybody!
I want to start a bulk order of SSD1306 OLED displays
Here are the technical details:
Controller:SSD1306
Pixels: 128x64
Panel Size: 26.70mm x 19.26mm x 1.85mm
Active Area: 21.74mm x 11.2mm
Module size:28.mm x 27.1mm
Dot Size: 0.15mm x 0.15mm
Drive Duty: 1/64 Duty
Support interface: 6800/8080, parallel interface, IIC, 4 SPI, 3 SPI
Voltage:3.3V
They are available in 3 different colors.

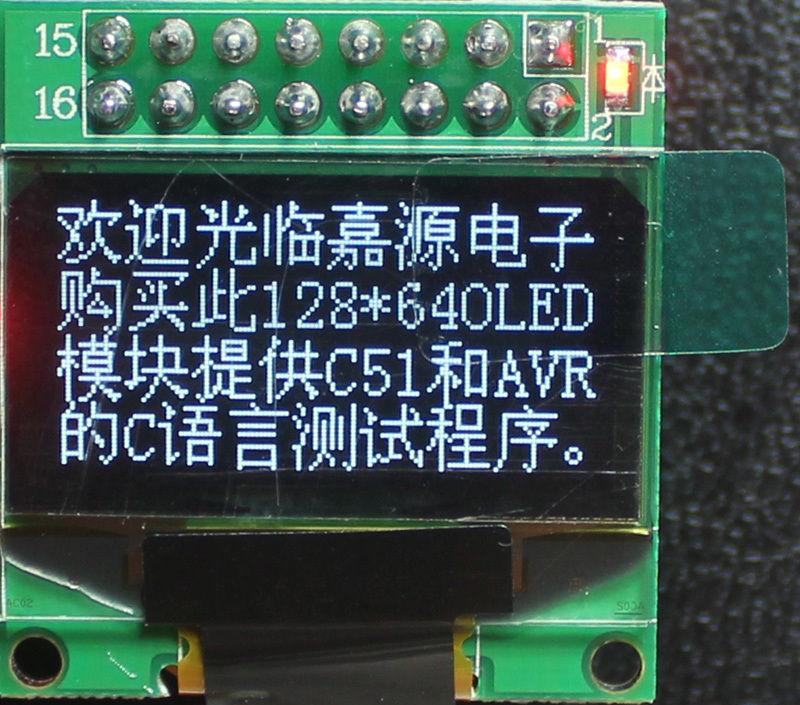

White

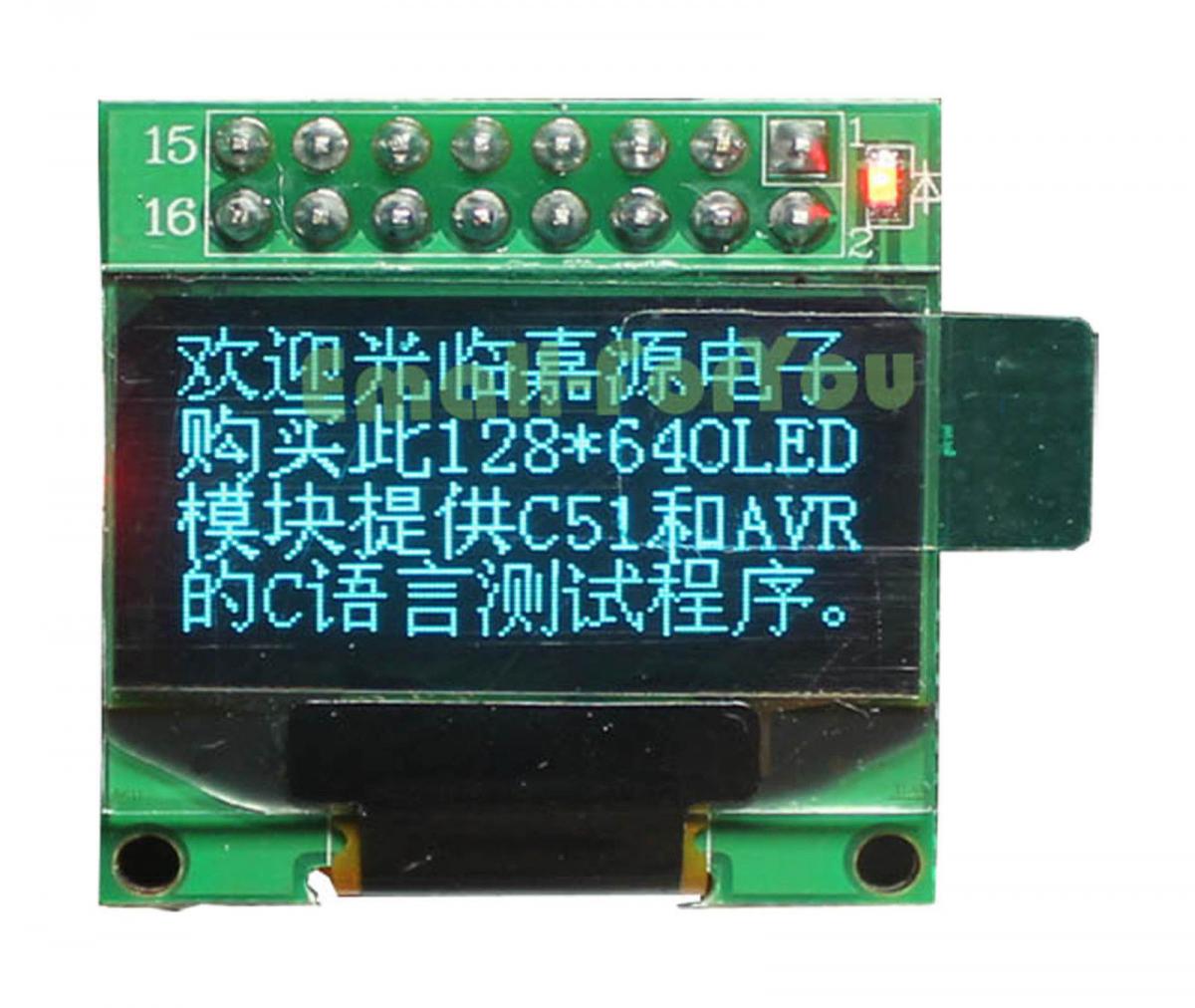

Blue

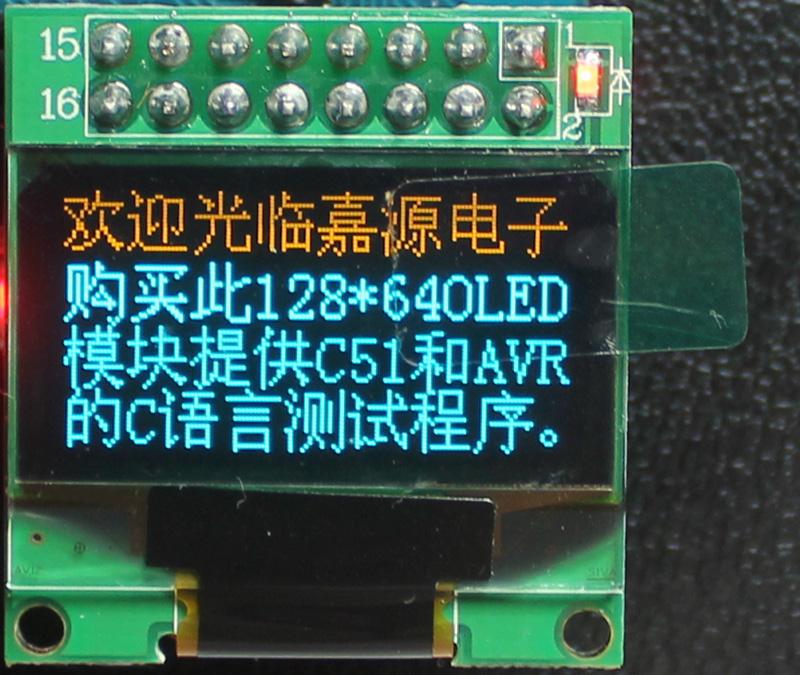

Yellow-Blue
The pinout is somewhat different than in Thorsten’s schematic but
i have already tested the displays and they are working without problems
on my LPC1769 and STM32F4 cores.
The Dealer offers following prices:
if ordered 1pcs = 5,80€ / 7,78$ per pcs.
if ordered >= 50pcs = 5,35€ / 7,18$ per pcs.
if ordered >= 100pcs = 4,66€ / 6,25$ per pcs.
if ordered >= 200pcs = 4,25€ / 5,70$ per pcs.
Everyone pays the same price per pcs.
regardless how many Displays he ordered
Shipping:
Germany (unversichert) = 1,45€
Germany (versichert) = 5,40€
International (uninsured) = 3,45€ / 4,90$
international (insured) = 7,10€ / 10,06$
(Shipping costs can be reduced
if the pin header is cut off
so the Display takes less space)
Orders can be submitted until 07 September 2014.
Shipping to me in germany will take 4-6 weeks.
Afterwards it will take another 3-30 days (depending on distance)
until all displays reaches their owners.
Payments can be done via Paypal.
(payments from germany can be done by bank transfer)
Paypal fees = 1,9% + 0,35€ / 0,47$
ORDER LIST
Simply reply to this topic and write down your name, quantities, display color and shipping destinaion.
Use your full and correct forum name, so I can reach you via PM.
Everybody gets an order confirmation and
an invoice after the order deadline
By putting your name on the list you agree to the terms and conditions described here:
nils [MIDIbox]_bulk_terms
Best regards
Marxon
