Socrates midibox

Design Concepts
1

Hello,

here is my new design. I was making it using autocad for panel drills etc, but I thought it would be good to share my design and wait for comments for it. Anyway, HERE IT IS. I was inspired by Traktorizer midibox and Allen & Heath Xone D series controllers, so my design will be like these I mentioned. Any comments welcome :slight_smile:

2

Offsite doco bad… :wink:

5378controllerjpg1a3665a5277a68314ee4b73f74570abc
5378controllerjpg1a3665a5277a68314ee4b73f74570abc490×595 44.5 KB

5378controllerjpg1a3665a5277a68314ee4b73f74570abc
5378controllerjpg1a3665a5277a68314ee4b73f74570abc490×595 44.5 KB

3

Tell me how to make it better :slight_smile:

P.S.

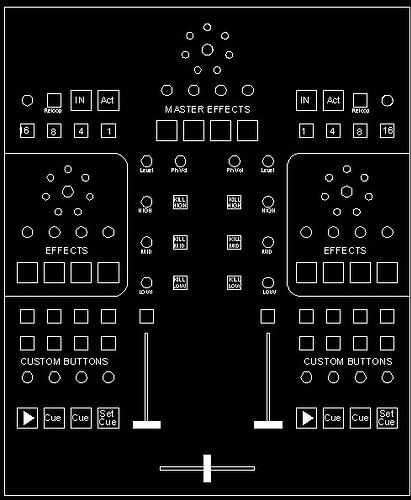

All round holes are pots/encoders.

All small round holes are 5mm LEDs

All bigger squares in series of 4 are illuminated buttons from sparkfun.

All bigger squares in Loop section are illuminated buttons samples from omron afaik.

All smaller squares are simple buttons.
