SD Card Pin Out Conversion Help...

MIDIbox SEQ
1

Hey I need some help translating the pin out from the SD card reader that I purchased to the pin out of Thorstens… Some of them match but then some have a different naming convention and i am unable to figure out by following the traces on the reader… BTW I got the card reader from Deal Extreme… This place has lots of stuff cheap and free delivery… I have bought lots of cables and a Arduino development kit for $50 from there…



Thanks…



bri.

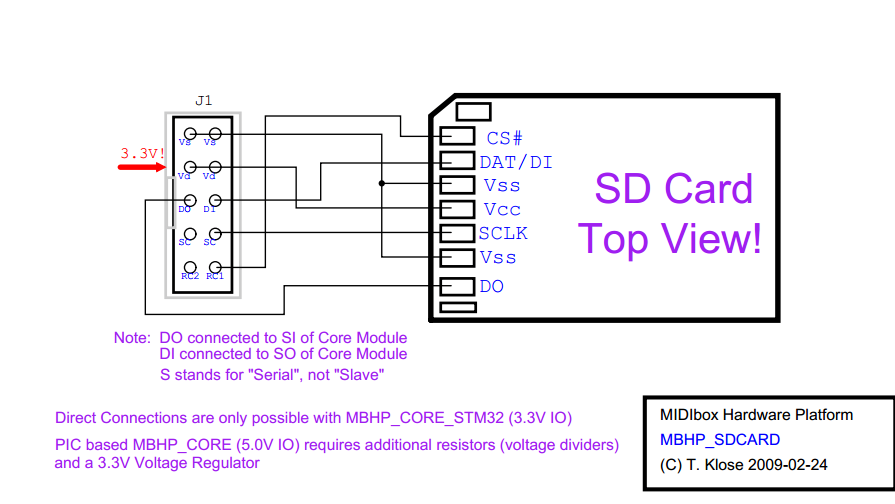

post-5116-0-52135600-1392039399.png895×504 64.5 KB

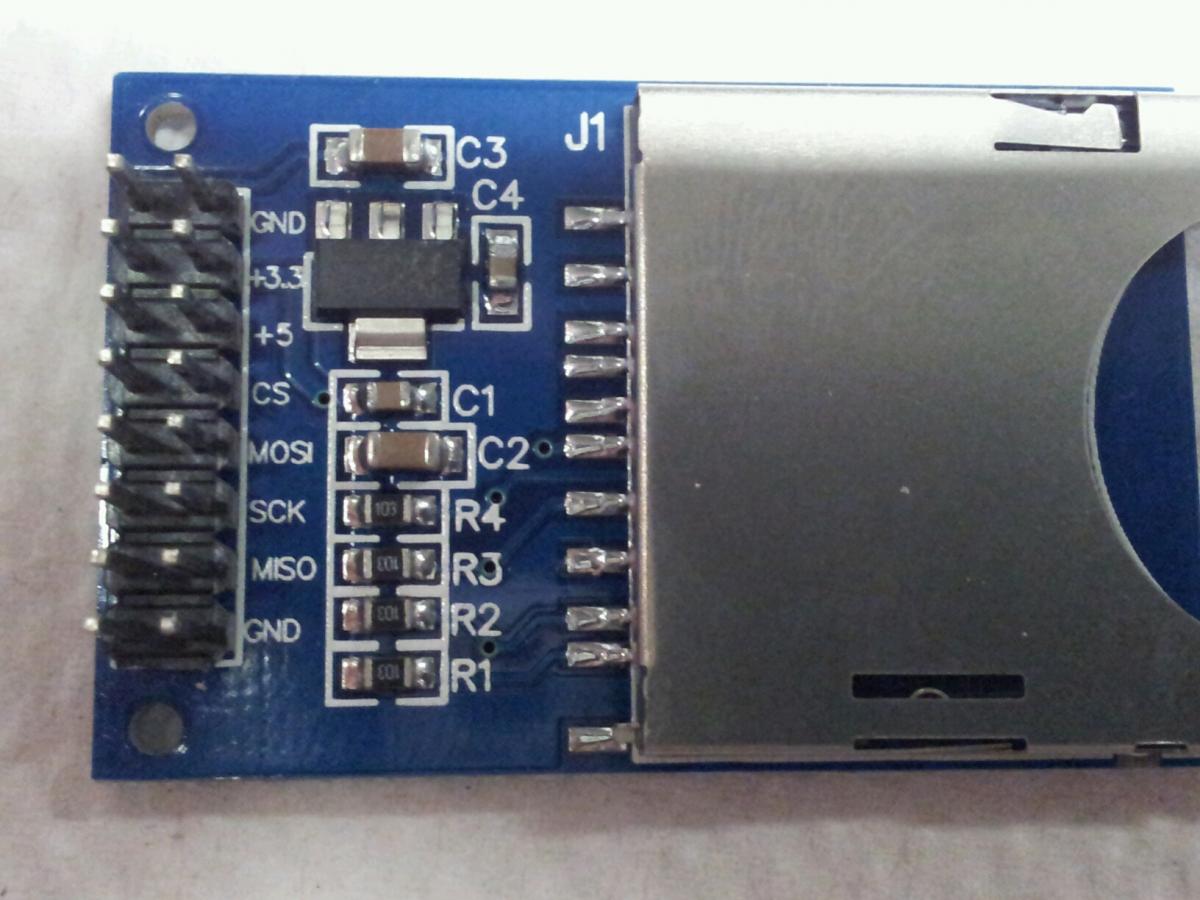

post-5116-0-92477400-1392039460.jpg1200×900 99.7 KB

2

Looks the same as the 1 i am using. The main thing being you just connect the 3.3v and ignore the 5v. So try this: cs=rc1 mosi=so sck=sc miso=si

3

Yes I have these too!

Dox here:



http://discourse.midibox.org/t/topic/16864

4

Thanks guys your the best… Have bookmarked that link…
