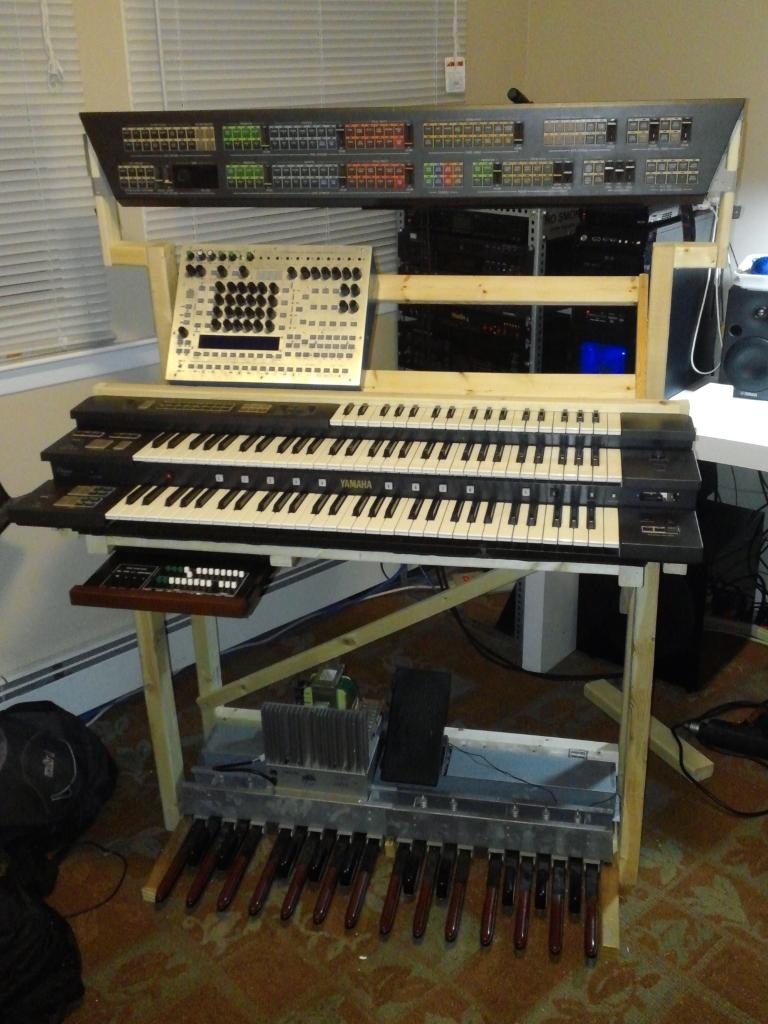

Electone FX-20 master controller, in progress
See /topic/19298-yamaha-electone-fx-20-master-controller/?do=embed" frameborder=“0” data-embedcontent=“”>
Electone FX-20 master controller, in progress
It works! This is just the organ with no mods yet–well, other than removing the amp, speakers, and amp PSU, not to mention building a custom stand…

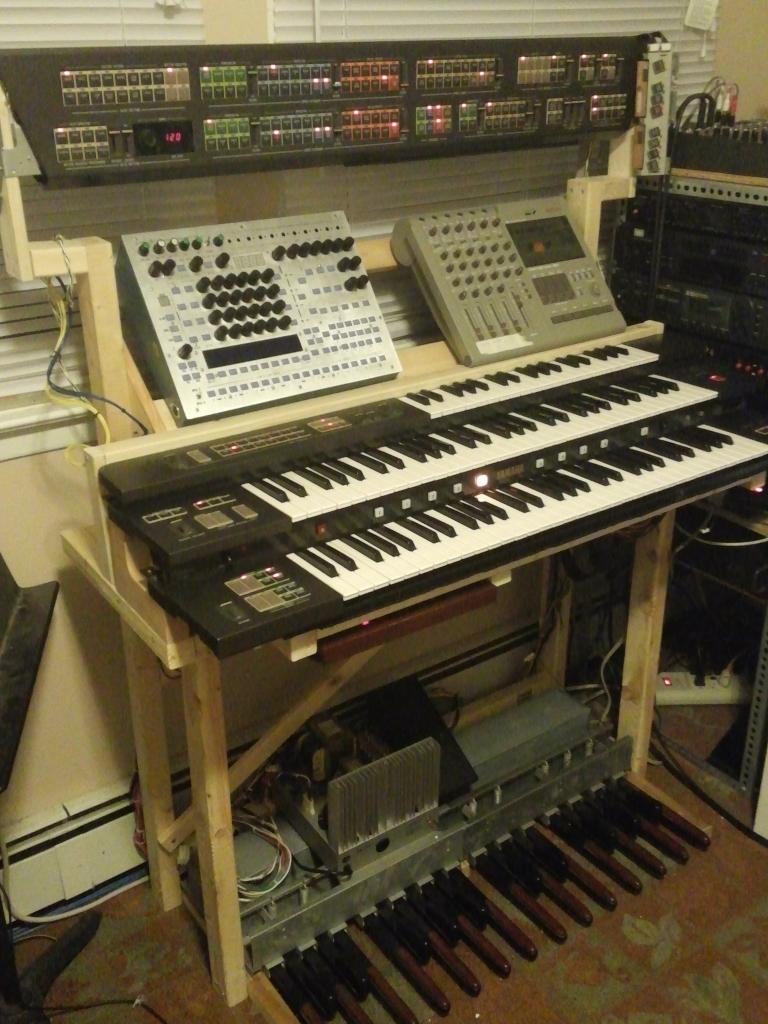

Modded Electone FX-20 - Organ with processor board
See /topic/19298-yamaha-electone-fx-20-master-controller/?do=embed" frameborder=“0” data-embedcontent=“”>

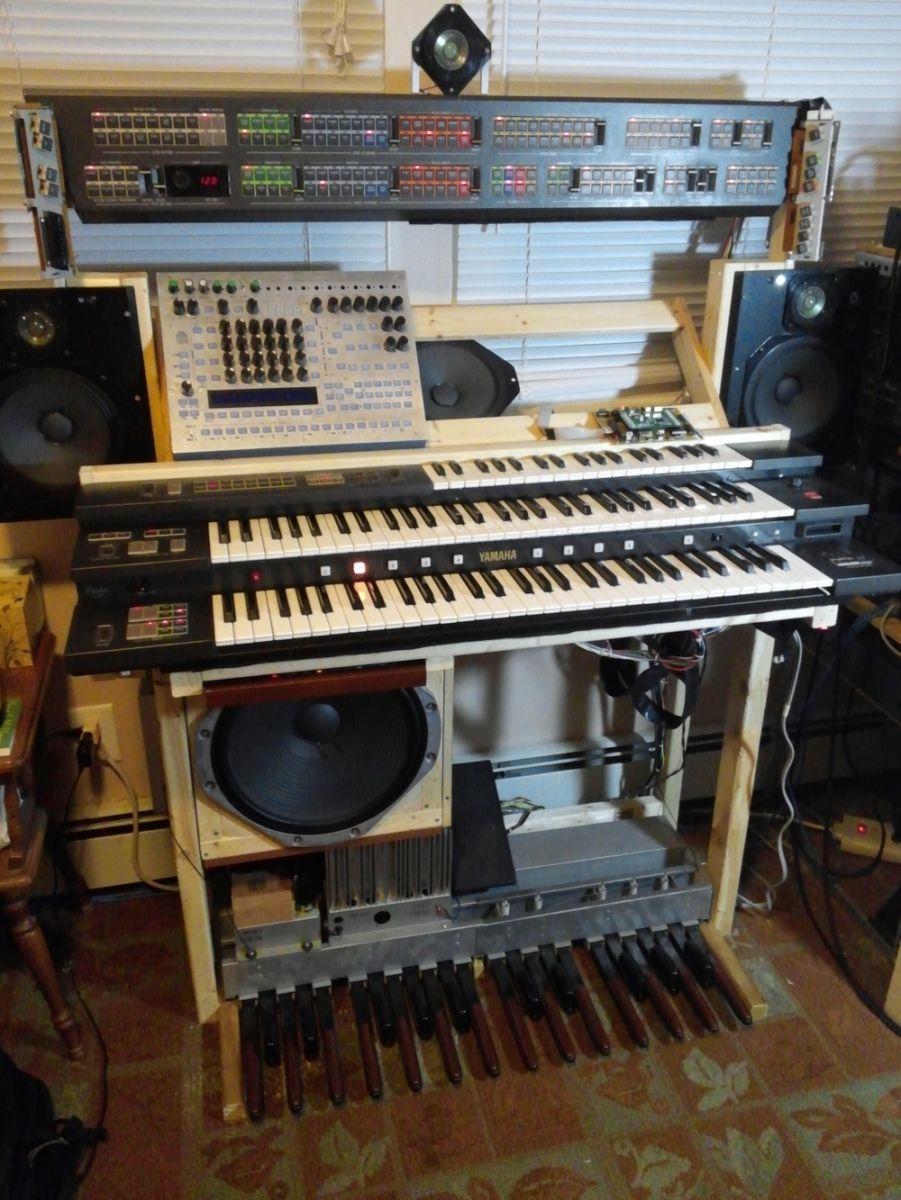

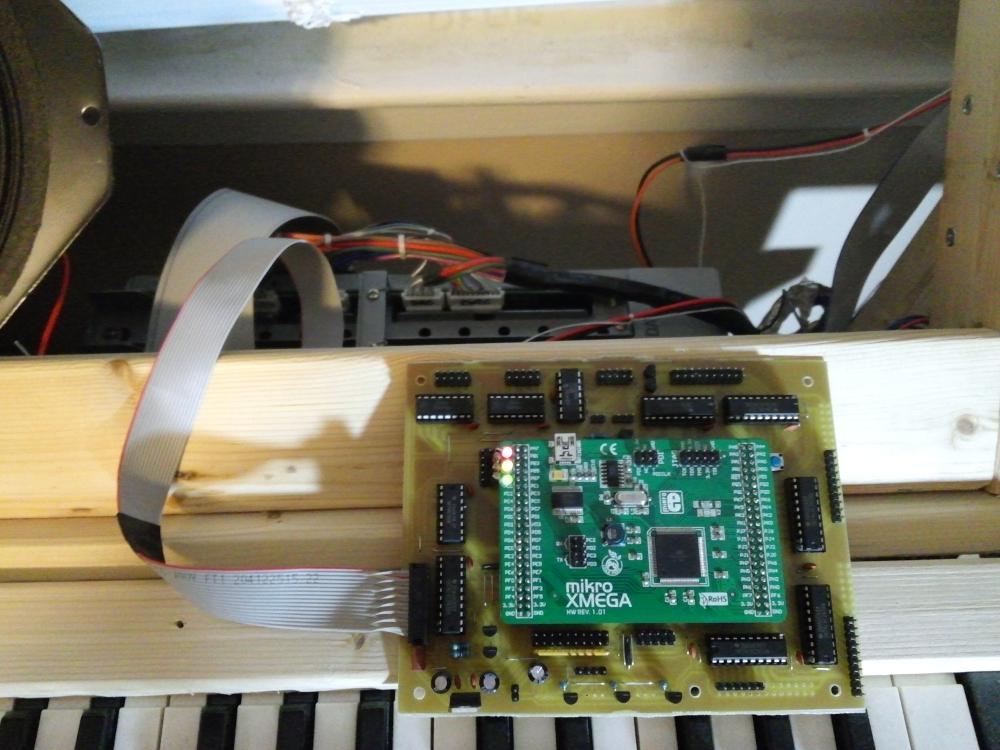

Modded Electone FX-20 - Processor board connected
See /topic/19298-yamaha-electone-fx-20-master-controller/?do=embed" frameborder=“0” data-embedcontent=“”>

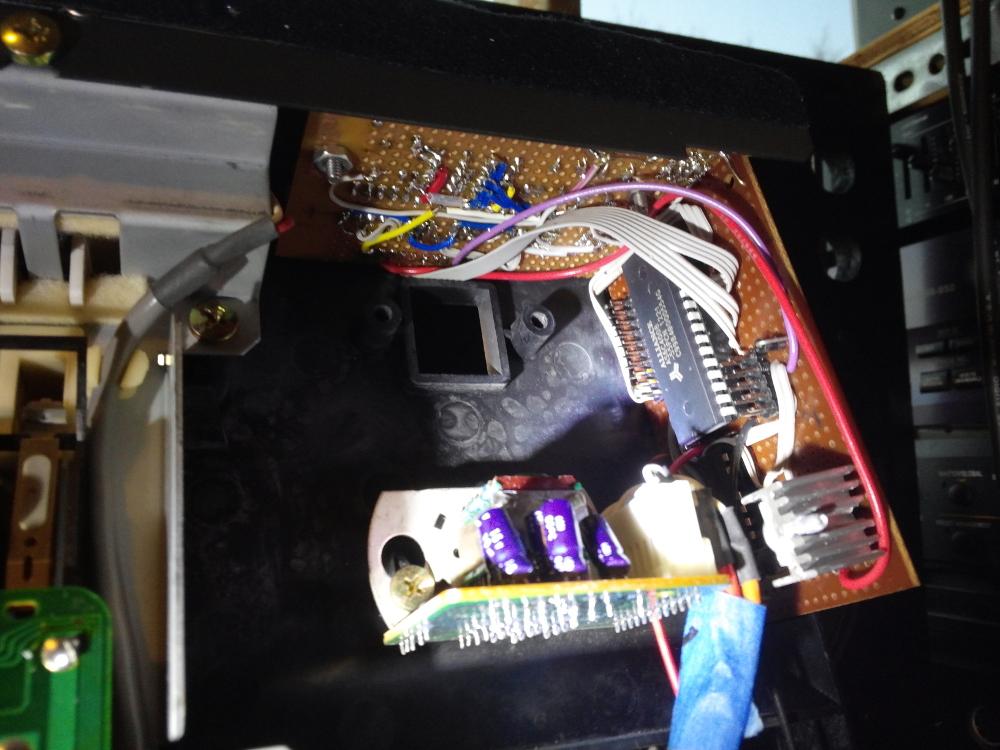

Electone FX-20 - custom memory board insides (not working)
The Electone saves on memory cards which are a 2kb SRAM with backup battery. I had some 512kb SRAMs lying around, so I decided to make a custom memory unit that would allow the user to select one of 256 “banks” (upper address bits) and show the organ the other address and data pins. The memory is backed up with a supercapacitor instead of a battery, so every time the organ is turned on it recharges. With the exception of the supercapacitor, all the other parts used here were spare parts or salvaged, I didn’t buy anything!
It was a great idea in theory, but not so much in practice–the bank-selection circuit works, but the organ shows an error when trying to read or write. Guess I’ll troubleshoot it later.
Here you can see the insides–the top board is the user controls and bank selection, the right side board is the SRAM, logic, and regulator.

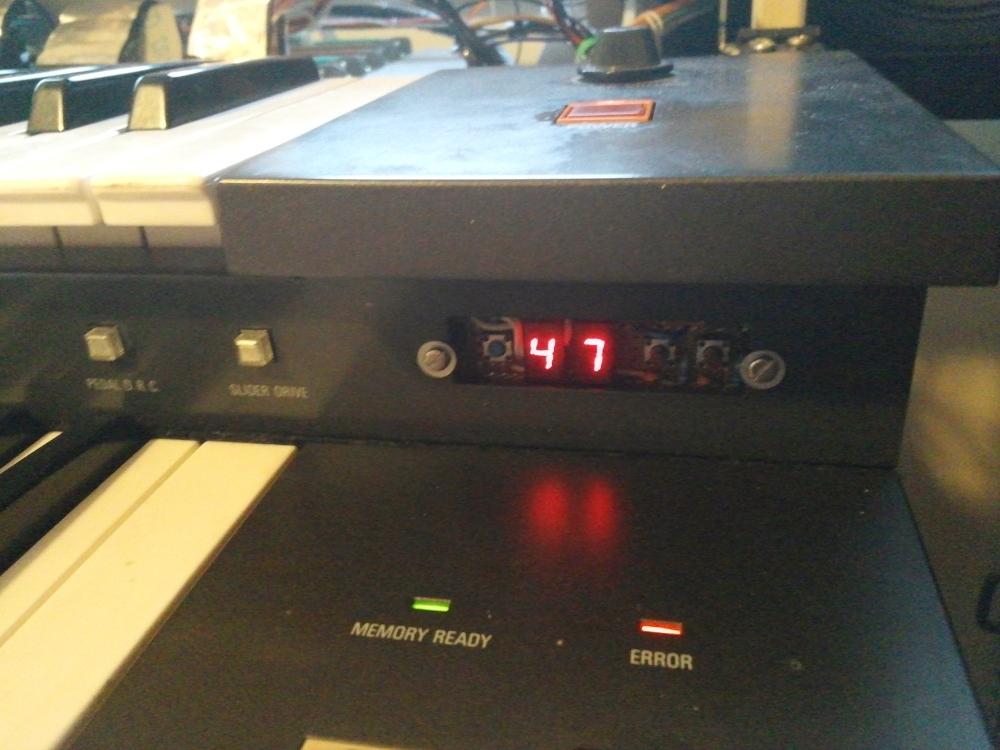

Electone FX-20 - custom memory board (not working)
The Electone saves on memory cards which are a 2kb SRAM with backup battery. I had some 512kb SRAMs lying around, so I decided to make a custom memory unit that would allow the user to select one of 256 “banks” (upper address bits) and show the organ the other address and data pins. The memory is backed up with a supercapacitor instead of a battery, so every time the organ is turned on it recharges. With the exception of the supercapacitor, all the other parts used here were spare parts or salvaged, I didn’t buy anything!
It was a great idea in theory, but not so much in practice–the bank-selection circuit works, but the organ shows an error when trying to read or write. Guess I’ll troubleshoot it later.
The two digits are incremented separately with the buttons on the right and show the number in hex on the LED displays. The button on the left resets both. It was the simplest scheme I could come up with using only a handful of logic chips.
