[S]8x2/4x2 PCB LED-Ringer-Encoder

Fleamarket
1

8x2 and 4x2 Boards are welcome

sutffed with parts or not, if anyone have spare ones.



thx - phat

2

Yo Phat,

I have 4 of Fairlightiis original 8x2 boards in stock, a bunch of pushable STEC12E08 12mm Alps encoders (need to be pinbent to fit in the 16mm slots!) and transparent Waldorf Knobs, > 1024 powerful enough green LEDs (for the 16x16 LEDmatrix), ULNs to boost those LEDs, chip sockets, matching resistors for the LEDs and most necessary shift registers available, that I am willing to let go. Basically, these are most parts necessary to build another Programma :-). I wanted to extend the Programma to double size, but this will probably not happen due to time (baby, awesome but time-intensive! :slight_smile: and space reasons.

Selling only, if you take the whole pack. I’d accept keeping the encoders, if you want easier life by soldering in some 16mm ones :slight_smile: If you are interested, write me a PM, I will look up everything and sum it up, selling 1:1 for the original purchase prices, but you will save on shipping, as it comes from one source, only :-).

Many greets!

Peter

3

ok 8x2 i have now (hawkeye)



now i need 2x   4x2 PCBs

4

Ok, documenting the MIDIbox LEDring wares to be handed over to the next blinkinglights enthusiast :slight_smile:

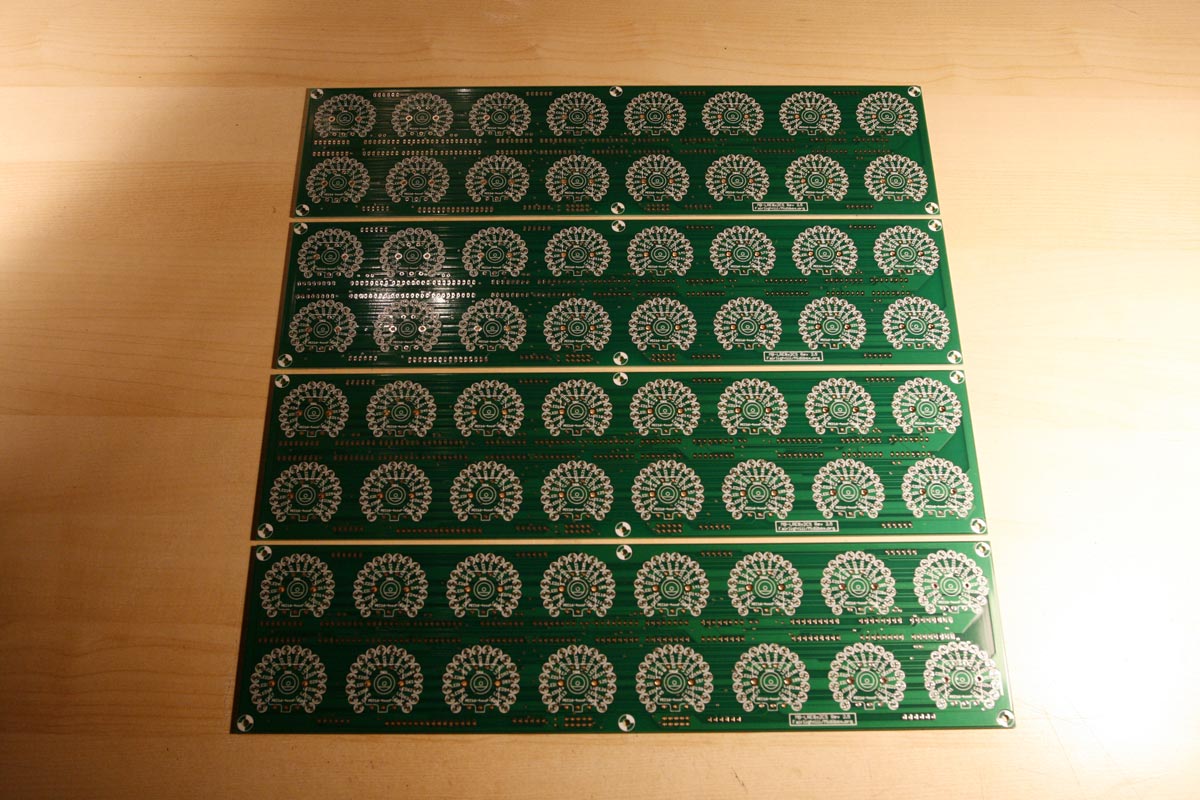

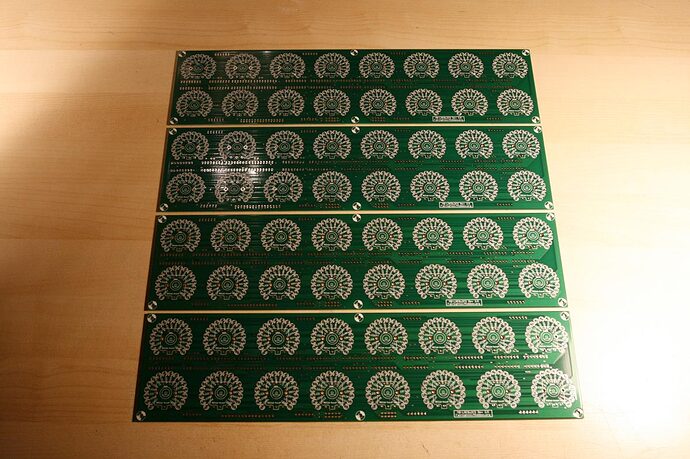

phat1.jpg.84862e252f952dd27c997868ced375e6.jpg1200×800 187 KB

4x LEDRing boards 8x2



phat2.jpg.948fca4a52ee84700f2e17f9a806a920.jpg1200×800 95.7 KB

64 + 2 spare Waldorf transparent knobs



phat3.jpg.d2ae8522176effa362abee95683ff136.jpg1200×800 114 KB

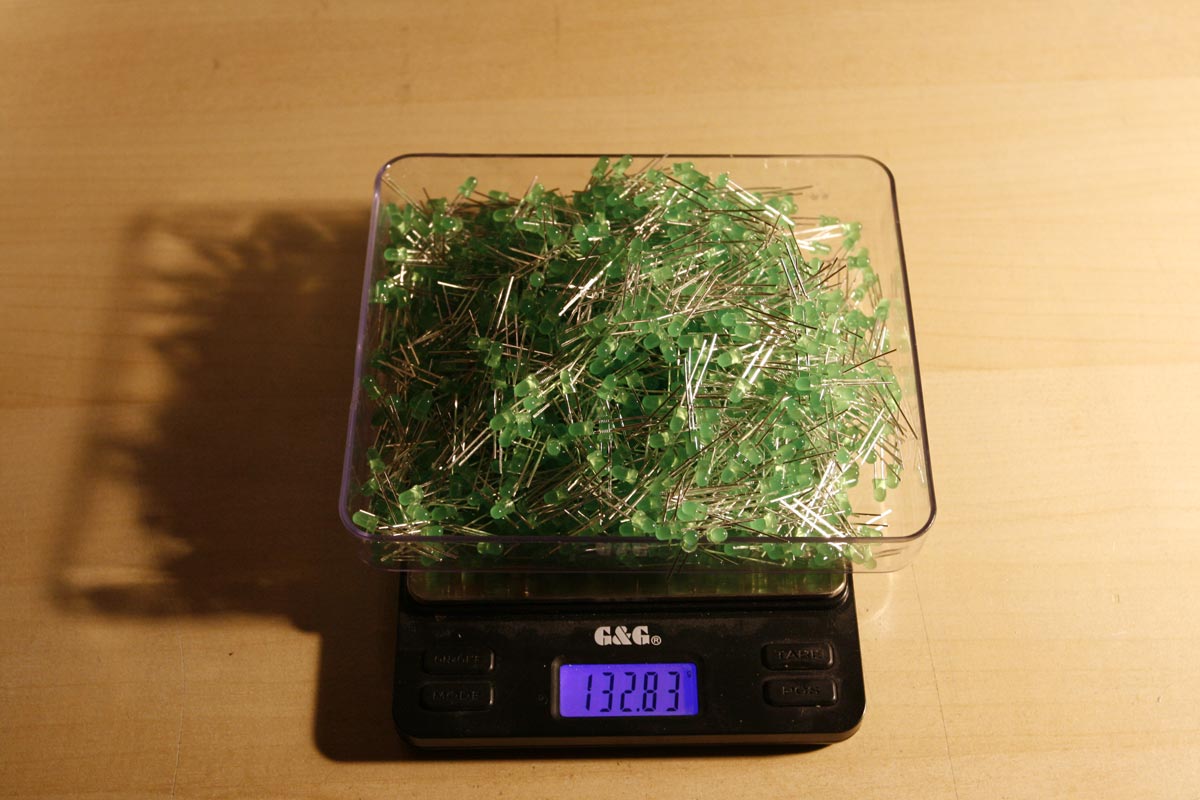

about 1200 green LEDs suitable for the LEDring boards (100 LEDs = ca 11 grams). Yes, i now sell these by the kilo :slight_smile:

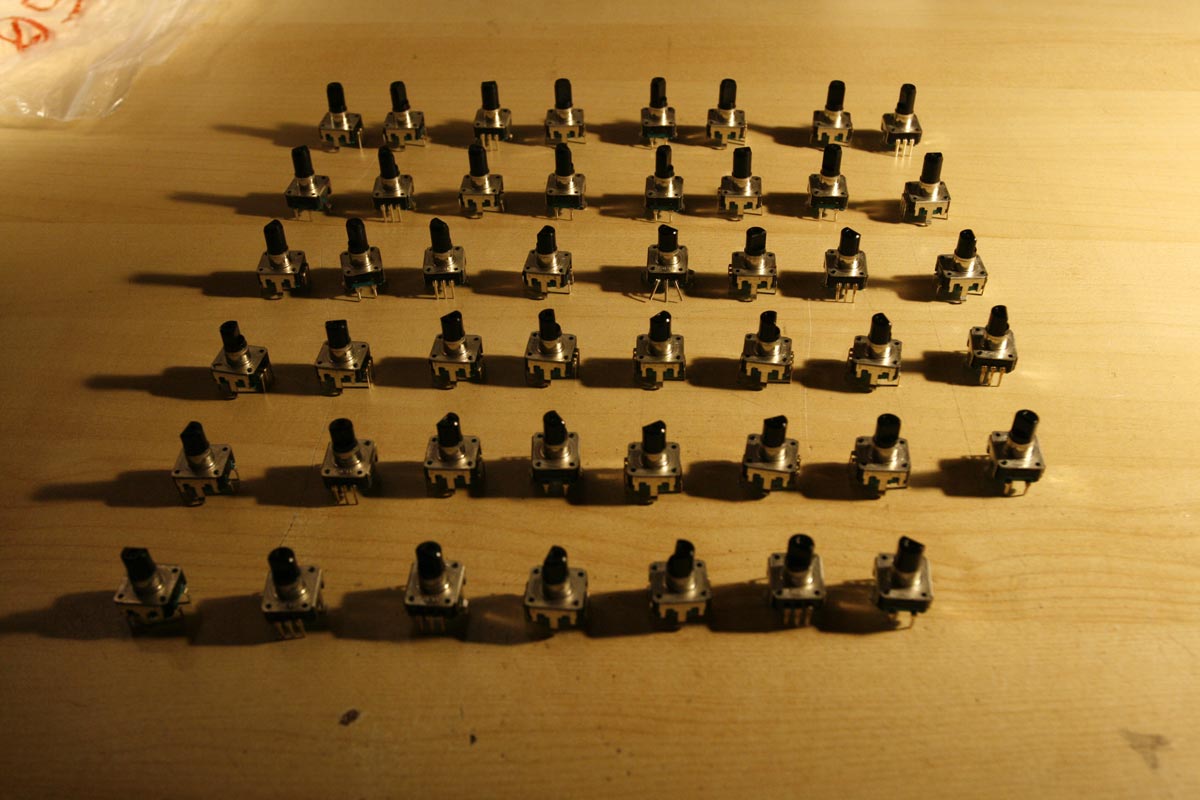

phat4.jpg.c1fa9210a1e26f74018e868fe69658bd.jpg1200×800 109 KB

a bunch of pushable ALPS STEC 12mm encoders (only 47 pieces, need to buy a few more). Unfortunately they have different shaft lengths and they are 12mm (needs pinbending), so I’ll sell them cheaply or make the purchase optional :slight_smile:

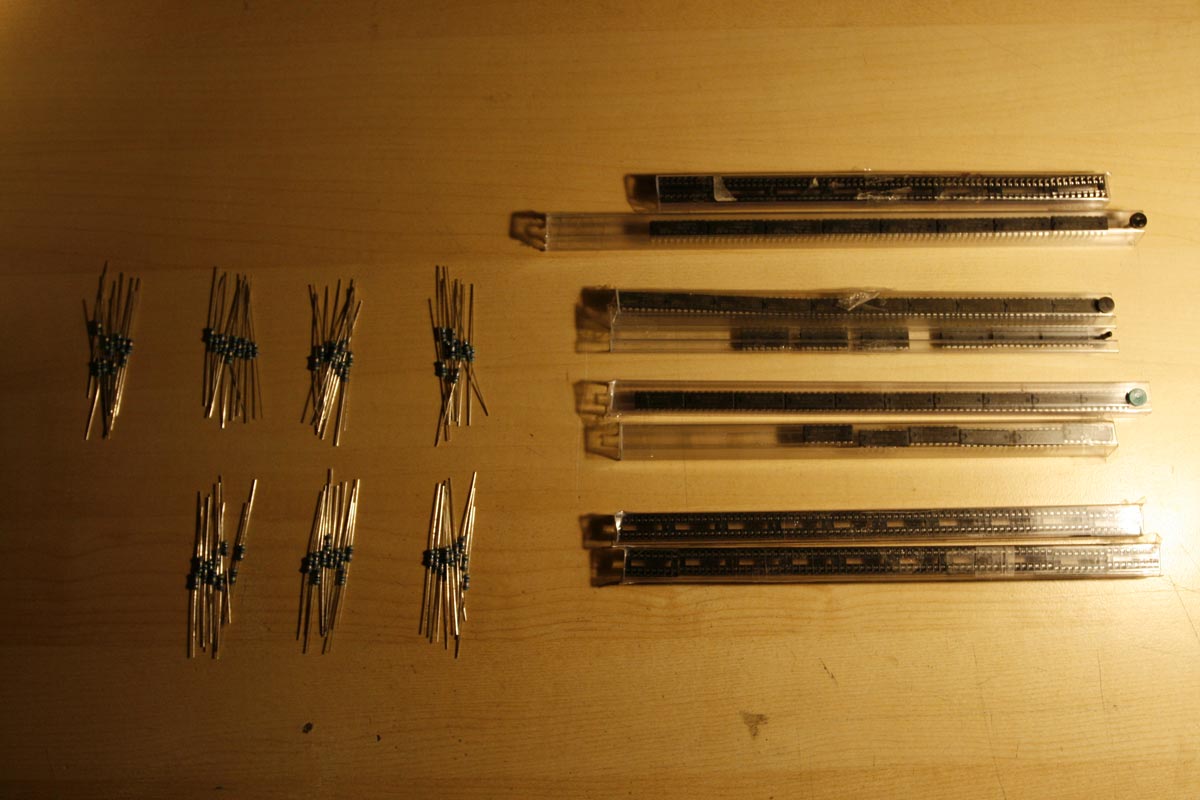

phat5.jpg.a522c96b5461f9ad653859ccc36f79e7.jpg1200×800 96.6 KB

and a bit of thru-hole hardware:

70pcs 47R (yes, that is the correct value for these LEDs in a 16x16 matrix) resistors. (6 spare)

8pcs ULN2803 + 8pcs 18pin sockets (these are not standard sockets for MIDIbox projects, so i include them :-))

16pcs 74HC595 (output shift registers)

16pcs 74HC165 (input shift registers)

(without 16pin sockets)

Still needed: a few 100nF caps, some resistor networks, and IDC sockets to connect to the core…

Calculating total price now and sending via PM :slight_smile:



Many greets and enjoy,

Peter
