Album by rvlt
Gallery category: members-gallery
IMG 0214

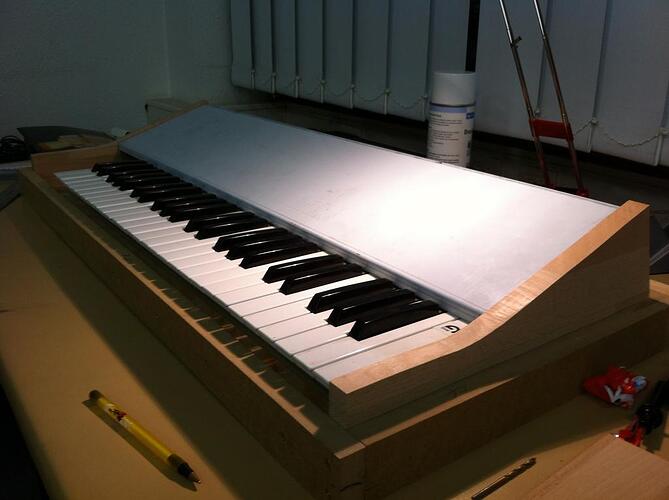

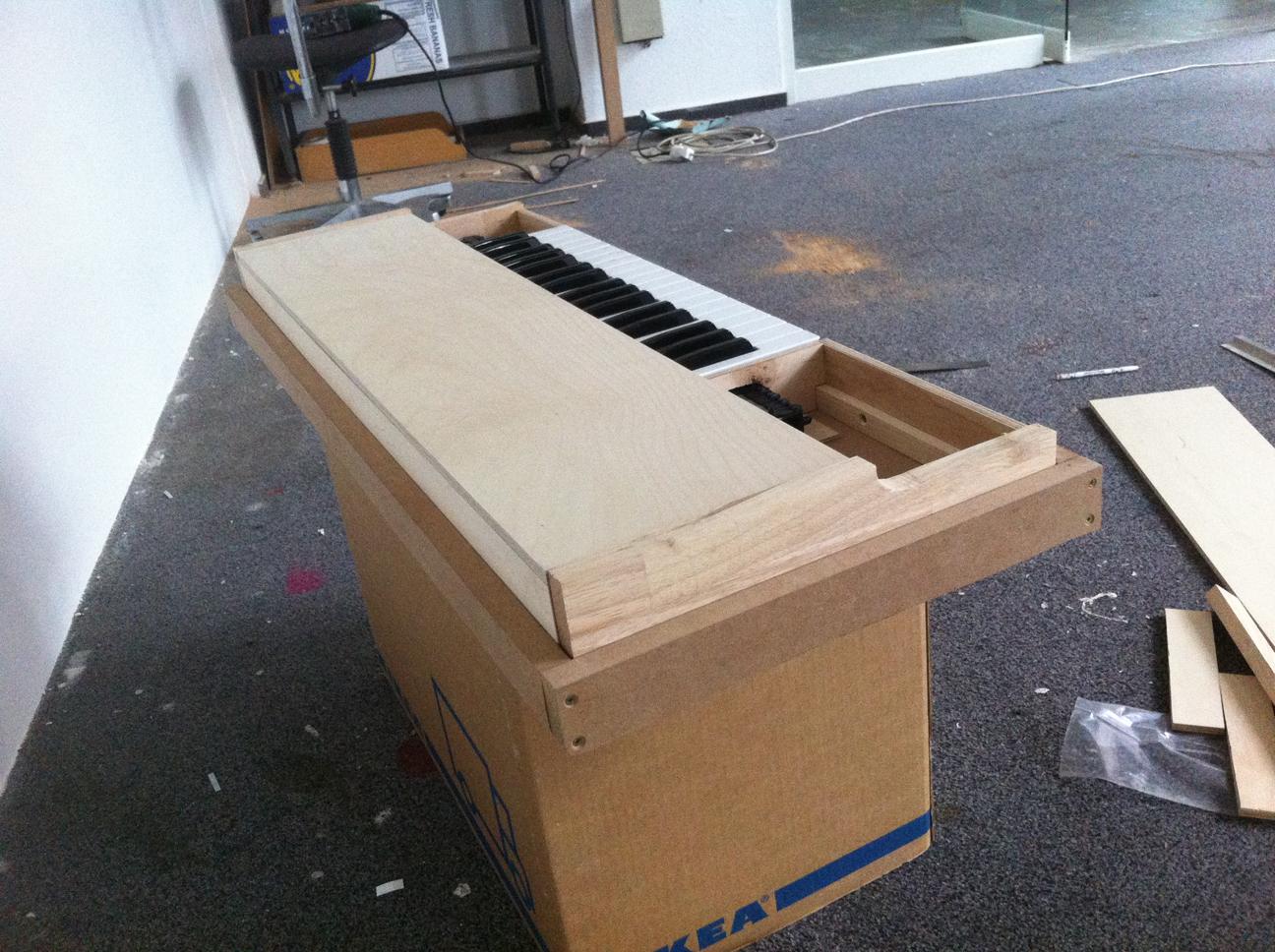

finished all the wooden parts
IMG 0222
tolex’d …
IMG 0227
… and painted
IMG 0228

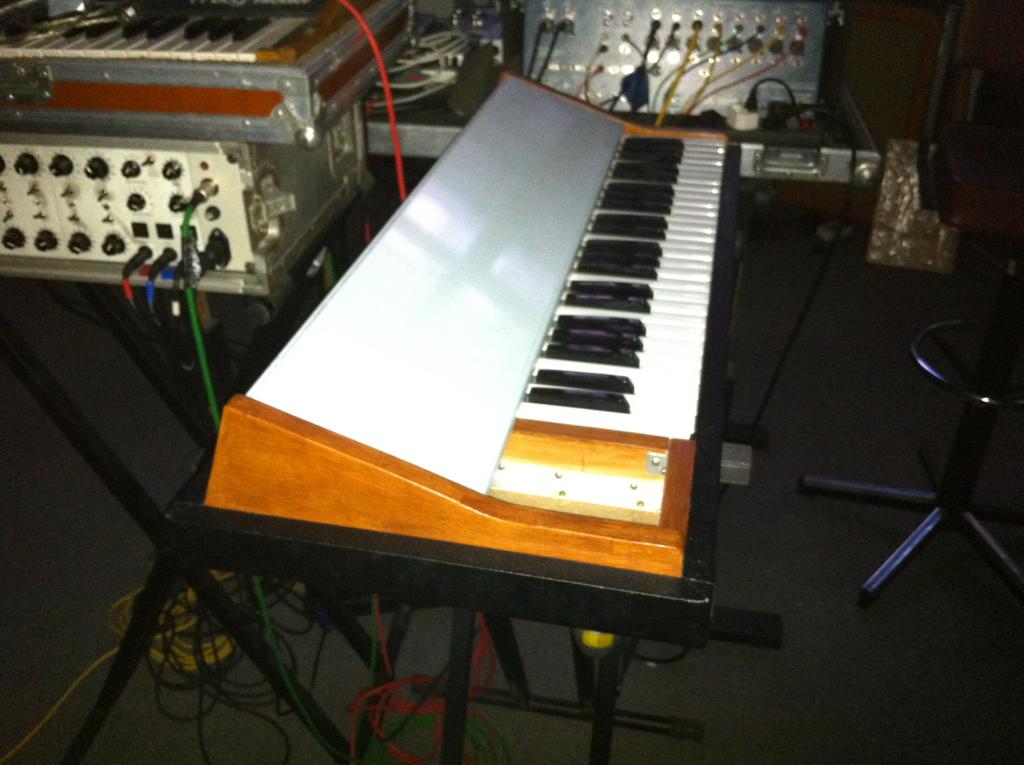

checking with the rest of the live setup
IMG 0234

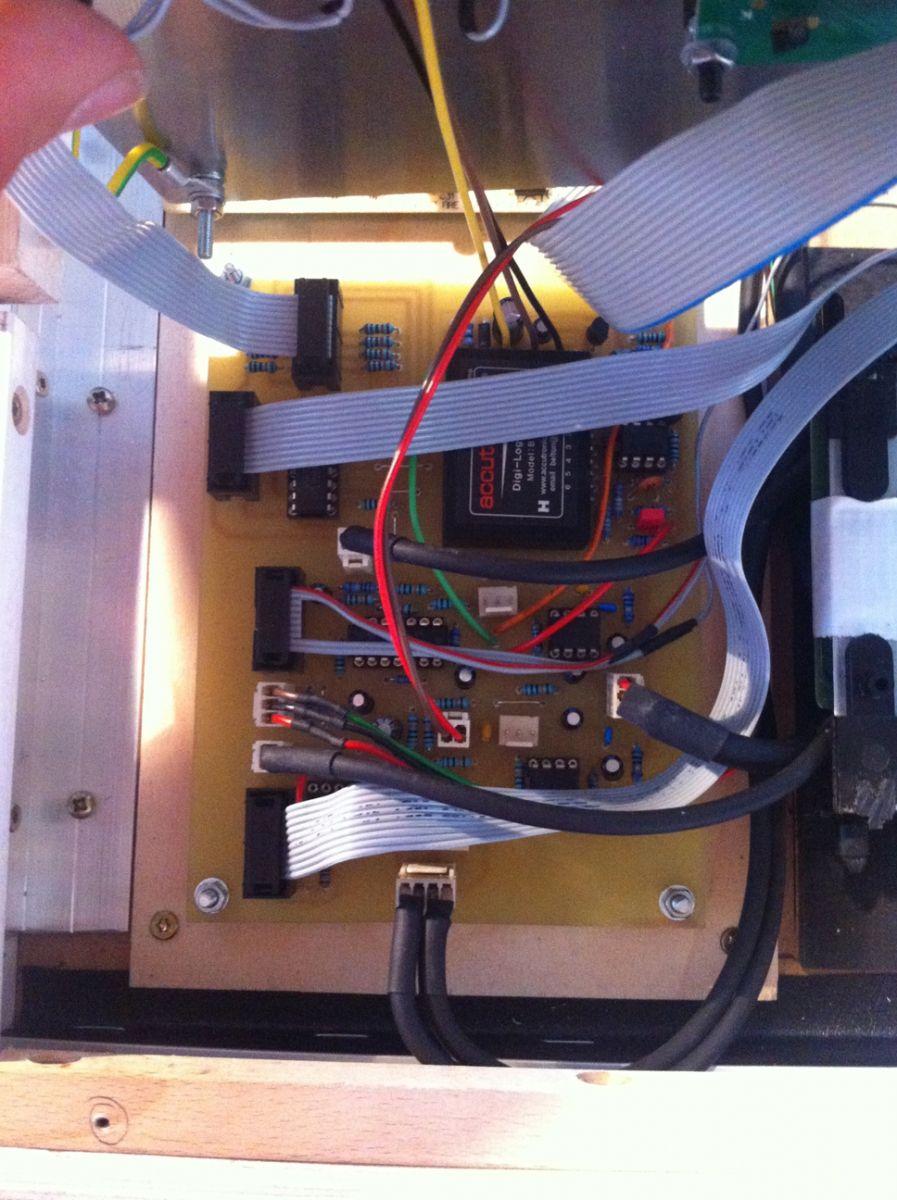

some internals: the PSU on the right is from an old EMU Esi32, in the middle the main pcb form a old miditech keyboard, and far left is a Core8 + DINX2 + Bankstick
IMG 0237

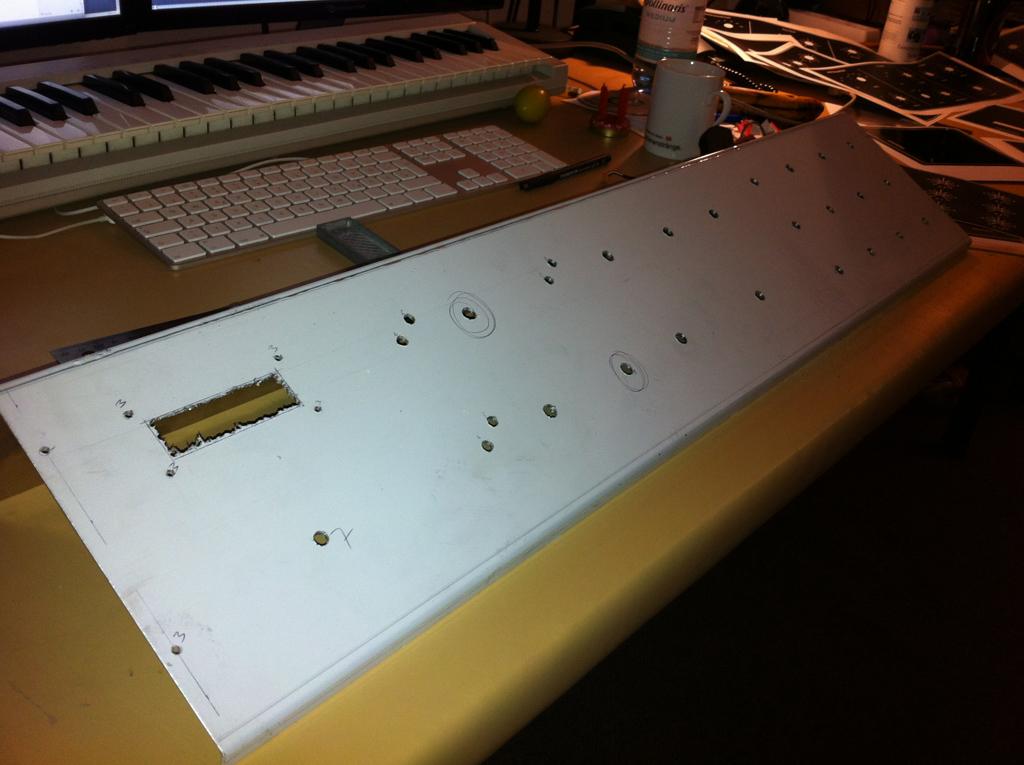

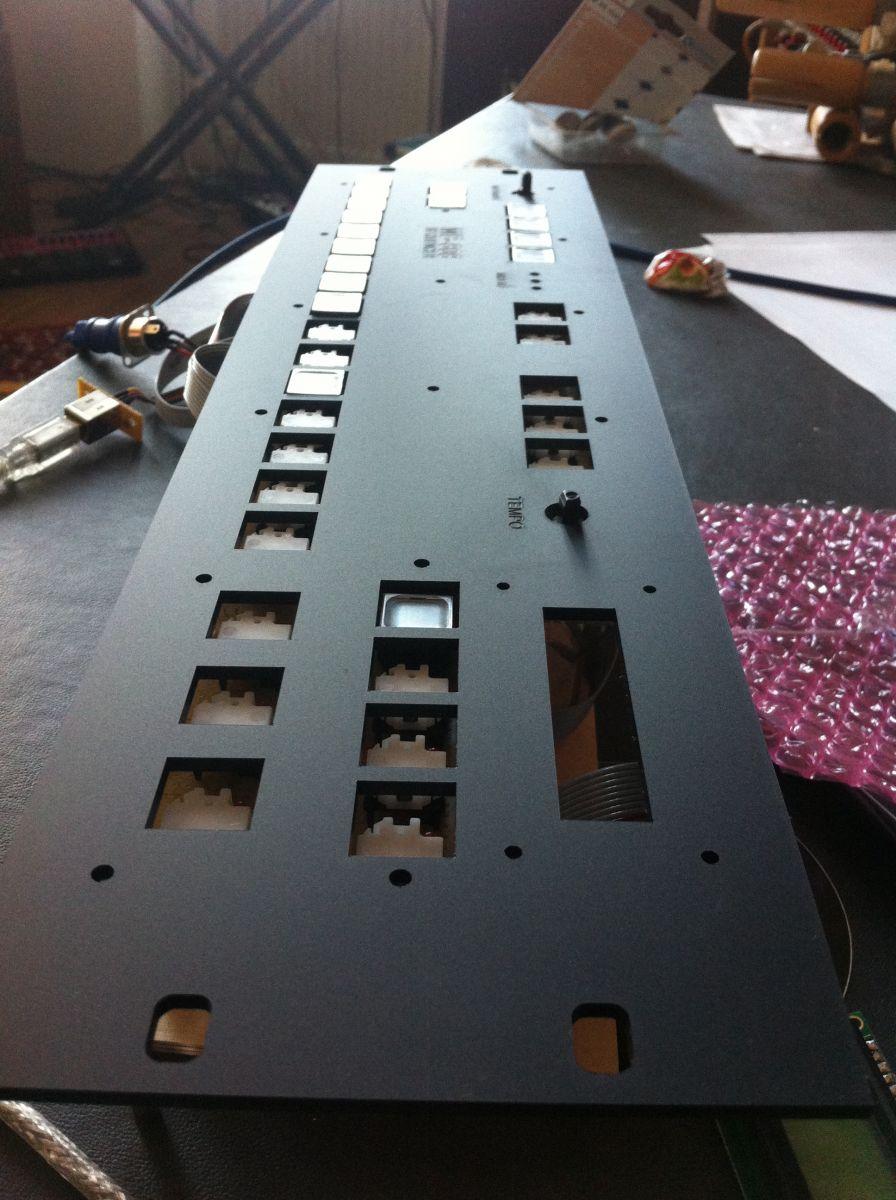

drilling the front panel
IMG 0241

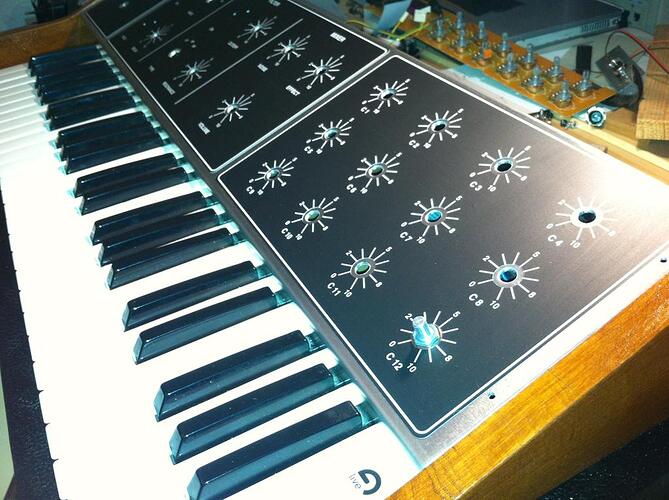

attaching stickers
IMG 2716

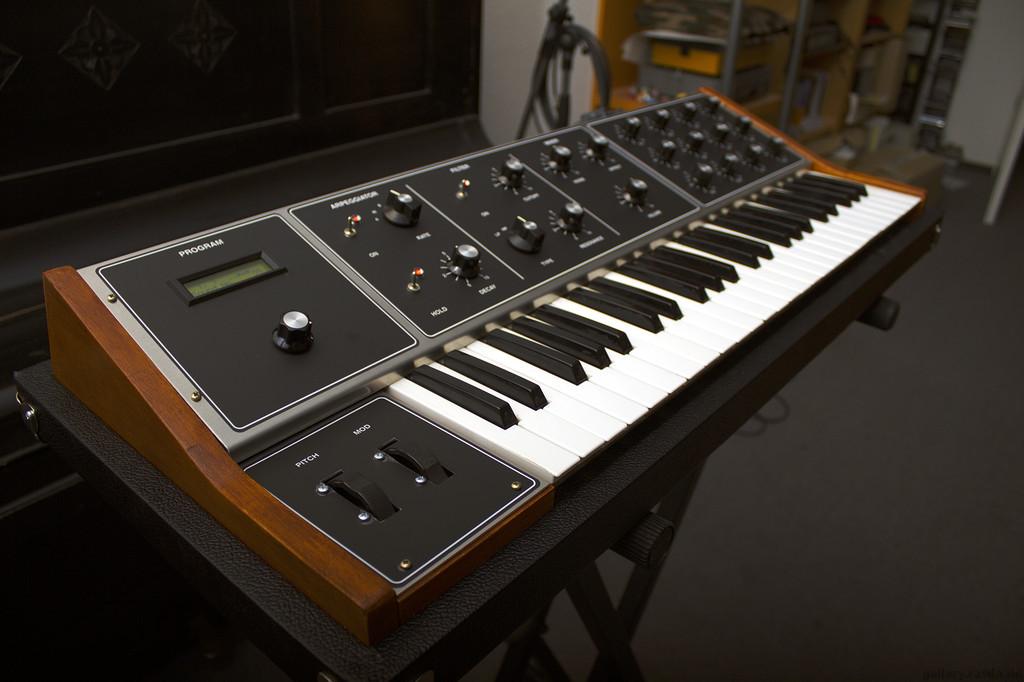

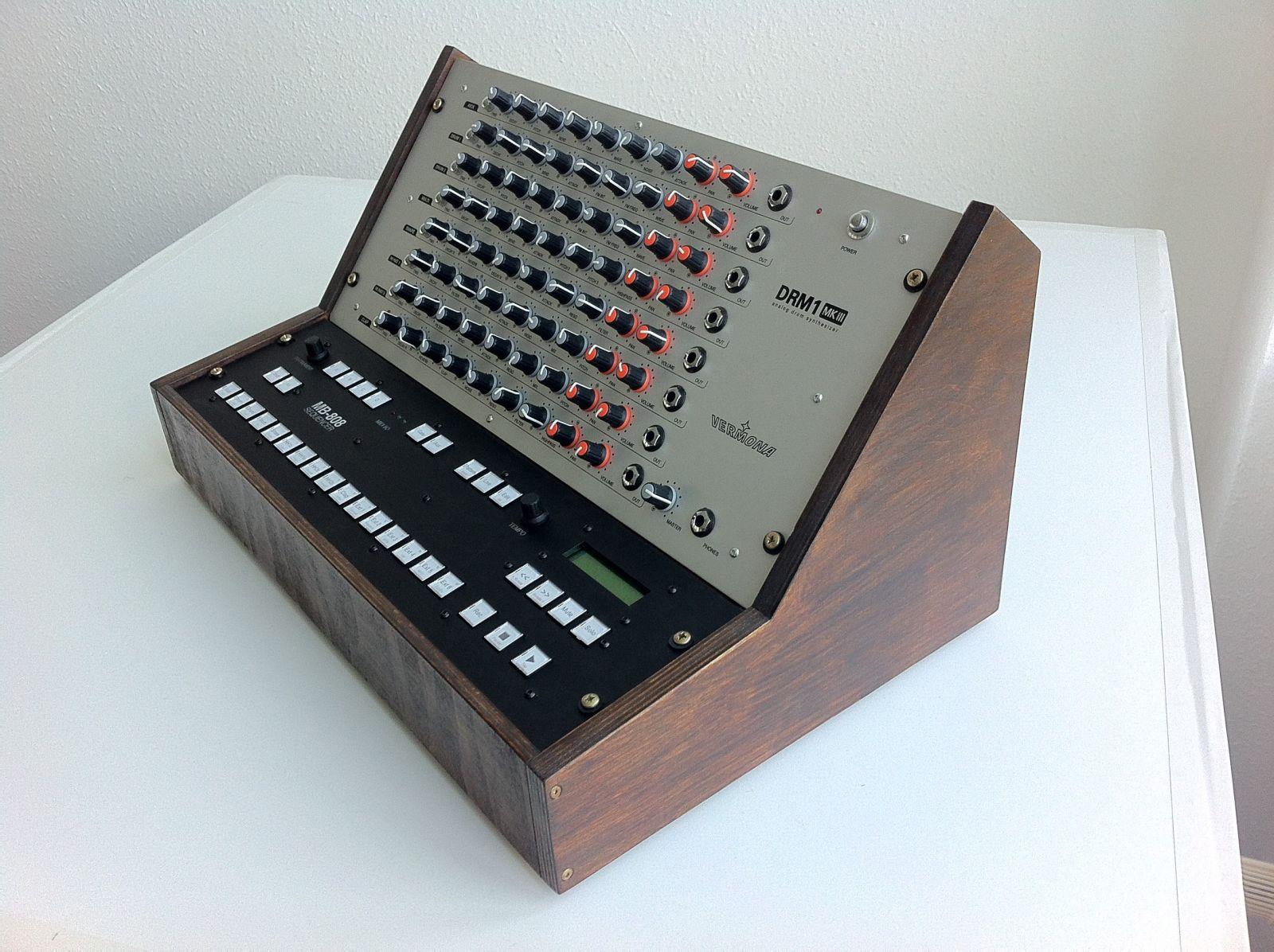

finished!
IMG 2745
IMG 2761
IMG 2771
IMG 0050

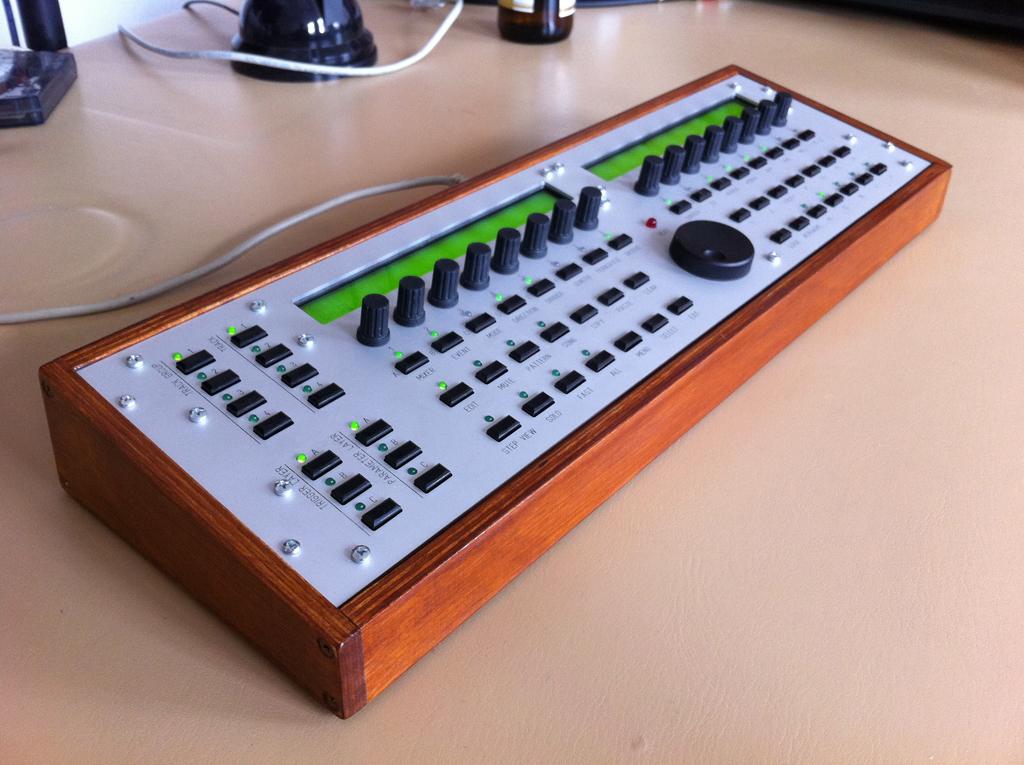

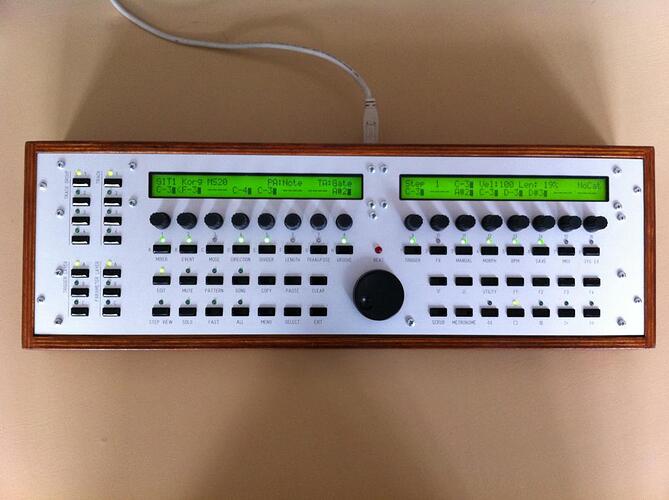

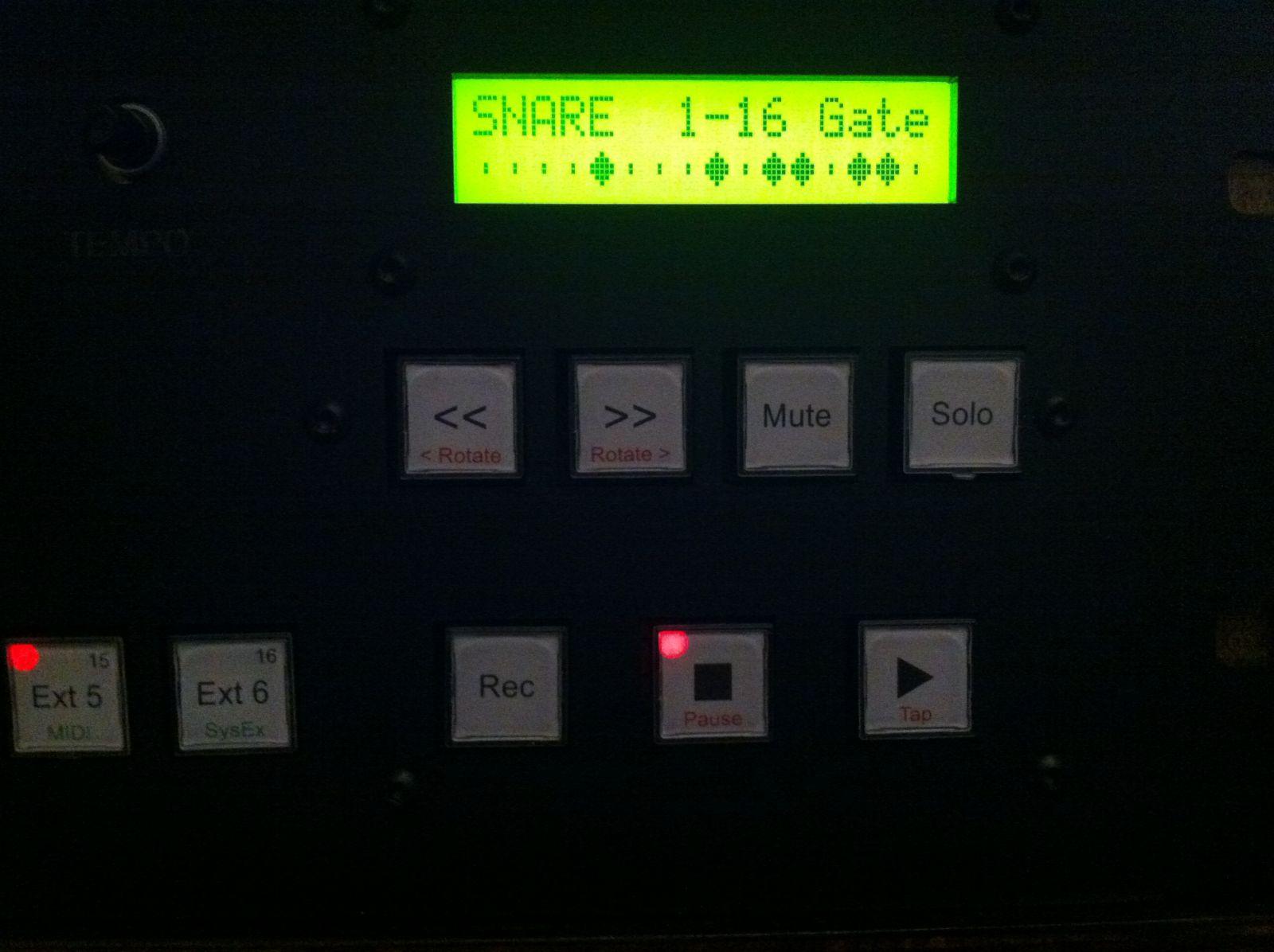

My MB Seq V4 I finished last summer. Front panel is from www.thebeast.co.uk and looks pretty nice. still haven’t finished the back panel. On the inside is a core32, a mb seq pcb, sd-card and a self etched "2x IIC Midi + MB-Eth". Sorry, got no inside shots at the moment.
IMG 0051
IMG 0052
IMG 1099

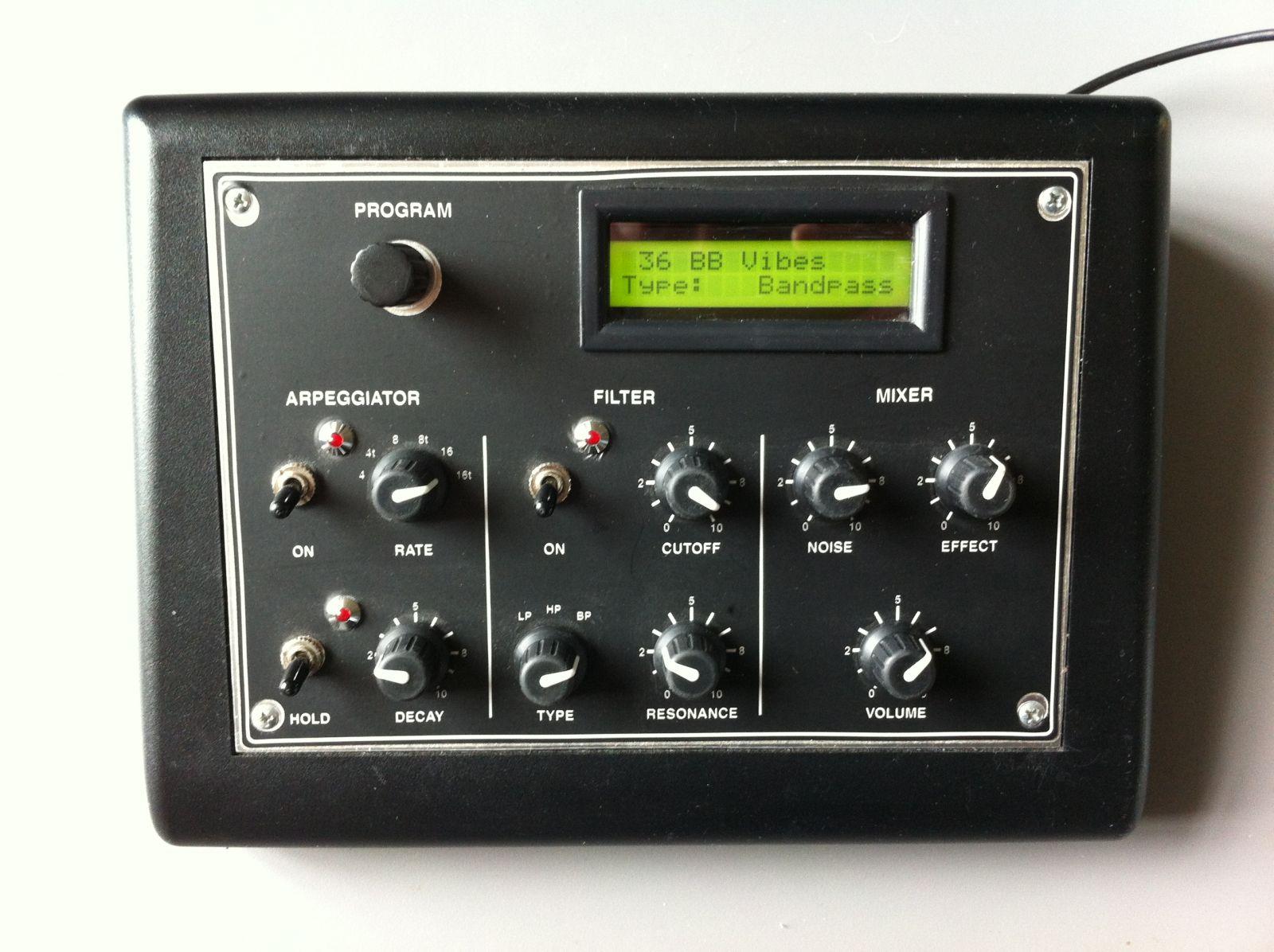

Finished mini-controller for live-use
IMG 1100
IMG 1101
IMG 0971

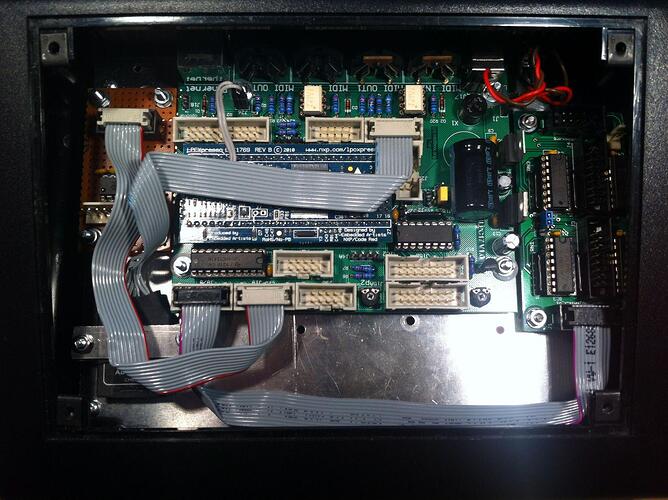

Inside is a LPC17, DIO_Matrix, SD-Card and a AINSER8 (breadboard).
IMG 0972
IMG 0973

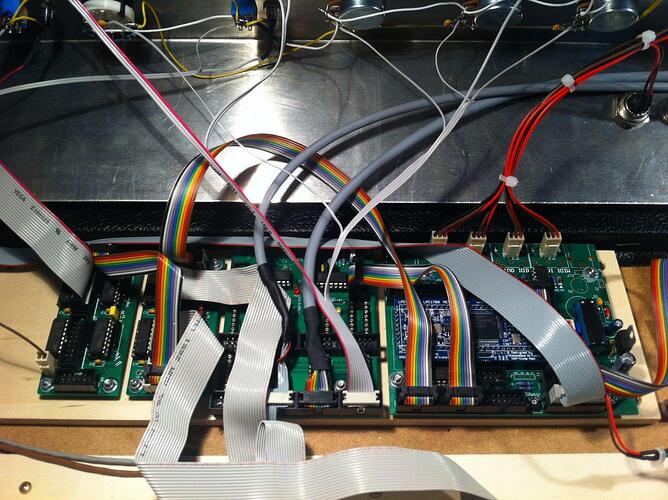

My updated keyboard-controller. It’s completely Midibox-based, runnning MB_NG firmware. Hardware is a ripped-apart Miditech keyboard, a PSU from an old EMU sampler and the usual MB stuff: LPC17, 2x DIO_Matrix, AINSER64.
IMG 1094
IMG 1095

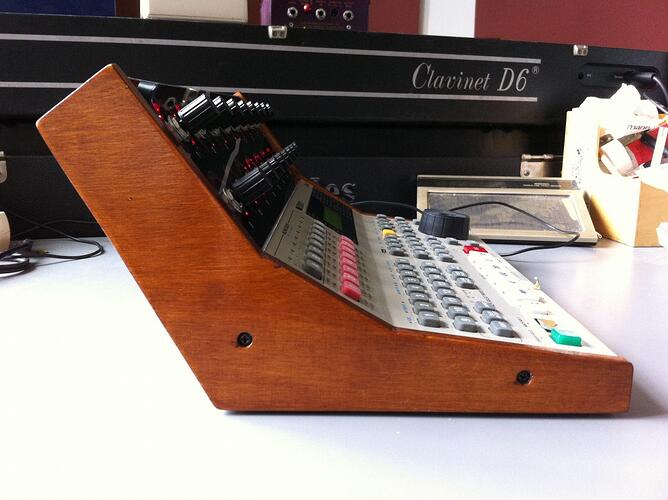

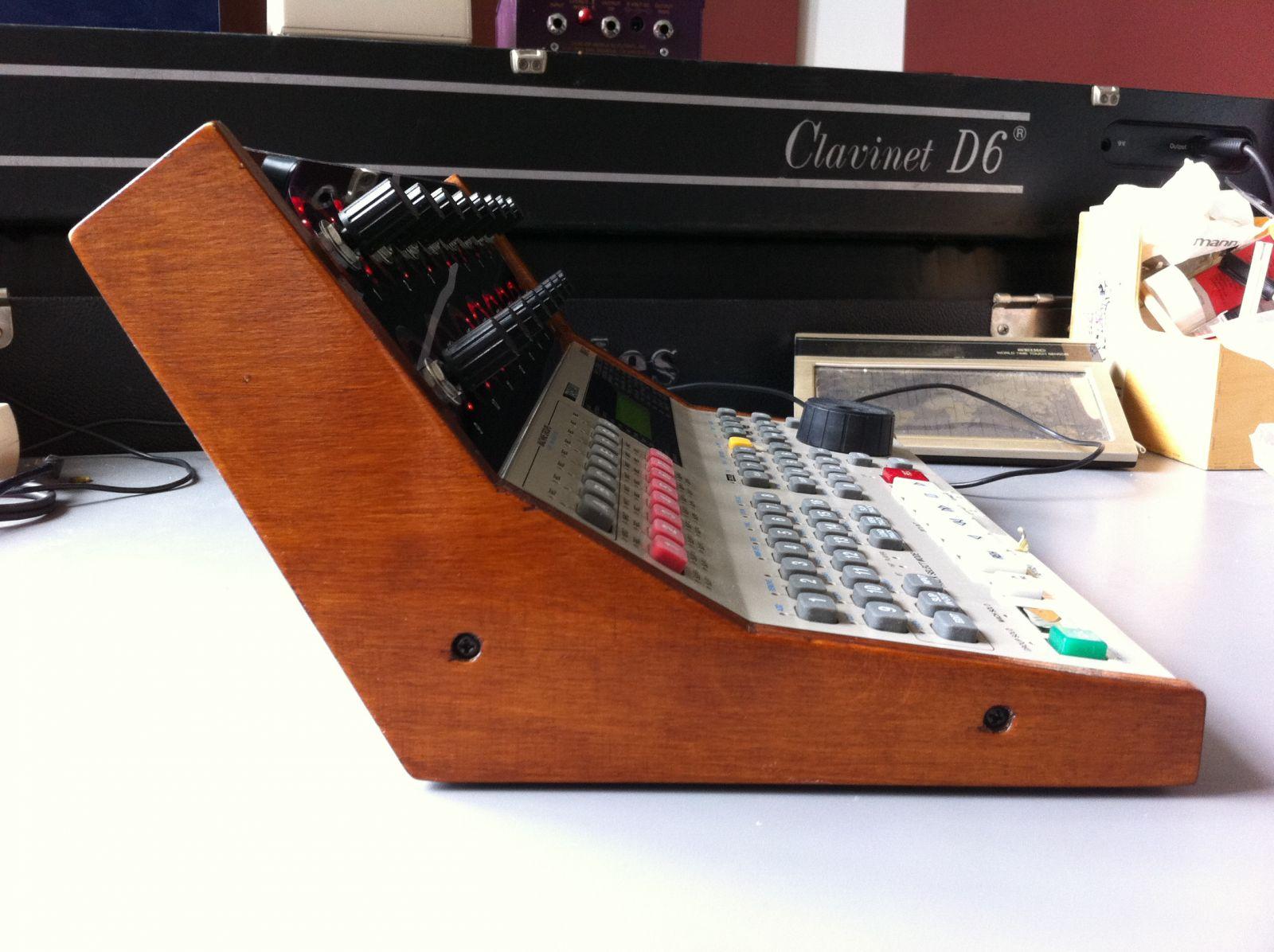

IMG 1096
IMG 1097
IMG 1098
A Tascam remote control converted to a Midi controller. I kept the original control surface pcbs with all the small buttons and leds, but etched a new main board for the big buttons, 7-seg display and put a PSU + DINX4 + DOUTX4 on it. It was formerly based on a Core8, but I updated this to LPC17 and MB_NG.
So all in all it has
9x big buttons with leds
66x small buttons
137x small leds (driven by three MAX7221)
LRE 8x2 extension (16x encoder + led-rings)
hi-res jog wheel
3 digit display
2x20 LCD
Thanks to TK it’s all working with MB_NG, I can even use this as a logic control.
