hi Julian. i’m interested in a case : )
(for a 4+)
imho they look really good, very approachable,
a recessed hex screw ala sineSurfer looks best.
is black (or dark grey) w/ white letter a possibility for you?
*excited*
On 2017-03-29 at 8:25 AM, sineSurfer said:
Hi Julian, cool cases!
btw. just recess the socket cap screws into the wood, it looks great and holds everything just the same. I took the idea from the sides of a KorgMS200, buth they used phillips screws, not as cool.
oh, i guess i meant V4 not 4+
pcbs are on the way..
(..now to find some of those 2x40 LCD, which i suspect will end up being MIDAS..)
Hello,
Panels can be a range of colours, as can the text, however, the curved profile can only be silver - which is why i kept the panel silver to match.
The nuts on the ends can not be recessed, as they are actually nuts, and not bolts. Well, they could be recessed, but then the recess would have to be large enough to take a socket to fit over the nut. Allen fasteners are not possible.
Another option that i have been considering, which would be a load cheaper, is to just make up top panels for the Bud case that is a little over 3u in ‘depth’. Last time i looked the cases were about GBP 30ish. If i cut a top panel, builders could then drill the rear to match their chosen config. More work for the end user, and less elegant, but cheaper.
ah you mean this case?
http://www.budind.com/view/Small+Metal+Electronics+Enclosures/Keyboard+Enclosures
also an interesting idea …
“cost effective” : )
no, probably the ac-433 from this link -
http://www.budind.com/view/Aluminum+Enclosure/Aluminum+Chassis
Ive not confirmed that it will work, but i cant see why it wouldnt. The top is aprox 25mm deeper than needed, but then the heinrich cases require bits cut of of the rails to make the screen mounts fit, so its not like a little extra clearance would be that terrible.
Most of the rear panel holes (for most users) are round, so easily diy-able. The usb socket is not, but possible to do by hand. The SD card is not really needed, as it can be done over usb anyhow.
It may not be quite as elegant as the Heinrich case, but the total package would probably come in at less than half the cost. Wooden end cheeks etc. could be added by the end user as required.
On 2017-09-15 at 0:57 PM, julianf said:
The nuts on the ends can not be recessed, as they are actually nuts, and not bolts. Well, they could be recessed, but then the recess would have to be large enough to take a socket to fit over the nut. Allen fasteners are not possible.
i was thinking of something like ‘countersunk barrel nuts’,
also known as “sex bolts” https://en.wikipedia.org/wiki/Sex_bolt
though i understand why having somewhat esoteric fasteners (or other essential materials) is kind of a no-no,
they’d look pretty sexy with your configuration if you ask me : )
do your bolts extend through the entire width of your case? or just stickout on the ends?
..//..
my understanding of the SD card is that it is really needed for certain functions,
like saving and archiving songs without a computer handy
Any chance these are still available, or able to order and ship one to the US?
Current status on the cases with the curved edges is that -
Im waiting on some pcbs from modular addict, and then ill check some measurements for the new core, and alter the design a little. I hope to make the case flatter also (ie a lower back panel, so less tilt)
Ill probably change the bolts too, as evreyone seems to want countersunk ones.
Then ill make some more. Limiting factor is mainly how long modular addict takes to ship the pcbs.
10 hours ago, julianf said:
Then ill make some more. Limiting factor is mainly how long modular addict takes to ship the pcbs.
mine shipped 6 hours after order.
today will be 2 weeks still waiting. maybe they show up today…
..since i’ve got lots of opinions, i’ll just mention that i like the more tilted case designs a lot.. i’m really not sure if they’re more ergonomic or not.. they just look cooler
The case will have to have some tilt, to accommodate for the rear panel components, just maybe not as much.
It seems that you probably have “your” bolts though! : )
13 hours ago, julianf said:
It seems that you probably have “your” bolts though! : )
tee hee. well almost. let’s just say i’ve found that fussing over tiny details is sometimes a nice way to avoid actually working on something..
My PCBs turned up this morning, so im going to start checking some dimensions, and get these cases sorted.
Obviously the design is not ‘final’ at the moment, but the delivery cost on the curved sections is so high that it would be sensible for me to get a show of hands as to who would like one of these, at the projected price (GBP 170) with the discussed alterations. Shipping will be at cost.
The ends on the finished units will probably be oiled oak. The top and rear panels will be engraved. Tops will be black text on silver, or, if you would rather, white text on back. Same for the rear panels. The curved sections have to be silver.
Rear panel will be cut for the new core, with the expansion port, and the Midi and Quad-IIc-MIDI boards.
I wont condemn you if you express interest, and dont purchase, but please dont ask at this stage unless you are seriously considering the purchase, as i dont really want to over-order a load of parts.
I would rather a PM than a +1 on the thread here. Do both if you wish!
Thank you,
Julian
Hi Julian , any news on this beautiful case ?
Cheers
Frank
Hi Julian,
I would also be interested in a case for a midi box seq 4 and possibly another one withouth a front panel for a diy synth.
Cheers,
Tim
Hello,
I need to put some time and money in to convert the prototype design (as seen in the photo) to a “final” revision, and ive just not done that yet, because i did not feel there was much demand.
I should probably just go ahead and complete it though…
This case looks great :) I might be interested in one for a second MIDI box sequencer.
Where are you getting these rounded aluminum profiles? Anybody know of a good supplier of this type of aluminum profile in the U.S.?
My pcbs just arrived, still waiting for any updates !
Cheers
FranK
Ok, time to get my act together on this one, and start ordering up parts.
I have recently acquired a load of reclaimed mahogany which i think will make great ends for these too.
I did ask before for PMs from those who were seriously interested, and i think i only got a couple. Either my request was missed, or… ?
Please include your email address in your request, as i will confirm via email (i find the forum delays message notifications sometimes, whilst email is swifter)
If you are one of the (very) few who have previously messaged, might i ask you to re-confirm and to include your email?
The reason i need to know is that the rails have crazy postage / cutting costs, and i could really do with knowing numbers before ordering, as re-ordering will be a pain.
Hi Guys,
What about using the moog eurorack case with a nice frontplate ?

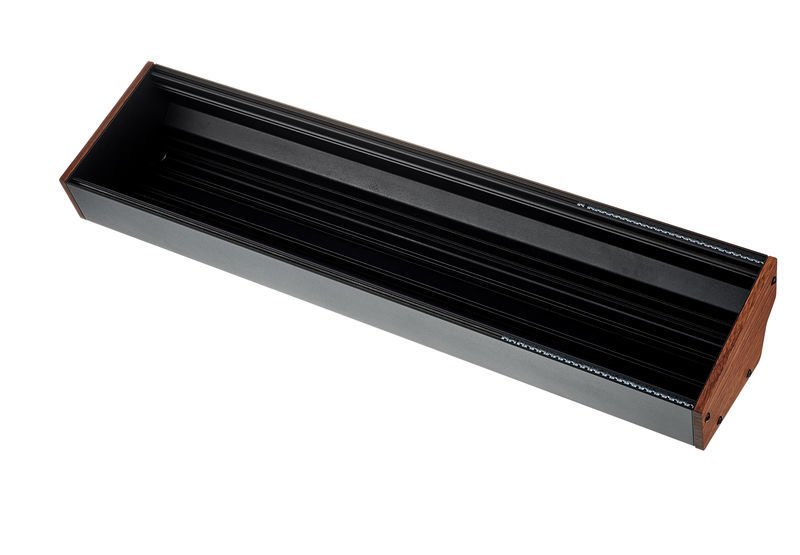

Moog Eurorack Case 104 HP 17" or Moog Eurorack Case 60 HP 12"
I am thinking to use the Moog Eurorack Case 104 HP 17" and create a panel with some connections on the frontpanel. Like 8x CV out, gates + clocks.
But the midi I/o, usb and power should be coming out of the back.
The 84HP small one is 99 € and the 104HP is 119 €, I am not entirely sure if its a fit for the seq v4. But if it fits I would look great with julianf’s Panel.
What do you guys think?
Cheers
TIm
That certainly looks like it would do the job - good find!
I reckon the back panel would be good for ports, but it would require some work.
I can have a look at the CAD to see if the CS pcb will fit behind a euro panel. Its obviously fine on 3u, but euro has that bit less height.
I have no attachment to my proposed case - what i said in my initial post is 100% true - it is simply a solution to the lack of heinrich cases - so if there is another option, i would very much support that also.
