Wow! Now it becomes interesting!
Best Regards, Thorsten.
TK, as the only person who has both the big BLM and the SEQ, do you think this is the optimal layout?
Of course the extra encoders are optional, and could be replaced with each individuals choice of encoders/pots/buttons/faders. But at least it will settle the layout for the main SEQ panel.
The construction looks very similar to my setup, with one exception: since MBSEQ frontpanel and BLM are separated, my solution is easier to transport. And I can remove the BLM if I need some free place at the desk for something else.
In order to connect BLM to my MBSEQ I will use a single cable for MIDI IO and power supply.
With optocouplers instead of TTL level digital IO the allowed cable length is ca. 10 m!
Best Regards, Thorsten.
I love the idea of the tilted sequencer on top of the BLM. That’s the right direction!
More panel size, power consumption, transmission issues and redundancy but:
Two duplicate LCDs, one by the GP encs, one by the BLM?
Yes, i have the same Idea! Would gives more oversize.
Is there a Problem to duplicate the LCD´s? How long can be the Wires to the external Box?
Servus,
Maybe it would be more practical/functional to have the BLM LCDs running from the BLM core?
I still don’t want duplicate LCDs for myself though
Duplicating LCD connections isn’t possible, not at least because of the increased cable impedance (I tried this some time ago and noticed very bad results)
I don’t plan to add LCD output support to MBBLM because this would slow down the performance too much.
Currently the performance is great, I don’t want to make it bad by adding such minor features.
Best Regards, Thorsten.
findbuddha,
I greatly appreciate the effort you’ve put into this. I’d like to help to further this project by designing a compatible Ponoko case.
I have a couple questions though:
http://discourse.midibox.org/t/topic/11040
Anyone out there have suggestions about the case dimensions, especially depth? As I begin to mock it up in SketchUp things are pretty tight with Wilba’s suggested minimum clearance for height.
-Attached is a very first pass of the 19" version in SketchUp; a massing model++ simply to get a feel for it. More to come.
Thanks everybody, you are all constantly inspiring!!
[WilbaSEQ_19_100812.zip](< base_url >/applications/core/interface/file/attachment.php?id=7608)
I did alter the dimensions of the LCD cut-out and the matching clear panel, in line with Wilba’s suggestion.
I’d be cautious rack mounting using the acrylic - I don’t know how strong it is?
I’d also suggest anyone using/modifying the files I’ve posted in this thread to check things over, as I’ve sold my Seq CS PCB (to make my own, more suited to me), and won’t be using this design as posted.
Hiya,
Could anyone please tell me if the centers of the buttons have been decided upon yet?
I have just received some bits and pieces to start fiddling around with a cs,if I have this right the cs needs to be 17 x 17 buttons,but I would like the buttons to match any pcb’s that might be made available.
cheers
Paul
My PCBs will be using 6mm switches, probably either E-Switch TL1105BF100Q or Panasonic Light Touch Switch EVQ-PAC09K.
For my planned DIY illuminated setup, the switch actuators will need to be the correct height. I’ll be getting a small PCB and ponoko panel/buttons done up to test the concept.

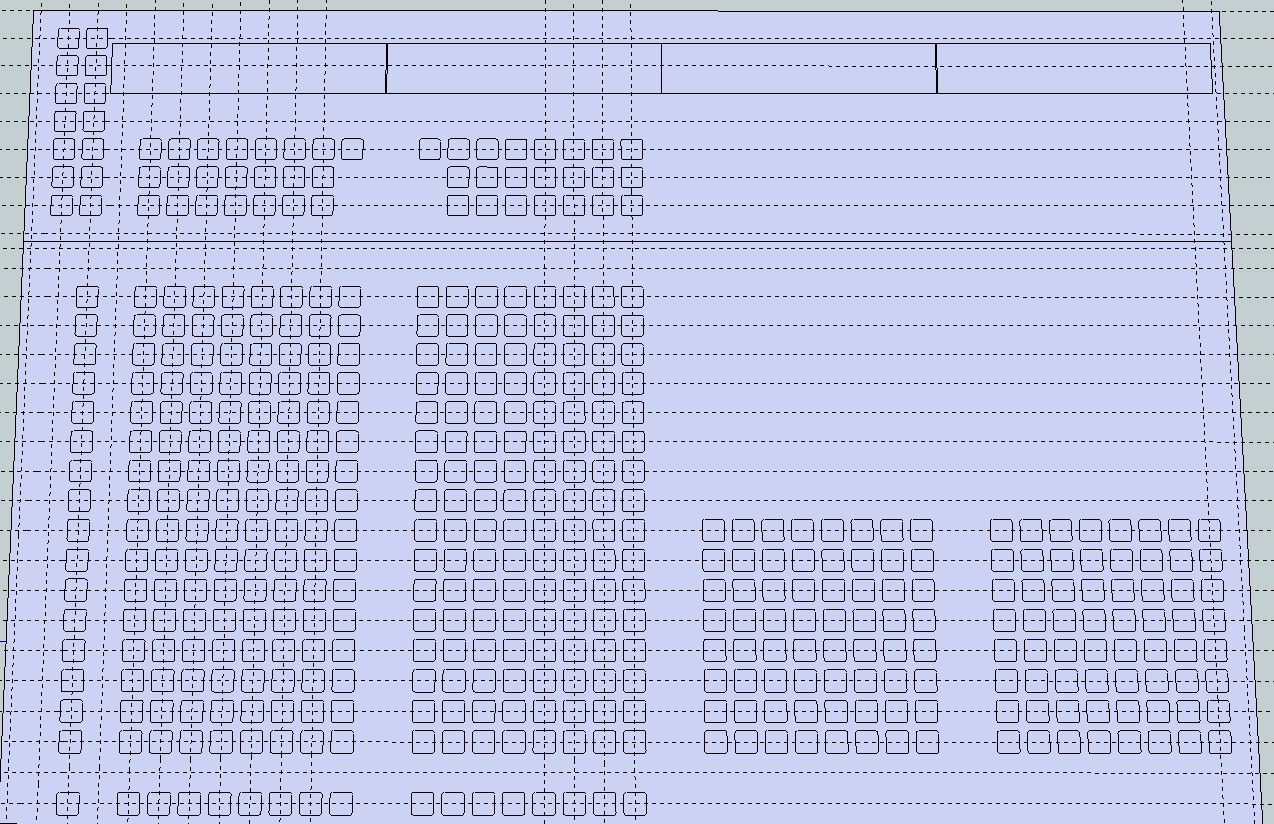

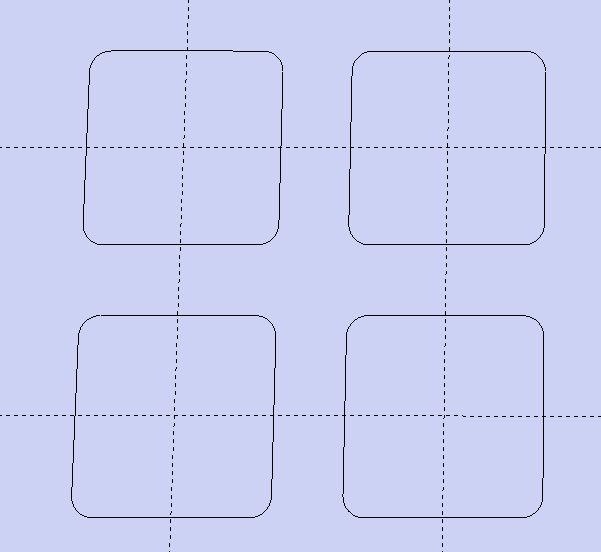

Here’s my current ponderings (stuff on the right hand side is for a mixer/LC):
Any suggestions?
