Prototype:
MB-LRE8x2CS Rev 4.7 / MB-LR4x2CS / MB-E4x2CS

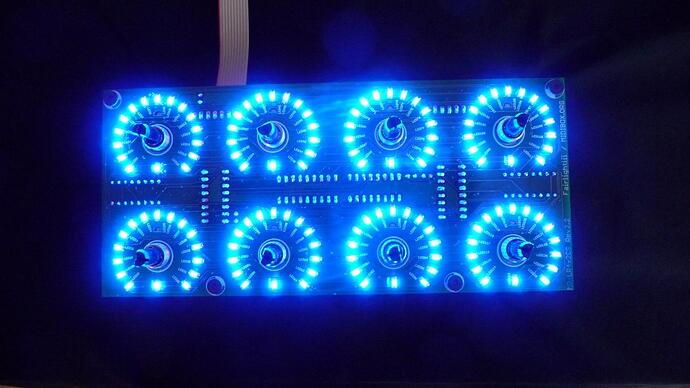

MB E4x2CS&MB LR4x2CS 12
The camera have created a “halo” all around each LED which doesn’t exist.
…Soon picture of the red one.
MB E4x2CS&MB LR4x2CS 1
MB E4x2CS&MB LR4x2CS 2

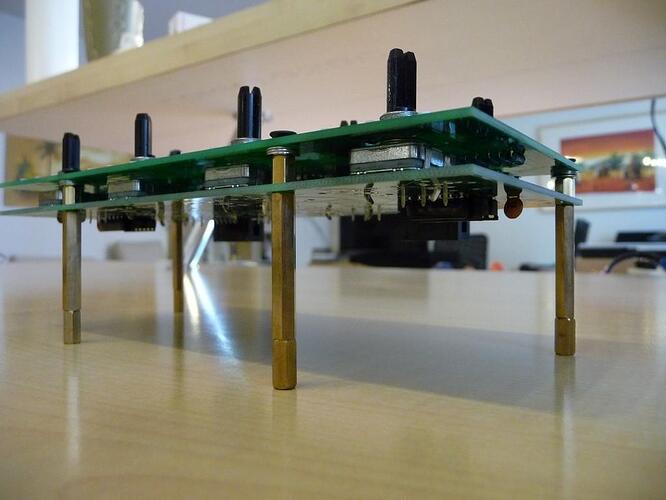

MB E4x2CS&MB LR4x2CS 3
MB E4x2CS&MB LR4x2CS 4
MB E4x2CS&MB LR4x2CS 5
MB E4x2CS&MB LR4x2CS 6
MB E4x2CS&MB LR4x2CS 7
This is the minimal height I found to stack MB-E4x2CS & MB-LR4x2CS (here =7.5mm).
Best would have been 6.5mm (encoder base height).
MB E4x2CS&MB LR4x2CS 8
MB E4x2CS&MB LR4x2CS 9
MB E4x2CS&MB LR4x2CS 10
With 25mm shaft encoder (I haven’t yet received the samples) it should be perfect.
MB E4x2CS&MB LR4x2CS 11
…At least no brightness problem with blue LED !!!
MB LR4x2CS 6
Stand-off=6mm.
Nuts=3*0.5mm.
Total height=7.5mm.
MB E4x2CS 1
Only Din chain populated.
MB E4x2CS 2
MB E4x2CS 3

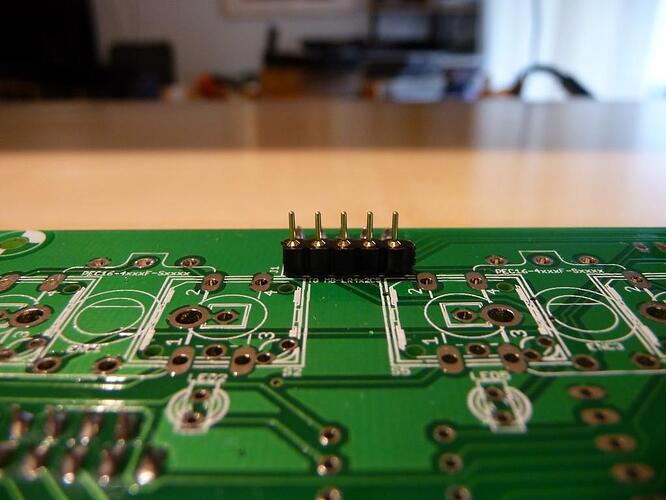

MB E4x2CS 4
Round male pinheader.
MB LR4x2CS 1
MB LR4x2CS 2
MB LR4x2CS 3
Female round pinheader.
