New Sequencer - All panel mount

Futureman · June 25, 2008, 5:05am

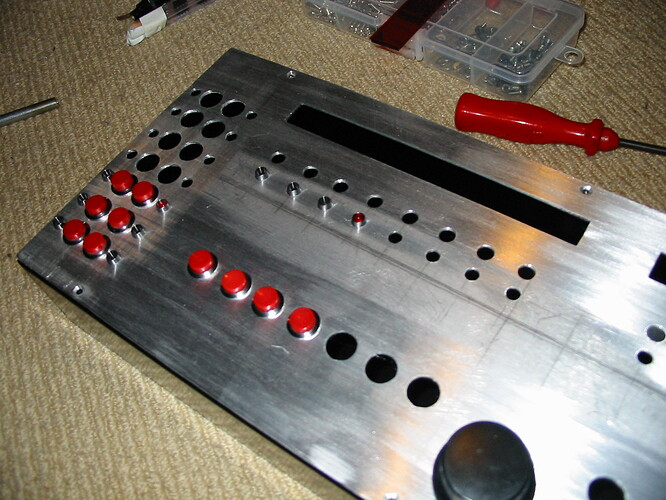

I’ve started building another sequencer, this ones for gigs, so more robust, and a bit cheaper to build.

It’s made from a found box and a found bit of aluminium.

My first sequencer was all PCB mount, and while looks brilliant, the PCB mounted switches made everything just that little bit harder to line up with the panel.. (No CAD, just a pencil). I’ll post pics for that one when I replace the MDF face with a Proper one from Schaeffer.

Me and a few friends are building one each, and I’ve gone for panel mount everything to make construction a little easier for my technically challenged mates.

I’ve done everything by hand, with a cordless drill, jig saw, file and some sand paper.

It’s not exactly perfect, but it’s coming along nicely.

Regards

Mike.

Futureman · June 25, 2008, 5:06am

and more

Futureman · June 25, 2008, 5:07am

and more

[Led’s are go..JPG](< base_url >/applications/core/interface/file/attachment.php?id=4141)

Futureman · June 25, 2008, 5:09am

Now I’m just waiting on more buttons to arrive, and i’ll be pretty much ready to finish it off.. oh, and some knobs.

Mike

Sasha · June 25, 2008, 7:03am

Looks pretty robust, I reckon it can handle alot of dragging and live abuse.

Futureman · June 25, 2008, 7:36am

Just wire up a few more buttons & Leds..

I’m digging the chrome on chrome on red action.

[Led’s are go 2.JPG](< base_url >/applications/core/interface/file/attachment.php?id=4143)

dstamand · June 25, 2008, 7:38am

You are not using the 4x16 duo leds and buttons extension ?

Pretty cool for playing live!

stryd_one · June 25, 2008, 9:34am

Panel mount rocks. I planned on doing the same, for the same reason - it’s rock-solid… just couldn’t find nice enough switches for my very picky tastes… well, not for under $20 each

Futureman · June 25, 2008, 10:12am

just couldn’t find nice enough switches for my very picky tastes… well, not for under $20 each

you must have very very picky tastes for $20 each!

The buttons I used were about 70c each.

cimo · June 25, 2008, 12:34pm

i am very interested on those buttons, where do they come form?

Simone

Futureman · June 25, 2008, 12:46pm

i am very interested on those buttons, where do they come form?

Simone

All from ebay, HKSS.

Regards

Mike

http://cgi.ebay.com.au/8-BRASS-Momentary-Push-Button-Heavy-Duty-Switch-CR312_W0QQitemZ290240777042QQihZ019QQcategoryZ58166QQrdZ1QQssPageNameZWD2VQQcmdZViewItemQQ_trksidZp1638Q2em122

http://cgi.ebay.com.au/ws/eBayISAPI.dll?ViewItem&rd=1&item=290035315649&ssPageName=STRK:MEAFB:IT

basix · June 25, 2008, 1:43pm

Looks great! I’m planning on doing a panel mount myself as well after the holidays

diablojoy · June 28, 2008, 2:02pm

nice work mate i like those buttons and yeah i think i will be going panel mount from now on but maybe with a small twist

i just cant help myself.

Futureman · July 14, 2008, 10:03am

Been a bit side tracked with work… but finished yesterday.. just gotta find some knobs.

Sasha · July 14, 2008, 10:14am

HC. Congratulations. Looking forward to see it with knobs. Hopefully some silver to match the jog.

Futureman · July 14, 2008, 10:21am

yea, I’m thinking of keeping with the “on the cheap” DIY with that, And making some.. but def on the chrome / silver / aluminium side.

stryd_one · July 14, 2008, 10:54am

Yeh spun aluminium man it’s gotta be. That’s lookin sweet!
