New burner board V2 from mike

Miscellaneous
1

Hi All,

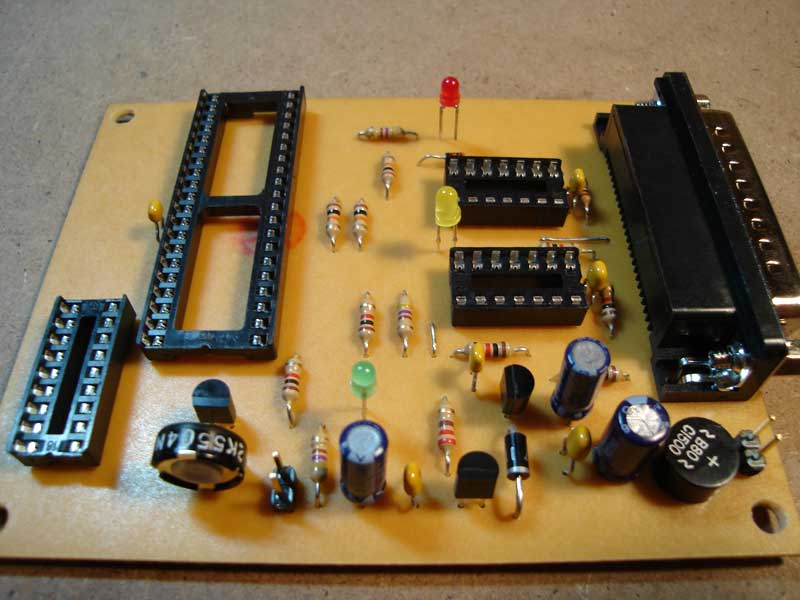

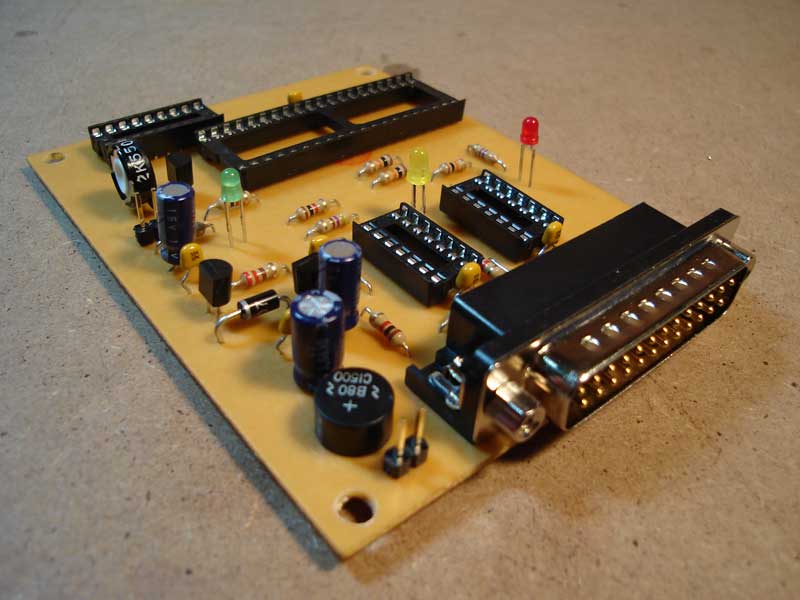

I just finished making my pic burner board I ordered from mike. Maybe its old news but I only saw any reference to V1 anywhere so I thought I would post a photo of the V2 I just made for reference if anyone wanted to see one. It has the adapter built in for the 16F pics so you dont have to mess about with making one.

All the best,

John

542DSC02018smalljpgbf22e75fb17c759460a9167ad0710949
542DSC02018smalljpgbf22e75fb17c759460a9167ad0710949800×600 44.7 KB

544DSC02020smalljpg4e0c17743fe8242cc516f3e495ee43da
544DSC02020smalljpg4e0c17743fe8242cc516f3e495ee43da800×600 49.7 KB

2

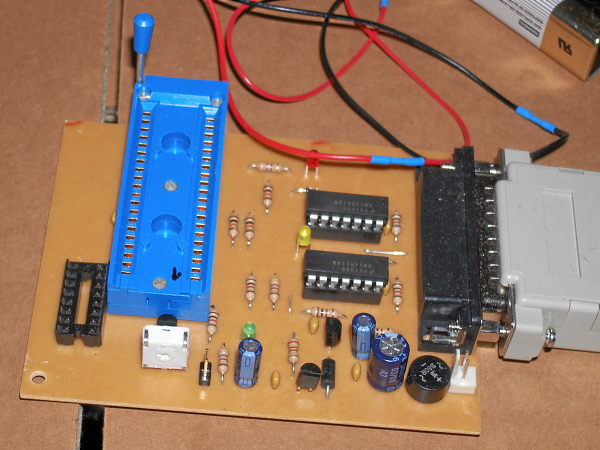

I have one criticism about the layout: I wanted to use textool-sockets for both the small and the large ICs but cannot, because they are positioned too close to each other - see the picture. Yet there would be enough space on the board… Mike?

Best regards, ilmenator

Burner.JPG600×450 56.6 KB
