I plan on building a DAW controller based around a Teensy USB HID board. The goal is to make a professional looking device on a minimal budget.
01. Printout

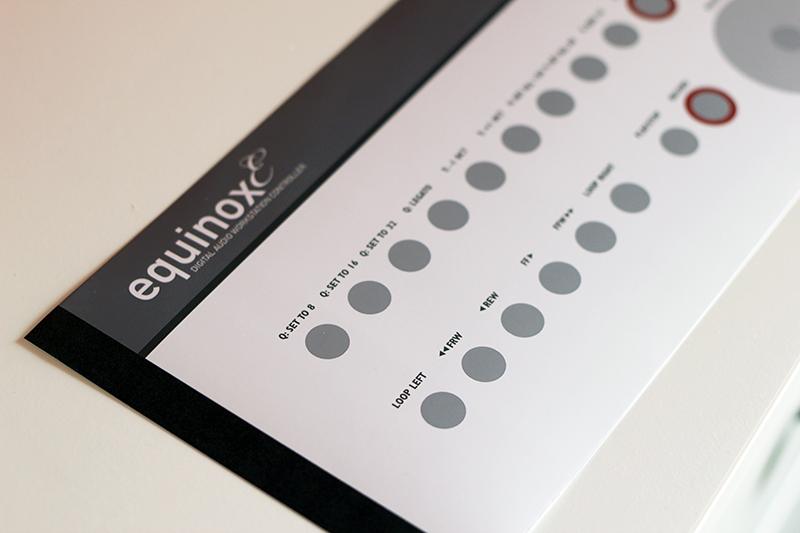

Recieved my print from Fujifilm and it looks excellent, sharp and crisp
02. Printout standing

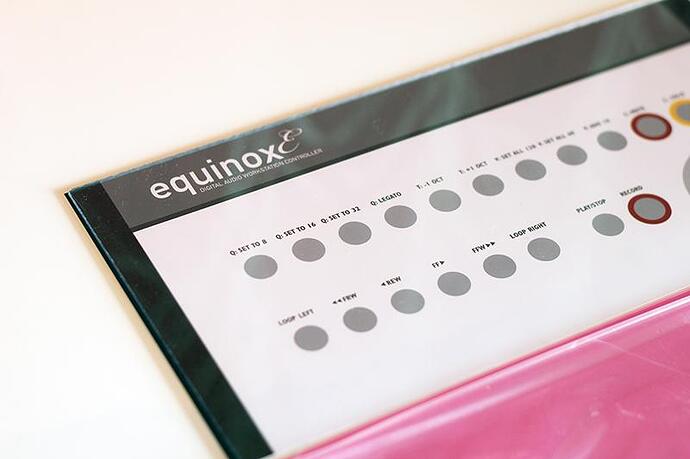

03. Printout applied To SAN
04. Printout and SAN closeup
05. Printout and SAN
06. Printout and SAN artifacts

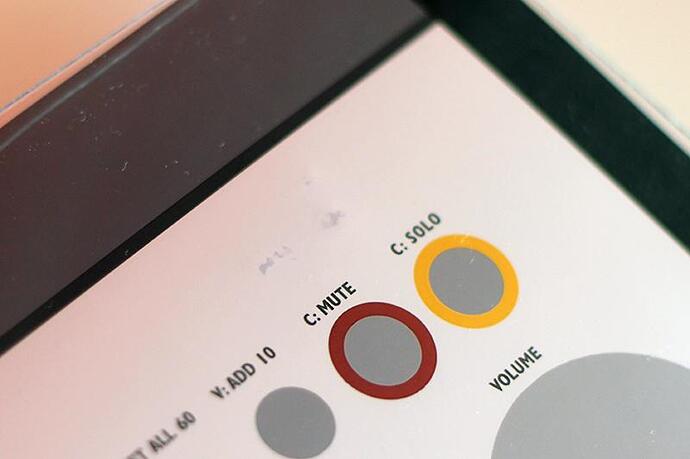

There is some artifact showing up in the print when pressure is applied from the back side. I plan on having the print between to layers of SAN, so this is worrying!

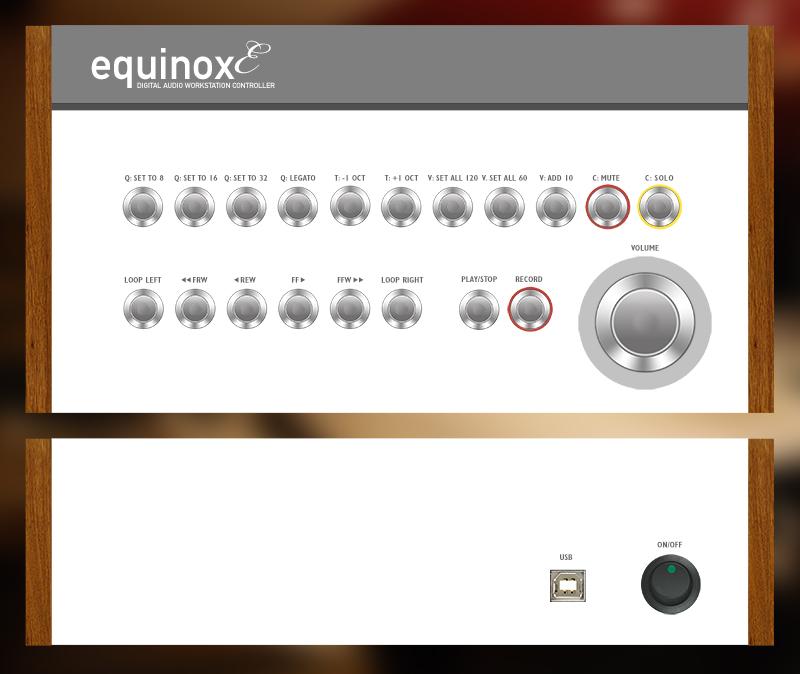

Layout 01 - Equinox
Layout 02 - Neptune

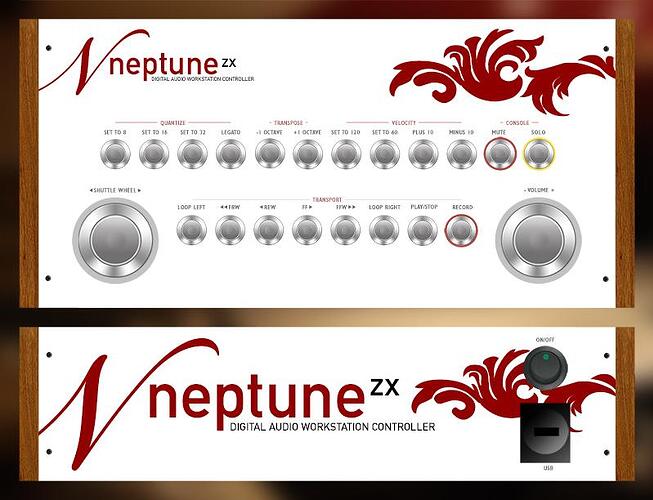

Layout 03 - Neptune with shuttle wheel
Layout 04 - Thor 2020

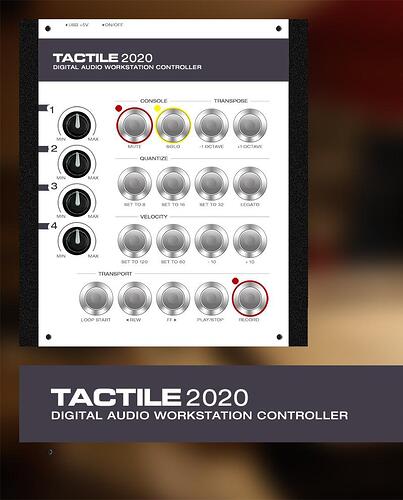

Layout 05
Decided to change the orientation of the controller and it’s measurements to 13 cm wide and 17 cm high. I also added 4 potentiometer and removed the scrub-wheel and volume-button.
The product-name is now “TACTILE 2020 - Digital Audio Workstation Controller”.
Layout 06
Added a fader and decided to work with tactile microswitches with white caps instead of metal ones. Also added a a volume pot.
Layout 07
Made the design more compact, removed some buttons since the Teensy 2 doesn’t have enough I/O pins. Renamed the project “Shoron” which means “little dragon” in japanese.
Layout 08
OK, this is probably the final design for the project named “Shoron”. I have ordered components from Sparkfun and tops for the potentiometers from Elfa. My next step is to test the construction. My plan is also to engrave the dragon figure created by Jonathan Harris into the wooden sides.
Layout 09
Just bought a 20x4 LCD with an integrated I2C on eBay and decided to incorporate it in this project.
Layout 10
My final layout since this is the one I have printed out on aluminium.
07. Aluminium printout
This is the real deal. My design printed on a sheet of aluminium 300x200mm for about $28. The texture is great, the finish is matt and looks quite professional in my opinion.
My only reservation towards this approach is that colors from screen and the finished product differs quite alot.
Now the next thing is to drill the holes for the components.
