Album by geth
Gallery category: midibox-gallery

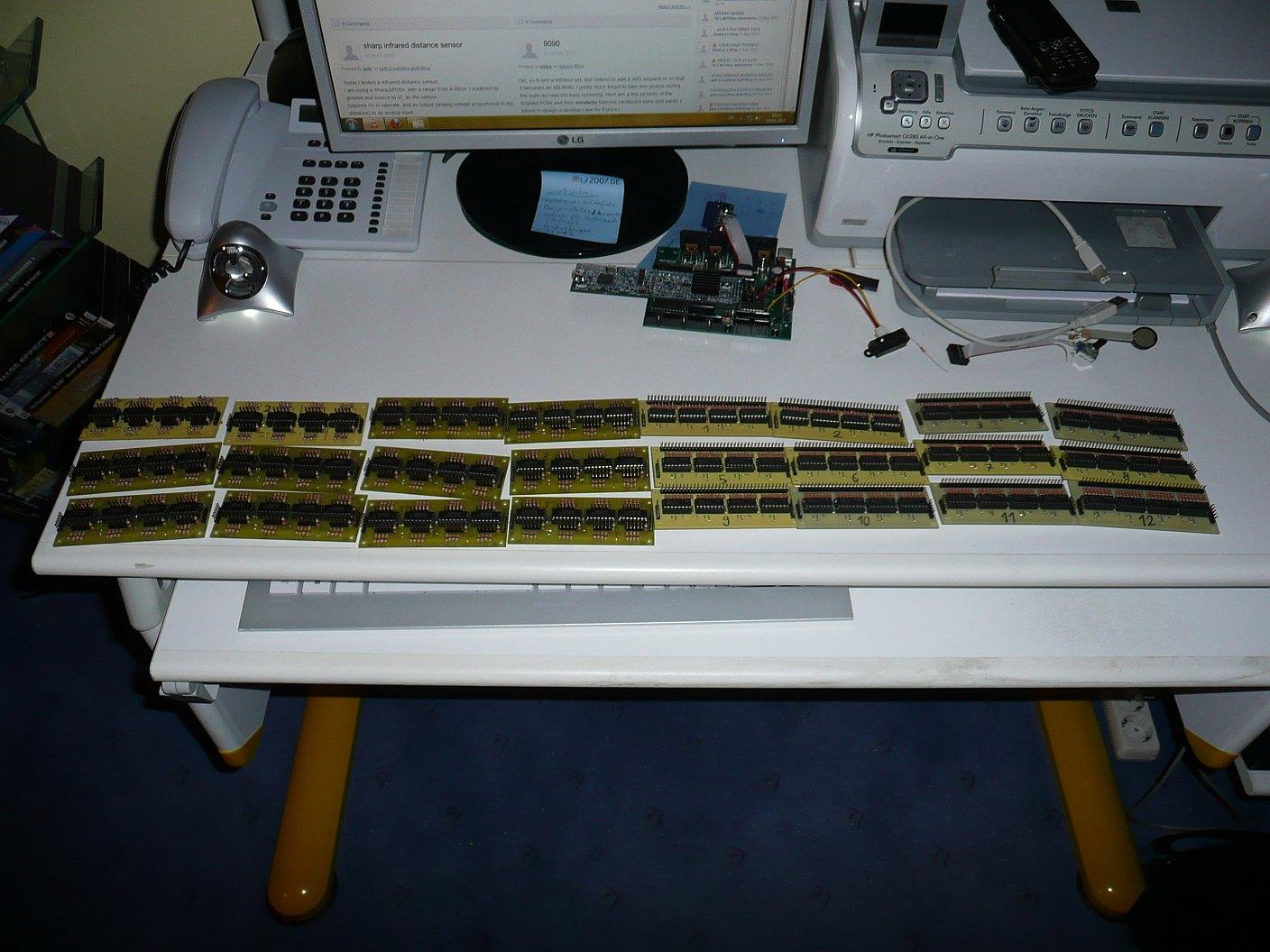

DIN & DOUT Modules

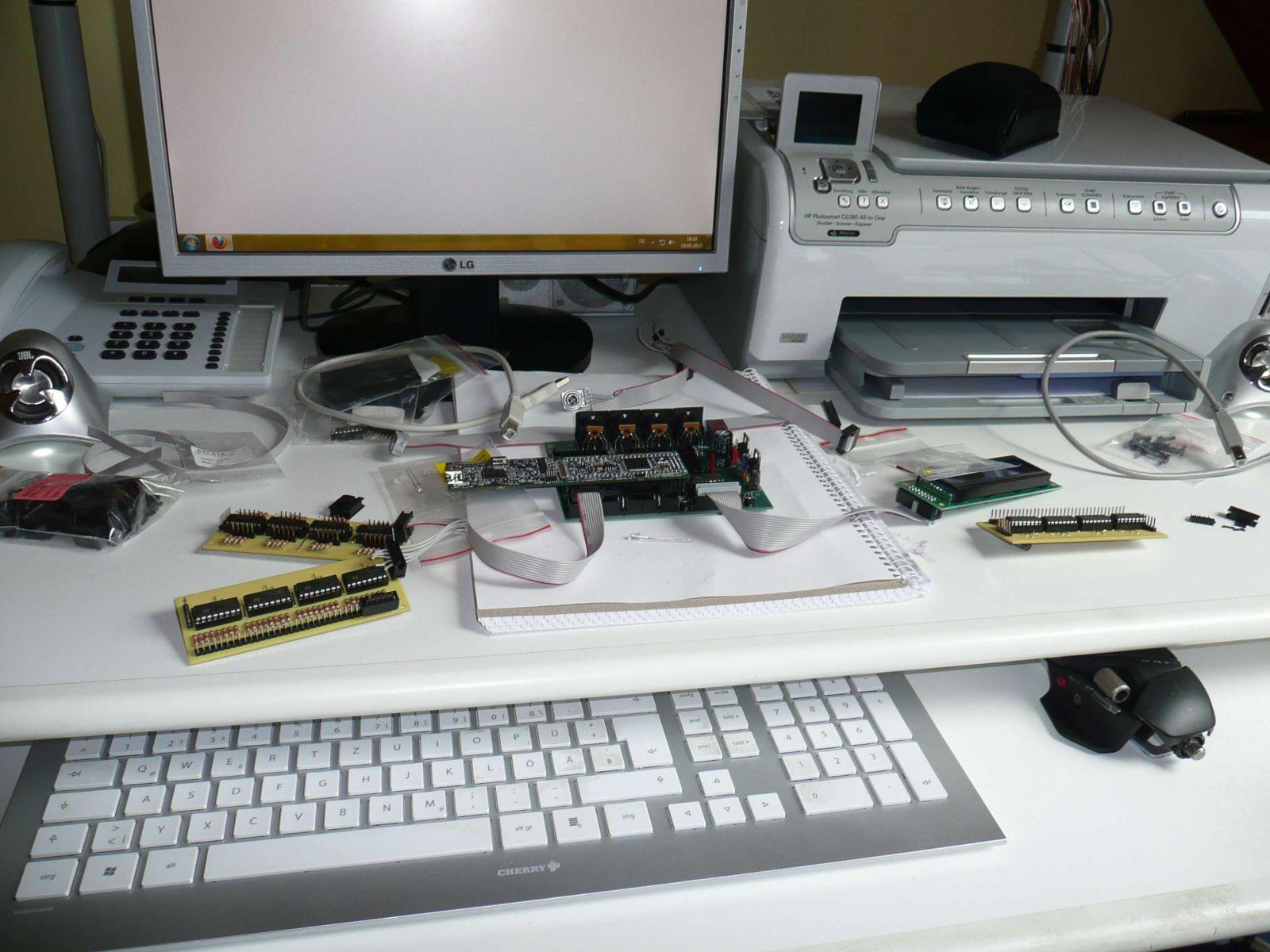

Lpc 17 Core with different sensors
Frontpanel
As a Schaeffer-frontpanel would be to expensive and it did not work out to make the panel on a CNC-mill with the connections of a friend, I decided to drill the panel myself.
PS: My camera broke, the frontpanel-pics are made with my mobile phone, so sorry for the quality.
Frontpanel 1

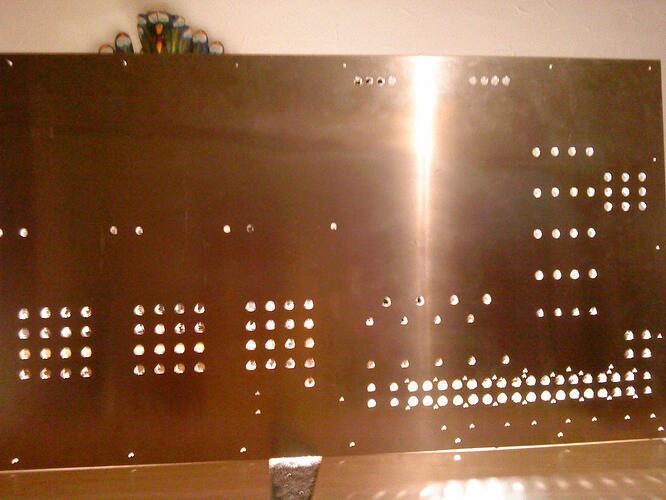

Frontpanel 2

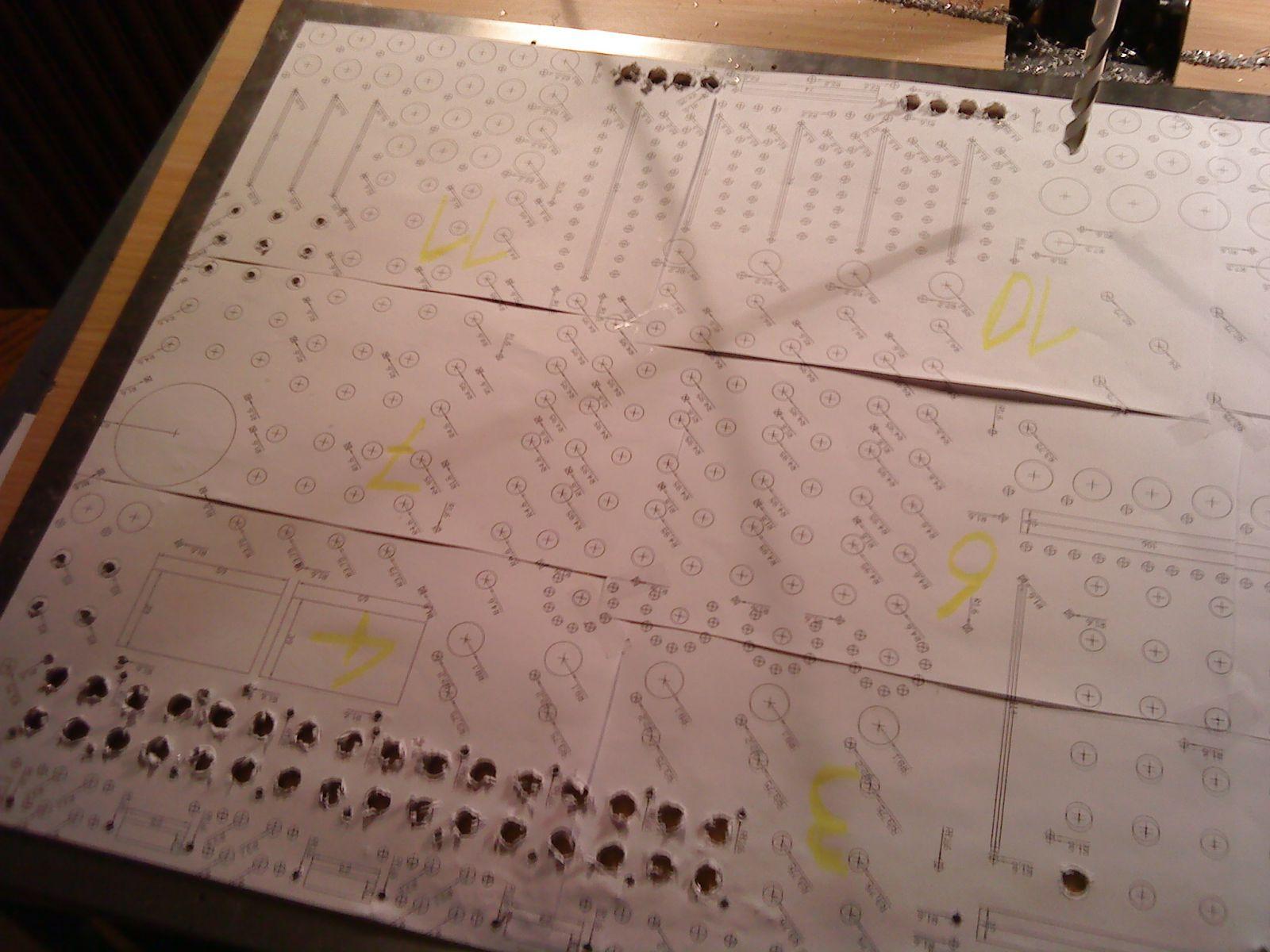

Panel is turned upside down.

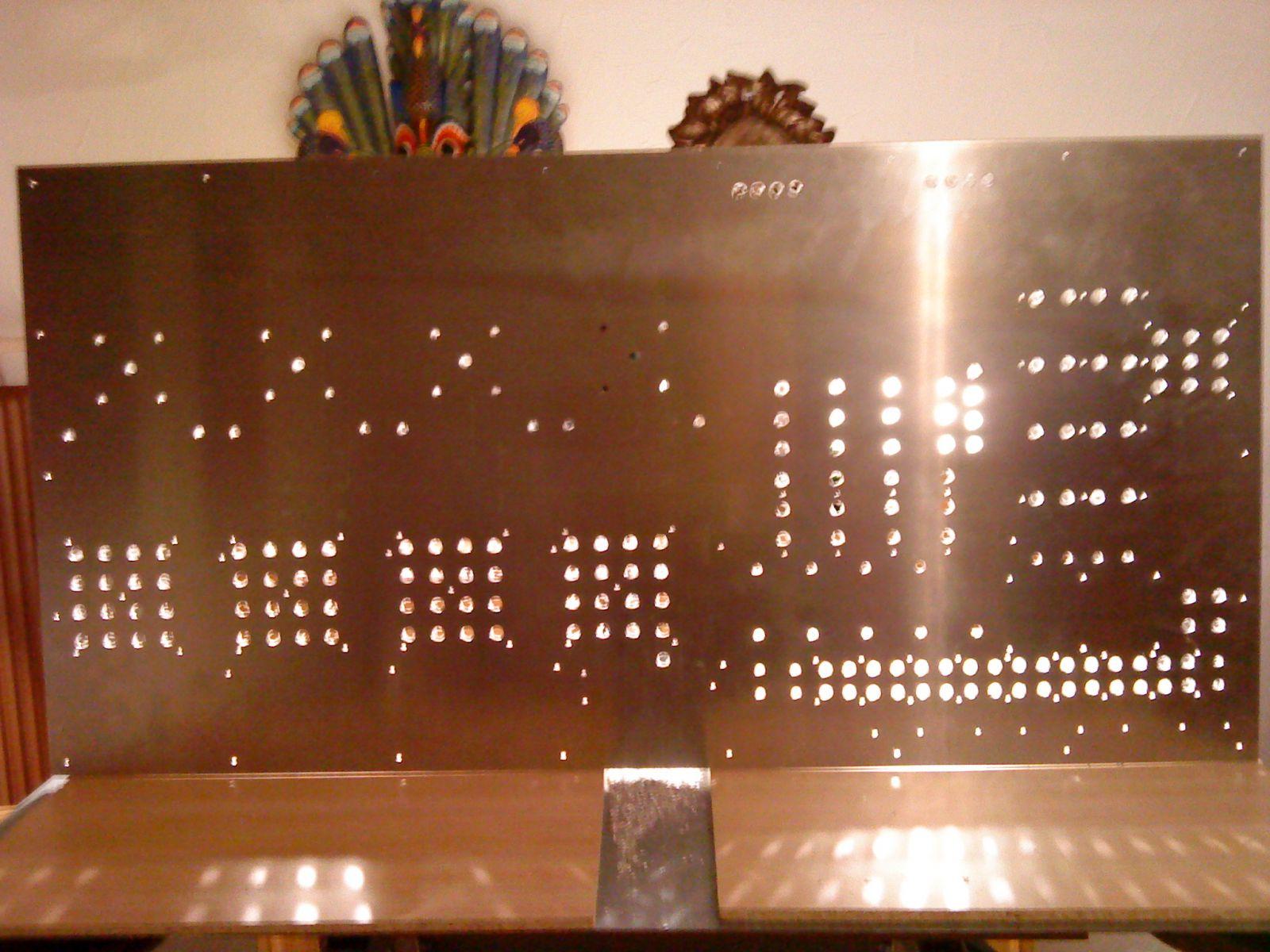

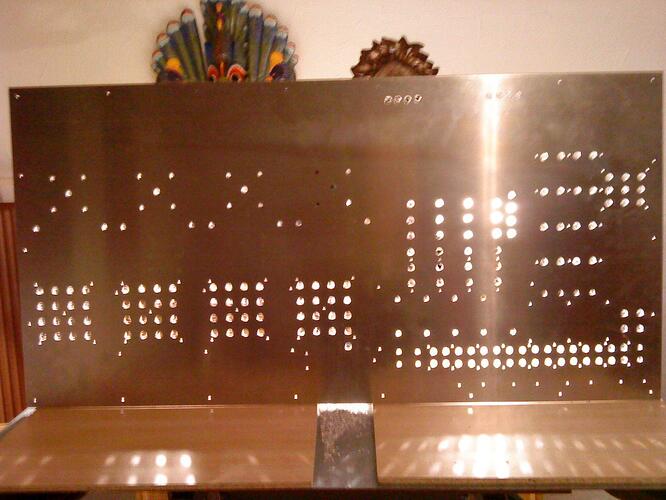

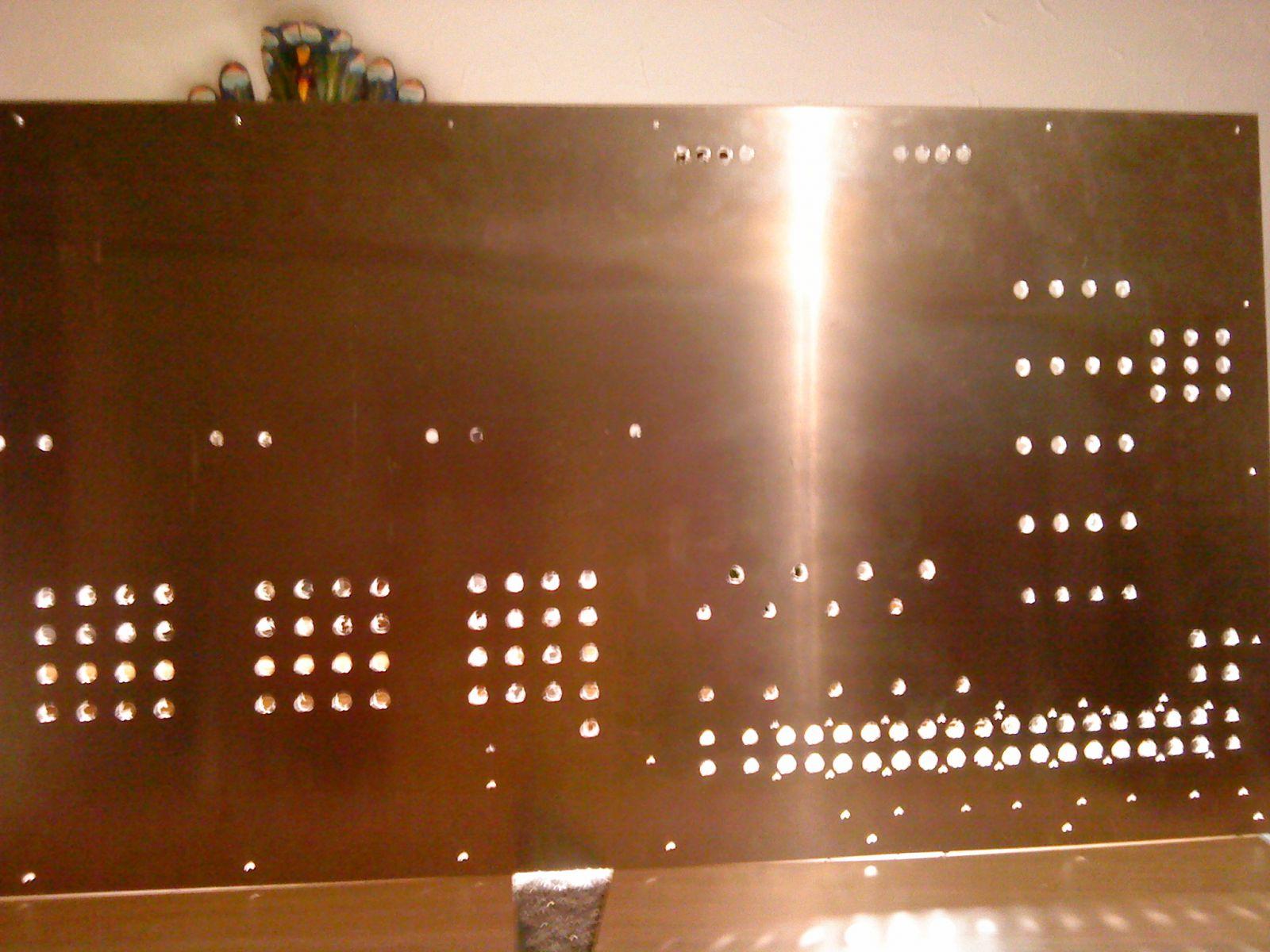

Frontpanel 3

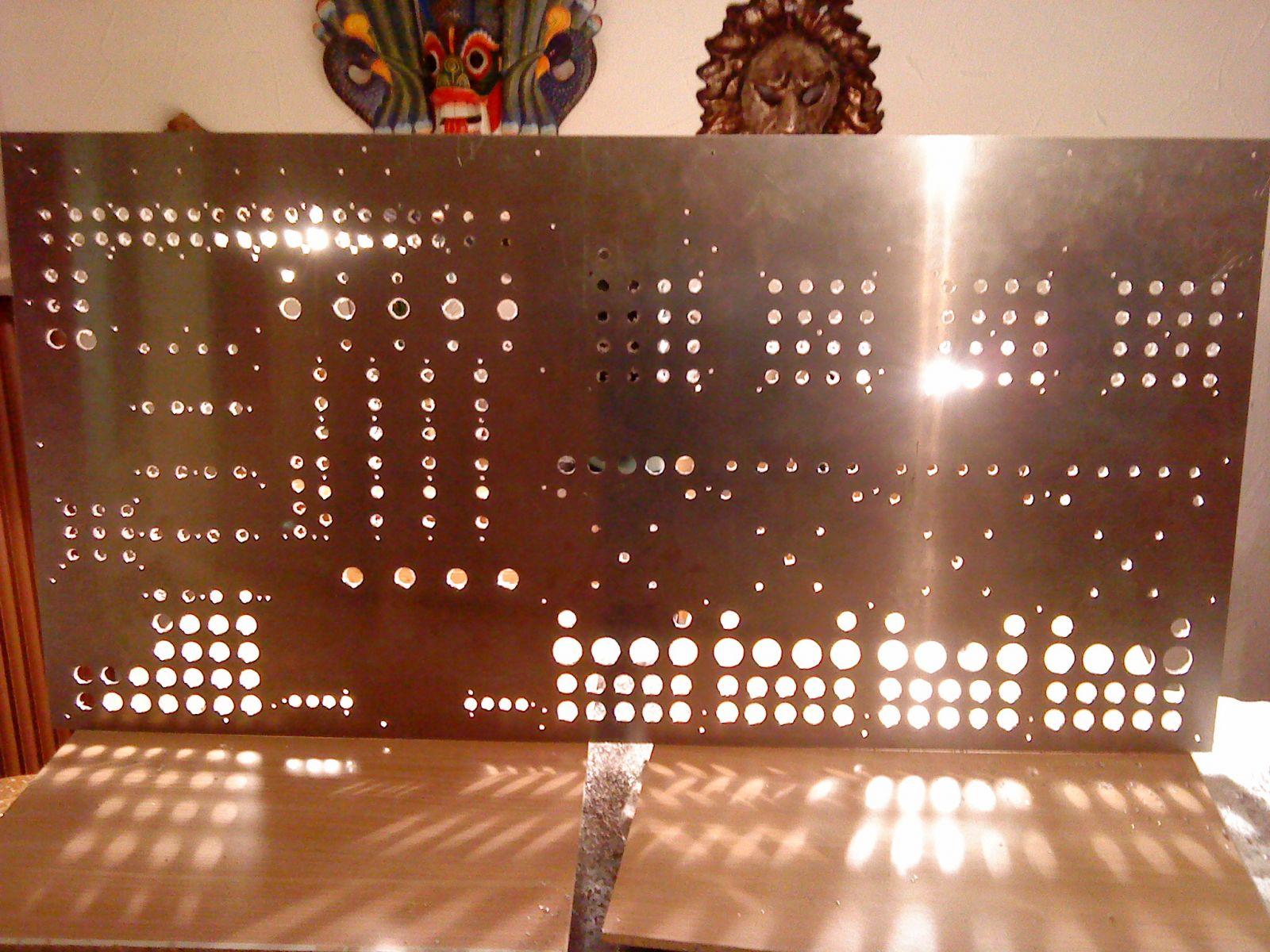

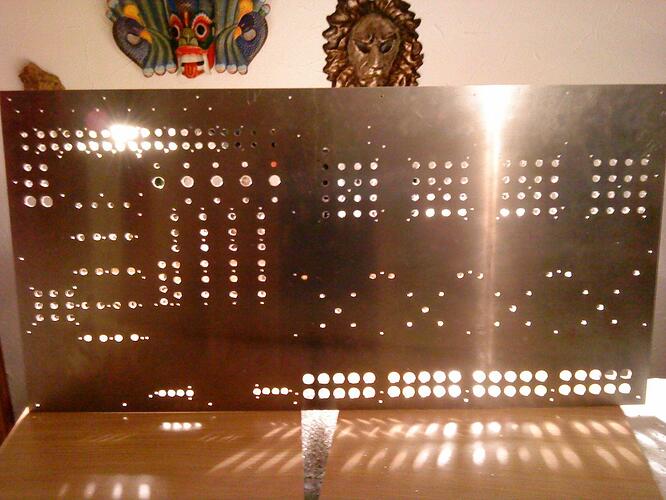

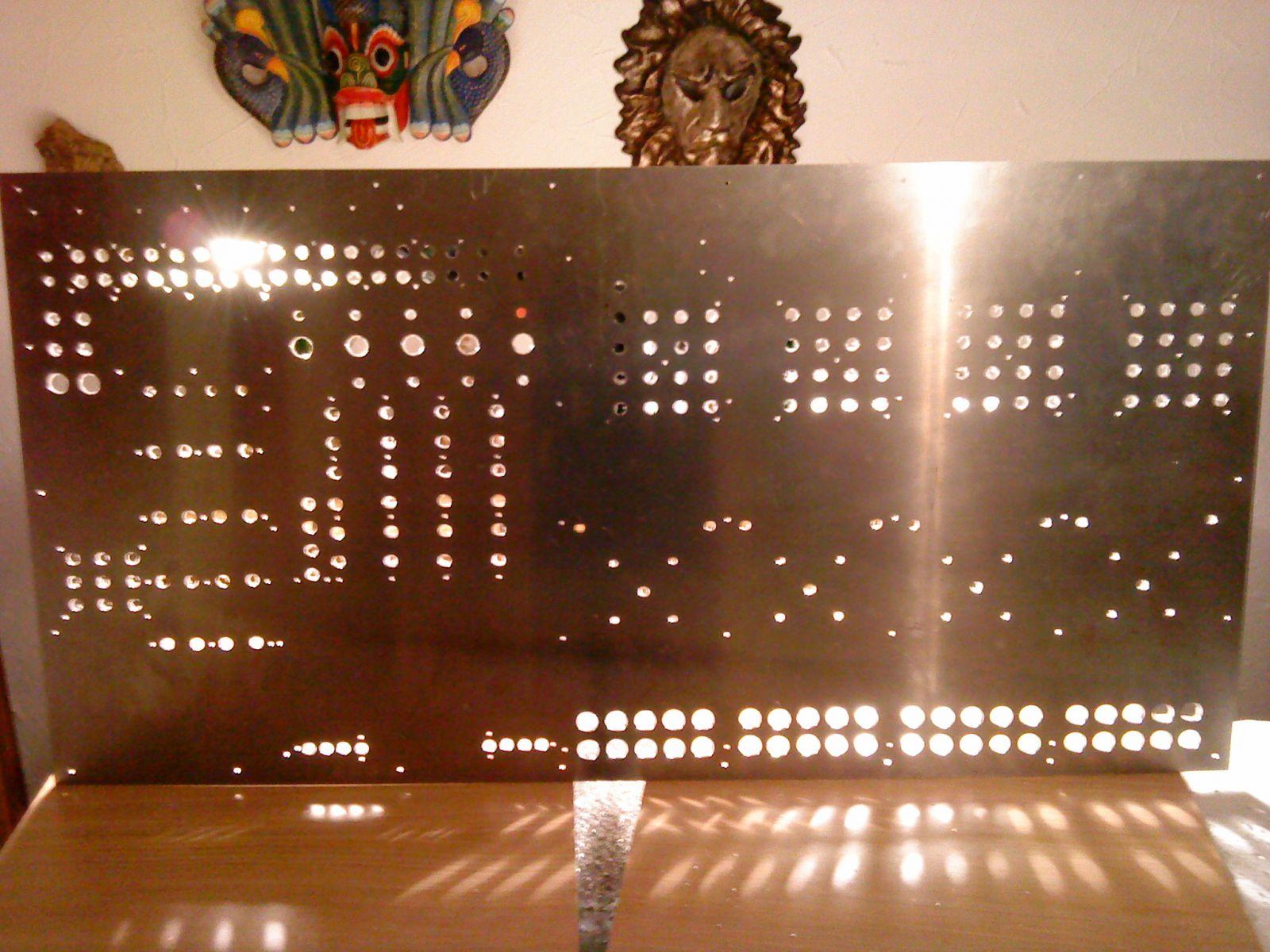

Frontpanel 4

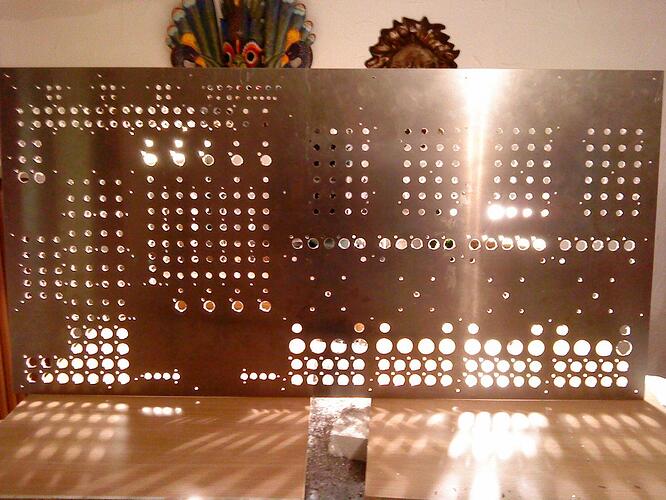

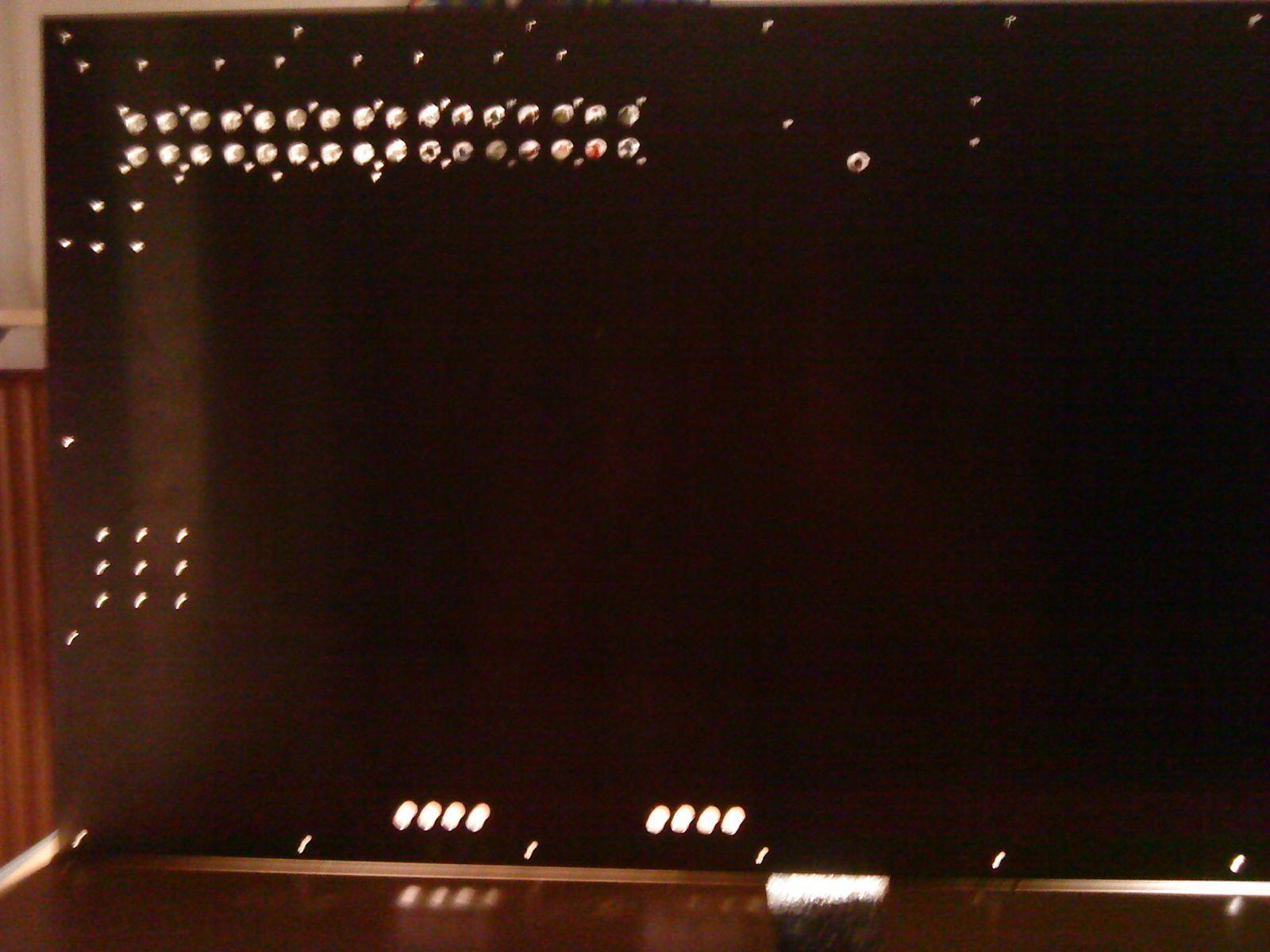

Panel is now not turned upside down anymore (still the view of the backside, because it looks better without the paper).
