MIDIbox SID Datassette Bassline

[ganchan]

Album by ganchan
Gallery category: uncategorized

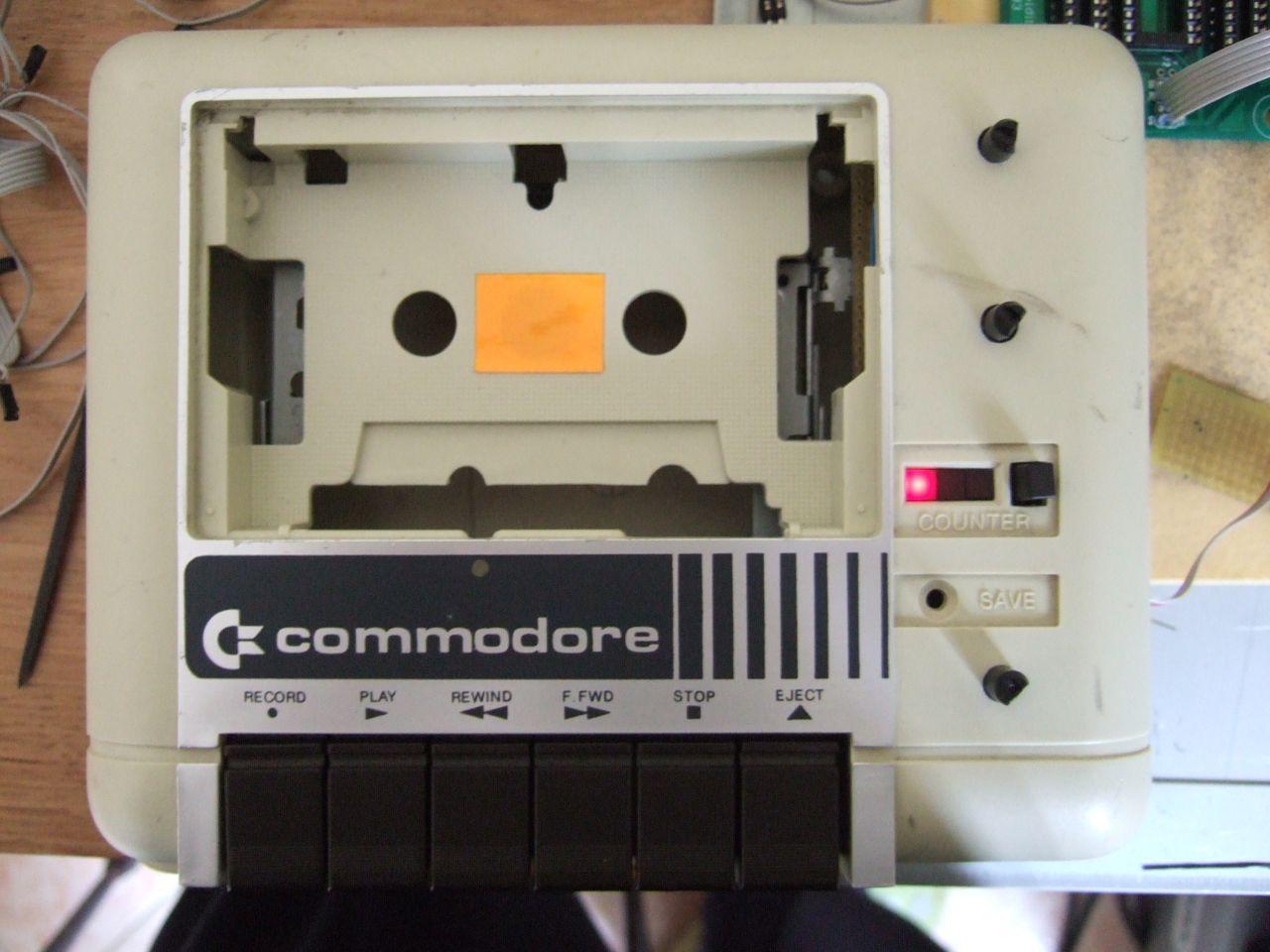

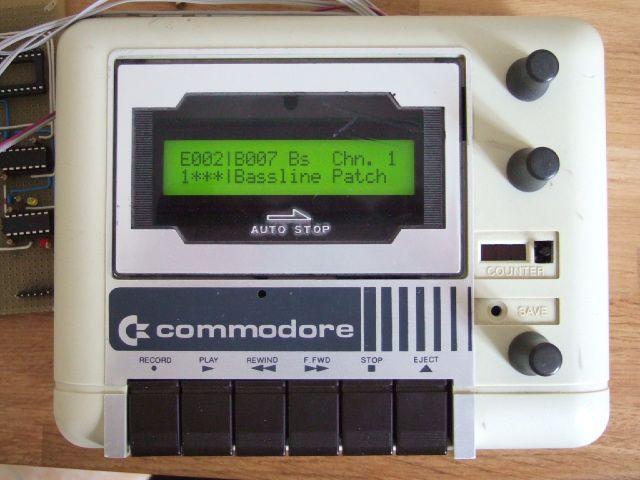

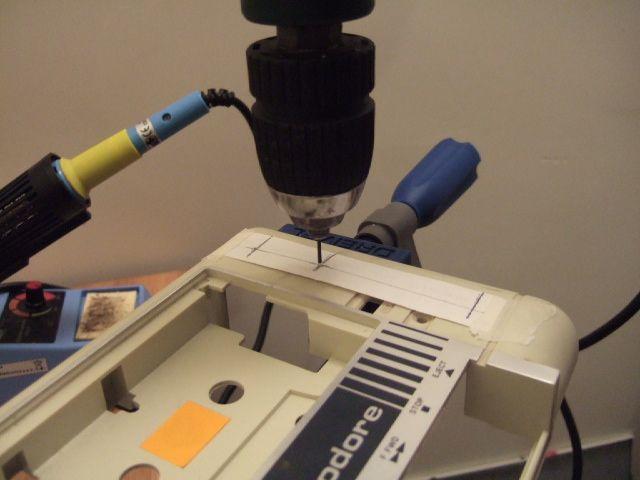

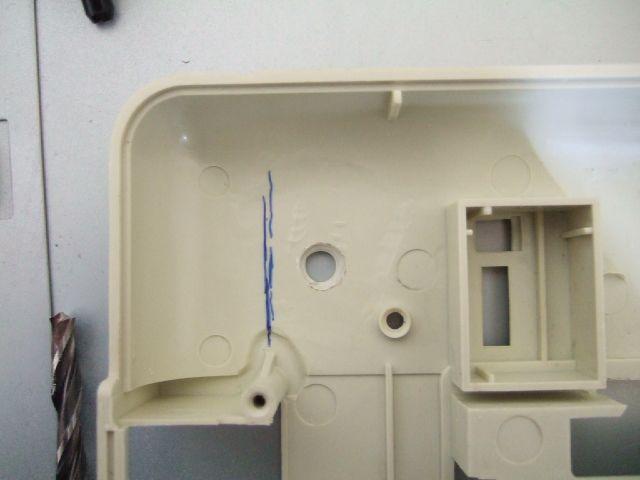

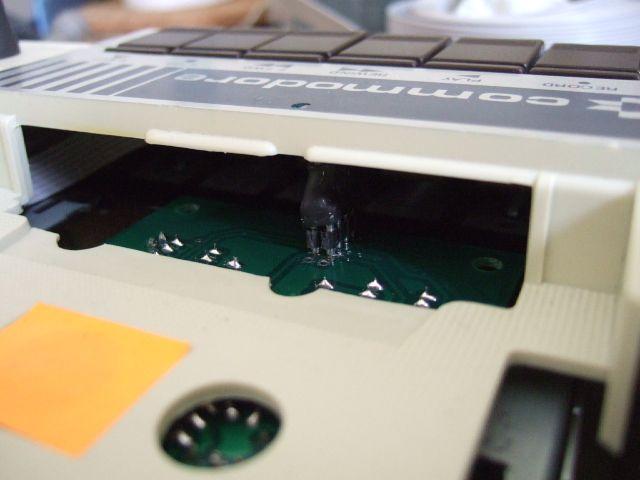

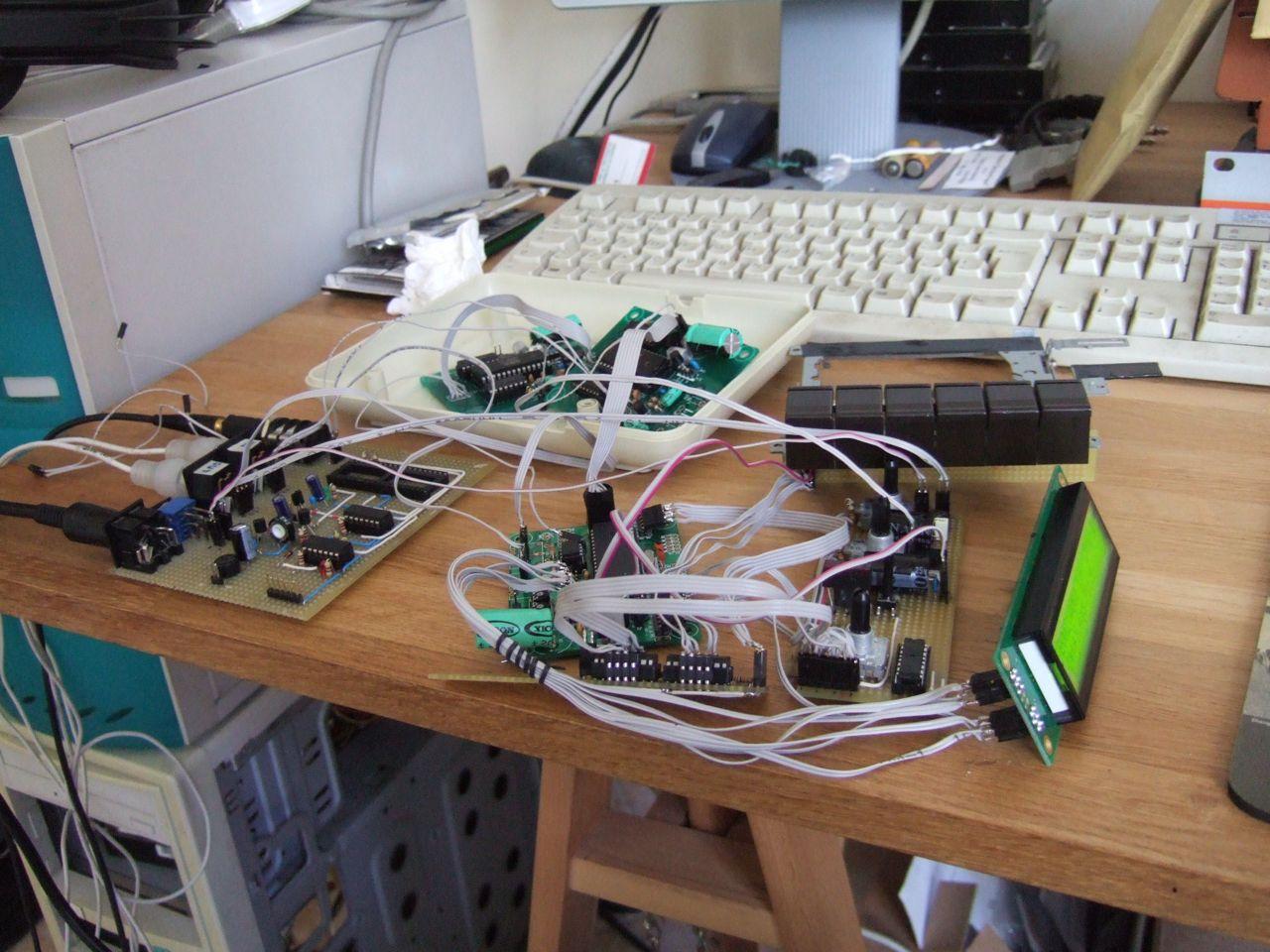

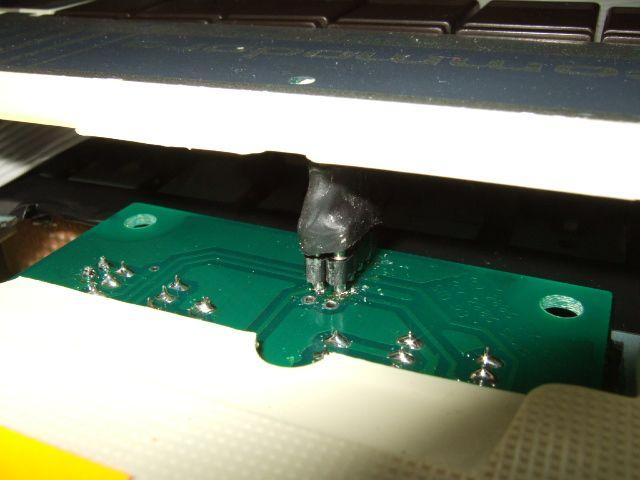

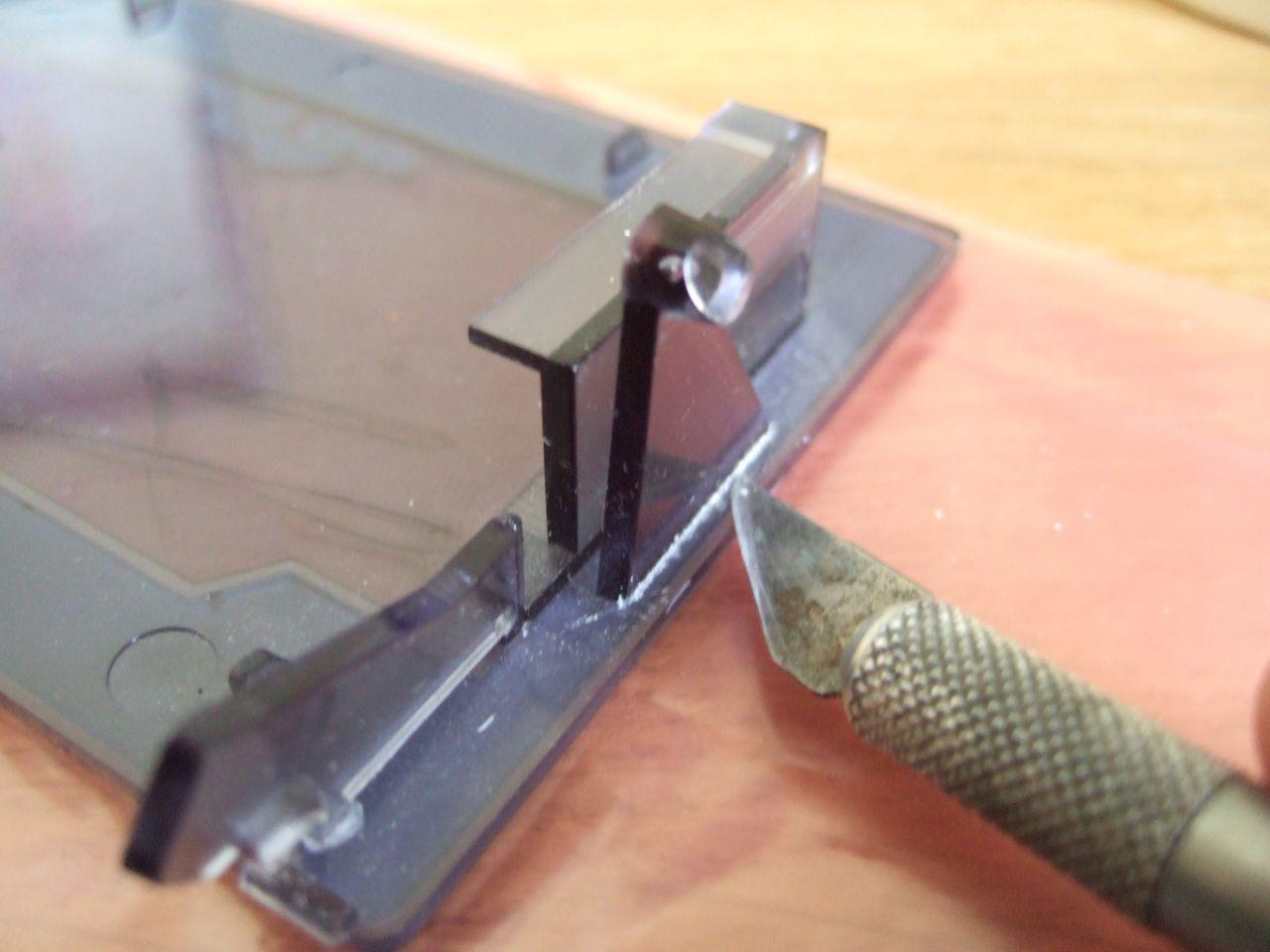

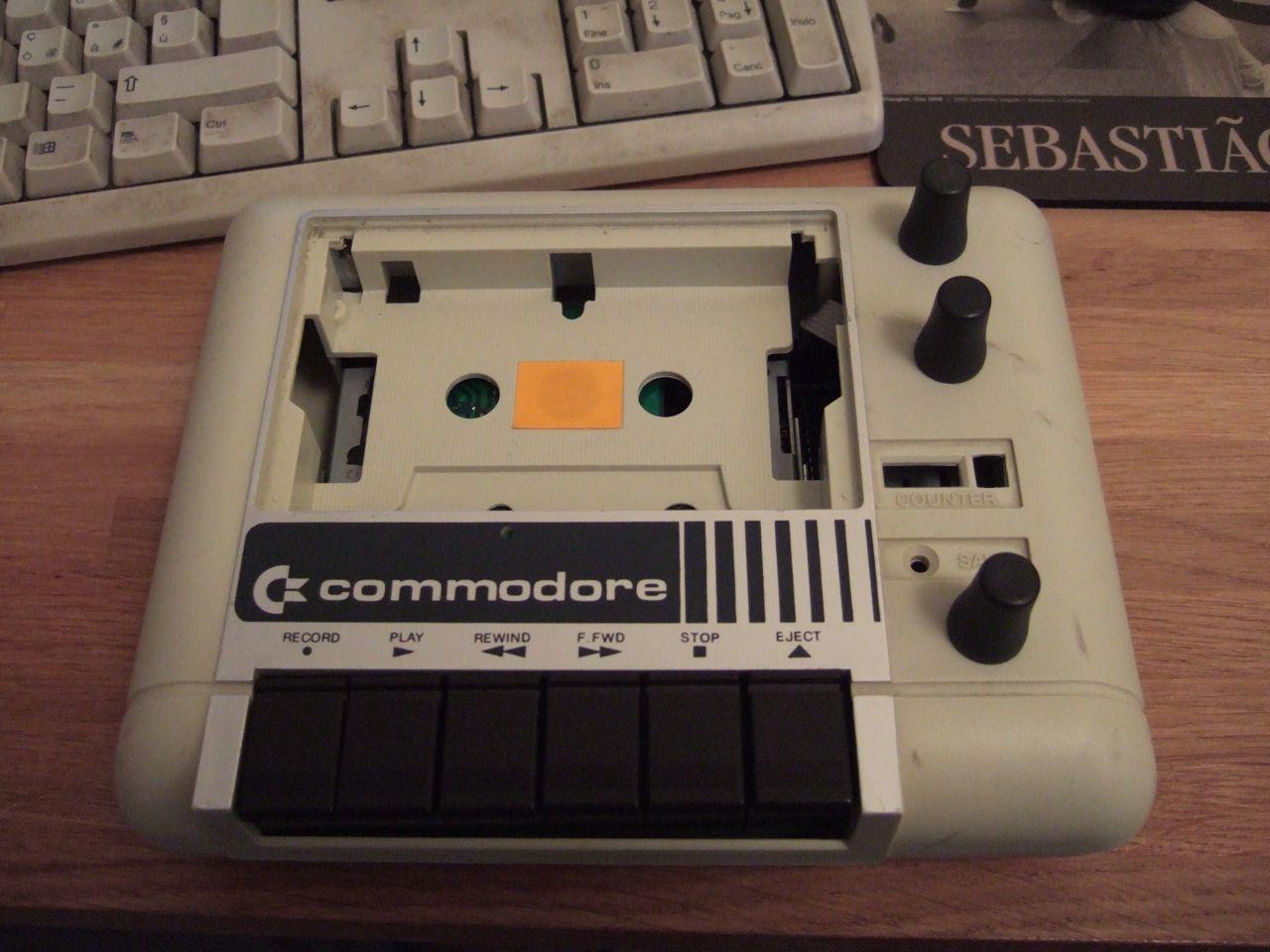

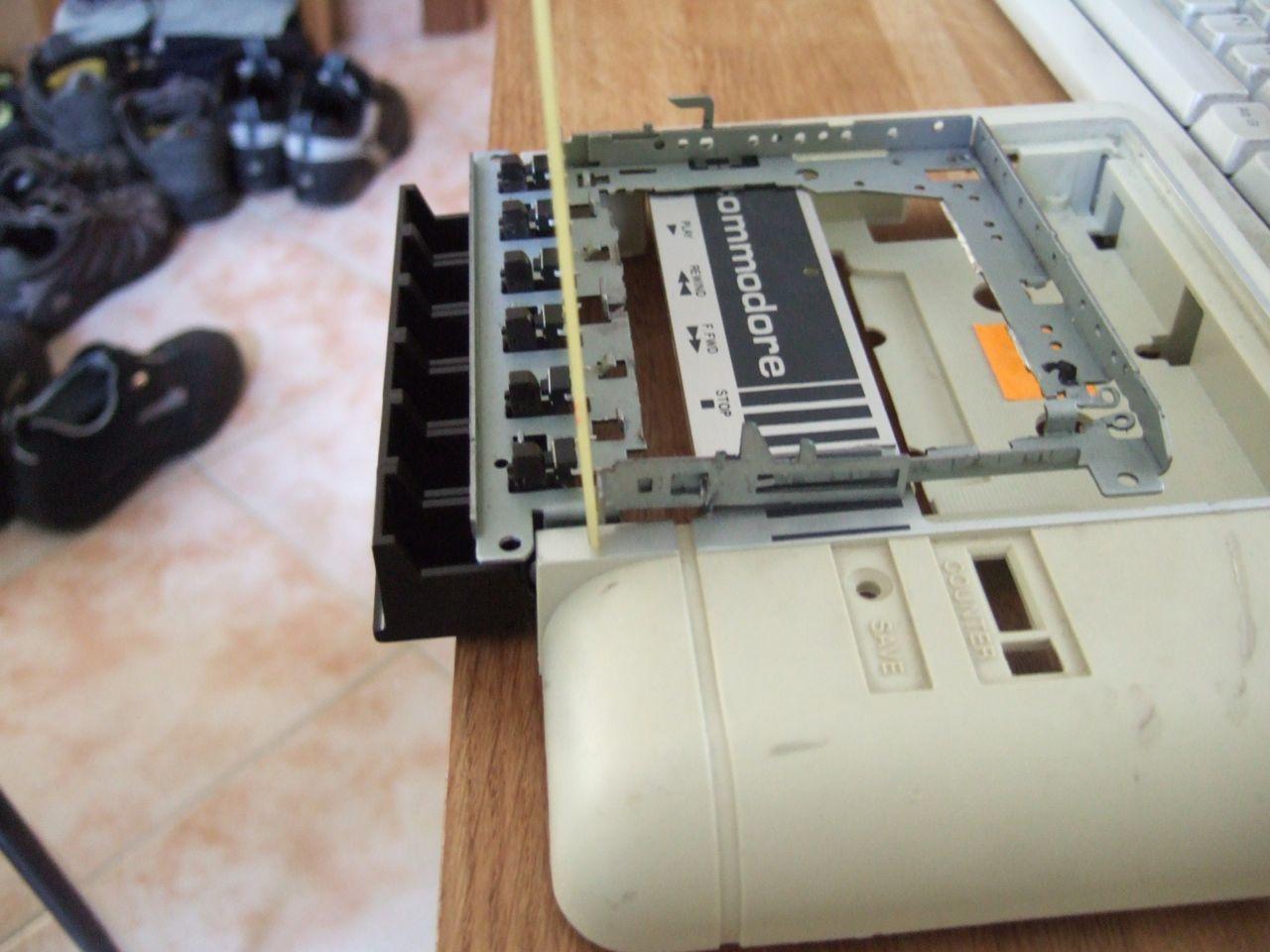

Story of the construction and transformation of a Datassette into a Midibox SID Bassline Synth!

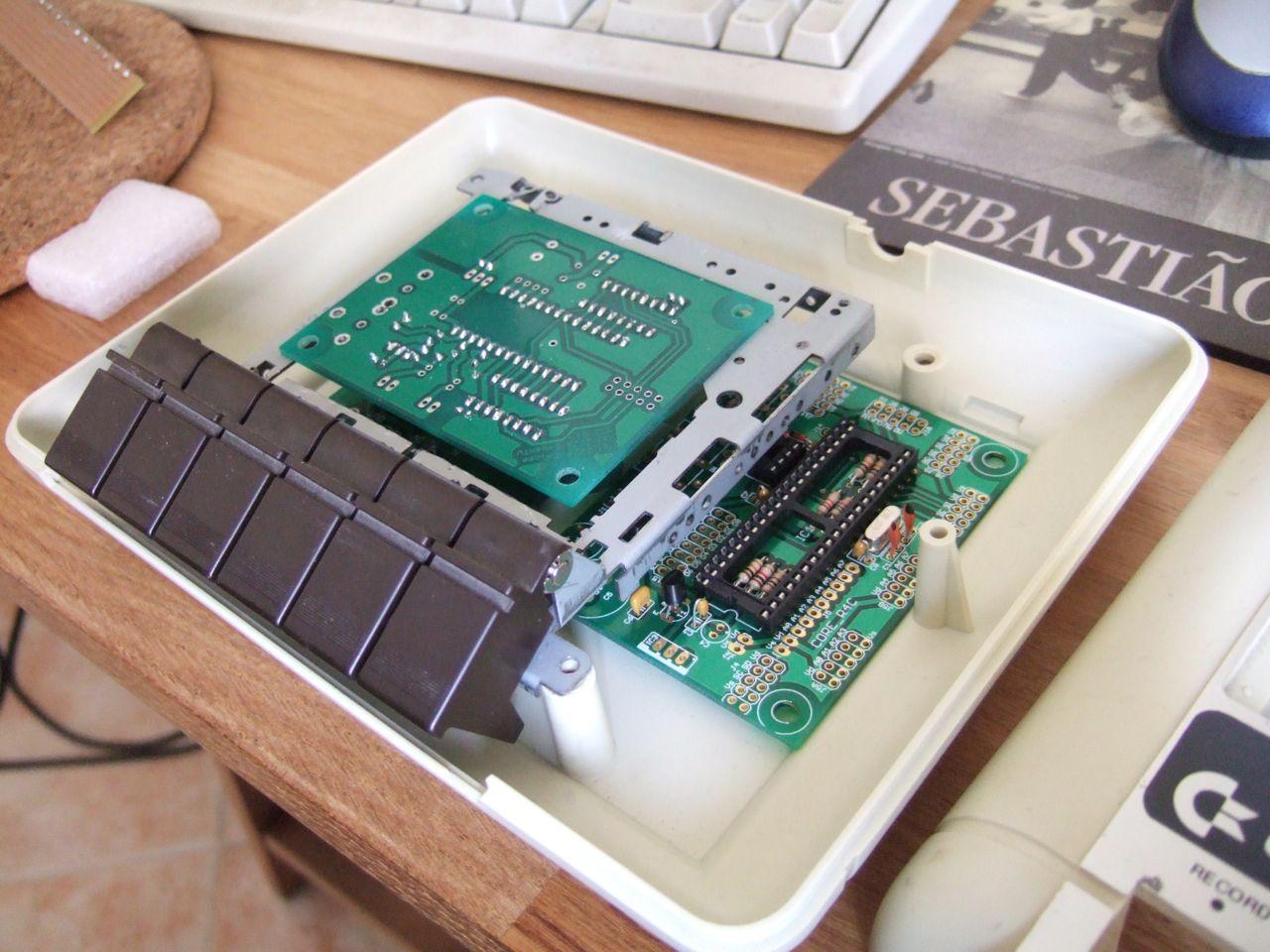

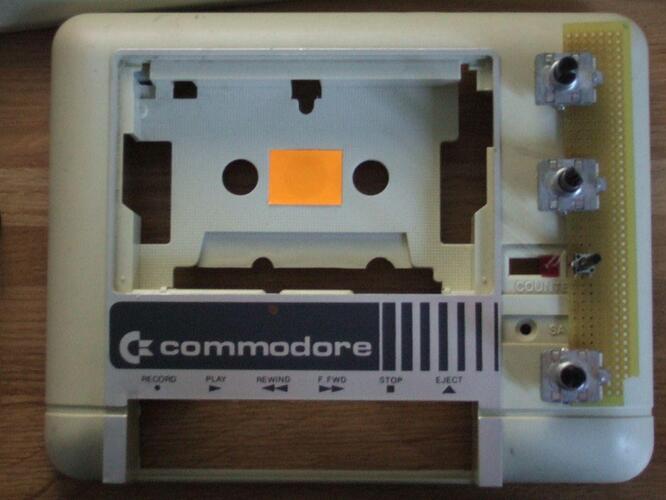

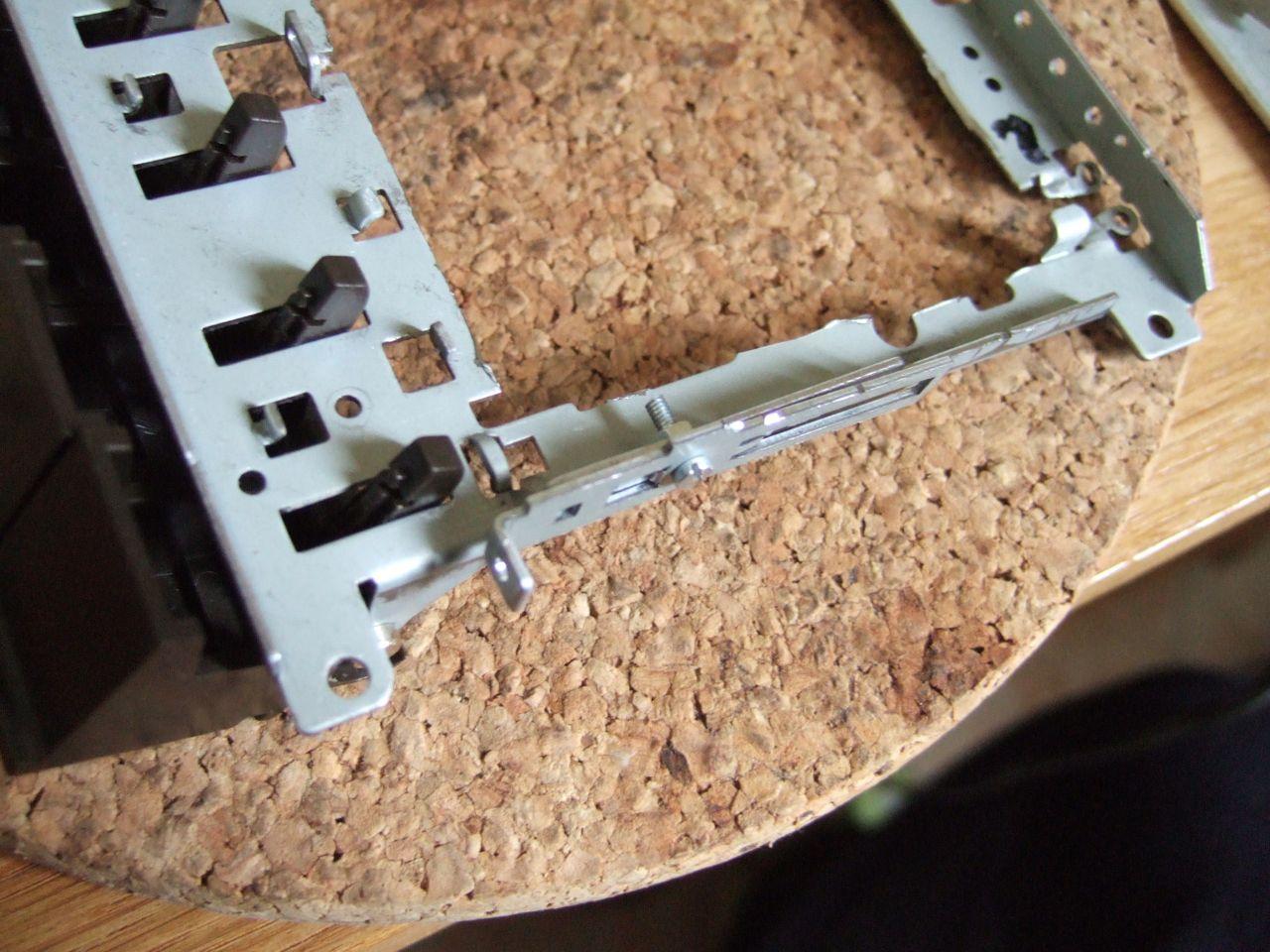

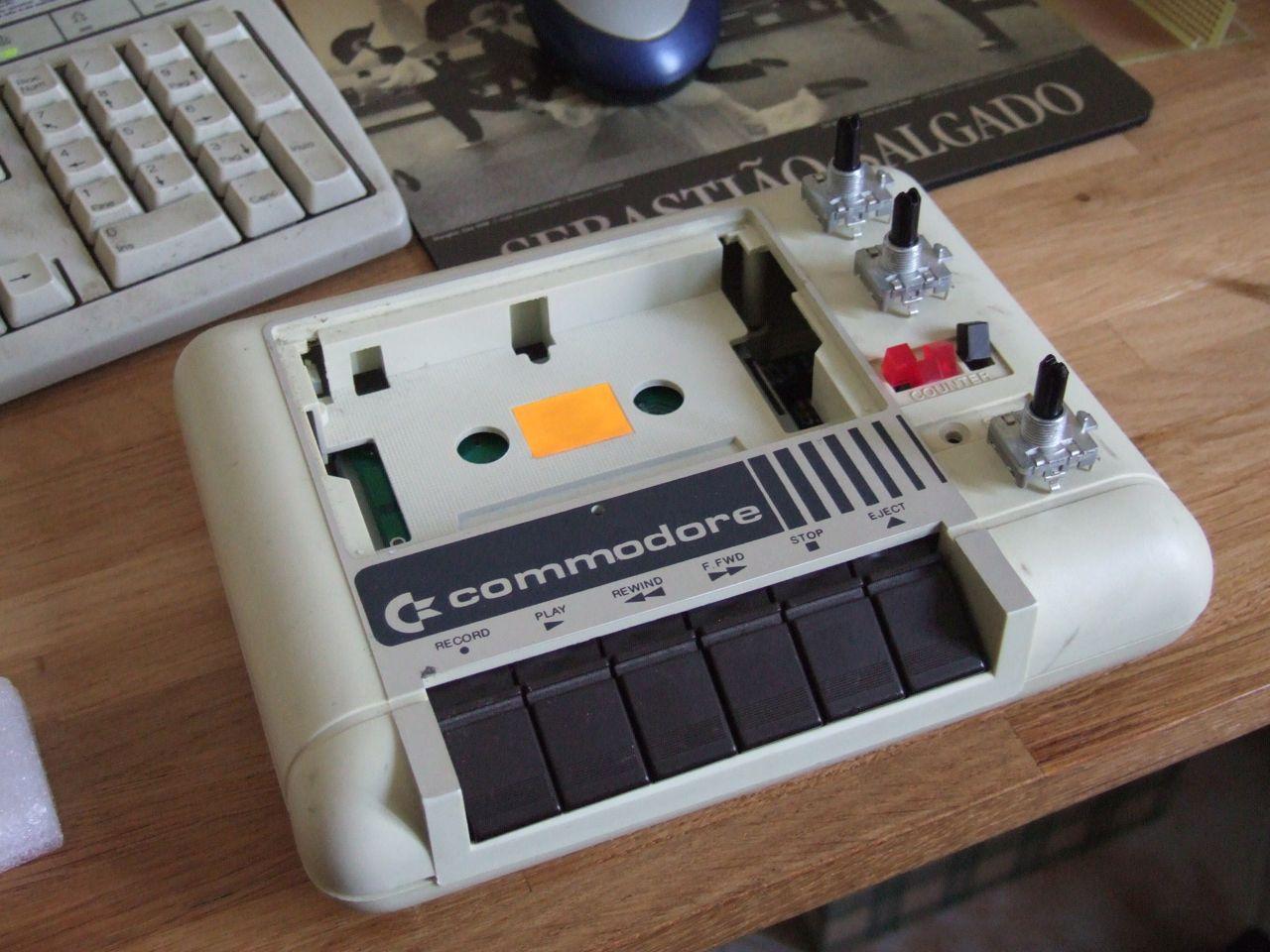

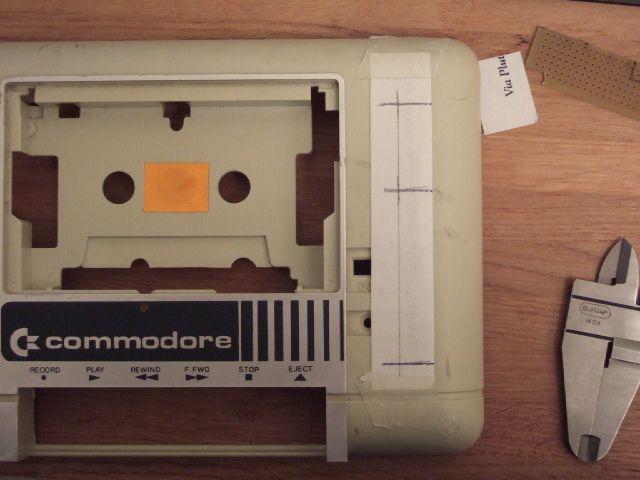

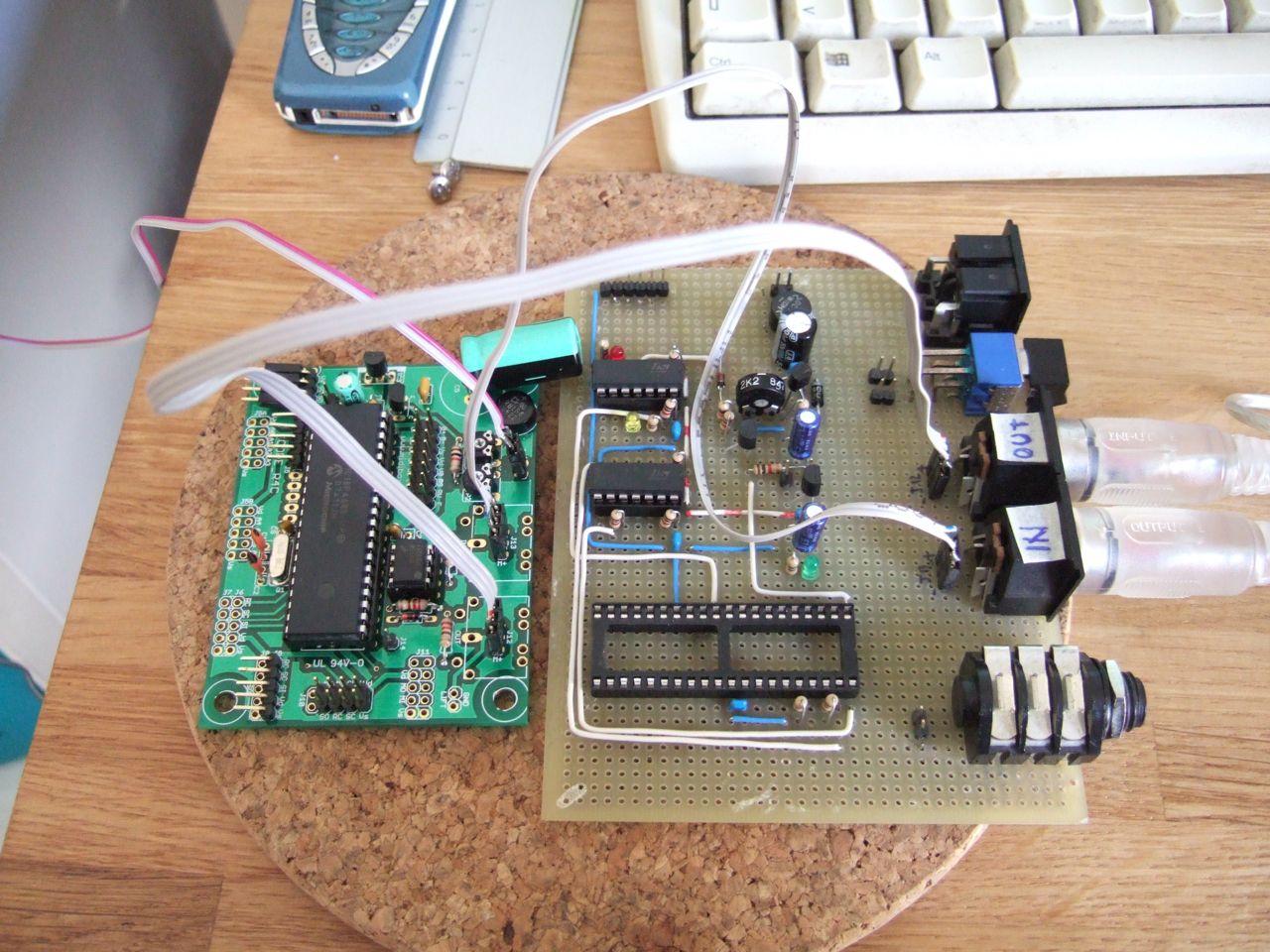

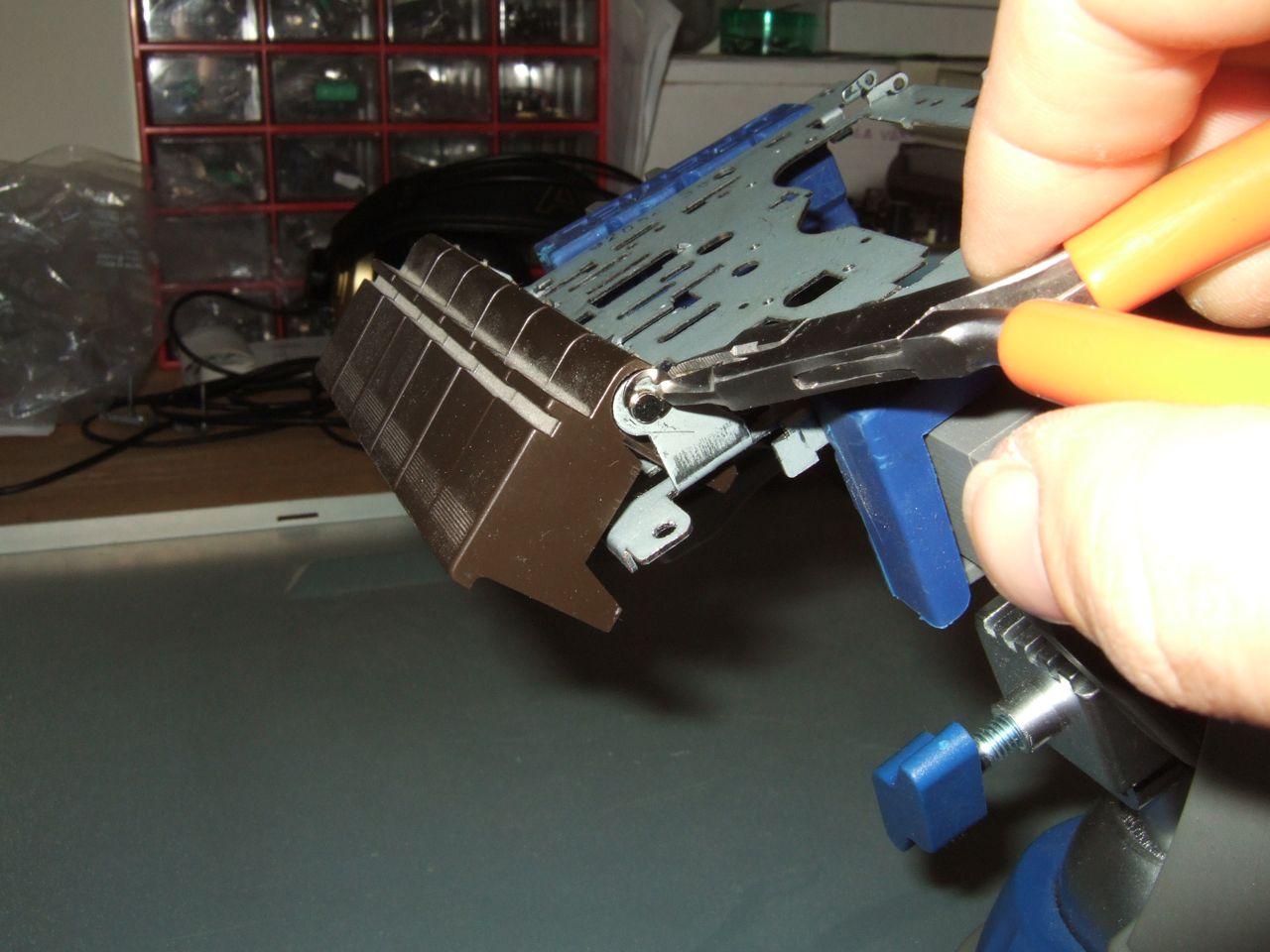

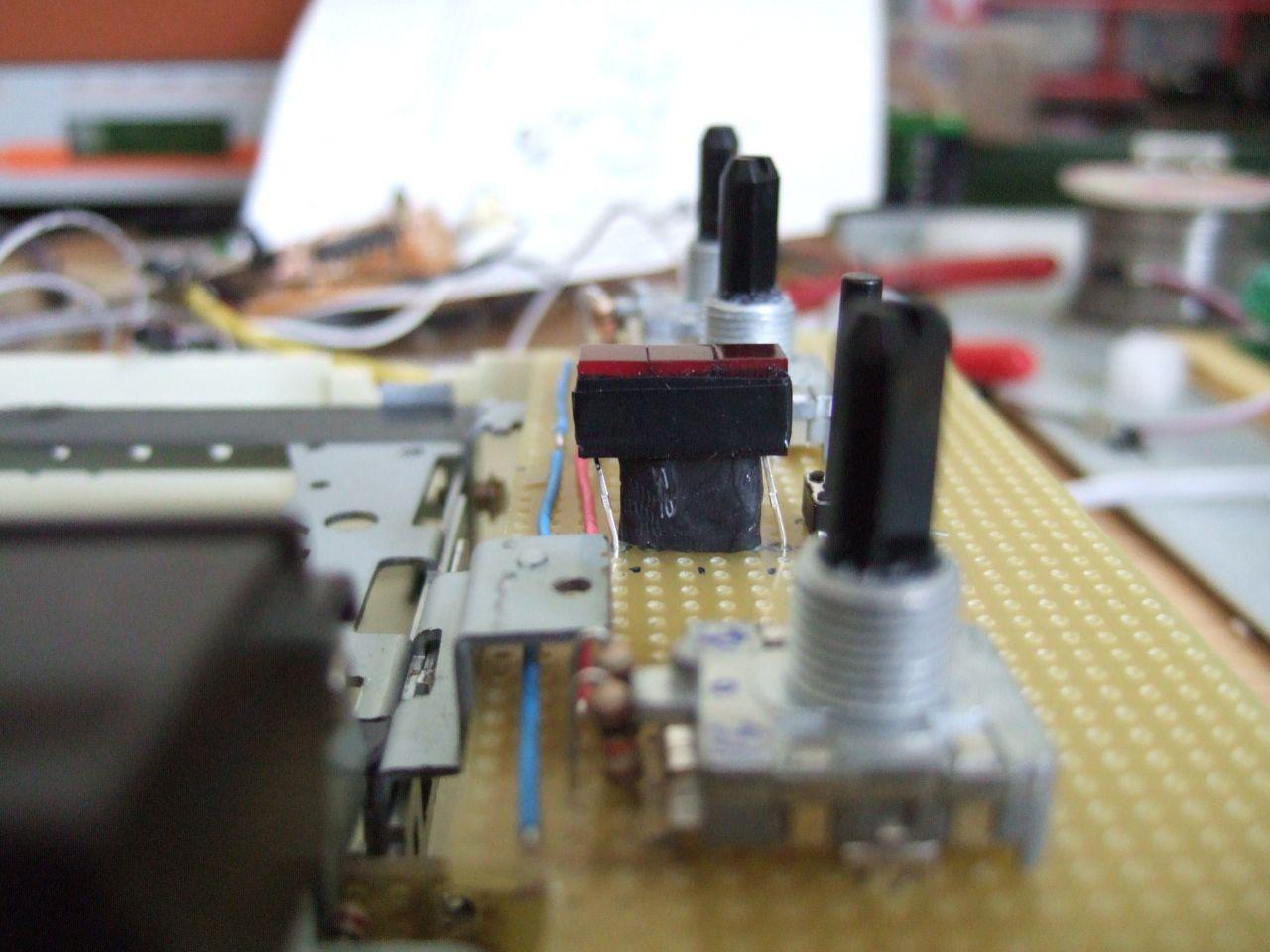

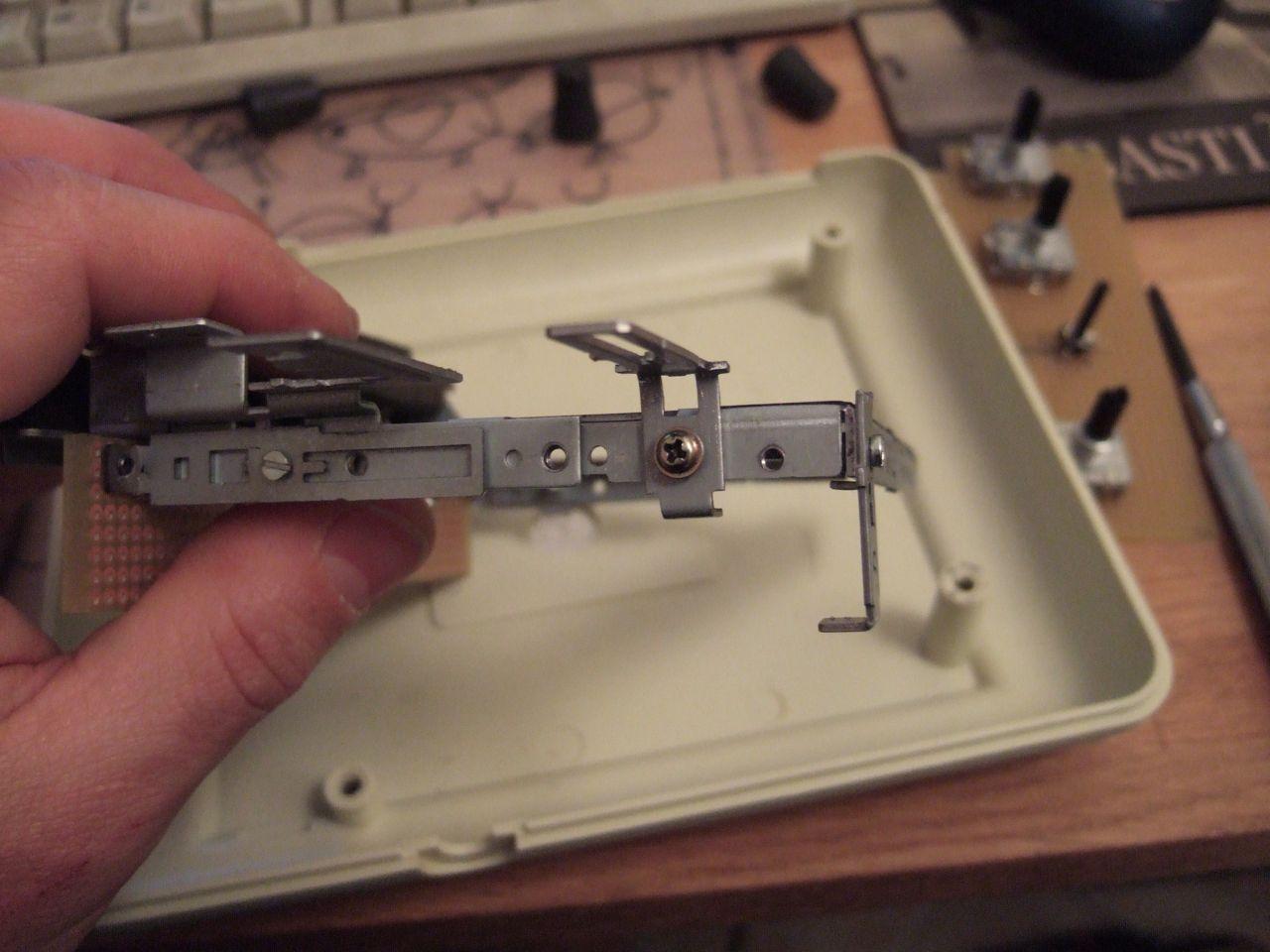

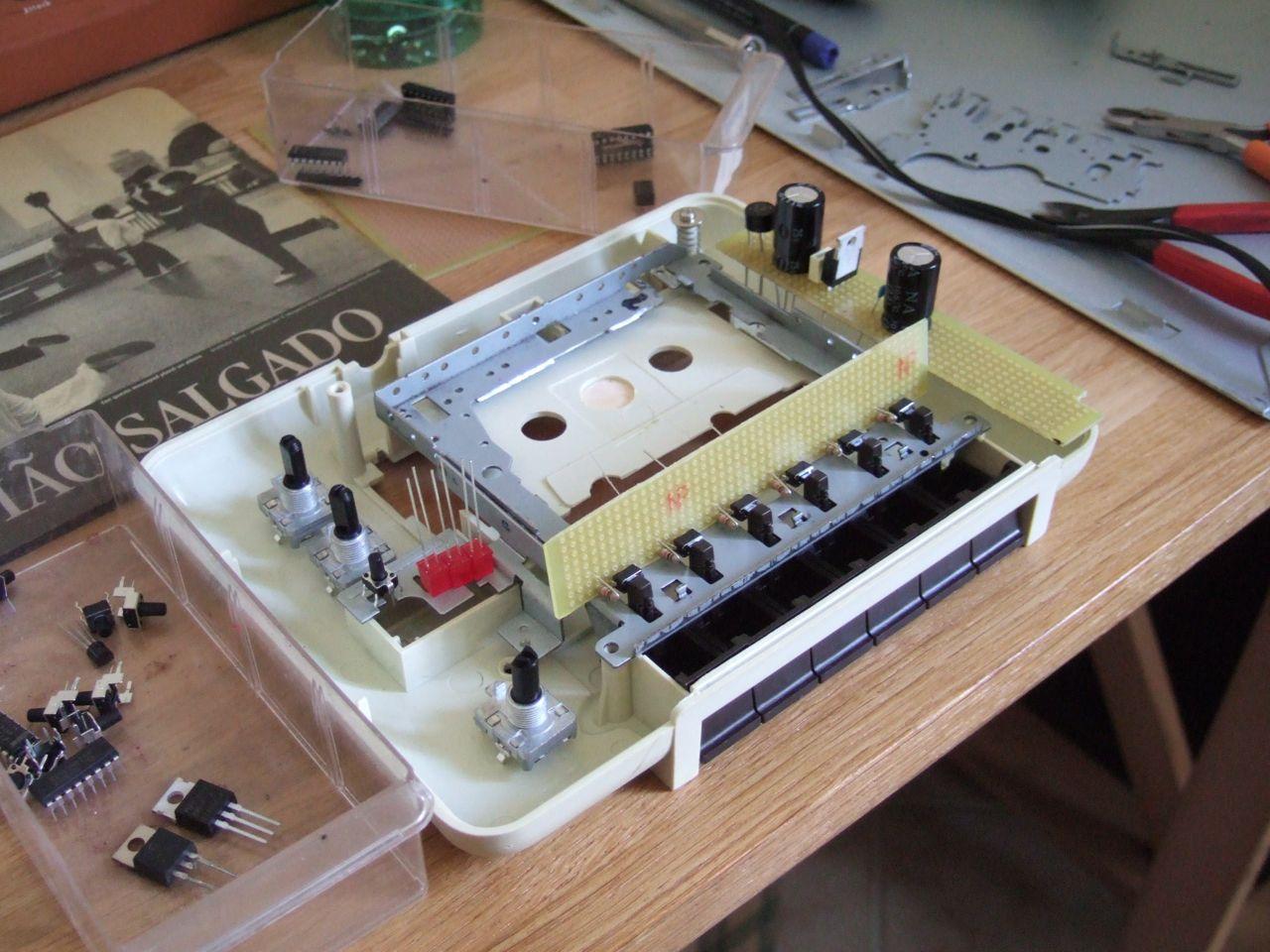

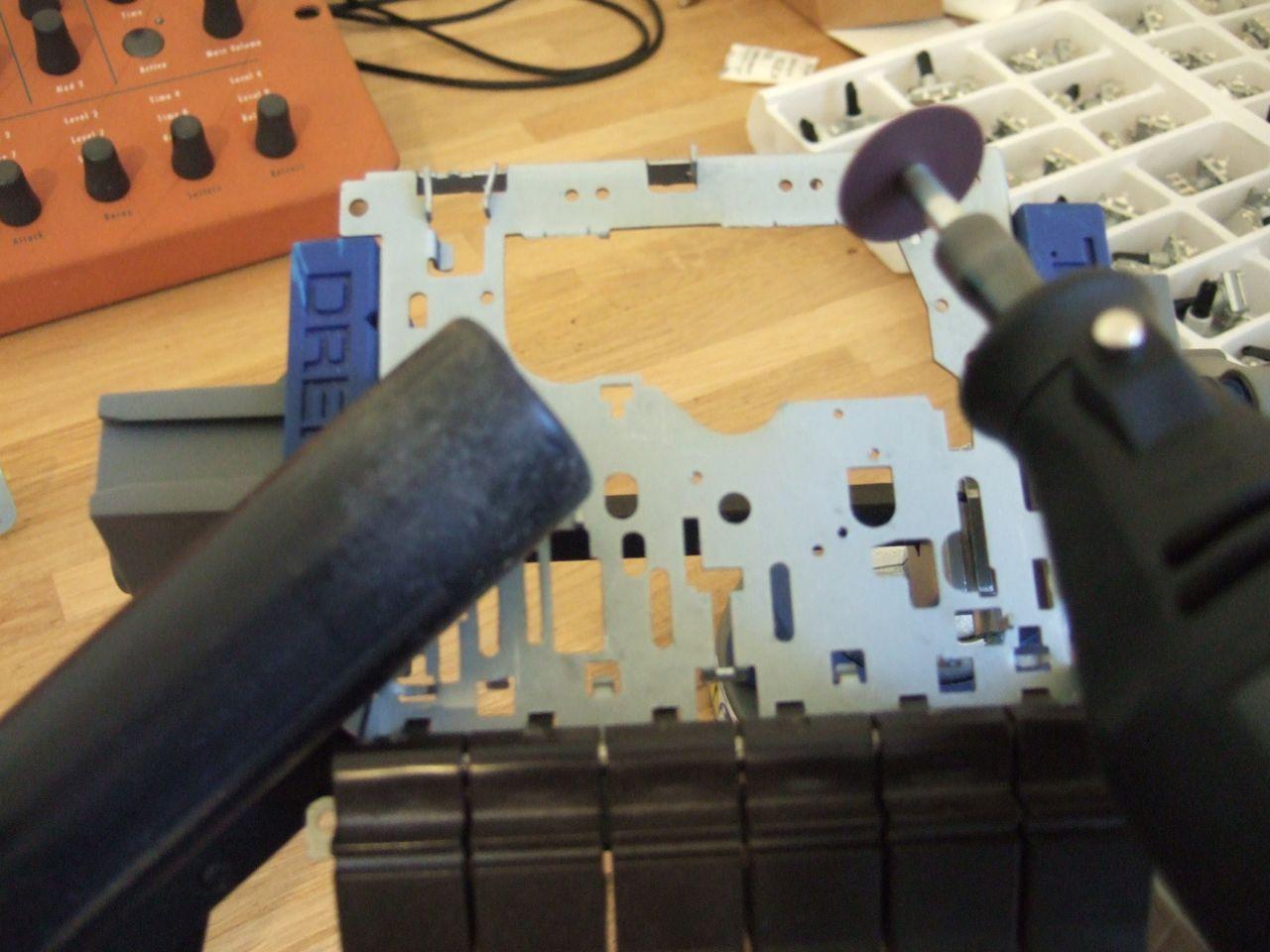

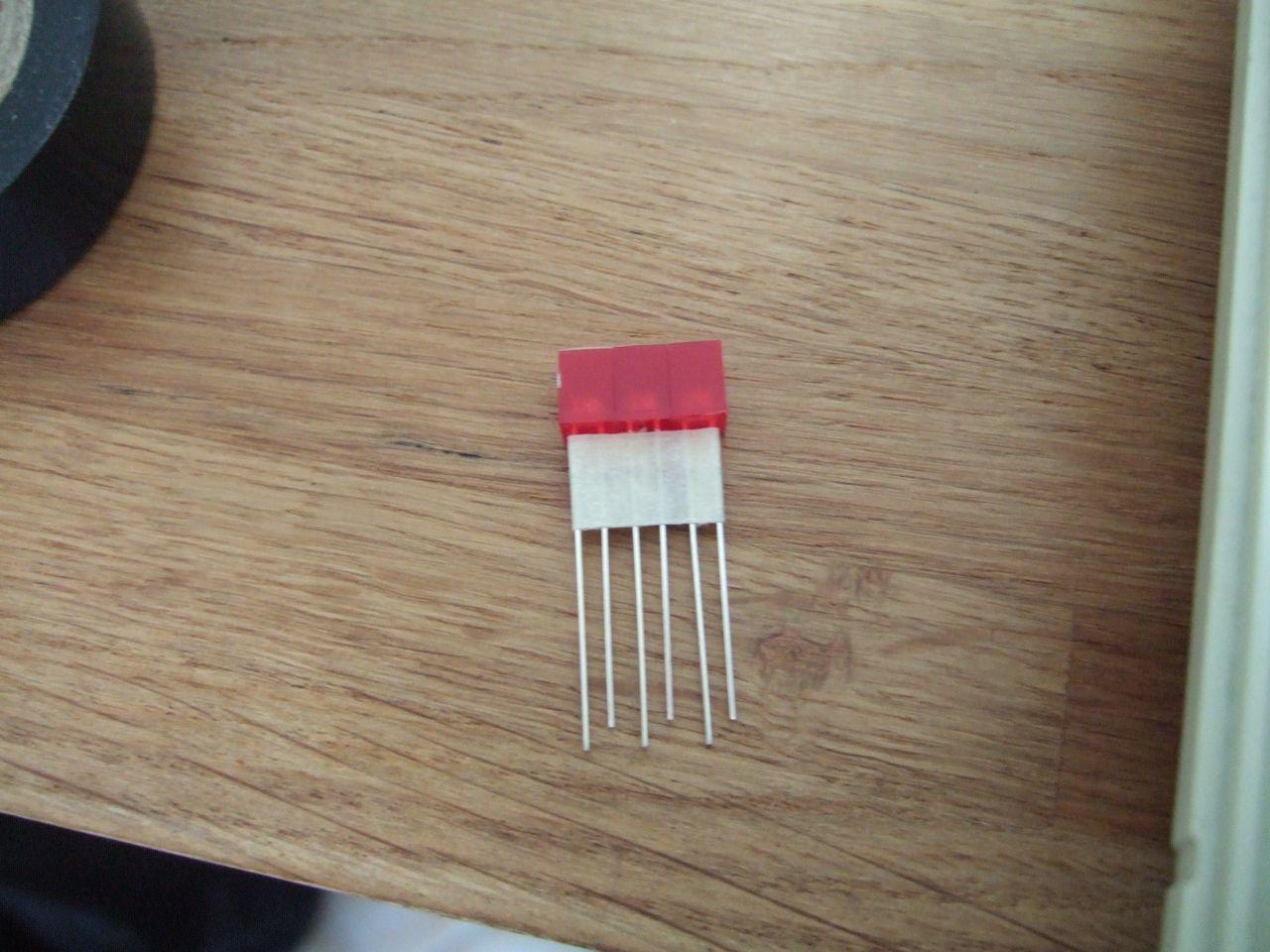

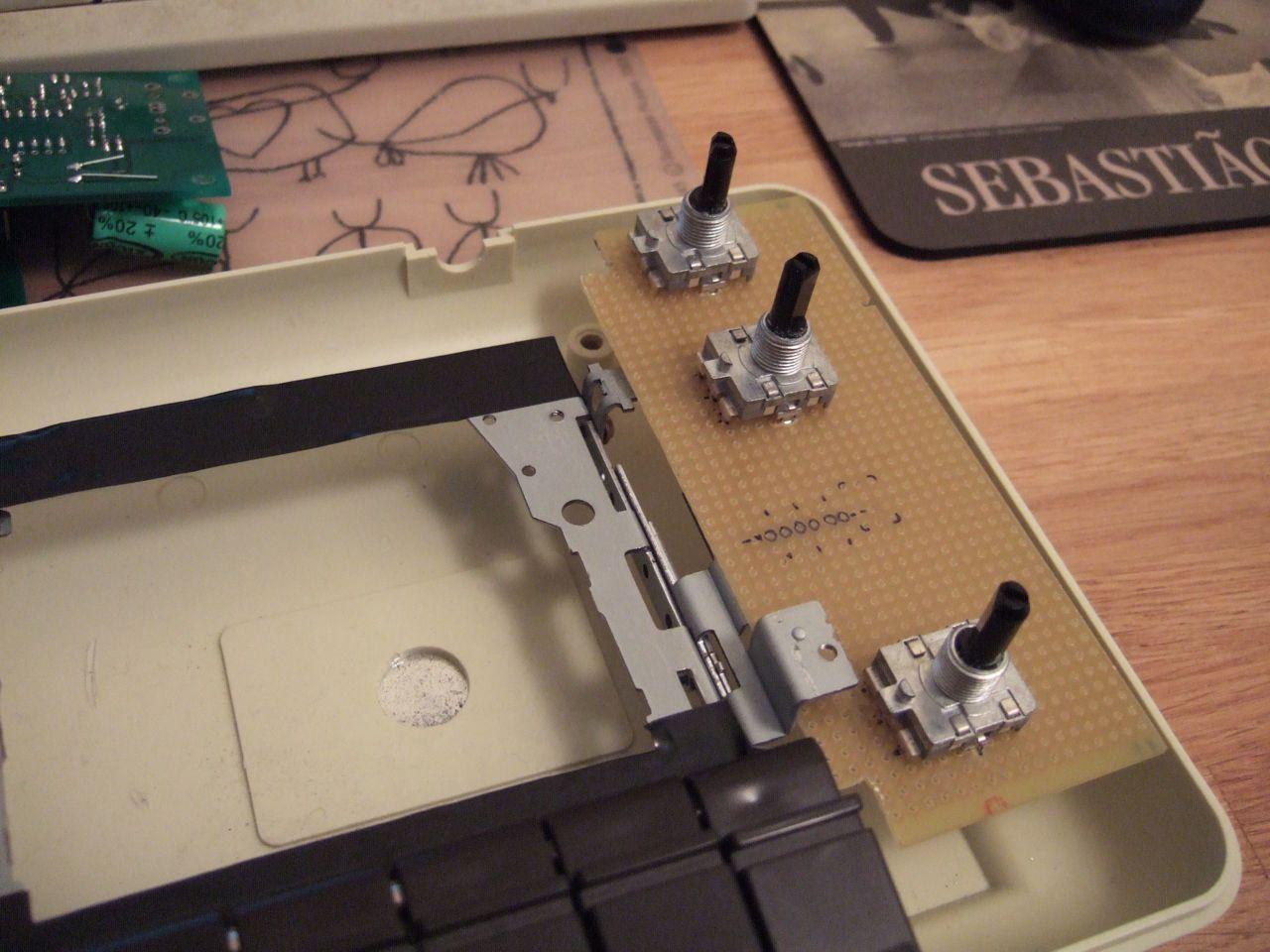

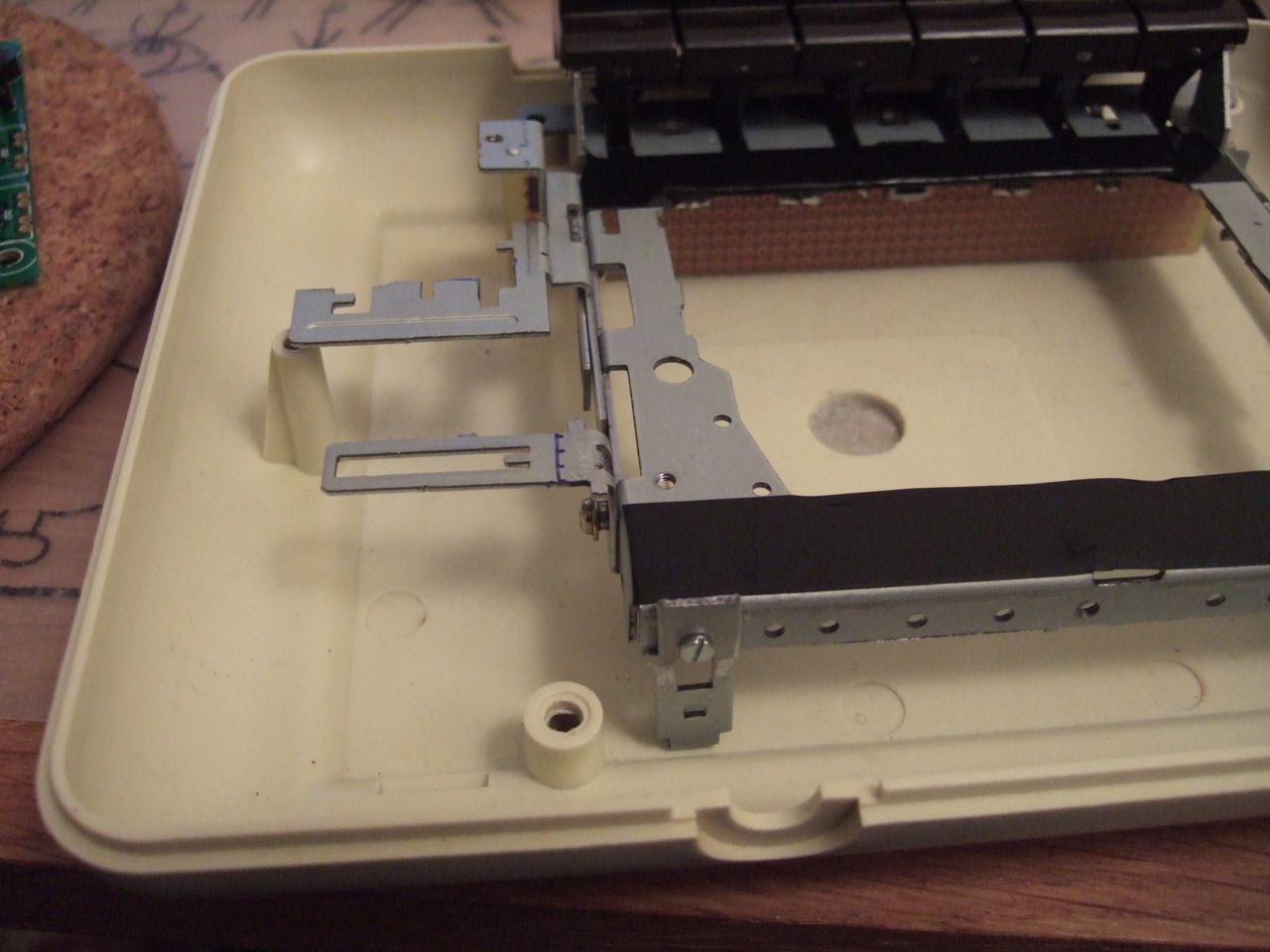

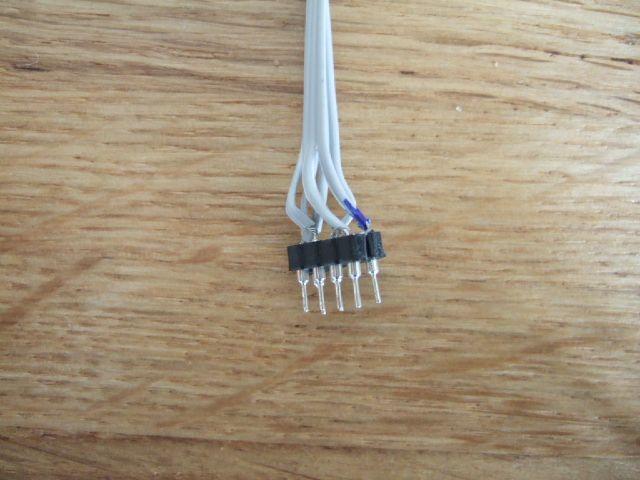

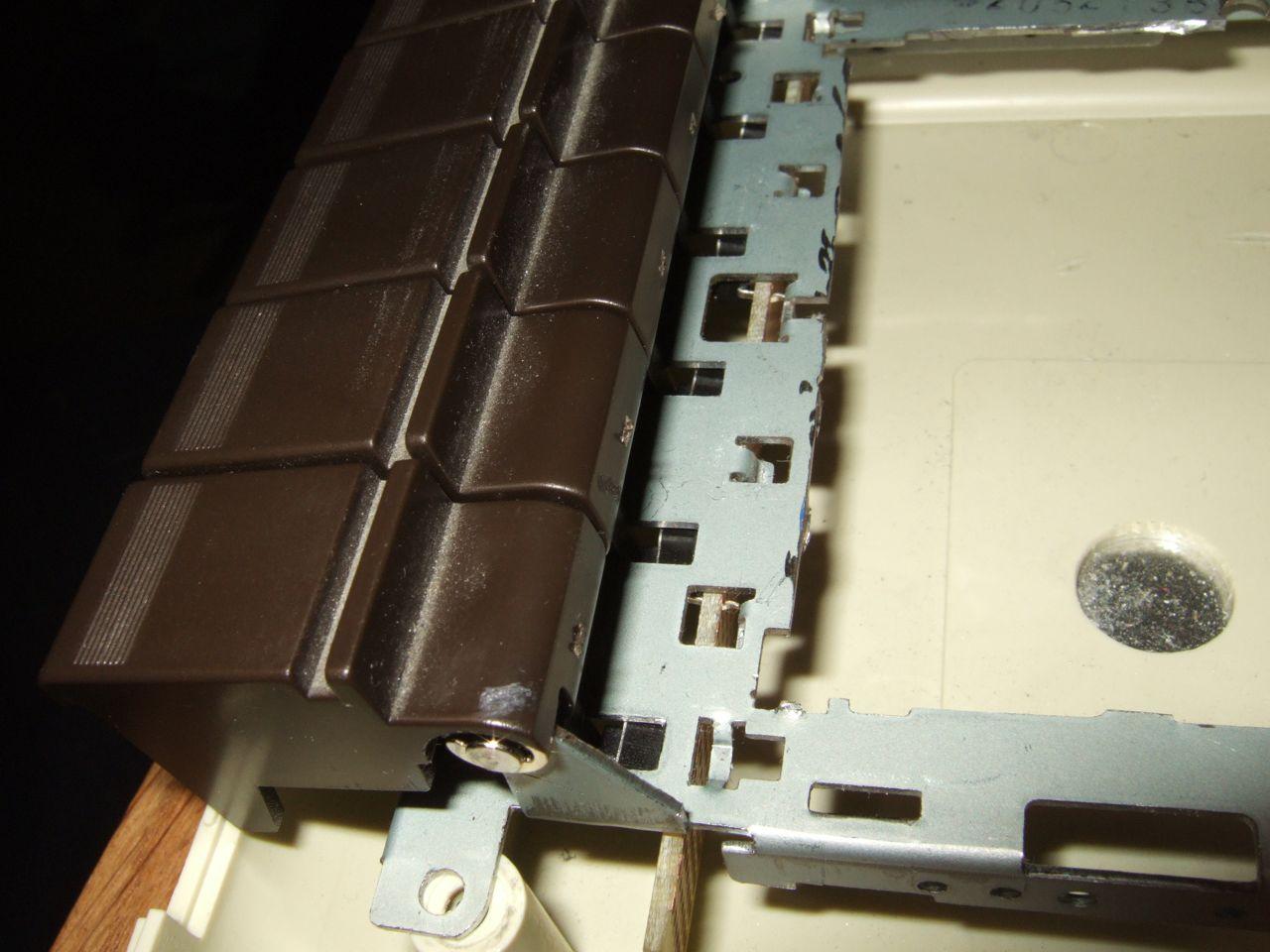

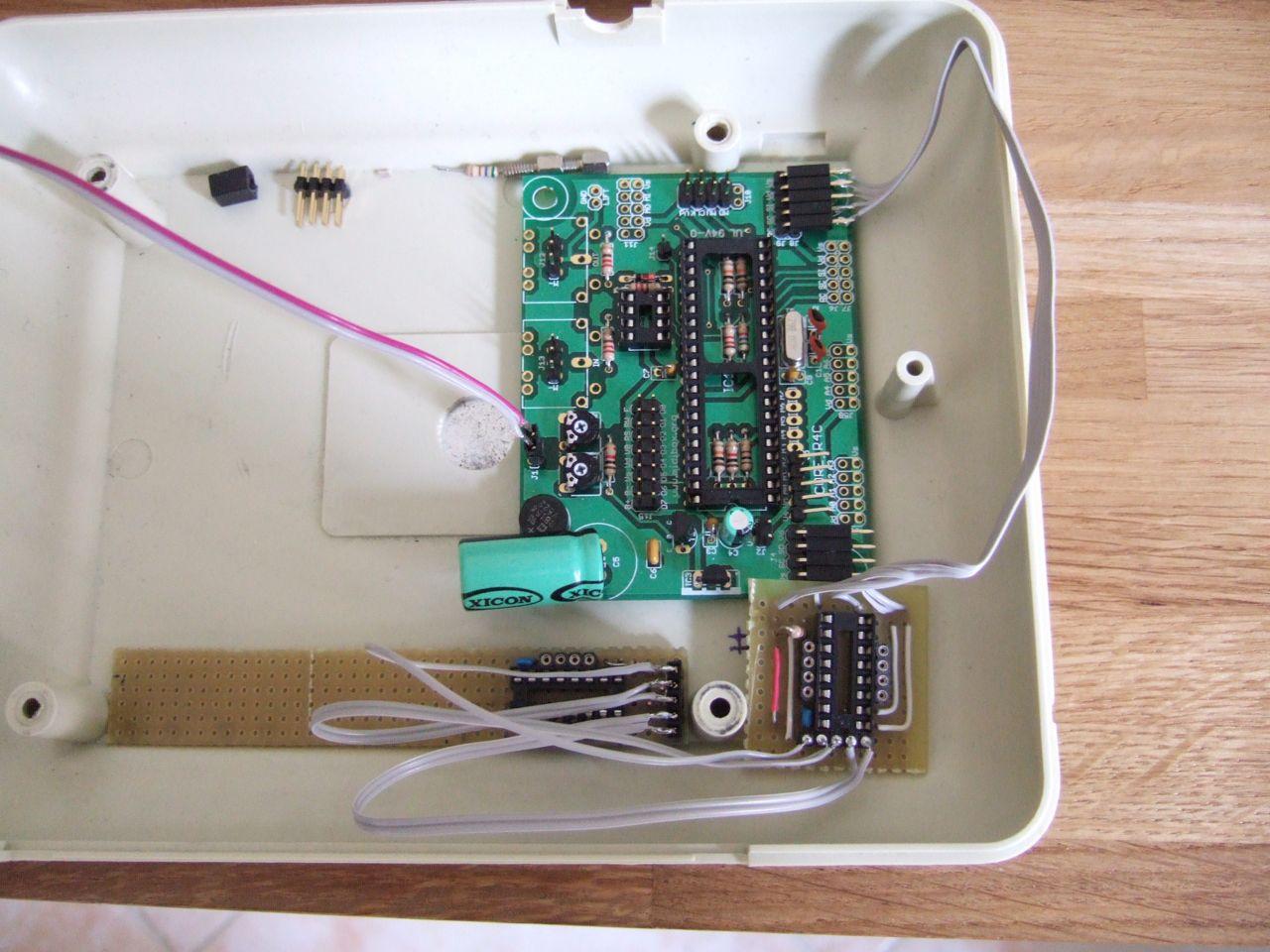

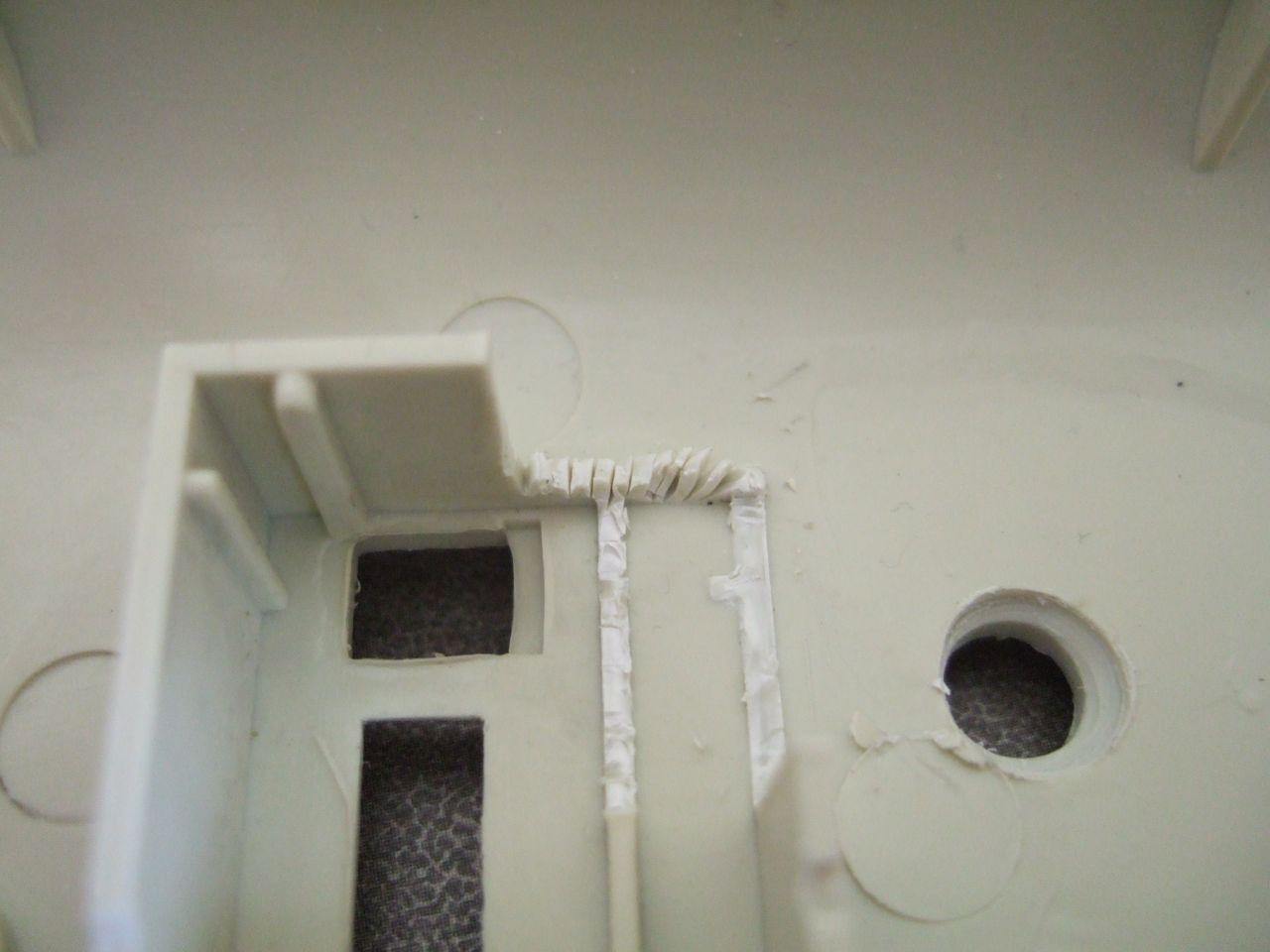

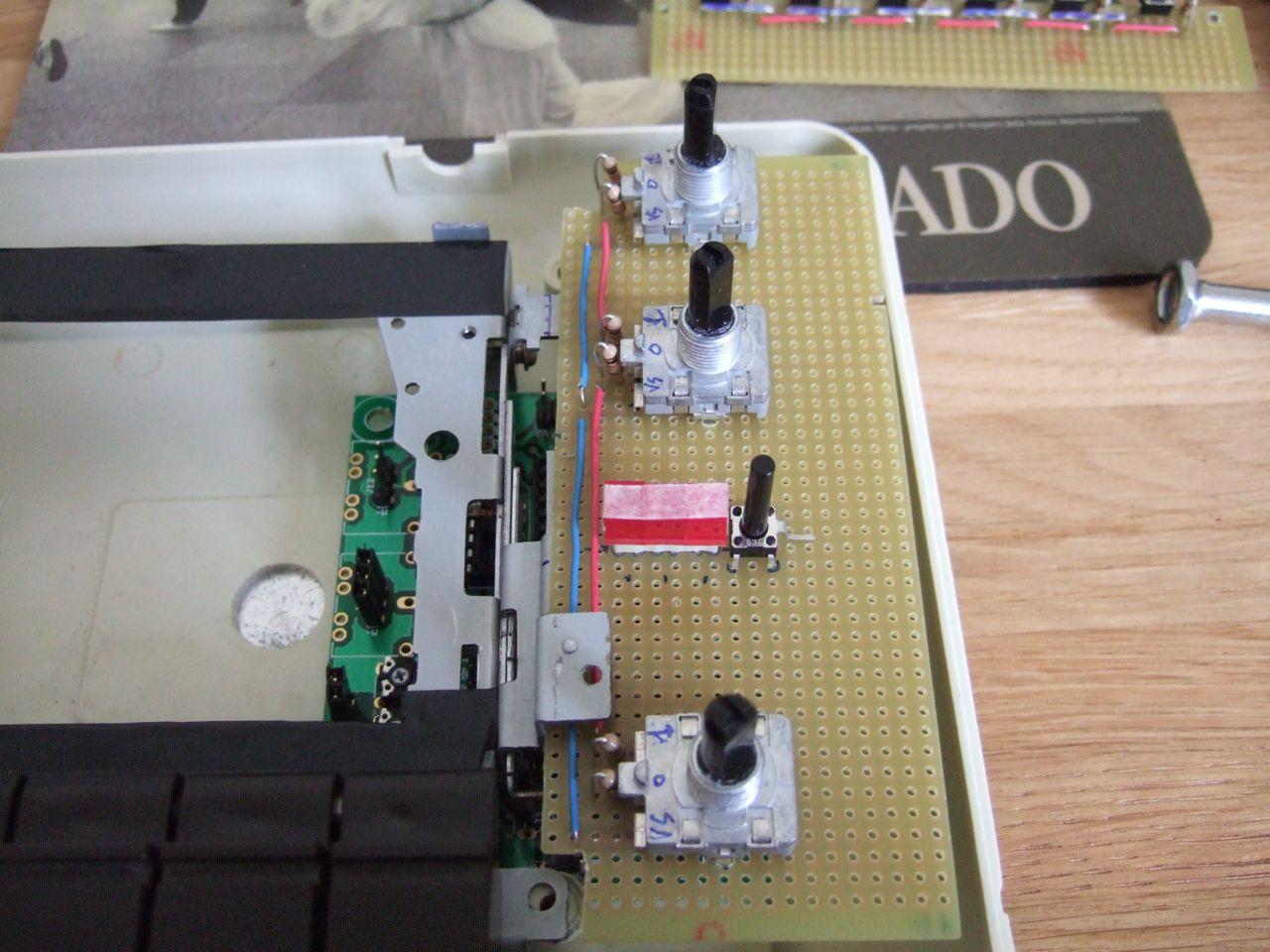

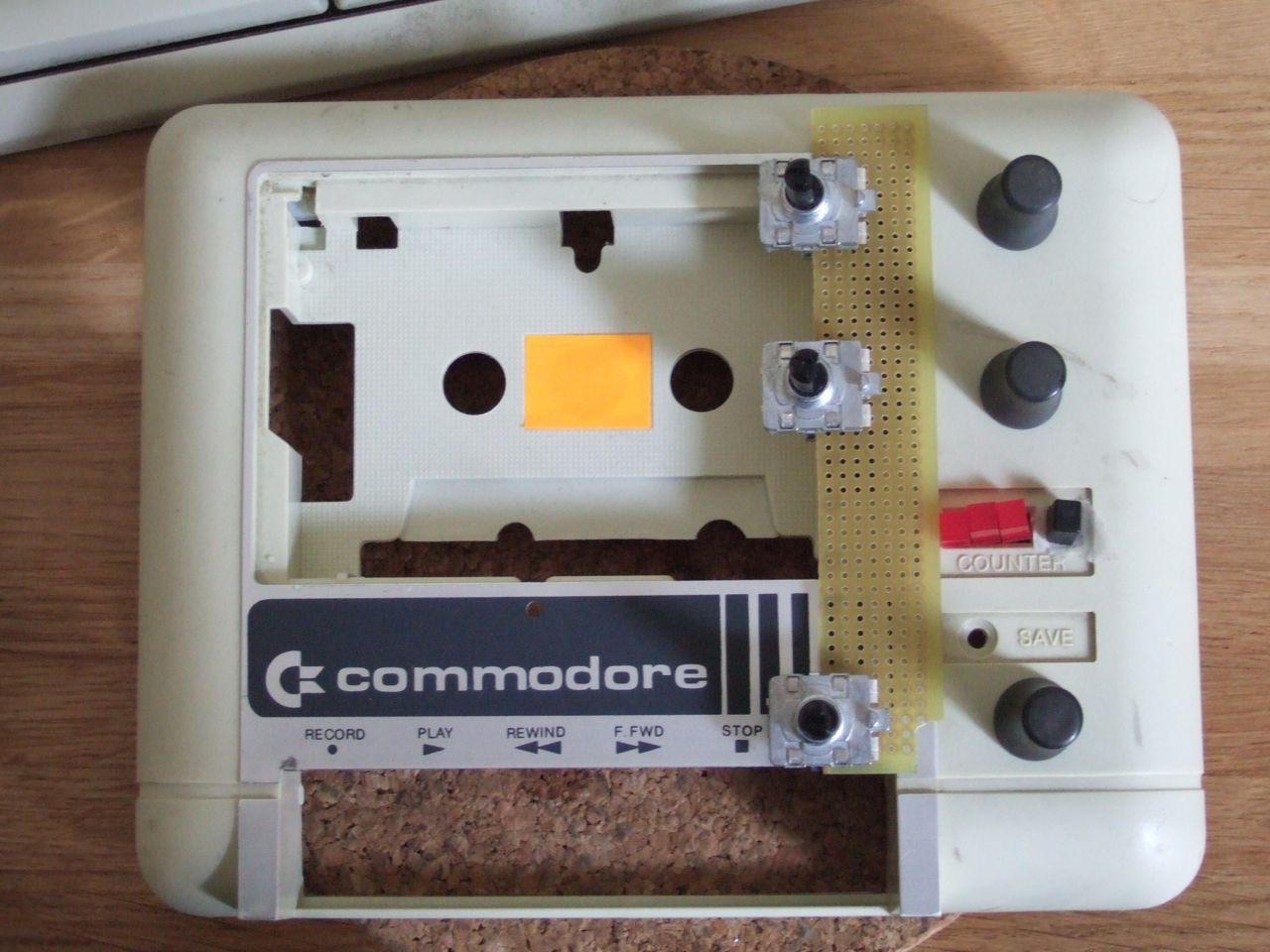

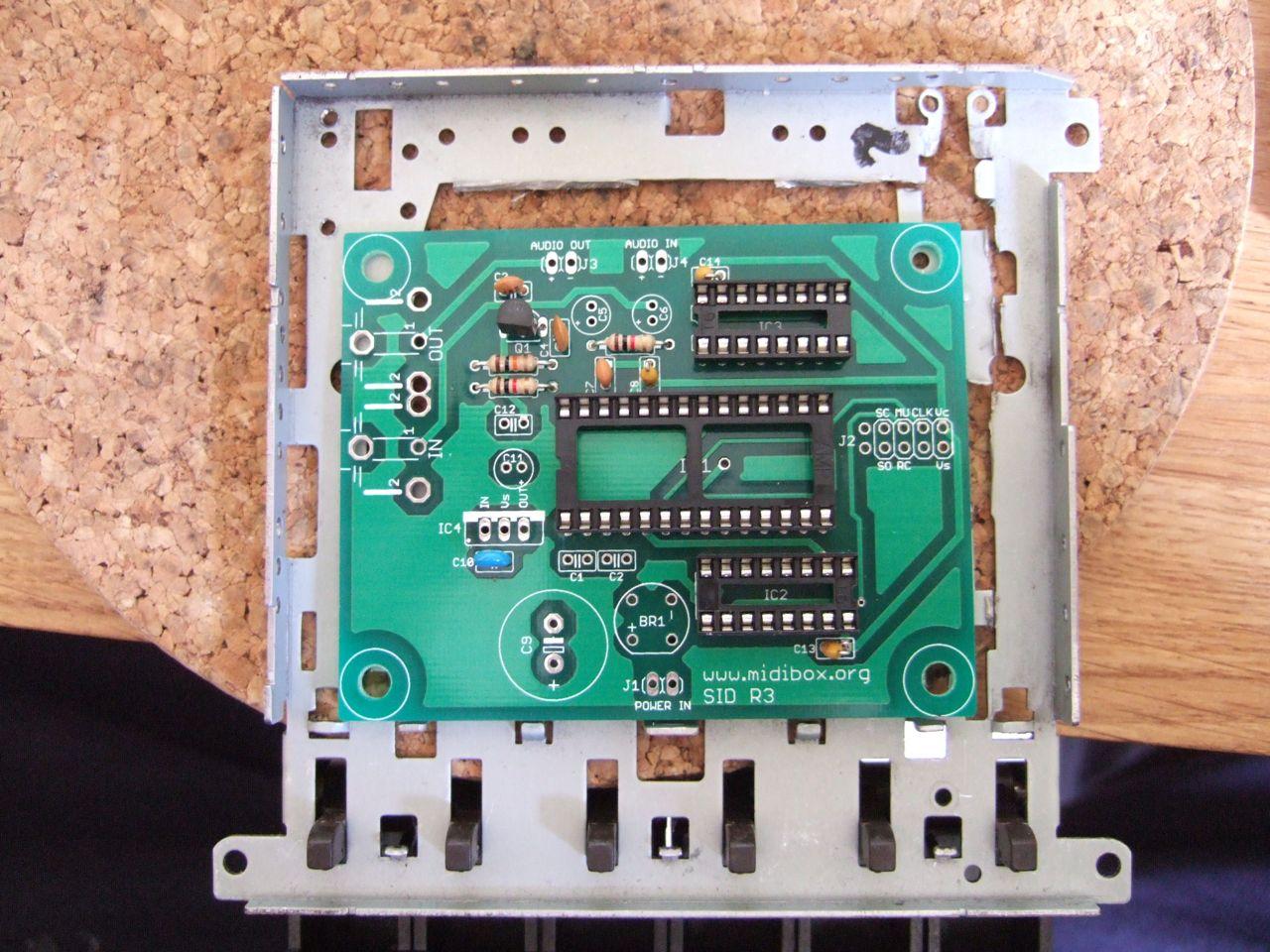

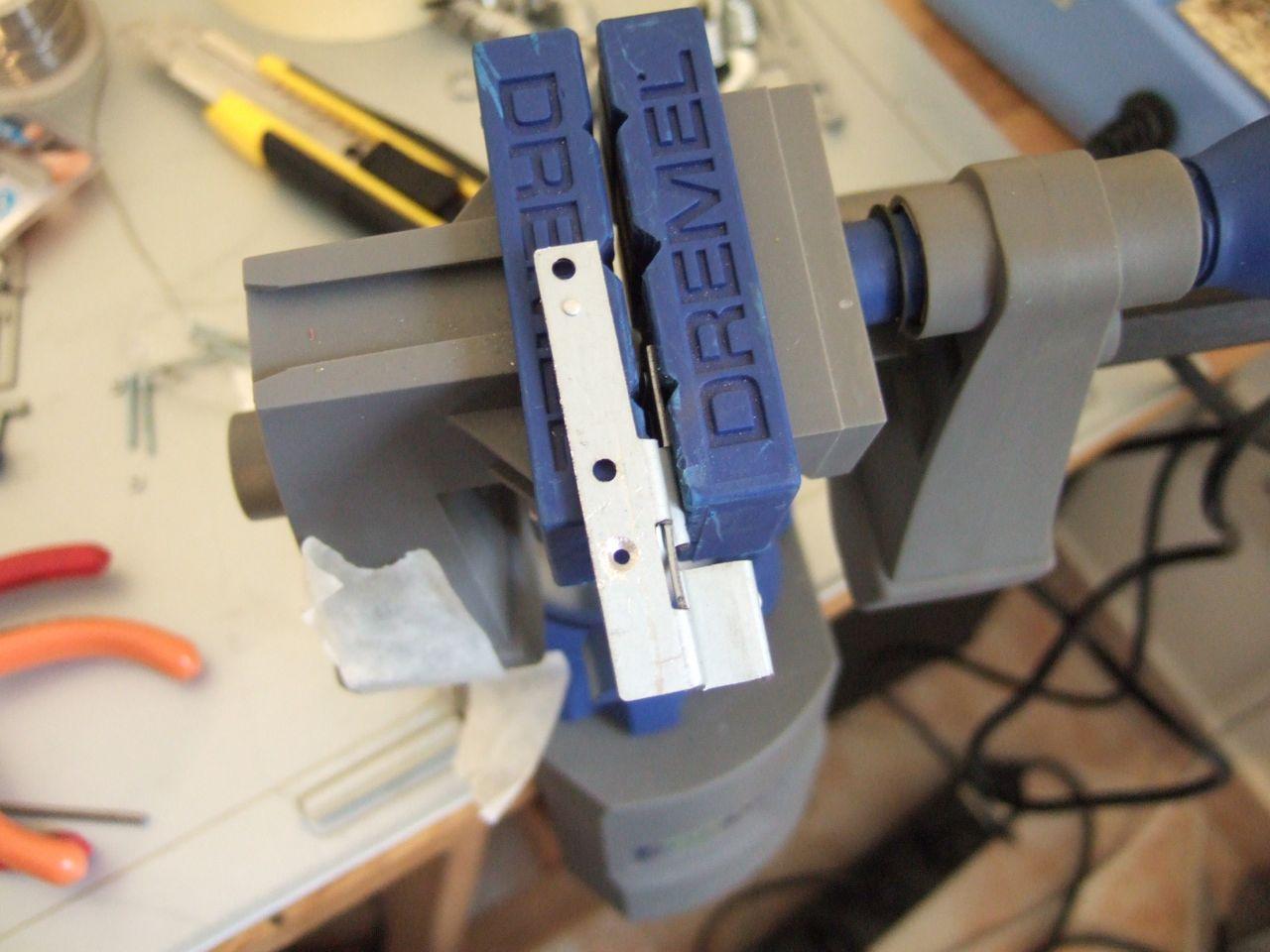

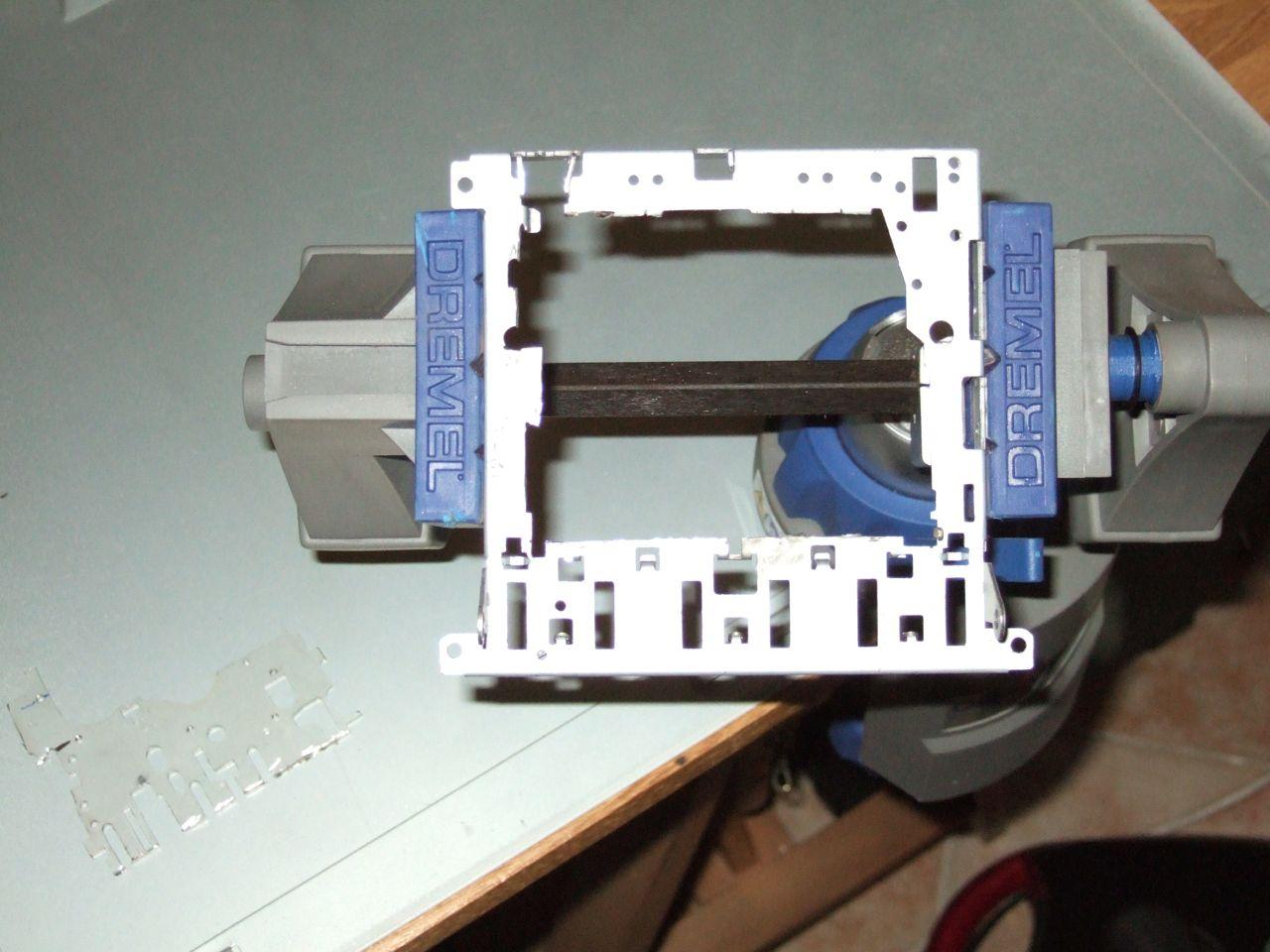

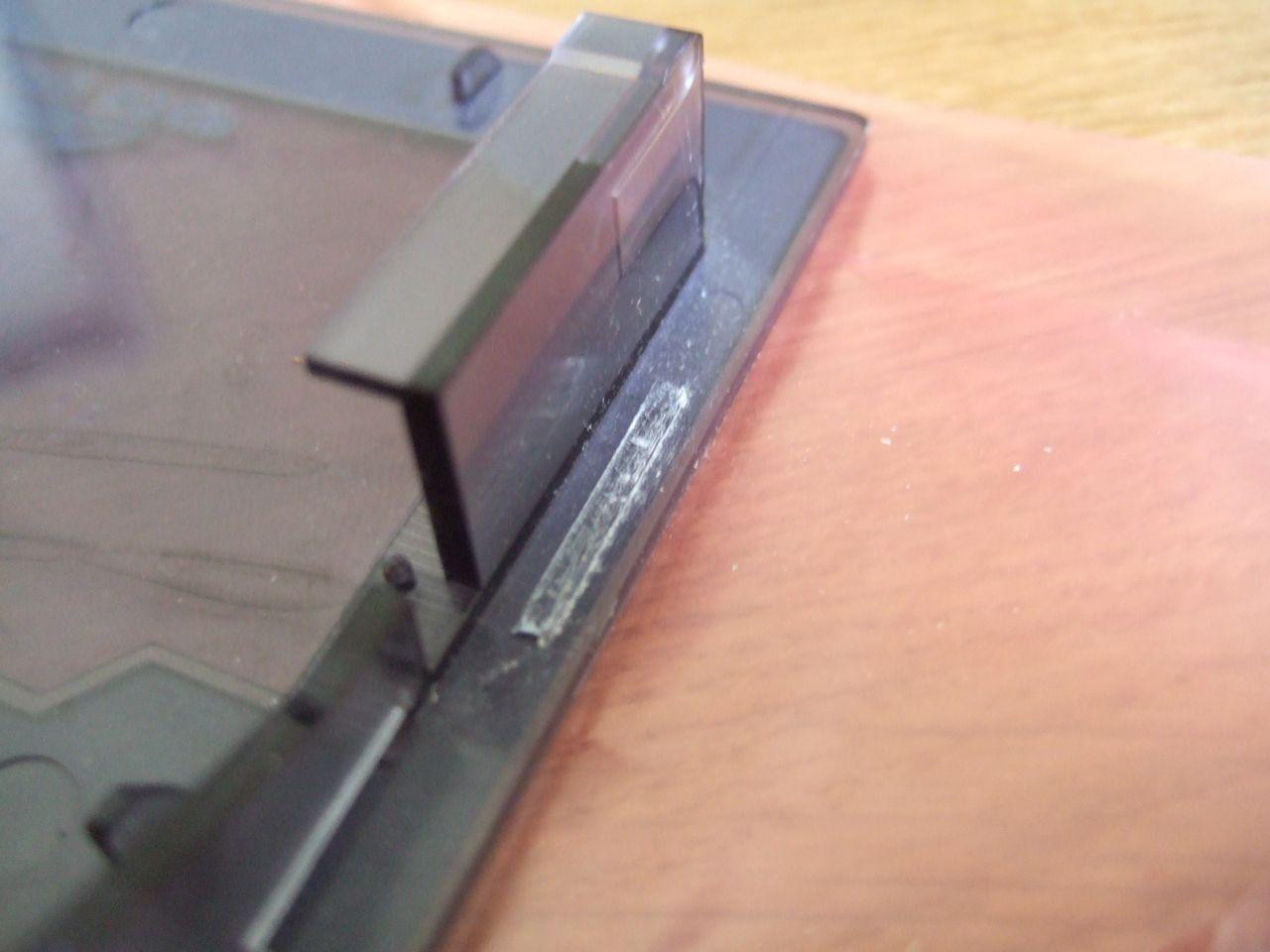

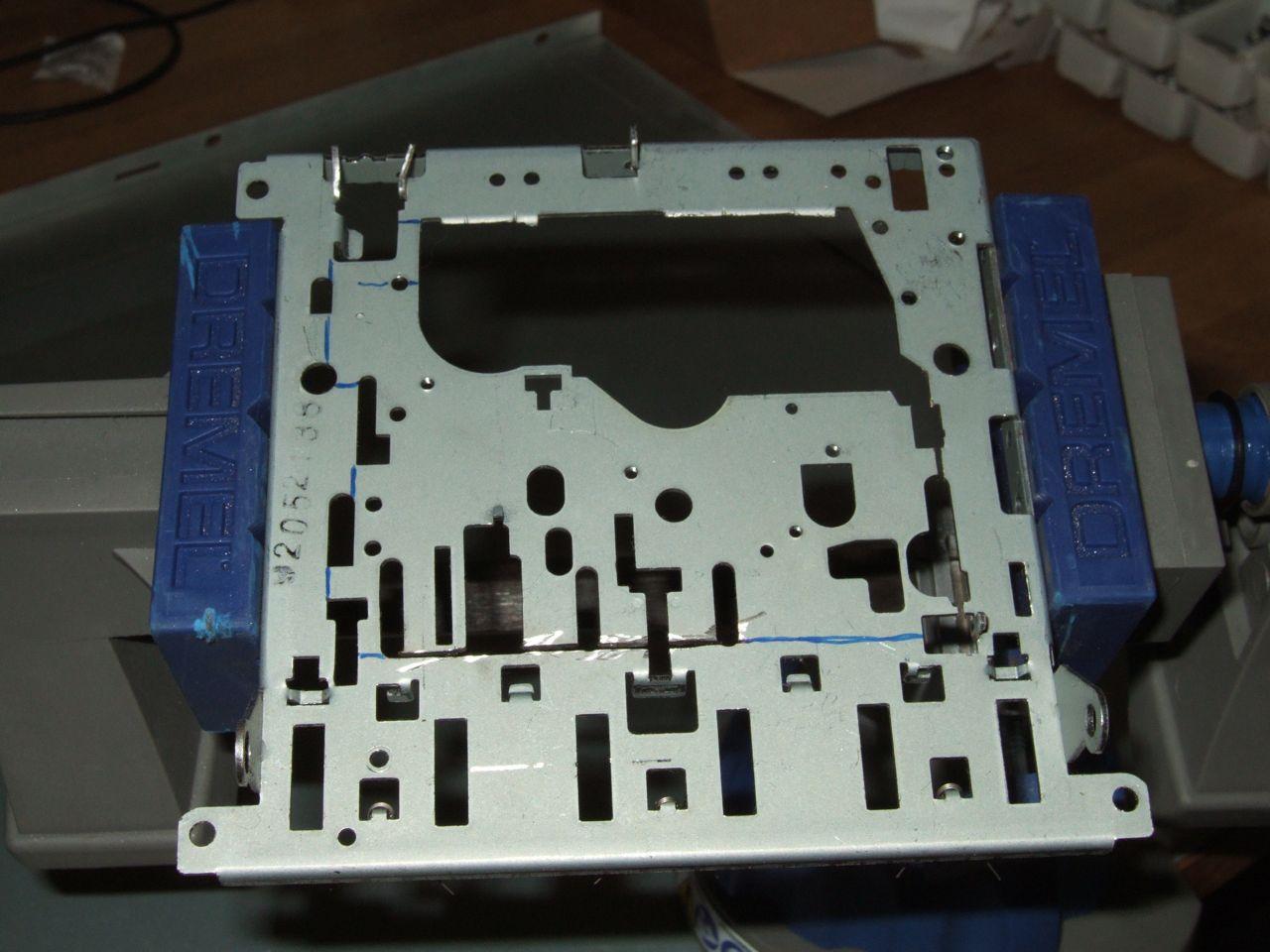

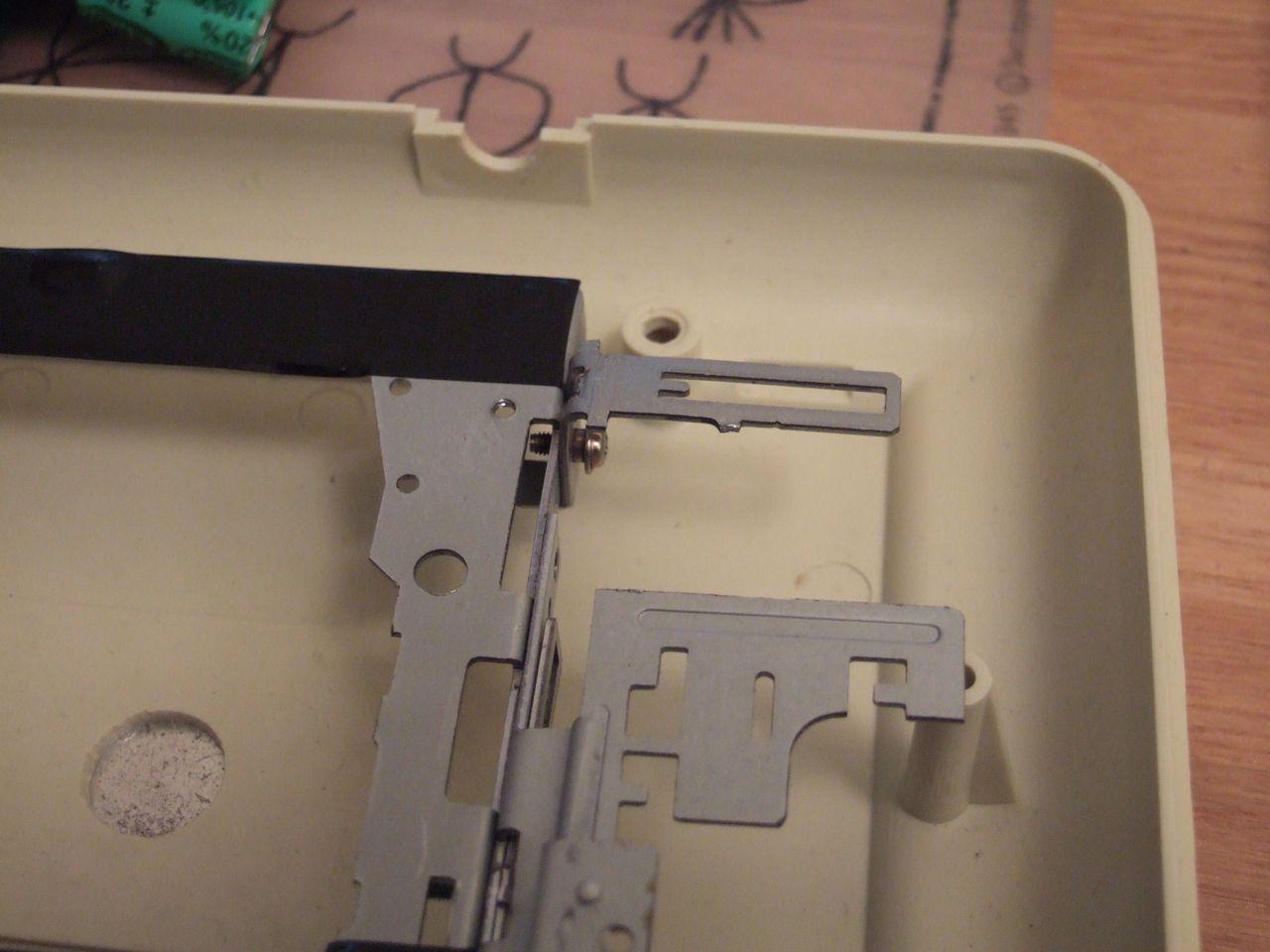

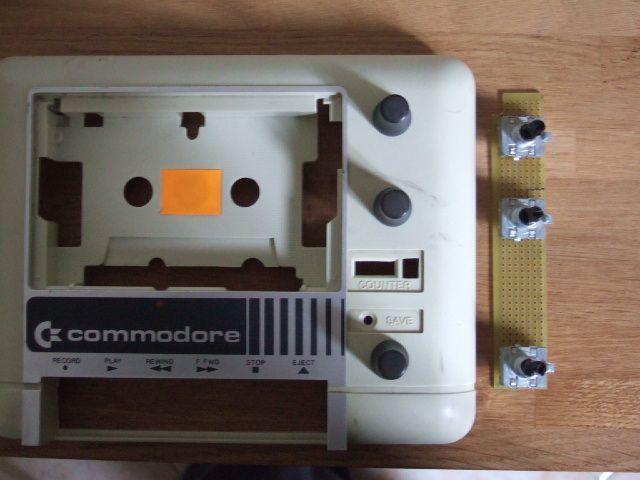

I’ve have reused many parts of the Datassette to create stands and supports for controls parts. 2 sid, 1 core, 3 encoders, 1 switch. All buttons are functional tact switch converted.

---

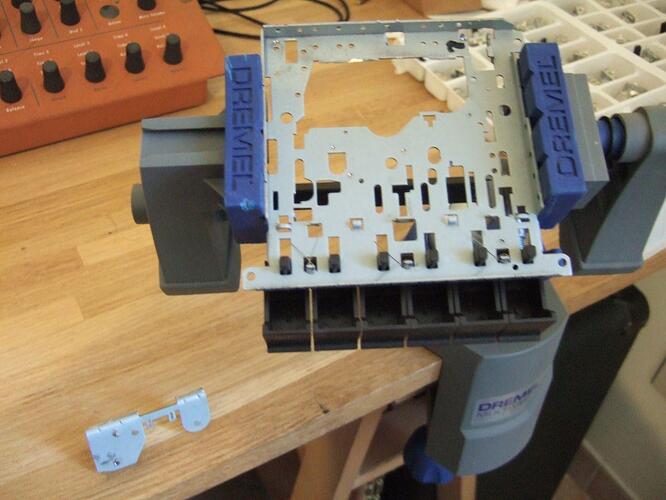

DSCF8017

DSCF8018

DSCF8019

DSCF8022

DSCF8023

DSCF8027

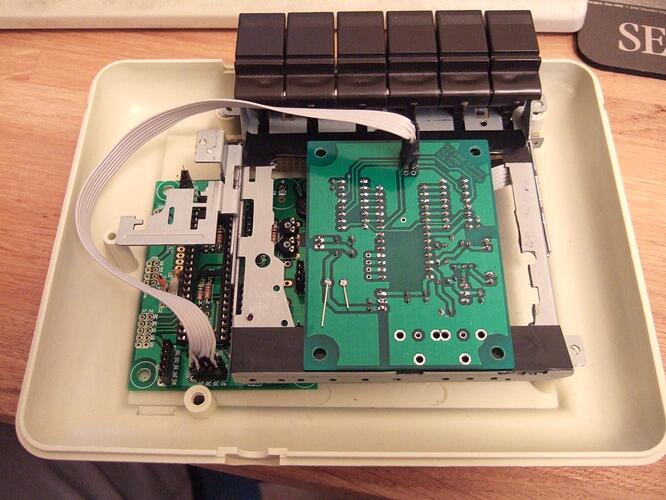

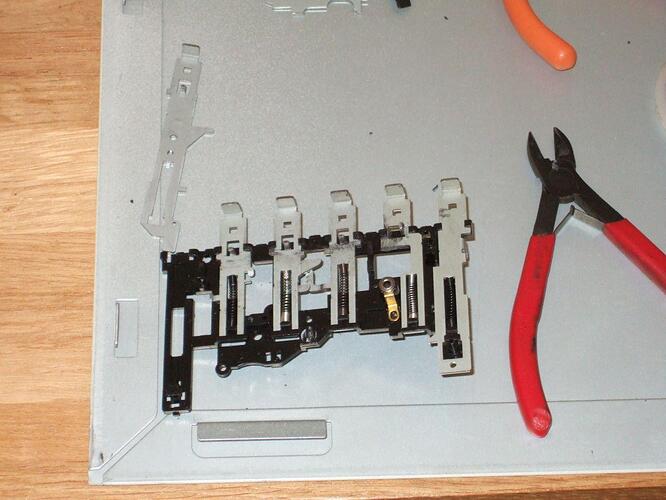

DSCF8034

DSCF8037

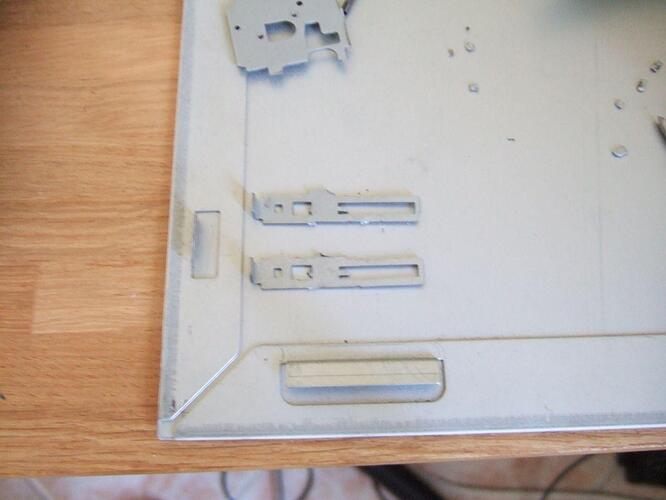

DSCF8040

DSCF8042

DSCF8047

DSCF8049

DSCF8051

DSCF8052

DSCF8053

DSCF8055

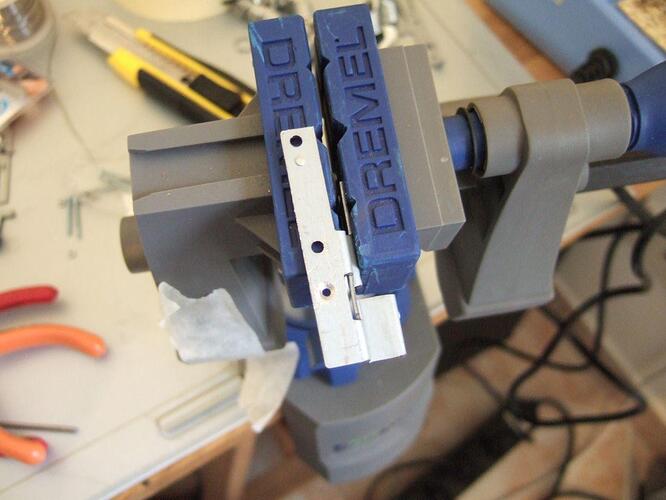

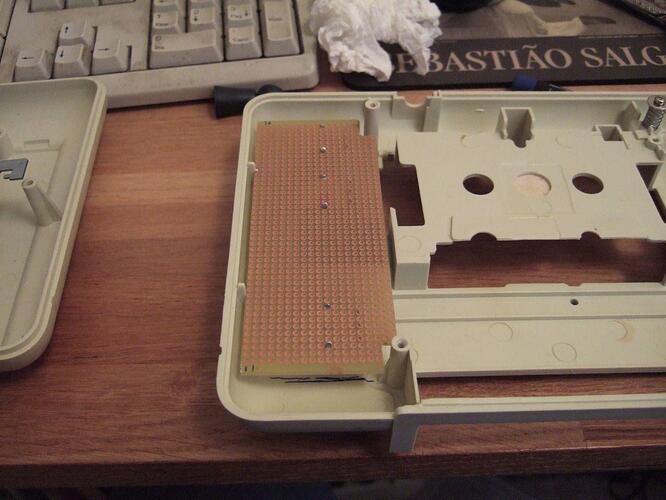

DSCF8058

DSCF8061

DSCF8065

DSCF8073

DSCF8075

DSCF8078

DSCF8079

DSCF8081

DSCF8082

DSCF8085

DSCF8089

DSCF8090

DSCF8091

DSCF8093

DSCF8094

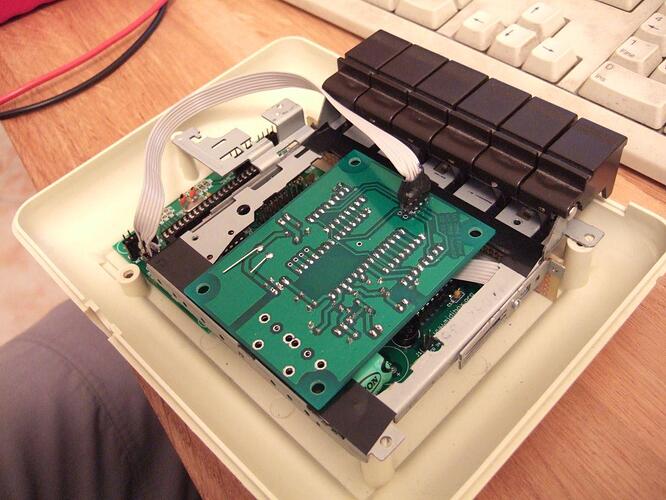

DSCF8095

DSCF8096

DSCF8097

DSCF8103

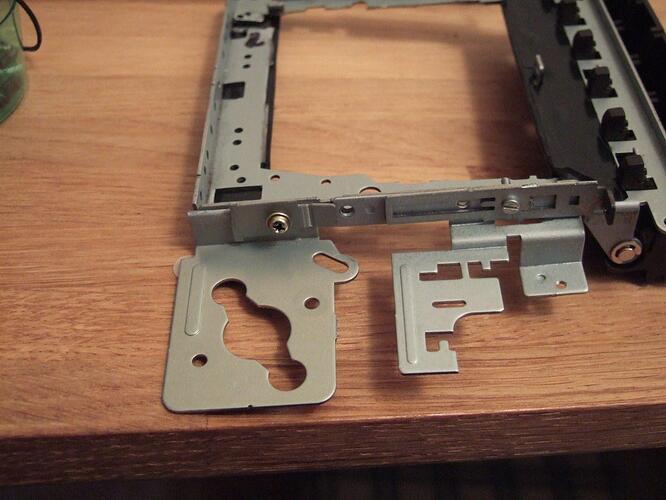

DSCF8104

DSCF8105

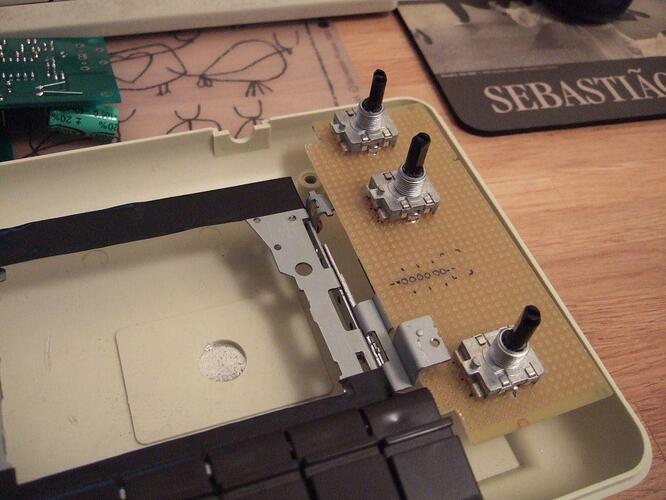

DSCF8106

DSCF8110

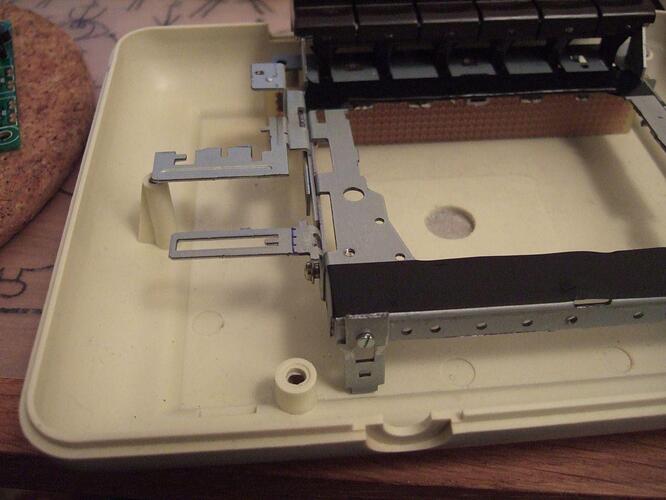

DSCF8111

DSCF8122

DSCF8123

DSCF8126

DSCF8127

DSCF8131

DSCF8135

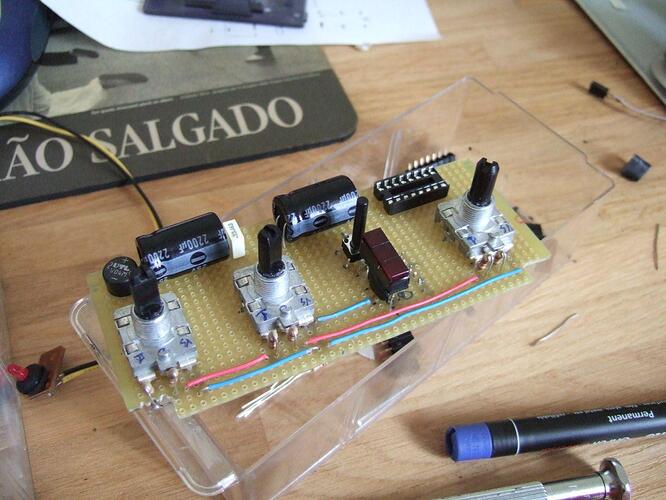

DSCF8136

DSCF8138

DSCF8139

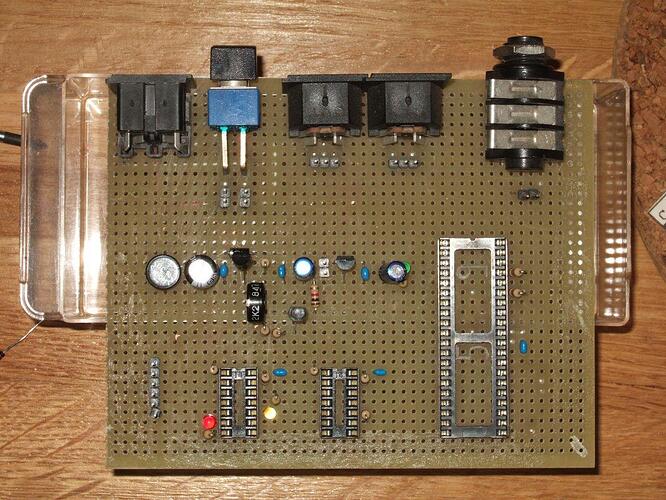

DSCF8148

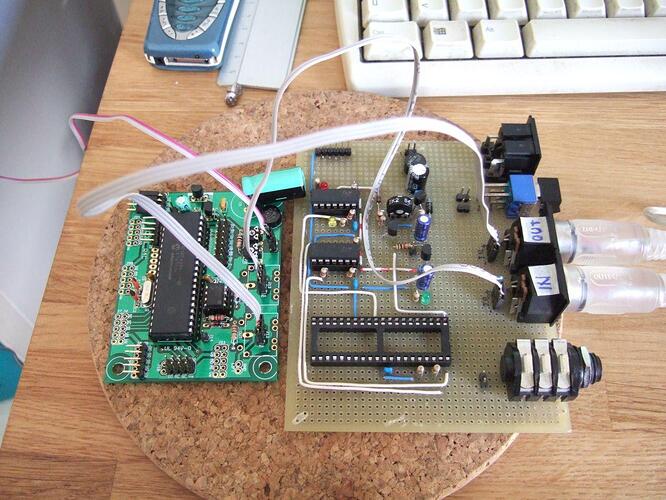

DSCF8156

DSCF8157

DSCF8159

DSCF8160

DSCF8162

DSCF8168

DSCF8176

DSCF8182

DSCF8183

DSCF8185

DSCF8188

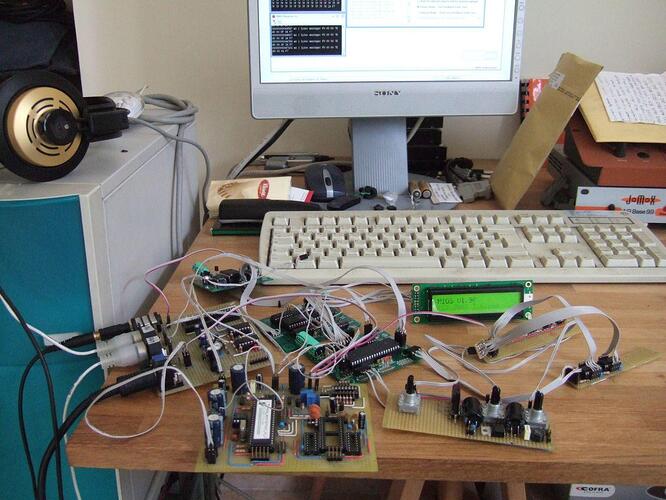

DSCF8192

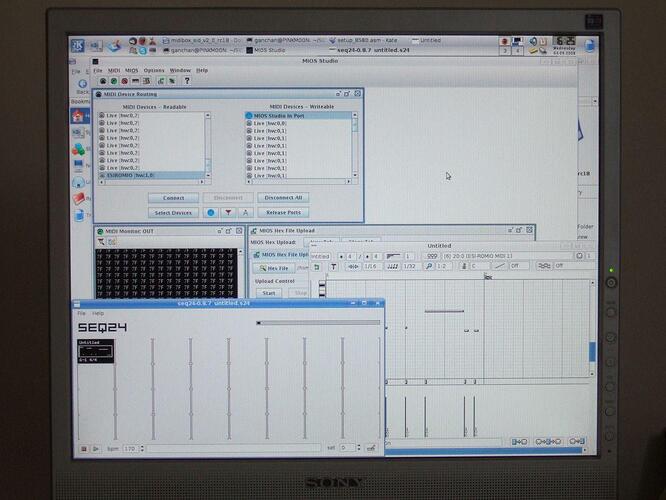

DSCF8193

DSCF8194

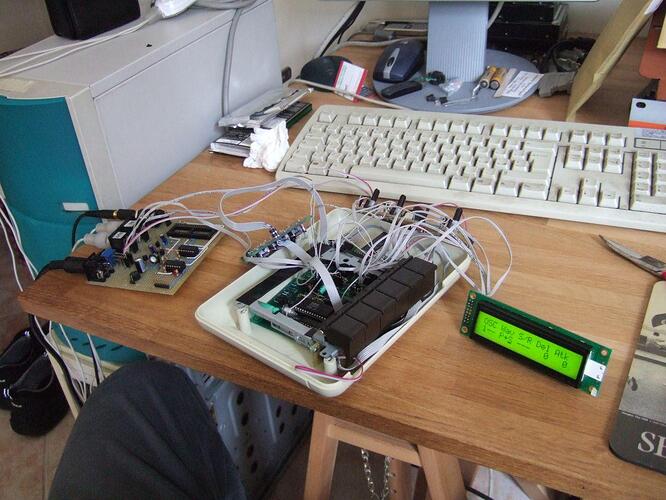

DSCF8196

DSCF8197

DSCF8208

DSCF8218

[technobreath]

Re: DSCF8208

Hehe nice. Building boxes with the casette player is always cool! Do the buttons have any function?

[technobreath]

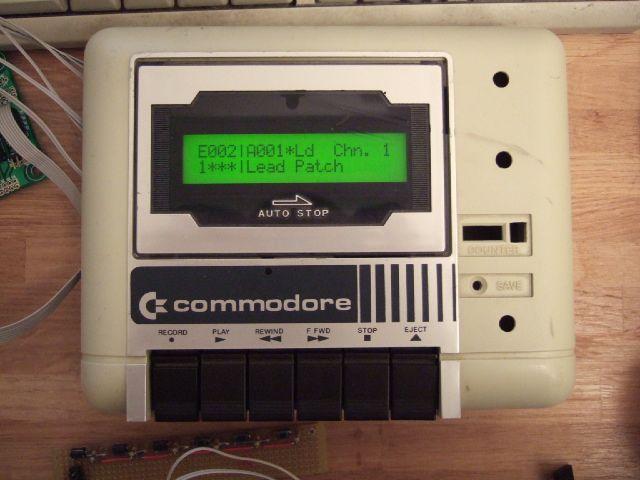

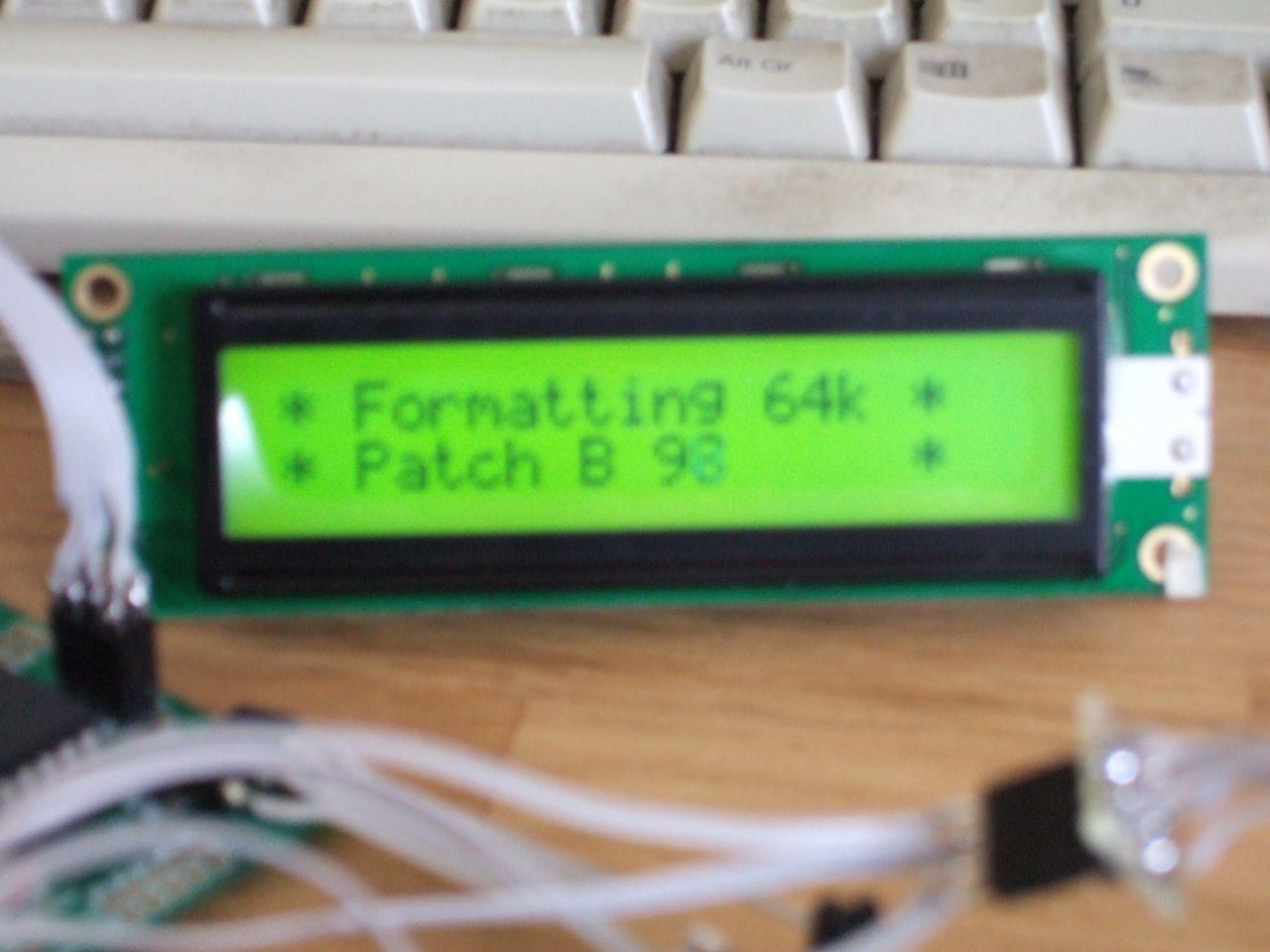

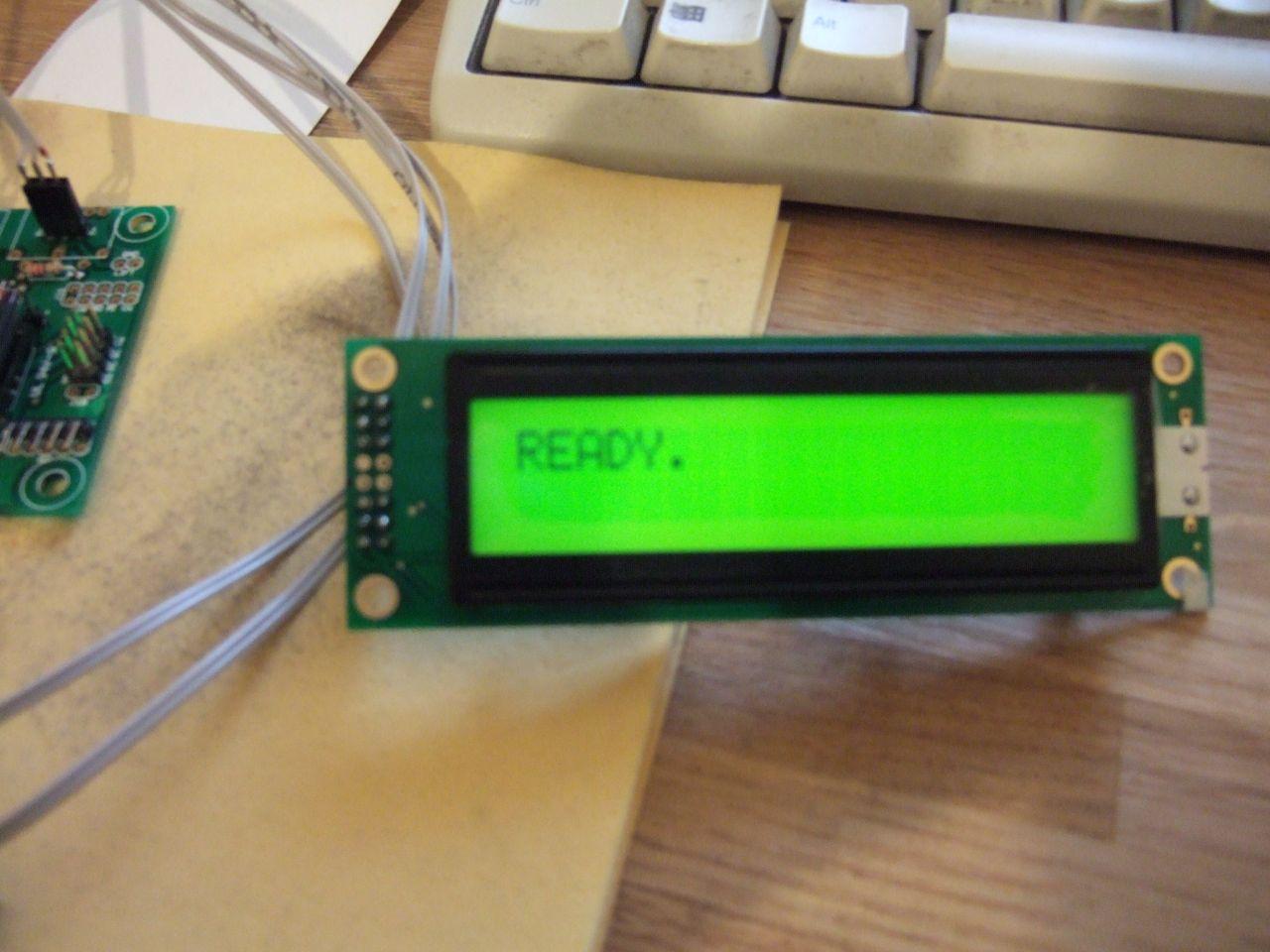

Re: DSCF8162

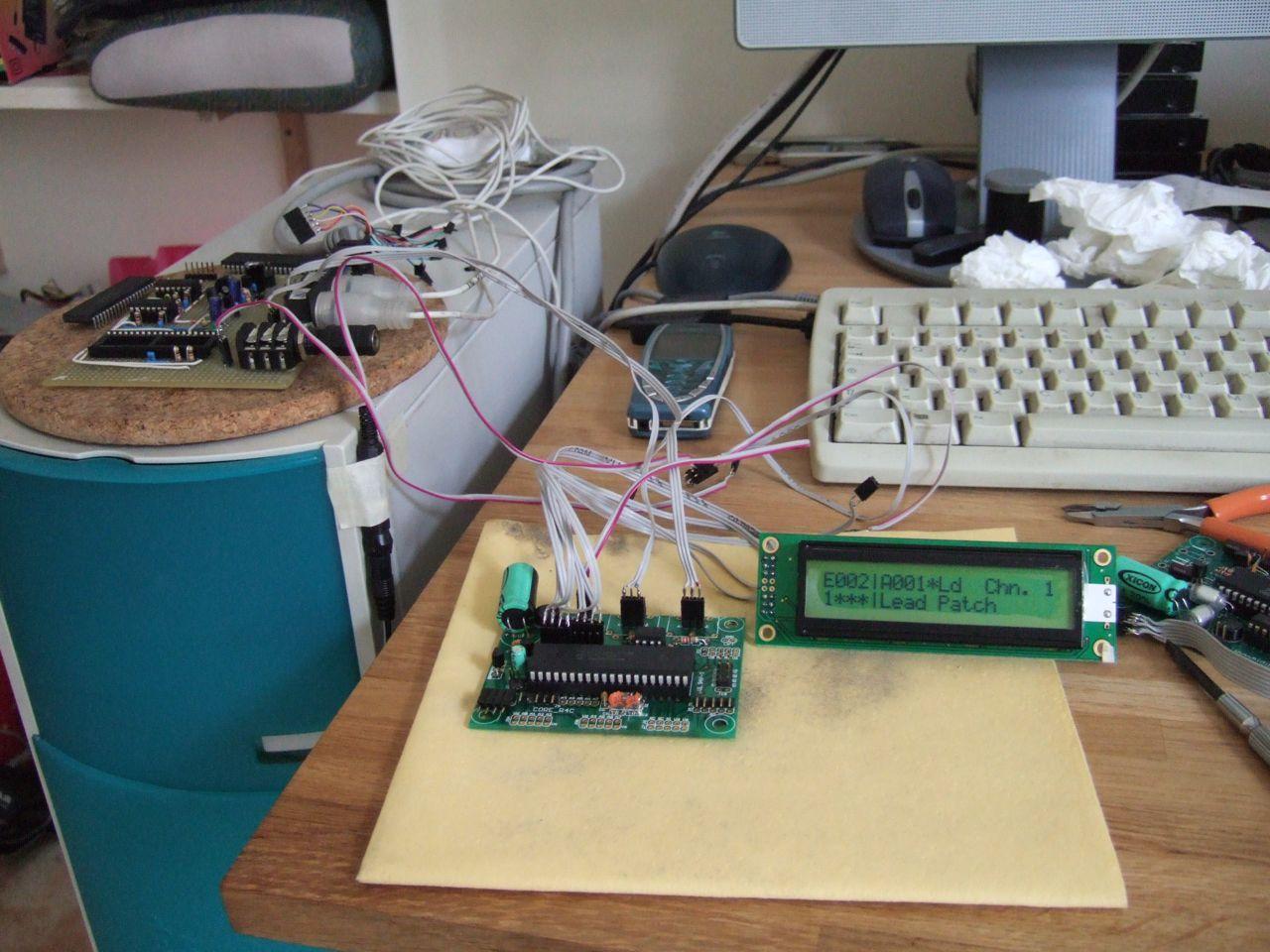

OK! I need to ask - what condition makes the display look like this? I’m building a new core, and can’t get it to work just yet - but the display looks exactly like this when I power up, and stays that way. Don’t know yet what’s wrong with it..
