Hi all,
First of all, thanks to TK for creating such an incredible Sequencer, this is the most advanced sequencer I’ve ever touched.
I’m new to the forum, just finished my MIDIbox SeqV4 and was wondering if anyone is so kind to let me know where I can find a SVG of a rounded button frontpanel for Wilba’s layout.
I think some of you developed a rounded button version of it, but tried with InkScape and I’m not able to handle it, too difficult for an old man…
Many thanks in advance!!
Hi jzurd0,
If you find one, let me know, cause I search too.
If not, and this is not superurgent,

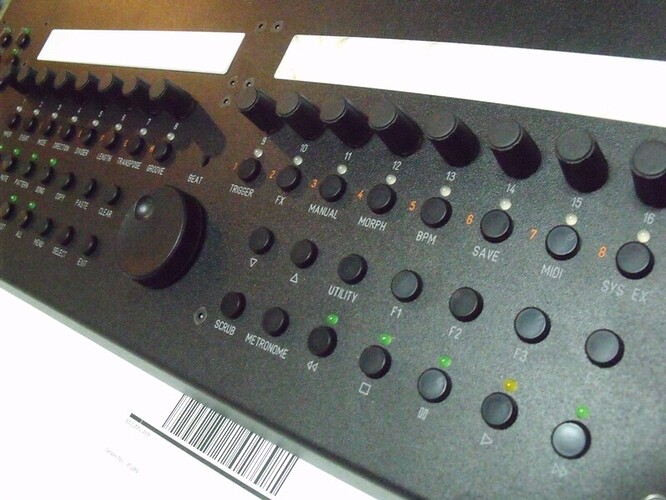

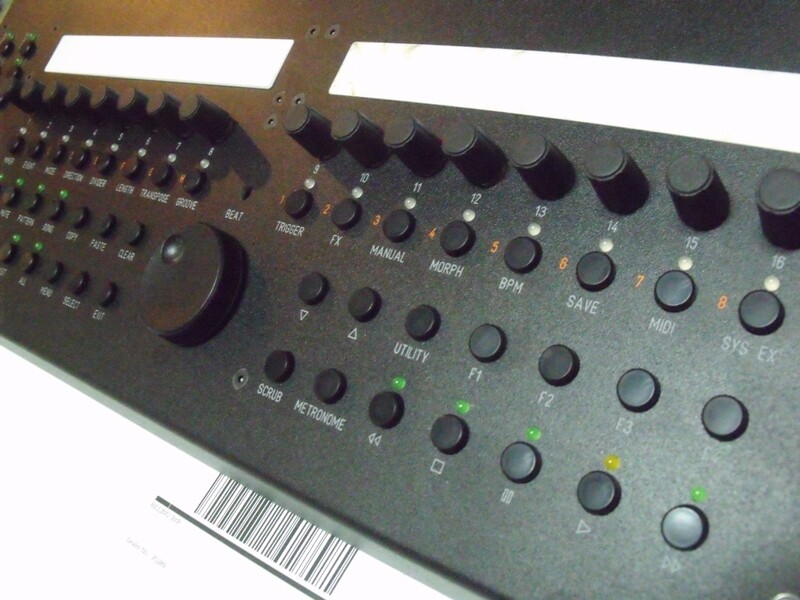

I will build my wilba this year with round buttons like this …
I will design a Frontpanel in inkscape and share it here …
Hey, Thanks!
I think Altitude (I believe he is a member of this forum) did one.
But find it a bit harsh to contact him privately, so I hope he would read this and let us know.
Thats very nice. I’m sure Altitude won’t mind if you PM him. This quite a friendly community.
I just PMed him
hi,

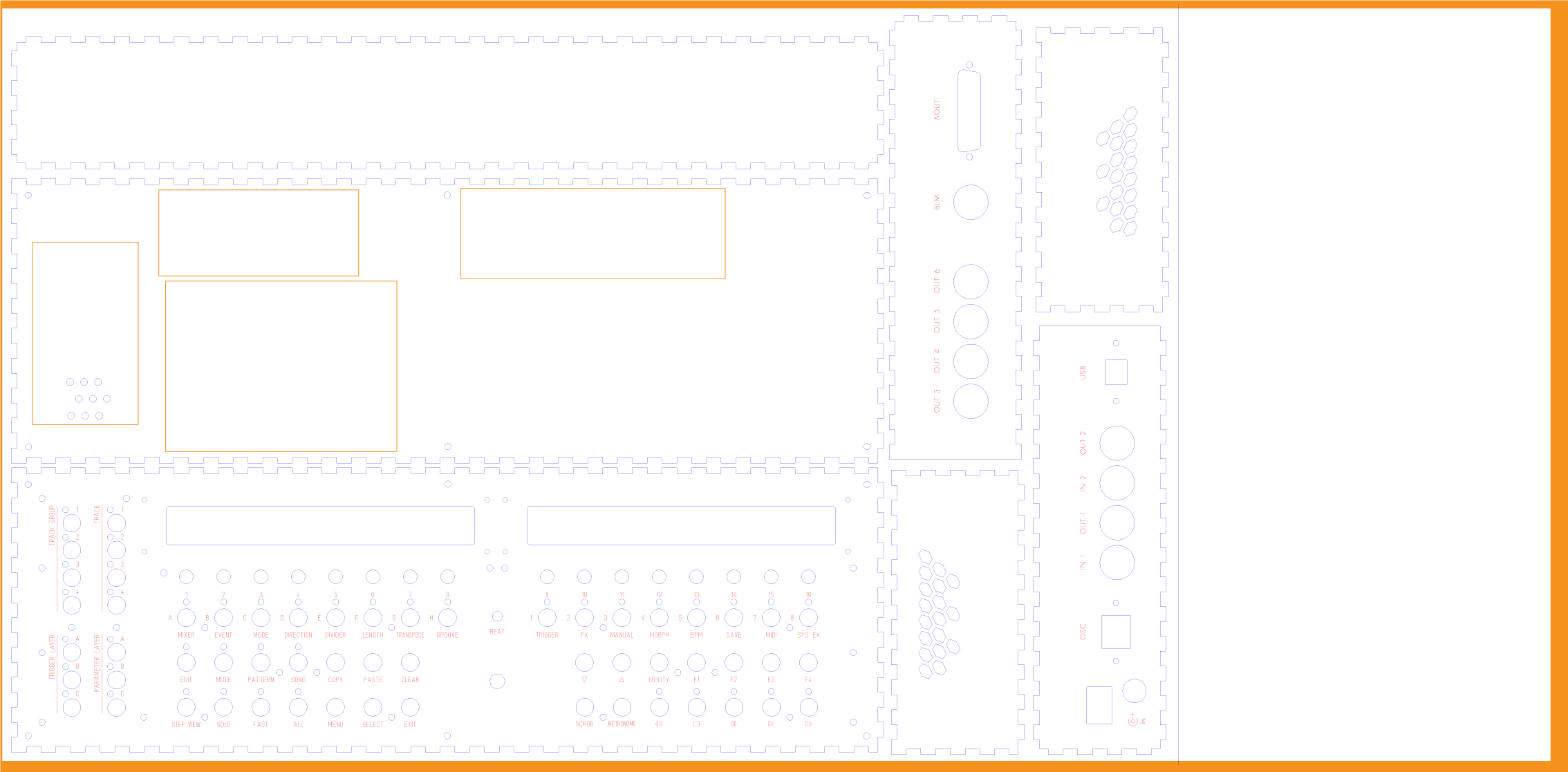

if you want to go the ponoko route, i made a design with rounded buttons..
It can be a bit better as the button holes are a bit loo large for mine (~0.5mm, but it’s still good enough) : the laser beam size must be included, so beware of that..

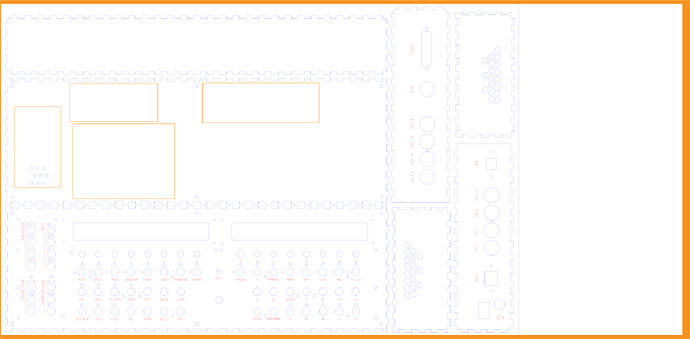

Fortunately, here is the svg file so you can modify it if needed
[seq_enclosure_pvi_3.svg.zip](< base_url >/applications/core/interface/file/attachment.php?id=12562)
Thanks !!
Could you please let me know which switches/caps did you use?
Thanks again!!!

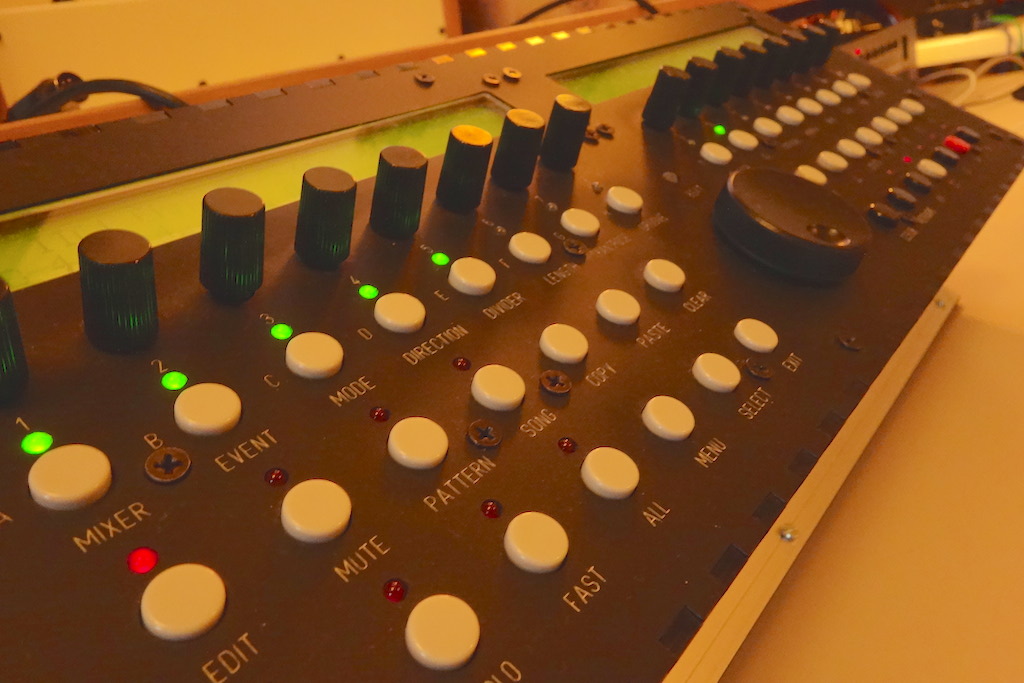

the caps are chip one from ebay, like those :
the top diameter is 9mm.
WOW!!!
Thanks again!
yes, they are cheap, but there is a cost for that :
they do not fit exactly with standard tact switch : i had to put some tiny piece of wood inside the caps to allow them to push correctly the switch.. not a big deal but it has to be said
The Sonic-Potion’s LXR uses these kind of the caps. We found that putting a small ball of blu-tack in the switch made for a good way to make them grip on and stop wobbling. Love how it gives it that Electron look.
Hi all,
Looking for laser cutting companies just checked with Formulor (Germany) and an Acrylic 3mm box goes up to 90 Euros with shipping; isn’t it a bit high? or it is a normal price.
I’m not familiar with laser engraving pricing.
Any tip here?
Thanks a lot!!!
Keep in mind that if you use Acryl that has some transparancy, you do not need to cut all LEDs, simply place them under the acryl, zhey will blink through, saves a lot of money
18 hours ago, mongrol said:
The Sonic-Potion’s LXR uses these kind of the caps. We found that putting a small ball of blu-tack in the switch made for a good way to make them grip on and stop wobbling. Love how it gives it that Electron look.
You can find the buttons at mouser too. The MI Anushri Eurorack uses them: 611-F0203 en 611-21125. I found that just squeezing the bottom part helps a lot for fitting them with TL1100.
21 minutes ago, jzurd0 said:
Hi all,
Looking for laser cutting companies just checked with Formulor (Germany) and an Acrylic 3mm box goes up to 90 Euros with shipping; isn’t it a bit high? or it is a normal price.
I’m not familiar with laser engraving pricing.
Not sure where you are located but if i select the design of pawaga and include shipping i end up with a price of 75 Euro. But then i go with black 3mm.
@pawaga. How are you mounting the boards inside the case? The CS will be mounted to the top panel with 10mm standoffs I assume. What about the core and midi boards? Are they just mounted to the bottom panel with washers for a little space? Do you have straight through standoffs going from the CS PCB to the Core or midi boards? I assume there’s some straight through standoffs from CS down to the bottom panel. What size are they?
yes, the cs is mounted with 10mm standoff,
the midi io and quad iic are mounted on 12 mm standoff.
the core on 10mm standoff.
there are also 6 extra standoff from cs to bottom, they are ~ 61mm long : 2x 25mm + 1x10mm + 1 washer to make it really tight

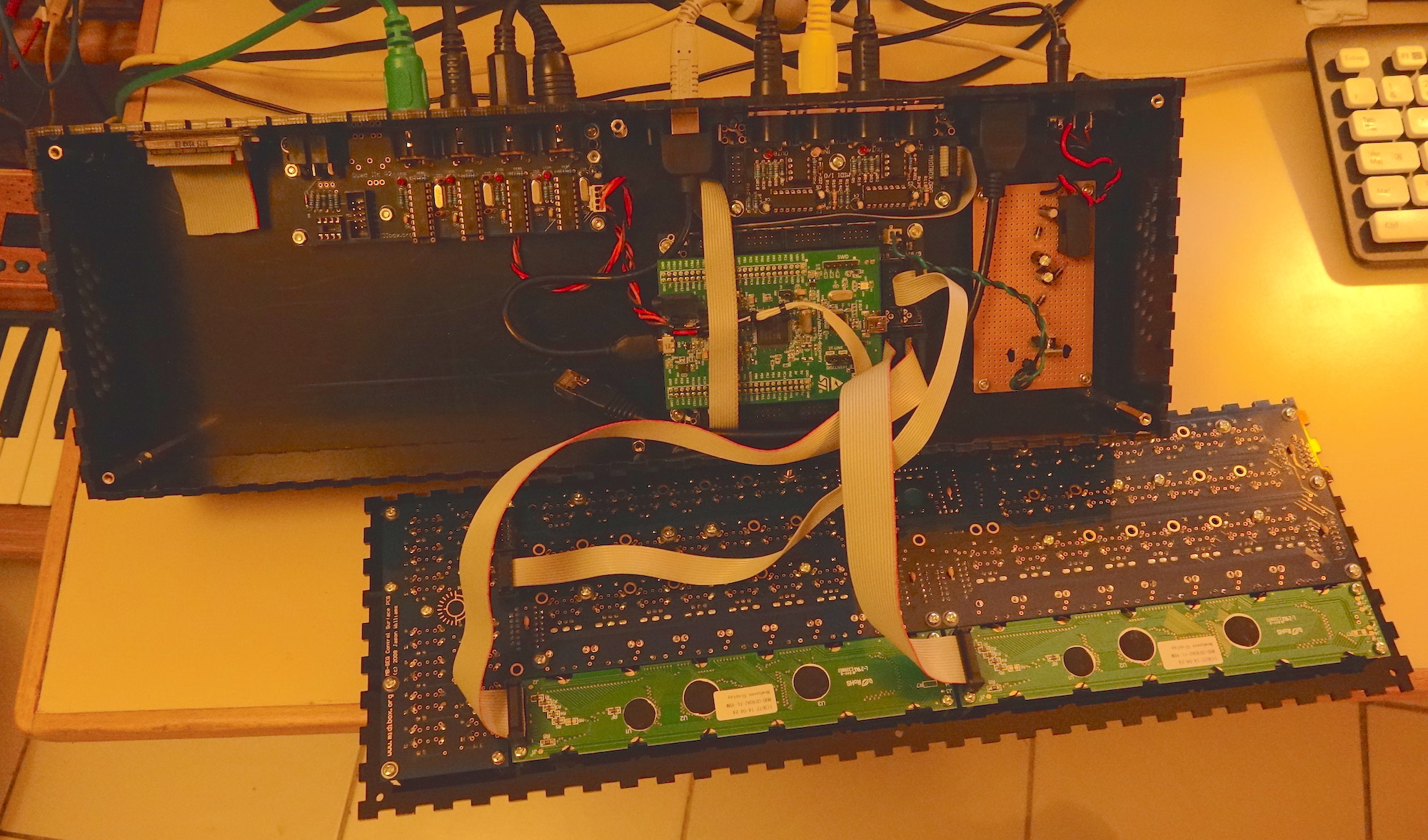

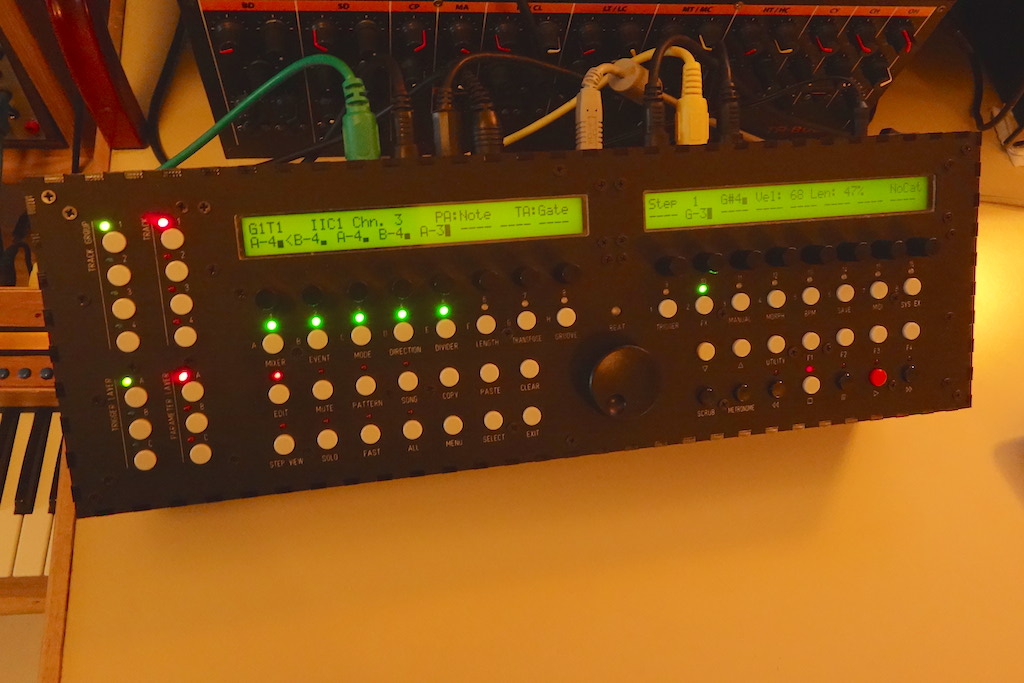

here is a shoot of the inside :
cewl pawaga! you’ve got a USB extender cable in there (between the midio’s)? and is that an ethernet cable connected to a d25 (right of the righthand midi)? and a custom 5v stabilizer i presume on the veroboard?
yes it is !
cheapo panel mount usb and ethernet plugs, from the bay.
*beware* of the screw holes for the usb adapter, they are a little bit too distant (~1mm each ; it works as it is but it should be better).

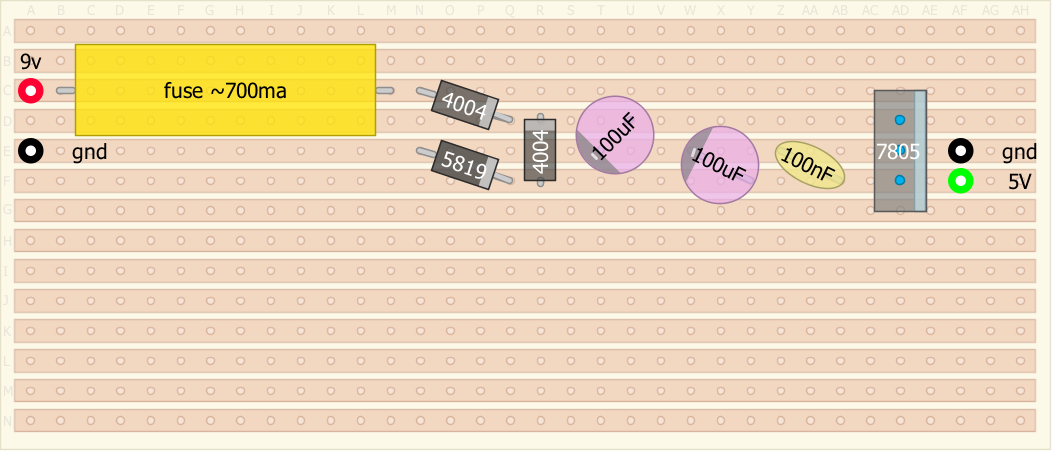

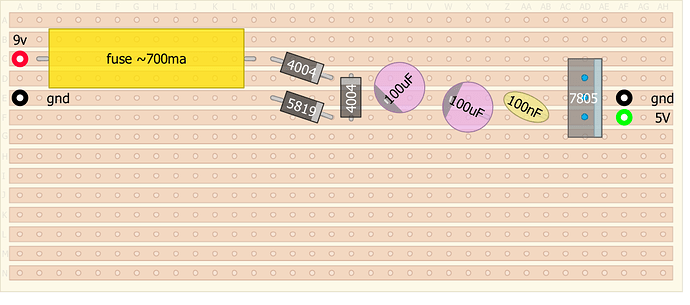

Here is the regulator board layout, adapted from the ambika schematics :
about the usb panel mount screw holes, i send an updated version of the svg file in the original post,
i’m not sure it’s 100% perfect but it should be good now. Of course you should check with datasheets if possible.
Awesome. Thanks a lot pawage. Is there any reason you extended the panel outside the CS and ran extra straight from panel to bottom standoffs in the corners and edges? I’d like to shave that bit off and make the panel fit as tight to the CS as possble and just go “panel -> CS -> bottom” only.
