MIDIbox Quad Genesis

MIDIbox Gallery

Sauraen August 17, 2017, 4:51pm 1

Album by Sauraen
Gallery category: midibox-gallery

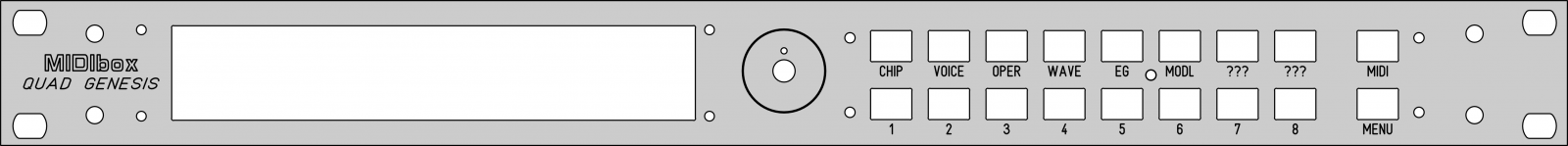

MIDIbox Quad Genesis: Demo Front Panel

See Yogi’s proposed project in /topic/19073-midibox-fm-v21-on-stm32f4/?do=embed&embedDo=findComment%3Fcomment%3D169102" frameborder=“0” data-embedcontent=“”>

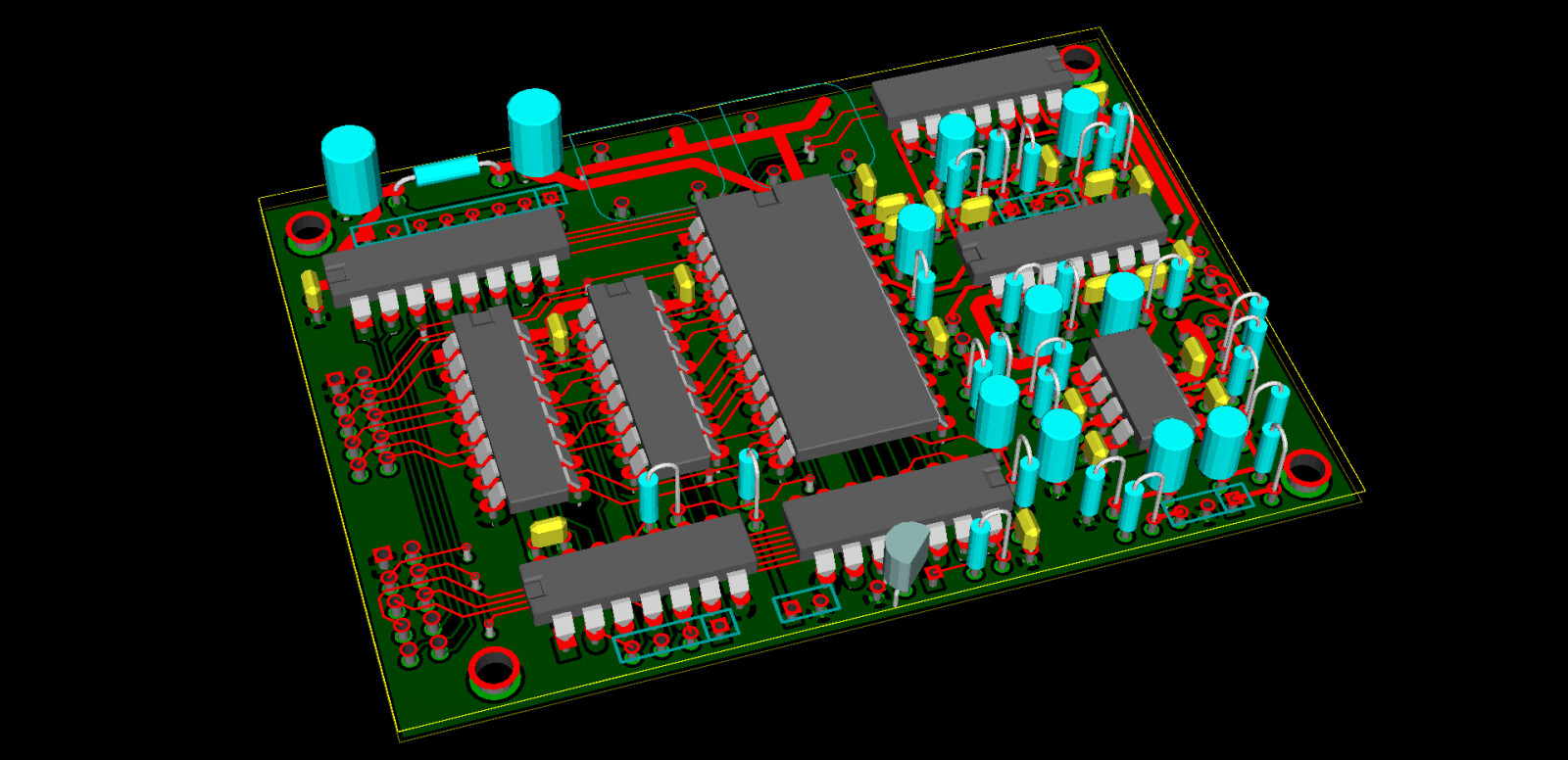

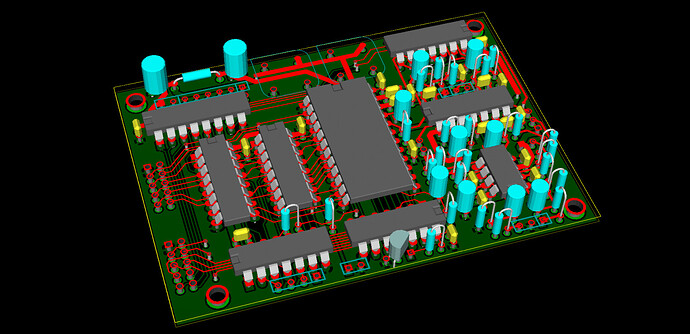

MBHP_Genesis Module Board (Draft) (3D Render)

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

MBHP_Genesis Board (Draft)

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

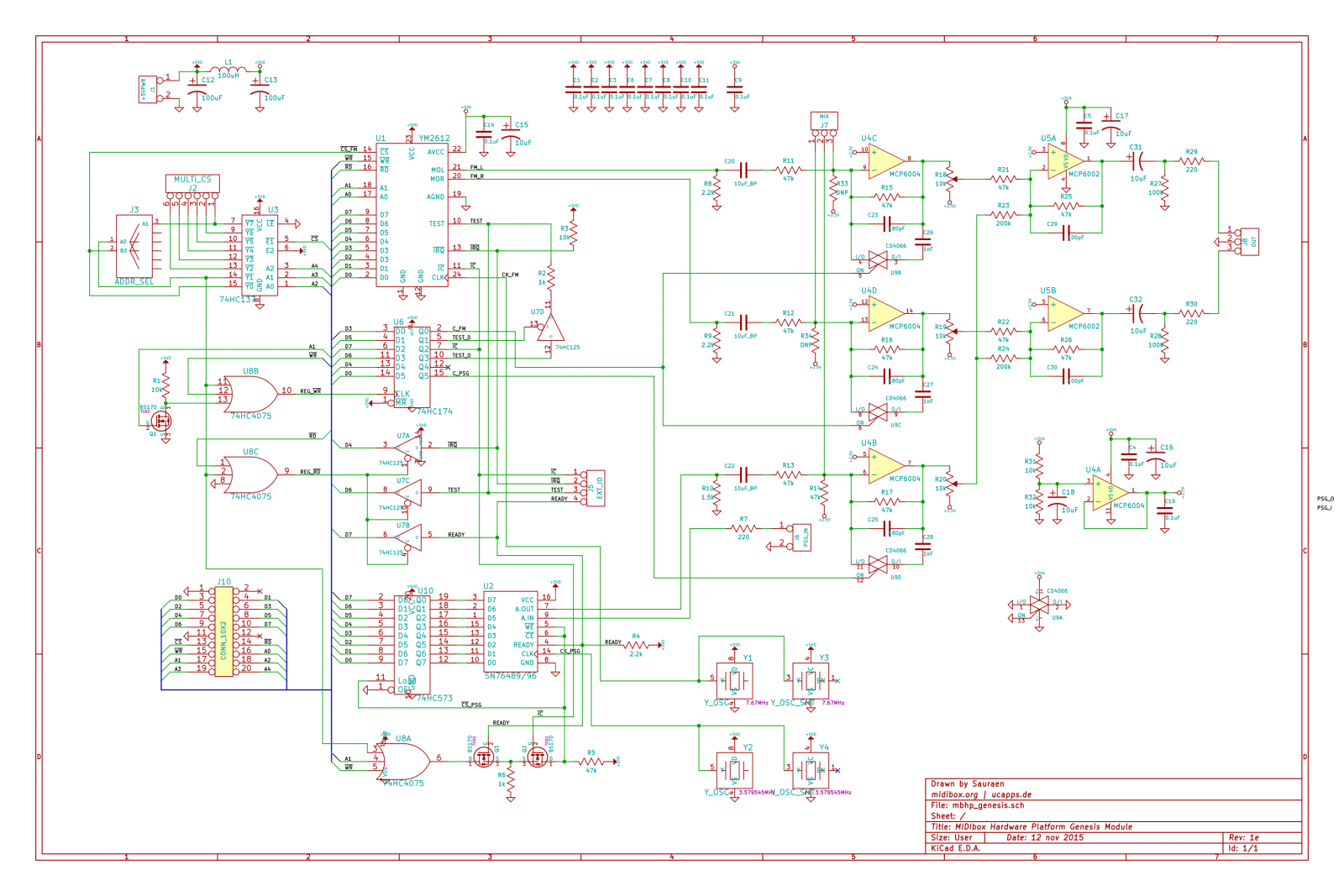

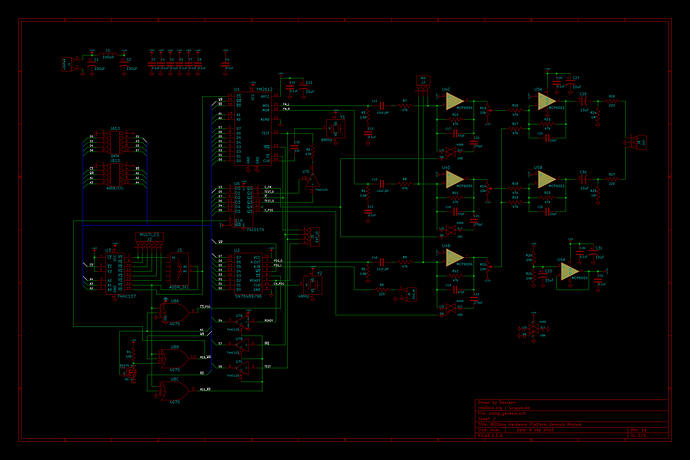

MBHP_Genesis Module Schematic (Draft)

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

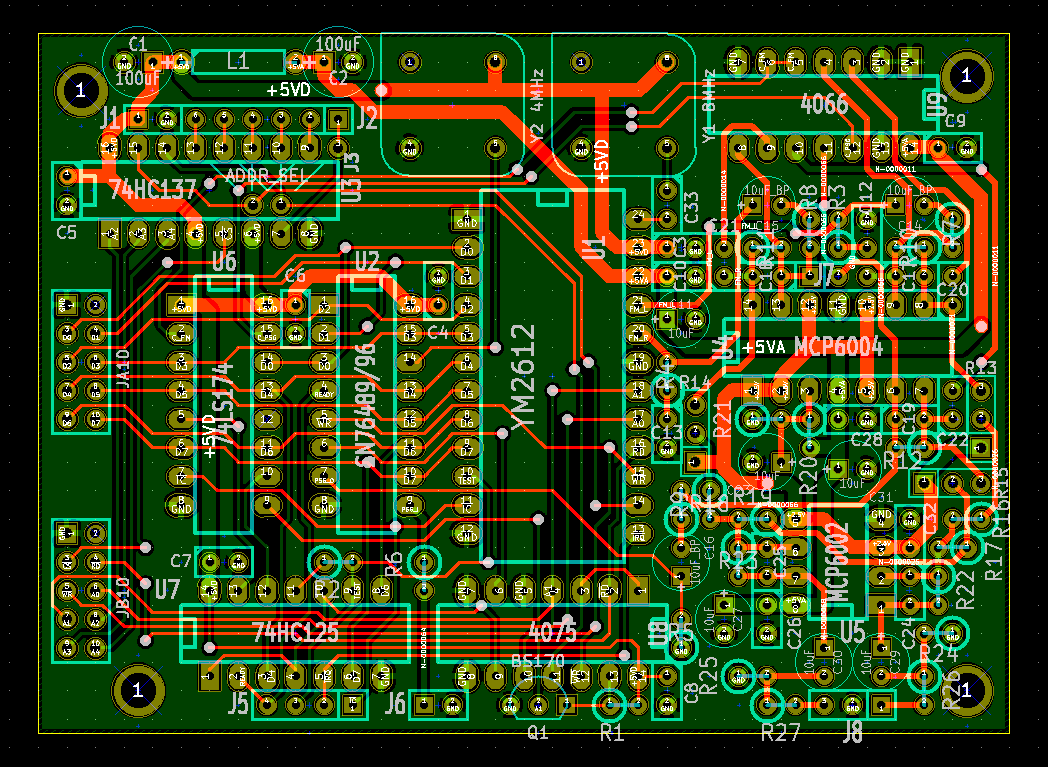

MBHP_Genesis Module (ver. 1b) Board

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

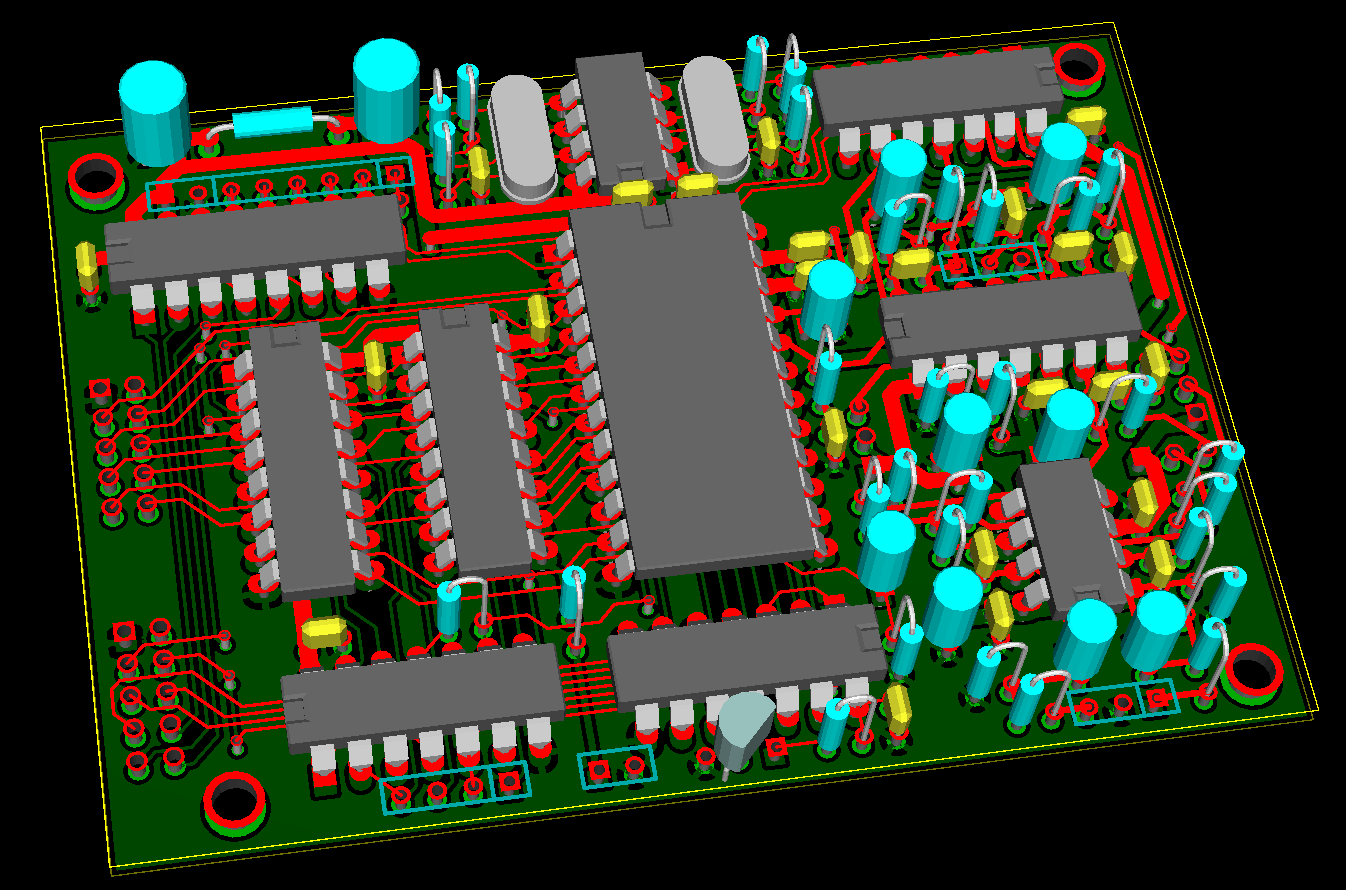

MBHP_Genesis Module (ver. 1b) Board 3D View

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

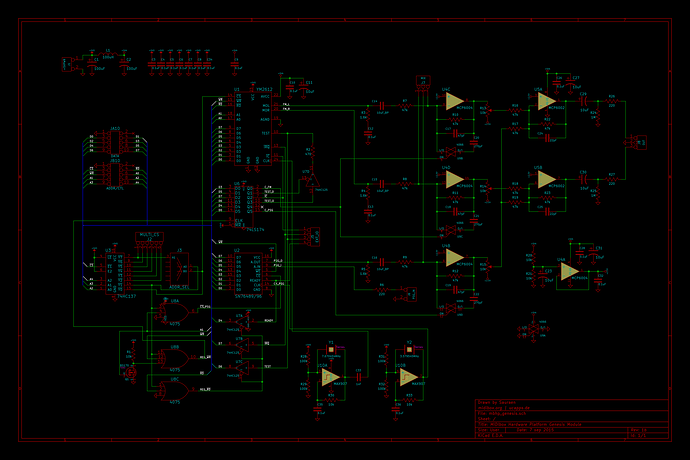

MBHP_Genesis Module (ver. 1b) Schematic

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

MBHP_Genesis Module Rev 1d - Board Layout

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

MBHP_Genesis Module Rev 1d - Board 3D View

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

MBHP_Genesis Module Rev 1d - Schematic

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

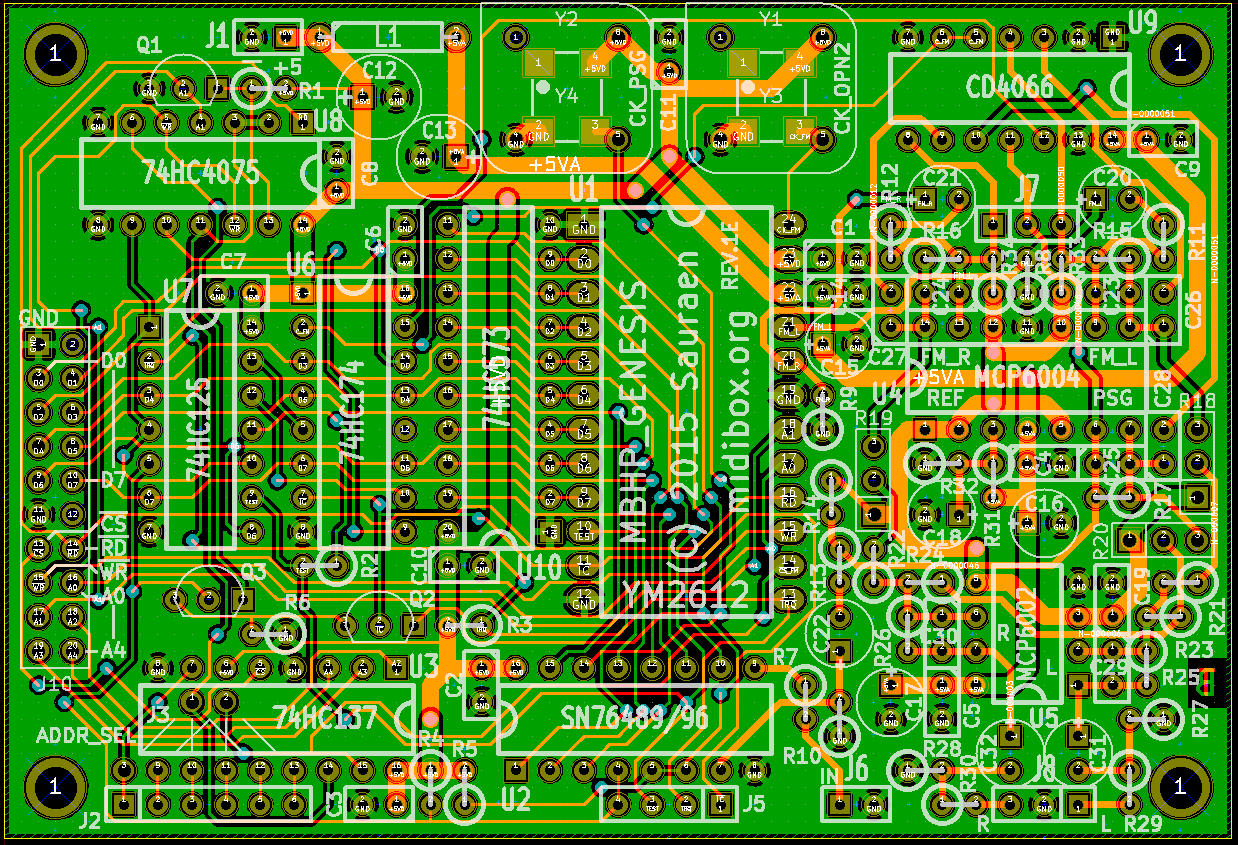

MBHP_Genesis Module Rev. 1e (Production) - Board

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

MBHP_Genesis Module Rev. 1e (Production) - Board 3D render

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

OLD VERSION MBHP_Genesis Module Rev. 1e (Production) - Schematic

There is an updated schematic available:

/gallery/image/3166-mbhp_genesis-schematic-rev-1e2-for-use-with-rev-1e-boards/?do=embed">

See also [http://midibox.org/forums/topic/19678-midibox-quad-genesis/](/topic/19678-midibox-quad-genesis/)

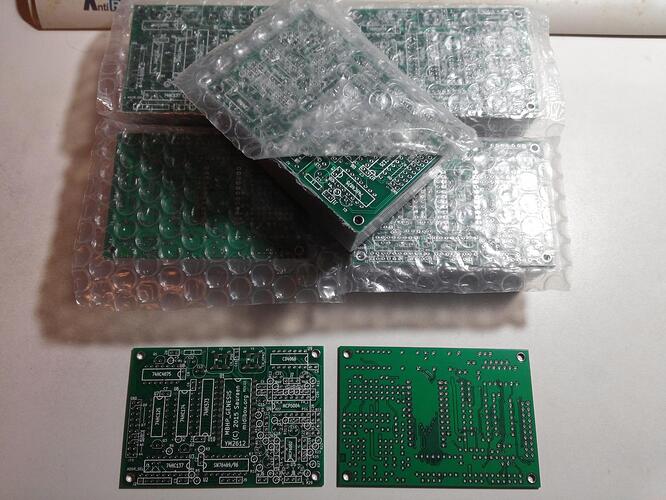

MBHP_Genesis boards arrived!

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

MBHP_Genesis Board (Rev 1e) (Back)

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

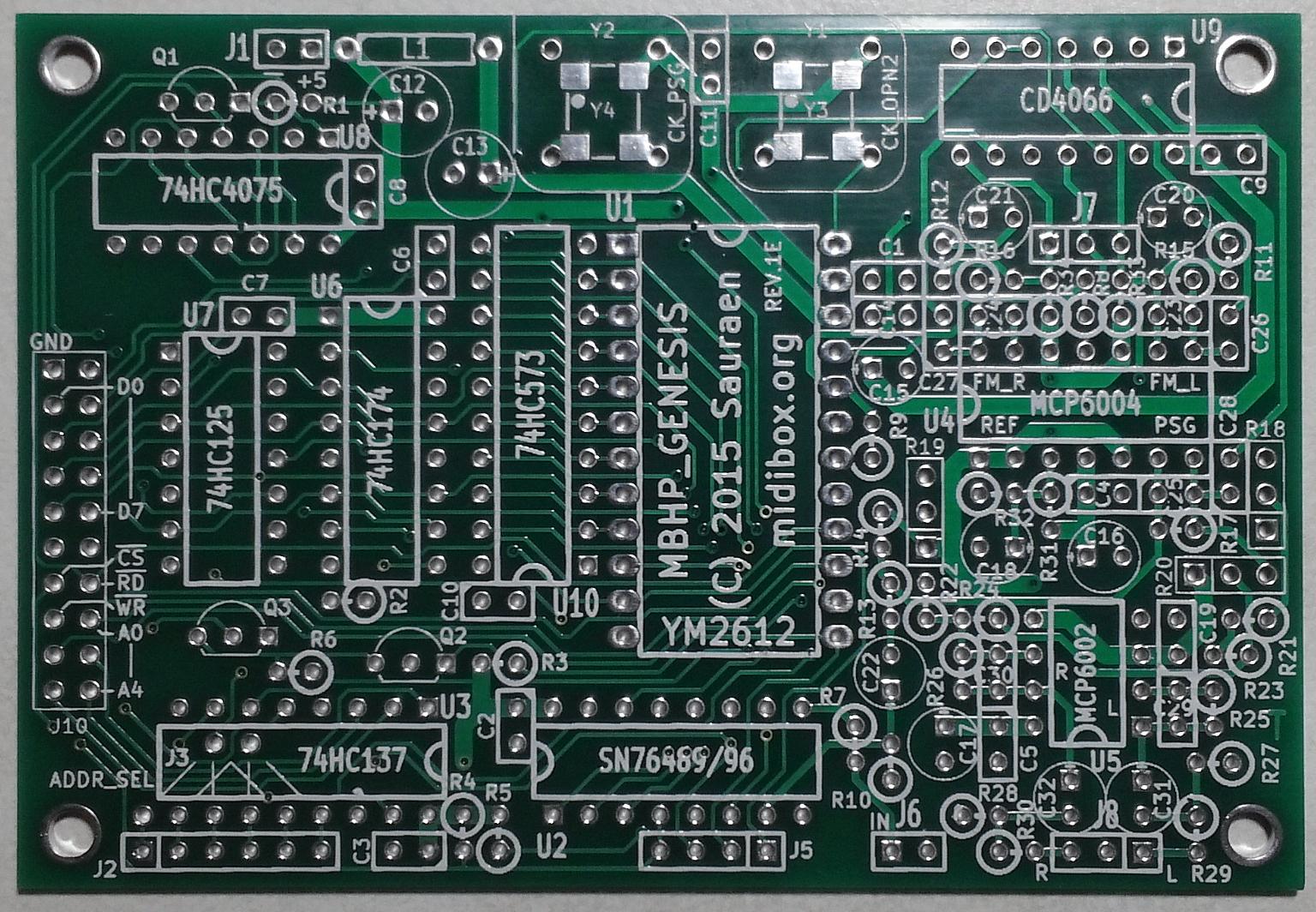

MBHP_Genesis Board (Rev 1e) (Front)

See http://midibox.org/forums/topic/19678-midibox-quad-genesis/

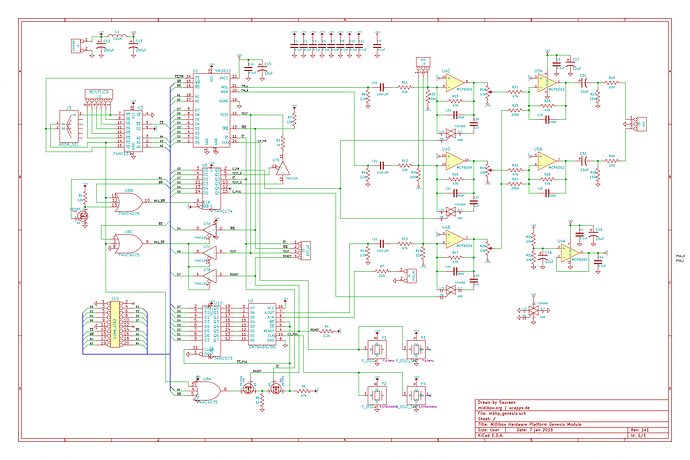

OLD VERSION MBHP_Genesis module schematic (rev. 1e1, for use with boards rev. 1e)

This is an old version of the schematic, please use

/gallery/image/3166-mbhp_genesis-schematic-rev-1e2-for-use-with-rev-1e-boards/?do=embed">

MIDIbox Quad Genesis Front Panel Mockup

See

/topic/19678-midibox-quad-genesis/?do=embed">

MBHP_Genesis Board Dimensions

See http://wiki.midibox.org/doku.php?id=mbhp_genesis

MBQG Unit 01 VGM progress.jpg

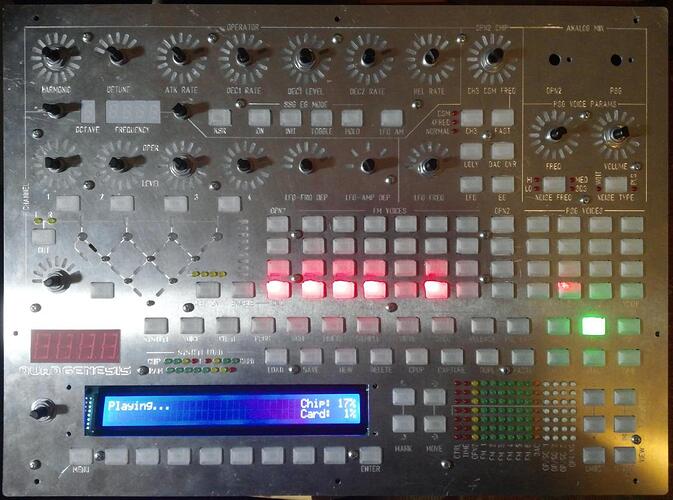

MIDIbox Quad Genesis (Unit 01) – VGM module progress

See

/topic/19678-midibox-quad-genesis/?do=embed&embedComment=174441&embedDo=findComment&page=3#comment-174441">

MBHP_Genesis_LS schematic

See http://wiki.midibox.org/doku.php?id=mbhp_genesis_ls

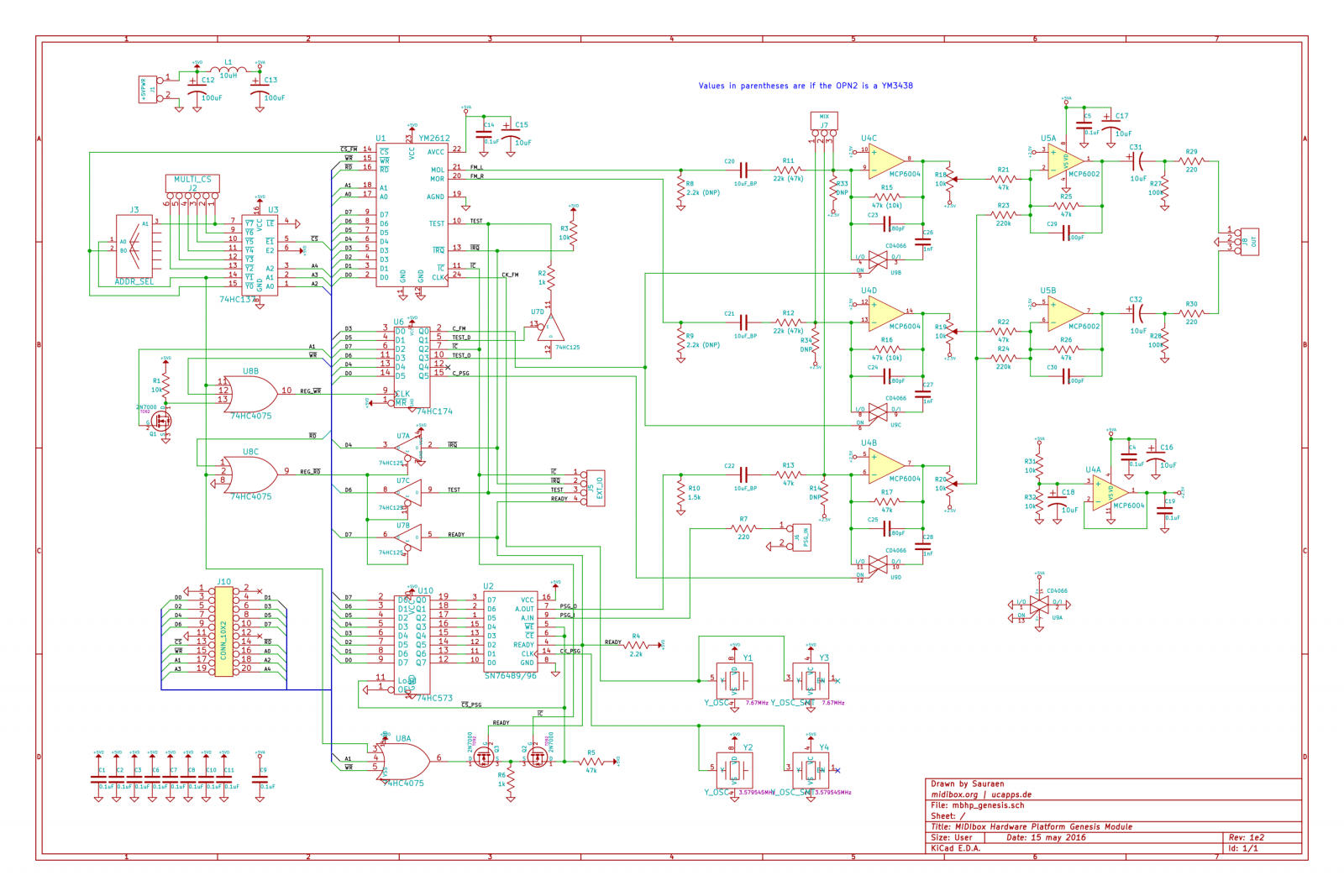

MBHP_Genesis Schematic rev. 1e2 (for use with rev. 1e boards)

This is the schematic to use with MBHP_Genesis boards labeled “Rev. 1e”, as it has a few updated resistor values and a couple other minor changes.

MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Most LEDs On

See http://wiki.midibox.org/doku.php?id=mbqg_fp

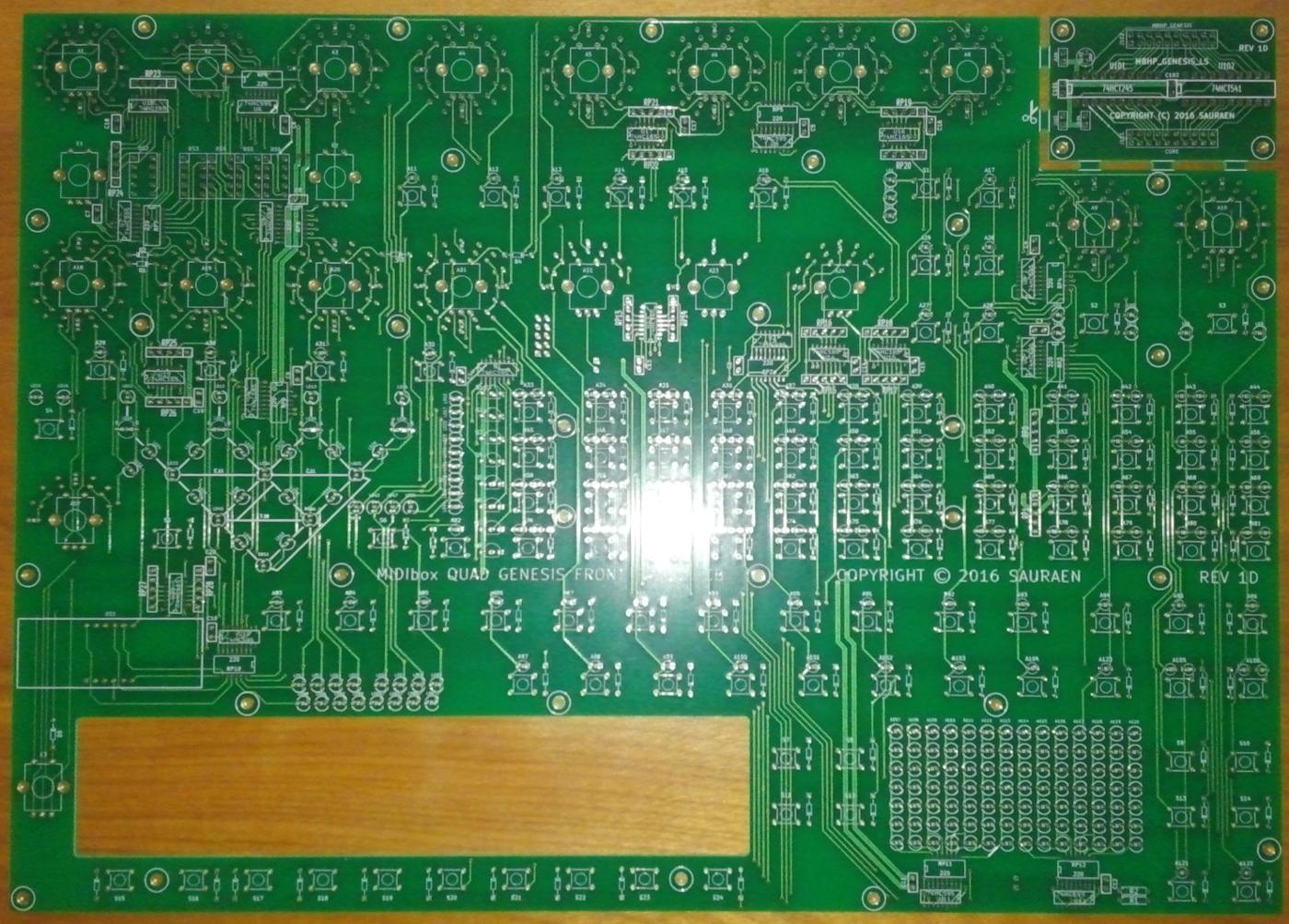

MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Back

See http://wiki.midibox.org/doku.php?id=mbqg_fp

MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Front

See http://wiki.midibox.org/doku.php?id=mbqg_fp

MBQG_FP Board Schematic

See http://wiki.midibox.org/doku.php?id=mbqg_fp

MIDIbox Quad Genesis: Finished insides

/topic/19678-midibox-quad-genesis/?do=embed">

MIDIbox Quad Genesis: Finished insides

/topic/19678-midibox-quad-genesis/?do=embed">

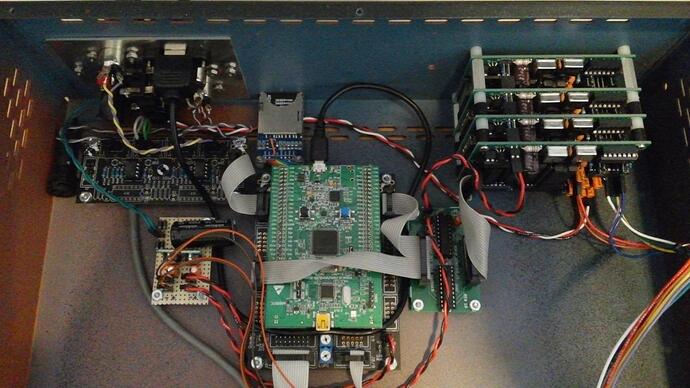

MIDIbox Quad Genesis: Finished insides (2)

/topic/19678-midibox-quad-genesis/?do=embed">

MIDIbox Quad Genesis: Finished insides (2)

/topic/19678-midibox-quad-genesis/?do=embed">

latigid_on February 2, 2017, 11:16am 2

Re: MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Most LEDs On

Very pretty! May I ask what current you’re driving through the LEDs? Do you experience any voltage sag/droop at the 595 anode outs? The story apparently goes, that if you’re drawing more than 5-6mA (continuous) through a 595 output pin, the source voltage will decrease. http://electronics.stackexchange.com/questions/77841/how-much-current-can-my-74hc595-handle-on-each-output-pin

While keeping in the MIDIbox paradigm of ordinary shift register chips, one thought is to add PNP BJTs as "current sources" (moreso voltage sources due to constant current sinks on the cathodes). Any thoughts on this?

Sauraen February 3, 2017, 5:47pm 3

Re: MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Most LEDs On

	On 2/2/2017 at 3:16 AM, latigid on said:




		Very pretty! May I ask what current you're driving through the LEDs? Do you experience any voltage sag/droop at the 595 anode outs? The story apparently goes, that if you're drawing more than 5-6mA (continuous) through a 595 output pin, the source voltage will decrease. [http://electronics.stackexchange.com/questions/77841/how-much-current-can-my-74hc595-handle-on-each-output-pin](http://electronics.stackexchange.com/questions/77841/how-much-current-can-my-74hc595-handle-on-each-output-pin)



		While keeping in the MIDIbox paradigm of ordinary shift register chips, one thought is to add PNP BJTs as "current sources" (moreso voltage sources due to constant current sinks on the cathodes). Any thoughts on this?





The current-limiting resistors are 220 ohms, so roughly (5 - 2.1) / 220 = 13mA. This was the third MIDIbox I built with 595's directly driving LEDs (at least the anodes), and I haven't had any trouble with it, so I never looked into it. This picture is actually a year old, I just put it up because I've gotten some interest in other people building these Genesis synths.

Psykhaze February 4, 2017, 12:56am 4

Re: MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Most LEDs On

No 74HC541 at all ? if yes your pinout should be pretty optimal regarding the huge CS!
Edit : seems not after looking the wiki but i see some NMOSFET , so everything is not under direct driving ?

Psykhaze February 4, 2017, 1:12am 5

Re: MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Most LEDs On

	On 02/02/2017 at 0:16 PM, latigid on said:




		while keeping in the MIDIbox paradigm of ordinary shift register chips, one thought is to add PNP BJTs as "current sources" (moreso voltage sources due to constant current sinks on the cathodes). Any thoughts on this?





I agree on BJT/ MOSFETs thing . It's -in theory- better to keep the splitting between Power and Control (once again in theory , shift register first paradigm is long term support and easiness of use before everything)

The hybrid role that shift register play help to keep things simple , wich is kinda important in the DIY , with lowered BOM advantage etc. and it can be buffered with 74HC541 in case of huge config.

I am impressed by the huge load you managed to have on shift registers /profile/10357-sauraen/">@Sauraen

However for example (individual) PWM is kind of hard to manage with shift registers,it's a bit sad. I saw about Maxim MAX6966 and MAX6960 as nice LED expanders, offering individual PWM Control.

But i still have to write a driver , the nicest part ahah x)

Sauraen February 4, 2017, 5:57pm 6

Re: MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Most LEDs On

Oh, all three front panels have used row drivers; in MIDIbox ASIDITY it was a bunch of TO220 NMOSFETS, in MIDIbox FM V2.0 / V2.1 it was a Darlington array, and in this one it’s eight TO92 NMOSFETS, they’re right next to the orange LEDs in teh middle. Obviously the shift register pins can’t sink >1 amp!

But I don't quite understand the issue--MIDIboxes have been using BLMs with this scheme for 15 years. And in fact, since only one row is on at a time, having 8 or 16 rows from each pin of the shift register is just the same as having each shift register pin drive one single LED by itself. That's what the DOUT module is specifically designed for.



You're right about PWM, but I don't use dimming on any of these panels. :) I don't find that it's terribly useful to convey information to the user.

Psykhaze February 4, 2017, 6:23pm 7

Re: MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Most LEDs On

The “issue” i was trying to mention for -pure reference- was the case of Large RGB (matrixed) setup with PWM control. Otherwise everything is fine with Shift Registers on mono/bi color LEDs (with or w/o Power driver),maybe excepted the “low” refresh rate (wich is quite enough to drive a 16x16 blm @some hertz, so that’s not a real problem). it’s -only- technical improvement thoughts for the talking fun =)

m00dawg February 6, 2017, 4:26pm 8

Re: MIDIbox Quad Genesis Front Panel (MBQG_FP) PCB: Most LEDs On

Mmmk so first, this is absolutely gorgeous! Second, can I ask where you get your boards fabbed and how much?

Psykhaze February 7, 2017, 12:35pm 9

Re: MBQG_FP Board Schematic

Huge !
